Fermi bubbles, their origin and possible connection to cosmic rays near the Earth K. S. Cheng, D. Chernyshov, V. Dogiel, C. M. Ko

Outline • Morphology of Fermi bubbles • Discovery and modern day observations • Models of Fermi bubbles • Application to cosmic rays studies 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018

50 o Dobler (2010) Su+ (2010) 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018

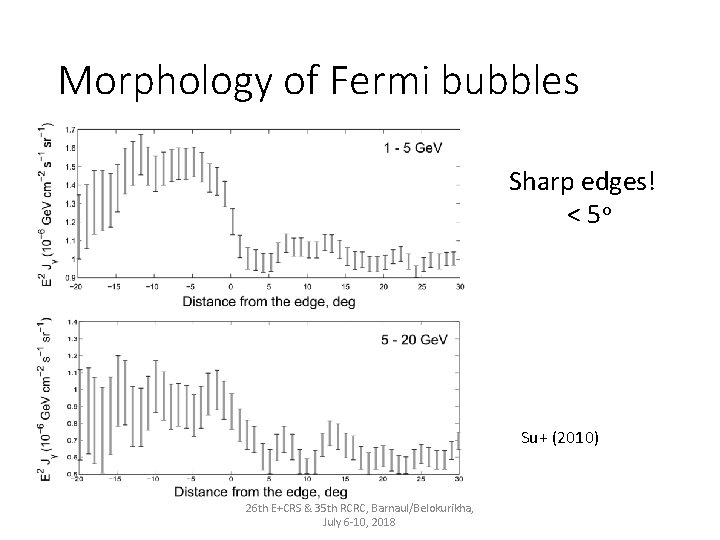

Morphology of Fermi bubbles Sharp edges! < 5 o Su+ (2010) 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018

Morphology of Fermi bubbles • Uniform brightness => edge-brightened emissivity • Almost uniform spectrum • 4 x 1037 erg/s 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, Ackermann+ (2014) July 6 -10, 2018

Important observational timestamps Bland-Hawthorn & Cohen (2003) X-Ray shell Finkbeiner (2004) WMAP “haze” Dobler (2010), Su+ (2010) Fermi bubbles Kataoka+ (2013) X-Ray shell Planck Collab. (2013) Planck “haze” Hooper & Slatyer (2013) Yang (2014) Ackermann+ (2014) Fermi bubbles 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018 Pshirkov+ (2016) M 31 bubbles?

Discovery and counterparts Bland-Hawthorn & Cohen 2003, ROSAT – X-Rays 1. 5 ke. V. • X-ray shell near the position of FB • Limb brightening: no emission from the center • n=10 -2 cm-3, T = 2 ke. V 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018

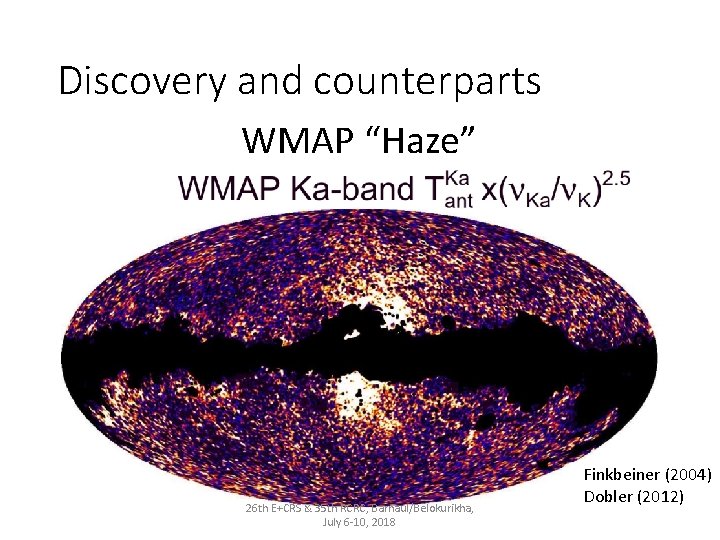

Discovery and counterparts WMAP “Haze” 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018 Finkbeiner (2004) Dobler (2012)

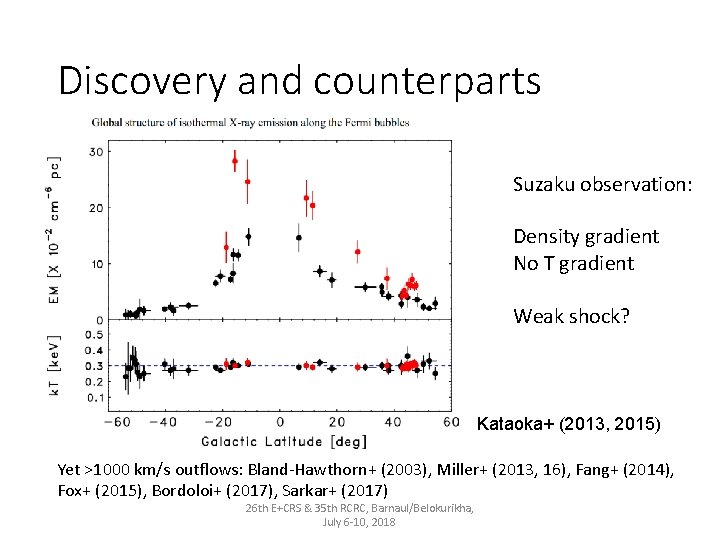

Discovery and counterparts Suzaku observation: Density gradient No T gradient Weak shock? Kataoka+ (2013, 2015) Yet >1000 km/s outflows: Bland-Hawthorn+ (2003), Miller+ (2013, 16), Fang+ (2014), Fox+ (2015), Bordoloi+ (2017), Sarkar+ (2017) 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018

Discovery and counterparts Blue: gamma-rays Red and yellow: microwaves Hard spectrum: If synch, electrons ~ -2 Planck Collab. (2013) 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018

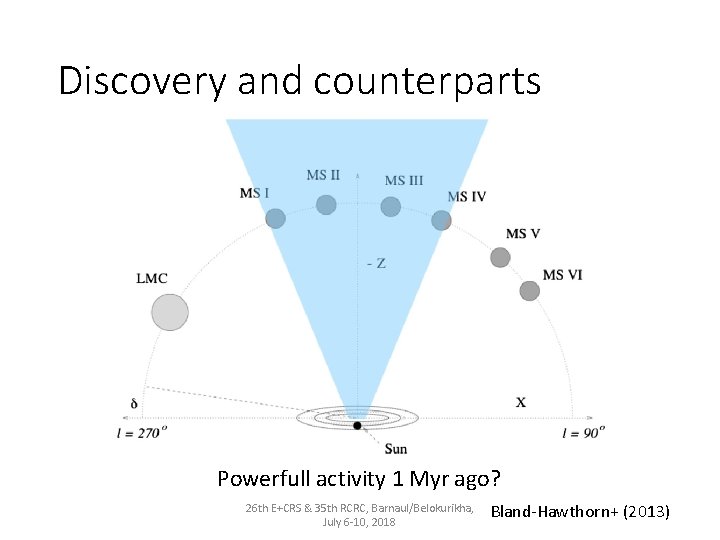

Discovery and counterparts Powerfull activity 1 Myr ago? 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018 Bland-Hawthorn+ (2013)

Models of Fermi bubbles Kompaneets (1960) Guo+ (2012) Leptonic/Hadronic jet Yang+ (2012, 2013) Barkov+ (2014) In-situ acceleration Hadronic wind Cheng+ (2011, 14, 15) Fujita+ (2013) Lacki (2014) Mersch+ (2011) Sasaki (2015) Sarkar+ (2015) Crocker+ (2011, 2015) Mou+ (2014, 2015) Zubovas+ (2012) Lifetime of electrons is short < 1 Myr => no “electron wind model” 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018 Yang+ (2018)

Hadronic VS leptonic models relic IR GALPROP Strong, Moskalenko, Porter • Hadronic spectrum is harder at < 0. 1 Ge. V • Me. V telescope? Contamination! • Leptonic models REQUIRE a cut-off at ~ 300 Ge. V • Sub-Te. V detectors? Large scale structure! • HAWC, Icecube: Lunardini+ (2014), Fang+ (2017) 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018 vis

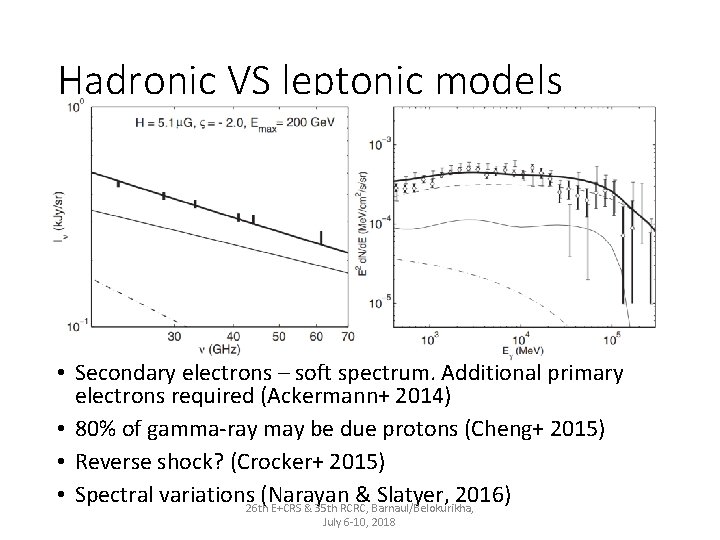

Hadronic VS leptonic models • Secondary electrons – soft spectrum. Additional primary electrons required (Ackermann+ 2014) • 80% of gamma-ray may be due protons (Cheng+ 2015) • Reverse shock? (Crocker+ 2015) • Spectral variations 26 th(Narayan & Slatyer, 2016) E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018

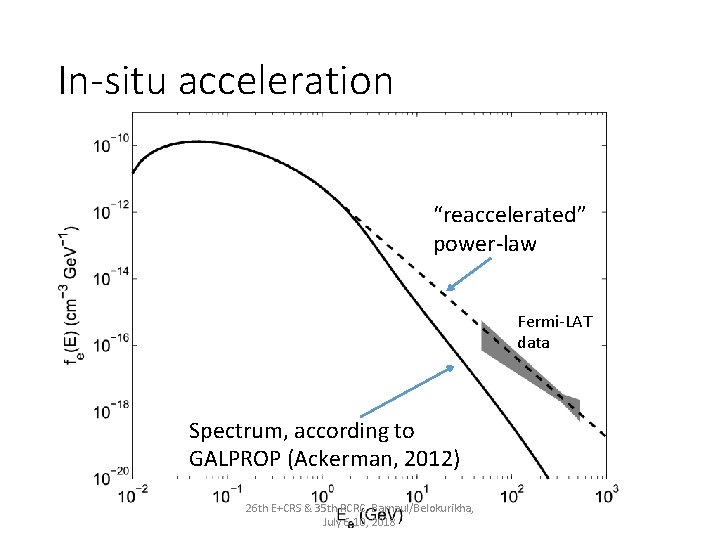

In-situ acceleration “reaccelerated” power-law Fermi-LAT data Spectrum, according to GALPROP (Ackerman, 2012) 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018

In-situ acceleration s ve a w cro i M a m m Ga ys a -r Galactic wind 26 th can solve the problem! (Cheng+, 2015) E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018

Re-acceleration of Galactic CRs E 3 f Too hard: not affected by FERMI-II acceleration Reaccelerated tail appears 3 x 1015 e. V For simplicity assume that all CRs are protons 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018

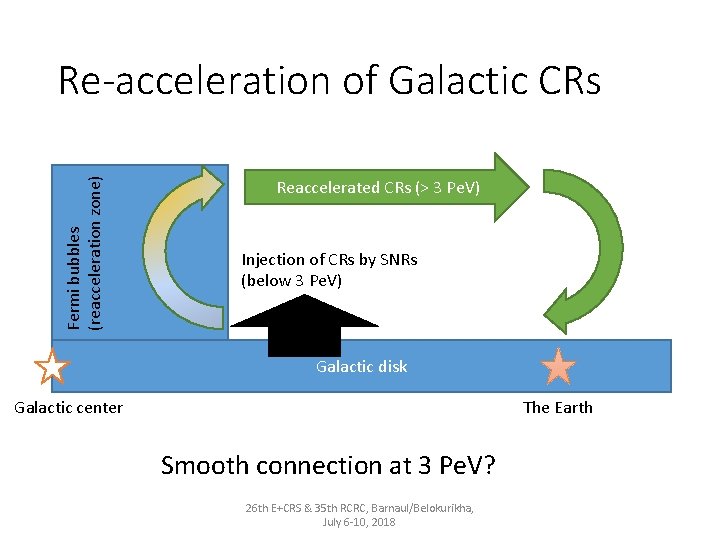

Fermi bubbles (reacceleration zone) Re-acceleration of Galactic CRs Reaccelerated CRs (> 3 Pe. V) Injection of CRs by SNRs (below 3 Pe. V) Galactic disk Galactic center The Earth Smooth connection at 3 Pe. V? 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018

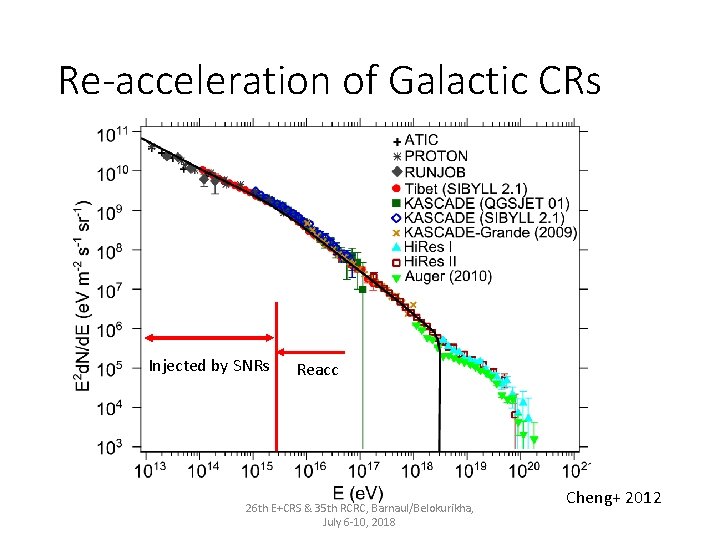

Re-acceleration of Galactic CRs Injected by SNRs Reacc 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018 Cheng+ 2012

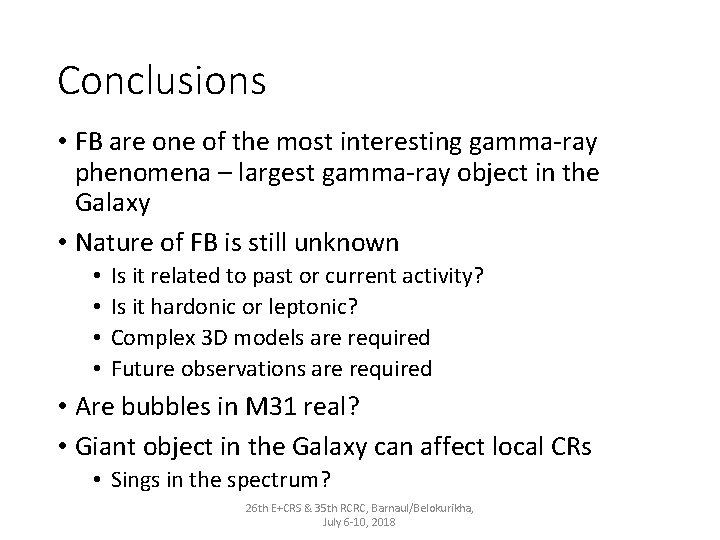

Conclusions • FB are one of the most interesting gamma-ray phenomena – largest gamma-ray object in the Galaxy • Nature of FB is still unknown • • Is it related to past or current activity? Is it hardonic or leptonic? Complex 3 D models are required Future observations are required • Are bubbles in M 31 real? • Giant object in the Galaxy can affect local CRs • Sings in the spectrum? 26 th E+CRS & 35 th RCRC, Barnaul/Belokurikha, July 6 -10, 2018
