Fermentation Technology Microbial biotechnological processing Types of Fermentation

Fermentation Technology

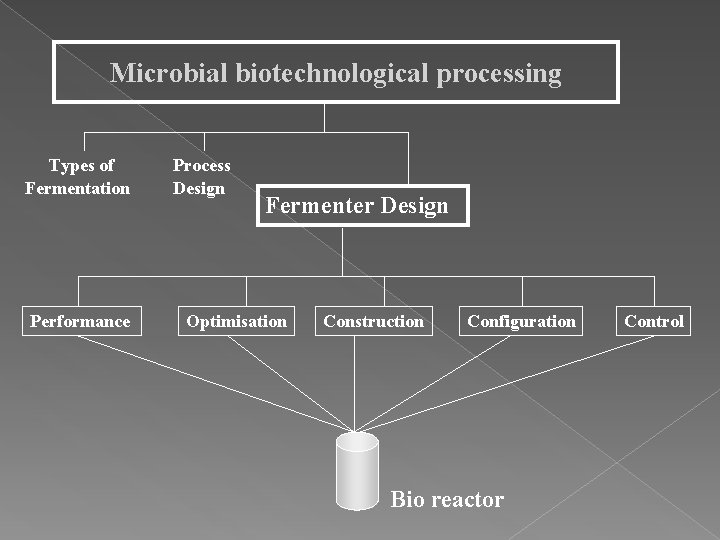

Microbial biotechnological processing Types of Fermentation Performance Process Design Fermenter Design Optimisation Construction Configuration Bio reactor Control

What is a Fermenter? Vessel or tank in which whole cells or cell-free enzymes transform raw materials into desirable biochemical products and/or less undesirable by-products Also termed a Bioreactor

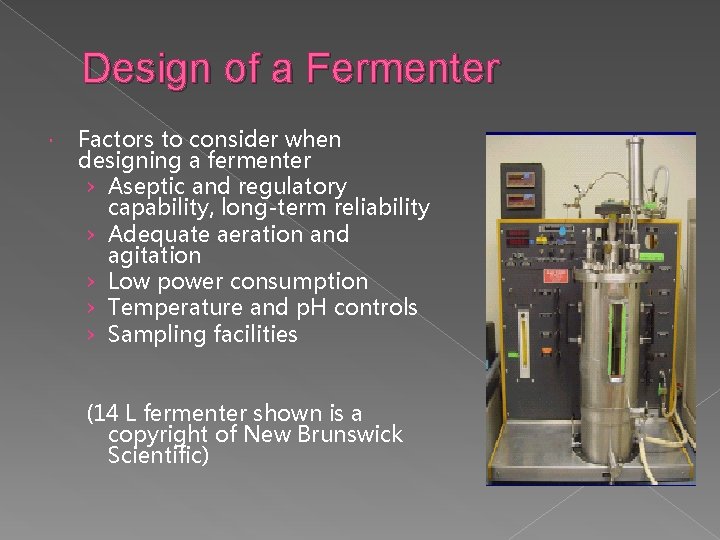

Design of a Fermenter Factors to consider when designing a fermenter › Aseptic and regulatory capability, long-term reliability › Adequate aeration and agitation › Low power consumption › Temperature and p. H controls › Sampling facilities (14 L fermenter shown is a copyright of New Brunswick Scientific)

Fermenter - Basic Function The basic function of a fermenter is to provide a suitable environment in which an organism can efficiently produce a target product that may be - gene of interest - cell biomass, - a metabolite, - bioconversion product.

Fermentation System Two Types of Fermentation Systems closed and open. › A closed system implies that all the nutrient components are added at the beginning of the fermentation process and, as a result, the growth rate of the contained organisms will eventually proceed to zero either due to diminishing nutrients or accumulation of toxic waste products. A modification of the batch process is the fed batch system. Here, volumes of nutrients may be added to augment depletion of nutrients. Overall, the system, however, remains closed. › In contrast to the above type, in the open system, organisms and nutrients can continuously enter and leave the fermenter.

Fermenter: General Functions What it should be capable of: Biomass concentration must remain high Maintain sterile conditions Efficient power consumption Effective agitation Heat removal Sampling facilities

Fermenters range from simple stirred tanks to complex integrated systems involving varying levels of computer input. Fermenter design involves sciences like Microbiology, Biochemistry, Chemical Engineering, Mechanical Engineering, Economics, Fermentation technology. There are 3 groups of bioreactor currently used for industrial productions; (Beer and wine) - non-stirred, non-aerated (Biomass, eg Pruteen) - non-stirred, aerated - stirred, aerated (Antibiotics)

Fermenter construction › All materials must be corrosion resistant to prevent trace metal contamination of the process › Materials must be non-toxic so that slight dissolution of the material or components do not inhibit culture growth › Materials of the fermenter must withstand repeated sterilization with high pressure steam › Fermenter stirrer system and entry ports be sufficiently robust not to be deformed under mechanical stress › Visual inspection of the medium and culture advantageous, transparent materials should be used is

Basic fermenter configuration A microbial fermentation can be viewed as a threephase system, involving liquid-solid, gas-solid, and gas -liquid reactions. The liquid phase contains dissolved nutrients, dissolved substrates and dissolved metabolites. The solid phase consists of individual cells, pellets, insoluble substrates, or precipitated metabolic products. The gaseous phase provides a reservoir for oxygen supply and for CO 2 removal.

Optimisation of the Fermenter System › Fermenter should be designed to exclude entrance of contaminating organisms as well as containing the desired organisms › Culture volume should remain constant, › Dissolved oxygen level must be maintained above critical levels of aeration and culture agitation for aerobic organisms › Parameters such as temperature and p. H must be controlled, and the culture volume must be well mixed. › Therefore a need for control exists

Control of Chemical and Physical Conditions Intensive properties - temperature, concentration, pressure, specific heat Extensive properties - mass, volume, entropy and energy Mass and energy levels should be balanced at the start and finish of fermentations. Combining this with determination of thermodynamic properties and rate equations we can build computer and mathematical models to control processes.

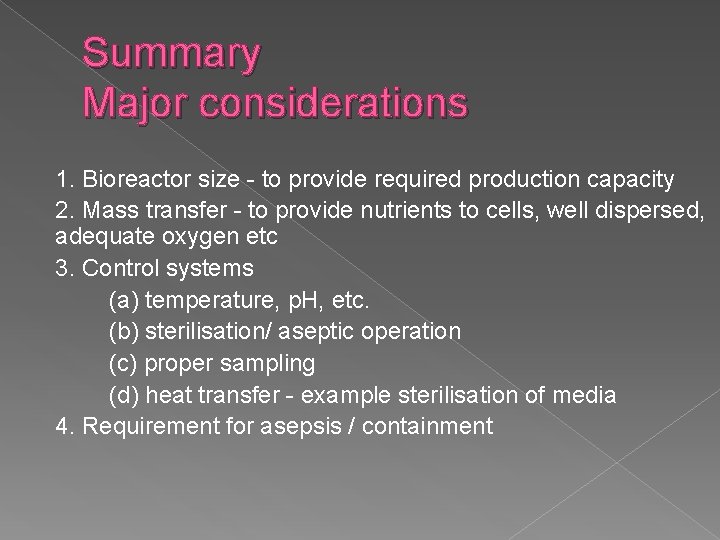

Summary Major considerations 1. Bioreactor size - to provide required production capacity 2. Mass transfer - to provide nutrients to cells, well dispersed, adequate oxygen etc 3. Control systems (a) temperature, p. H, etc. (b) sterilisation/ aseptic operation (c) proper sampling (d) heat transfer - example sterilisation of media 4. Requirement for asepsis / containment

The Development of Inocula for Industrial Fermentations The inoculum is the starter culture that is injected into the fermenter › It must be of sufficient size for optimal growth kinetics Since the production fermenter in industrial fermentations is so large, the inoculum volume has to be quite large - A seed fermenter is usually required to produce the inoculum volume -The seed fermenter’s purpose is not to produce product but to prepare inoculum

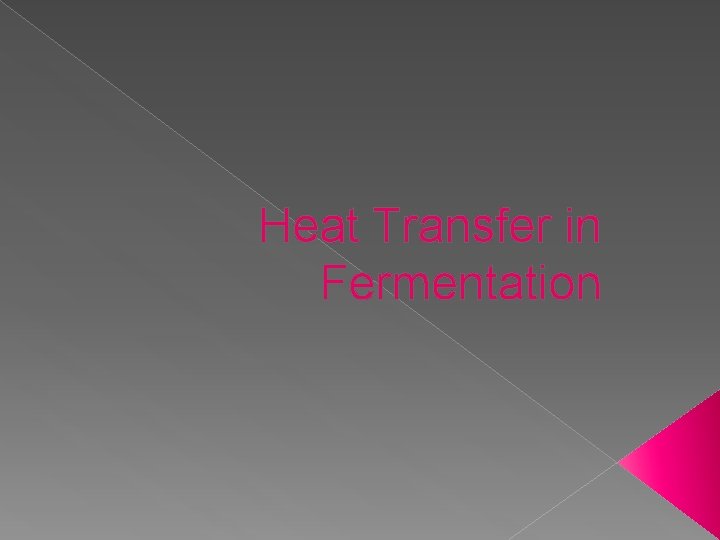

Heat Transfer in Fermentation

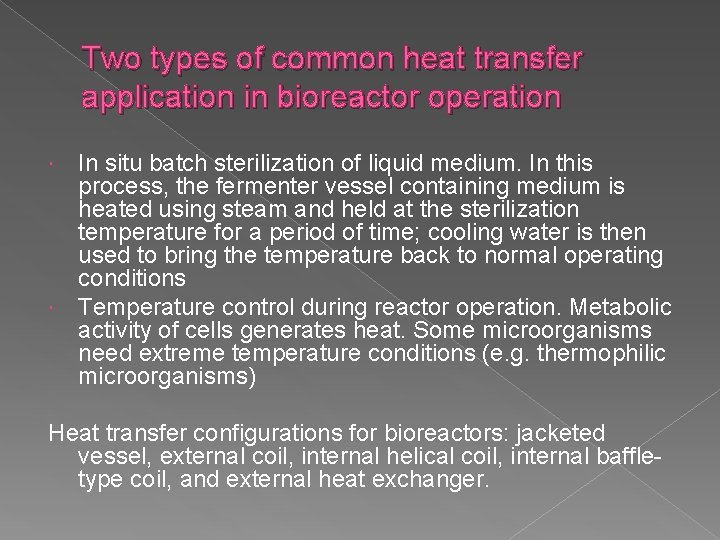

Two types of common heat transfer application in bioreactor operation In situ batch sterilization of liquid medium. In this process, the fermenter vessel containing medium is heated using steam and held at the sterilization temperature for a period of time; cooling water is then used to bring the temperature back to normal operating conditions Temperature control during reactor operation. Metabolic activity of cells generates heat. Some microorganisms need extreme temperature conditions (e. g. thermophilic microorganisms) Heat transfer configurations for bioreactors: jacketed vessel, external coil, internal helical coil, internal baffletype coil, and external heat exchanger.

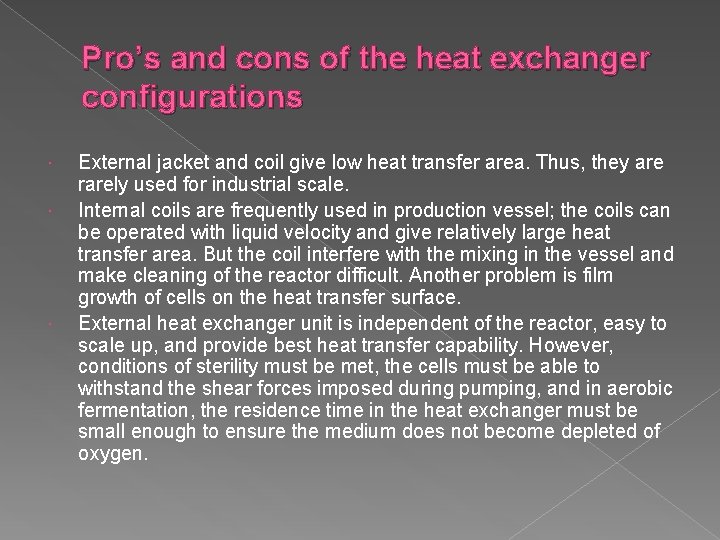

Pro’s and cons of the heat exchanger configurations External jacket and coil give low heat transfer area. Thus, they are rarely used for industrial scale. Internal coils are frequently used in production vessel; the coils can be operated with liquid velocity and give relatively large heat transfer area. But the coil interfere with the mixing in the vessel and make cleaning of the reactor difficult. Another problem is film growth of cells on the heat transfer surface. External heat exchanger unit is independent of the reactor, easy to scale up, and provide best heat transfer capability. However, conditions of sterility must be met, the cells must be able to withstand the shear forces imposed during pumping, and in aerobic fermentation, the residence time in the heat exchanger must be small enough to ensure the medium does not become depleted of oxygen.

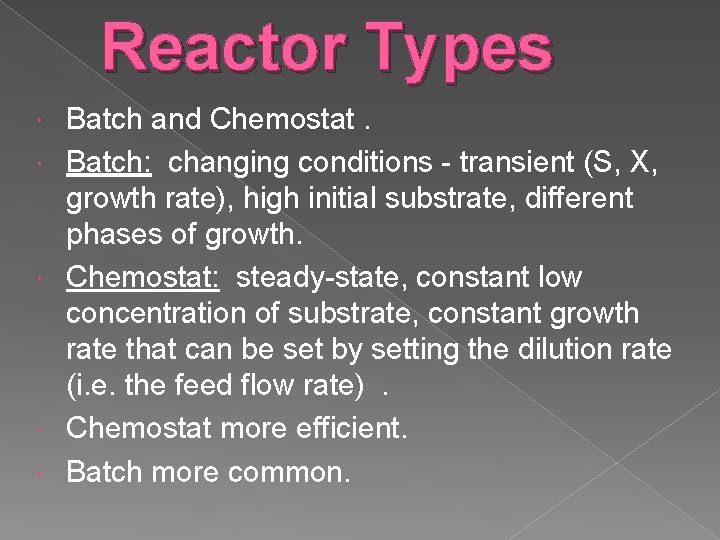

Reactor Types Batch and Chemostat. Batch: changing conditions - transient (S, X, growth rate), high initial substrate, different phases of growth. Chemostat: steady-state, constant low concentration of substrate, constant growth rate that can be set by setting the dilution rate (i. e. the feed flow rate). Chemostat more efficient. Batch more common.

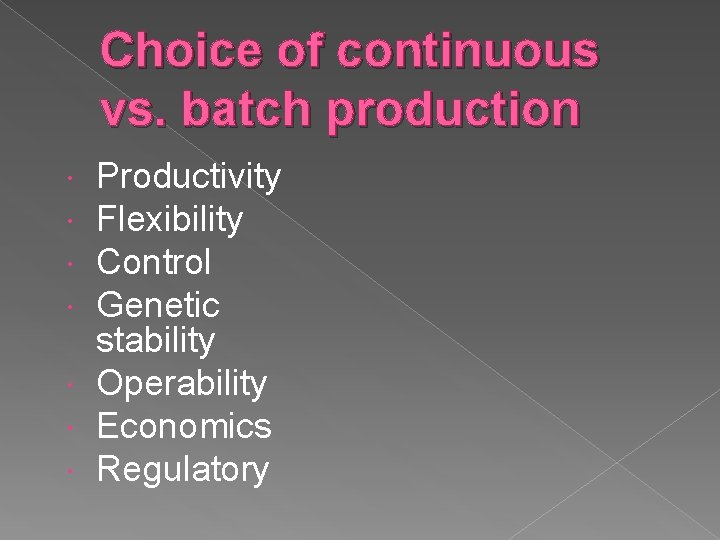

Choice of continuous vs. batch production Productivity Flexibility Control Genetic stability Operability Economics Regulatory

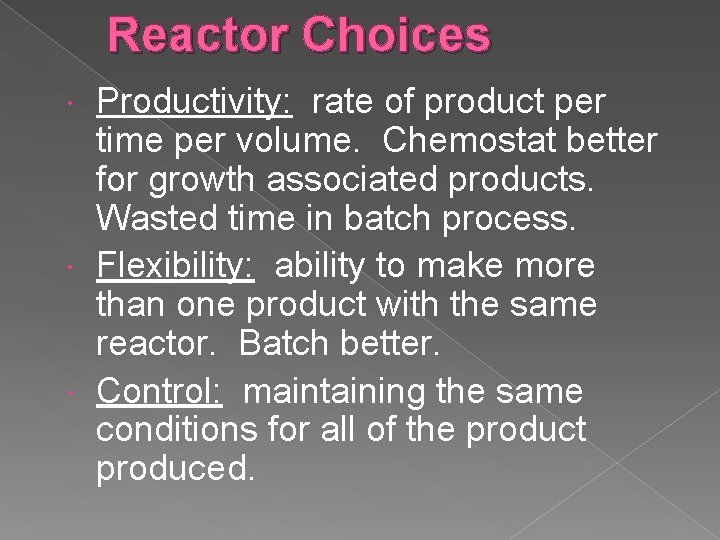

Reactor Choices Productivity: rate of product per time per volume. Chemostat better for growth associated products. Wasted time in batch process. Flexibility: ability to make more than one product with the same reactor. Batch better. Control: maintaining the same conditions for all of the product produced.

Genetic stability: maintaining the organism with the desired characteristics. Chemostat selects for fast growing mutants that may have the desired characteristics. Operability: maintaining a sterile system. Batch better. Regulatory: validating the process. Initially, many process batch, too expensive to re validate after clinical trials.

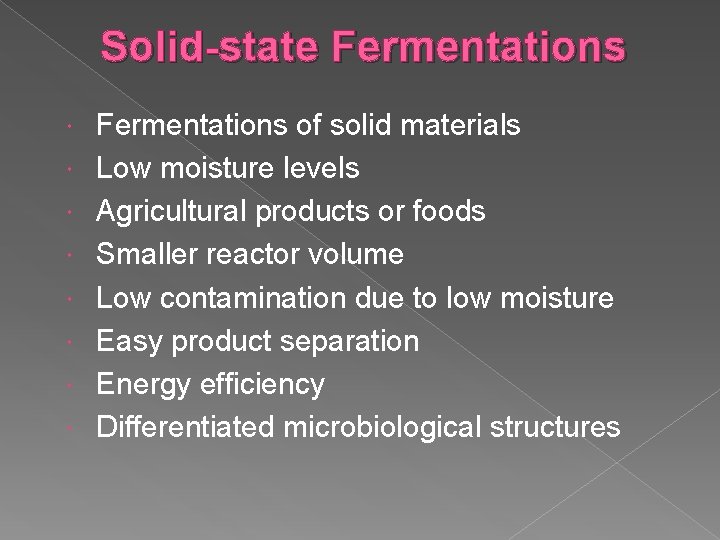

Solid-state Fermentations of solid materials Low moisture levels Agricultural products or foods Smaller reactor volume Low contamination due to low moisture Easy product separation Energy efficiency Differentiated microbiological structures

In contrast to submerged fermentation, SSF is the cultivation of microorganisms under controlled conditions in the absence of free water. Examples of SSF include industrial enzymes, fuels and nutrient enriched animal feeds.

References Stanbury, P. F. , A. Whitaker, and S. J. Hall, Principles of Fermentation Technology, 2 nd ed. , Butterworth Heinemann, Oxford, 2000.
