FEH Robot Project 2014 Team H 4 Tom
FEH Robot Project 2014 Team H 4 Tom Barrett, Tyler Hagan, Kelly Semple, Jenny Surface
“Talk Nerdy to Me” Team Roles “Dream Team” “VIP”

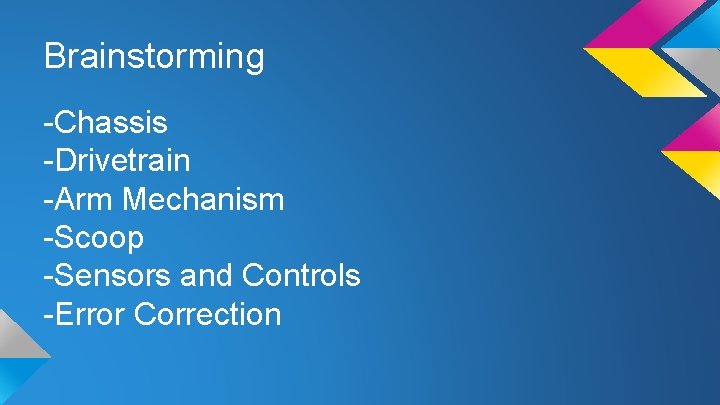

Brainstorming -Chassis -Drivetrain -Arm Mechanism -Scoop -Sensors and Controls -Error Correction

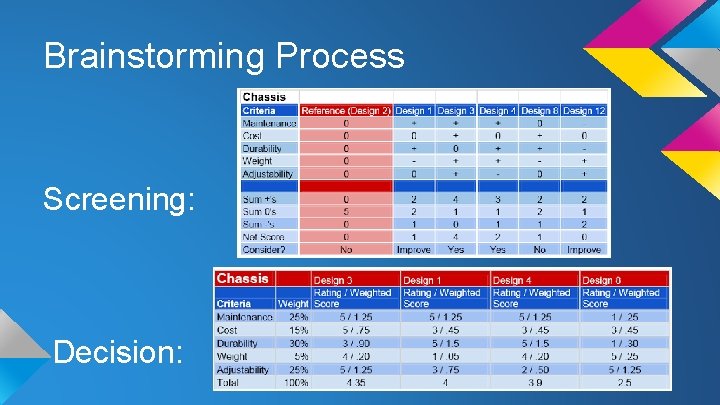

Brainstorming Process Screening: Decision:
Final Design - Goober

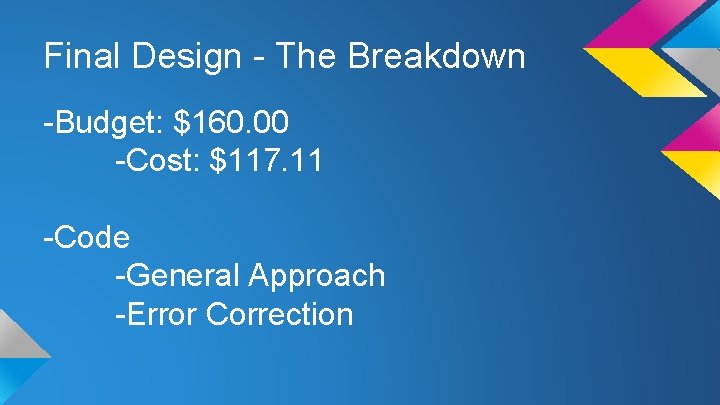

Final Design - The Breakdown -Budget: $160. 00 -Cost: $117. 11 -Code -General Approach -Error Correction

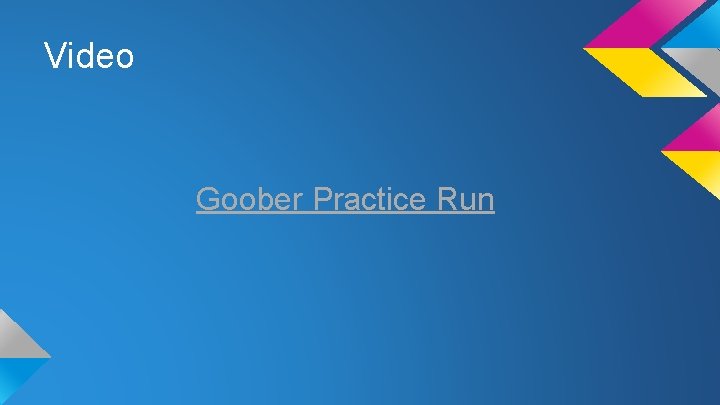

Video Goober Practice Run

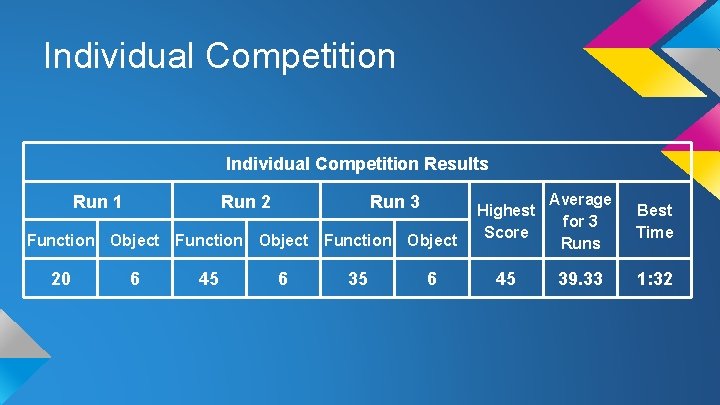

Individual Competition Results Run 1 Run 2 Run 3 Function Object 20 6 45 6 35 6 Highest Score Average for 3 Runs Best Time 45 39. 33 1: 32

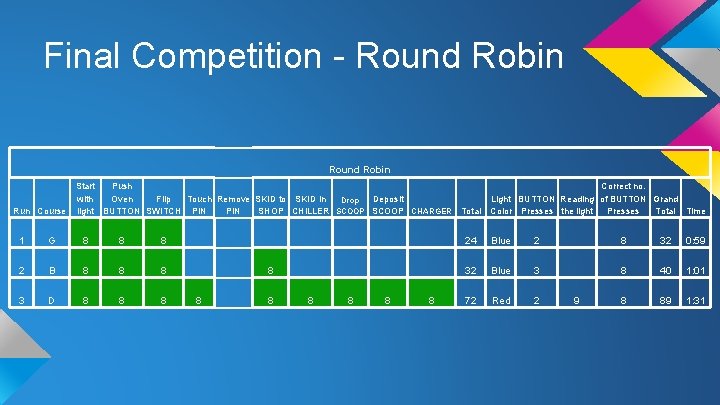

Final Competition - Round Robin Run Course Start Push with Oven Flip Touch Remove SKID to SKID in Deposit Drop light BUTTON SWITCH PIN SHOP CHILLER SCOOP CHARGER Total 1 G 8 8 8 2 B 8 8 8 3 D 8 8 8 8 8 Correct no. Light BUTTON Reading of BUTTON Grand Color Presses the light Presses Total Time 24 Blue 2 8 32 0: 59 32 Blue 3 8 40 1: 01 72 Red 2 8 89 1: 31 9

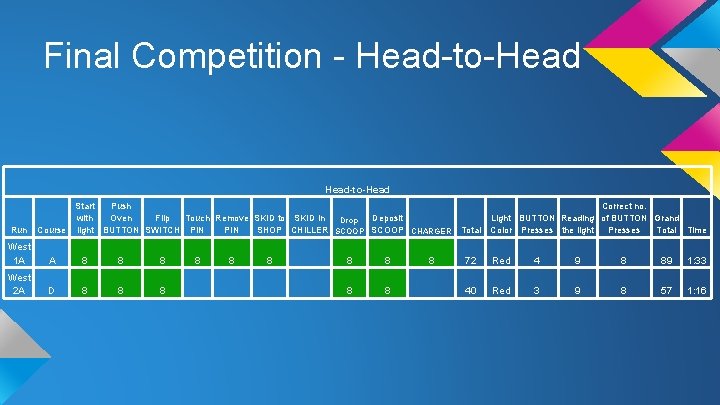

Final Competition - Head-to-Head Run Start Push with Oven Flip Touch Remove SKID to SKID in Deposit Drop Course light BUTTON SWITCH PIN SHOP CHILLER SCOOP CHARGER West 1 A A 8 8 8 West 2 A D 8 8 8 Total Correct no. Light BUTTON Reading of BUTTON Grand Color Presses the light Presses Total Time 72 Red 4 9 8 89 1: 33 40 Red 3 9 8 57 1: 16

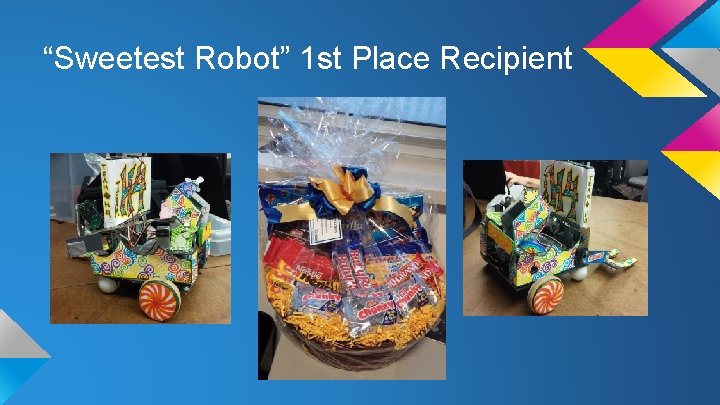

“Sweetest Robot” 1 st Place Recipient

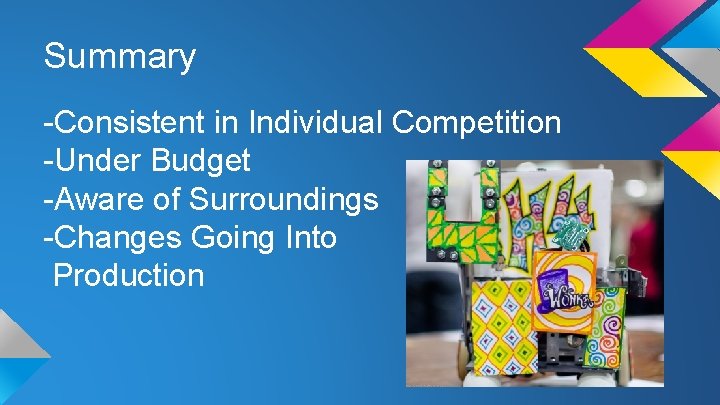

Summary -Consistent in Individual Competition -Under Budget -Aware of Surroundings -Changes Going Into Production
Thank you Any Questions?
