Feedback Control Systems (FCS) Lecture-4 Similarity Transformations Dr. Imtiaz Hussain email: imtiaz. hussain@faculty. muet. edu. pk URL : http: //imtiazhussainkalwar. weebly. com/
Lecture Outline – Canonical forms of State Space Models • Phase Variable Canonical Form • Controllable Canonical form • Observable Canonical form • Jordan Canonical Form • Diagonal Canonical Form – Similarity Transformations • Transformation of coordinates – Transformation to CCF – Transformation OCF – Transformation DCF – Transformation to JCF
Canonical Forms • Canonical forms are the standard forms of state space models. • Each of these canonical form has specific advantages which makes it convenient for use in particular design technique. • There are four canonical forms of state space models – – – Phase variable canonical form Controllable Canonical form Companion forms Observable Canonical form Diagonal Canonical form Modal forms Jordan Canonical Form • It is interesting to note that the dynamics properties of system remain unchanged whichever the type of representation is used.
Phase Variable Canonical form • The method of phase variables possess mathematical advantage over other representations. • This type of representation can be obtained directly from differential equations. • Decomposition of transfer function also yields Phase variable form.
Phase Variable Canonical form • Consider an nth order linear plant model described by the differential equation • Where y(t) is the plant output and u(t) is the plant input. • A state model for this system is not unique but depends on the choice of a set of state variables. • A useful set of state variables, referred to as phase variables, is defined as:

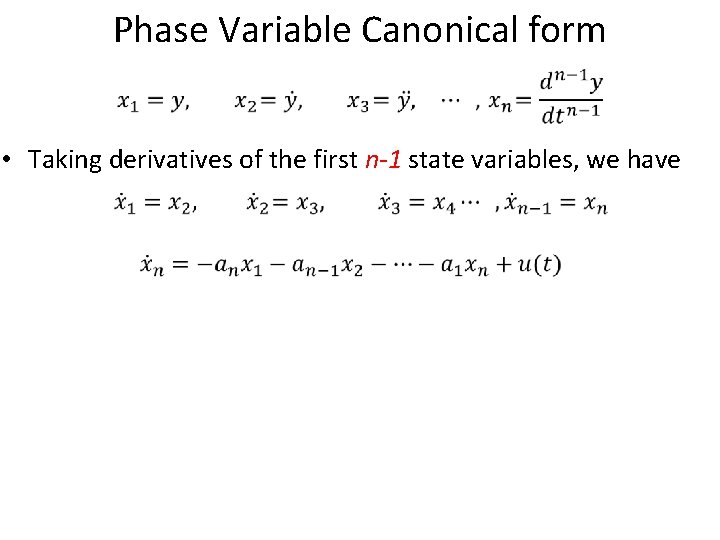

Phase Variable Canonical form • Taking derivatives of the first n-1 state variables, we have

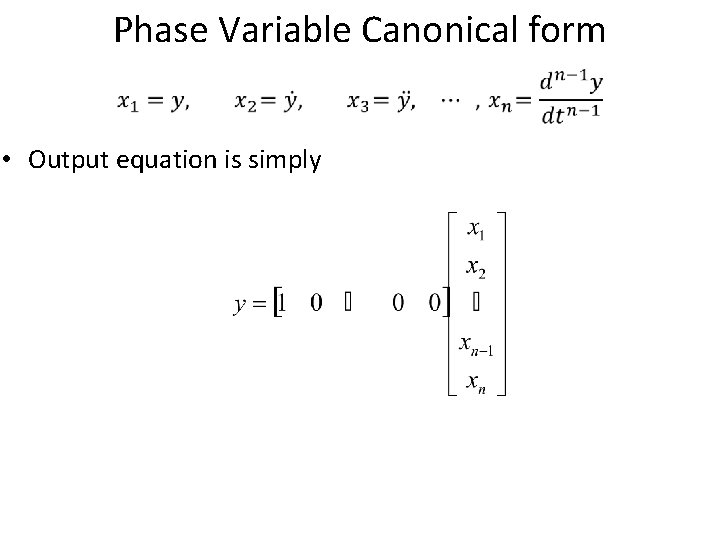

Phase Variable Canonical form • Output equation is simply
Phase Variable Canonical form ∫ + ∫ ∫ … ∫ + 8

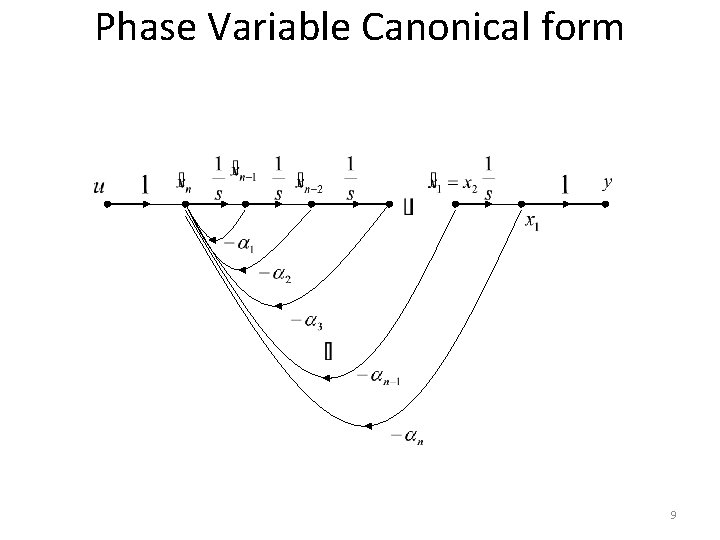

Phase Variable Canonical form 9
Phase Variable Canonical form (Example 1) • Obtain the state equation in phase variable form for the following differential equation, where u(t) is input and y(t) is output. • The differential equation is third order, thus there are three state variables: • And their derivatives are (i. e state equations)
Phase Variable Canonical form (Example 1) • In vector matrix form Home Work: Draw Sate diagram
Phase Variable Canonical form (Example 2) • Consider the transfer function of a third-order system where the numerator degree is lower than that of the denominator. • Transfer function can be decomposed into cascade form • Denoting the output of the first block as W(s), we have the following input/output relationships:
Phase Variable Canonical form (Example 2) • Re-arranging above equation yields • Taking inverse Laplace transform of above equations. • Choosing the state variables in phase variable form
Phase Variable Canonical form (Example • State Equations are given as • And the output equation is 1)
Phase Variable Canonical form (Example • State Equations are given as • And the output equation is 1)
Phase Variable Canonical form (Example • State Equations are given as • And the output equation is • In vector matrix form 1)
Companion Forms • Consider a system defined by • where u is the input and y is the output. This equation can also be written as • We will present state-space representations of the system defined by above equations in controllable canonical form and observable canonical form.

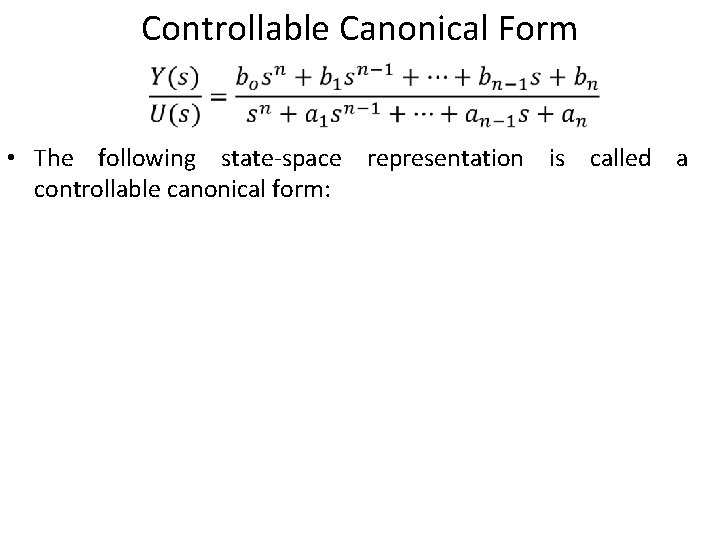

Controllable Canonical Form • The following state-space representation is called a controllable canonical form:
Controllable Canonical Form
Controllable Canonical Form … + + ∫ ∫ … ∫
Controllable Canonical Form (Example) • Let us Rewrite the given transfer function in following form
Controllable Canonical Form (Example)
Controllable Canonical Form (Example) • By direct decomposition of transfer function • Equating Y(s) with numerator on the right hand side and U(s) with denominator on right hand side.

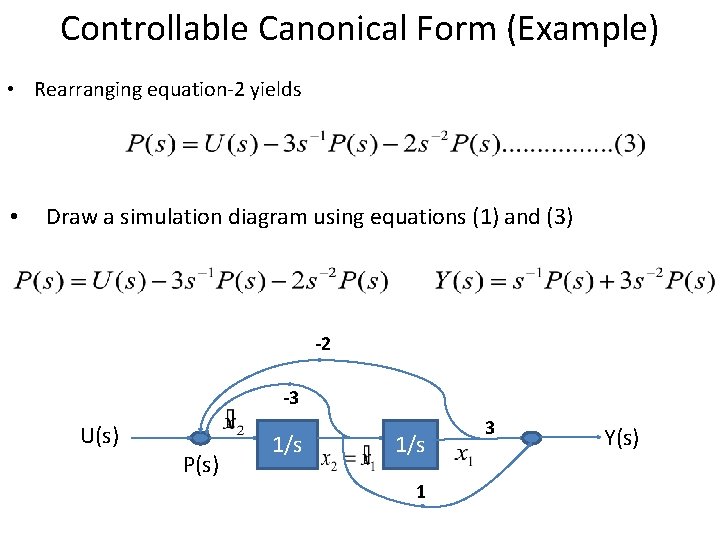

Controllable Canonical Form (Example) • Rearranging equation-2 yields • Draw a simulation diagram using equations (1) and (3) -2 -3 U(s) P(s) 1/s 1 3 Y(s)

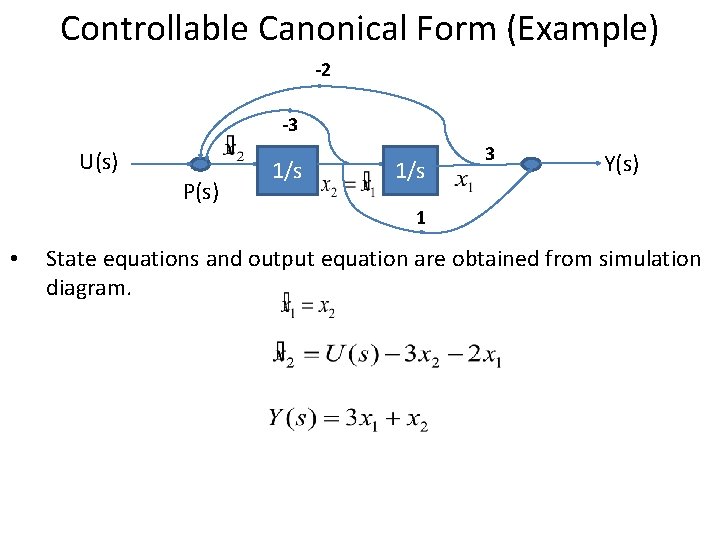

Controllable Canonical Form (Example) -2 -3 U(s) P(s) 1/s 3 Y(s) 1 • State equations and output equation are obtained from simulation diagram.
Controllable Canonical Form (Example) • In vector Matrix form
Observable Canonical Form • The following state-space representation is called an observable canonical form:
Observable Canonical Form
Observable Canonical Form (Example) • Let us Rewrite the given transfer function in following form
Observable Canonical Form (Example)

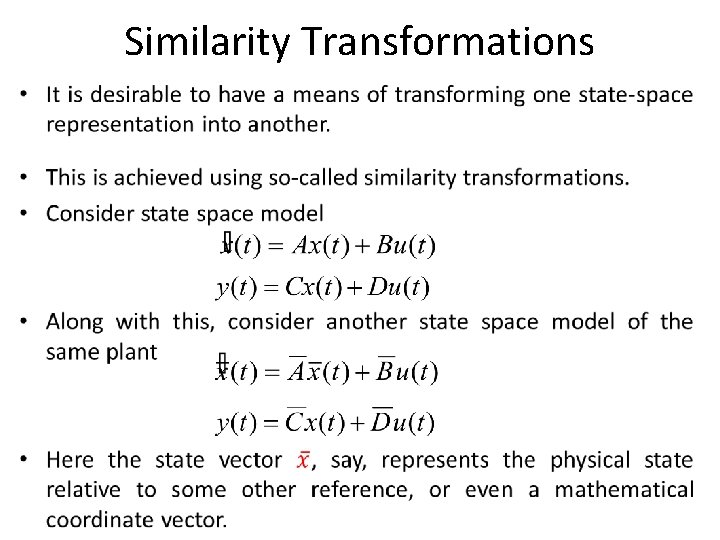

Similarity Transformations •

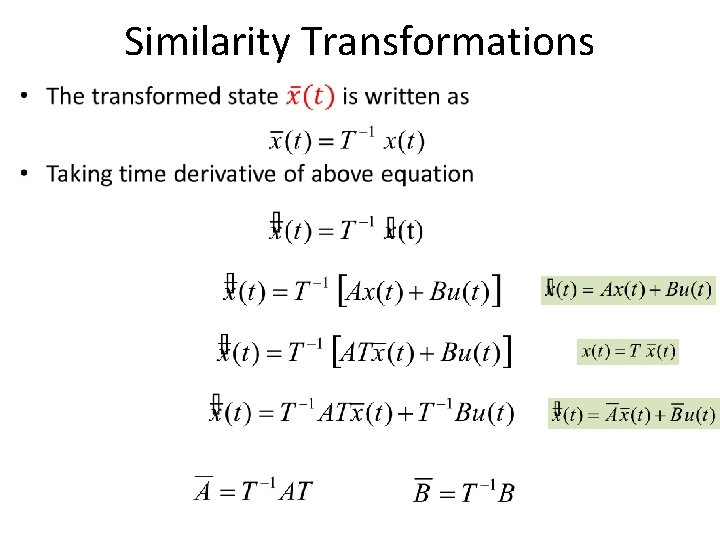

Similarity Transformations •
Similarity Transformations •
Similarity Transformations •
Similarity Transformations • Invariance of Eigen Values
To download this lecture visit http: //imtiazhussainkalwar. weebly. com/ END OF LECTURE-4
