Federation Smokeping Ping ER Integration Asma Shamshad Bit4
Federation – Smokeping, Ping. ER Integration Asma Shamshad Bit-4 A
Latency Measurement Tools n There are various tools and infrastructures available to measure the end-to-end Round Trip Time (RTT) using the ICMP ping facility n e. g. Ping. ER, AMP and Smoke. Ping

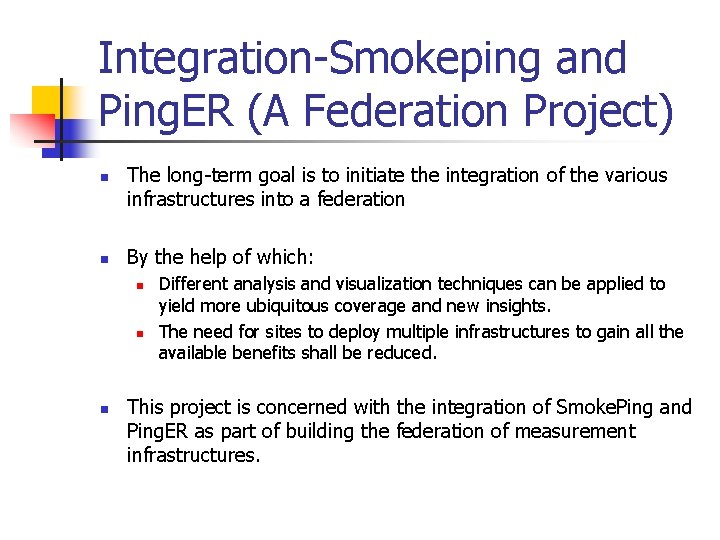

Integration-Smokeping and Ping. ER (A Federation Project) n n The long-term goal is to initiate the integration of the various infrastructures into a federation By the help of which: n n n Different analysis and visualization techniques can be applied to yield more ubiquitous coverage and new insights. The need for sites to deploy multiple infrastructures to gain all the available benefits shall be reduced. This project is concerned with the integration of Smoke. Ping and Ping. ER as part of building the federation of measurement infrastructures.

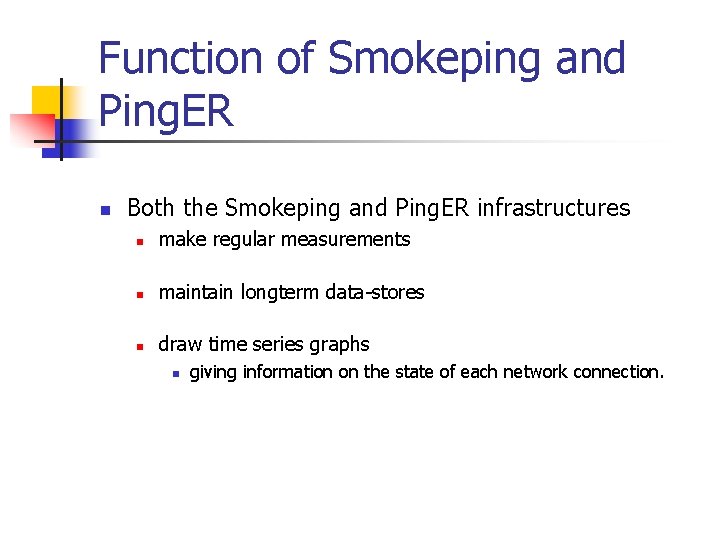

Function of Smokeping and Ping. ER n Both the Smokeping and Ping. ER infrastructures n make regular measurements n maintain longterm data-stores n draw time series graphs n giving information on the state of each network connection.

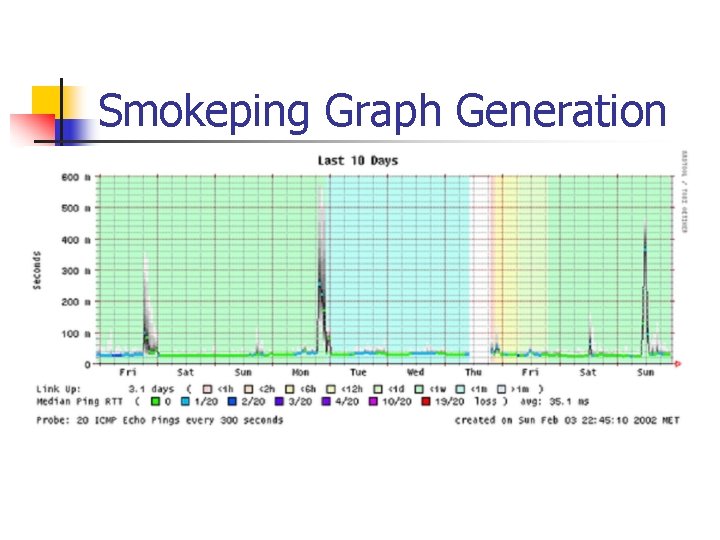

Smokeping Graph Generation
Project Requirements n n Study and evaluate Smoke. Ping and Ping. ER to understand how they work, and their pros and cons. Work with the developers of Smoke. Ping to understand how to extend the capability of Smoke. Ping to derive parameters/metrics not currently supported such as n n ping unreachability jitter derived TCP throughput conditional loss probability
Project Requirements n n Provide the ability to select and visualize these new metrics. Feed the modifications to Smoke. Ping back into the development base. Evaluate and provide the ability to feed Smoke. Ping data to the Pinger analysis/visualization toolkit, so we can use the Ping. ER aggregation techniques to characterize performance by regions, or affinity groups. Modify Ping. ER to enable it to utilize the Smoke. Ping time series visualization tool.
List of Tasks Assigned to Date Phase Task Description Dependence P 1 T 1 Literature Survey Nil P 2 T 2 Deployment and testing of Smoke. Ping Nil P 3 T 3 Evaluate how to provide the capability extensions of Smoke. Ping Nil P 4 T 4 Data Collection and Analysis T 2, T 3 P 5 T 5 Inter-operatability of Smokeping and Pinger T 4 P 6 T 6 Inter-operatability of Pinger and Smokeping T 4 P 7 T 7 Dynamic graph and Report Generation in Smoke. Ping T 5 P 8 T 8 Comparative analysis T 5, T 6, T 7 P 9 T 9 Deployment and Testing T 5, T 6, T 7, T 8
Summary of Progress n Literature Survey n Which involves studying Smoke. Ping and Ping. ER to understand n n What n n n each tool does parameters (latency, jitter, etc) each tool supports is the difference of functionality database is used by Smokeping how this database is different from the other databases How it works Deployment of Smokeping
Next Mile-stone n Work with Smokeping tool to understand it better to be able to add more parameters: n n ping unreachability jitter derived TCP throughput conditional loss probability
