Federal Aviation Administration Stan Pszczolkowski stan. pszczolkowski@faa. gov IEEE NJ Coast Chapter May 19, 2010
Purpose • Provide an understanding of the Federal Aviation Administration’s plans to improve the National Airspace System – – Pilot and FAA roles Historical perspective Next Generation Air Transportation System (Next. Gen) “Now. Gen” IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 2
Federal Aviation Administration Safety – Aircraft integrity – Prevent loss of separation – other a/c, vehicles, ground – License pilots Efficiency – get to where you want to go, on time and how you want to get there National Defense IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 3
What Pilots Do Aviate Navigate Communicate IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 4
Joseph and Jacques Montgolfier 1783 IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 5
IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 6
IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 7
IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 8
Navigate • Visually - look out the window landmarks, terrain, roads, bonfires, beacons (lights) • Instruments compass, a/c state, radio signals – Jimmy Doolittle, 9/24/29 computers, displays – Boeing 787, today IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 9
IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 10

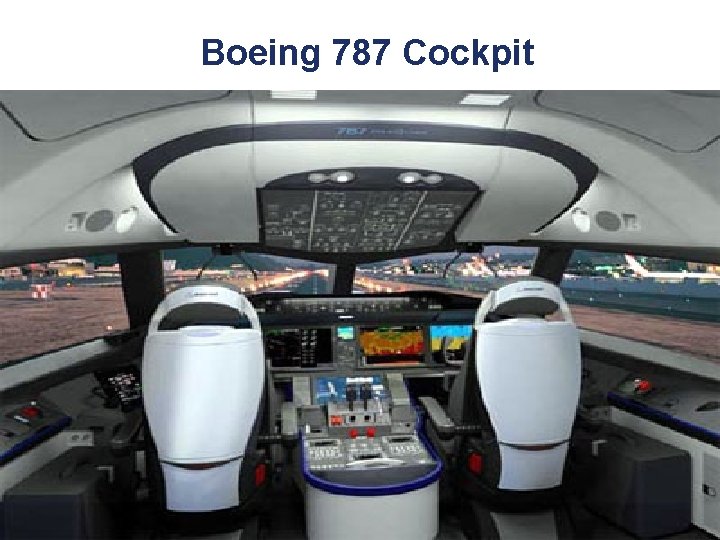

Boeing 787 Cockpit IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 11

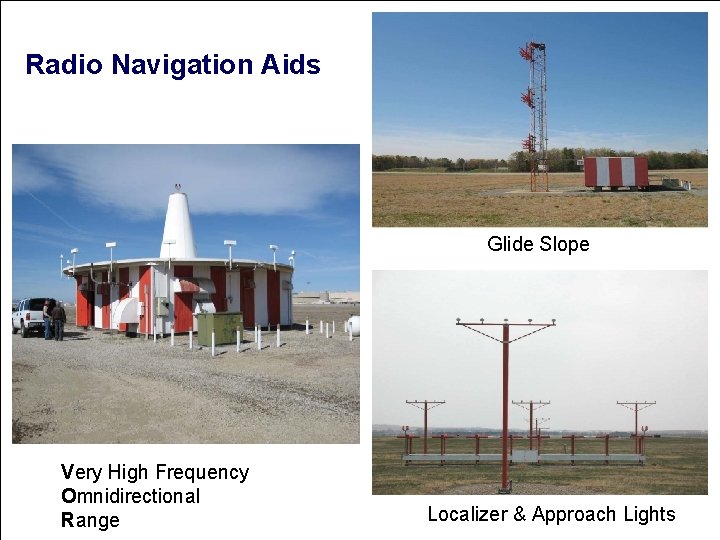

Radio Navigation Aids Glide Slope Very High Frequency IEEE NJ Coast Chapter Omnidirectional May 19, 2010 Range Federal Aviation Localizer Administration & Approach Lights 12

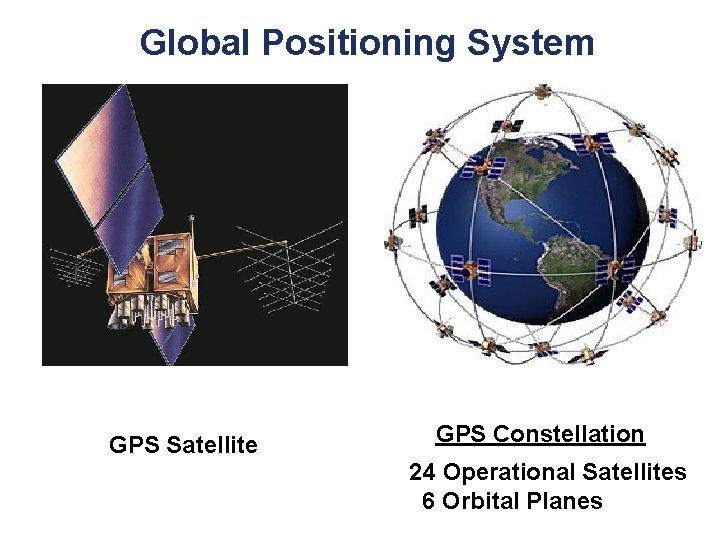

Global Positioning System GPS Satellite IEEE NJ Coast Chapter May 19, 2010 GPS Constellation 24 Operational Satellites Aviation 6 Orbital. Federal Planes 13 Administration
Communicate • How – Visual signals – Voice radio – Digital data • With whom – – Ground Other aircraft “Company” Air traffic control IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 14
Air / Ground Communication Airport Towers BUECs Back up Emergency Communications RTR’s Remote Transmitter Receiver RCAGs Remote Communications Air/Ground TRACONs Terminal Radar Approach Control ARTCCs & CERAP’s Air Route Traffic Control Center, Combined Center Radar Approach Control RCOs AFSSs, FSSs Remote Communications Outlet • VHF/UHF ATC bands • Approximately 50, 000 VHF & UHF TX, RX & TCVRs • 14, 194 Total Remote Communication Facilities Automated Flight Service Stations, Flight Service Stations IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 15
Remote Air/Ground Communications Facility IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 16
Archie League First Air Traffic Controller St. Louis 1929 IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 17
Air Traffic Control Today Newark 1935 IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 18

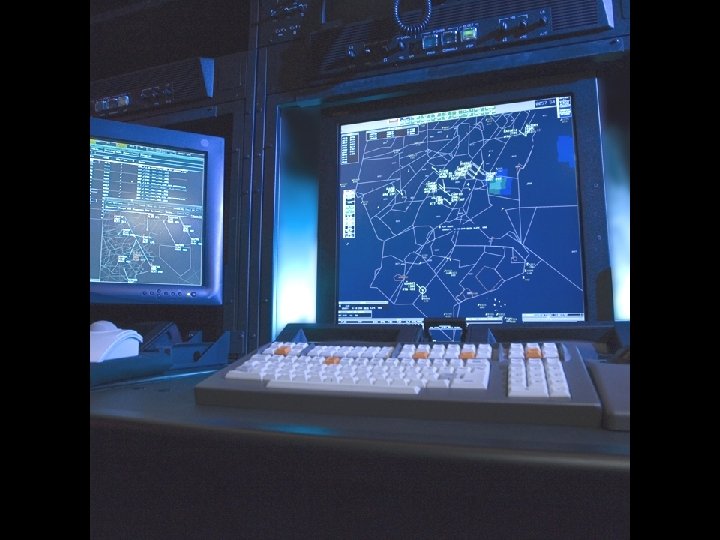

IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 19

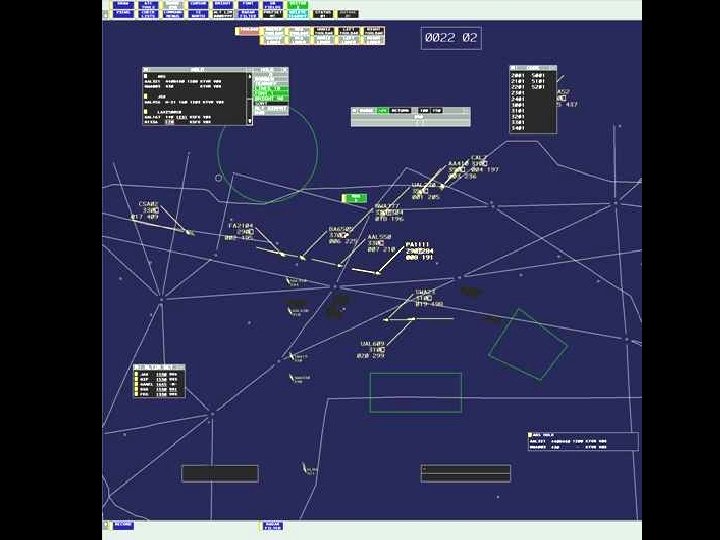

IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 20

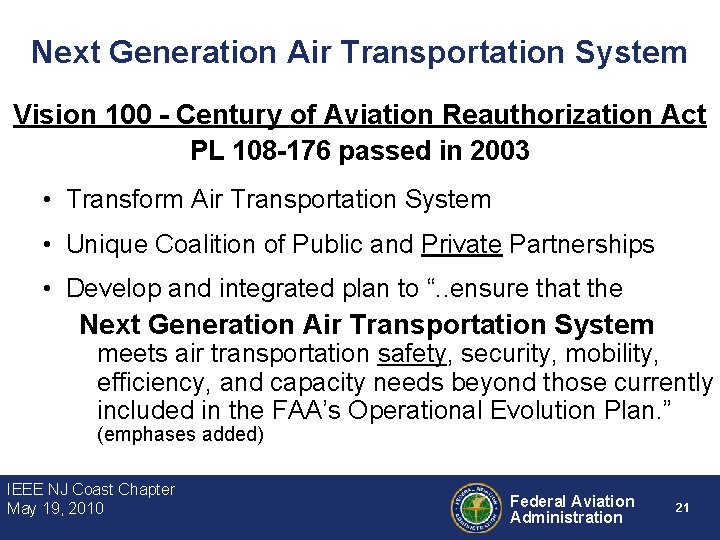

Next Generation Air Transportation System Vision 100 - Century of Aviation Reauthorization Act PL 108 -176 passed in 2003 • Transform Air Transportation System • Unique Coalition of Public and Private Partnerships • Develop and integrated plan to “. . ensure that the Next Generation Air Transportation System meets air transportation safety, security, mobility, efficiency, and capacity needs beyond those currently included in the FAA’s Operational Evolution Plan. ” (emphases added) IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 21
Next Generation Air Transportation System • Congress Tasked Agencies to Form Senior Policy Committee Secretary of Transportation, Chair Secretary of Defense Secretary of Homeland Security Secretary of Commerce Director of the Office of Science and Technology Policy Administrator of the National Aeronautics and Space Administration Administrator of the Federal Aviation Administration • Established Joint Planning and Development Office (www. jpdo. aero) – Small and Focused Office – Close Collaboration with Experts in Government and Private Sector IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 22
Some Next. Gen Features in the Video Automated Surface Detection Equipment (ASDE) Automated Dependant Surveillance Broadcast (ADS-B) Area Navigation (RNAV) Required Navigation Performance (RNP) System Wide Information Management (SWIM) Data Communications (Data. Comm) IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 23
Automatic Dependent Surveillance – Broadcast (ADS-B)* *www. adsb. gov IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 24
Area Navigation/Required Navigation Performance RNAV/RNP • RNAV/RNP = Performance Based Navigation (PBN) • RNAV – Fully utilize capabilities of ground/space/onboard equipment – Fly any desired route – no need to go fix-to-fix (VOR-to-VOR) • RNP – builds on RNAV – Alerts when desired performance is not met – Performance expressed as RNP X, (X = 95% accuracy in nmi) • Benefits – Reduced fuel/emissions/delays – SAFE separation reduction – other a/c, air space, ground obstacles – Curved Paths IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 25
System Wide Information Management (SWIM) Purpose • Migrate applications toward a loosely coupled, opendistributed processing environment IDS ETMS STARS MEARTS ATOP ITWS WARP ERAM ARTS TMA • Expose data to both new and legacy applications • Support interoperability • Reduce unique interfaces and COST Inter. Agency DBRITE IDS ETMS STARS ATOP MEARTS ITWS SWIM WARP ERAM ARTS Inter- DBRITE TMA IEEE NJ Coast Chapter May 19, 2010 Agency Federal Aviation Administration 26
Next. Gen Data Communications (Data. Comm) Transition from voice to digital data communication IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 27

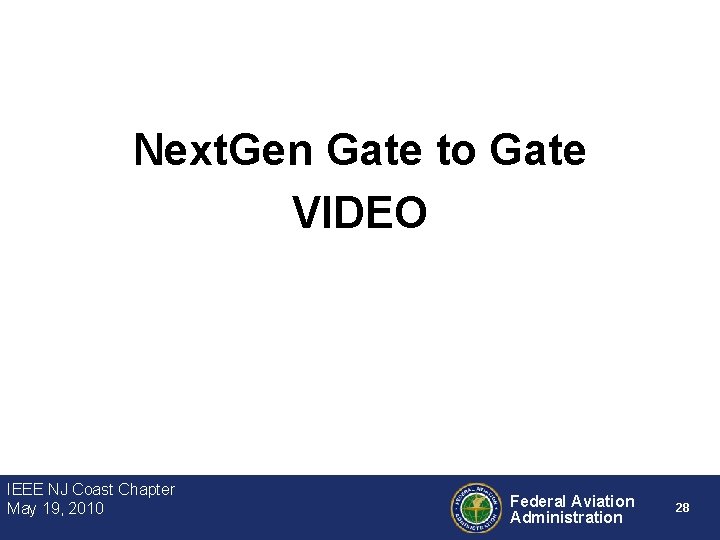

Next. Gen Gate to Gate VIDEO IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 28
“Now. Gen” IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 29
Automatic Dependent Surveillance – Broadcast (ADS-B)* *www. adsb. gov IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 30

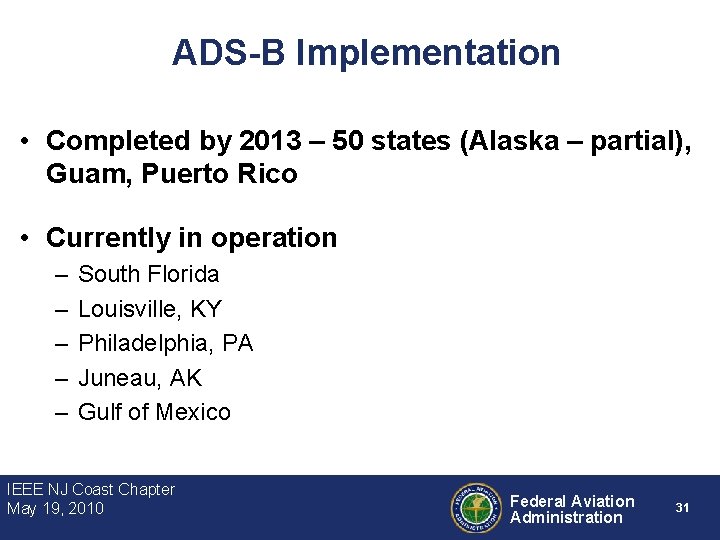

ADS-B Implementation • Completed by 2013 – 50 states (Alaska – partial), Guam, Puerto Rico • Currently in operation – – – South Florida Louisville, KY Philadelphia, PA Juneau, AK Gulf of Mexico IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 31
ADS-B in the Gulf of Mexico • Partnership – Helicopter operators – Helicopter Association International – Oil/natural gas companies – FAA • 10, 000 people daily; 3, 800 oil platforms • Separation: 5 nmi vs 20 x 20 nmi “boxes” • Significant $$$ savings IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 32
Wide Area Augmentation System IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 33
Wide Area Augmentation System, Localizer Performance with Vertical Guidance (WAAS/LPV) • 1900+ Approaches Published • Horizon Air completed Part 121 approach on 12/30 at Portland, OR (instrument landing system out of service) • Horizon Air will equip 40 Bombardier Q 400 s with UNS -1 Ew WAAS/SBAS-FMS (Universal Avionics) IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 34
WAAS/LPV Approach Plate NOT TO BE USED FOR NAVIGATION IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 35
Newark Liberty Airport Ground Based Augmentation System IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 36
IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 37

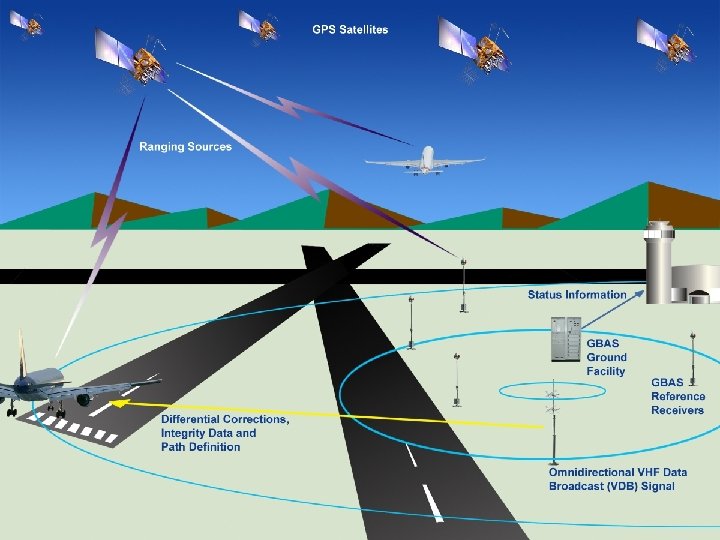

Purpose Demonstrate Ground Based Augmentation System (GBAS) operational capabilities in a complex airspace • Combine on-board RNAV/RNP functionality (receiver) with GBAS for improved straight-in and curved path capabilities for approach & landing to all runway ends • Solve airspace congestion issues • Build user base - controller & pilot operational experience • Reduce airspace separation between current New York Area Airports for more independent operations, including closely spaced parallel runways • “Lessons Learned” applied to other locations IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 38
Overview • Government Industry Partnership – – Federal Aviation Administration The Port Authority of New York and New Jersey Continental Airlines (multiple B 737 -800 NG aircraft) Honeywell (ground system) • Boeing – Aircraft technical integration – Assist with procedure development (Jeppesen) • Single GBAS unit installed at Newark Airport – Serve multiple runway ends at that airport – Could replace multiple ILS facilities – 48 distinct precision and complex approach procedures IEEE NJ Coast Chapter May 19, 2010 Federal Aviation Administration 39
KEWR RNAV (RNP) RWY 29 SOUTH APPROACH (VIA 4 R) CATS A - D RNP 0. 30 2. 00 NM RW 29 ARP Preliminary HAT 443 EWRAA (FROP) GP 710 (Based on telescope MAS) Idle descent from PFAF to touchdown NM EWRAD 3000 1. 2 0 ILS 4 R IEEE NJ Coast Chapter DOOIN May 19, 2010 1700 COL R PFAFA 3000 EWRAB GP 2129 -023 ILS 4 R 1. 00 NM 8260. 52 WAIVERS 1. FROP DISTANCE (DEPENDING ON TYPE MAS; EARLY TURN REQUIRES TELESCOPE) 2. BANK ANGLE FROM EWRAB 24. 61° (EXCEEDS 20°) 3. INTMDT RF RADIUS FROM EWRAD DIFFERS FROM FAS RADIUS AT PFAFA ************* WAAS OR GPS REQUIRED TO FLY THE RNP (CDA) POWER/THROTTLE 40 BACK DESCENT FROM THE PFAF ************* Federal Aviation Administration
