Federal Aviation Administration ALASKA FLIGHT SERVICES 2017 Update

Federal Aviation Administration ALASKA FLIGHT SERVICES: 2017 Update: Alaska Air Carrier Association By: Andrew Mc. Clure February 22, 2017

Overview • TALPA NOTAMs • ICAO Flight Plans • NWS Changes • PIREP Improvement • Q&A Alaska Flight Services February 22, 2017 Federal Aviation Administration 2

TALPA NOTAMs The Runway Condition Assessment (RCAM) Matrix, as seen in the Aeronautical Information Manual, et al: Ø Assigns a Code Number (Runway Condition Code or Rwy. CC) to each third of the runway. Ø Contaminants are broken down for each runway segment. Ø No more Mu Numbers? Ø Is there a relationship between the Rwy. CC and Braking Action? Ø What will I get from Flight Service on the radio? Ø Why are PIREPs for braking action so important now? Alaska Flight Services February 22, 2017 Federal Aviation Administration 3

Alaska Flight Services February 22, 2017 Federal Aviation Administration 4

“Radio, what are the runway conditions at XYZ? ” • Whether you are en route and calling on an RCO… • …or approaching your destination and there is Flight Service AAS with or without AFIS: ü “Field Conditions are: Runway Condition Codes (if paved) ü Contaminants in detail ü Pilot Braking Action reports, when available” Alaska Flight Services February 22, 2017 Federal Aviation Administration 5

Braking Action Reports… Please! • Your Braking Action Report is an invaluable form of PIREP. • PIREPs are a highly “perishable” item. • They enable adjustment of the RCC numbers, AFIS updates and improvement of the RCAM Matrix itself (maybe). Alaska Flight Services February 22, 2017 Federal Aviation Administration 6

ICAO Flight Plans • A “New Flavor” – VFR! • Equipment Lists – Nav and Transponder • Emergency Gear • The Re-ordering of Flight Plan Elements • Impact on Master Flight Plans and Prestored Flight Plans • DVFR Alaska Flight Services February 22, 2017 Federal Aviation Administration 7

ICAO Flight Plan Form (FAA Form 7233 -4) Alaska Flight Services February 22, 2017 Federal Aviation Administration 8

New Flight Plan Fields – 1 a Type of Flight: G – General Aviation S – Scheduled Air Transport N – Non-scheduled Air Transport Federal Aviation Administration 9

New Flight Plan Fields – 1 b Number of Aircraft Wake Turbulence: L – Light M – Medium H – Heavy Note: Some aircraft may fall into two categories, depending on weight Federal Aviation Administration 10

New Flight Plan Fields – 1 c Equipment List/Transponder: Many more options, with Letters and Numbers! Federal Aviation Administration 11

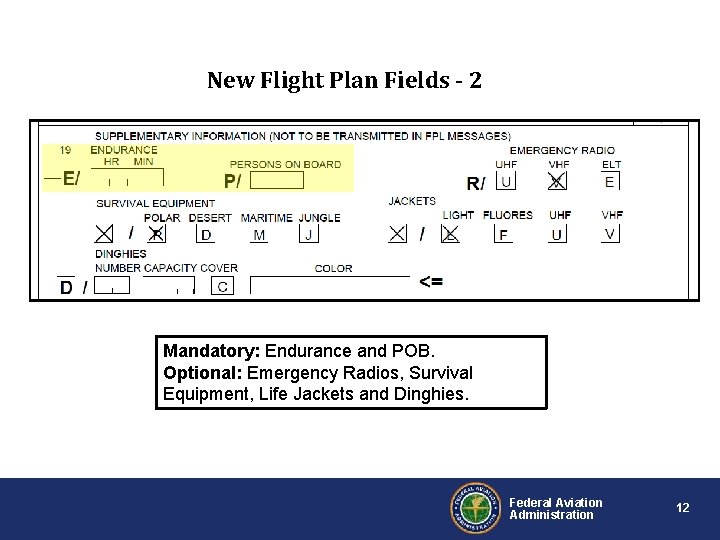

New Flight Plan Fields - 2 Mandatory: Endurance and POB. Optional: Emergency Radios, Survival Equipment, Life Jackets and Dinghies. Federal Aviation Administration 12

National Weather Service Changes • Changes to Augmentation • Graphic Area Forecasts • PIREP Plotting Alaska Flight Services February 22, 2017 Federal Aviation Administration 13

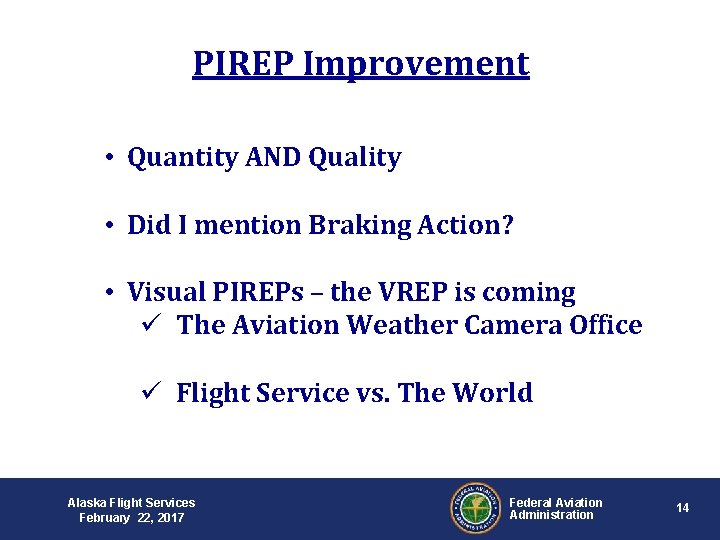

PIREP Improvement • Quantity AND Quality • Did I mention Braking Action? • Visual PIREPs – the VREP is coming ü The Aviation Weather Camera Office ü Flight Service vs. The World Alaska Flight Services February 22, 2017 Federal Aviation Administration 14

Q & A and Miscellany • Coming soon to Juneau: Enhanced Airport Advisory Service • e. SRS – Three devices with SOS capability (and one without). • FSS – pilot friendly and happy to see you in person! ü 17 locations – 14 on-airport • Questions? Alaska Flight Services February 22, 2017 Federal Aviation Administration 15

Alaska Flight Service Stations Actually, “Service” is our middle name! Federal Aviation Administration 16
