Feature of CC-Link Complete RAS Function (Reliability, Availability, Serviceability)

CC-Link Network System SB 0080 SW 0080 ～ 0083 Easy Configuration Software Local Station Control by a master board for PC is available, too This is the slave station that enables N: N cyclic communication Master station Stand By Master station with Master and / or other Local and transient communication. (Local Station) Down Network Control Remote. Optical Device Station repeater（max. 7. 6 km) Input / Output (bit data) and numerical data (word data) can be exchanged by this station. Master Station for SI, GI fiber cable Joint（10 Mbps) This controls all slave. Rotary stations connected to CC-Link network. Local Station One master From station 3 rdisparty needed for a CC-link system. （ＣＣ－Ｌｉｎｋ） Remote I/O Station Many kinds of Repeater Only Input / Output (bit data) can. Wireless be handled by(Infrared this station. Partners Repeater(Tray) branch) Products Intelligent Device Station This station can perform data exchange, such as Input / Output (bit data) and numerical data (word data). full range of upavailable to 2. 5 Mbps、 And transient communication is also communication 0～ 100 m speed supported

Specifications of CC-Link Specifications Item Communication Speed & Total Length of CC-Link Cable Data size of Cyclic Data size of Transient 10 Mbps: 100 m (4. 3 Km with Optical repeater) 5 Mbps: 160 m (4. 48 Km with Optical repeater) 2. 5 Mbps: 400 m (5. 2 Km with Optical repeater) 625 Kbps: 900 m (6. 7 Km with Optical repeater) 156 kbps: 1, 200 m (7. 6 Km with Optical repeater) 24 bytes / 1 station 960 bytes (150 bytes / packet: Master =>Slave) (34 bytes / packet: Slave => Master) Link Scan Time 3. 4 ms (Remote I/O : 64 stations) Number of connectable stations 64 stations (without any repeater)

Feature of CC-Link Cyclic Communication Local Master Rx/y Bit Rw Word Rx/y Bit Rw Word HMI Robot Controller Remote I/O Rx/y Sensor Valve Inverter Analog I/O Robot Bit Rx/y Rw Bit Word Remote I/O: 2, 048 bit Remote Register： 512 word

Feature of CC-Link Transient Communication (Max. 960 bytes) Master 150 byte / 1 Scan=> Local Message <=34 byte / 1 Scan Robot Controller Digital I/O Rx/y Bit Rw Word Rx/y Bit Rw Word Rx/y HMI Sensor Valve Inverter Analog I/O Robot Bit Rx/y Rw Bit Word Remote I/O: 2, 048 bit Remote Register： 512 word

Feature of CC-Link Inter-Controller Network De-central Control system can be realized by using N: N communication between controllers with cyclic communication. RX, RWr RY, RWw Master RX, RWr Local RY, RWw Sensor Valve RY, RWw Intelligent Device RX, RWr Inverter Analog I/O

Feature of CC-Link Scan Time 4 ms/64 Stations (2048 bits Communication speed / 10 Mbps) Rough value of CC-Link Scan Time (In case cyclic communication is used under 10 Mbps communication speed) 　　　 6 Link Scan Time[ｍS] 5 4 Only Remote I/O connected 3 Only Remote Device connected (Each one station occupied) 2 Only Local / Intelligent Device connected (Each one station occupied) 1 0 0 20 40 Number of stations 60

Feature of CC-Link Communication method : Protocol (Broadcast-Polling) Master (1)' Slave 1 Slave 2 ………… Slave n Polling to slave 1 + Sending data (refresh data) to all slave stations Response (refresh data) from slave 1 (Receivable at all stations) (2) Polling to slave 2 (2)' Response (refresh data) from slave 2 (Receivable at all stations) (3) Polling to slave 3 (n)' Response (refresh data) from slave n (Receivable at all stations)

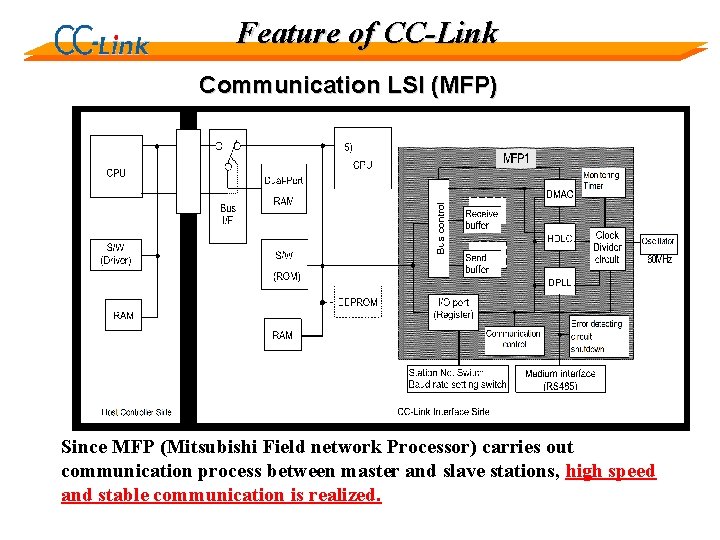

Feature of CC-Link Communication LSI (MFP) Since MFP (Mitsubishi Field network Processor) carries out communication process between master and slave stations, high speed and stable communication is realized.

Feature of CC-Link Frame Format (1) Standard Frame (Max. 930 byte) Ｆ Ｆ Ｆ Ａ Ａ Ｓ Ｓ １ ２ Ｔ Ｔ １ ２ DATA（Max. 918 byte） Ｃ Ｒ Ｃ Ｆ Ｆ Ｆ (2) Polling + Refresh data (Master => Local / Intelligent device station) Ｆ Ｆ Ｆ Ａ Ａ Ｓ Ｓ １ ２ Ｔ Ｔ １ ２ RY RWw (Max. 256 byte) (Max. 512 byte) Message Ｃ Ｆ Ｆ Ｆ Ｒ Ｃ (Max. 150 byte) (3) Response (refresh data) from slave (Local / Intelligent device => Master, Local => Local) Ｆ Ｆ Ｆ Ａ Ａ Ｓ Ｓ １ ２ Ｔ Ｔ １ ２ RX RWr (Max. 16 byte) (Max. 32 byte) Ｃ Ｒ Ｃ ＦMessage Ｆ Ｆ (Max. 34 byte) Ｃ Ｒ Ｃ Ｆ Ｆ Ｆ Data rate in frame is 98% in maximum => Efficient Data transfer

数据形式 Max. logical remote devices : RX: 2048 bits + RY: 2048 bits + RWr: 256 words + RWw: 256 words = 768 words

循环的数据刷新 主站 远程I/O，设备， 智能站 就地站 RX RX RY RY RWr RWr RWw RWw Data source Original data destination

循环的数据刷新 主站 远程I/O，设备， 智能站 就地站 RX RX RY RY RWr RWr RWw RWw Data source Original data destination Copied data Not available

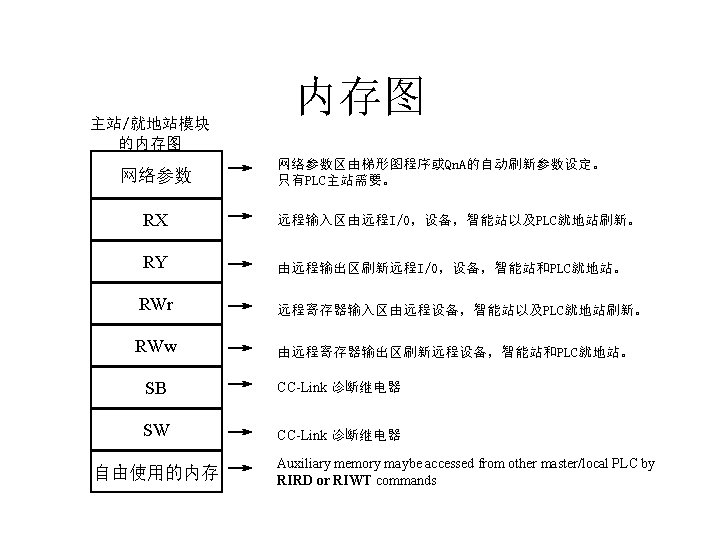

怎样访问内存 Qn. A/Qn. AS An. SH RLPA or TO (Note 1) An. N/An. A/An. U/An. S TO 主站/就地站模块 的内存图 网络参数 RX RY 自动刷新参数 RRPA or FROM/TO RWw (Note 1) SB SW FROM/TO Note 1: 建议使用FROM/TO Random access buffer

时间表 主站 备用主站 状态 输往远程 终端的数据 Active Local From Master Refresh data keeper *1 T SB 70 @ 备用主站 (by system) SB 1 @ 备用主站 (by ladder) SB 43 @ 备用主站 (by system) *1 : 远程单元维持最后的状态。 Master From Stand-by master
