Feature Based Modeling and Design Alyn Rockwood Kun

Feature Based Modeling and Design Alyn Rockwood Kun Gao KAUST

Greetings from Saudi Arabia

Greetings from Journal of Graphics Tools Announcing a special issue of Geometric Algebra and Graphics Applications!

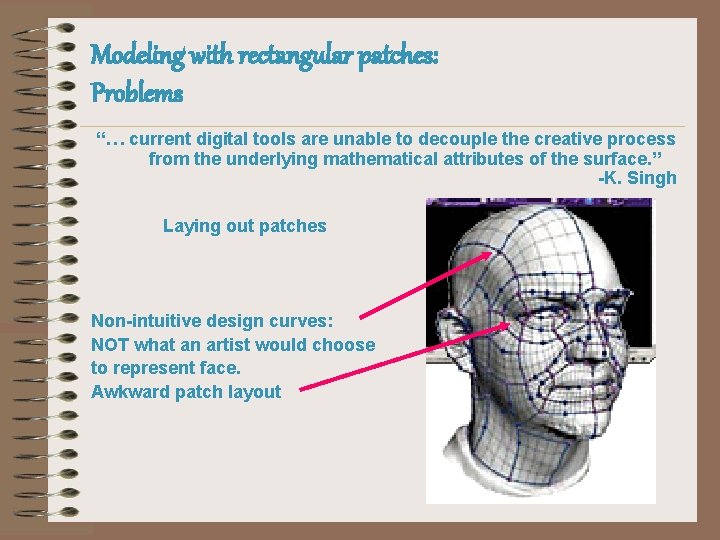

Modeling with rectangular patches: Problems “… current digital tools are unable to decouple the creative process from the underlying mathematical attributes of the surface. ” -K. Singh Laying out patches Non-intuitive design curves: NOT what an artist would choose to represent face. Awkward patch layout

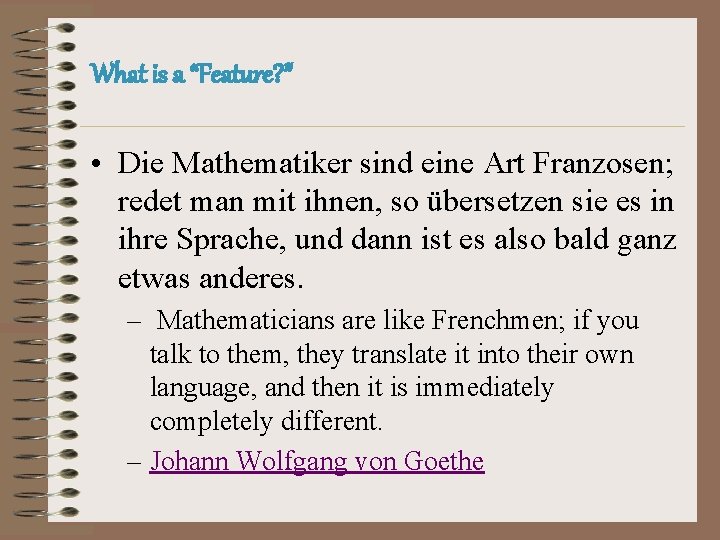

What is a “Feature? ” • Die Mathematiker sind eine Art Franzosen; redet man mit ihnen, so übersetzen sie es in ihre Sprache, und dann ist es also bald ganz etwas anderes. – Mathematicians are like Frenchmen; if you talk to them, they translate it into their own language, and then it is immediately completely different. – Johann Wolfgang von Goethe

What is a “Feature? ” Boundaries, G 1 discontinuities, creases, high curvature regions, ridges, peaks…

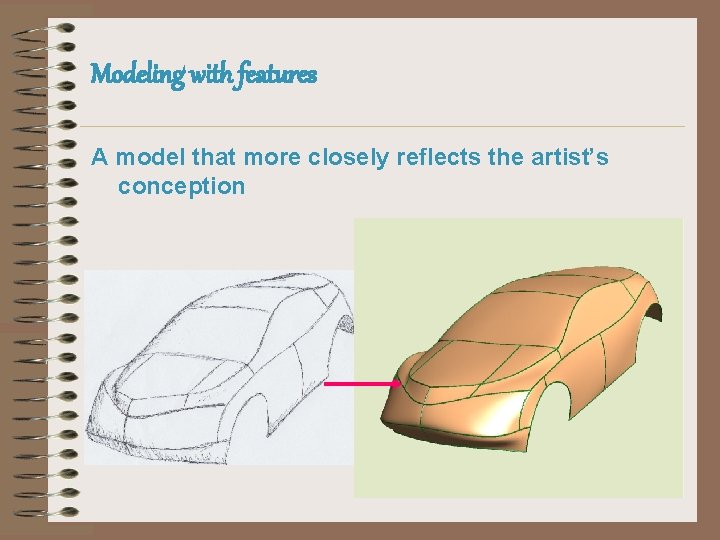

Modeling with features A model that more closely reflects the artist’s conception

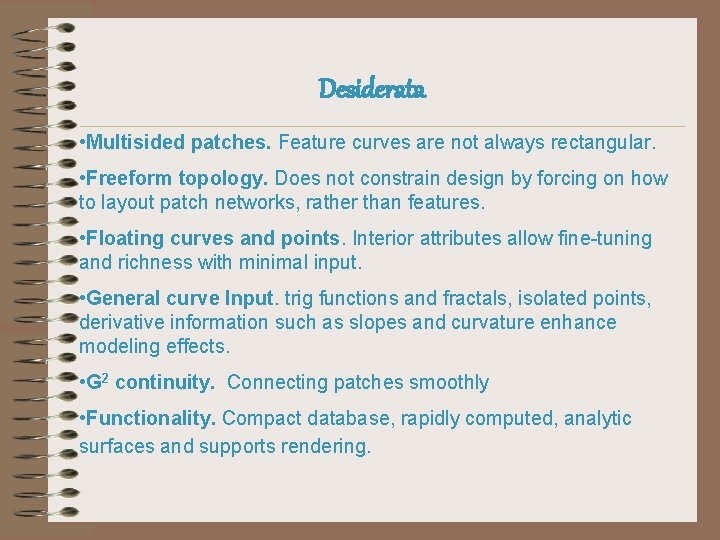

Desiderata • Multisided patches. Feature curves are not always rectangular. • Freeform topology. Does not constrain design by forcing on how to layout patch networks, rather than features. • Floating curves and points. Interior attributes allow fine-tuning and richness with minimal input. • General curve Input. trig functions and fractals, isolated points, derivative information such as slopes and curvature enhance modeling effects. • G 2 continuity. Connecting patches smoothly • Functionality. Compact database, rapidly computed, analytic surfaces and supports rendering.

Desiderata

A New Approach - foundations Discrete least squares minimizes (x - xi)2 + (y - yi)2 + (z - zi)2 Weighted least squares minimizes wi(x, y, z) [(x - xi)2 + (y - yi)2 + (z - zi)2] Where, for example wi(x, y, z) = 1 / [(x - xi)2 + (y - yi)2 + (z - zi)2+ i ]

A New Approach In parameter space, find ui, the closest point on the ith footprint to given point u u 1 u u 3 u 2

A New Approach In parameter space, find di, the “distance” to closest point on the ith footprint d 3 u d 1 d 2

A New Approach Footprints are pre-images of features in object space via feature maps fi. on the ith footprint. Define xi so that fi (ui) = xi x 1 f 1 u 1 x 3 x 2 f 3 f 2 u 3 u 2

A New Approach In object space, find weighted least squares solution of the xi x 1 x 3 x x 2 where the weights wi(x, y, z) = 1 / di

A New Approach • F(u) = x u

A New Approach To summarize: From u find point on ith footprint and compute point on attribute to use it in least squares where weight is determined as reciprocal distance. Do it for all footprints

Example x 1 x x 3 Move u See x move u 1 u u 3 u 2

Example x 1 When u is close to the footprint then the corresponding feature dominates because its distance is small. The interpolation property x x 3 u 1 u u 3 u 2

Solving the least squares Let fi: (u, v) (x, y, z), be the attribute functions Let wi: (u, v) wi R be the weight functions. For F = (xi(u, v) , yi(u, v) , zi(u, v) ) minimize: E = i ||fi(u, v) - F|| 2 wi(u, v) Hence without loss E/ x = i [-2(xi(u, v) - x ) wi(u, v) + (xi(u, v) - x )2 wi(u, v) / x] = i [-2(xi(u, v) - x ) wi(u, v)]. Minimizing by setting it to 0 i xi(u, v) wi(u, v) = x i wi(u, v). implies x = i xi(u, v) wi(u, v) / i wi(u, v). Putting it together:

Mildly surprising discovery F(u) = wi(u)fi(u) / wi(u) generalizes Shepard’s formula Weights and interpolants are defined in a separate parameter space with general distances

Convex combination The weights wi(u) / wj(u) sum to 1 (partition of unity). • • • is affinely invariant. The surface lies within the convex hull of the fi(u) The surface reproduces the plane/line. F(u)

Minimal energy “soap film” effect Three lines and a sine curve; no connection needed

Higher order continuity Let F(u) = Ŵi(u)2 Li(u) where Ŵi(u) = wi(u)/ j wj(u) and the loft Li(u) = (1 -si) fi(ti) + si gi(ti). (si and ti are distance and footprint parameter functions of u) F(u) is cotangent to the linear loft Li(u) along the attribute curve fi(ti). Tangency is determined by gi(ti).

Interpolation to derivatives Five sided, horizontal slope, varying loft f i( t i) g i( t i)

Interpolation to derivatives Five sided and slopes, linear lofts

Interpolation to derivatives Five sided and slopes, linear lofts

G 1 continuity Theorem 1. If F(u) = i [ Ri(si, ti)] (Wi(u)/ i Wi(u))2 are defined with separate footprints, where Ri(si, ti) = (1 - si) fi(ti) + si gi(ti), then, F(u 0, v 0)/ u = Ri(0, t 0)/ u and F(u 0, v 0)/ v = Ri(0, t 0)/ v for point (u 0, v 0) on the footprint at parameter t 0. Parameter si=si(u, v) is the distance to the ith footprint Parameter ti=ti(u, v) is then parametric value of the nearest point on the ith footprint Theorem guarantees that if two patches share a common curve fi(t) and have two lofts that share tangent planes at the common curve, then the surface patches also share common tangent planes; they are G 1 at fi(t).

G 1 continuity Contouring of three and four-sided patch configuration. Matched lofts across curves and at vertices.

Higher order continuity Let F(u) = Ŵi(u)3 Qi(u) where Ŵi(u) = wi(u)/ j wj(u) and Qi(u) = (1 -si)2 fi(ti) + 2 (1 -si) si gi(ti) + si 2 hi(ti). F(u) is cotangent to the parabolic loft Qi(u) along the attribute curve fi(ti). Curvature is determined by gi(ti) and hi(ti).

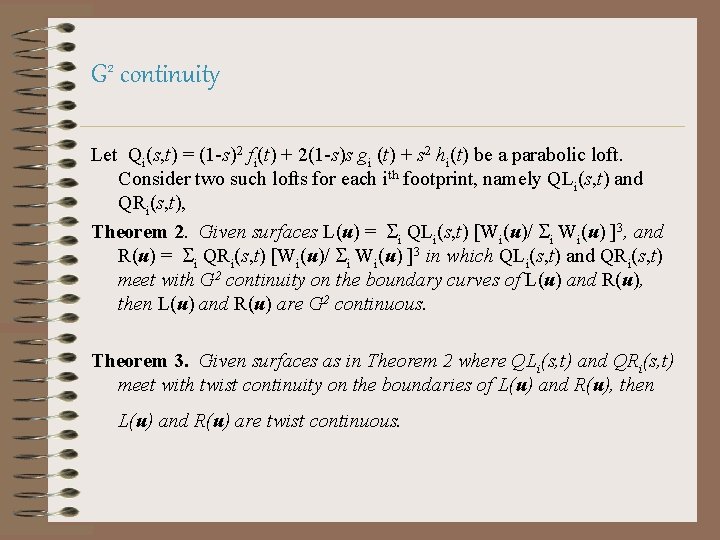

G 2 continuity Let Qi(s, t) = (1 -s)2 fi(t) + 2(1 -s)s gi (t) + s 2 hi(t) be a parabolic loft. Consider two such lofts for each ith footprint, namely QLi(s, t) and QRi(s, t), Theorem 2. Given surfaces L(u) = i QLi(s, t) [Wi(u)/ i Wi(u) ]3, and R(u) = i QRi(s, t) [Wi(u)/ i Wi(u) ]3 in which QLi(s, t) and QRi(s, t) meet with G 2 continuity on the boundary curves of L(u) and R(u), then L(u) and R(u) are G 2 continuous. Theorem 3. Given surfaces as in Theorem 2 where QLi(s, t) and QRi(s, t) meet with twist continuity on the boundaries of L(u) and R(u), then L(u) and R(u) are twist continuous.

G 2 Continuity • Set of 2, 3, 4 and 5 -sided patches • Isophote showing curvature continuity

G 2 Continuity Highly reflective, aesthetic surfaces

Editability Multi-sided patches: Car with 2 -, 3 - 4 - and 5 -sided patches A-pillar a single 7 -sided patch

Editability Minimal curve input for high expressive content

Editability Editting cuves across interior, arbitrary parameter position.

Editability Editting cuves across interior, arbitrary parameter position.

Editability– auto footprint Footprint space inferred from the shape of the patch. Automobile A-pillar: 7 -sided and lengths …and flattening!

Editability– demo

Floating edges Unattached footprint maps to unattached attribute curve; surface interpolates floating curve

Floating edges – topology? • A topologist is one who doesn't know the difference between a doughnut and a coffee cup. – John Kelley

Floating edges Footprints are orthogonal projections of (red) attribute curves. Appalachian mountain trimmed to square (arbitrary, no polygon!)

Template parameter spaces Cylindrical footprint space. Circular footprints. Distance is is vertical height from point to circle. distance u

Template parameter spaces Similar shapes. Cylindrical footprint space reapplied to daffodil- twice. distance u

Interpolation to fractals Properly defined lofts yields slope of ridge brown = fi(ti), red = gi(ti).

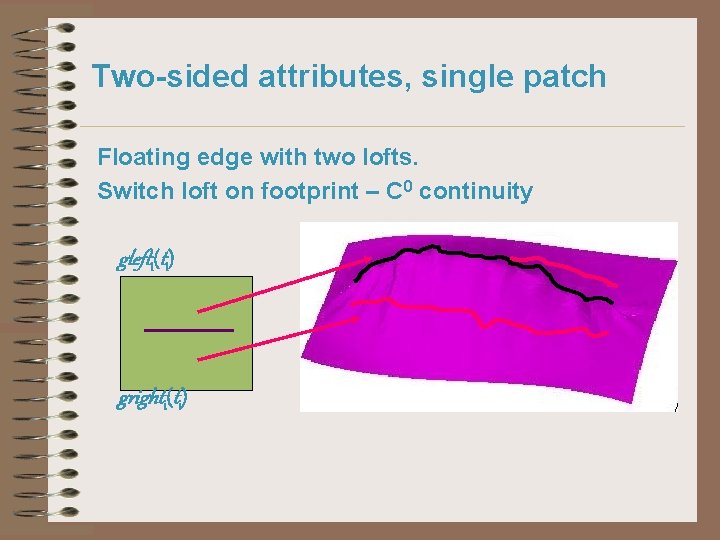

Two-sided attributes, single patch Floating edge with two lofts. Switch loft on footprint – C 0 continuity glefti(ti) grighti(ti)

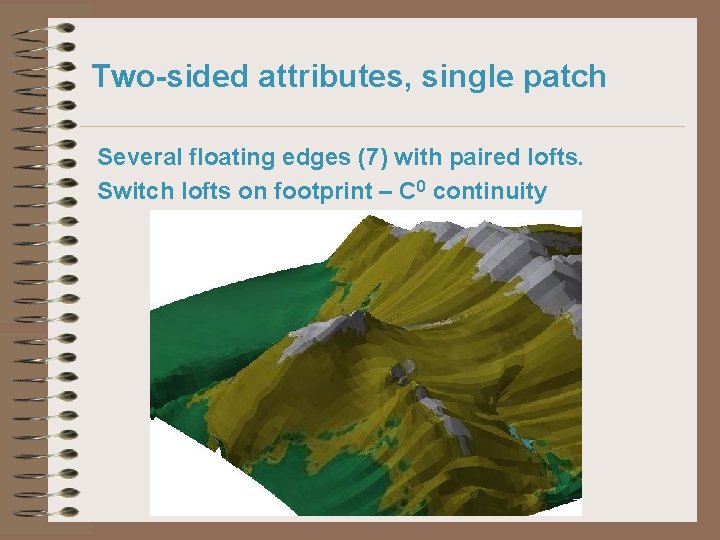

Two-sided attributes, single patch Several floating edges (7) with paired lofts. Switch lofts on footprint – C 0 continuity

Two-sided attributes, curves 7 Bezier curves with fractal noise is total data base

Two-sided attributes, single patch Floating edge with two attribute functions. Switch functions again – C-1 continuity! flefti(ti) frighti(ti)

Two-sided attributes, single patch Several floating edges (3) with paired lofts. Antelope Island. Cliff

Closure of Parametric Curves Attributes include any parametric curve, which allows adding trigonometric noise, for example: finew(t) = fiold(t) + [0, 0. 3*sin(5*pi*t), 0. 2*sin(4*pi*t)],

Closure of Parametric Curves – Trim curves Trimming from footprint (parameter) space to object space is traditional (5 -sided, noise)

Closure of Parametric Curves – Watertight merging of two surfaces Using trim curve as an attribute for 3 -sided

Closure of Parametric Curves – Watertight merging of two surface Moving 3 -sided and trim curve

Closure of Parametric Curves – Watertight merging of two surface Emblem on shield and floating curve

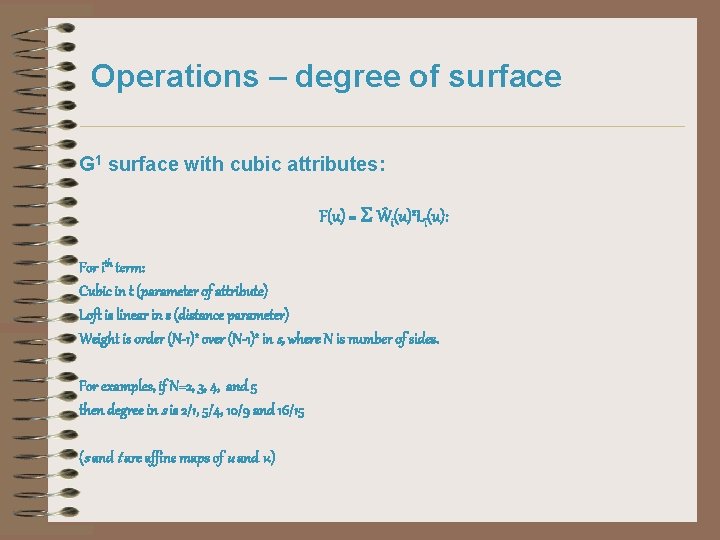

Operations – degree of surface G 1 surface with cubic attributes: F(u) = Ŵi(u)2 Li(u): For ith term: Cubic in t (parameter of attribute) Loft is linear in s (distance parameter) Weight is order (N-1)2 over (N-1)2 in s, where N is number of sides. For examples, if N=2, 3, 4, and 5 then degree in s is 2/1, 5/4, 10/9 and 16/15 (s and t are affine maps of u and v. )

Operations - order of computation Limit singularity, wi(u) is large number: F(u) = i fi(u) wi(u) / i wi(u). Computation is linear with number of attributes Remove singularity: F(u) = i j i [1/ wj (u)] fi(ui) / i j i [1/ wj (u)]. Recall wj (u) is reciprocal distance Computation is quadratic with number of attributes

Economy of data/input Object Patches Auto body 28 Cartoon bird Morning glory Appalachia 1 Pikes Peak 1 Daffodil 4 A-pillar 1 Curves Lofts Noises 25 25 7 2 21 3 6 7 5 7 0 14 4 7 0 21 2 0 0 2

Economy of data/input – Palo Duro Canyon captured with 128 edges

Thank you! It is impossible to be a mathematician without being a poet in soul. Sofia Kovalevskaya Poetry is as exact a science as geometry –Flaubert Geometry is as sublime an art as poetry - AR See also www. fredesign 3 d. com

Leif’s question Var. Mesh Piecewise linear Numerical issues Mesh database(104 -6) Vertex/feature editing PDE solutions (flow) Linear time in vertices LOD re-initialize Resolution re-initialize None AB surface Algebraically exact Analytic Small database(102 -3) Attribute editing None -yet Linear in attributes LOD add attributes resample Footprint issues
