Feasibility of a CMOS Ultra Wide Band Receiver Component Design and Measurement Chih-An Angela Lin 05 gr 1051 Radio Frequency Integrated Systems and Circuits (RISC) Division, Aalborg University Supervisors: Tian Tong & Ole Kiel Jensen June 20, 2005 05 gr 1051

Outline p p Introduction to ultra wide band (UWB) technology n Applications n Definition and specification n Standardization process n Different modulation scheme proposals Goal of the project Multiplier of a delay-line demodulator n Gain & Linearity n Measurement setup n Measurement results and comparison Conclusion RISC Division 05 gr 1051 2

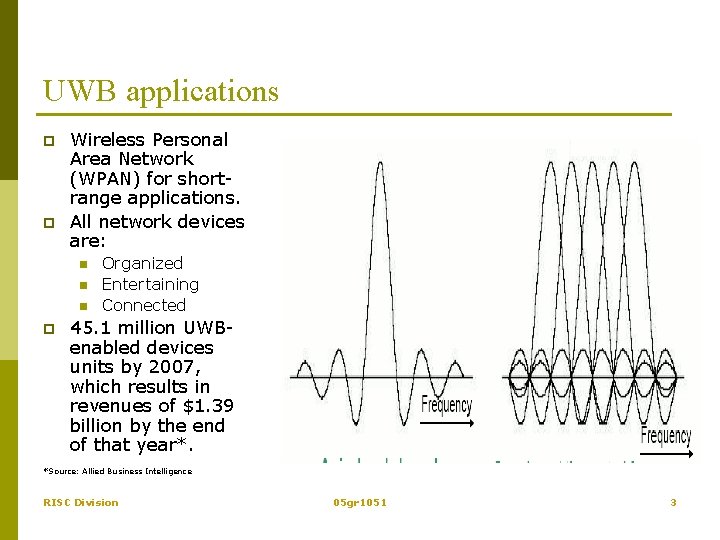

UWB applications p p Wireless Personal Area Network (WPAN) for shortrange applications. All network devices are: n n n p Organized Entertaining Connected 45. 1 million UWBenabled devices units by 2007, which results in revenues of $1. 39 billion by the end of that year*. *Source: Allied Business Intelligence RISC Division 05 gr 1051 3

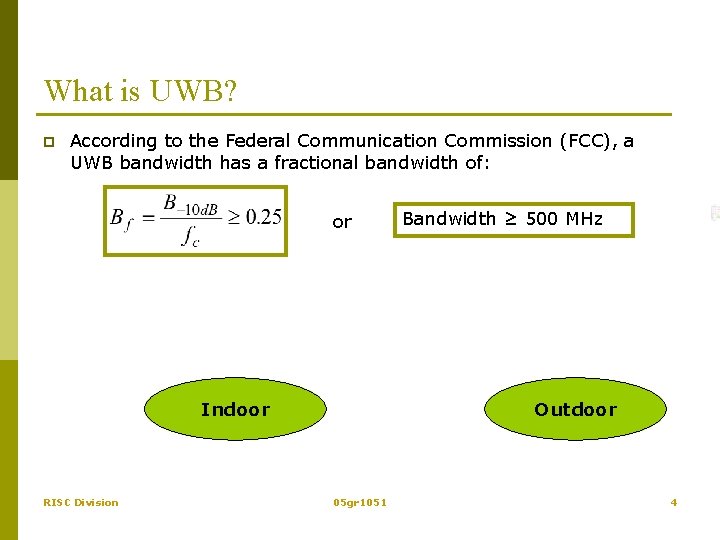

What is UWB? p According to the Federal Communication Commission (FCC), a UWB bandwidth has a fractional bandwidth of: or Indoor RISC Division Bandwidth ≥ 500 MHz Outdoor 05 gr 1051 4

UWB signals and their spectra Pulse shaping using wavelets Source: IEEE 802. 15 -03/157 r 1 RISC Division 05 gr 1051 5

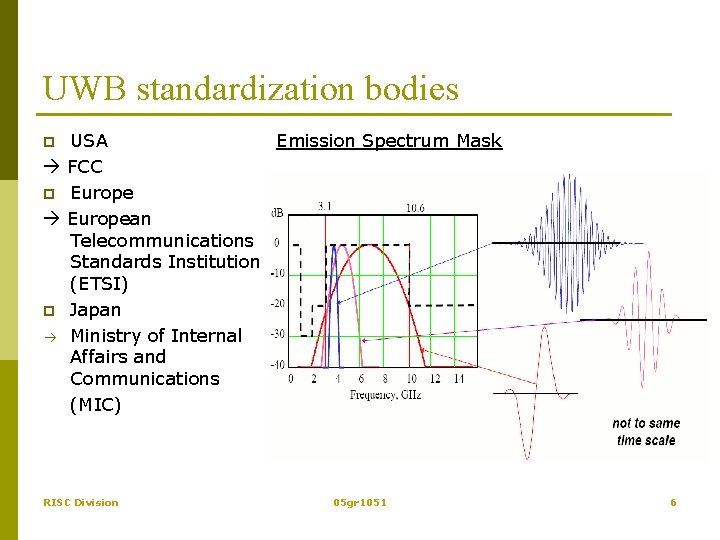

UWB standardization bodies USA Emission Spectrum Mask FCC p European Telecommunications Standards Institution (ETSI) p Japan Ministry of Internal Affairs and Communications (MIC) p RISC Division 05 gr 1051 6

UWB Technologies Different Proposals for One Standard p p Multiband Orthogonal Frequency Division Multiplexing (MB-OFDM) Direct Sequence Spread Spectrum (DS-SS) UWB, also called DSSS Impulse Radio (DSSS-IR) UWB Frequency Modulation (FM) UWB Centre Suisse d’Electronique et de Microtechnique (CSEM) TI Intel Samsung Time Derivative Freescale Nokia MB-OFDM by UWB Multibandcoalition USA DSSS-IR UWB by UWB Forum FM UWB Europe RISC Division Tektronix 05 gr 1051 by CSEM 7

OFDM Symbols Generation RISC Division 05 gr 1051 8

MB-OFDM UWB Proposal *Source: www. ihp-microelectronics. com One single subcarrier* 5 carriers at the fc of each subcarrier. • Channel BW: 528 MHz • N-point FFT symbol (i. e. N=128) • 5. 2 ~ 5. 8 GHz forbidden • High data rate (up to 480 Mbps for 3 m) • Mode 1 = Group A No crosstalk* RISC Division 05 gr 1051 9

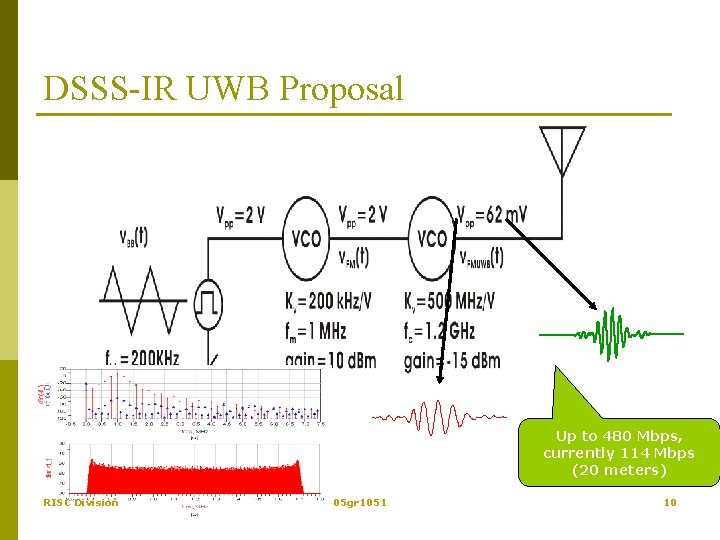

DSSS-IR UWB Proposal Up to 480 Mbps, currently 114 Mbps (20 meters) RISC Division 05 gr 1051 10

FM-UWB Proposal FM delay-line demodulator subcarrier RISC Division RF 05 gr 1051 11

UWB Standard Proposals Comparison Performance MB-OFDM UWB DSSS-IR UWB FM-UWB Data Rate Applications High data rate Low & medium data rate Narrowband Interference More sensitive Less sensitive Multipath / Fading Frequency selective fading Less Bandwidth Flexibility Flexible Less flexible Flexible Bandwidth Efficiency Lower Medium High Receiver complexity Need a complex DSP system RISC Division Need a complex A simple analog equalization correlator system 05 gr 1051 12

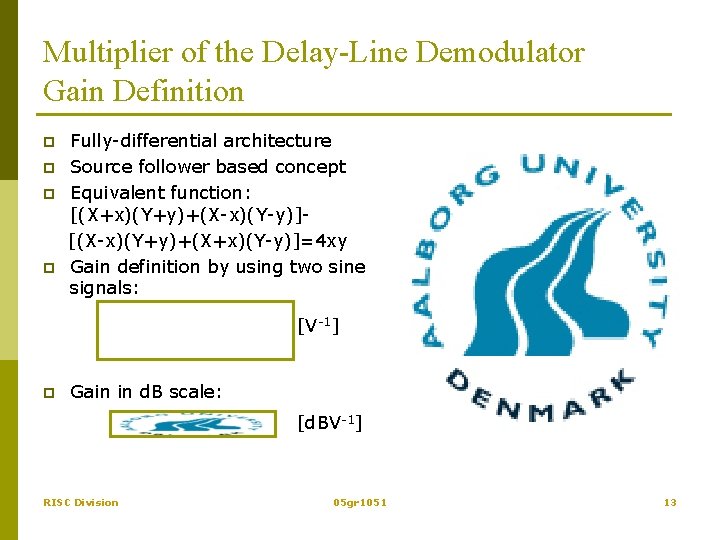

Multiplier of the Delay-Line Demodulator Gain Definition p p Fully-differential architecture Source follower based concept Equivalent function: [(X+x)(Y+y)+(X-x)(Y-y)][(X-x)(Y+y)+(X+x)(Y-y)]=4 xy Gain definition by using two sine signals: [V-1] p Gain in d. B scale: [d. BV-1] RISC Division 05 gr 1051 13

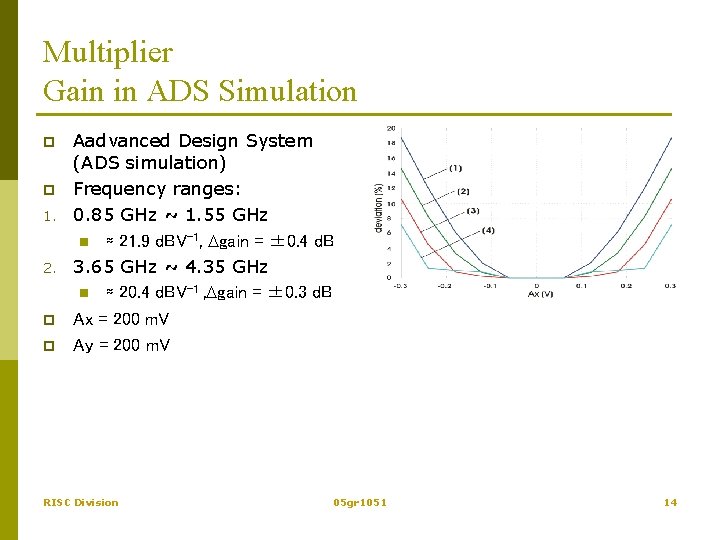

Multiplier Gain in ADS Simulation p p 1. 2. p p Aadvanced Design System (ADS simulation) Frequency ranges: 0. 85 GHz ~ 1. 55 GHz n ≈ 21. 9 d. BV-1, Dgain = ± 0. 4 d. B 3. 65 GHz ~ 4. 35 GHz n ≈ 20. 4 d. BV-1 , Dgain = ± 0. 3 d. B Ax = 200 m. V Ay = 200 m. V RISC Division 05 gr 1051 14

Multiplier Linearity Definition Linearity definition: 10% deviation from the extrapolated linear data deviation= [%] RISC Division 05 gr 1051 15

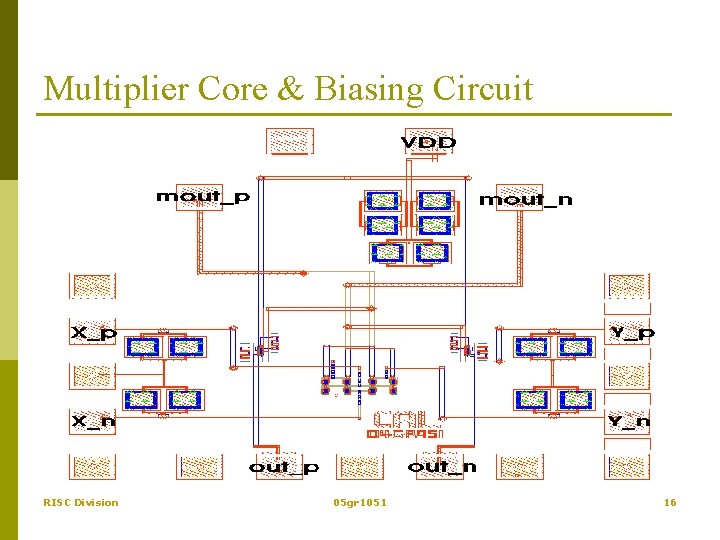

Multiplier Core & Biasing Circuit RISC Division 05 gr 1051 16

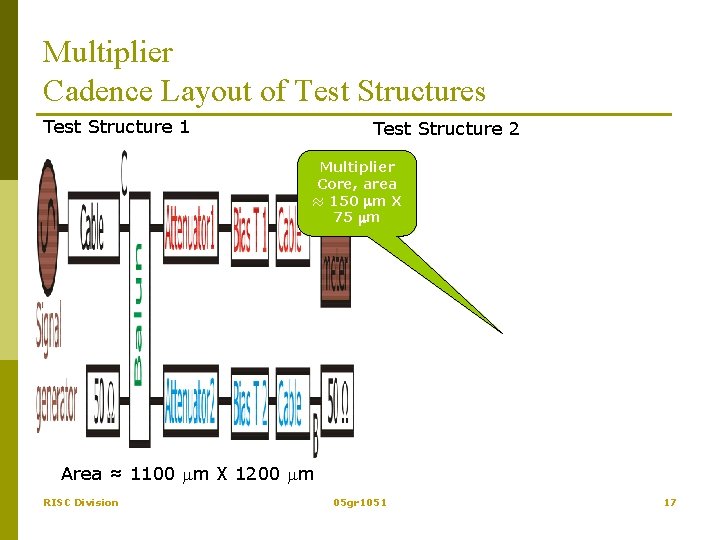

Multiplier Cadence Layout of Test Structures Test Structure 1 Test Structure 2 Multiplier Core, area ≈ 150 mm X 75 mm Area ≈ 1100 mm X 1200 mm RISC Division 05 gr 1051 17

Multiplier Measurement based on test structure 2 RISC Division 05 gr 1051 18

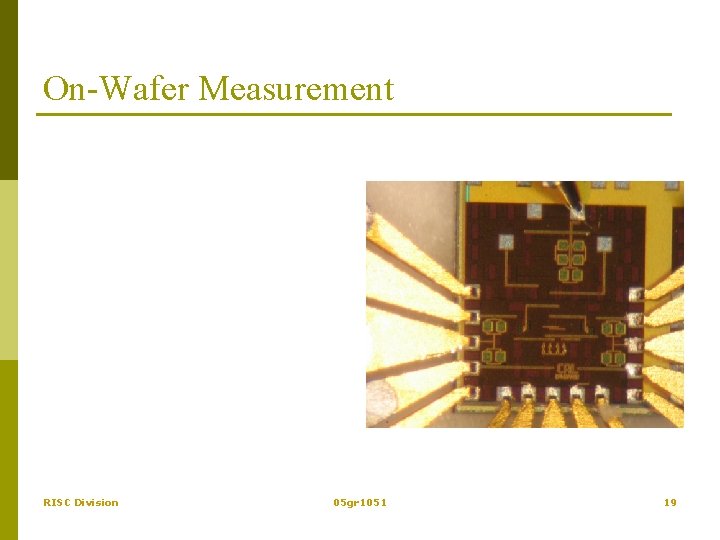

On-Wafer Measurement RISC Division 05 gr 1051 19

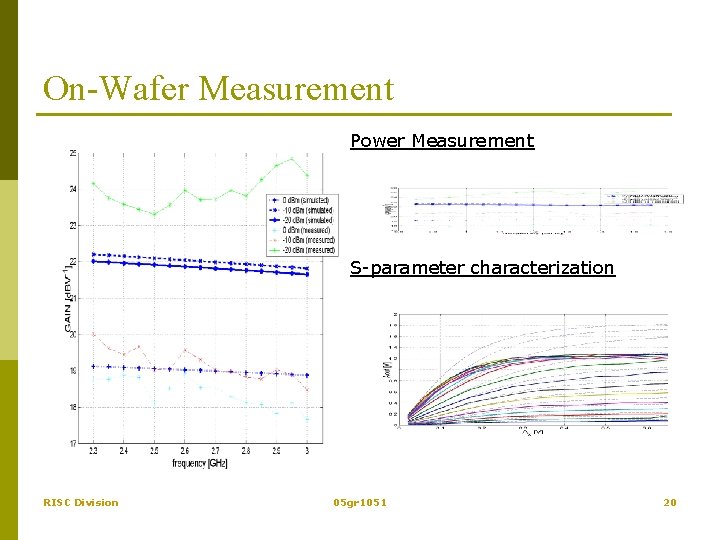

On-Wafer Measurement Power Measurement S-parameter characterization RISC Division 05 gr 1051 20

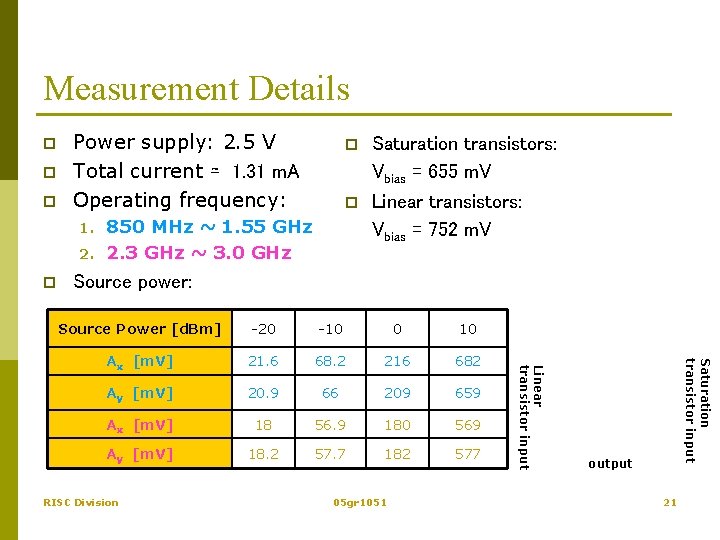

Measurement Details p p p Power supply: 2. 5 V Total current ≃ 1. 31 m. A Operating frequency: 1. 2. p p p 850 MHz ~ 1. 55 GHz 2. 3 GHz ~ 3. 0 GHz Saturation transistors: Vbias = 655 m. V Linear transistors: Vbias = 752 m. V Source power: -10 0 10 Ax [m. V] 21. 6 68. 2 216 682 Ay [m. V] 20. 9 66 209 659 Ax [m. V] 18 56. 9 180 569 Ay [m. V] 18. 2 57. 7 182 577 RISC Division 05 gr 1051 Saturation transistor input -20 Linear transistor input Source Power [d. Bm] output 21

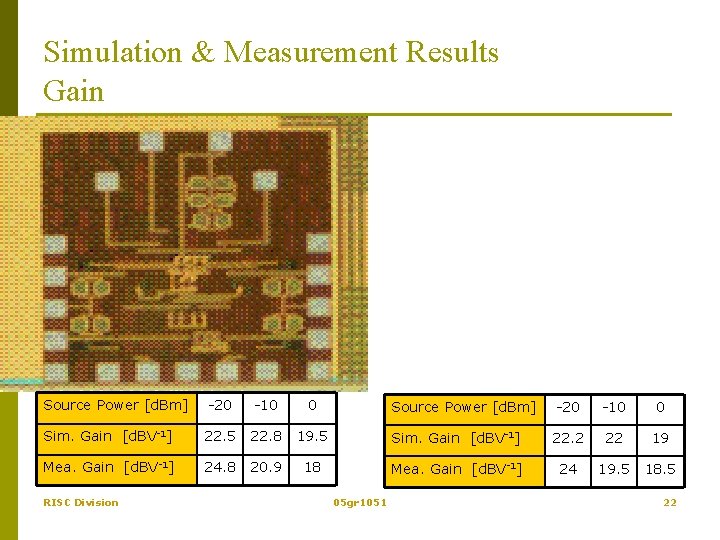

Simulation & Measurement Results Gain Source Power [d. Bm] -20 -10 0 Sim. Gain [d. BV-1] 22. 5 22. 8 Mea. Gain [d. BV-1] 24. 8 20. 9 RISC Division Source Power [d. Bm] -20 -10 0 19. 5 Sim. Gain [d. BV-1] 22. 2 22 19 18 Mea. Gain [d. BV-1] 24 19. 5 18. 5 05 gr 1051 22

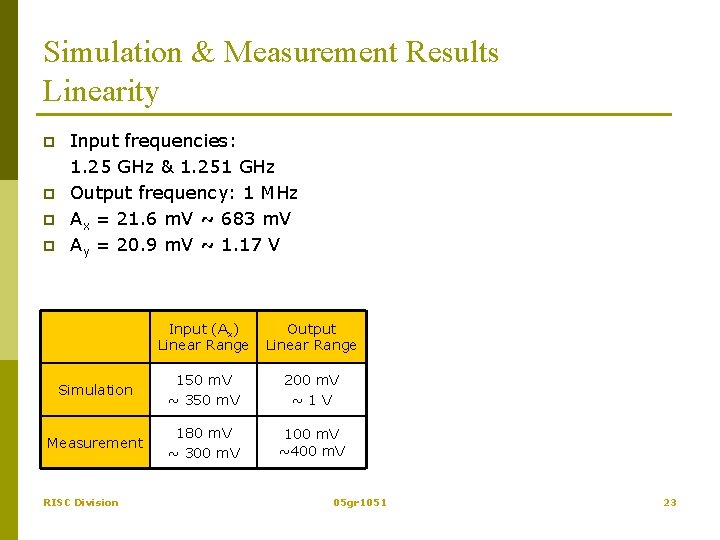

Simulation & Measurement Results Linearity p p Input frequencies: 1. 25 GHz & 1. 251 GHz Output frequency: 1 MHz Ax = 21. 6 m. V ~ 683 m. V Ay = 20. 9 m. V ~ 1. 17 V Input (Ax) Linear Range Output Linear Range Simulation 150 m. V ~ 350 m. V 200 m. V ~1 V Measurement 180 m. V ~ 300 m. V 100 m. V ~400 m. V RISC Division 05 gr 1051 23

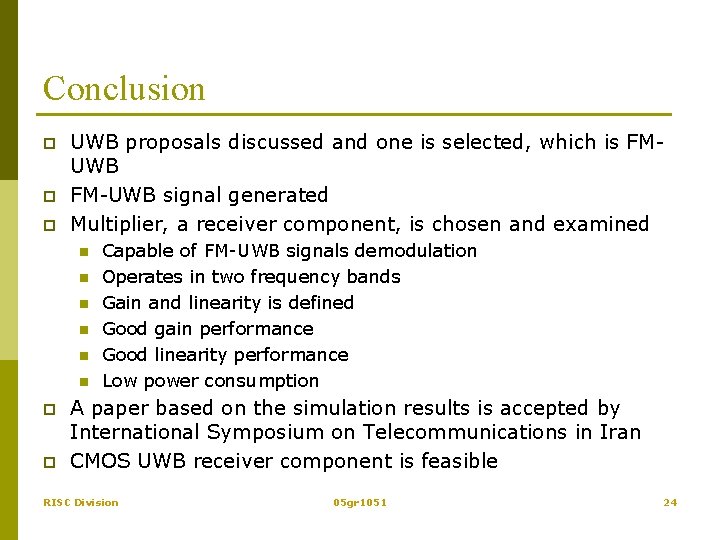

Conclusion p p p UWB proposals discussed and one is selected, which is FMUWB FM-UWB signal generated Multiplier, a receiver component, is chosen and examined n n n p p Capable of FM-UWB signals demodulation Operates in two frequency bands Gain and linearity is defined Good gain performance Good linearity performance Low power consumption A paper based on the simulation results is accepted by International Symposium on Telecommunications in Iran CMOS UWB receiver component is feasible RISC Division 05 gr 1051 24
