Fasteners, Gaskets, Sealants Mr. Toth
Types of Fasteners �Machine screws �Sheet metal screws �Bolt �Studs �Nuts �Epoxy, Tapes
Machine Screw �Needs a pre drilled whole �Needs a pre threaded whole
Self Tapping Screw �‘drills’ its own whole (in wood) �Does not need threads �Sheet metal �Wood
Nuts and Bolts �Needs pre drilled whole �Can use washers
Epoxy, Adhesive �Mix substance, hardener �Chemical reaction �WEAR GLOVES �Gets very hot
Epoxy, Tapes
Epoxy, Tapes
Video, Epoxy �http: //www. youtube. com/watch? v=du. LCEjeose. Q&pla ynext=1&list=PL 90 C 94 AC 230 F 4509 B&feature=results_ main
Christmas Tree Clips �Tapered �Fits into pre drilled wholes �Holds bumpers on
Video http: //www. youtube. com/watch? v=dx. JOprgwh 4 g
Thread Repair
oducation �The pointer indicates a carburetor bolt hole with damaged threads. �This was caused by the installation of a carburetor bolt with damaged threads. � Since most bolts are made of steel, damaged bolts will quickly deform and displace threaded holes in softer materials such as aluminum during installation.
Drill Out Stripped Hole �An oversize drill bit is used to enlarge the hole to accept a threaded steel repair insert.

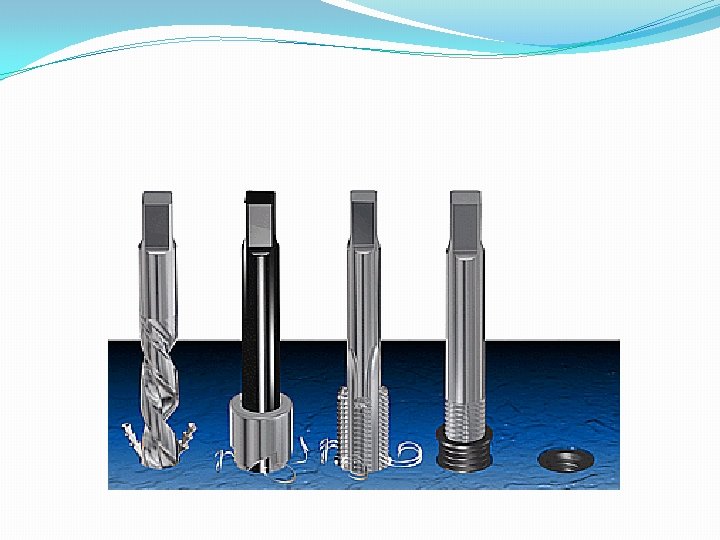

Cutting New Threads �Every thread repair kit contains a matched tap �Creates a threaded hole in the parent material �This gives the threads on the outside diameter of the repair insert something to lock into. � Always keep these special taps separate from other taps to prevent accidental mix-ups.
Using the Tap �Cutting fluid must be used during the tapping operation to reduce friction. �Use a gentle touch to start the tap �Continue in a clockwise direction, stopping every 3/4 turn to reverse direction 1/4 turn.
Removing the Tap �When tap hits the bottom, reverse and remove slowly �Use compressed air to blow out any chips.
The Insert �Thread repair inserts are made from steel and are compatible with virtually any material that can be drilled and tapped.
Preparing the Insert �Pointer indicates the integral drive tang that seats against a step on the tip of the installation tool. �Thread the repair insert (clockwise) all the way onto the end of the installer and make sure the tang fits completely into the step.
Installing the Insert �The installation tool is turned clockwise as the insert threads easily into the oversize hole. �Keep turning until the installer hits bottom, then reverse direction. �The insert will remain lodged in the parent metal as the installer is backed out.
Removing the Drive Tang �The drive tang must be knocked off the end of the insert using a punch. �Use compressed air or a magnetic probe to retrieve the remains of the tang.
The Finished Product �The insert’s steel threads are more resistant to pulling than the aluminum parent material � The repair is actually stronger than stock. .
Gaskets and Sealants
What do Gaskets and Sealants do? �Confine fuel, oil, water, air and vacuum to specific units or areas. �Keep dust, dirt, water out of various parts. �Play an important role in proper functioning and service life of most components.
Gaskets �A flexible piece of material placed between two or more parts �Fills irregularities between parts to produce a leak proof joint. �Made of steel, aluminum, copper, cork, rubber, paper, felt and silicone. �Selection of gasket material is based on several variables. (application, temperature, pressure)
Sealants �Silicone: �High temp �Low Temp �Gasket maker: Cut out material
