Fasteners 6831. 21
Nails • Metal fasteners driven into the material it holds
Nails • Common nails are used for general construction and have a flat head and diamond shaped point
Common Nails • Used for construction such as framing because of their heads and size of shank
Nails • Finishing nails have small heads that can be set below surface
Finishing Nails • Used for trim because of small heads that can be countersunk below surface of wood
Nails • Brads are thin, short nails with small heads
Nails • Cut or casing nails are square on the ends and are used for tongue an groove board nailing
Casing Nails • Used to fasten tongue and groove boards and to nail some trim work
Nails • Others: roofing, box, staple, duplex

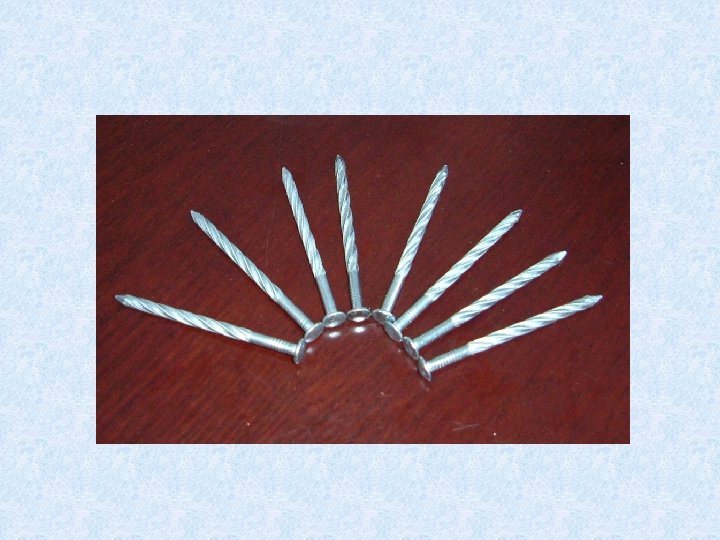

Spiral Groove Nails • Used to fasten metal on roofs because the nails are less likely to work loose and cause leaks
Screws • Fasteners with threads that bite into the material they fasten
Screws • Kind based on material they hold – wood, sheet metal, drywall, etc.
Screws • Kind based on metal they are made from – steel, brass, etc.
Screws • Kind based on shape of head – flat, round, oval, pan, etc.
Flathead and Roundhead Screws • Used to fasten wood to wood
Countersink • A countersink cuts a “V” in the surface of wood so that a flathead screw will be flush or just below surface
Countersink • Roundhead screws will be above surface unless a hole is drilled deep enough to hide head of screw
Screws • Size is determined by diameter (gauge) and length (inches) of the shank
Bolts • Fasteners that require a threaded nut
Bolts • A lag bolt is sometimes called a lag screw because it has threads similar to a wood screw and does NOT use a nut
Lag Screws • Are used with expansion shields to fasten wood to masonry materials such as concrete, bricks, or blocks
Bolts • A carriage bolt has a round head over a square shank or shoulders
Carriage Bolt
Bolts • A stove bolt may have either a round head or a flat head and the shank is threaded the entire length from bottom to top
Stove Bolt
Stove Bolts • Are used to fasten lightweight metal structures
Bolts • A machine bolt has either a square head or a hex head and is threaded on the bottom for about 1” • It is NOT threaded all the way to the top
Machine Bolts • Are used when a strong bolt is needed, but it needs to be removed to dismantle metal equipment on a regular basis
Bolts • A cap screw is much like a machine bolt but has threads the entire length, is usually 2” or less in length, threads into something other than a nut, and may have different kind of head
