Fastener Division ST 9500 TM System Features & Benefits Features Benefits Cycle speed adjustment

Fastener Division ST 9500 TM System Features & Benefits Features Benefits Cycle speed adjustment (+ / - ) Greater productivity - 0. 45 to 0. 25 seconds! Cycle count adjustment (1, 2, 3, 4. . . or cont) Increased operator productivity Needle spacing (6 mm – 12 mm vs. 9. 5 mm) Process thicker or thinner material and better “whiskering” effects Fastener strength (> 2 lbs. ) Improved performance in “whiskering” Non-continuous electrical power consumption Reduced electric power consumption (50+%) Variable input power (90 – 250 volts) One machine can serve all applications No adjust fastener feed system Reduced loading time and waste Direct drive motor (non continuous running) Reduced operating expense No clutch or solenoid Less downtime and spare part expense RS 232 & Internet Port - “smart machine" Operations data – up/down time, cycles Double shot capability Greater application strength and speed Plastic Staple® ST 9500 TM Patents Pending Proprietary and Confidential

Plastic Staple® ST 9500 TM and Spares Fastener Division Description Item # Plastic Staple®

Plastic Staple® ST 9500 TM and Spares Fastener Division Description Item # Plastic Staple® Attachers: Plastic Staple® ST 9500 TM Attacher 15000™ Fine Fabric Plastic Staple® Fasteners: Clear White Black Grey Orange 15001™ 15002™ 15003™ 15004™ 15005™ Fine Fabric Plastic Staple® Needles: FF Plastic Staple® Needle Ultra FF Plastic Staple® Needle 15010™ 15011™ Plastic Staple® Accessories: Foot Pedal - Heavy Duty Foot Pedal – Light Duty Plastic Staple® ST 9500 TM Patents Pending Proprietary and Confidential 10442 ST 0525 -001

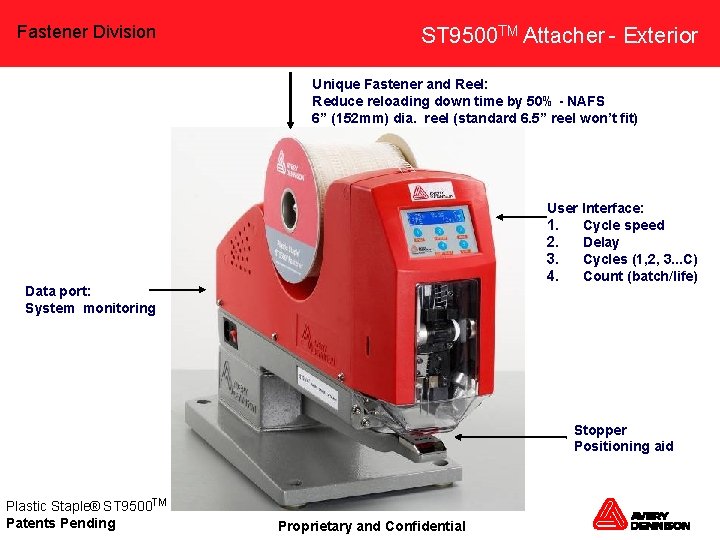

Fastener Division ST 9500 TM Attacher - Exterior Unique Fastener and Reel: Reduce reloading

Fastener Division ST 9500 TM Attacher - Exterior Unique Fastener and Reel: Reduce reloading down time by 50% - NAFS 6” (152 mm) dia. reel (standard 6. 5” reel won’t fit) User Interface: 1. Cycle speed 2. Delay 3. Cycles (1, 2, 3. . . C) 4. Count (batch/life) Data port: System monitoring Stopper Positioning aid Plastic Staple® ST 9500 TM Patents Pending Proprietary and Confidential

Fastener Division ST 9500 TM User Interface 2 INTERVAL – 0. 0, 0. 1,

Fastener Division ST 9500 TM User Interface 2 INTERVAL – 0. 0, 0. 1, 0. 2, 0. 3… 1. 0 seconds 1 SPEED - Cycle speed adjustment (. 25, . 30, . 35 …. 60 second) Plastic Staple® ST 9500 TM Patents Pending 3 MODE - Cycle count adjustment (1, 2, 3… 10 or C for continuous) 4 COUNT/RESET – Batch “COUNT” or “LIFE” Proprietary and Confidential 5 SAVE – save settings

ST 9500 TM - Interior Fastener Division Double Shot Switch: Easy activation Ejector Rod

ST 9500 TM - Interior Fastener Division Double Shot Switch: Easy activation Ejector Rod Gauge Feed Knob: No- adjust feeding Needle Spacing Knob Needle Spacing Range: ST 9500 = 6 mm – 12 mm ST 9000 = 9. 5 mm Plastic Staple® ST 9500 TM Patents Pending Proprietary and Confidential

Fastener Division Double Shot Feature Traditional approach: 2 fasteners with 2 cycles Plastic Staple®

Fastener Division Double Shot Feature Traditional approach: 2 fasteners with 2 cycles Plastic Staple® ST 9500 TM Patents Pending Proprietary and Confidential

Fastener Division Double Shot Feature Double shot switch Double shot feature minimizes material damage

Fastener Division Double Shot Feature Double shot switch Double shot feature minimizes material damage and cuts cycle time in half! 2 Fasteners in 1 cycle ! Plastic Staple® ST 9500 TM Patents Pending Proprietary and Confidential

Fastener Division Adjustable Stopper Positioning aid Plastic Staple® ST 9500 TM Patents Pending Proprietary

Fastener Division Adjustable Stopper Positioning aid Plastic Staple® ST 9500 TM Patents Pending Proprietary and Confidential

Fastener Division Reduced Power Consumption Comparison: @ 0. 45 seconds, 20 cycles, 60 seconds

Fastener Division Reduced Power Consumption Comparison: @ 0. 45 seconds, 20 cycles, 60 seconds ST 9000 7. 8 * 10 – 4 KWH ST 9500 3. 6 * 10 – 4 KWH Comparison: 3. 6 / 7. 8 = 46. 15% The Plastic Staple ® ST 9500 TM System reduces power cost by over 50%! Plastic Staple® ST 9500 TM Patents Pending Proprietary and Confidential
