Falcon Stor Solution Youngwoo Digital Falcon Stor Software
- Slides: 44
Falcon. Stor Solution 소개 Youngwoo Digital 솔루션사업부 / 솔루션팀 황 인 석 차장 © Falcon. Stor Software 2007 · All Rights Reserved
Agenda • Falcon. Stor Solution • 제품 개요 및 주요기능 - Network Storage Server • 제품 개요 및 주요기능 – Continuous Data Protection • 제품 개요 및 주요기능 – VTL & SIR(De-Dupe) PAGE 2 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved
Falcon. Stor Solution © Falcon. Stor Software 2007 · All Rights Reserved
Falcon. Stor Solutions Virtual Tape Library (VTL) Disk-based library for backup optimization Continuous Data Protector (CDP) Disk-based data protection with instant data recovery Data Deduplication Dramatically reducing data across the enterprise Network Storage Server (NSS) Storage virtualization, provisioning and management PAGE 4 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved

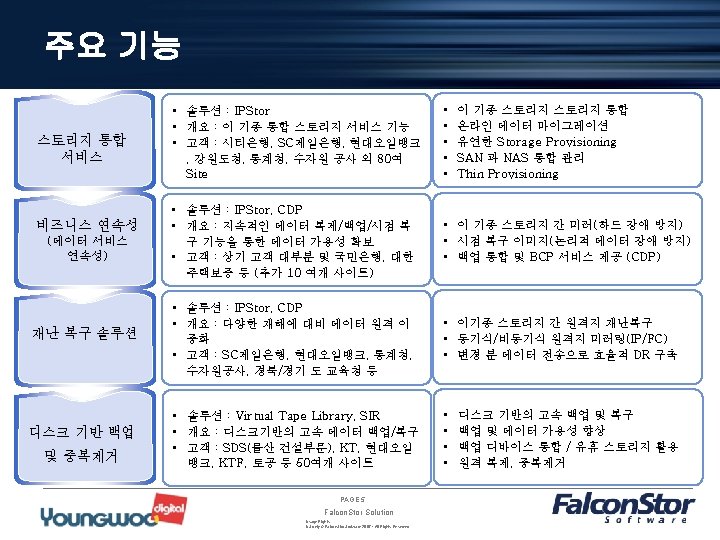

TOTALLY Open Network Storage Solution Platform Falcon. Stor Client Agents Tape Backup Servers Application Servers Centralized management Tivoli, Symantec, EMC/Legato, CA, Commvault, etc. MS Exchange, MS SQL, MS Share. Point, VMWare, Oracle, SAP, etc Network Storage Continuous Data Server (NSS) Protector (CDP) Self-protecting storage Disk-based data protection File Based Archive Virtual Tape Library (VTL) With deduplication (in Beta) Disk-based library Clustered deduplication (Single Instance Repository) Replication with Encryption and Compression IPStor Platform v 6. x Virtualization, Thin Provisioning, MAID enabling, Snapshot, Mirror Industry Standard Disk Arrays and Tape Libraries PAGE 6 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved
제품 별 개요 및 주요 기능 Network Storage Server © Falcon. Stor Software 2007 · All Rights Reserved
적용 개념 구성도 Application Server 중앙집중관리 IPStor Console F/C or IP SAN SAN & NAS 원격지 DR 스토리지 가상화 백업 가속화 IP Network 주센터 이기종통합 DR센터 PAGE 8 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved
NSS Data Protection Features Virtual machines Linux Snapshot Agent Unix Snapshot Agent Windows Snapshot Agent • Time. Mark snapshots • Snapshot Agents for applications, DBs, VMware Snapshot Agent • IP replication • Data mirroring, copying • Zero-impact backup • High availability Primary storage volumes Time. Mark snapshots PAGE 9 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved
Easy & Efficient Data Protection via Time. Mark • One Time. Mark snapshot policy per disk Application-specific Snapshot Agent • • Mountable Time. View images for instant data recovery of any captured point in time • Delta-based snapshots minimize disk utilization • 255 snapshots per disk • Snapshot Agents and consistency groups for 100% data integrity Fibre or Ethernet 9: 00 10: 00 11: 00 Flexible scheduling 12: 00 PAGE 12 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved
Data mirroring, zero downtime migration • Any-to-any synchronous data mirroring • Ultimate data protection across arrays • Zero downtime data migration – 1. Initiate disk mirror – 2. Switch primary target when synchronization completes Mirror Primary PAGE 13 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved Primary Mirror
Eliminating Backup Window & Host Performance Impact Falcon. Stor NSS 전통적인 백업 백업 서버 Backup SW Hyper. Trac 11: 00 System Files/ Database State Volume Backup Jobs Fibre or Ethernet 호스트 성능에 영향 특정 백업시간 필요 백업 S/W 가 Hyper. Trac 에이 전트에 스냅샷의 마운트를 요 청 한뒤 Severless 백업 수행 10: 00 11: 00 Ethernet 언제든지 백업 가능 특정 백업 시간 불필요 백업을 위한 업무 서버의 영향 제거 PAGE 14 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved
NSS high availability deployment models Shared Storage Failover Cross Mirror Failover SAN A B 1 B A 1 • For appliances with internal storage • Volumes are mirrored across NSS devices for redundancy • Clients can access disk along both paths • A two-node NSS failover pair • Each NSS server supports its own set of client servers PAGE 15 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved
IP 기반의 재해복구 Virtual machines Linux Snapshot Agent Unix Snapshot Agent Windows Snapshot Agent • Any-to-any 원격지 복제 • 연속 또는 주기적 정책 … … 재해복구센터 블록기반의 데이터 복제 Full 복제볼륨 스냅샷 테잎으로 이관 타임마크 스냅샷 PAGE 16 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved

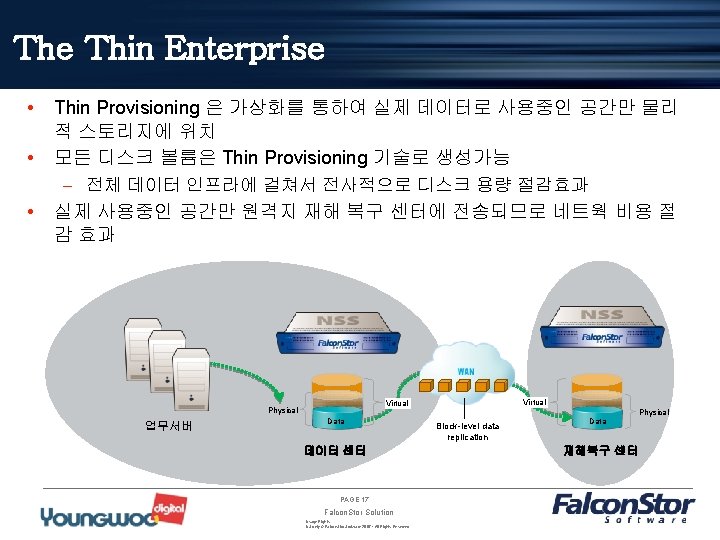

실제 사례 • • Legal Services firm benchmark, Nov-Jan 2006 83 days worth of replicated data Site 파일 시스템 변동량 (GB) 마이크로 스캔에 의한 필터링 실제 전송 데이터 (GB) 절감 비율 Houston 4, 869 4, 017 852 82% New York City 16, 176 13, 409 2, 767 83% Wash D. C. 7, 289 5, 581 1, 708 77% Atlanta 73, 376 62, 527 10, 849 85% 101, 710 85, 534 16, 176 84% 1, 225 1, 031 195 84% 일일 평균 Min. Storage Unit to Track Changes on Disk Falcon. Stor Net. App HDS EMC 512 Bytes 4 KB 16 KB 64 KB Storage Efficiency 1 8 x less efficient 32 x less efficient 64 x less efficient PAGE 19 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved

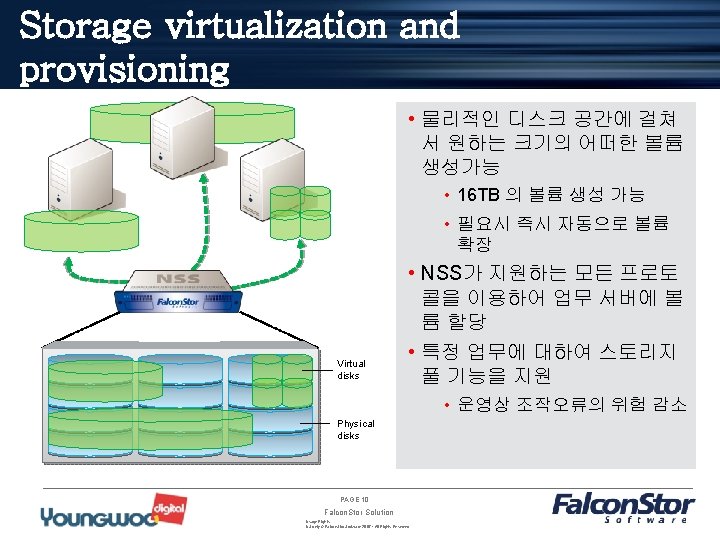

TOTALLY Open Storage Virtualization Platform Exchange Oracle Windows SQL Linux VMware Solaris Notes HP-UX DB 2 AIX SAP Netware Any application Any storage protocol Any operating system Any disk array Virtual Physical Data Existing SAN volumes via Storage Service Enabler Virtualized SAN volumes PAGE 20 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved Thin provisioned SAN volumes
제품 별 개요 및 주요 기능 Continuous Data Protection © Falcon. Stor Software 2007 · All Rights Reserved

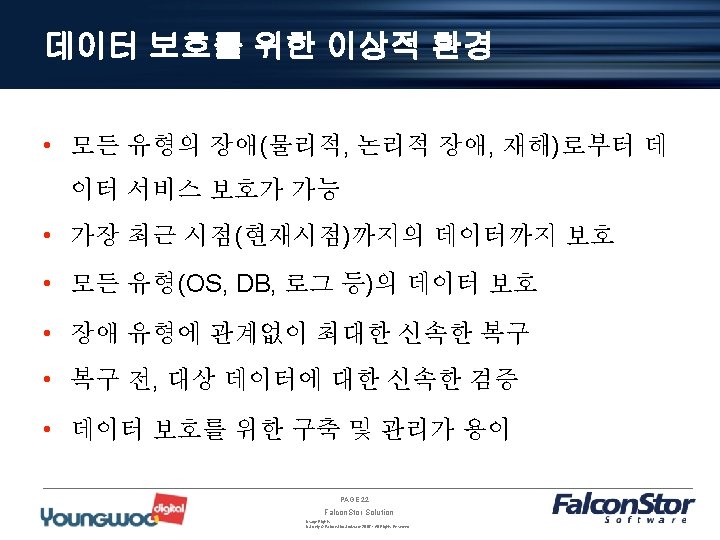

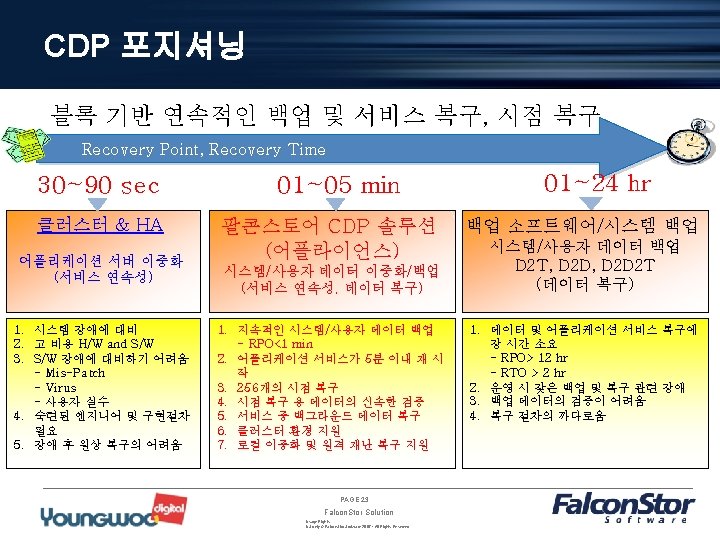

CDP의 구성 • Plug & play 기반, 기존 IP 인프라의 변경없는 구성 • Continuous/Periodic or Both Mode D 1 Disk. Safe D 2 Disk. Safe D 1 S 1 Disk. Safe Fibre Switch IP Switch Continuous Mode MD 1 AM 10: 30 M 1 -1 MD 2 Periodic Mode M 1 -1 M 2 -1 AM 09: 00 AM 11: 00 M 1 -2 M 2 -2 AM 11: 00 AM 11: 30 M 1 -3 M 2 -3 PM 01: 00 Dn DAS MS 1 MD 1 Sn MS 1 PAGE 24 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved SAN Disk. Safe MDn Mirror Disk Mn-s Mirror Disk Snapshot

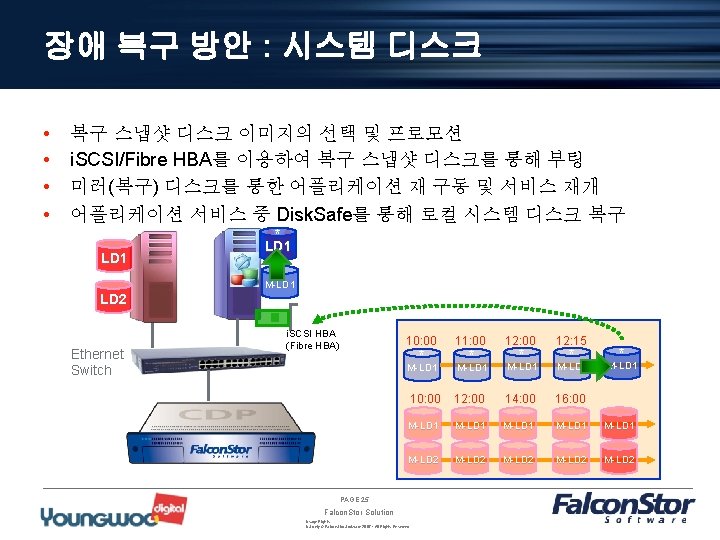

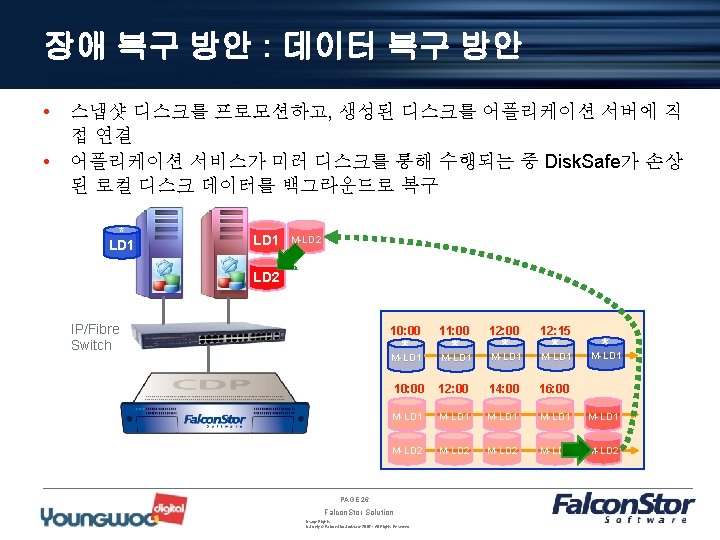

신속한 데이터 검증 • 특정 시점 스냅샷의 선택 후 프로모션(Promotion) • 어플리케이션 서버에 할당 * LD 1 * LD 2 T-11 Group 1 Snapshot Time-View Disk * IP Switch T-11 10: 00 11: 00 12: 15 M-LD 1 10: 00 12: 00 14: 00 16: 00 M-LD 1 M-LD 1 M-LD 2 M-LD 2 * * PAGE 27 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved * * * M-LD 1

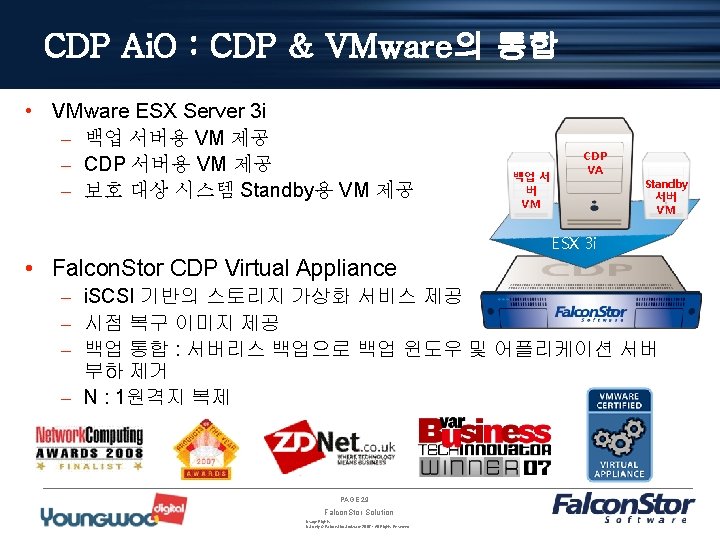

Falcon. Stor CDP All-in-One 솔루션 아키텍쳐 Snapshot recovery points 10: 00 Exchange Server Bootable mirror disk Serverless Tape backup 11: 00 Disk mirroring CDP Virtual Appliance P 2 V & V 2 V Standby Recovery server in 5 minutes ng Dis SQL & rrori k mi ESX 3 i g rin Share. Point o irr Server DR server km s Di 복제데이터 Server Recovery at DR site CDP All-in-One CDP Virtual Applianc e ESX 3 i VMware 백업서버 테이프 장치 PAGE 30 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved 재해복구 센터 복제데이터의 스냅샷 테이프 백업 을 위한 복 제 데이터
File. Safe 솔루션 F 1 F 2 F 3 Replication File. Safe Server WAN IPStor Appliance NAS Server IPStor Appliance Versions F 1 F 2 F 3 V 1 V 1 V 1 V 2 V 2 V 3 — 10: 00 V 2 — 16: 00 V 3 — 22: 00 V 3 PAGE 32 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved NAS Server — 10: 00 V 2 — 16: 00 V 3 — 22: 00

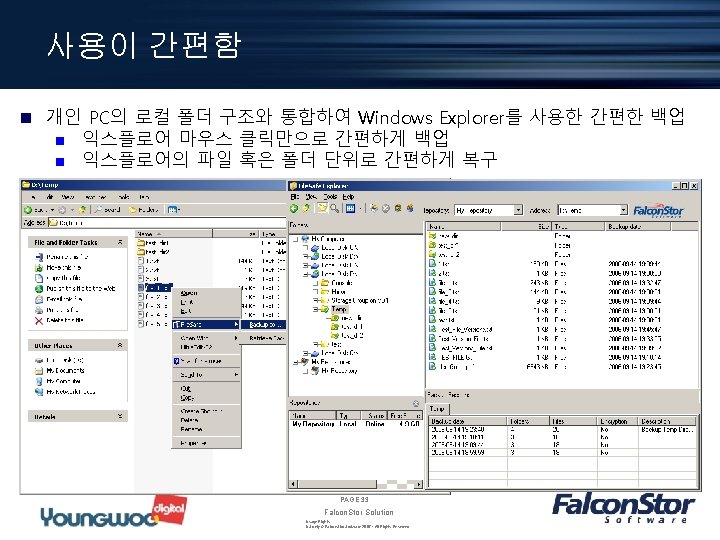

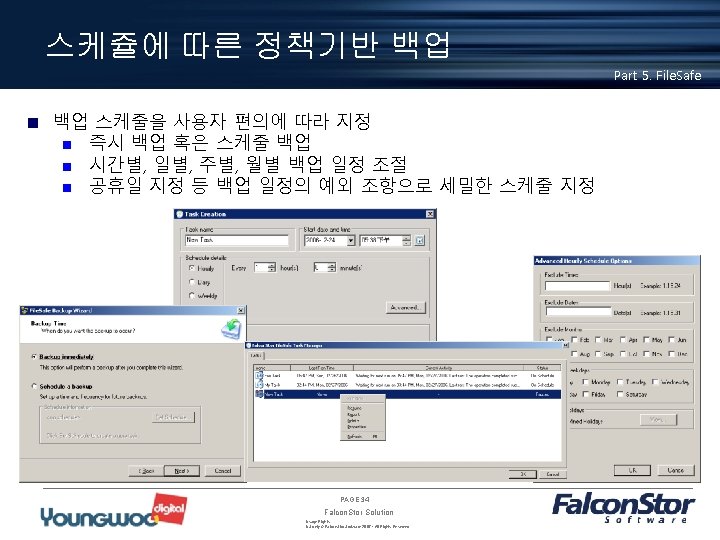

제품 별 개요 및 주요 기능 Virtual Tape Library & SIR(De-Dupe) © Falcon. Stor Software 2007 · All Rights Reserved

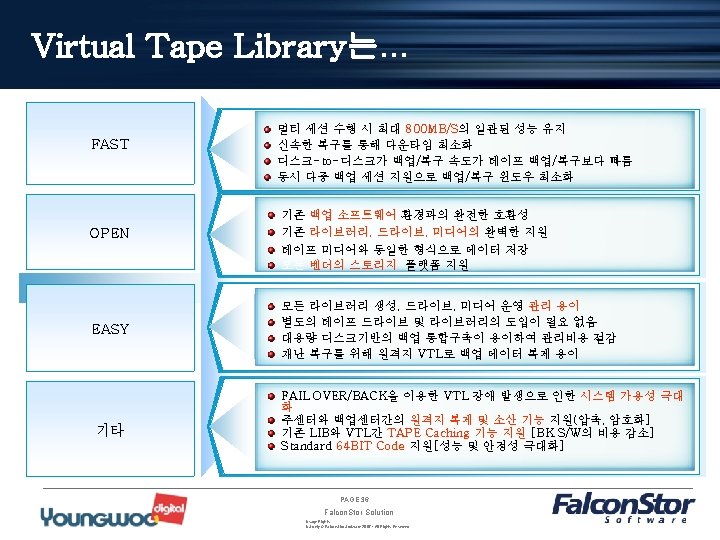

VTL 및 SIR 적용 개념 PAGE 37 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved
VTL 및 SIR 적용 백업센터 구성 PAGE 38 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved
Why it’s Important: Without De-Dupe 데이터 볼륨 = 20 TB; 주당 2% 증가, 3% 변화 보관주기 = 5 주 110+TB 86 TB 63 TB 41 TB 20 TB Week 1 Week 2 Week 3 PAGE 39 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved Week 4 Week 5
…With De-Dupe 데이터 볼륨 = 20 TB; 주당 2% 증가, 3% 변화 보관주기 = 5 주 Total data stored = 24. 3 TB Replicate 되지 않는 중복데이터: 85. 7 TB red 78% uc tio n 20 TB 21 TB 22 TB 23. 1 TB 24. 3 TB Week 1 Week 2 Week 3 Week 4 Week 5 PAGE 40 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved
Cost Effective: Many-to-One Global De. Dupe Data Center VTL Appliance @ Remote Office VTL (Up to 8 nodes) Active-Active failover SIR N+1 cluster (Up to 4 nodes) VTL Appliance @ Remote Office Enterprise De-Dupe Repository VTL Appliance @ Remote Office 대용량 Repository는 더 높은 De-Dupe Hit Ratio 보장 중복되지 않은 데이터만 원격지에서 데 이터 센터로 Replication됨 PAGE 41 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved
Global De-Dupe with Replication for DR Data Center VTL Appliance @ Remote Office VTL (Up to 8 nodes) Active-Active failover SIR N+1 cluster (Up to 4 nodes) VTL Appliance @ Remote Office Replication DR Site PAGE 42 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved
중복제거의 효율성 – 백업된 데이터 • Full 백업 시 데이터 중복 가능성 – Operating systems – Application programs – Most database records – Most file contents • 파일 기반 Incremental 백업 시 중복 가능성 – Files with only minor changes – New copies of files • 시스템 간 중복 가능성 – Operating systems – Application programs – Copies of files (e. g. PPT, DOC, XLS) – Copies of emails PAGE 43 Falcon. Stor Solution Usage Rights US only © Falcon. Stor Software 2007 · All Rights Reserved 일반적인 백업 환경 에서 약 10~30 배 정도의 중 복성이 검증됨
감사합니다 Name of Presentation © Falcon. Storfor Software · All Rights Confidential Internal 2007 and Partner - USReserved only © Falcon. Stor Software 2007 · All Rights Reserved
