Failure of steel and concrete containers Failure concrete
- Slides: 16
Разрушение стальных и бетонных контейнеров Failure of steel and concrete containers Выщелачивание бетонного контейнера грунтовыми водами Failure concrete container due to leaching by underground waters Коррозионное разрушение стальных контейнеров Failure of steel containers due to corrosion INTERNATIONAL ATOMIC ENERGY AGENCY, Upgrading of near surface repositories for radioactive waste, Technical report series 433. – IAEA, 2005. – 137 p. 2

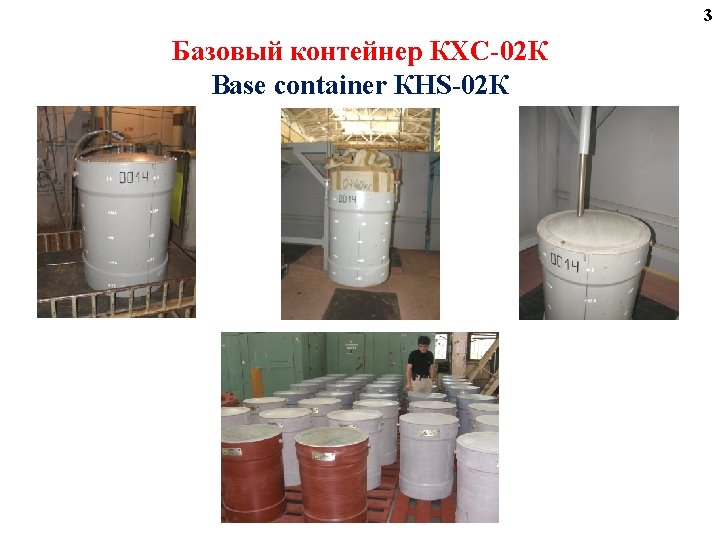

4 Базовый контейнер КХС-02 К Base container КHS-02 К Назначение Сбор, транспортирование, хранение и захоронение РАО I-й и II-й группы по СПОРО-85 (низкои среднеактивные отходы). Function Collection, transportation, storage and disposal of radioactive waste of the 1 st and 2 nd groups by sanitary regulations-85 (low and intermediate waste) Емкость, м 3 0, 2 Volume, m 3 0, 2 Масса, кг 47 Net weight, kg 47 Период эксплуатации, лет (не менее) 300 Operation life, years (no less) 300 Механические свойства: Mechanical properties: Прочность на растяжение, МПа 190 -210 Модуль упругости, МПa 2, 5× 104 Относит. удлинение, % 0, 6 Tensile strength, MPa 190 -210 Modulus of elasticity, MPa 2, 5× 104 Elongation, % 0, 6
Защитные характеристики контейнера КХС-02 К Protection properties of container КHS-02 К Источник Кратность Массовый коэффициент ослабления, см 2/г (энергия, кэ. В) ослабления Mass attenuation coefficient, sm 2/g Source (energy, Attenuation Композицио Сталь Свинец ke. V) ratio нный Steel Lead Composite 241 Am (60) 10 1, 737 1, 072 4, 241 137 Cs (661) 1. 25 0, 0751 0, 0529 0, 0964 5

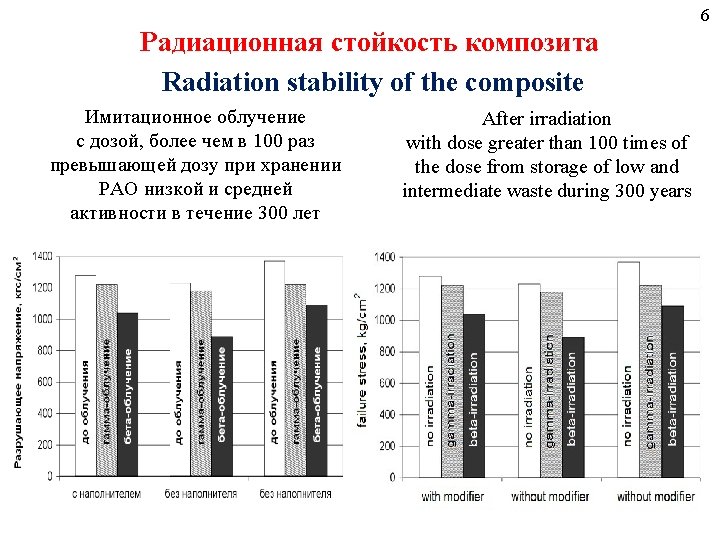

7 Радиационно-защитные свойства Radiation-protective properties Массовый коэффициент ослабления на энергии 137 Cs (660 ке. В) Mass attenuation coefficient on energy 137 Cs (660 ke. V)

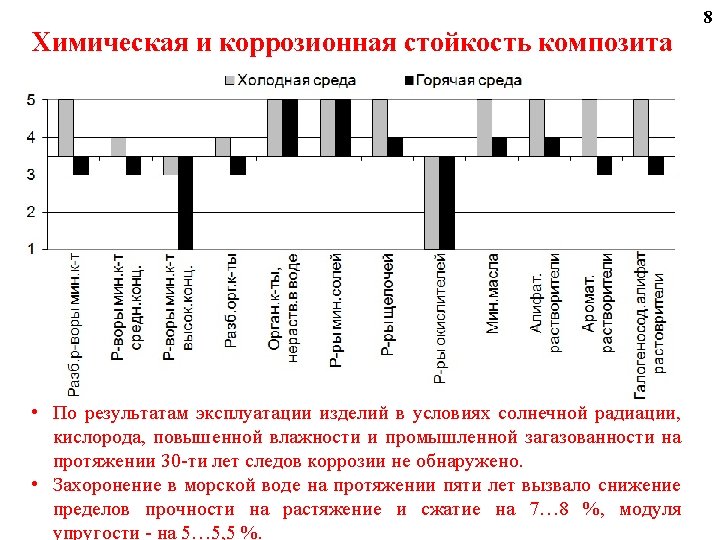

Chemical and corrosion resistance of the composite • Composite use under solar radiation, oxygen, increased humidity and industrial gas-poluted conditions during 30 years revealed no traces of corrosion. • Disposal in sea water for 5 years caused reduction of tensile and compression strength less than 10%, modulus of elasticity - less than 6 %. 9
Средства коллективной и индивидуальной защиты Radiation shield and personal protective equipment 15
Наши партнеры Our partners Днепропетровский национальный университет имени Олеся Гончара Dnipropetrovsk national university named after Oles Honchar Национальный научный центр «Харьковский физико-технический институт» National Research Center “Kharkov institute of physics and technologies” ГП «ПО Южный машиностроительный завод им. А. М. Макарова» “Machine building plant “Youzhny”” National Aerospace Educational Center of Youth Контакты: Contacts: Днепропетровский национальный университет имени Олеся Гончара 49010, г. Днепропетровск, просп. Гагарина, 72 Тел: +38(067) 947 -25 -40. E-mail: sinter@ukr. net Dnipropetrovsk national university named after Oles Honchar 49010, Dnipropetrovsk, Gagarina Avenue, 72 Tel: +38(067) 947 -25 -40. E-mail: sinter@ukr. net 16
