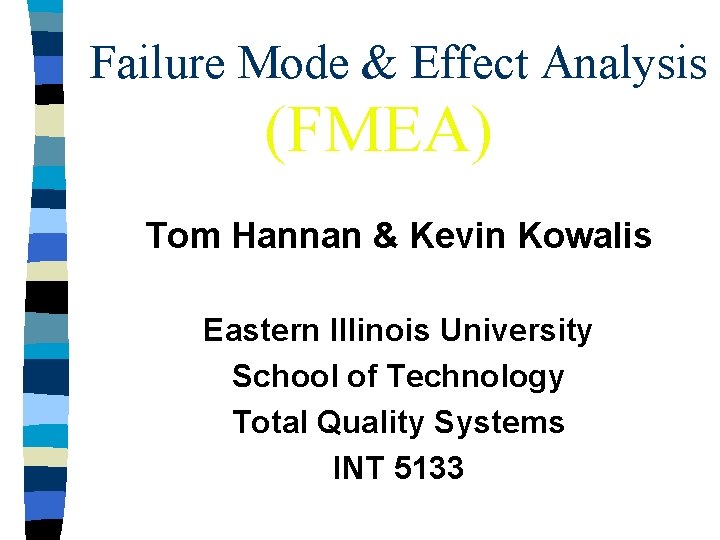

Failure Mode & Effect Analysis (FMEA) Tom Hannan & Kevin Kowalis Eastern Illinois University School of Technology Total Quality Systems INT 5133

What is FMEA? “Is an analytical technique that combines the technology and experience of people in identifying foreseeable failure modes of a product or process and planning for its elimination. ” () OR Before-The-Event action that makes it easier to find flaws in the system

Reliability Is the probability of the product to perform as expected for a certain period of time, under the given operating conditions, and at a given set of product performance characteristics.

Reliability Requirements Based on the definition of the part, assembly, or process under consideration, the reliability of each sub-system and the factors involved in the reliability must be found, and the appropriate relationships for each part, class, or module of the product must be computed.

Failure Rate Periods of failure can conveniently be modeled by an exponential distribution, and the probability of survival of the product or process may be viewed as: Rt = e ^(-T *F) = e ^ -(T/o) Rt = the period of operation without failure T = time specified for operation w/o failure F = Failure rate O = the mean time to failure

Intent of FMEA An Essential Part of Total Quality Management is FMEA! • Provides Training • Helps communicating similar problems • Tracks the progress of a project • Uncoversights, misjudgments, and errors • Calculate the probabilities of failures • Determine if product or process failure effects on other aspects.

FMEA Team FMEA methodology is a team effort where the responsible engineer involves who? • Assembly • Service • Manufacturing • Quality • Supplier • Materials • Customer

FMEA Documentation • Block Diagram • Design or Process Intent • The Customer Needs and Wants • The FMEA Form

Class Assignment !!!!!! Make A Simple Block Diagram Divide up into four groups (N, S, E and W) • Change Tire • Unicycle • Flashlight • Bicycle

Stages of FMEA • Specifying Possibilities • Quantifying Risk • Correcting High Risk Causes • Re-evaluation of Risk

Specifying Possibilities n n n Functions Possible Failure Modes Root Causes Effects Detection/Prevention

Quantifying Risk n n Probability of Cause Severity of Effectiveness of Control to Prevent Cause Risk Priority Number

Correcting High Risk Causes n n Prioritizing Work Detailing Action Assigning Action Responsibility Check Points on Completion

Re-evaluation of Risk Recalculation of Risk Priority Number RPN = (S) * (O) * (D) S = SEVERITY O = OCCURRENCE D = DETECTION RAKING 19

The Design FMEA Document • FMEA Number • Item • Design Responsibility • Prepared By • Model Number/Year • Key Date • Core Team • FMEA Date

The Design FMEA Document • Item/Function • Potential Failure Mode • Potential Effect(s) of Failure • Severity (S) • Classification (CLASS) • Potential Cause(s)/Mechanism(s) of Failure • Occurrence (O)

The Design FMEA Document (Con. 1) n n n Current Design Controls Detection (D) Risk Priority Number (RPN) Recommended Actions Responsibility and Target Completion Dates Actions Taken

The Process FMEA Document (Con. 2) n n n n Process Function/Requirements Potential Failure Mode Potential Effect(s) of Failure Severity (S) Classification (CLASS) Potential Cause(s)/Mechanism(s) of Failure Occurrence (O) Current Process Controls

Limitations: n n n FMEA document’s do not fix the identified problem Def. of the action to fix the problem Will not replace the basic problemsolving process.

? Questions?
