Factors Affecting Mesoscale Convective System Propagation with Illustrations

  • Slides: 69
Download presentation
Factors Affecting Mesoscale Convective System Propagation with Illustrations from Case Studies James T. Moore

Factors Affecting Mesoscale Convective System Propagation with Illustrations from Case Studies James T. Moore and Charles E. Graves Cooperative Institute for Precipitation Systems Saint Louis University Dept. of Earth & Atmospheric Sciences (with tweaks by SMR)

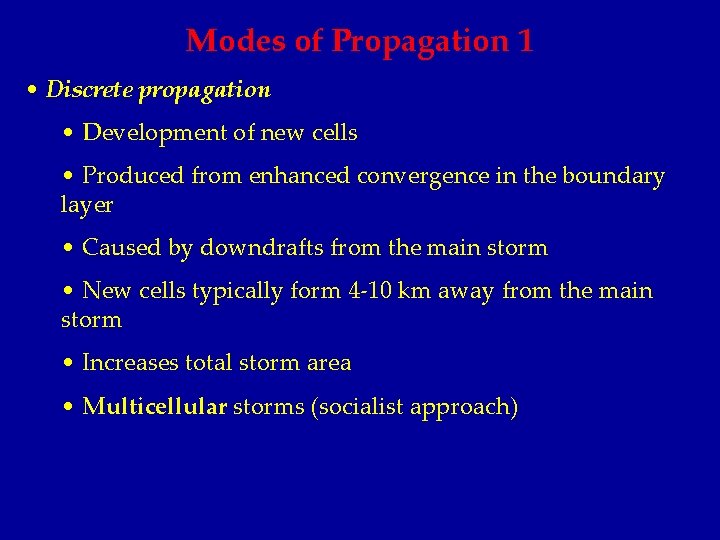

Modes of Propagation 1 • Discrete propagation • Development of new cells • Produced

Modes of Propagation 1 • Discrete propagation • Development of new cells • Produced from enhanced convergence in the boundary layer • Caused by downdrafts from the main storm • New cells typically form 4 -10 km away from the main storm • Increases total storm area • Multicellular storms (socialist approach)

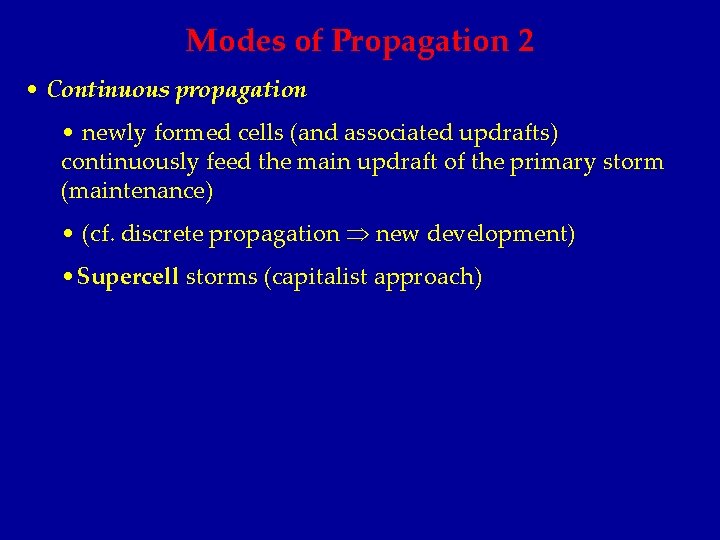

Modes of Propagation 2 • Continuous propagation • newly formed cells (and associated updrafts)

Modes of Propagation 2 • Continuous propagation • newly formed cells (and associated updrafts) continuously feed the main updraft of the primary storm (maintenance) • (cf. discrete propagation new development) • Supercell storms (capitalist approach)

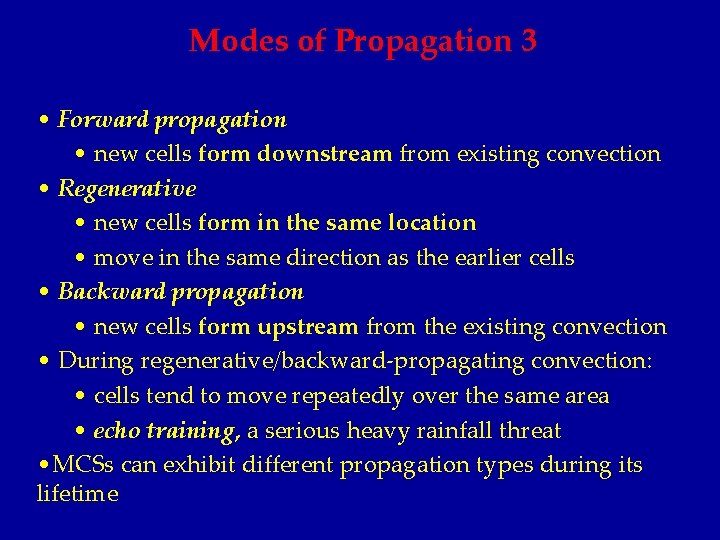

Modes of Propagation 3 • Forward propagation • new cells form downstream from existing

Modes of Propagation 3 • Forward propagation • new cells form downstream from existing convection • Regenerative • new cells form in the same location • move in the same direction as the earlier cells • Backward propagation • new cells form upstream from the existing convection • During regenerative/backward-propagating convection: • cells tend to move repeatedly over the same area • echo training, a serious heavy rainfall threat • MCSs can exhibit different propagation types during its lifetime

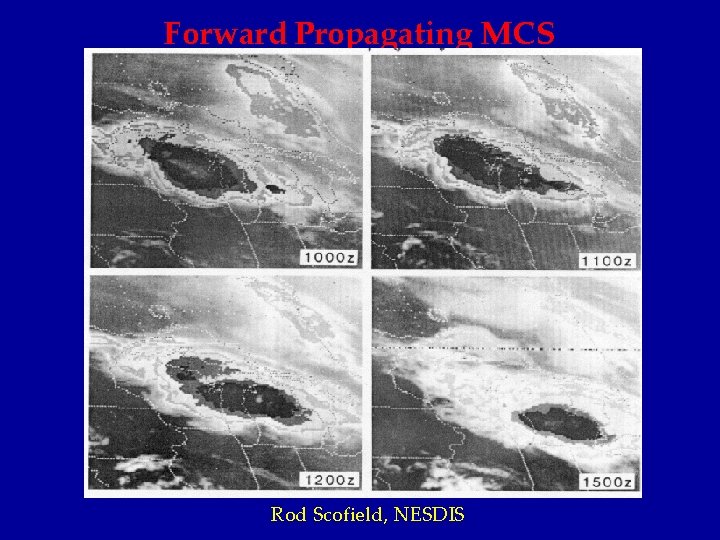

Forward Propagating MCS Rod Scofield, NESDIS

Forward Propagating MCS Rod Scofield, NESDIS

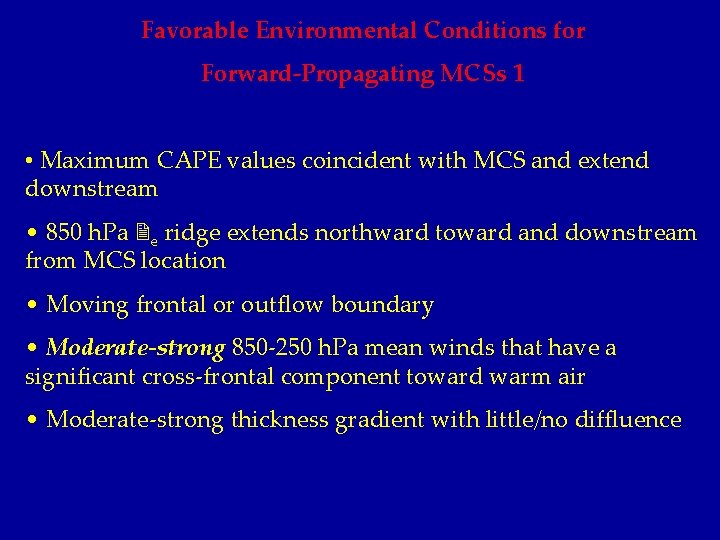

Favorable Environmental Conditions for Forward-Propagating MCSs 1 • Maximum CAPE values coincident with MCS

Favorable Environmental Conditions for Forward-Propagating MCSs 1 • Maximum CAPE values coincident with MCS and extend downstream • 850 h. Pa e ridge extends northward toward and downstream from MCS location • Moving frontal or outflow boundary • Moderate-strong 850 -250 h. Pa mean winds that have a significant cross-frontal component toward warm air • Moderate-strong thickness gradient with little/no diffluence

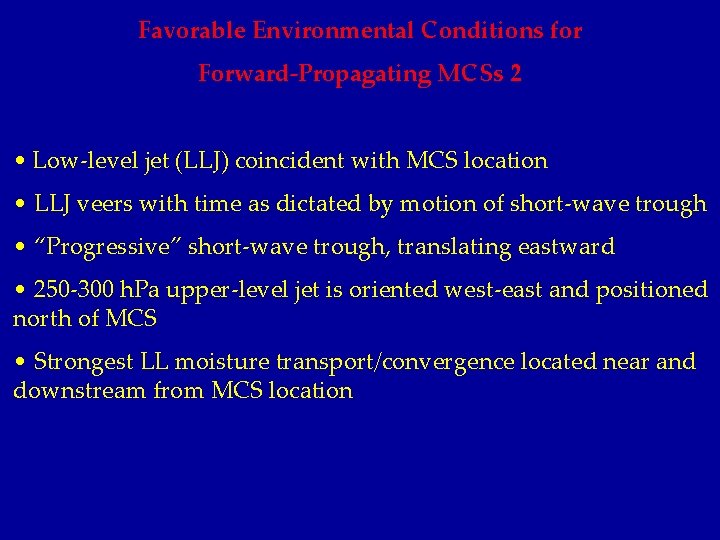

Favorable Environmental Conditions for Forward-Propagating MCSs 2 • Low-level jet (LLJ) coincident with MCS

Favorable Environmental Conditions for Forward-Propagating MCSs 2 • Low-level jet (LLJ) coincident with MCS location • LLJ veers with time as dictated by motion of short-wave trough • “Progressive” short-wave trough, translating eastward • 250 -300 h. Pa upper-level jet is oriented west-east and positioned north of MCS • Strongest LL moisture transport/convergence located near and downstream from MCS location

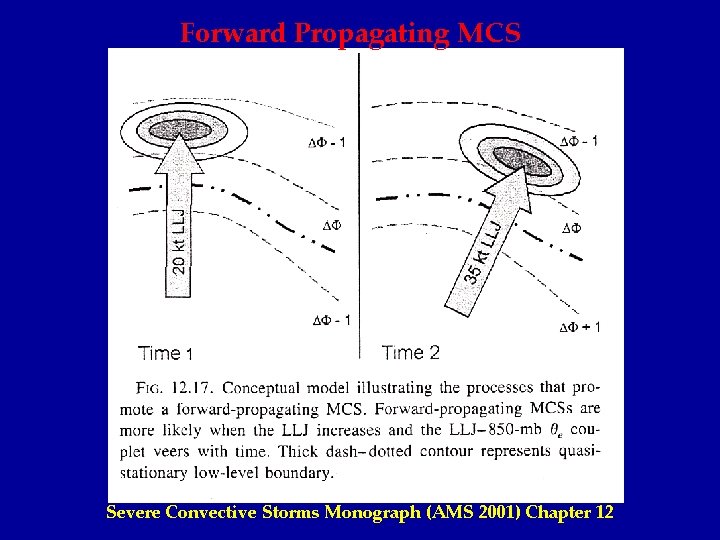

Forward Propagating MCS Severe Convective Storms Monograph (AMS 2001) Chapter 12

Forward Propagating MCS Severe Convective Storms Monograph (AMS 2001) Chapter 12

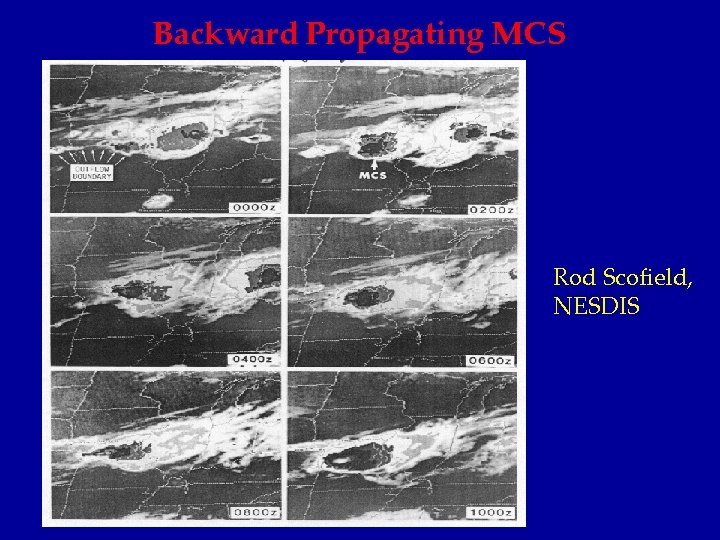

Backward Propagating MCS Rod Scofield, NESDIS

Backward Propagating MCS Rod Scofield, NESDIS

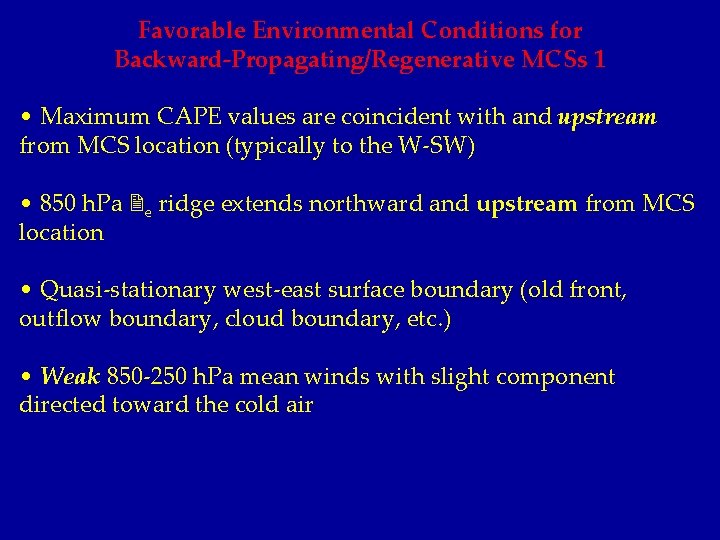

Favorable Environmental Conditions for Backward-Propagating/Regenerative MCSs 1 • Maximum CAPE values are coincident with

Favorable Environmental Conditions for Backward-Propagating/Regenerative MCSs 1 • Maximum CAPE values are coincident with and upstream from MCS location (typically to the W-SW) • 850 h. Pa e ridge extends northward and upstream from MCS location • Quasi-stationary west-east surface boundary (old front, outflow boundary, cloud boundary, etc. ) • Weak 850 -250 h. Pa mean winds with slight component directed toward the cold air

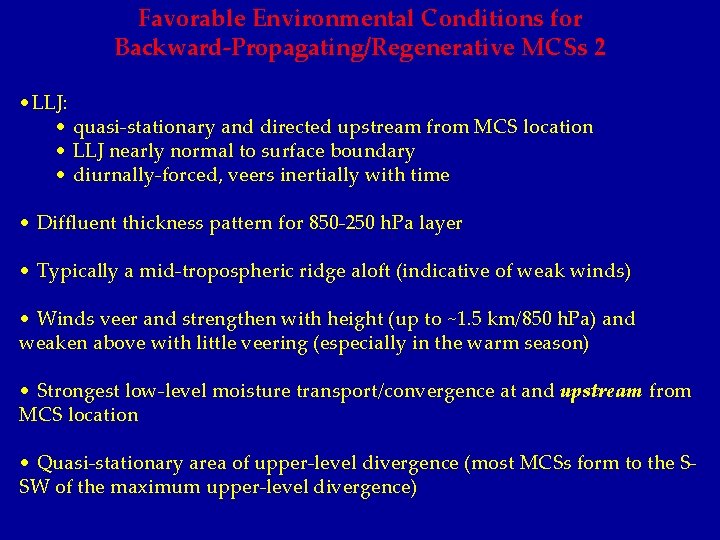

Favorable Environmental Conditions for Backward-Propagating/Regenerative MCSs 2 • LLJ: • quasi-stationary and directed upstream

Favorable Environmental Conditions for Backward-Propagating/Regenerative MCSs 2 • LLJ: • quasi-stationary and directed upstream from MCS location • LLJ nearly normal to surface boundary • diurnally-forced, veers inertially with time • Diffluent thickness pattern for 850 -250 h. Pa layer • Typically a mid-tropospheric ridge aloft (indicative of weak winds) • Winds veer and strengthen with height (up to ~1. 5 km/850 h. Pa) and weaken above with little veering (especially in the warm season) • Strongest low-level moisture transport/convergence at and upstream from MCS location • Quasi-stationary area of upper-level divergence (most MCSs form to the SSW of the maximum upper-level divergence)

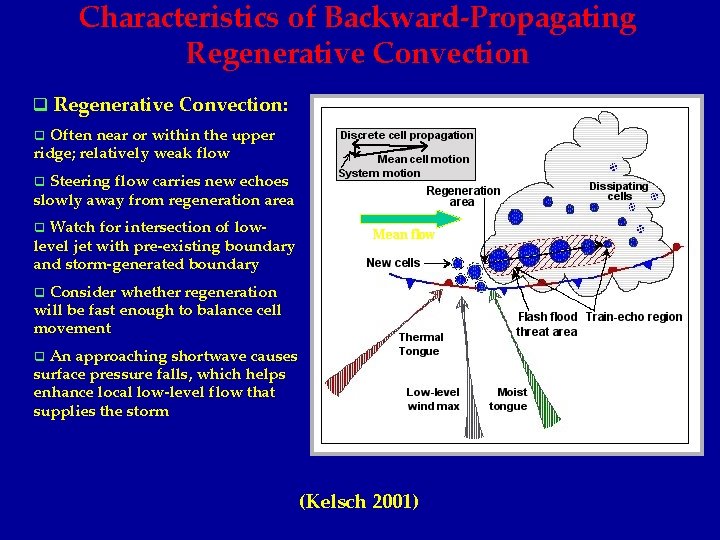

Characteristics of Backward-Propagating Regenerative Convection q Regenerative Convection: Often near or within the upper

Characteristics of Backward-Propagating Regenerative Convection q Regenerative Convection: Often near or within the upper ridge; relatively weak flow q Steering flow carries new echoes slowly away from regeneration area q Watch for intersection of lowlevel jet with pre-existing boundary and storm-generated boundary q Mean flow Consider whether regeneration will be fast enough to balance cell movement q An approaching shortwave causes surface pressure falls, which helps enhance local low-level flow that supplies the storm q (Kelsch 2001)

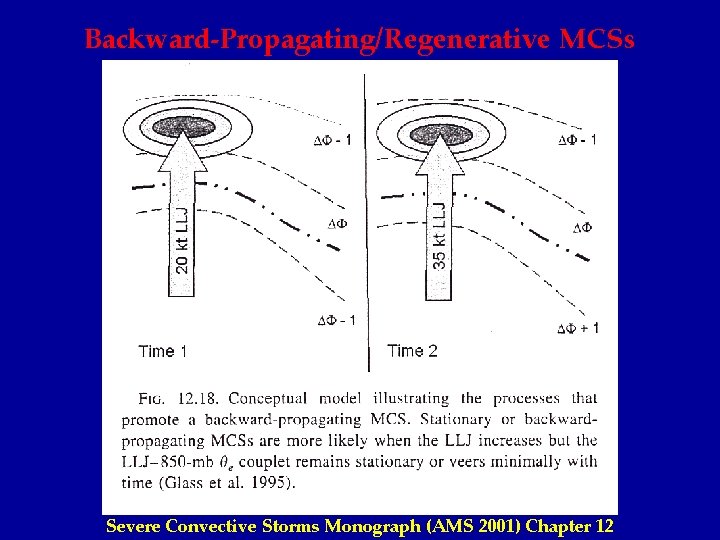

Backward-Propagating/Regenerative MCSs Severe Convective Storms Monograph (AMS 2001) Chapter 12

Backward-Propagating/Regenerative MCSs Severe Convective Storms Monograph (AMS 2001) Chapter 12

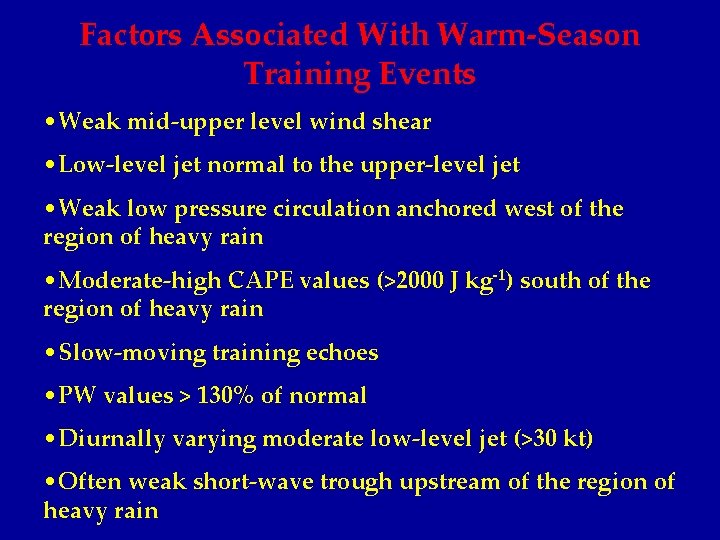

Factors Associated With Warm-Season Training Events • Weak mid-upper level wind shear • Low-level

Factors Associated With Warm-Season Training Events • Weak mid-upper level wind shear • Low-level jet normal to the upper-level jet • Weak low pressure circulation anchored west of the region of heavy rain • Moderate-high CAPE values (>2000 J kg-1) south of the region of heavy rain • Slow-moving training echoes • PW values > 130% of normal • Diurnally varying moderate low-level jet (>30 kt) • Often weak short-wave trough upstream of the region of heavy rain

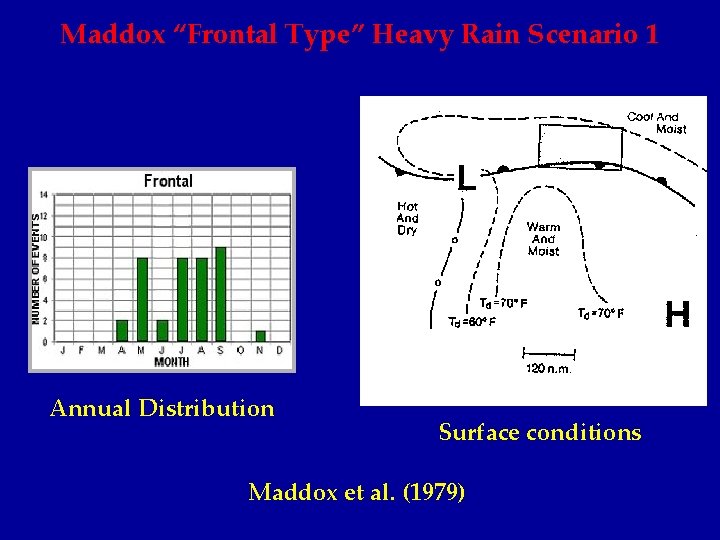

Maddox “Frontal Type” Heavy Rain Scenario 1 Annual Distribution Surface conditions Maddox et al.

Maddox “Frontal Type” Heavy Rain Scenario 1 Annual Distribution Surface conditions Maddox et al. (1979)

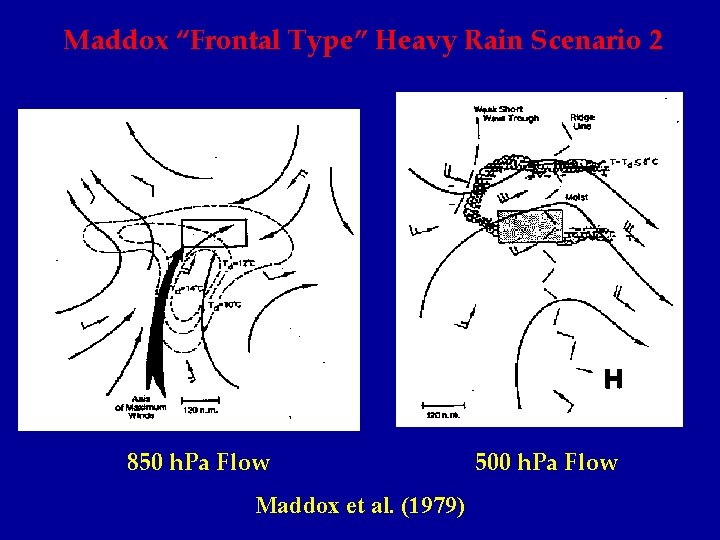

Maddox “Frontal Type” Heavy Rain Scenario 2 850 h. Pa Flow Maddox et al.

Maddox “Frontal Type” Heavy Rain Scenario 2 850 h. Pa Flow Maddox et al. (1979) 500 h. Pa Flow

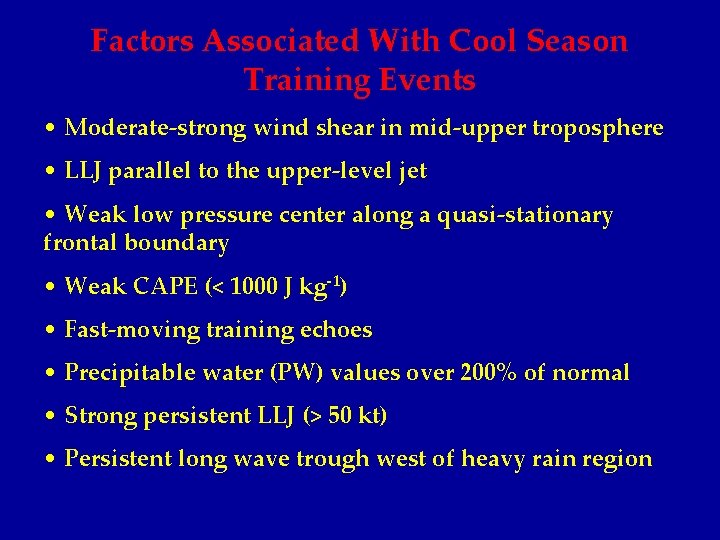

Factors Associated With Cool Season Training Events • Moderate-strong wind shear in mid-upper troposphere

Factors Associated With Cool Season Training Events • Moderate-strong wind shear in mid-upper troposphere • LLJ parallel to the upper-level jet • Weak low pressure center along a quasi-stationary frontal boundary • Weak CAPE (< 1000 J kg-1) • Fast-moving training echoes • Precipitable water (PW) values over 200% of normal • Strong persistent LLJ (> 50 kt) • Persistent long wave trough west of heavy rain region

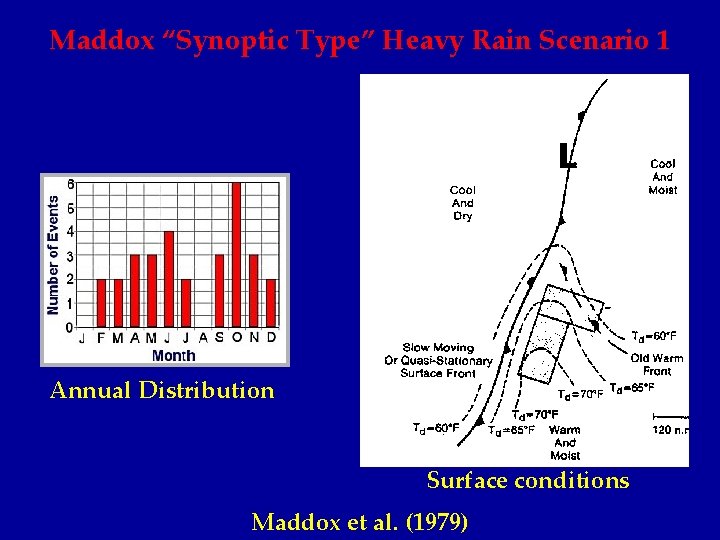

Maddox “Synoptic Type” Heavy Rain Scenario 1 Annual Distribution Surface conditions Maddox et al.

Maddox “Synoptic Type” Heavy Rain Scenario 1 Annual Distribution Surface conditions Maddox et al. (1979)

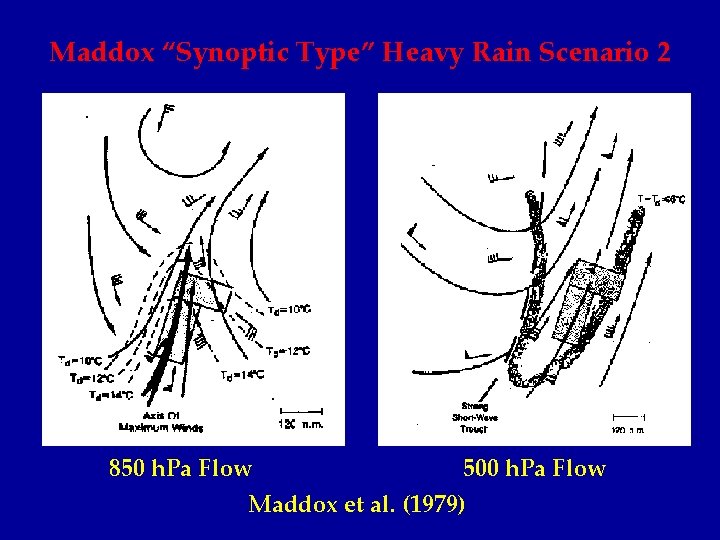

Maddox “Synoptic Type” Heavy Rain Scenario 2 850 h. Pa Flow 500 h. Pa

Maddox “Synoptic Type” Heavy Rain Scenario 2 850 h. Pa Flow 500 h. Pa Flow Maddox et al. (1979)

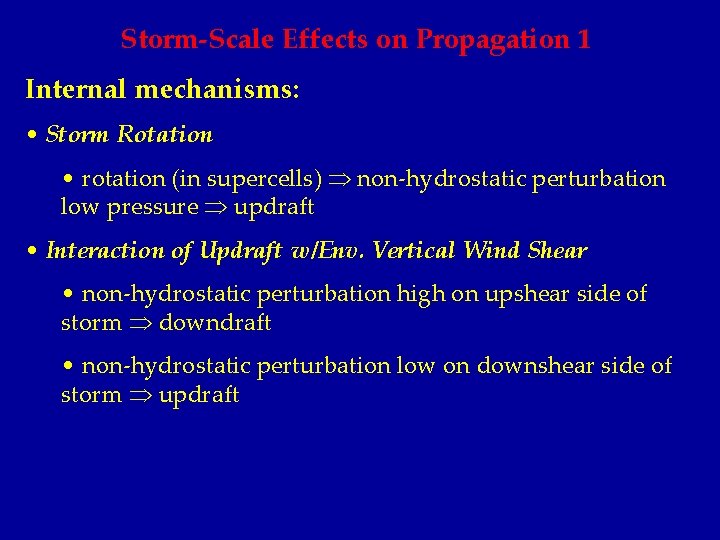

Storm-Scale Effects on Propagation 1 Internal mechanisms: • Storm Rotation • rotation (in supercells)

Storm-Scale Effects on Propagation 1 Internal mechanisms: • Storm Rotation • rotation (in supercells) non-hydrostatic perturbation low pressure updraft • Interaction of Updraft w/Env. Vertical Wind Shear • non-hydrostatic perturbation high on upshear side of storm downdraft • non-hydrostatic perturbation low on downshear side of storm updraft

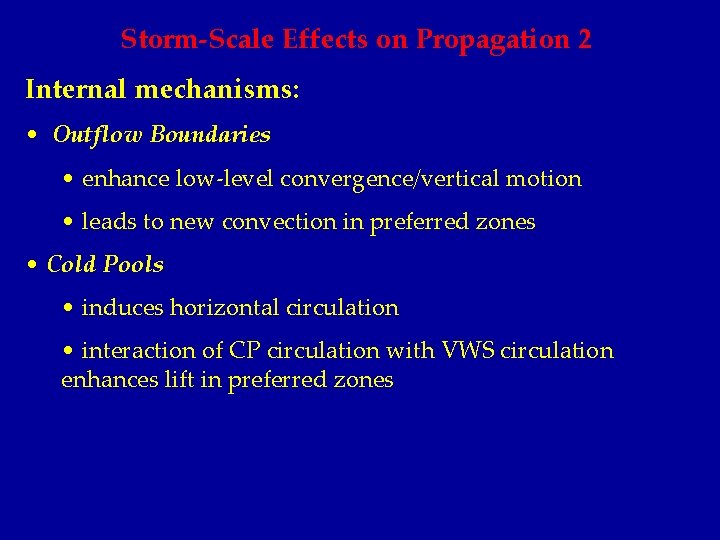

Storm-Scale Effects on Propagation 2 Internal mechanisms: • Outflow Boundaries • enhance low-level convergence/vertical

Storm-Scale Effects on Propagation 2 Internal mechanisms: • Outflow Boundaries • enhance low-level convergence/vertical motion • leads to new convection in preferred zones • Cold Pools • induces horizontal circulation • interaction of CP circulation with VWS circulation enhances lift in preferred zones

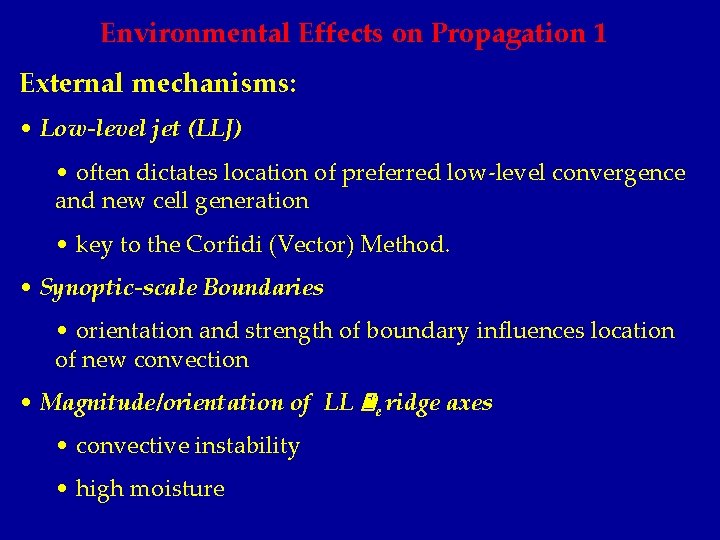

Environmental Effects on Propagation 1 External mechanisms: • Low-level jet (LLJ) • often dictates

Environmental Effects on Propagation 1 External mechanisms: • Low-level jet (LLJ) • often dictates location of preferred low-level convergence and new cell generation • key to the Corfidi (Vector) Method. • Synoptic-scale Boundaries • orientation and strength of boundary influences location of new convection • Magnitude/orientation of LL e ridge axes • convective instability • high moisture

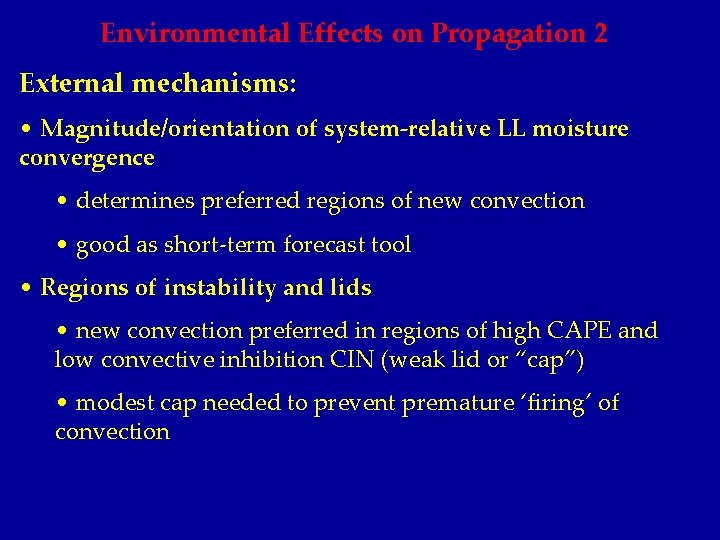

Environmental Effects on Propagation 2 External mechanisms: • Magnitude/orientation of system-relative LL moisture convergence

Environmental Effects on Propagation 2 External mechanisms: • Magnitude/orientation of system-relative LL moisture convergence • determines preferred regions of new convection • good as short-term forecast tool • Regions of instability and lids • new convection preferred in regions of high CAPE and low convective inhibition CIN (weak lid or “cap”) • modest cap needed to prevent premature ‘firing’ of convection

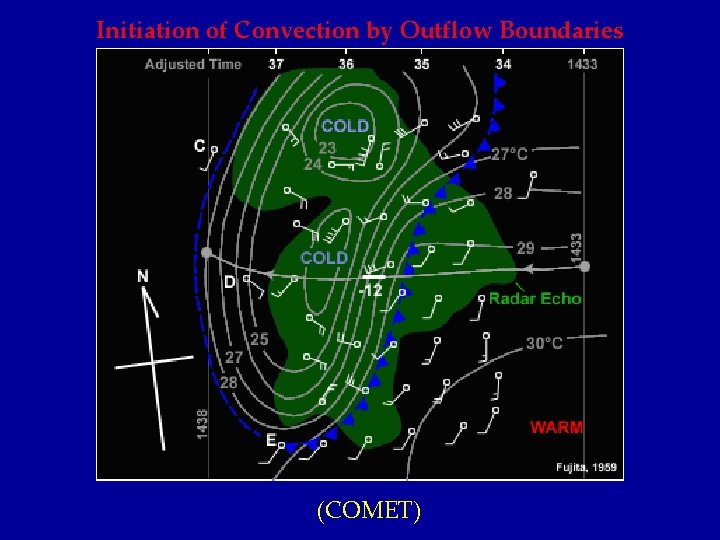

Initiation of Convection by Outflow Boundaries (COMET)

Initiation of Convection by Outflow Boundaries (COMET)

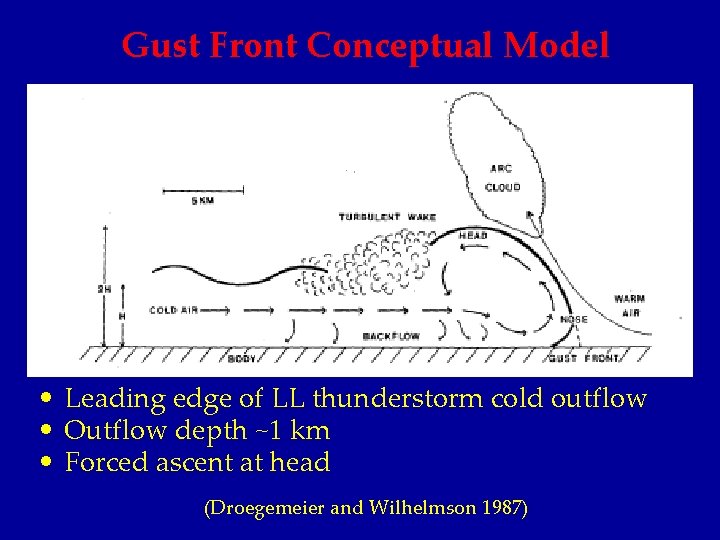

Gust Front Conceptual Model • Leading edge of LL thunderstorm cold outflow • Outflow

Gust Front Conceptual Model • Leading edge of LL thunderstorm cold outflow • Outflow depth ~1 km • Forced ascent at head (Droegemeier and Wilhelmson 1987)

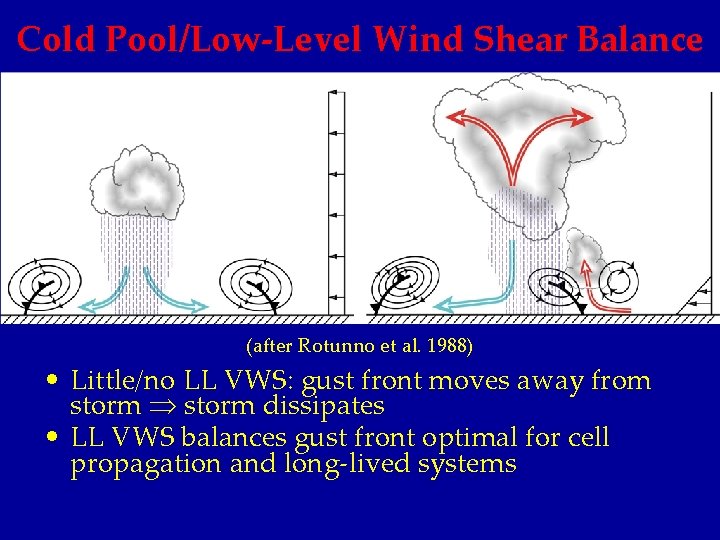

Cold Pool/Low-Level Wind Shear Balance (after Rotunno et al. 1988) • Little/no LL VWS:

Cold Pool/Low-Level Wind Shear Balance (after Rotunno et al. 1988) • Little/no LL VWS: gust front moves away from storm dissipates • LL VWS balances gust front optimal for cell propagation and long-lived systems

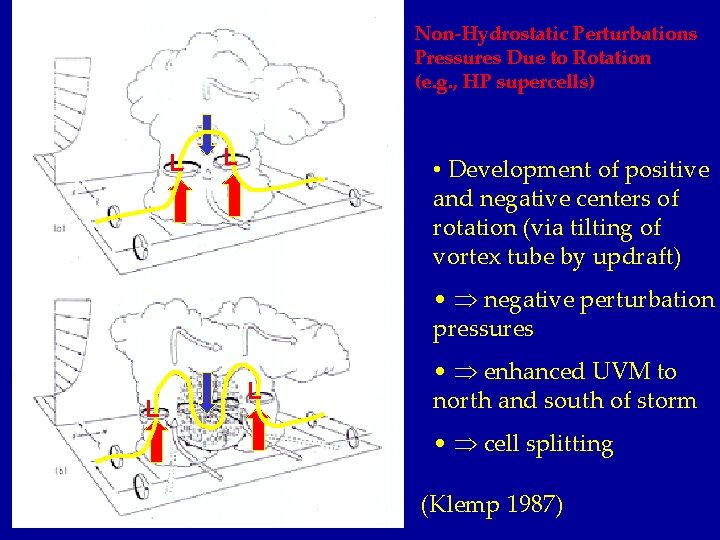

Non-Hydrostatic Perturbations Pressures Due to Rotation (e. g. , HP supercells) L L •

Non-Hydrostatic Perturbations Pressures Due to Rotation (e. g. , HP supercells) L L • Development of positive and negative centers of rotation (via tilting of vortex tube by updraft) • negative perturbation pressures L L • enhanced UVM to north and south of storm • cell splitting (Klemp 1987)

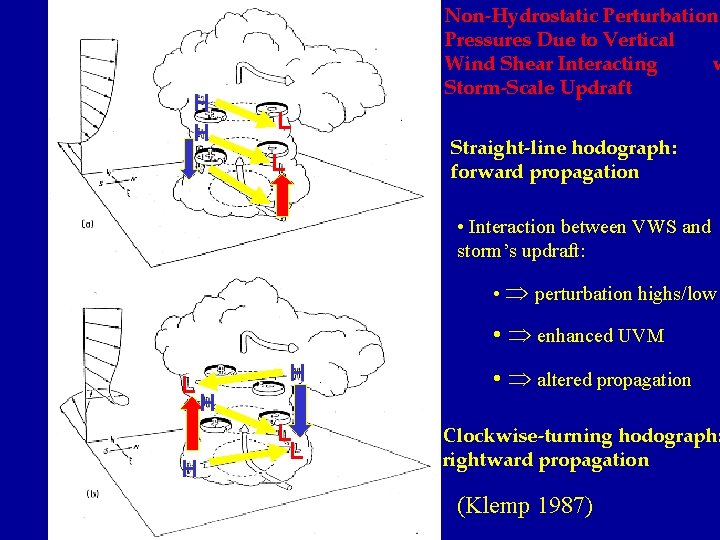

H H Non-Hydrostatic Perturbation Pressures Due to Vertical Wind Shear Interacting w Storm-Scale Updraft

H H Non-Hydrostatic Perturbation Pressures Due to Vertical Wind Shear Interacting w Storm-Scale Updraft L L Straight-line hodograph: forward propagation • Interaction between VWS and storm’s updraft: • perturbation highs/low • enhanced UVM L H H H L L • altered propagation Clockwise-turning hodograph: rightward propagation (Klemp 1987)

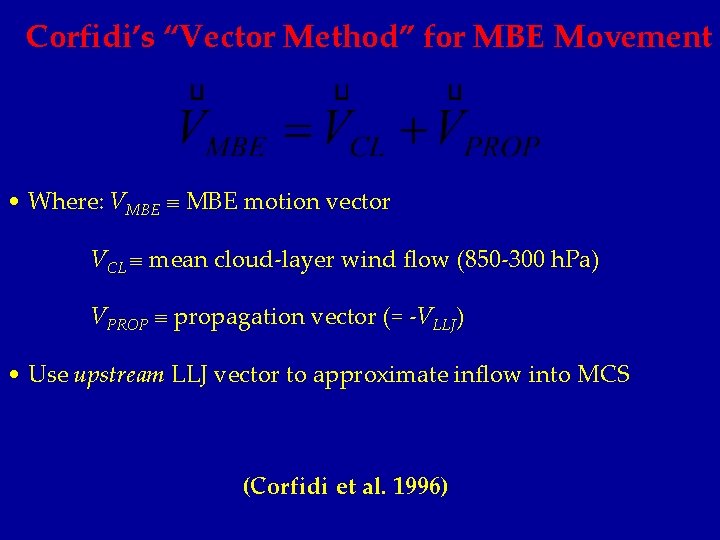

Corfidi’s “Vector Method” for MBE Movement • Where: VMBE motion vector VCL mean cloud-layer

Corfidi’s “Vector Method” for MBE Movement • Where: VMBE motion vector VCL mean cloud-layer wind flow (850 -300 h. Pa) VPROP propagation vector (= -VLLJ) • Use upstream LLJ vector to approximate inflow into MCS (Corfidi et al. 1996)

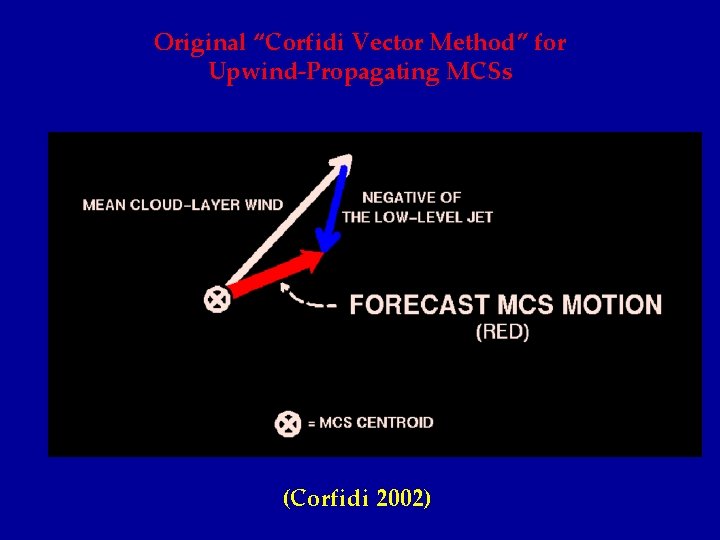

Original “Corfidi Vector Method” for Upwind-Propagating MCSs (Corfidi 2002)

Original “Corfidi Vector Method” for Upwind-Propagating MCSs (Corfidi 2002)

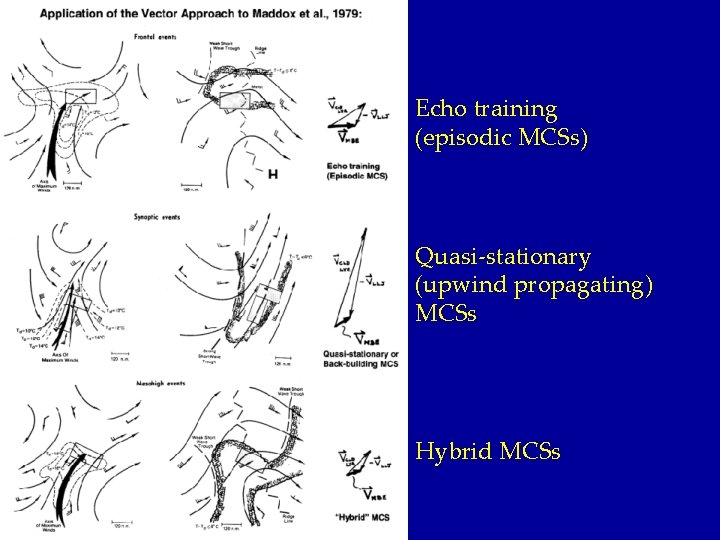

Echo training (episodic MCSs) Quasi-stationary (upwind propagating) MCSs Hybrid MCSs

Echo training (episodic MCSs) Quasi-stationary (upwind propagating) MCSs Hybrid MCSs

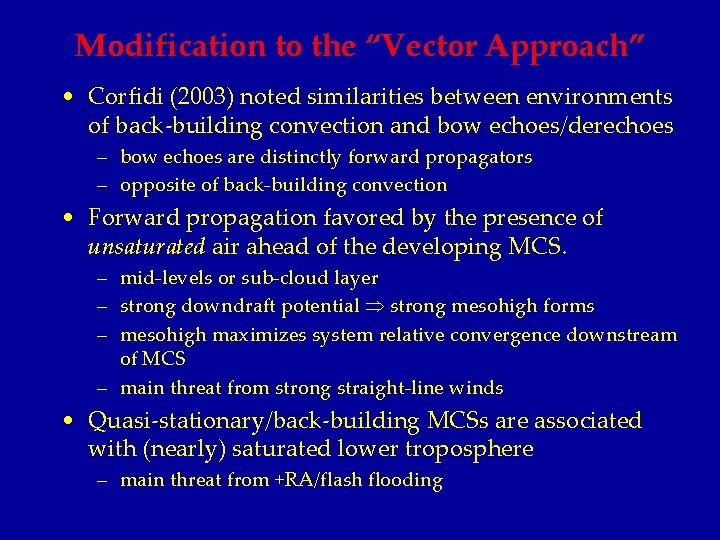

Modification to the “Vector Approach” • Corfidi (2003) noted similarities between environments of back-building

Modification to the “Vector Approach” • Corfidi (2003) noted similarities between environments of back-building convection and bow echoes/derechoes – bow echoes are distinctly forward propagators – opposite of back-building convection • Forward propagation favored by the presence of unsaturated air ahead of the developing MCS. – mid-levels or sub-cloud layer – strong downdraft potential strong mesohigh forms – mesohigh maximizes system relative convergence downstream of MCS – main threat from strong straight-line winds • Quasi-stationary/back-building MCSs are associated with (nearly) saturated lower troposphere – main threat from +RA/flash flooding

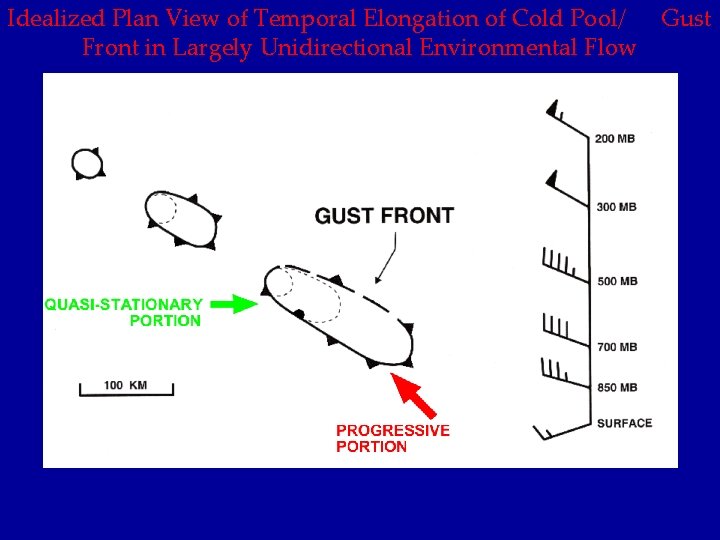

Idealized Plan View of Temporal Elongation of Cold Pool/ Gust Front in Largely Unidirectional

Idealized Plan View of Temporal Elongation of Cold Pool/ Gust Front in Largely Unidirectional Environmental Flow

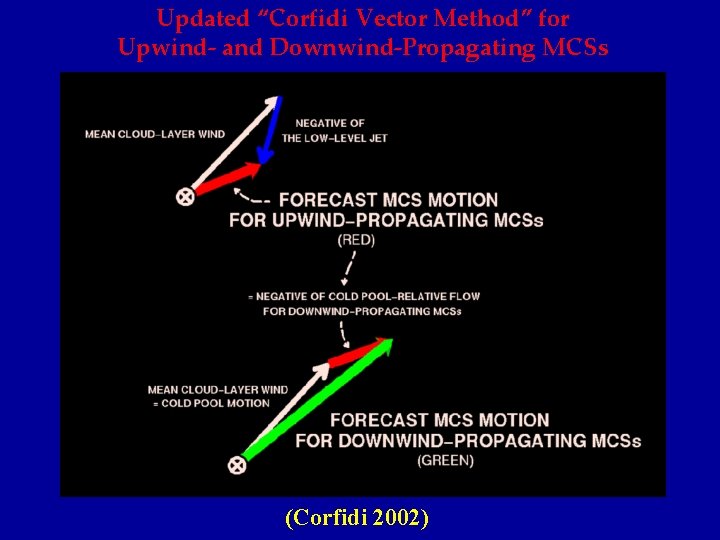

Updated “Corfidi Vector Method” for Upwind- and Downwind-Propagating MCSs (Corfidi 2002)

Updated “Corfidi Vector Method” for Upwind- and Downwind-Propagating MCSs (Corfidi 2002)

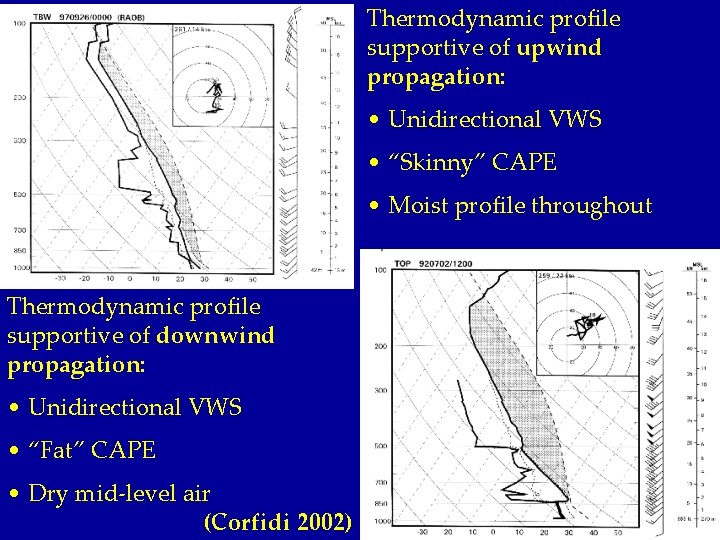

Thermodynamic profile supportive of upwind propagation: • Unidirectional VWS • “Skinny” CAPE • Moist

Thermodynamic profile supportive of upwind propagation: • Unidirectional VWS • “Skinny” CAPE • Moist profile throughout Thermodynamic profile supportive of downwind propagation: • Unidirectional VWS • “Fat” CAPE • Dry mid-level air (Corfidi 2002)

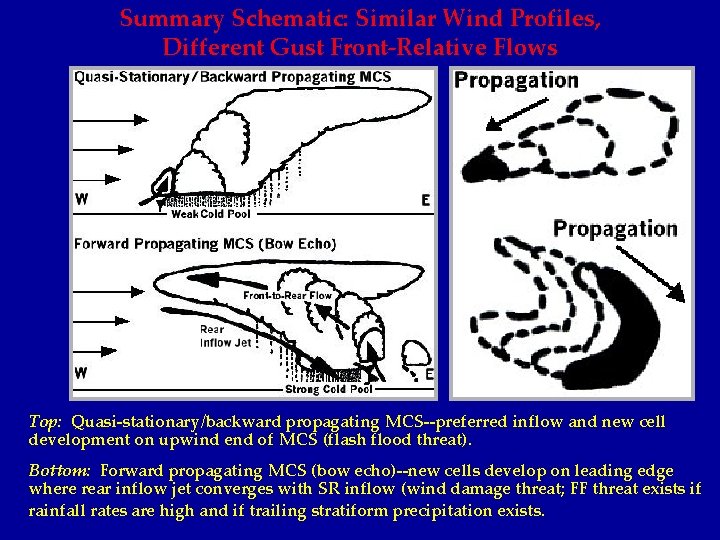

Summary Schematic: Similar Wind Profiles, Different Gust Front-Relative Flows Top: Quasi-stationary/backward propagating MCS--preferred inflow

Summary Schematic: Similar Wind Profiles, Different Gust Front-Relative Flows Top: Quasi-stationary/backward propagating MCS--preferred inflow and new cell development on upwind end of MCS (flash flood threat). Bottom: Forward propagating MCS (bow echo)--new cells develop on leading edge where rear inflow jet converges with SR inflow (wind damage threat; FF threat exists if rainfall rates are high and if trailing stratiform precipitation exists.

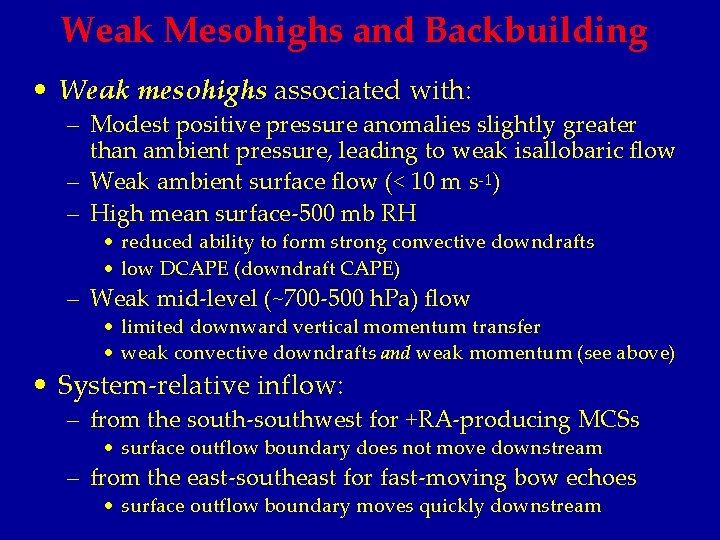

Weak Mesohighs and Backbuilding • Weak mesohighs associated with: – Modest positive pressure anomalies

Weak Mesohighs and Backbuilding • Weak mesohighs associated with: – Modest positive pressure anomalies slightly greater than ambient pressure, leading to weak isallobaric flow – Weak ambient surface flow (< 10 m s-1) – High mean surface-500 mb RH • reduced ability to form strong convective downdrafts • low DCAPE (downdraft CAPE) – Weak mid-level (~700 -500 h. Pa) flow • limited downward vertical momentum transfer • weak convective downdrafts and weak momentum (see above) • System-relative inflow: – from the south-southwest for +RA-producing MCSs • surface outflow boundary does not move downstream – from the east-southeast for fast-moving bow echoes • surface outflow boundary moves quickly downstream

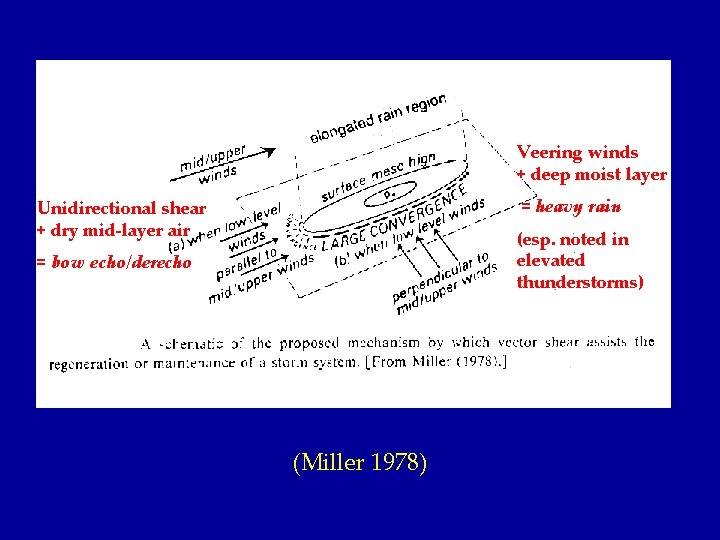

Veering winds + deep moist layer = heavy rain Unidirectional shear + dry mid-layer

Veering winds + deep moist layer = heavy rain Unidirectional shear + dry mid-layer air (esp. noted in elevated thunderstorms) = bow echo/derecho (Miller 1978)

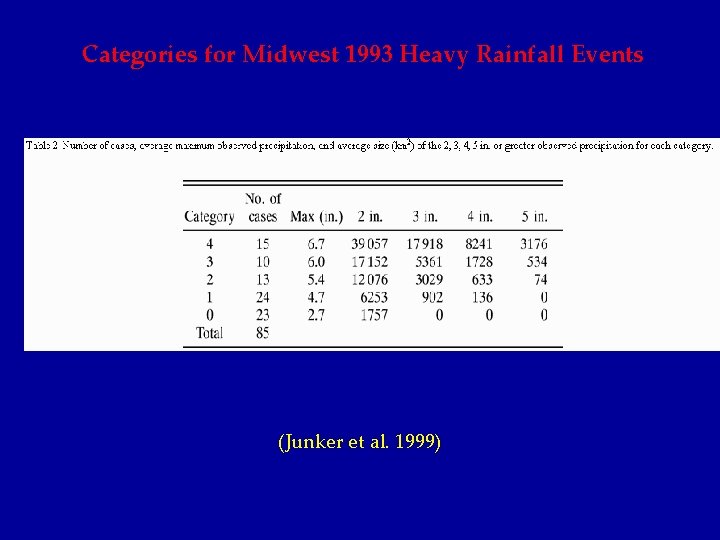

Categories for Midwest 1993 Heavy Rainfall Events (Junker et al. 1999)

Categories for Midwest 1993 Heavy Rainfall Events (Junker et al. 1999)

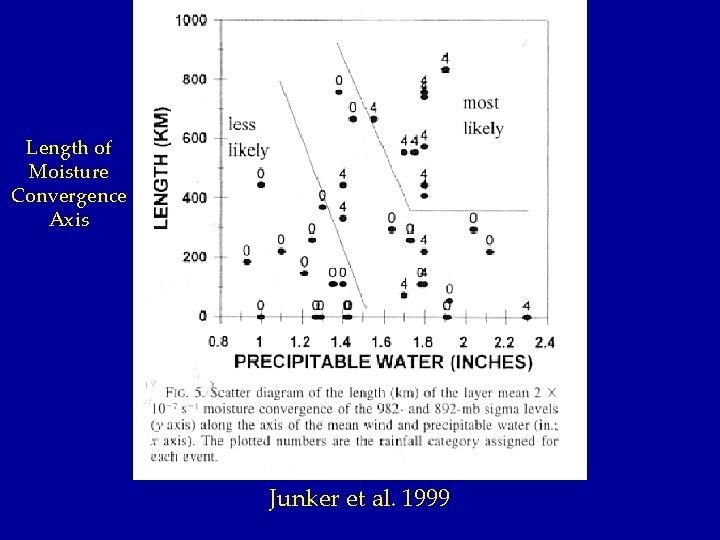

Length of Moisture Convergence Axis Junker et al. 1999

Length of Moisture Convergence Axis Junker et al. 1999

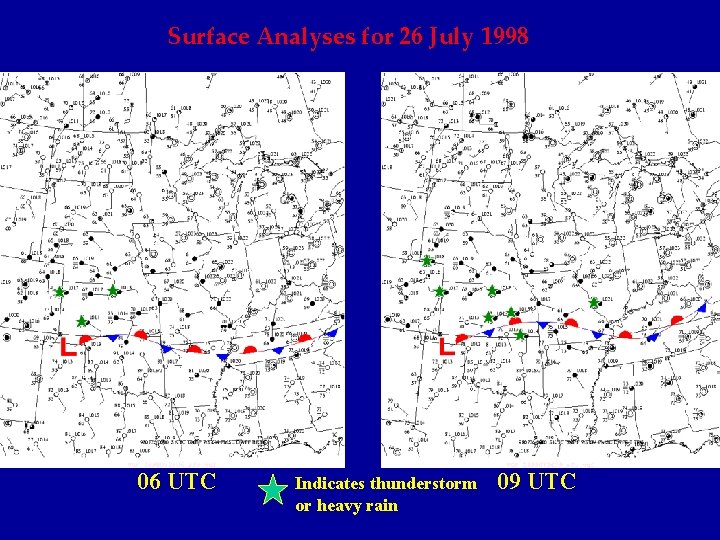

Surface Analyses for 26 July 1998 06 UTC Indicates thunderstorm or heavy rain 09

Surface Analyses for 26 July 1998 06 UTC Indicates thunderstorm or heavy rain 09 UTC

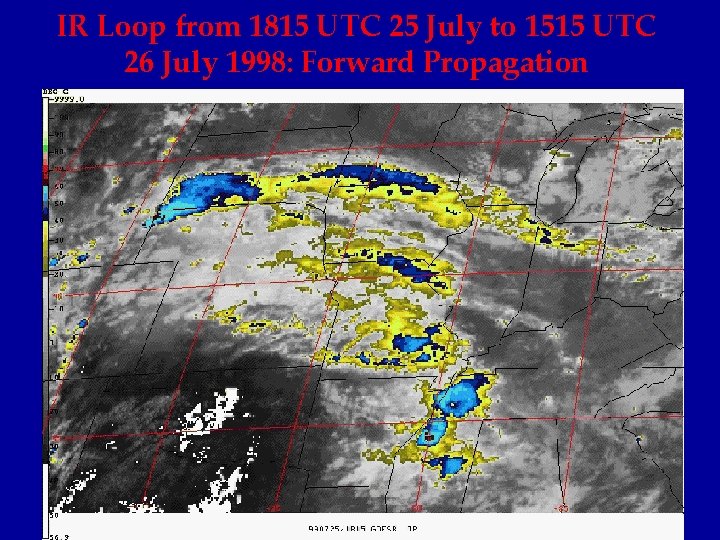

IR Loop from 1815 UTC 25 July to 1515 UTC 26 July 1998: Forward

IR Loop from 1815 UTC 25 July to 1515 UTC 26 July 1998: Forward Propagation

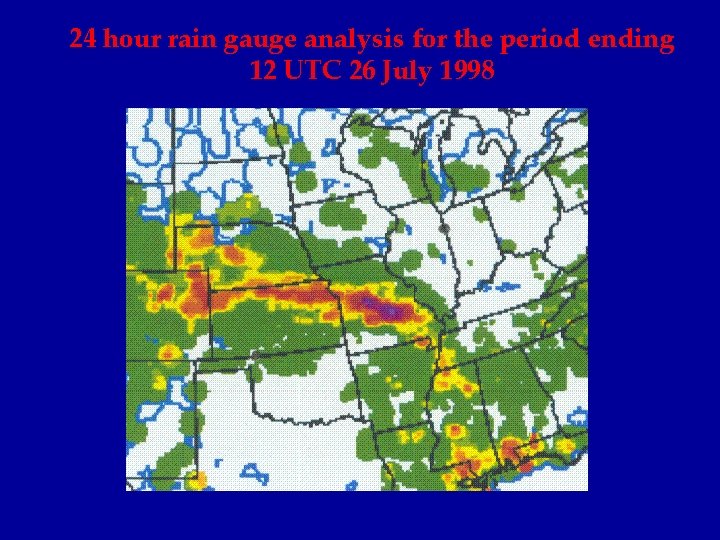

24 hour rain gauge analysis for the period ending 12 UTC 26 July 1998

24 hour rain gauge analysis for the period ending 12 UTC 26 July 1998

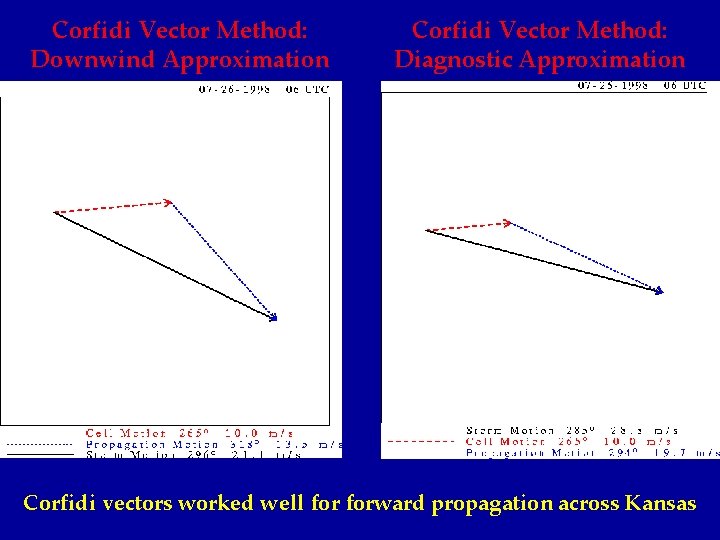

Corfidi Vector Method: Downwind Approximation Corfidi Vector Method: Diagnostic Approximation Corfidi vectors worked well

Corfidi Vector Method: Downwind Approximation Corfidi Vector Method: Diagnostic Approximation Corfidi vectors worked well forward propagation across Kansas

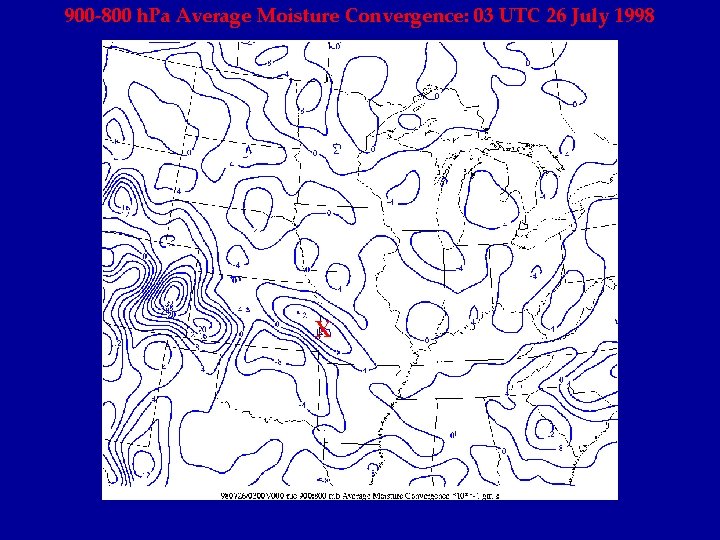

900 -800 h. Pa Average Moisture Convergence: 03 UTC 26 July 1998 X

900 -800 h. Pa Average Moisture Convergence: 03 UTC 26 July 1998 X

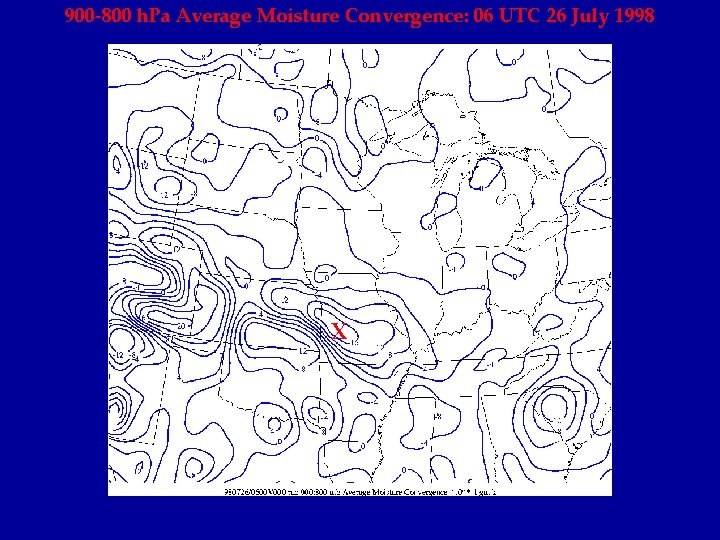

900 -800 h. Pa Average Moisture Convergence: 06 UTC 26 July 1998 X

900 -800 h. Pa Average Moisture Convergence: 06 UTC 26 July 1998 X

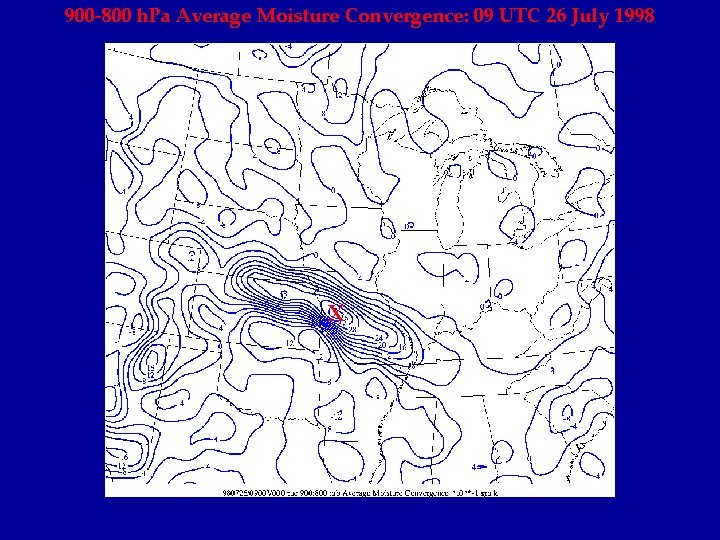

900 -800 h. Pa Average Moisture Convergence: 09 UTC 26 July 1998 X

900 -800 h. Pa Average Moisture Convergence: 09 UTC 26 July 1998 X

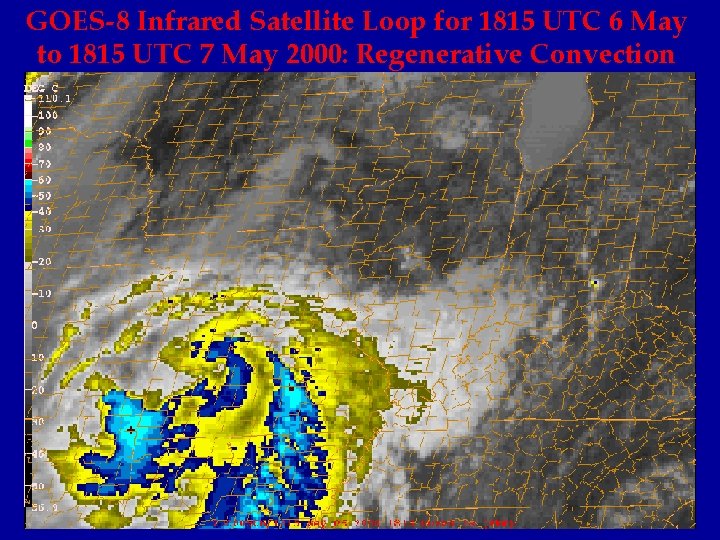

GOES-8 Infrared Satellite Loop for 1815 UTC 6 May to 1815 UTC 7 May

GOES-8 Infrared Satellite Loop for 1815 UTC 6 May to 1815 UTC 7 May 2000: Regenerative Convection

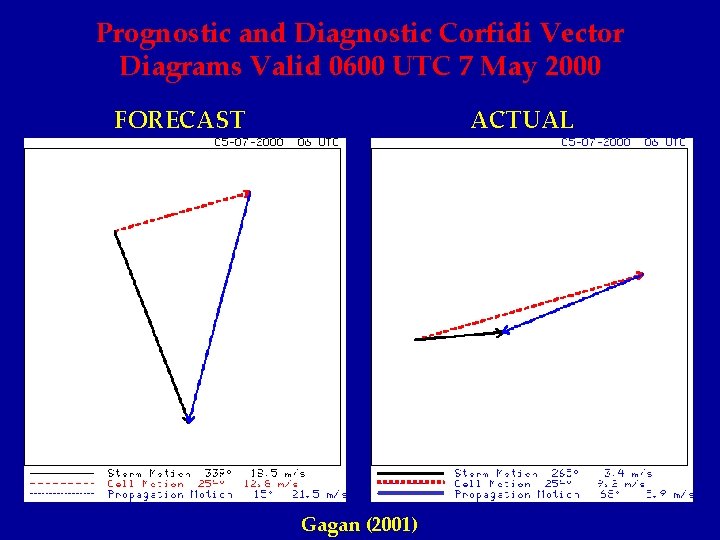

Prognostic and Diagnostic Corfidi Vector Diagrams Valid 0600 UTC 7 May 2000 FORECAST ACTUAL

Prognostic and Diagnostic Corfidi Vector Diagrams Valid 0600 UTC 7 May 2000 FORECAST ACTUAL Gagan (2001)

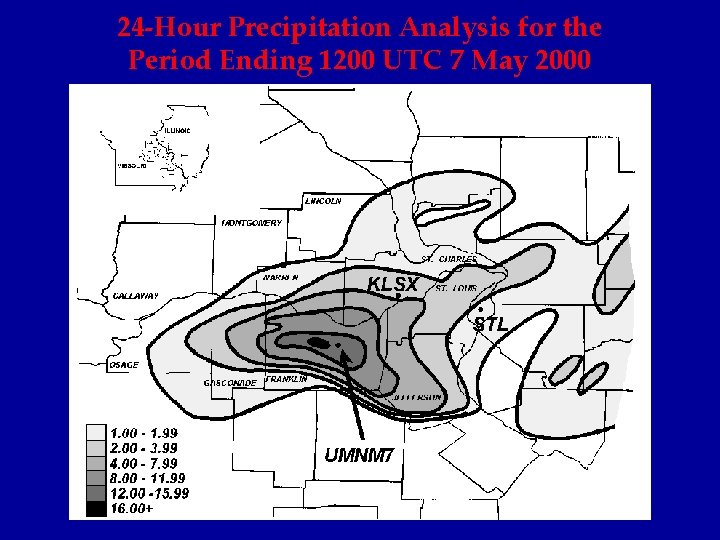

24 -Hour Precipitation Analysis for the Period Ending 1200 UTC 7 May 2000

24 -Hour Precipitation Analysis for the Period Ending 1200 UTC 7 May 2000

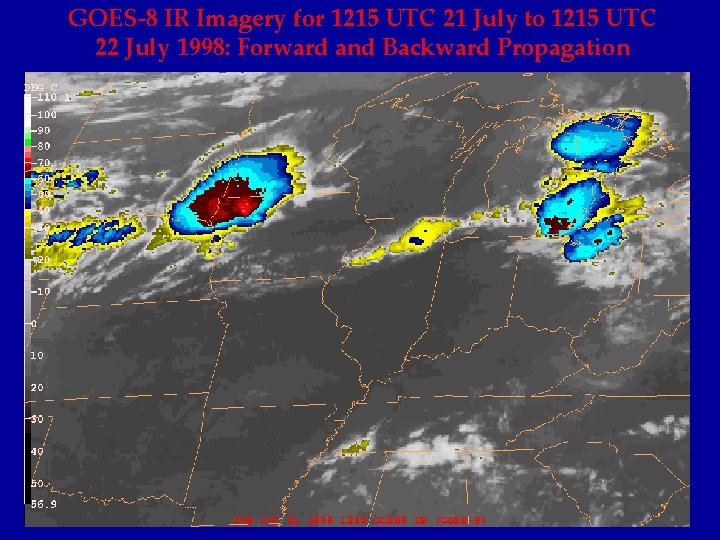

GOES-8 IR Imagery for 1215 UTC 21 July to 1215 UTC 22 July 1998:

GOES-8 IR Imagery for 1215 UTC 21 July to 1215 UTC 22 July 1998: Forward and Backward Propagation

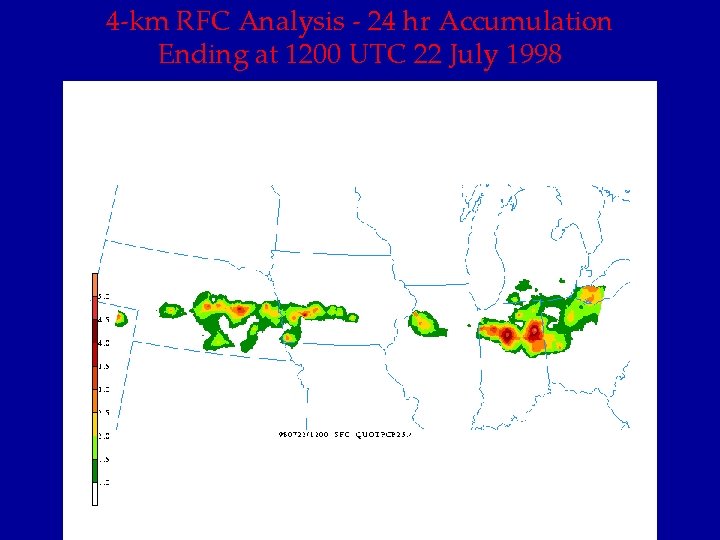

4 -km RFC Analysis - 24 hr Accumulation Ending at 1200 UTC 22 July

4 -km RFC Analysis - 24 hr Accumulation Ending at 1200 UTC 22 July 1998

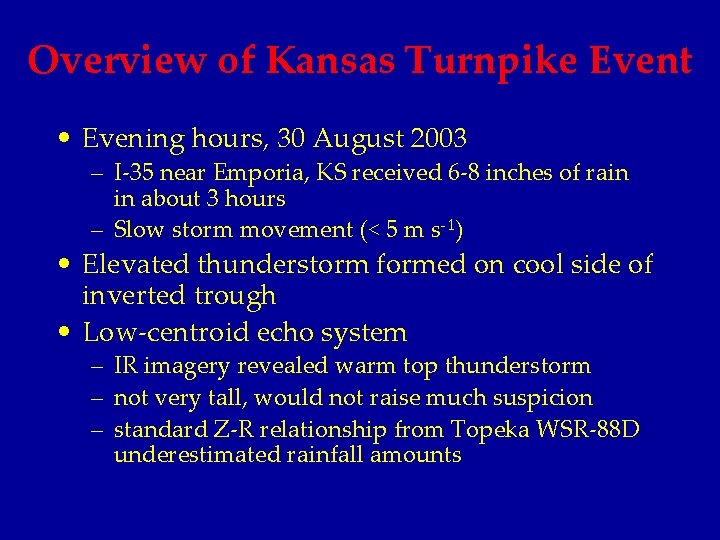

Overview of Kansas Turnpike Event • Evening hours, 30 August 2003 – I-35 near

Overview of Kansas Turnpike Event • Evening hours, 30 August 2003 – I-35 near Emporia, KS received 6 -8 inches of rain in about 3 hours – Slow storm movement (< 5 m s-1) • Elevated thunderstorm formed on cool side of inverted trough • Low-centroid echo system – IR imagery revealed warm top thunderstorm – not very tall, would not raise much suspicion – standard Z-R relationship from Topeka WSR-88 D underestimated rainfall amounts

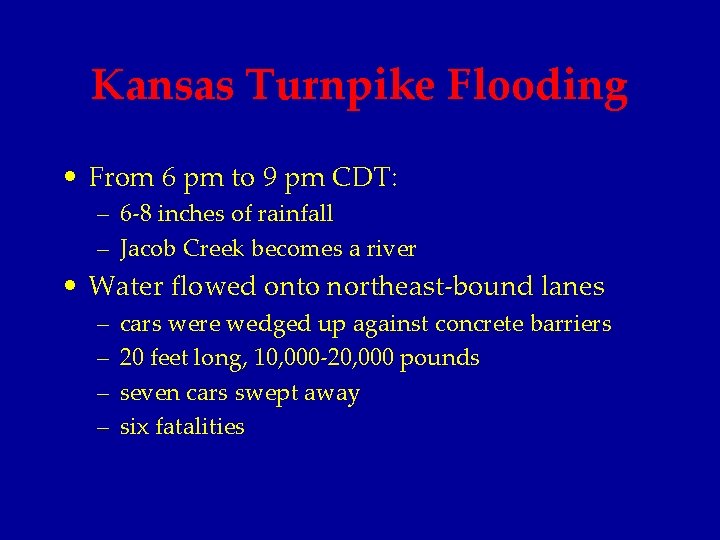

Kansas Turnpike Flooding • From 6 pm to 9 pm CDT: – 6 -8

Kansas Turnpike Flooding • From 6 pm to 9 pm CDT: – 6 -8 inches of rainfall – Jacob Creek becomes a river • Water flowed onto northeast-bound lanes – – cars were wedged up against concrete barriers 20 feet long, 10, 000 -20, 000 pounds seven cars swept away six fatalities

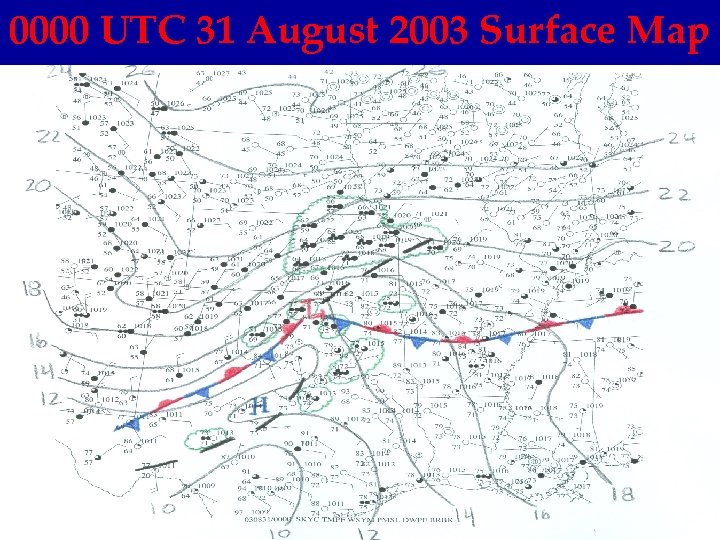

0000 UTC 31 August 2003 Surface Map

0000 UTC 31 August 2003 Surface Map

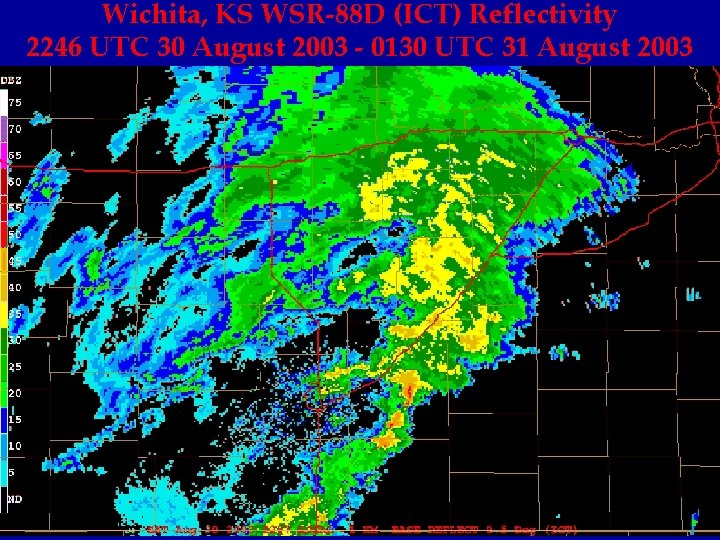

Wichita, KS WSR-88 D (ICT) Reflectivity 2246 UTC 30 August 2003 - 0130 UTC

Wichita, KS WSR-88 D (ICT) Reflectivity 2246 UTC 30 August 2003 - 0130 UTC 31 August 2003

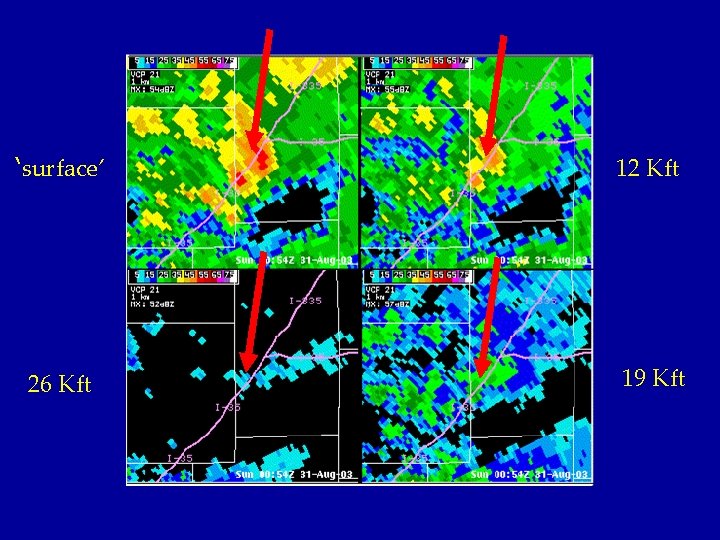

‘surface’ 12 Kft 26 Kft 19 Kft

‘surface’ 12 Kft 26 Kft 19 Kft

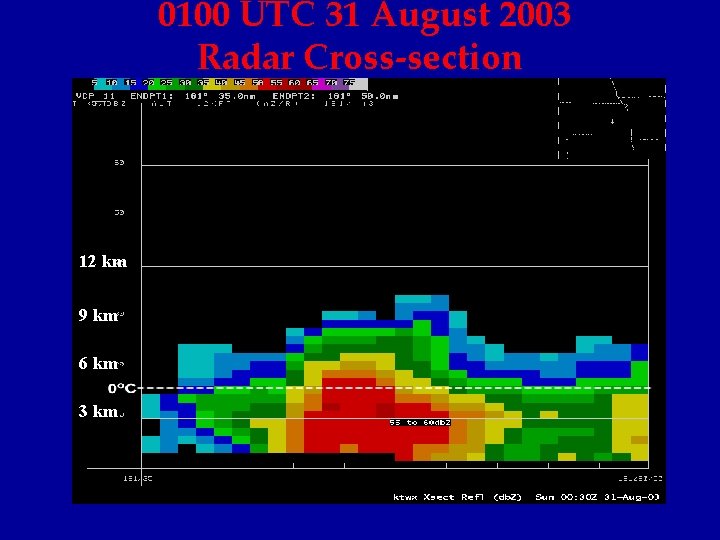

0100 UTC 31 August 2003 Radar Cross-section 12 km 9 km 6 km 3

0100 UTC 31 August 2003 Radar Cross-section 12 km 9 km 6 km 3 km

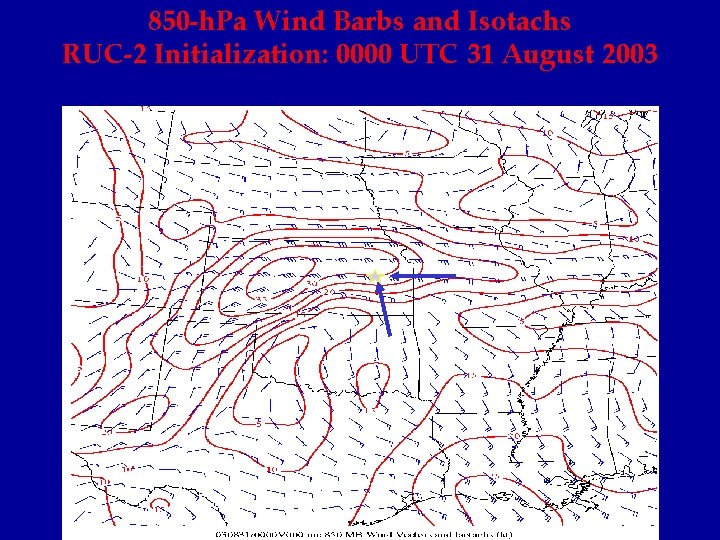

850 -h. Pa Wind Barbs and Isotachs RUC-2 Initialization: 0000 UTC 31 August 2003

850 -h. Pa Wind Barbs and Isotachs RUC-2 Initialization: 0000 UTC 31 August 2003

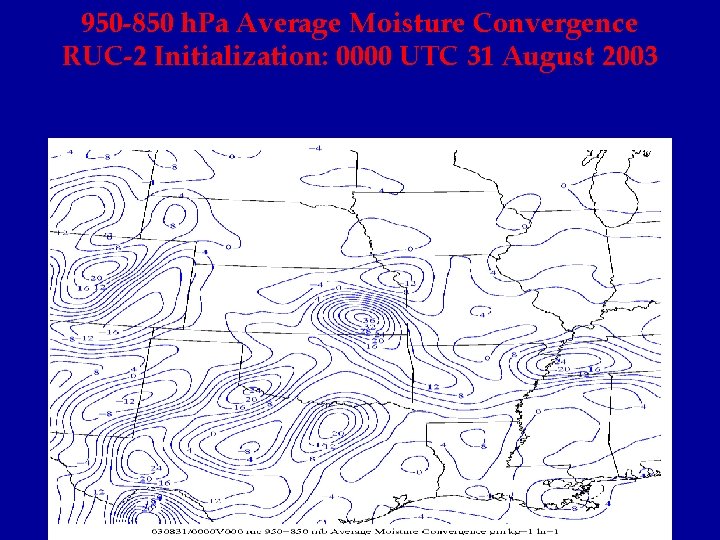

950 -850 h. Pa Average Moisture Convergence RUC-2 Initialization: 0000 UTC 31 August 2003

950 -850 h. Pa Average Moisture Convergence RUC-2 Initialization: 0000 UTC 31 August 2003

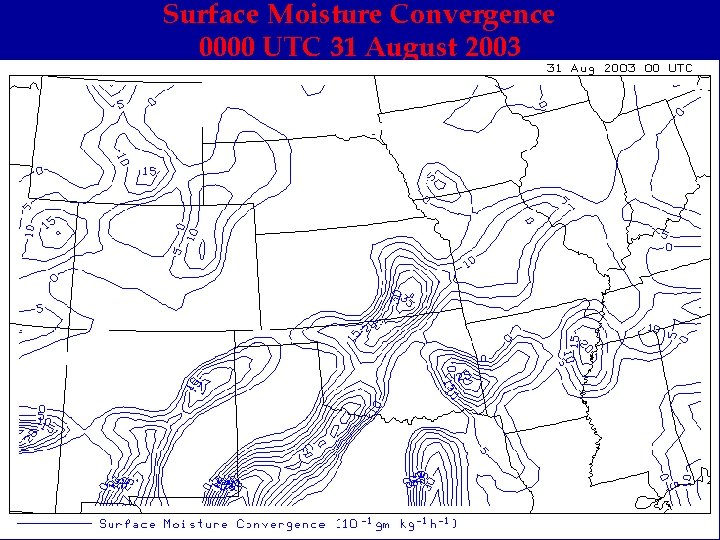

Surface Moisture Convergence 0000 UTC 31 August 2003

Surface Moisture Convergence 0000 UTC 31 August 2003

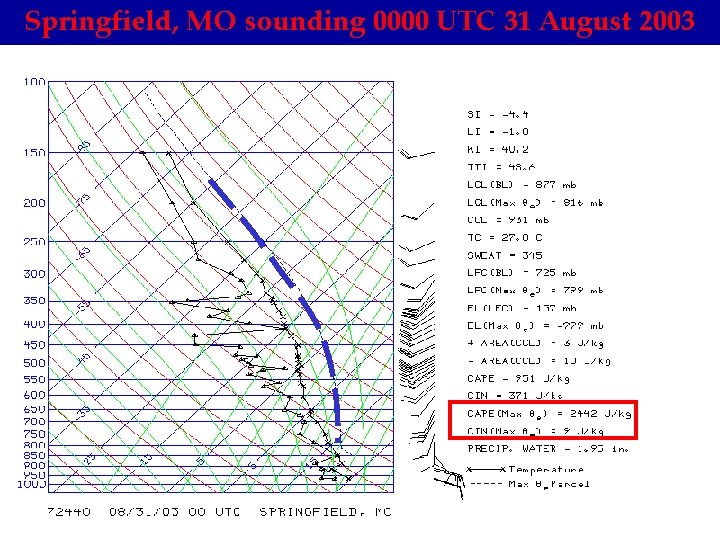

Springfield, MO sounding 0000 UTC 31 August 2003

Springfield, MO sounding 0000 UTC 31 August 2003

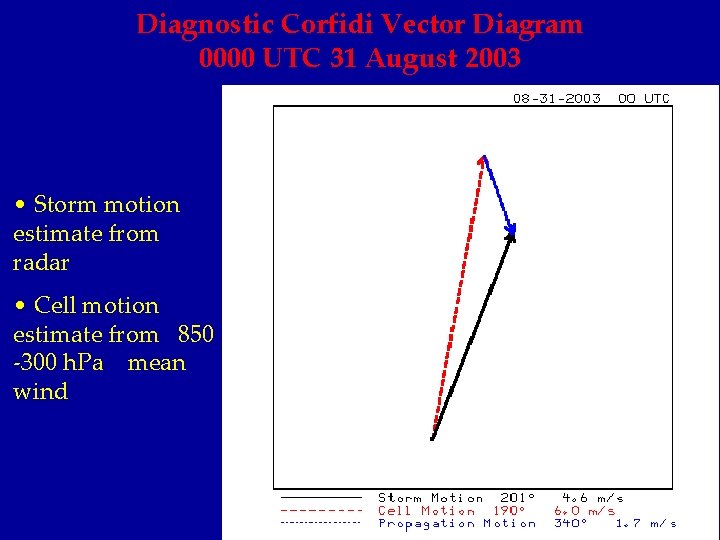

Diagnostic Corfidi Vector Diagram 0000 UTC 31 August 2003 • Storm motion estimate from

Diagnostic Corfidi Vector Diagram 0000 UTC 31 August 2003 • Storm motion estimate from radar • Cell motion estimate from 850 -300 h. Pa mean wind

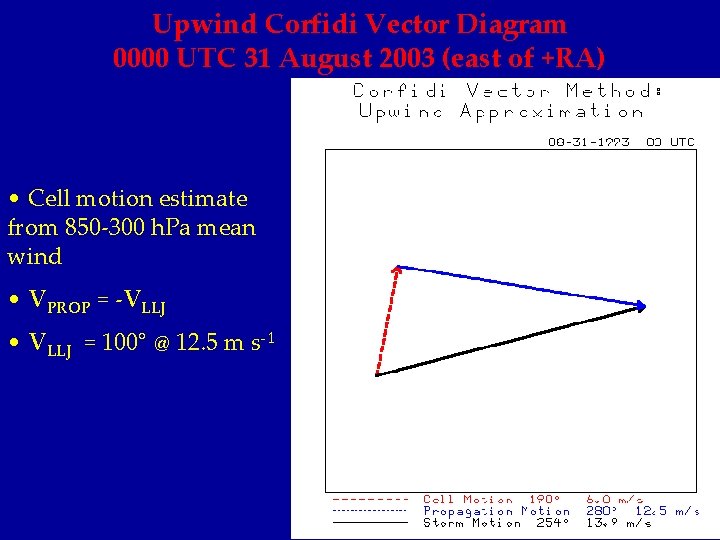

Upwind Corfidi Vector Diagram 0000 UTC 31 August 2003 (east of +RA) • Cell

Upwind Corfidi Vector Diagram 0000 UTC 31 August 2003 (east of +RA) • Cell motion estimate from 850 -300 h. Pa mean wind • VPROP = -VLLJ • VLLJ = 100° @ 12. 5 m s-1

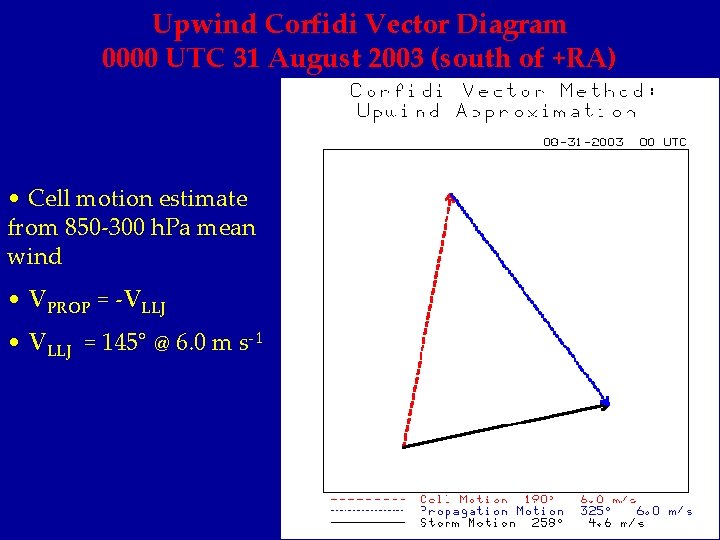

Upwind Corfidi Vector Diagram 0000 UTC 31 August 2003 (south of +RA) • Cell

Upwind Corfidi Vector Diagram 0000 UTC 31 August 2003 (south of +RA) • Cell motion estimate from 850 -300 h. Pa mean wind • VPROP = -VLLJ • VLLJ = 145° @ 6. 0 m s-1

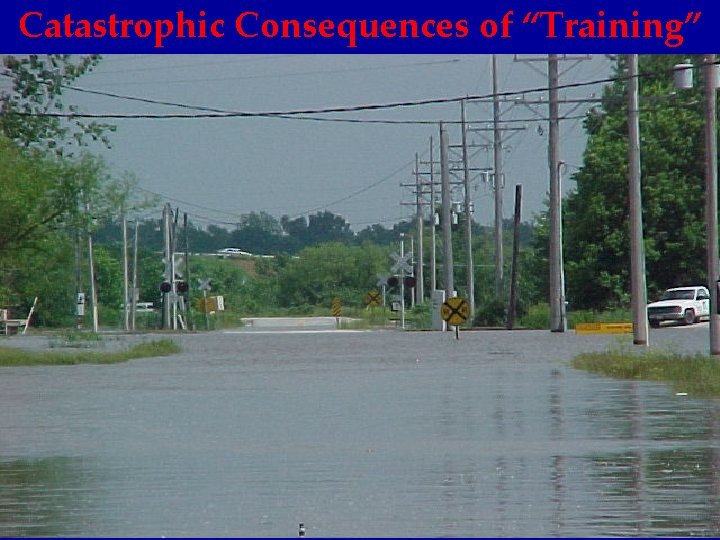

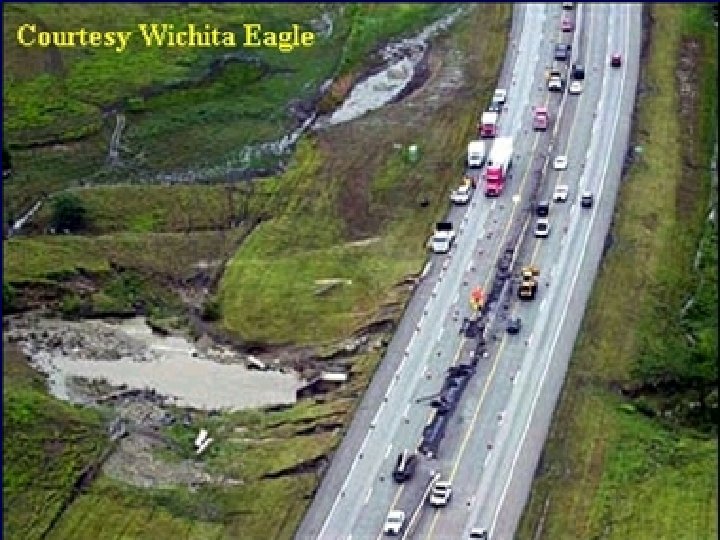

Catastrophic Consequences of “Training”

Catastrophic Consequences of “Training”

Summary: Determining MCS Propagation Mode in Environments of Largely Unidirectional Cloud Layer Flow 1

Summary: Determining MCS Propagation Mode in Environments of Largely Unidirectional Cloud Layer Flow 1 • Strong, unidirectional wind regimes can yield vastly different MCS propagation modes • Mode dependent upon thermodynamic conditions and the orientation of the storm initiation mechanism: • Upwind-propagation environmental characteristics (+RA threat): • deep moisture • comparatively weak convective downdrafts • weak vertical momentum transfer • Downwind-propagation environmental characteristics (wind threat): • dry air somewhere in vertical profile • strong (i. e. cold) convective-scale downdrafts • strong momentum transfer elongation of cold pools in direction of the mean cloud-layer (850 -300 h. Pa) flow (Corfidi 2002)

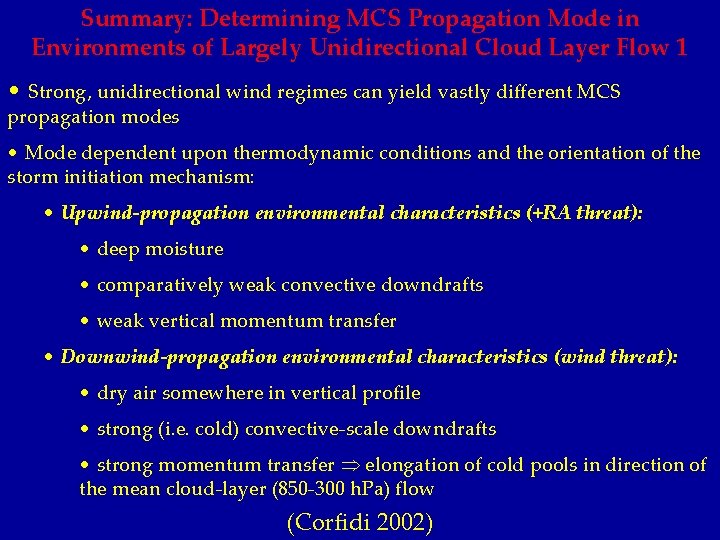

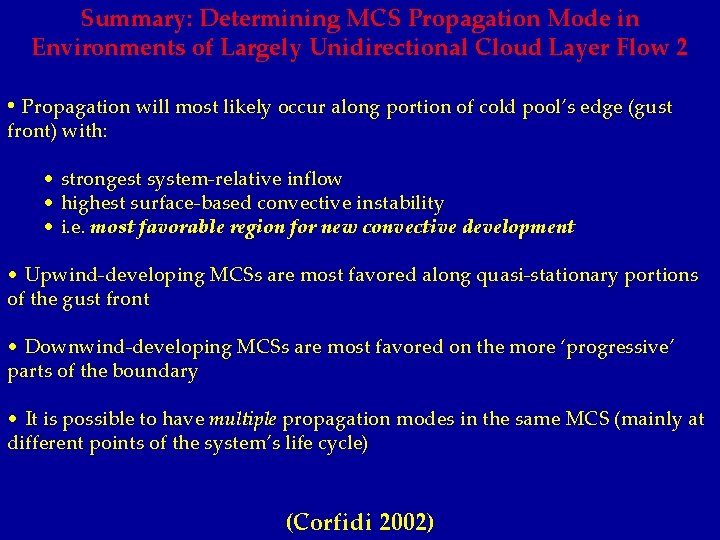

Summary: Determining MCS Propagation Mode in Environments of Largely Unidirectional Cloud Layer Flow 2

Summary: Determining MCS Propagation Mode in Environments of Largely Unidirectional Cloud Layer Flow 2 • Propagation will most likely occur along portion of cold pool’s edge (gust front) with: • strongest system-relative inflow • highest surface-based convective instability • i. e. most favorable region for new convective development • Upwind-developing MCSs are most favored along quasi-stationary portions of the gust front • Downwind-developing MCSs are most favored on the more ‘progressive’ parts of the boundary • It is possible to have multiple propagation modes in the same MCS (mainly at different points of the system’s life cycle) (Corfidi 2002)
