Facility Layout Configuration of departments work centres and

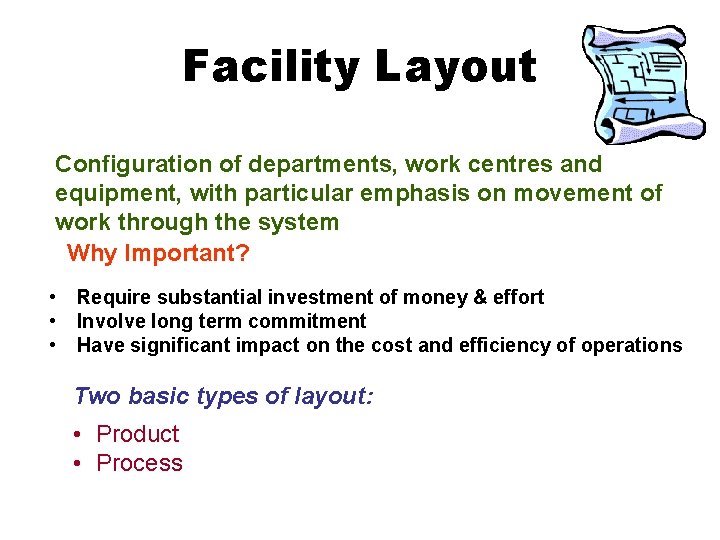

Facility Layout Configuration of departments, work centres and equipment, with particular emphasis on movement of work through the system Why Important? • • • Require substantial investment of money & effort Involve long term commitment Have significant impact on the cost and efficiency of operations Two basic types of layout: • Product • Process

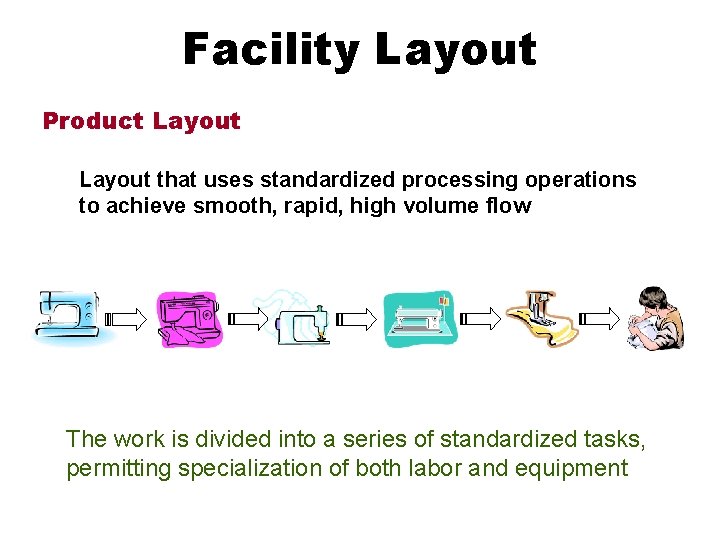

Facility Layout Product Layout that uses standardized processing operations to achieve smooth, rapid, high volume flow The work is divided into a series of standardized tasks, permitting specialization of both labor and equipment

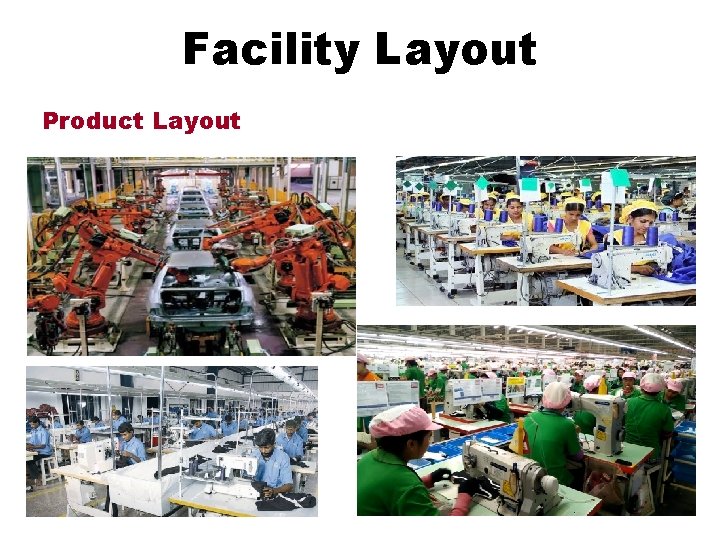

Facility Layout Product Layout

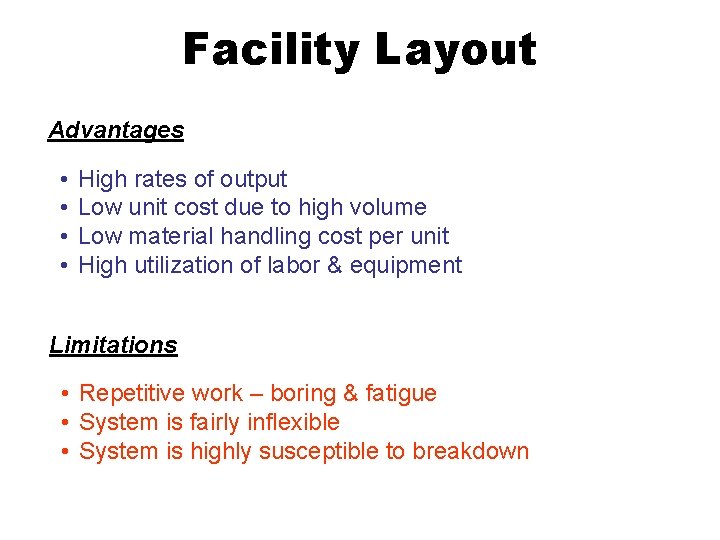

Facility Layout Advantages • • High rates of output Low unit cost due to high volume Low material handling cost per unit High utilization of labor & equipment Limitations • Repetitive work – boring & fatigue • System is fairly inflexible • System is highly susceptible to breakdown

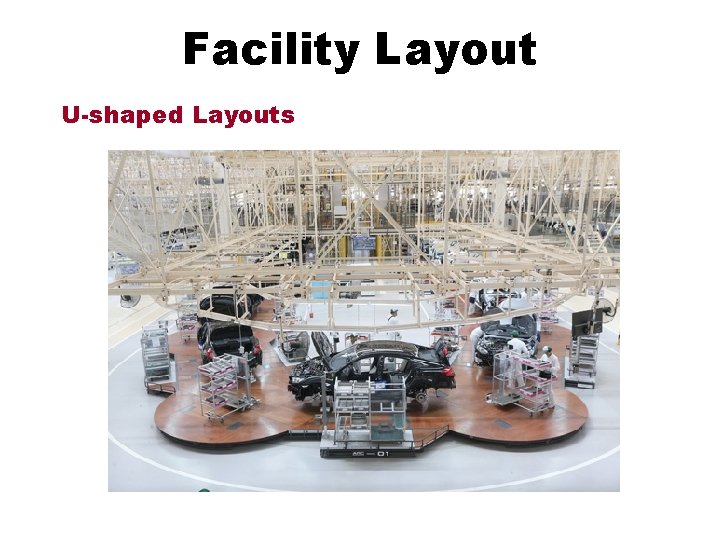

Facility Layout U-shaped Layouts

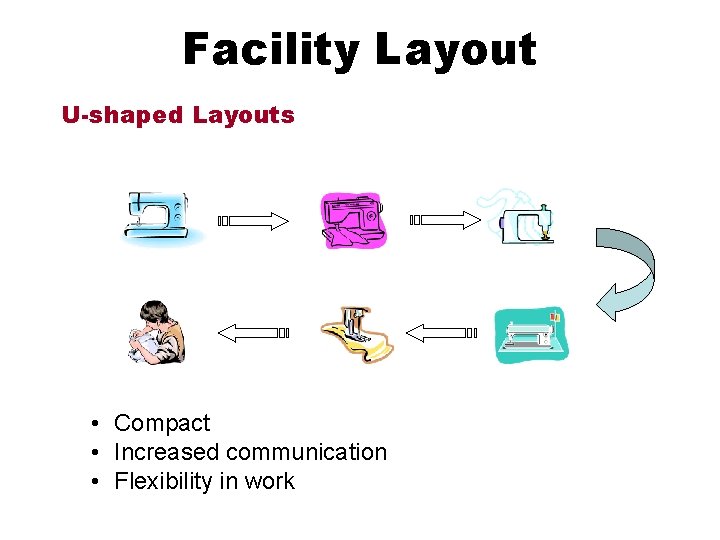

Facility Layout U-shaped Layouts • Compact • Increased communication • Flexibility in work

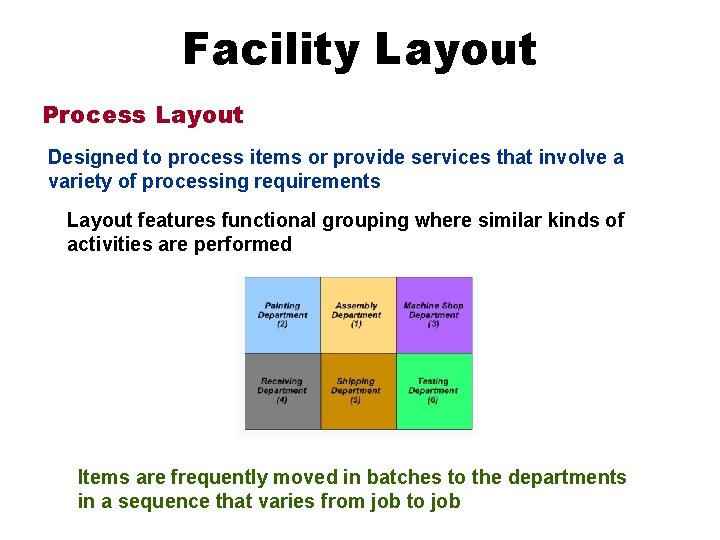

Facility Layout Process Layout Designed to process items or provide services that involve a variety of processing requirements Layout features functional grouping where similar kinds of activities are performed Items are frequently moved in batches to the departments in a sequence that varies from job to job

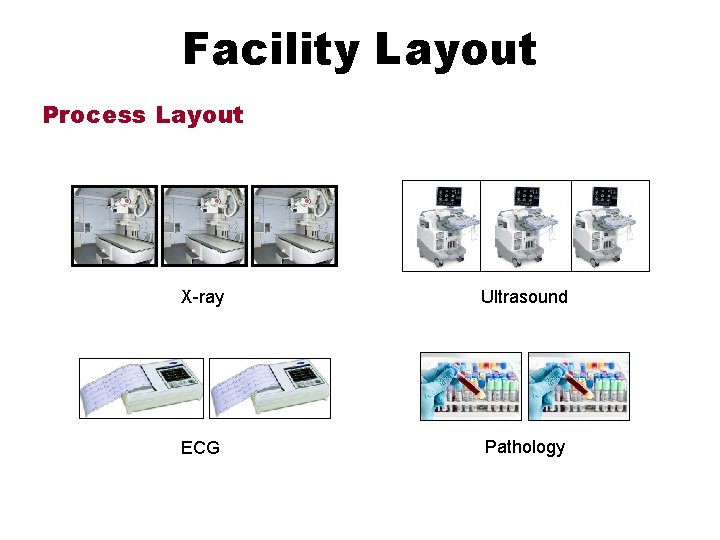

Facility Layout Process Layout X-ray Ultrasound ECG Pathology

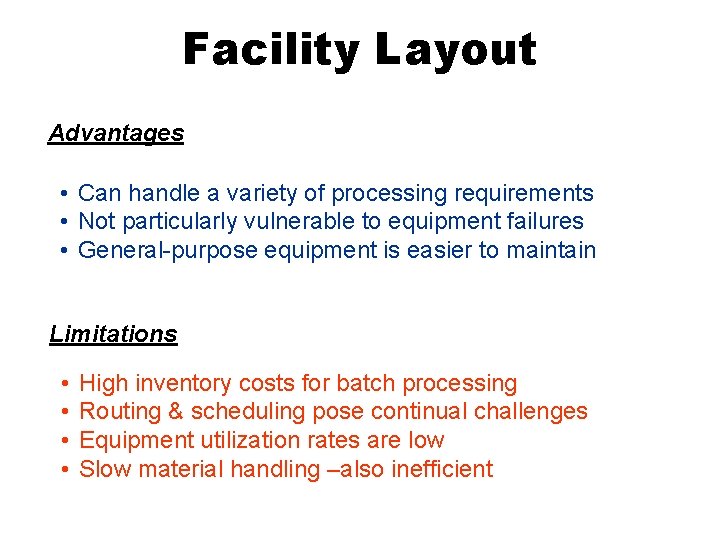

Facility Layout Advantages • Can handle a variety of processing requirements • Not particularly vulnerable to equipment failures • General-purpose equipment is easier to maintain Limitations • • High inventory costs for batch processing Routing & scheduling pose continual challenges Equipment utilization rates are low Slow material handling –also inefficient

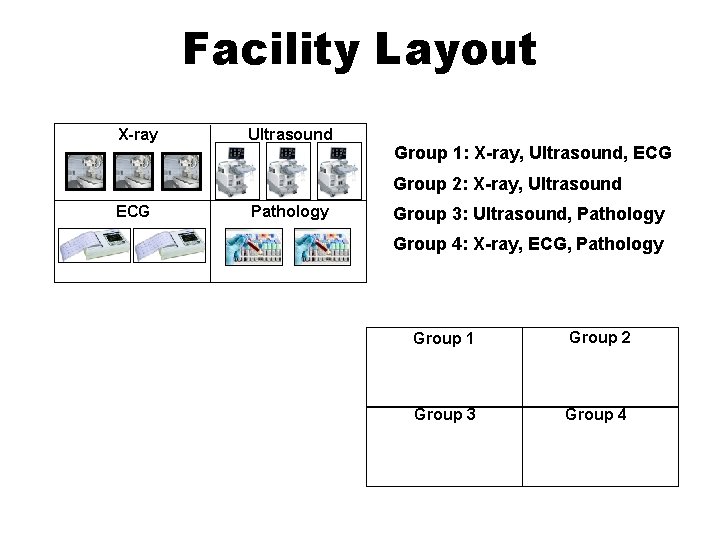

Facility Layout X-ray Ultrasound Group 1: X-ray, Ultrasound, ECG Group 2: X-ray, Ultrasound ECG Pathology Group 3: Ultrasound, Pathology Group 4: X-ray, ECG, Pathology Group 1 Group 2 Group 3 Group 4

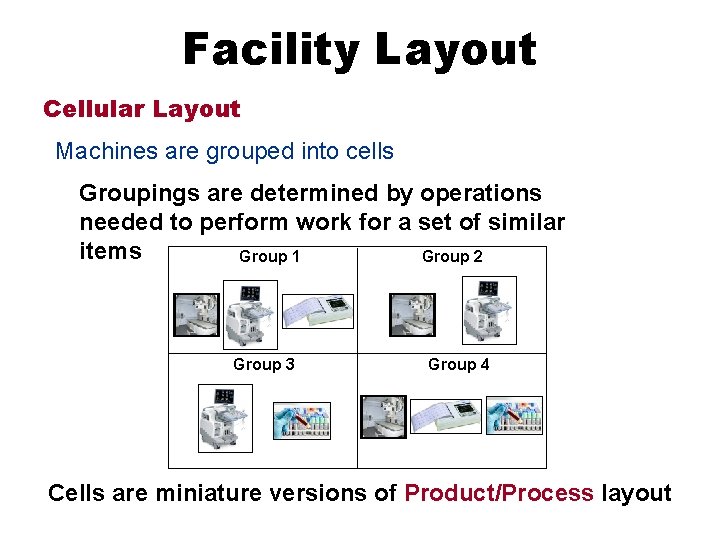

Facility Layout Cellular Layout Machines are grouped into cells Groupings are determined by operations needed to perform work for a set of similar items Group 1 Group 2 Group 3 Group 4 Cells are miniature versions of Product/Process layout

Facility Layout Fixed Position Layout Weight, size, bulk or some other factor makes it undesirable or extremely difficult to move the product The items being worked on remains stationary, and workers, material and equipment are moved about
