Fabric Studies 12312021 Fabric Styling Neha Singh Fiber
Fabric Studies 12/31/2021 Fabric Styling - Neha Singh
Fiber structure Physical attributes • • • Fiber length Staple fibers Filament fibers- silk • Fiber shape- fiber cross-sectional shape influences the way light is reflected from the surface. A flat surface fiber has more luster than a round one. A round fiber reflects light is one general direction, causing a shiny surface. A multi lobal shaped fiber tends to scatter the light, causing the diffuse glow with sparkles. Irregular cross-section scatters light in many directions, resulting a dullish appearance. • • . 12/31/2021 Fabric Styling - Neha Singh
• • • Fiber surface- The surface of fiber vary. Smooth, rough, slightly grooved, wrinkled etc. The fiber surface affects such as properties as hand, luster and wicking • Fiber Longitudinal Configuration • Lengthwise, fibers have varying configurations. They may be straight, twisted, coiled, or crimped. Exp cotton and nylon. • Various properties like resiliency, elasticity and abrasion resistance are affected by fiber longitudinal configuration. 12/31/2021 Fabric Styling - Neha Singh
• • Greater crimp increase resiliency, bulk, warmth, elongation, absorbency and skin comfort. However , hand becomes harsher and luster is reduced as crimp increases Crimp allows the fiber to stand off the skin so fabric will not cling to the wearer skin. Crimp is inherent in the wool fiber. Fiber Diameter Fiber diameter refers to the thickness of the fiber. Thicker fibers result is greater stiffness, which improves wrinkle resistance but can also result in an undesirable roughness. Large diameter fibers result in bulkier fabrics. Fine diameter fibers can result in fabric that is sheer, lightweight and generally more drapable and softer to the touch than the fabric of thicker fibers. 12/31/2021 Fabric Styling - Neha Singh
• • • Chemical composition and molecular formation fibers are classified into various groups by their chemical composition: Cellulosic, protein and synthetic 12/31/2021 Fabric Styling - Neha Singh
Essential properties • Abrasion Resistance- is the ability to resist wear from rubbing that contributes to fabric durability. • Exp- Nylon is used extensively in action outerwear, such as ski jackets , and soccer shorts, because it is very strong and resist abrasion. 12/31/2021 Fabric Styling - Neha Singh
• Absorbency – Absorbency is the ability to take in moisture. • Fibers able to absorb water easily are called hydrophilic fibers. • Hydrophilic fibers- all natural animal and vegetable fibers and two manufactured fibers, rayon and acetate. • Hydrophobic fibers- fibers that have difficulty absorbing water and are only able to absorb small amounts. • Skin comfort, Static build-up, dimensional stability in water, stain removal, water repellency, wrinkle recovery 12/31/2021 Fabric Styling - Neha Singh
• Cover- cover is the ability to occupy an area. A thick fiber or one with crimp or curl gives fabric better cover than a thin, straight fiber. • Elasticity- is the ability to increase in length when under tension (elongation ) and then return to the original length when released (recovery) • Lengthening when tension is placed on the fiber or fabric makes for a more comfortable garment and causes less seam stress. 12/31/2021 Fabric Styling - Neha Singh
• Environmental conditions- the effect of environmental conditions on fibers vary. How fabrics react to certain exposure or storage , is important. The following are some examples- • Wool garments needs to be mothproofed when stored because they are susceptible to damage by these wool eating insects. • Nylon and silk show strength losses from extended exposure to sunlight. Therefore , they are normally not used for curtains and drapes. • Cotton has poor resistance to mildew and should not be allowed to remain wet for long periods of time. 12/31/2021 Fabric Styling - Neha Singh
• Flammability- is the ability to ignite or burn. • Fibers are usually classified as being flammable flame resistant , or flameproof. • Flammable fibers- are relatively easy to ignite and sustain combustion. • Flame-resistant fibers- have a relatively high ignition temperature and slow rate of burning. • Flame proof fibers- will not burn. • Regular polyester is flammable , but Trevira polyester , which is flame resistant. 12/31/2021 Fabric Styling - Neha Singh
• Flexibility- is the capability of fibers to bend easily and repeatedly without breaking. • Hand- is the way a fiber, yarn or fabric feels when handled. The hand of the fiber is affected by its shape, surface and configuration. • Luster- refers to the light reflected from a surface. Various characteristics of a fiber effect the amount of luster. Increased light reflection occurs from a smoother surface, less crimp, flatter cross sectional shape and longer fiber length. • • Pilling- is the formation of groups of short or broken fibers on the surface of a fabric that are tangled together in the shape of tiny ball called pill. • Resiliency- is the capability of a material to spring back to shape after being creased, twisted or distorted. A fabric that has good resiliency does not wrinkle easily • 12/31/2021 Fabric Styling - Neha Singh
• Specific gravity- is the ratio of the mass of the fiber to an equal volume of water at 4 degree c. • Static Electricity- is a frictional electric charge caused by the rubbing together of two dissimilar materials. • Strength- is a fiber’s ability to withstand stress. • Tenacity- the force needed to break the fiber, is known as tenacity and expressed in grams per denier or grams per fiber weight. • Glass, Nylon and Polyester are very strong. Acetate and acrylic are weak. 12/31/2021 Fabric Styling - Neha Singh
• Thermo plasticity- the ability of fibers to withstand heat exposure is an important factor affecting their suitability for many end uses. • Wicking- is the ability of fiber to transfer moisture from one section to another. Usually the moisture is along the fiber surface, but it may also pass through the fiber when a liquid is absorbed by the fiber. 12/31/2021 Fabric Styling - Neha Singh
scan Molecular arrangements in fibers 12/31/2021 Fabric Styling - Neha Singh
Longitudinal forms and surface texture of fibers 12/31/2021 Fabric Styling - Neha Singh
Effects of external features and delusterant particles on fiber luster 12/31/2021 Fabric Styling - Neha Singh
Texturizing yarns 12/31/2021 Fabric Styling - Neha Singh
Texturizing yarns 12/31/2021 Fabric Styling - Neha Singh
Developments of fibres • Till the beginning of 20 th century all fibres in use were natural • Around 1891 -92 the first man-made ‘Artificial Silk’ (Viscose rayon) was discovered • In 1938, Dupont developed the first synthetic polyamide fibre ‘Nylon’, followed by the development of polyester • Thus a distinct class of man-made fibres/ synthetic fibres were developed • 1950 -60 s –acrylic, PP, PVA, Teflon, Lycra were developed • In the last fifty years of research a host of new improved man-made cellulosic, protein, aramid and functional fibres have been developed 12/31/2021 Fabric Styling - Neha Singh
Classification of fibres Fibres Natural Man-made Vegetable/Cellulosic Animal/Protein Synthetic Mineral Protein Mineral Metallic 12/31/2021 Fabric Styling - Neha Singh
Cellulosic fibres Cotton Hemp Sisal Jute Flax Sisal Coir Kenaf Products Kenaf fibre Pina Banana Bamboo Hemp Extraction of Hemp filament bag Banana fibre Coir mat Costume from pina fibre 12/31/2021 Cotton fibre Fabric Styling - Neha Singh Jute Towels from bamboo fibre
Cotton • Comfort factors Cross –section and longitudinal view of cotton fibre before mercerization High absorbency makes cotton suitable for hot weather clothing Slow in wicking moisture from inner to the outer surface of the fabric • Care factors - - May be laundered or dry cleaned, withstands frequent laundering. Cotton which is not sanforized tends to shrink on washing Weakened by acids, have high resistance to alkalies Cotton fibre after mercerization 12/31/2021 Fabric Styling - Neha Singh
Cotton fibre • • • Microscopic appearance Crystallinity Tensile strength: 3. 5 g/d -4 g/d ( wet strength 4. 5 g/d) Elongation 3 -7% Hygroscopic nature Chemical properties: – Effect of acids – Effect of alkalis – Effect of bleaches • Effect of sunlight 12/31/2021 Fabric Styling - Neha Singh
Flax (Linen) • Comfort factors - - High absorbency and quick drying makes linen suitable for hot weather clothing Poor elasticity gives stiff handle • Care factors - May be laundered or dry cleaned, withstands frequent laundering. Wrinkling and crease formation occurs easily Weakened by acids, have high resistance to alkalies Cross sectional and longitudinal view of flax 12/31/2021 Fabric Styling - Neha Singh
Flax fibre • • • Microscopic appearance Crystallinity more than cotton Tensile strength: 3. 5 g/d -5 g/d Elongation 2% Hygroscopic nature Chemical properties: – Effect of acids – Effect of alkalis – Effect of bleaches • Effect of sunlight 12/31/2021 Fabric Styling - Neha Singh
Properties Cotton Flax Jute Viscose rayon Cellulose Tenacity, g/d 3 -5 3. 5 -5 2. 5 – 3 Elongation, % 5% 2% 1. 5 -2% 16 -18% Moisture Regain. % 8. 5 % 7% 7% 12 -14% Thermal properties 1500 C starts discolouring, doesnot melt 2800 C starts discolouring, doesnot melt 1500 C starts discolouring, doesnot melt Composition 12/31/2021 Fabric Styling - Neha Singh
Natural Protein fibres Silk Wool Indian silk Sheep/ lamb Camel (alpaca) Mulberry Goat (mohair) Tasar Angora rabbit Muga Goat (Cashmere) Chinese silk Dupion silk Spun silk 12/31/2021 Speciality hair Fabric Styling - Neha Singh
Wool • Comfort factors SEM image of wool Absorbs water, good wicking ability Thermal and insulating qualities contribute to warming effect making it suitable for cold weather clothing • Care factors Wool fibre with natural crimp 12/31/2021 - Usually dry cleaned Yellows and discolours when subjected to chlorine bleach Damaged by moths unless treated Susceptible to pilling Fabric Styling - Neha Singh
Wool -properties • • • Structure Felting of wool: It is the irreversible shrinkage of the length, breadth or thickness of the yarn. This is done by subjecting the woollen textile to agitation in an aqueous solution. Wool polymer: keratin ( repeating units: amino acids) – Cystine ( sulphur containing amino acids) – Crystallinity: 25 -30 % crystalline Tenacity: 1. 4 -2. 4 g/d Elongation: 25% Moisture regain: 18 -20% Heat of wetting from dry to saturation ( joules per gram): 113 Thermal properties: poor conductor Setting of wool – Temporary set – Permanent set – Chemical set Chemical properties 12/31/2021 Fabric Styling - Neha Singh
Silk • Comfort factors - Absorbs moisture, good wicking ability High thermal conductivity Warmer than other natural fibre fabrics of comparable weight, good elasticity • Care factors - Preferably dry cleaned, stains from body oil and perspiration, water spots appear from steam Tends to shrink when dry cleaned Attacked by moth and other insects SEM image of silk filament 12/31/2021 Fabric Styling - Neha Singh
Silk -properties • • Structure Silk polymer: Amino acids( 16 types. Wool- 20 types) Crystallinity: 60 -70% crystalline Tenacity: 4. 5 g/d Elongation: 20% Moisture regain: 11% Thermal properties: poor conductor Chemical properties – Degrades more readily by acids than wool ( acidic perspiration damages silk) – Alkalis causes swelling and dissolution 12/31/2021 Fabric Styling - Neha Singh
Angora • The hair of the Angora rabbit is allowed to grow 3 or more inches long before it is Angora rabbits clipped, sheared, or plucked. This process causes no harm to the animals and are carried out four times each year. • The total annual yield for a single Angora rabbit ranges from 7 to 14 ounces, is enough to construct one small garment, such as a short-sleeved sweater. • Clothing of Angora rabbit wool are usually have a very nice feel against the skin. Many people who find garments made of sheep’s wool scratchy and uncomfortable find Polarized microscopy image of angora fibre 12/31/2021 Angora wool comfortable. Fabric Styling - Neha Singh
Cashmere • Properties Cashmere / Pashmina goats Fibre is cylindrical, soft and silky, light weight In order to avoid pilling by local friction, the lining must be slippery Cashmere/ Pashmina can be dyed in different colours • Care factors - Preferably dry cleaned, should be dried in shade, not direct sunlight Cashmere garments should be folded and kept and should not be hanged to prevent deformation. Polarized light microscopy image of cashmere 12/31/2021 Fabric Styling - Neha Singh
Alpaca 12/31/2021 Fabric Styling - Neha Singh
Mineral fibre (Asbestos) Asbestos fibres 12/31/2021 • Type of rock ( silicates of magnesium and calcium) • Asbestos is used in industry for thermal insulation, fireproofing and sealing. • Spun asbestos is used for fireproof and chemical-resistant clothing. • The inhalation of large quantities of fibre can cause asbestosis which increases the risk of bronchial cancer. • In particular, dusts < 200 micron are highly toxic and suspected of being a direct cause of tumours. Fabric Styling - Neha Singh
Man made fibres Man made Natural polymer Synthetic polymer Refractory and related fibres Regnerated cellulose Polyesters Carbon fibre Cellulose acetate Polyamides Glass fibre Regenerated protein Polyurethane Metallic fibres Alginate, Chitosan Polypropylene Polyethylene 12/31/2021 Fabric Styling - Neha Singh
Regenerated cellulosic fibre Viscose rayon 12/31/2021 Polynosic Modal Lyocel Fabric Styling - Neha Singh Cellulose acetate Cellulose triacetae
Viscose rayon • Comfort factors - - More absorbent than cotton, without producing wet cling The irregular cross-section of viscose contributes to comfort when worn against skin • Care factors - 12/31/2021 May be laundered or dry cleaned; easy to iron Fabric Styling - Neha Singh
Viscose rayon -properties • • Microscopic appearance Crystallinity 35 -40% Tensile strength: 2. 5 g/d -3 g/d ( wet strength 1. 5 g/d) Elongation 16 -18% Moisture regain: 12 -14% Chemical properties: More sensitive to acids than cotton – Effect of acids – Effect of alkalis – Effect of bleaches Effect of sunlight 12/31/2021 Fabric Styling - Neha Singh
Viscose rayon of different cross-sectional shapes “Galaxy”- a Y–shaped viscose rayon fibre with highly absorbency and bulk 12/31/2021 Viloft - a flat cross sectional viscose rayon fiber gives a unique soft handle and pleasing drape Fabric Styling - Neha Singh
Modal • Comfort factors - More stronger than viscose in - wet and dry state One problem is the almost perfectly circular cross-sectional shape; this makes leaner yarns than irregularly shaped standard viscose rayon. • Care factors - May be laundered or dry cleaned; easy to iron But gradually fibrillate on wet processing Cross-section of modal fibres 12/31/2021 Fabric Styling - Neha Singh
Lyocell • Comfort factors - More absorbent than cotton • Care factors Cross section of lyocell • May be laundered or dry cleaned; easy to iron But gradually fibrillate on abrasion in wet state Produced by Acordis and Lenzing AG. More costly than viscose rayon Surface view of lyocell Fibrillation of lyocell fibre 12/31/2021 Fabric Styling - Neha Singh
Cellulose acetate • Comfort factors - Moisture regain is lower than viscose rayon • Care factors SEM mage of cellulose acetate cross-section - Dry cleaning is recommended; easy to iron, dries quickly Shrinkage can occur during laundering • Applications - Polarized microscope image of cellulose acetate filament- striations on surface 12/31/2021 - The use of acetate fibre has declined in the past three decades but it can be used for medical gauze, ribbons, home furnishings, woven velvets, tricot knits, men's linings, circular knits, woven satins, woven women's linings. Thermoplastic fibre –can be heat set Fabric Styling - Neha Singh
Cellulose acetate- properties • • Microscopic appearance Crystallinity : 40% Tenacity: 2. 5 g/d Elongation 16 -18% Moisture regain: 6. 5 % Thermal properties: Heat sensitive, softens at 175 -1900 C Chemical properties: More sensitive to acids than cotton – Effect of acids: Acids hydrolyze – Effect of alkalis: Resistant to alkalies – Effect of bleaches: Same as cotton fibres Effect of sunlight: 12/31/2021 Fabric Styling - Neha Singh
Regenerated protein fibresoybean protein fibre • Soybean protein fibre (SPF) is produced from the residual cake after oil is extracted from soybean seeds. • SPF fabrics have cashmere feel but is softer and smoother than cashmere. • The moisture absorption is similar to that of cotton • It has silk like luster and elegant drape. • The elastic recovery rate is 55. 4% where for other fibres it is 60 -70%. Good colour fastness Soybean seeds Soybean fibre products 12/31/2021 • Fabric Styling - Neha Singh
Man made fibres from synthetic polymers 12/31/2021 Fabric Styling - Neha Singh
Polyester fibre ( polyethylene terepthalate) Normal polyester fibre Antibacterial polyester fibre (zeolite added) Coolmax (INVISTA) microchannel polyester fibre for sportwear • Comfort factors - Hollow polyester filament 12/31/2021 ‘Eskimotech’ blanket from hollow polyester fibre Most popular and common fibre used in active wear and sportswear. Wicking is faster than cotton through hydrophobic in nature Hydrophilic finish can be applied when worn next to skin • Care factors - Easy care fibre Fabric Styling - Neha Singh
Polyester-properties • • Structure: Normal cross-section is circular Crystallinity: 65 -85% crystalline Moisture regain: 0. 4% Tenacity: Strong fibre (2. 4 -7 g/d) Wet tenacity is the same. Wrinkle resistance/ Crease resistance: The extreme crystallinity of the polymer system prevents the polyester filament from bending readily. Thermoplastic nature: Chemical properties: – Effect of acids: ester groups of polyester are resistant to acid hydrolysis – Effect of alkalis: Alkanine hydrolysis at the ester groups ( finer & silkier with regular laundering) – Effect of bleaches: Sodium chlorite Effect of sunlight: Resistant to sunlight 12/31/2021 Fabric Styling - Neha Singh
Nylon- polyamide polymer • Comfort factors Nylon filament of different cross-sectional shapes • Care factors - Silver incorporated antibacterial nylon filament 12/31/2021 Trilobal and multilobal nylon has good wicking properties High abrasion resistance High flexibility and elasticity Used in swimwear, cycling shorts, sports socks, etc. Fabric Styling - Neha Singh Easily laundered, dries fast Fabrics have high tensile, tear and burst strength, even at low fabric weight
Nylon -properties o o o o o Structure: Normal cross-section is trilobal/ circular/ Density: 1. 14 g/cc ( light weight) Crystallinity: 65 -85% crystalline Moisture regain: 4% Tenacity: Strong fibre (3. 5 -7. 2 g/d) Wet tenacity is the same. Wrinkle resistance/ Crease resistance: The high crystallinity of the polymer system makes nylon crease resistant. Thermoplastic nature: Chemical properties: More sensitive to acids than cotton n Effect of acids: Less resistant to acid (amide groups- hydrolysis) n Effect of alkalis: Frequent exposure causes alkanine hydrolysis Effect of bleaches: hydrogen peroxide , Sodium chlorite Effect of sunlight: Fair resistant to sunlight 12/31/2021 Fabric Styling - Neha Singh
Acrylic General cross-section and surface view of acrylic fibre • - Comfort factors - The slight waviness of the acrylic fibres provides slight bulkiness to the yarns and warmth • Care factors - Easily laundered, machine washable, dries fast Acrylics have a soft handle Blankets Modacrylic winterwear Police vests 12/31/2021 Fabric Styling - Neha Singh Inflight products
Properties-acrylic • • • Structure: Normal cross-section dog bone Density: 1. 17 g/cc ( light weight) Crystallinity: 65 -85% crystalline Moisture regain: 2. 5 % Tenacity: 2. 0 -3. 6 g/d Thermoplastic nature: Chemical properties: More sensitive to acids than cotton – Effect of acids: Less resistant to acid – Effect of alkalis: Weak alkalies do not affect acrylics Effect of sunlight: Fair resistant to sunlight End uses: blankets, carpets, socks, knitted sweaters, sportswear fabric 12/31/2021 Fabric Styling - Neha Singh
Polypropylene ( Olefin Fibres) • Polarized microscope image of PP filament • Carpets Different types of yarn, tapes, sheets and nonwoven products can be made Used widely in the production of disposable medical protective apparels, carpets and industrial textiles PP products Medical products Grass mats 12/31/2021 Crop covers Bags Fabric Styling - Neha Singh Antiweed fabric
Properties -olefin • • • Density: 0. 91 g/cc ( light weight) Crystallinity: 65 -85% crystalline Moisture regain: 0 -0. 05 % ( Doesn't absorb moisture, helps in quick transport of moisture) Tenacity: 1. 5 -7 g/d Thermoplastic nature: Chemical properties: generally excellent Effect of sunlight: Resistant to sunlight after incorporation of stabilizers Electric insulation : excellent Resistant to mildew, moth: Excellent End uses: carpets, socks, blankets, ropes, woven sacks, packing material, soft luggage, surgical disposables, etc. 12/31/2021 Fabric Styling - Neha Singh
UHMWPE • Ultra high molecular weight polyethylene (UHMWPE) e. g. Dyneema Spectra ( Allied signal) Bullet proof vest Bullet proof helmet 12/31/2021 Fabric Styling - Neha Singh
Polyurethane Discovered in 1959 at Dupont by Joseph Shivers, spandex sprang in the market as an replacement for rubber Spandex is a generic term used in USA for elastomeric fibre. LYCRA® is a registered trademark of INVISTA for premium stretch fibers and fabrics 12/31/2021 • - Properties • • - Comfort factors Can be stretched to 600 times, elastic property is unaffected by moisture due to its hydrophobic nature Doesnot contribute to comfort Care factors Hot water should not be used during laundering. Should not be exposed to direct sunlight Fabric Styling - Neha Singh
Properties -Polyurethane • • • Density: 1. 2 -1. 35 g/cc ( light weight) Crystallinity: amorphous Moisture regain: 0 -0. 3 % Tenacity: 1. 5 g/d Thermal properties: High temperature affects the fibre Advantages over rubber: Prolonged exposure to sunlight hardens & discolours rubber, it doesnot damage spandex. Body oils and drycleaning solvents damage rubber not spandex. • Sensitive to high concentrations of chlorine. 12/31/2021 Fabric Styling - Neha Singh
Man made fibres from refractory and related materials 12/31/2021 Fabric Styling - Neha Singh
Glass • Properties - Brittle in nature - Resistant to very high temperature Resistant to chemicals Limiting oxygen index (LOI) >100 Best utilized by embedding in matrix forms • Applications - 12/31/2021 Aircraft interiors Glass reinforced composites e. g. boat hulls, car bodies Insulating material Fabric Styling - Neha Singh
Carbon fibres • Properties - Carbon fibre High strength and modulus Low extensibility and light weight Usable temperature 315 -3700 C Carbon nanotube incorporated fibres are conductive in nature, with extremely high tensile strength • Applications - Carbon nanotubes 12/31/2021 Used for manufacture of structural composites, used in aerospace, military, transportation and for industrial applications. Carbon Fabric Styling - Neha Singh
Ceramic fibre Properties: • • • Low thermal conductivity Thermal shock resistant Light weight Excellent sound absorption Resists most chemical attack Unaffected by water & steam Very low heat storage Resilient Uses: Fire screen made from ceramic fibres 12/31/2021 Fabric Styling - Neha Singh

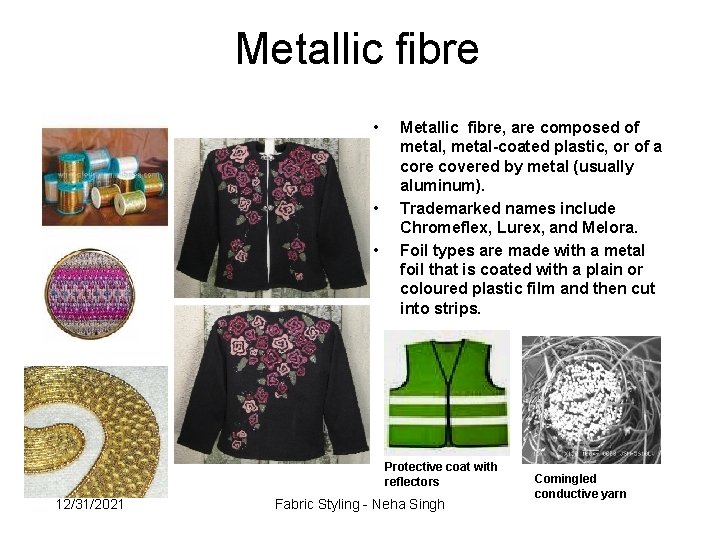

Metallic fibre • • • Metallic fibre, are composed of metal, metal-coated plastic, or of a core covered by metal (usually aluminum). Trademarked names include Chromeflex, Lurex, and Melora. Foil types are made with a metal foil that is coated with a plain or coloured plastic film and then cut into strips. Protective coat with reflectors 12/31/2021 Fabric Styling - Neha Singh Comingled conductive yarn
Classification of fibres based on end uses 12/31/2021 Fabric Styling - Neha Singh
Conventional fibres • Natural e. g. cotton, wool, silk, jute, etc. • Regenerated e. g. viscose, lyocel, soybean • Applications - Apparel Furnishings Technical textiles • Synthetic man made e. g. polyamide, polyester, polyacrylics, polyurethanes, polyolefins (PP) 12/31/2021 Fabric Styling - Neha Singh
High strength, high modulus organic. Applications fibres • Para-aramids e. g. Kevlar (Dupont) Twaron ( Acordis) • Ultra high molecular weight polyethylene (UHMWPE) e. g. Dyneema Spectra ( Allied signal) Bullet proof helmet Bullet proof vest Cut resistant gloves using yarn made of kevlar sheath and spandex core Dyneema cut resistant gloves 12/31/2021 Fabric Styling - Neha Singh Kevlar and PTFE rope
Kevlar -properties • • Outstanding strength Temperature resistance Its resistance to chemicals and temperature extremes make Kevlar® an ideal component for ropes and cables under severe loads in harsh environments. Other uses: Belting in radial tyres, protective apparels, pressure vessels, helicopter parts. 12/31/2021 Fabric Styling - Neha Singh
High chemical and combustion resistant organic fibres Meta-aramids Fire Breaker Innovative Design & High. Tech Materials An appealing design, optimum freedom of movement combined with highest level of protection – that has not automatically to be a difference! e. g. Nomex (Dupont), Conex (Teijin) Uses: Texport 12/31/2021 Fabric Styling - Neha Singh
High performance inorganic fibre • Carbon • Cearmics- high temperature performance • Tungsten • Silicon carbide fibre with tungsten core Fire screens made of ceramic fibres 12/31/2021 Fabric Styling - Neha Singh
Microfilaments Sea island type microfibre manufactured by Toray Japan Splittable microfibre ( Kanebo Japan, Elaston ) 12/31/2021 • Linear density of approximately 1. 0 dtex or less • Usually made from polyester/nylon • Brand names: Mitrelle, Setila, Micrell, Tactel • Used for production of fashionable clothing and also bacteria barrier fabric for medical applications • Split technique of production produces microfilaments that can be used for wiping cloth for optical and microelectronic industries Fabric Styling - Neha Singh
Microfilament products Microfilament fabric can be constructed to be impermeable to water droplets while allowing air and moisture vapour circulation, with good wicking properties. 12/31/2021 Microfilament spunlace nonwoven : Soft, drapable and much lighter than traditional textiles. Highly dense and compact fibre structure, very good barrier properties, thermal insulation, wind resistance and UV protection and highly breathable with very good moisture management. Fabric Styling - Neha Singh
12/31/2021 Fabric Styling - Neha Singh
Bath Products 12/31/2021 Fabric Styling - Neha Singh
12/31/2021 Fabric Styling - Neha Singh
12/31/2021 Fabric Styling - Neha Singh
12/31/2021 Fabric Styling - Neha Singh
