FAA Global Navigation Satellite System (GNSS) Program Plans and Status GPS/WAAS/LAAS Leo Eldredge, GNSS Program Manager Federal Aviation Administration (FAA) Space Enterprise Council March 14, 2008 Federal Aviation Administration

Peak Aircraft Traffic Over The US Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 2

Future Planning Assumptions • By 2025 , Aviation is Expected to Increase By a Factor of 2. 7 • The NAS Will Transition to Satellite Navigation Technology – Enable Performance-Based Navigation Services Capability RNAV & RNP – Position Navigation Timing (PNT) is a Critical Enabler for Next. Gen • Legacy Services With Negative Benefits/Cost Will Eventually Be Removed Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 3

Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 4

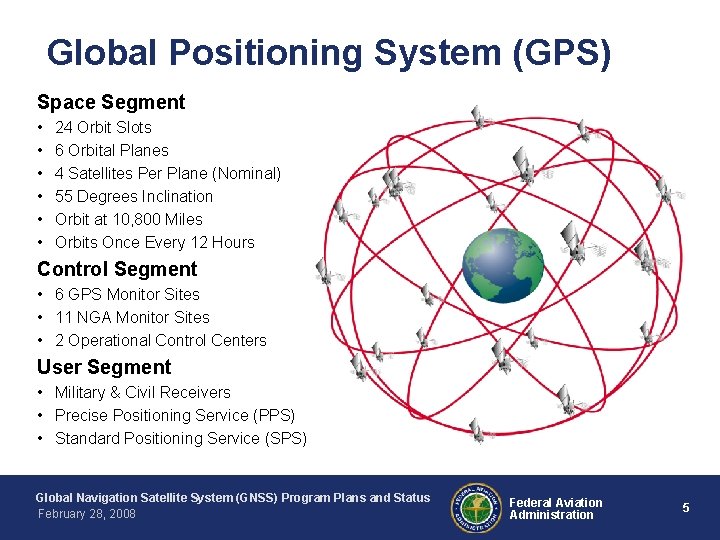

Global Positioning System (GPS) Space Segment • • • 24 Orbit Slots 6 Orbital Planes 4 Satellites Per Plane (Nominal) 55 Degrees Inclination Orbit at 10, 800 Miles Orbits Once Every 12 Hours Control Segment • 6 GPS Monitor Sites • 11 NGA Monitor Sites • 2 Operational Control Centers User Segment • Military & Civil Receivers • Precise Positioning Service (PPS) • Standard Positioning Service (SPS) Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 5

FAA Satellite Navigation Program Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 6

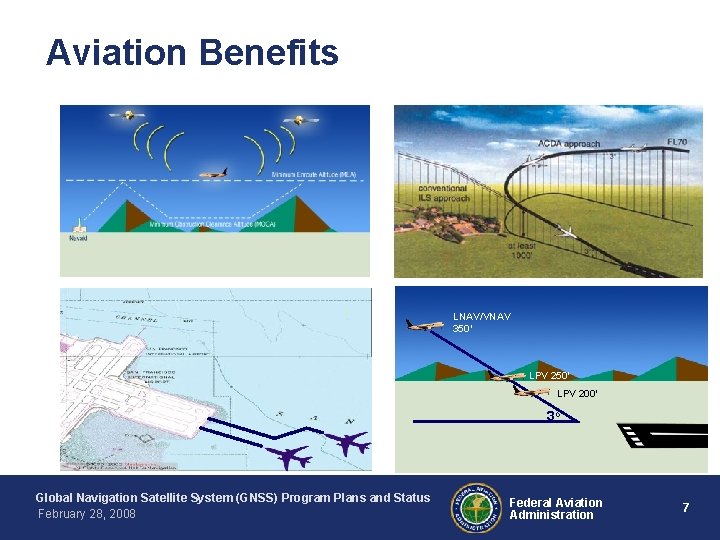

Aviation Benefits LNAV/VNAV 350’ LPV 200’ 3 o Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 7

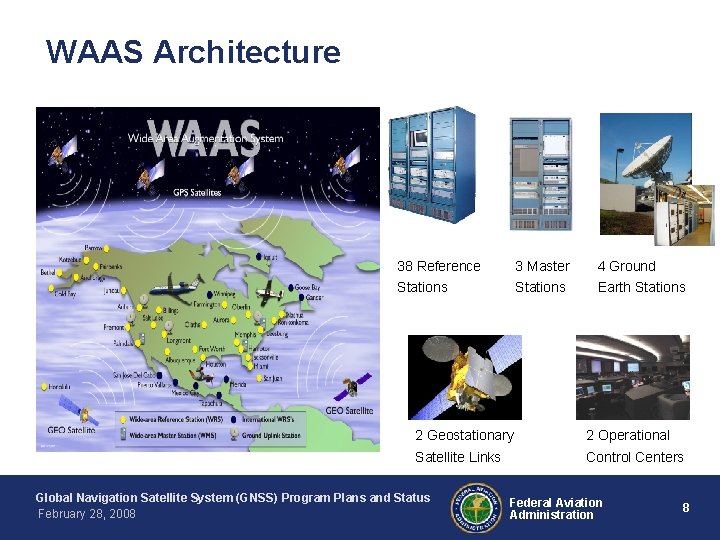

WAAS Architecture 38 Reference 3 Master 4 Ground Stations Earth Stations 2 Geostationary 2 Operational Satellite Links Control Centers Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 8

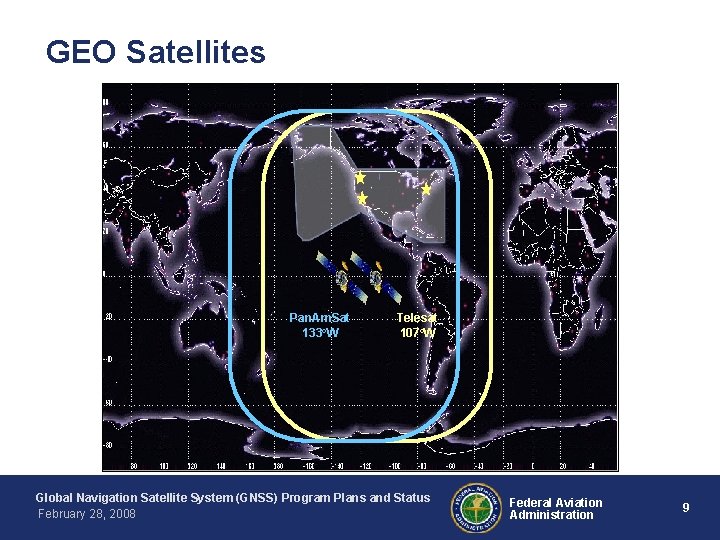

GEO Satellites Pan. Am. Sat 133°W Telesat 107°W Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 9

Vertical Service Coverage Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 10

WAAS Approach Procedures LPVs: 1028 LNAV/VNAVs: 1275 WAAS Procedures to be Published to All Instrument Runways in the NAS by 2018 Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 11

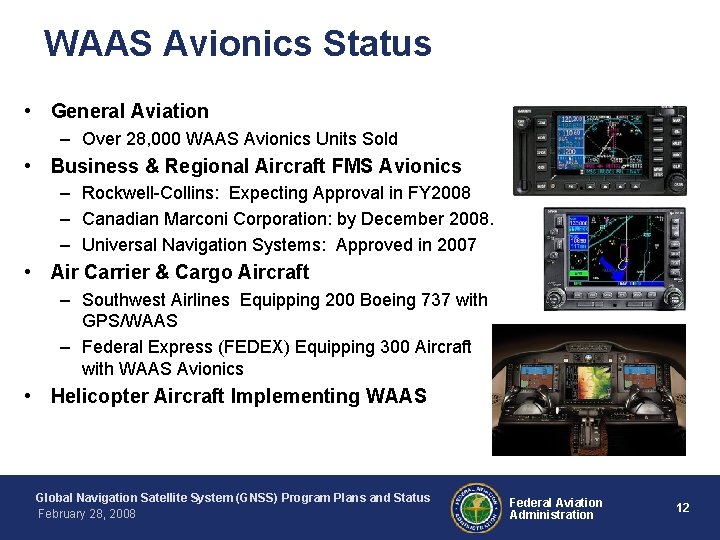

WAAS Avionics Status • General Aviation – Over 28, 000 WAAS Avionics Units Sold • Business & Regional Aircraft FMS Avionics – Rockwell-Collins: Expecting Approval in FY 2008 – Canadian Marconi Corporation: by December 2008. – Universal Navigation Systems: Approved in 2007 • Air Carrier & Cargo Aircraft – Southwest Airlines Equipping 200 Boeing 737 with GPS/WAAS – Federal Express (FEDEX) Equipping 300 Aircraft with WAAS Avionics • Helicopter Aircraft Implementing WAAS Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 12

WAAS In Use By Non-Aviation Users

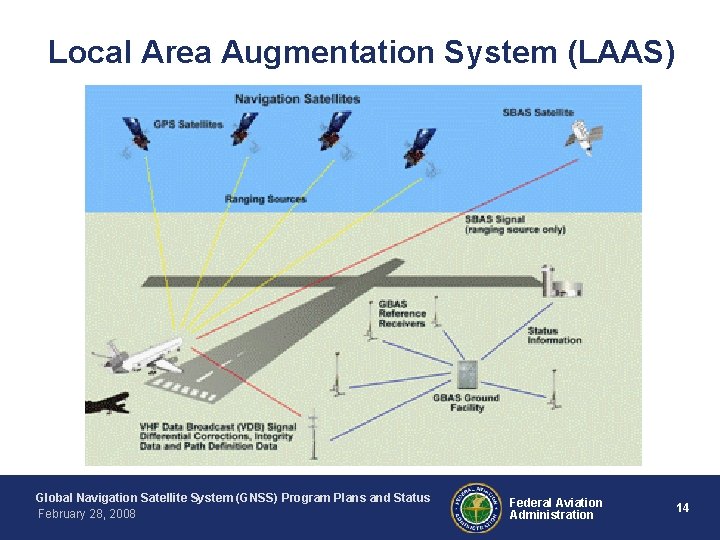

Local Area Augmentation System (LAAS) Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 14

Current Activities • • • Integrity Analysis and Prototype Development LAAS System Design Approval (SDA) Reviews LAAS Operational Implementation at Memphis Airport International Cooperation and Development CAT-III Research & Development Activities Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 15

LAAS/GBAS International Efforts Rio De Janeiro, Brazil Agana, Guam Sydney, Australia Memphis, Tenn. Malaga, Spain Frankfurt, Germany Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Bremen, Germany Federal Aviation Administration 16

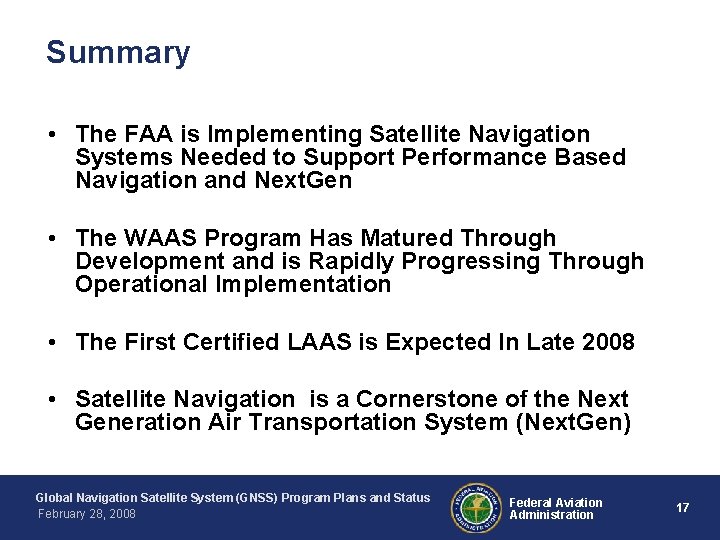

Summary • The FAA is Implementing Satellite Navigation Systems Needed to Support Performance Based Navigation and Next. Gen • The WAAS Program Has Matured Through Development and is Rapidly Progressing Through Operational Implementation • The First Certified LAAS is Expected In Late 2008 • Satellite Navigation is a Cornerstone of the Next Generation Air Transportation System (Next. Gen) Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 17

FAA Priorities for GPS 1. Sustainment of the GPS Constellation to Meet Commitments in the GPS Standard Positioning Service Performance Standard (SPS PS) 2. Baseline GPS Modernization Schedule to Support Long Term Planning and Decision Making 3. Provision of a Constellation of Dual Frequency (L 1 & L 5) Satellites – – Combination GPS Block IIF and GPS-III Satellites Significant Improvement in Availability and Reliability 4. Continually Look at Improved Service Through GPS Modernization – – Larger Constellation Size Would Improve Service for Aviation Improved Accuracy, Availability, and Integrity Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 18

Questions http: //gps. faa. gov Global Navigation Satellite System (GNSS) Program Plans and Status February 28, 2008 Federal Aviation Administration 19
