Eye and Vision Exercise 26 BI 232 External

Eye and Vision Exercise 26 BI 232

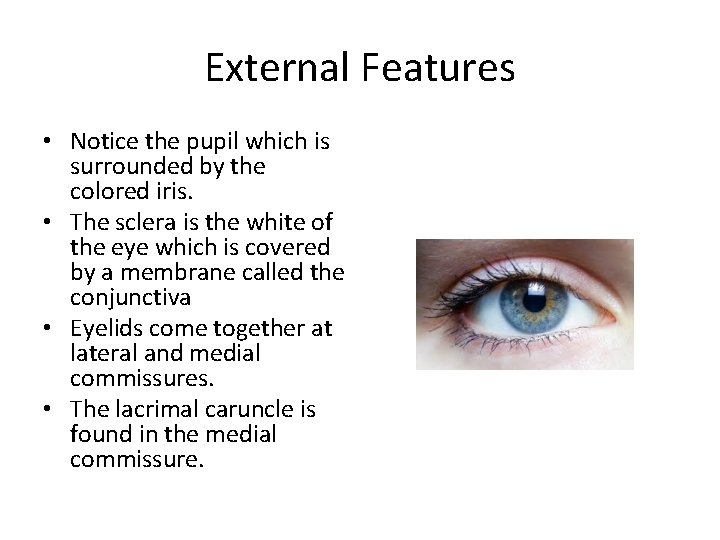

External Features • Notice the pupil which is surrounded by the colored iris. • The sclera is the white of the eye which is covered by a membrane called the conjunctiva • Eyelids come together at lateral and medial commissures. • The lacrimal caruncle is found in the medial commissure.

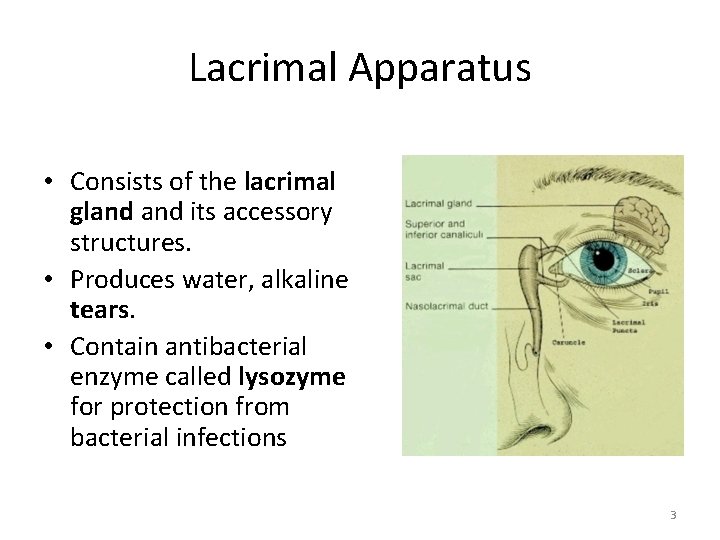

Lacrimal Apparatus • Consists of the lacrimal gland its accessory structures. • Produces water, alkaline tears. • Contain antibacterial enzyme called lysozyme for protection from bacterial infections 3

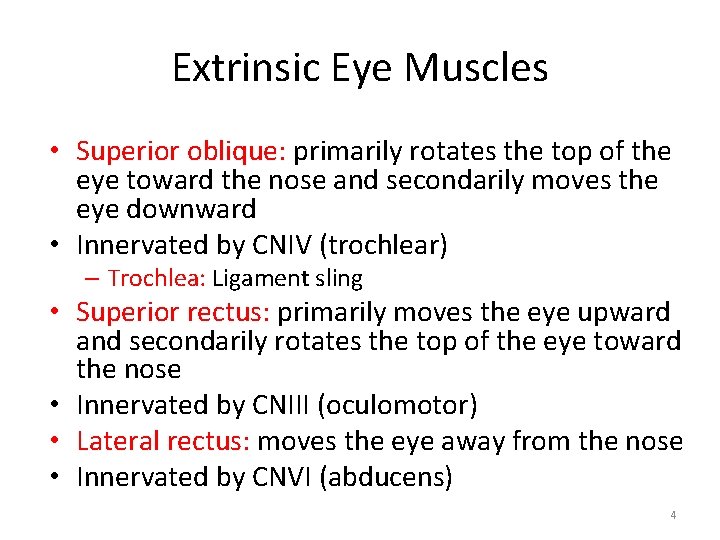

Extrinsic Eye Muscles • Superior oblique: primarily rotates the top of the eye toward the nose and secondarily moves the eye downward • Innervated by CNIV (trochlear) – Trochlea: Ligament sling • Superior rectus: primarily moves the eye upward and secondarily rotates the top of the eye toward the nose • Innervated by CNIII (oculomotor) • Lateral rectus: moves the eye away from the nose • Innervated by CNVI (abducens) 4

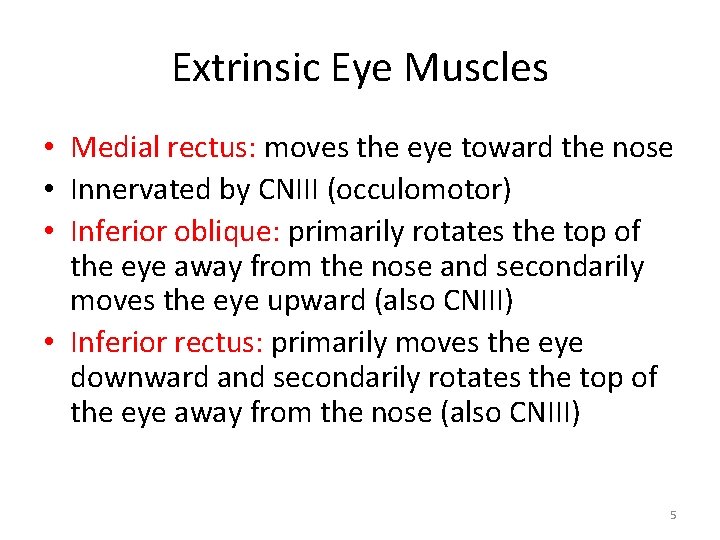

Extrinsic Eye Muscles • Medial rectus: moves the eye toward the nose • Innervated by CNIII (occulomotor) • Inferior oblique: primarily rotates the top of the eye away from the nose and secondarily moves the eye upward (also CNIII) • Inferior rectus: primarily moves the eye downward and secondarily rotates the top of the eye away from the nose (also CNIII) 5

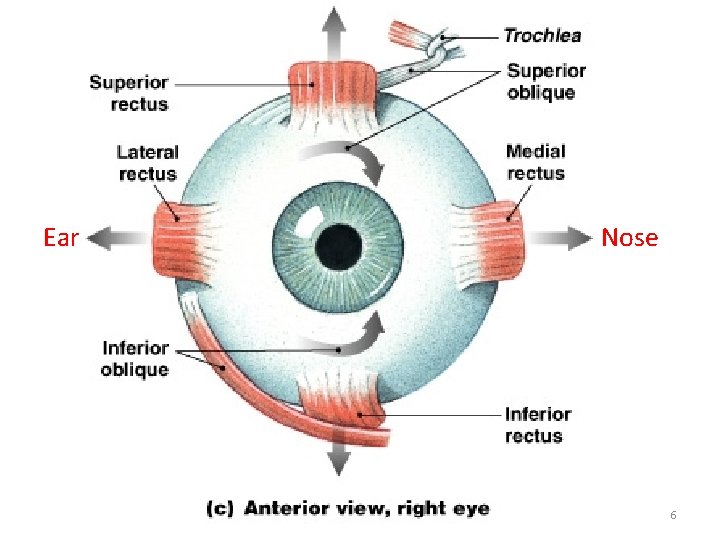

Ear Nose 6

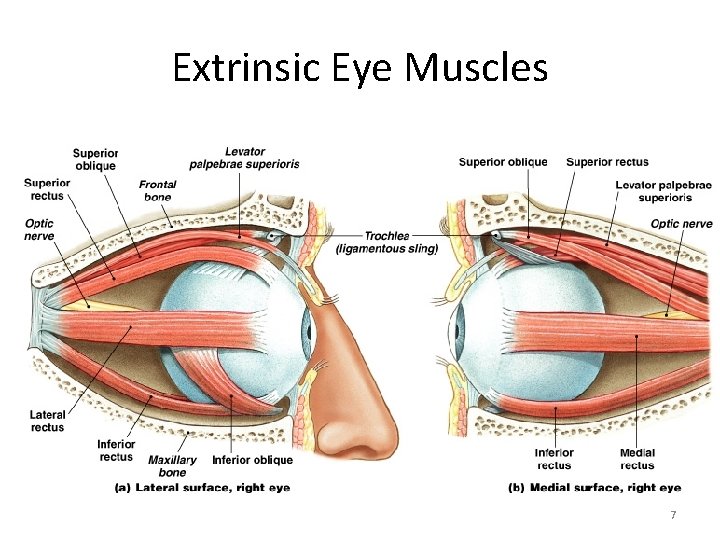

Extrinsic Eye Muscles 7

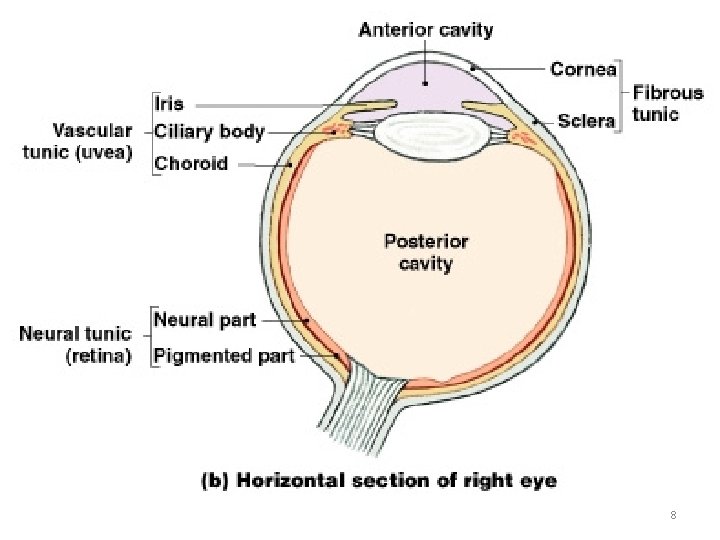

8

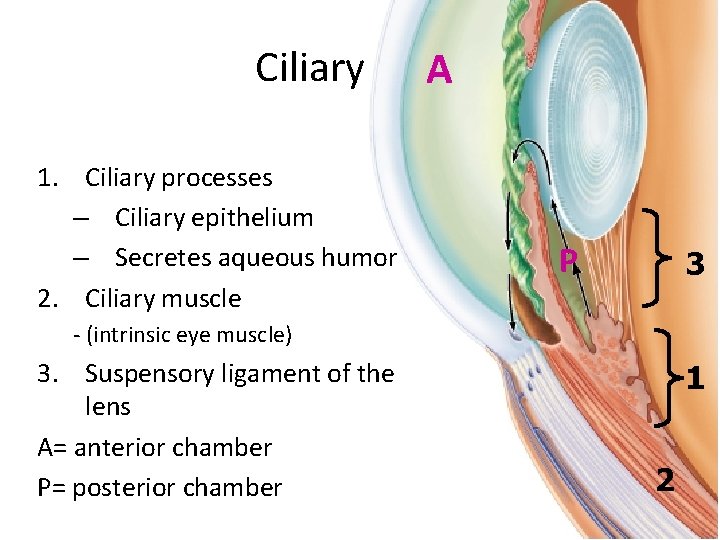

Ciliary body A 1. Ciliary processes – Ciliary epithelium – Secretes aqueous humor 2. Ciliary muscle P 3 - (intrinsic eye muscle) 3. Suspensory ligament of the lens A= anterior chamber P= posterior chamber 1 2 9

Intrinsic Eye Muscles of the Iris n Pupils constrict (Parasympathetic) n n Close vision and bright light Pupils dilate (Sympathetic) n Distant vision and dim light 10

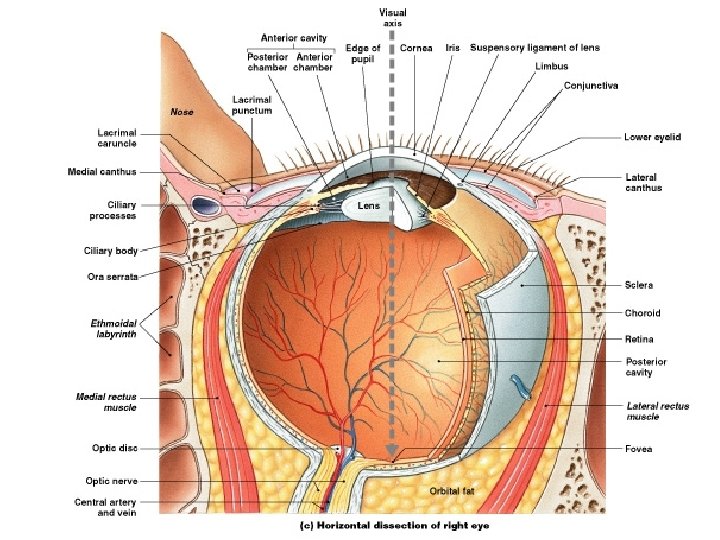

11

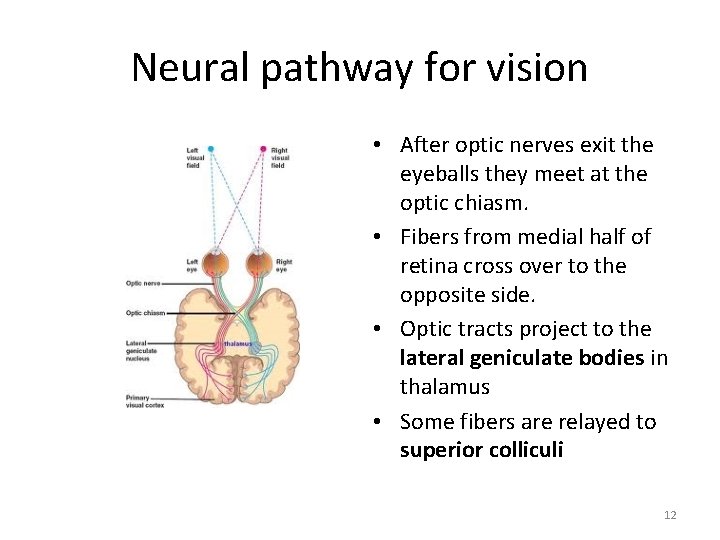

Neural pathway for vision • After optic nerves exit the eyeballs they meet at the optic chiasm. • Fibers from medial half of retina cross over to the opposite side. • Optic tracts project to the lateral geniculate bodies in thalamus • Some fibers are relayed to superior colliculi 12

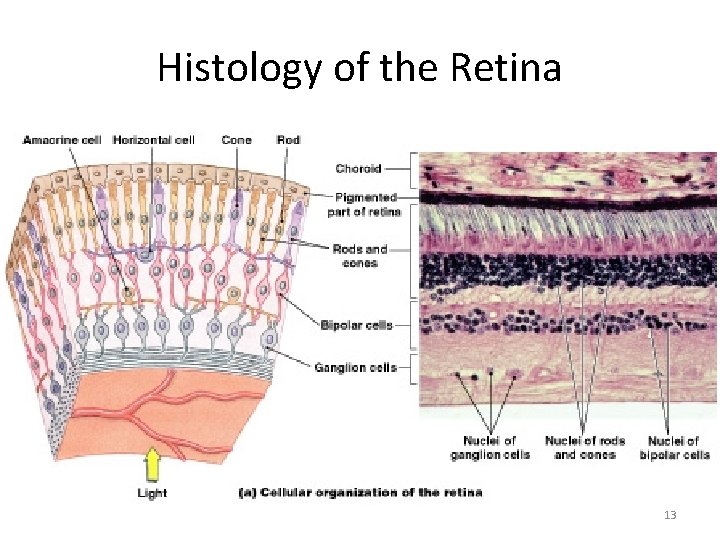

Histology of the Retina 13

Eye Dissection • Do eye dissection • Be able to ID structures for quizzes and practical

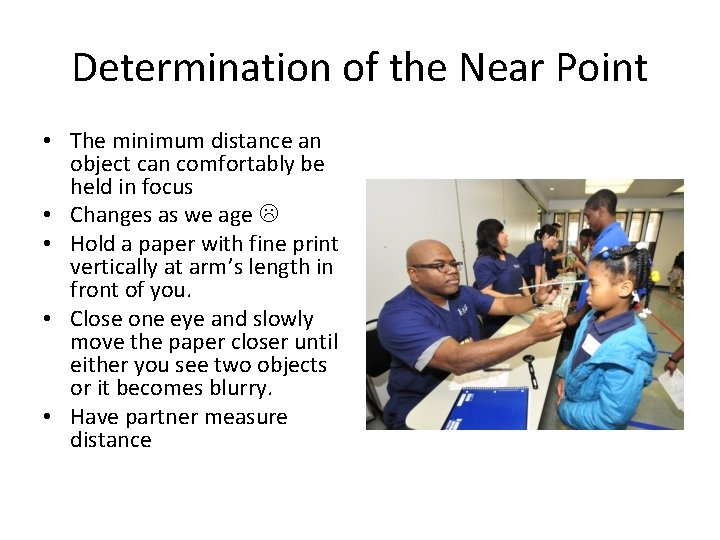

Determination of the Near Point • The minimum distance an object can comfortably be held in focus • Changes as we age • Hold a paper with fine print vertically at arm’s length in front of you. • Close one eye and slowly move the paper closer until either you see two objects or it becomes blurry. • Have partner measure distance

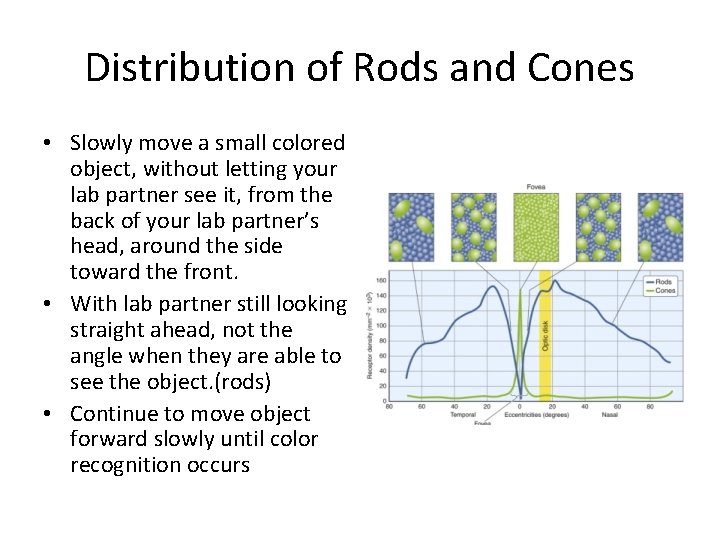

Distribution of Rods and Cones • Slowly move a small colored object, without letting your lab partner see it, from the back of your lab partner’s head, around the side toward the front. • With lab partner still looking straight ahead, not the angle when they are able to see the object. (rods) • Continue to move object forward slowly until color recognition occurs

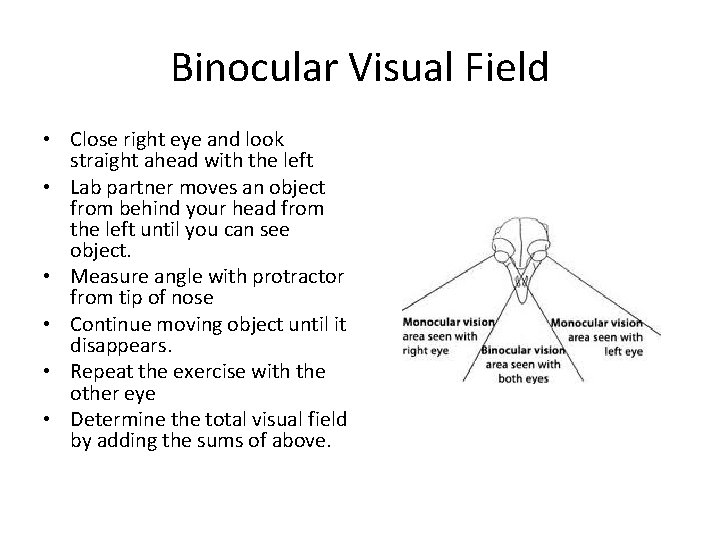

Binocular Visual Field • Close right eye and look straight ahead with the left • Lab partner moves an object from behind your head from the left until you can see object. • Measure angle with protractor from tip of nose • Continue moving object until it disappears. • Repeat the exercise with the other eye • Determine the total visual field by adding the sums of above.

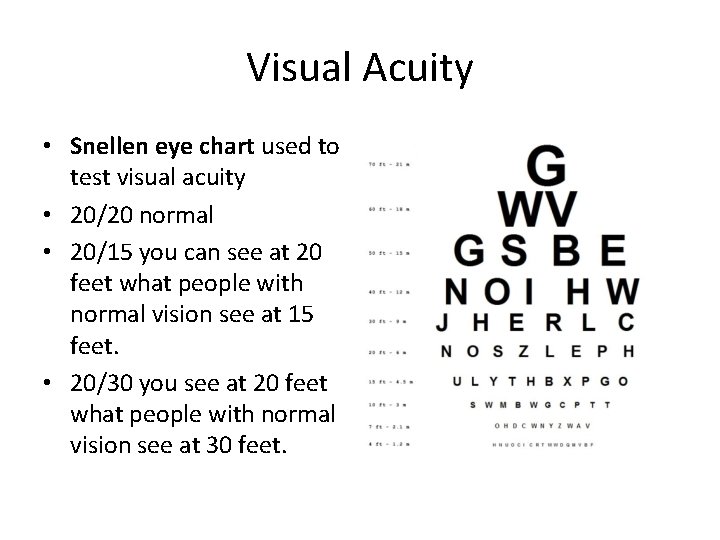

Visual Acuity • Snellen eye chart used to test visual acuity • 20/20 normal • 20/15 you can see at 20 feet what people with normal vision see at 15 feet. • 20/30 you see at 20 feet what people with normal vision see at 30 feet.

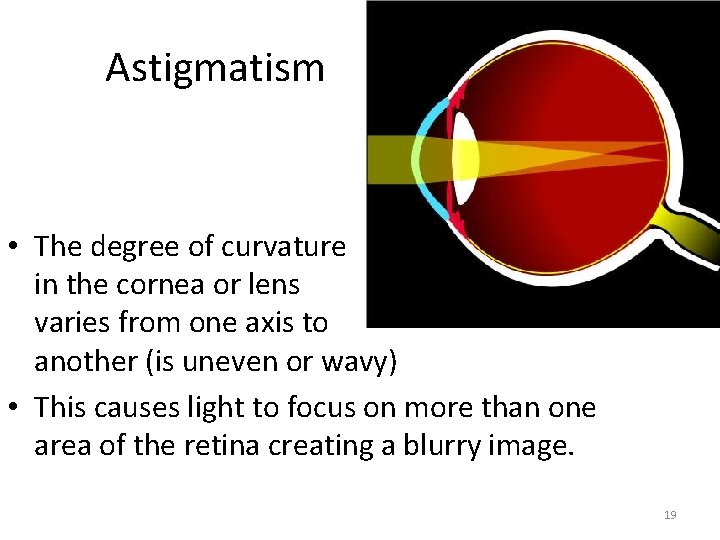

Astigmatism • The degree of curvature in the cornea or lens varies from one axis to another (is uneven or wavy) • This causes light to focus on more than one area of the retina creating a blurry image. 19

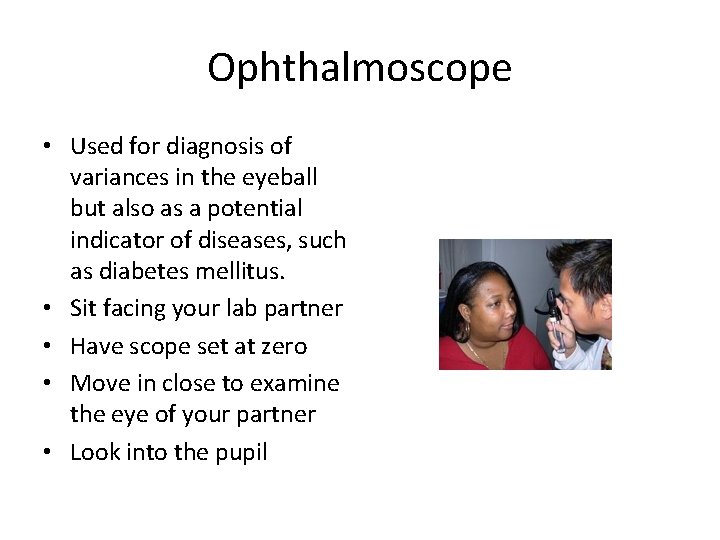

Ophthalmoscope • Used for diagnosis of variances in the eyeball but also as a potential indicator of diseases, such as diabetes mellitus. • Sit facing your lab partner • Have scope set at zero • Move in close to examine the eye of your partner • Look into the pupil

21

Retinal scan- Ultra-widefield 22

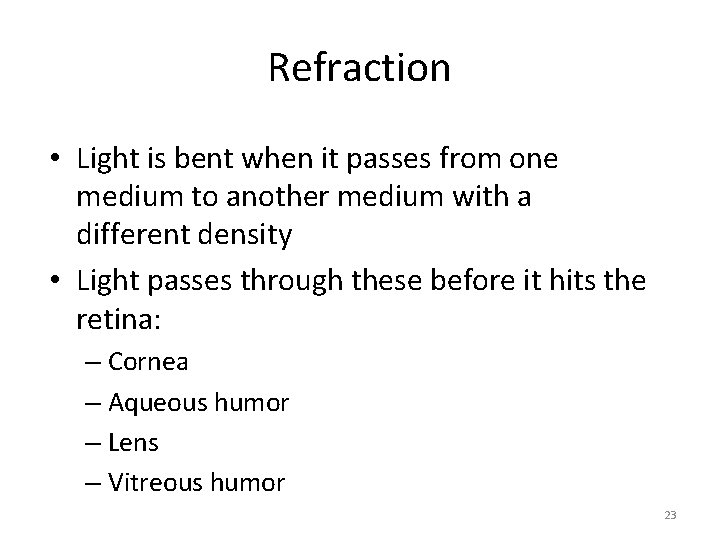

Refraction • Light is bent when it passes from one medium to another medium with a different density • Light passes through these before it hits the retina: – Cornea – Aqueous humor – Lens – Vitreous humor 23

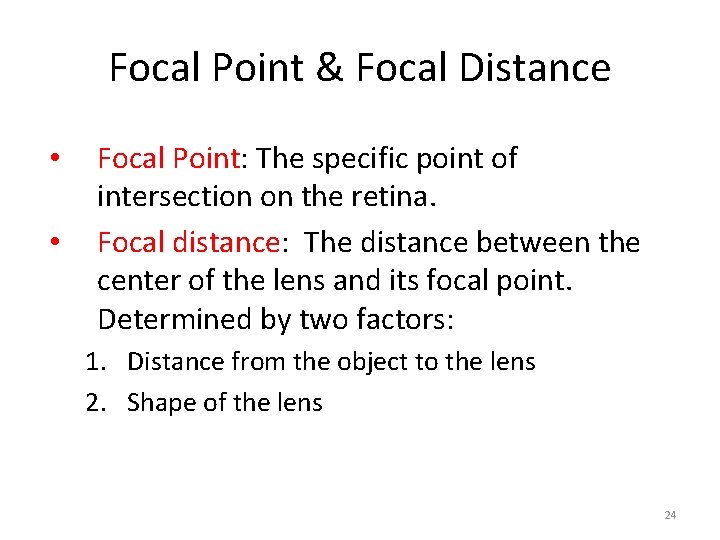

Focal Point & Focal Distance • • Focal Point: The specific point of intersection on the retina. Focal distance: The distance between the center of the lens and its focal point. Determined by two factors: 1. Distance from the object to the lens 2. Shape of the lens 24

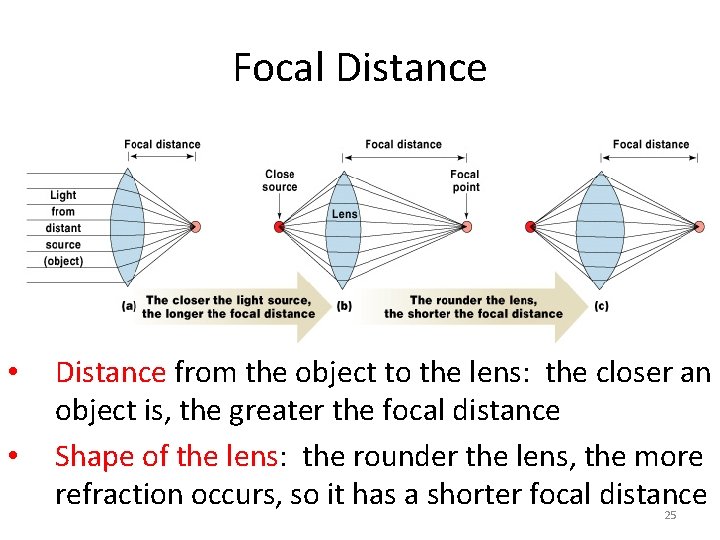

Focal Distance • • Distance from the object to the lens: the closer an object is, the greater the focal distance Shape of the lens: the rounder the lens, the more refraction occurs, so it has a shorter focal distance 25

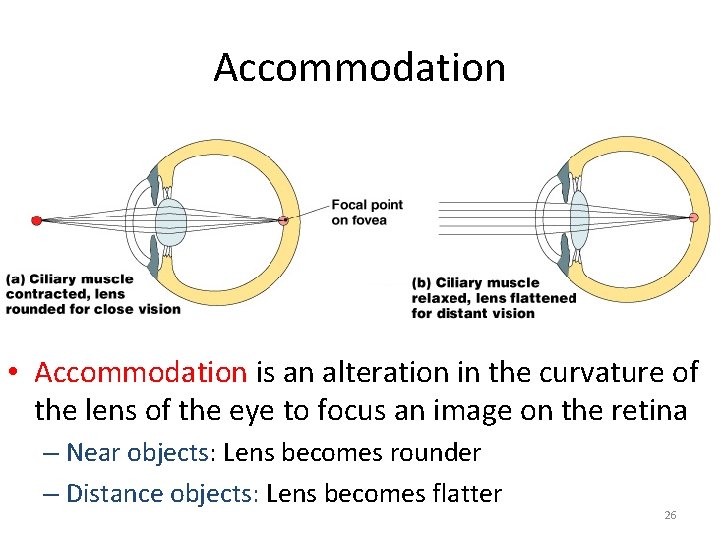

Accommodation • Accommodation is an alteration in the curvature of the lens of the eye to focus an image on the retina – Near objects: Lens becomes rounder – Distance objects: Lens becomes flatter 26

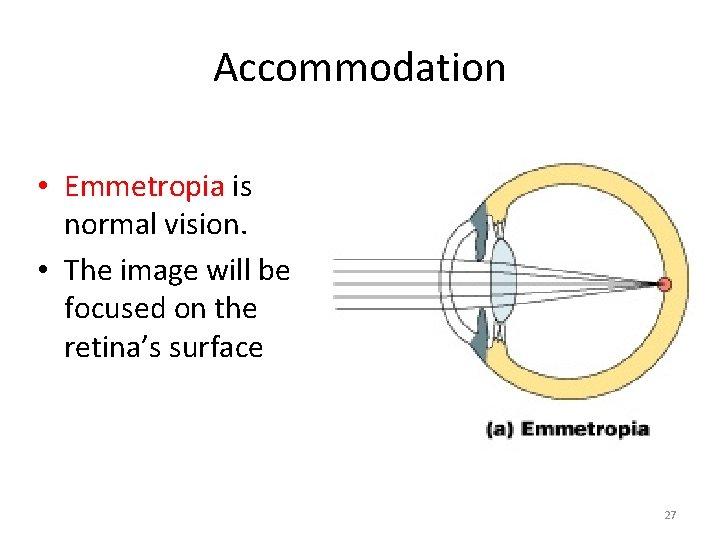

Accommodation • Emmetropia is normal vision. • The image will be focused on the retina’s surface 27

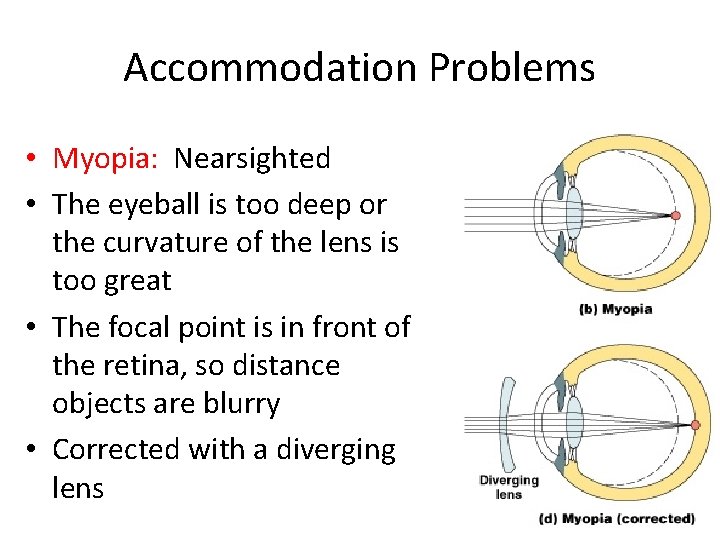

Accommodation Problems • Myopia: Nearsighted • The eyeball is too deep or the curvature of the lens is too great • The focal point is in front of the retina, so distance objects are blurry • Corrected with a diverging lens 28

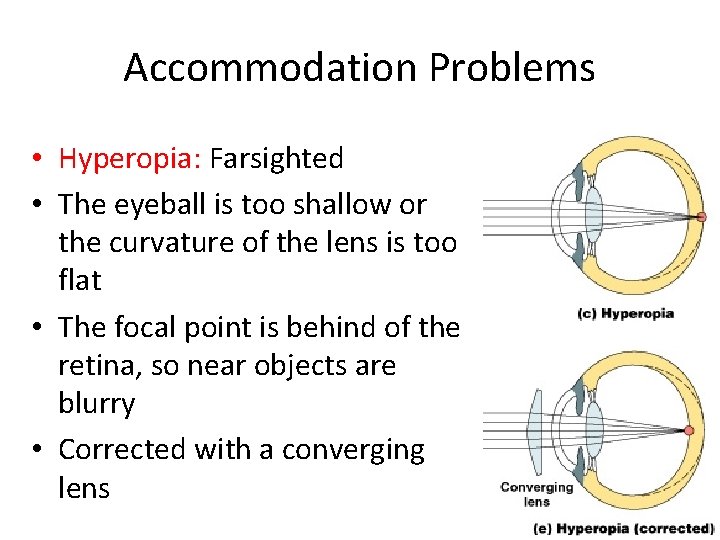

Accommodation Problems • Hyperopia: Farsighted • The eyeball is too shallow or the curvature of the lens is too flat • The focal point is behind of the retina, so near objects are blurry • Corrected with a converging lens 29

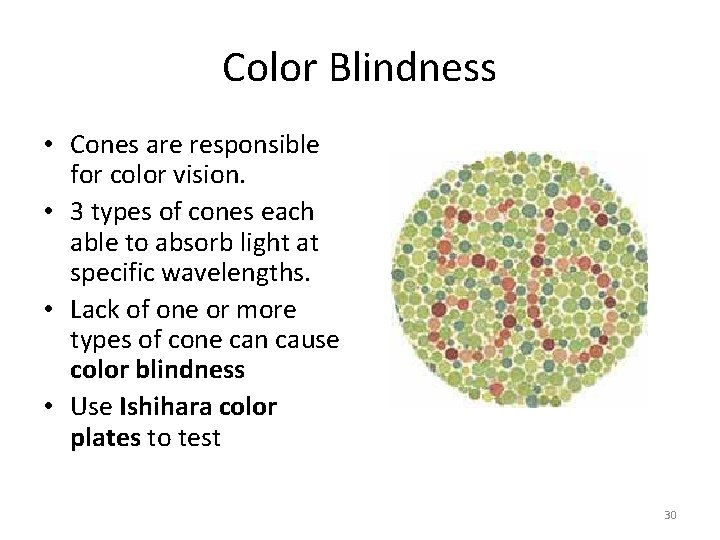

Color Blindness • Cones are responsible for color vision. • 3 types of cones each able to absorb light at specific wavelengths. • Lack of one or more types of cone can cause color blindness • Use Ishihara color plates to test 30

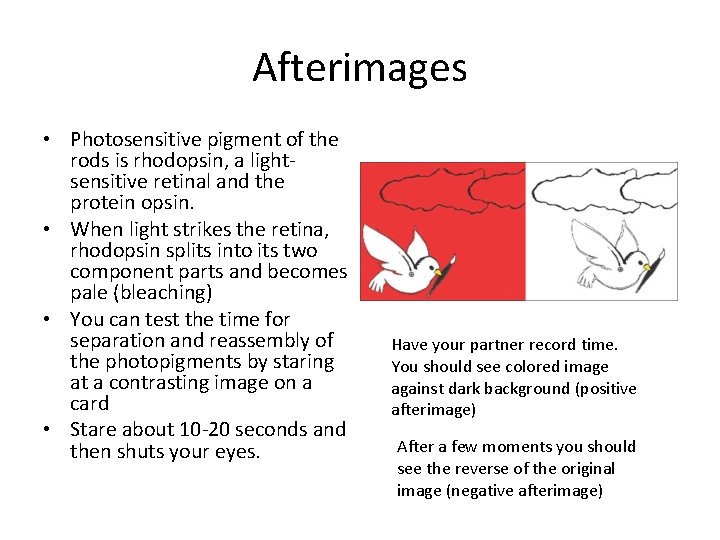

Afterimages • Photosensitive pigment of the rods is rhodopsin, a lightsensitive retinal and the protein opsin. • When light strikes the retina, rhodopsin splits into its two component parts and becomes pale (bleaching) • You can test the time for separation and reassembly of the photopigments by staring at a contrasting image on a card • Stare about 10 -20 seconds and then shuts your eyes. Have your partner record time. You should see colored image against dark background (positive afterimage) After a few moments you should see the reverse of the original image (negative afterimage)

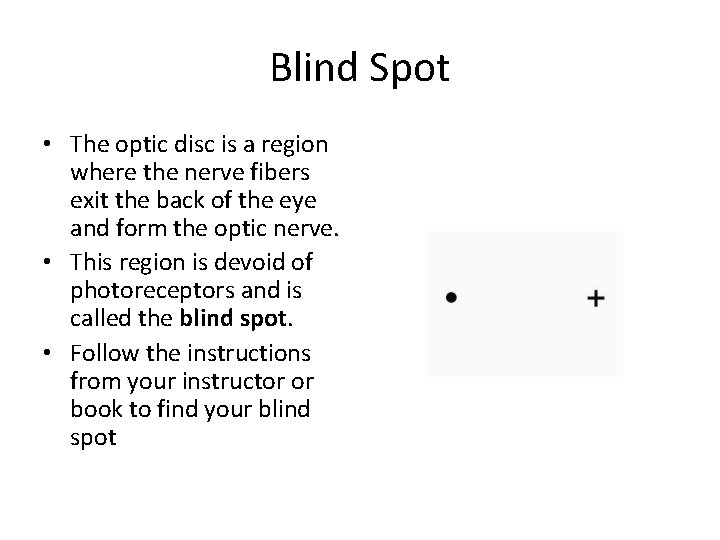

Blind Spot • The optic disc is a region where the nerve fibers exit the back of the eye and form the optic nerve. • This region is devoid of photoreceptors and is called the blind spot. • Follow the instructions from your instructor or book to find your blind spot

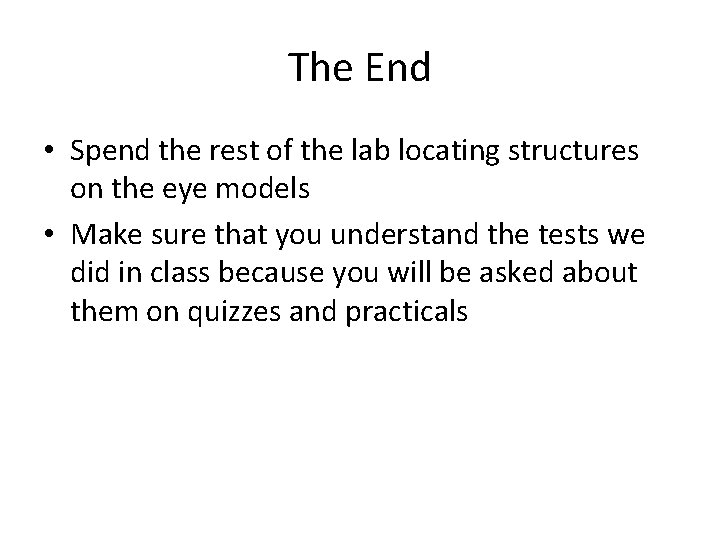

The End • Spend the rest of the lab locating structures on the eye models • Make sure that you understand the tests we did in class because you will be asked about them on quizzes and practicals
