Extension of OGC Geo. Science standards for geotechnics Mickaël BEAUFILS (BRGM) 117 th OGC Member Meeting Virtual – Geo. Science. DWG | 8 th December 2020 The world’s leading and comprehensive community of experts making location information: Findable Accessible Interoperable Reusable OGC Copyright © 2020 Open Geospatial Consortium ogc. org
Context OGC IDBE GEOTECH ogc. org

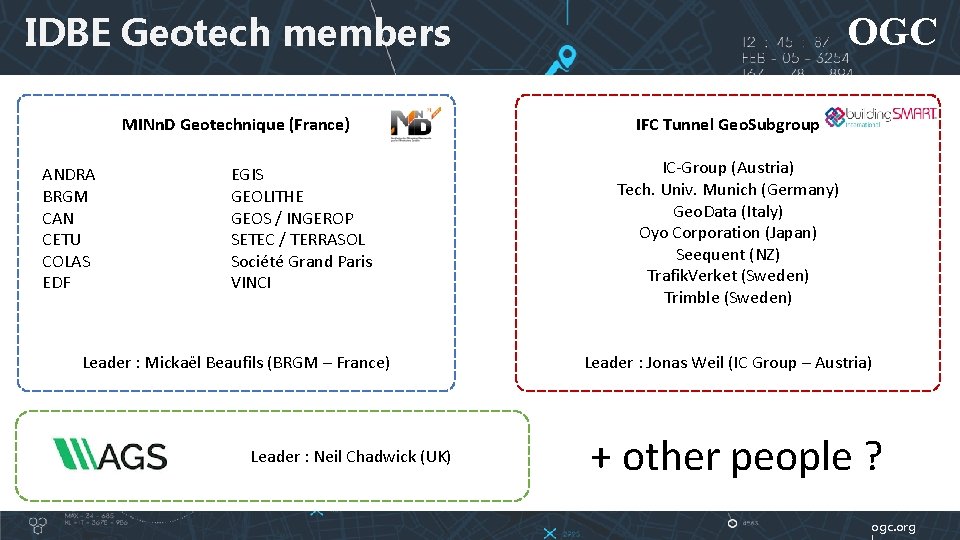

IDBE Geotech members MINn. D Geotechnique (France) ANDRA BRGM CAN CETU COLAS EDF EGIS GEOLITHE GEOS / INGEROP SETEC / TERRASOL Société Grand Paris VINCI Leader : Mickaël Beaufils (BRGM – France) Leader : Neil Chadwick (UK) OGC IFC Tunnel Geo. Subgroup IC-Group (Austria) Tech. Univ. Munich (Germany) Geo. Data (Italy) Oyo Corporation (Japan) Seequent (NZ) Trafik. Verket (Sweden) Trimble (Sweden) Leader : Jonas Weil (IC Group – Austria) + other people ? ogc. org
November ‘ 19 : Beijing b. SI summit demo OGC Video demonstration : https: //www. youtube. com/watch? v=L 1 L 2 u 3 u 35 c. Y ogc. org 4
IDBE Geotech project objective OGC « Geotechnical Data Standard for BIM » Conceptual model Geo. Sci. ML « Geotechnical Extension » Logical model IFC Geotechnics Logical model ogc. org

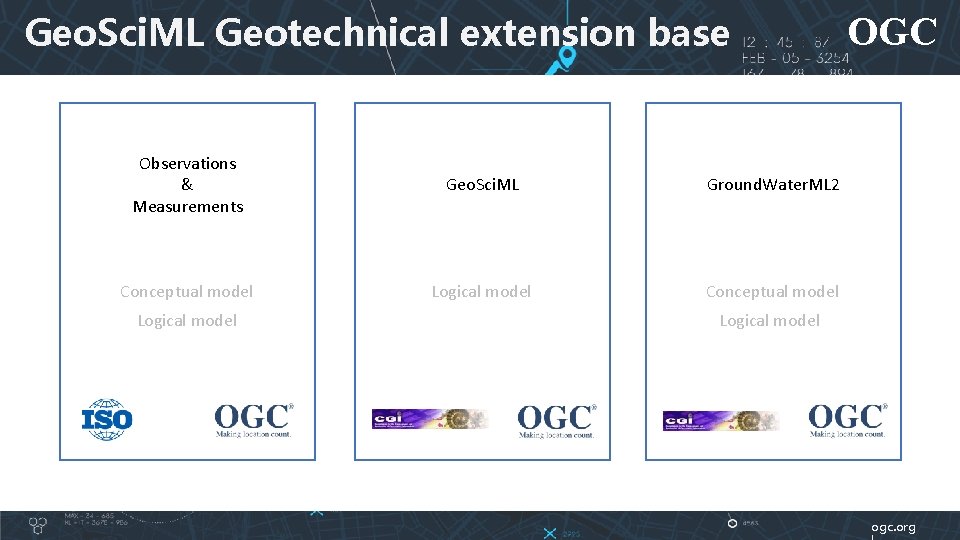

Geo. Sci. ML Geotechnical extension base Observations & Measurements Geo. Sci. ML Ground. Water. ML 2 Conceptual model Logical model OGC Logical model ogc. org

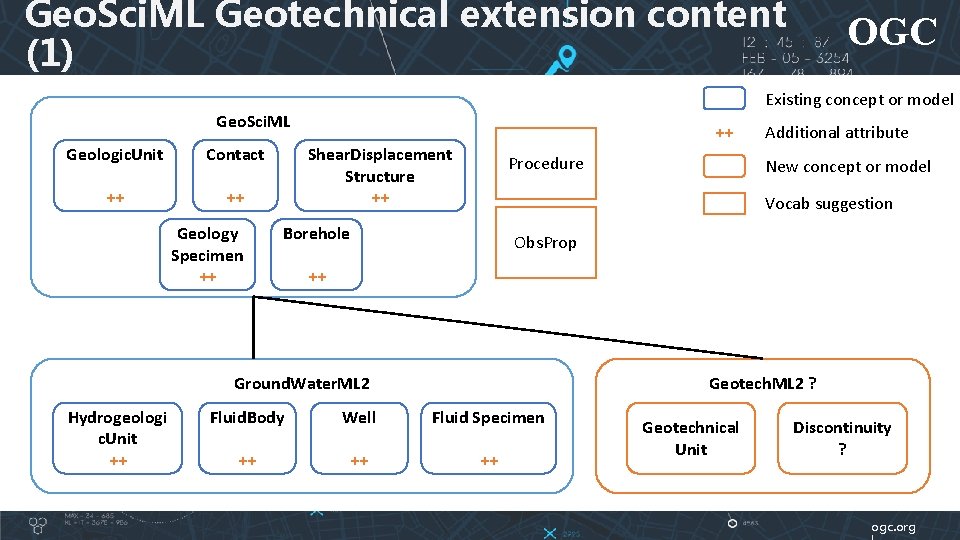

Geo. Sci. ML Geotechnical extension content (1) OGC Existing concept or model Geo. Sci. ML Geologic. Unit Contact ++ ++ Geology Specimen ++ ++ Shear. Displacement Structure ++ Procedure New concept or model Vocab suggestion Borehole Obs. Prop ++ Ground. Water. ML 2 Hydrogeologi c. Unit ++ Additional attribute Geotech. ML 2 ? Fluid. Body Well Fluid Specimen ++ ++ ++ Geotechnical Unit Discontinuity ? ogc. org

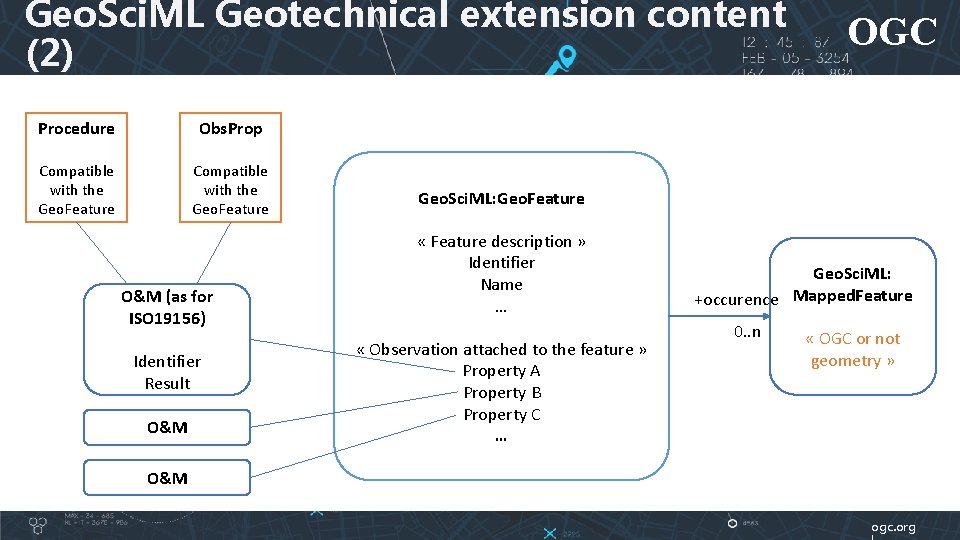

Geo. Sci. ML Geotechnical extension content (2) Procedure Obs. Prop Compatible with the Geo. Feature O&M (as for ISO 19156) Identifier Result O&M OGC Geo. Sci. ML: Geo. Feature « Feature description » Identifier Name … « Observation attached to the feature » Property A Property B Property C … Geo. Sci. ML: +occurence Mapped. Feature 0. . n « OGC or not geometry » O&M ogc. org

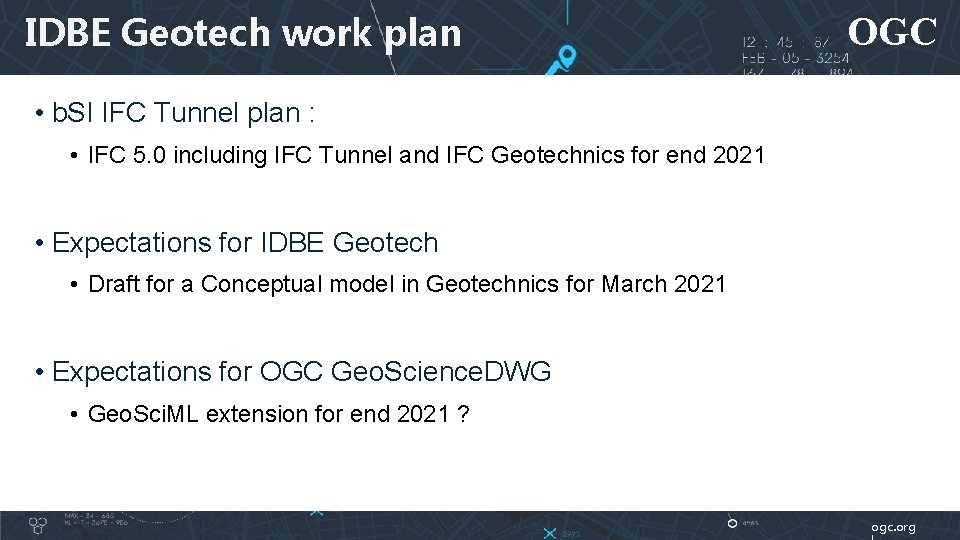

IDBE Geotech work plan OGC • b. SI IFC Tunnel plan : • IFC 5. 0 including IFC Tunnel and IFC Geotechnics for end 2021 • Expectations for IDBE Geotech • Draft for a Conceptual model in Geotechnics for March 2021 • Expectations for OGC Geo. Science. DWG • Geo. Sci. ML extension for end 2021 ? ogc. org
