Extending Expanding and Porting Mobile Embedded Community Projects

Extending, Expanding, and Porting Mobile & Embedded Community Projects by Phil Bartholo www. bartholo. com/OSCON/

Goals ‣ Learn how the core M&E Community projects have been the catalyst for numerous ports, extensions, and expanded open source uses not previously envisioned when the community launched.

Java Momentum 6 Billion Java-Enabled Devices 2. 5 Billion Java-Enabled Phones 3. 5 Billion Java Card 20 Million Java Set-top Boxes 800 Million Java Desktops 180 Operators Deploying Java Content 6 Million Developers

Why Open Source? • Bring communities together and extend them • Engage platform and application developers, ISV's, tools vendors, and operators • Industry-wide collaboration on platform, tools, and applications • Remove inefficiencies and barriers to innovation • Drive common implementation and

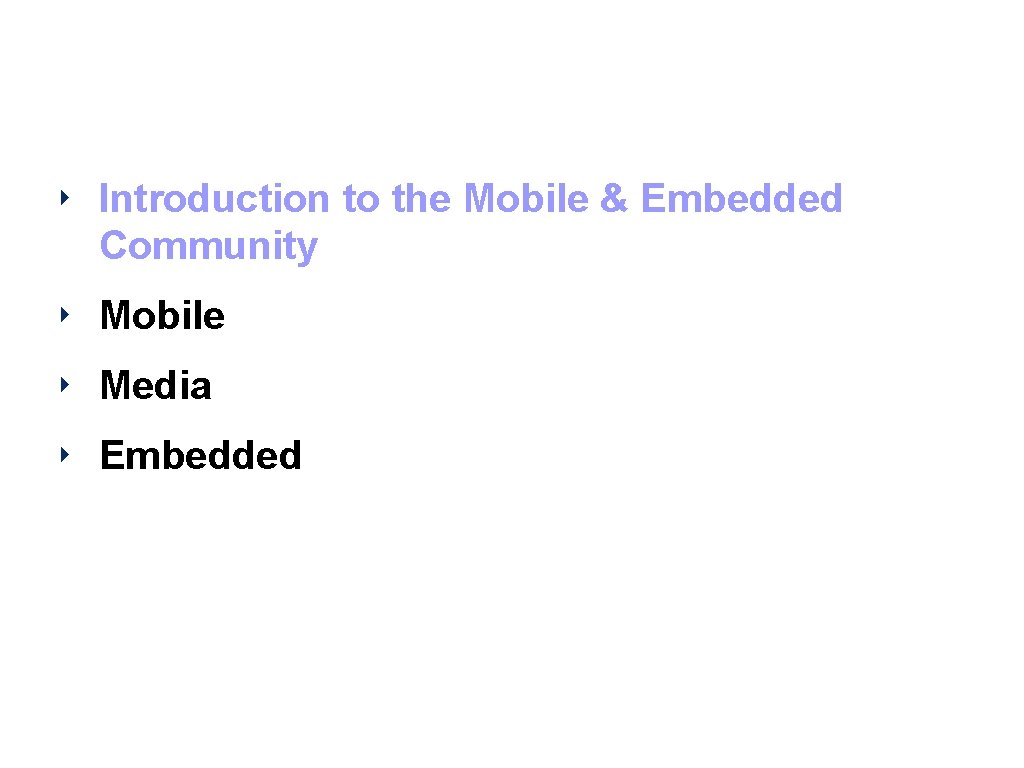

Agenda ‣ Introduction to the Mobile & Embedded Community ‣ Mobile ‣ Media ‣ Embedded

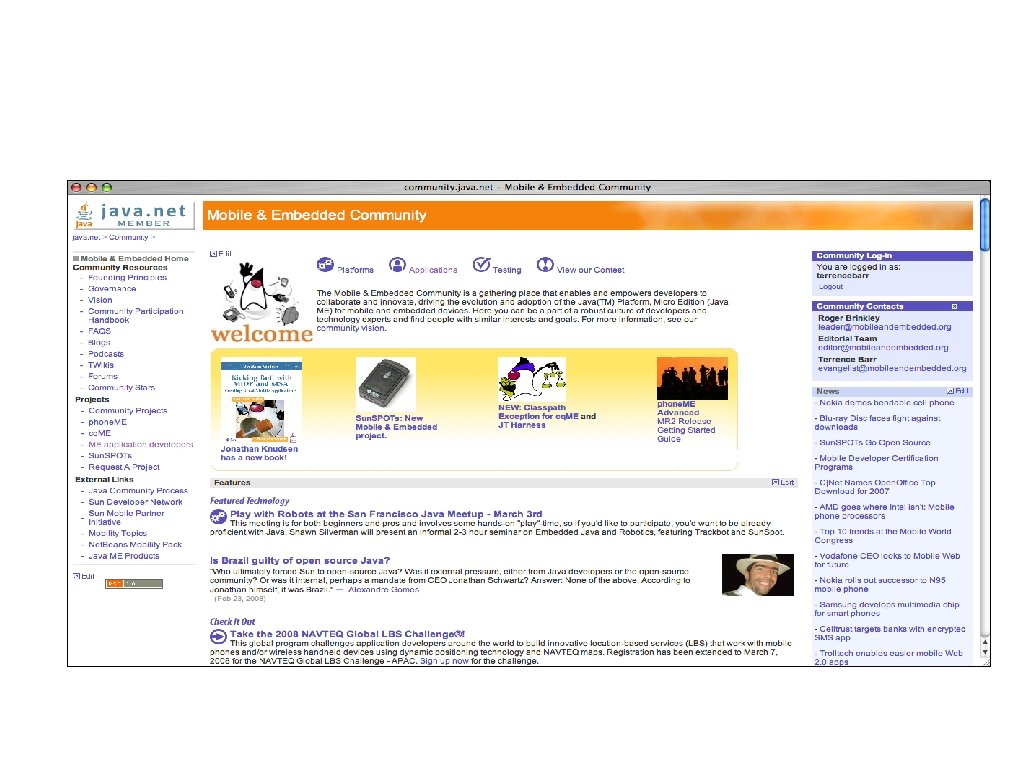

www. mobileandembedded. org

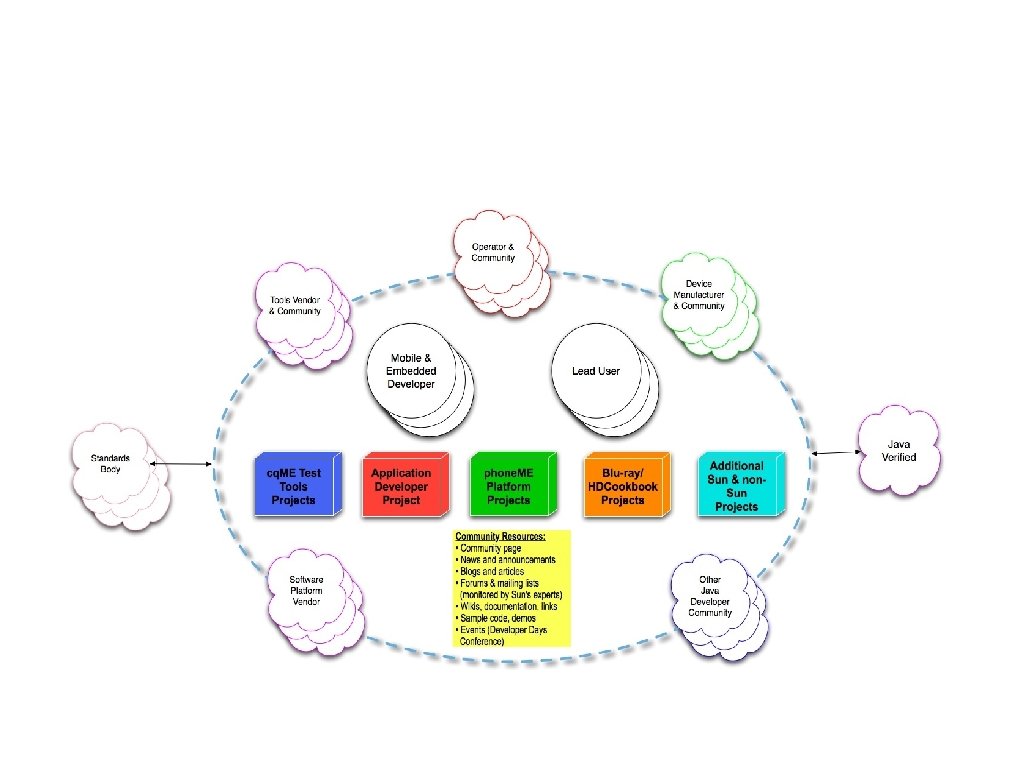

Community Structure

Why Get Involved? ‣ ‣ The only place in the industry that brings together • Complete source code of Java ME implementations • Platform experts and spec leads • Testing tools • Experienced application and content developers • Lots of cutting-edge samples and source code under BSD • 3 rd party technology, collaboration, and code • Active community, very friendly and helpful The best place to jump-start your involvement with Java ME

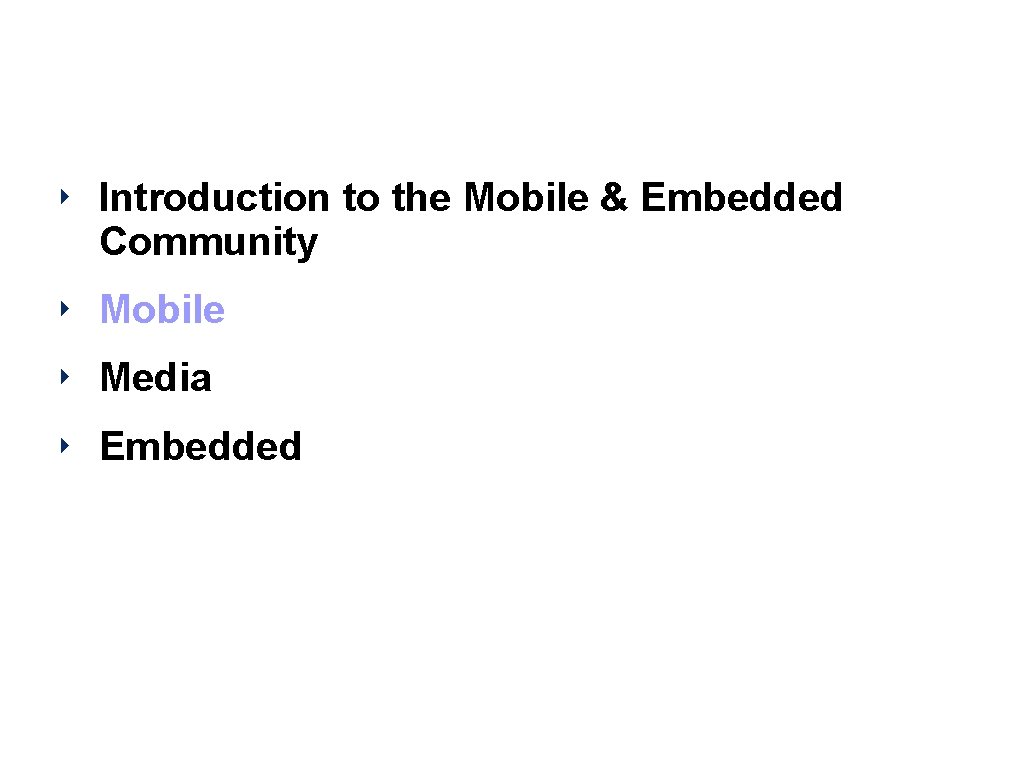

Agenda ‣ Introduction to the Mobile & Embedded Community ‣ Mobile ‣ Media ‣ Embedded

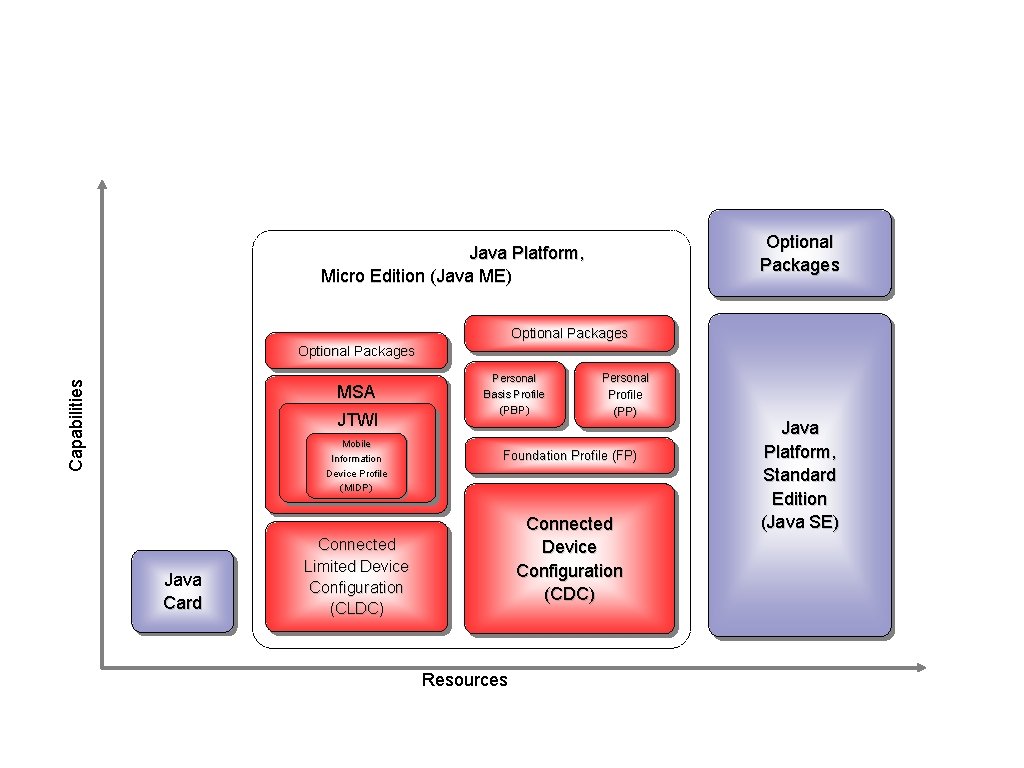

Platform Scalability & Evolution Optional Packages Java Platform, Micro Edition (Java ME) Optional Packages Capabilities Optional Packages MSA JTWI Mobile Information Device Profile (MIDP) Java Card Personal Basis Profile (PBP) Personal Profile (PP) Foundation Profile (FP) Connected Device Configuration (CDC) Connected Limited Device Configuration (CLDC) Resources Java Platform, Standard Edition (Java SE)

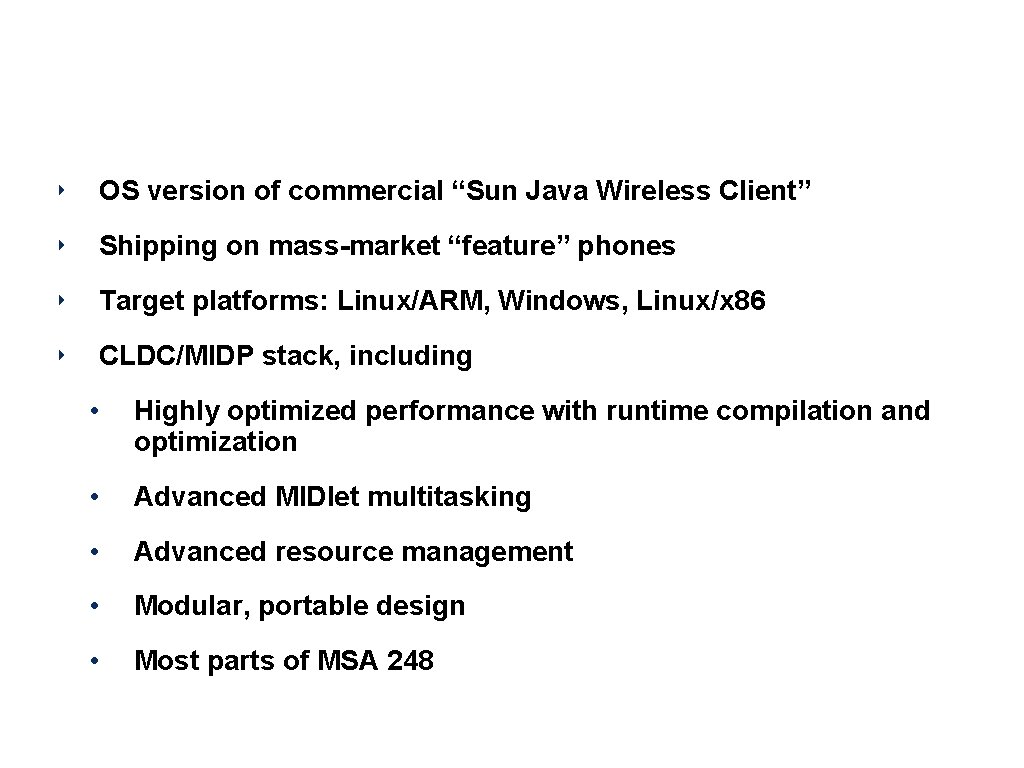

phone. ME Feature Project ‣ OS version of commercial “Sun Java Wireless Client” ‣ Shipping on mass-market “feature” phones ‣ Target platforms: Linux/ARM, Windows, Linux/x 86 ‣ CLDC/MIDP stack, including • Highly optimized performance with runtime compilation and optimization • Advanced MIDlet multitasking • Advanced resource management • Modular, portable design • Most parts of MSA 248

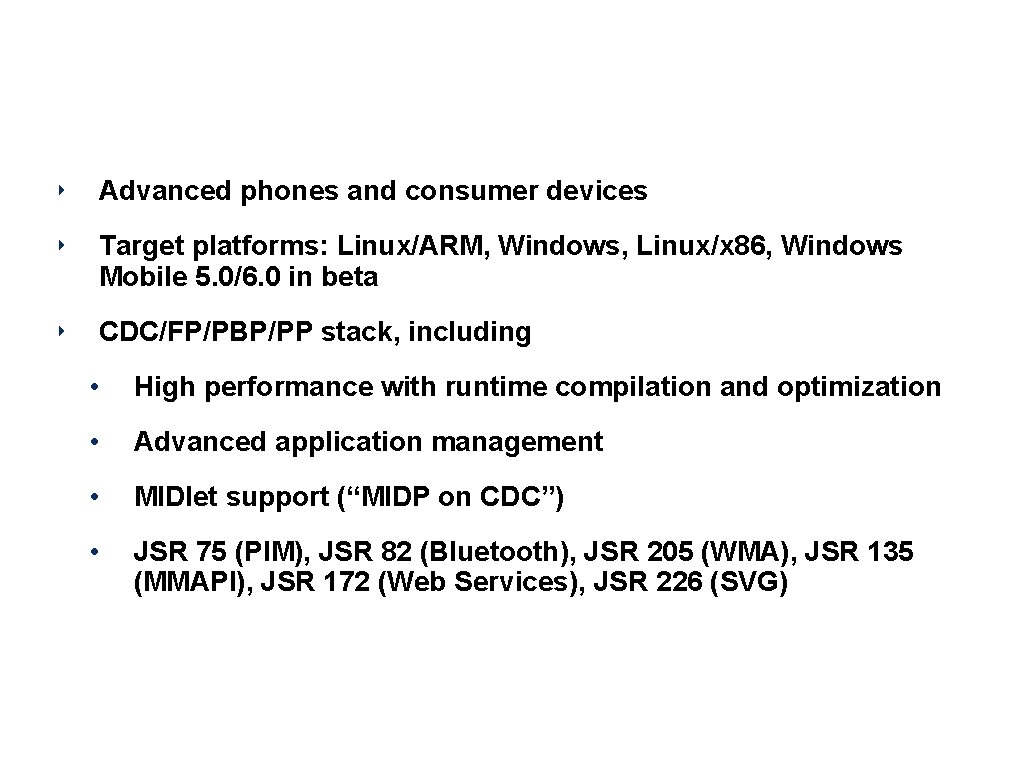

phone. ME Advanced Project ‣ Advanced phones and consumer devices ‣ Target platforms: Linux/ARM, Windows, Linux/x 86, Windows Mobile 5. 0/6. 0 in beta ‣ CDC/FP/PBP/PP stack, including • High performance with runtime compilation and optimization • Advanced application management • MIDlet support (“MIDP on CDC”) • JSR 75 (PIM), JSR 82 (Bluetooth), JSR 205 (WMA), JSR 135 (MMAPI), JSR 172 (Web Services), JSR 226 (SVG)

Lightweight UI Toolkit (LWUIT) ‣ Lightweight library bundled with the application ‣ Compelling UI, consistent across platforms (CLDC, CDC, Java SE) ‣ Minimal requirements • CLDC 1. 1 + MIDP 2. 0 or • CDC + PBP or • Java SE 1. 4 and upwards • Highly portable ‣ Inspired by Swing, optimized for mobile and embedded ‣ Tools support: Resource editor, Net. Beans Matisse (soon)

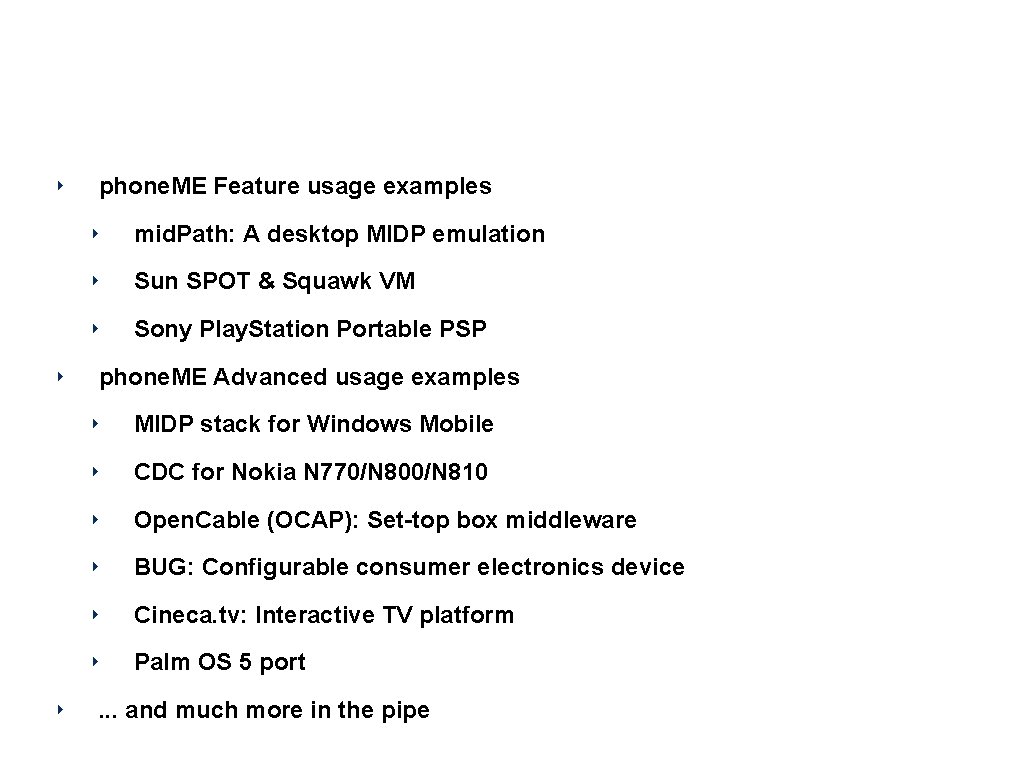

Who's using phone. ME ‣ ‣ ‣ phone. ME Feature usage examples ‣ mid. Path: A desktop MIDP emulation ‣ Sun SPOT & Squawk VM ‣ Sony Play. Station Portable PSP phone. ME Advanced usage examples ‣ MIDP stack for Windows Mobile ‣ CDC for Nokia N 770/N 800/N 810 ‣ Open. Cable (OCAP): Set-top box middleware ‣ BUG: Configurable consumer electronics device ‣ Cineca. tv: Interactive TV platform ‣ Palm OS 5 port . . . and much more in the pipe

ME Application Developers https: //meapplicationdevelopers. dev. java. net

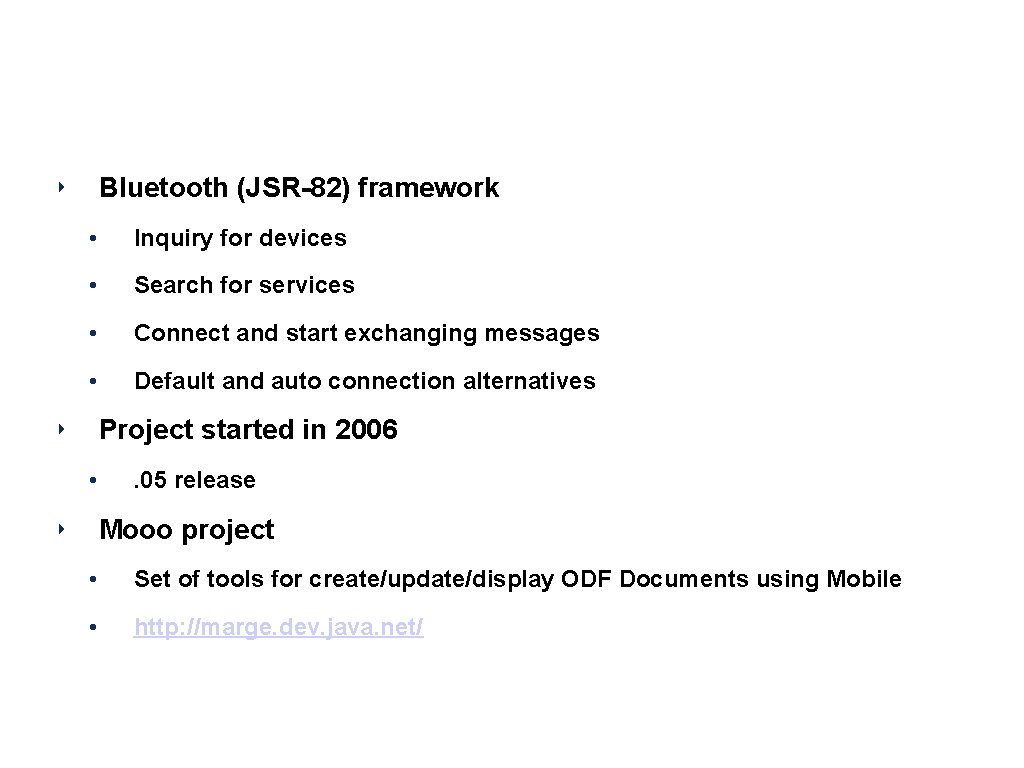

Project Marge Bluetooth (JSR-82) framework ‣ • Inquiry for devices • Search for services • Connect and start exchanging messages • Default and auto connection alternatives Project started in 2006 ‣ • . 05 release Mooo project ‣ • Set of tools for create/update/display ODF Documents using Mobile • http: //marge. dev. java. net/

CQME Project Compatibility and Quality Testing Tools Test Suite ‣ Test. Suite-Specific FW ME Framework JT Harness • ‣ ME Framework • ‣ Used by Java technology TCKs Supports ME platforms Test Suite • Compatibility to specification (JSRs) or specification-like use-cases

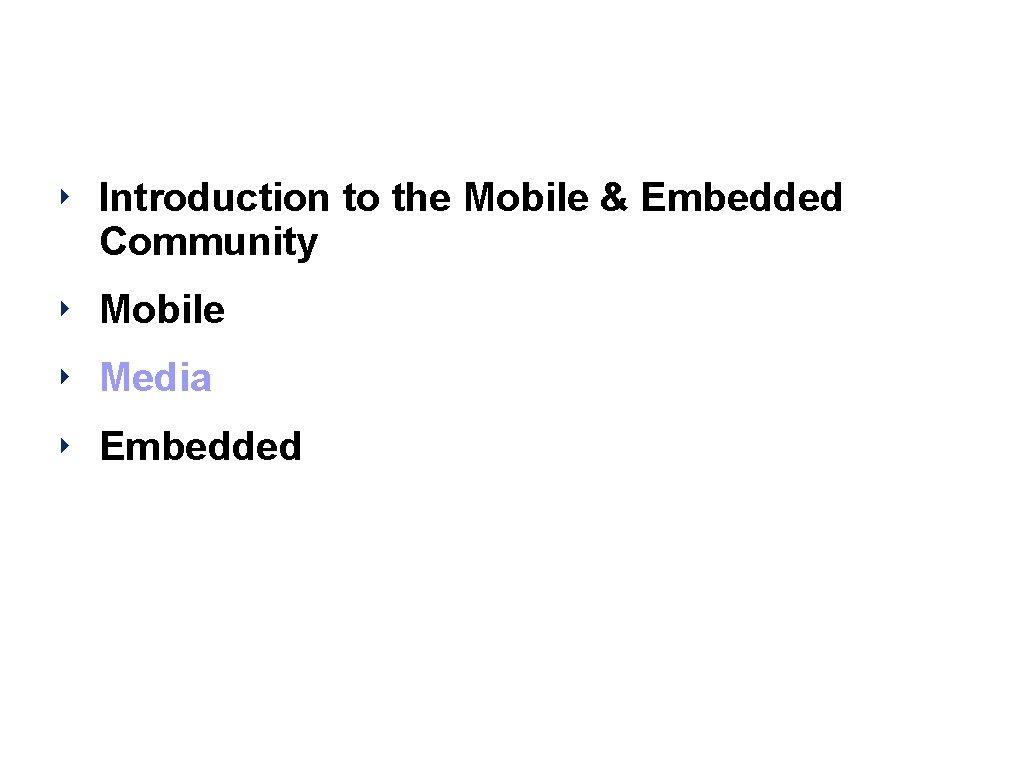

Agenda ‣ Introduction to the Mobile & Embedded Community ‣ Mobile ‣ Media ‣ Embedded

Media Projects ‣ Blu-Ray - http: //hdcookbook. dev. java. net ‣ OCAP - http: //opencable. dev. java. net Media Delopment

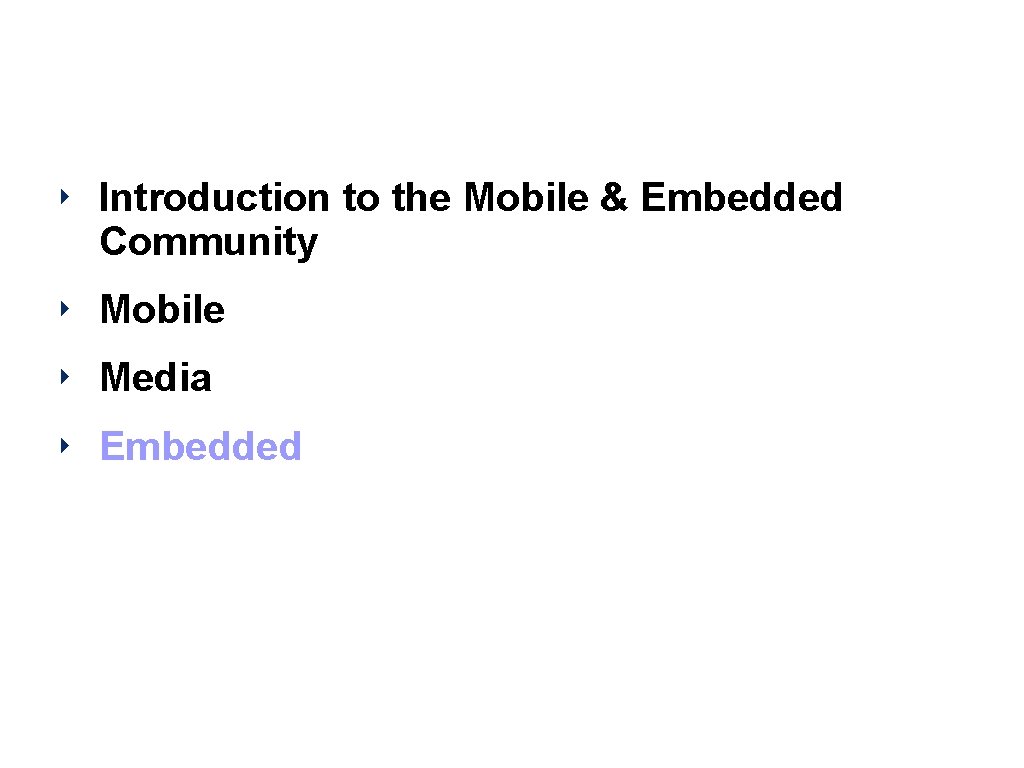

Agenda ‣ Introduction to the Mobile & Embedded Community ‣ Mobile ‣ Media ‣ Embedded

Buglabs ‣ Enabling a new generation of engineers to build any type of device they want • Without having to solder • Learn solid state electronics ‣ Open Source software • Entire stack is Java except for thin Linux layer • Use phone. ME Advanced ‣ CDC/FP/PP/PBP ‣ Extended to add their application APIs and hardware modules

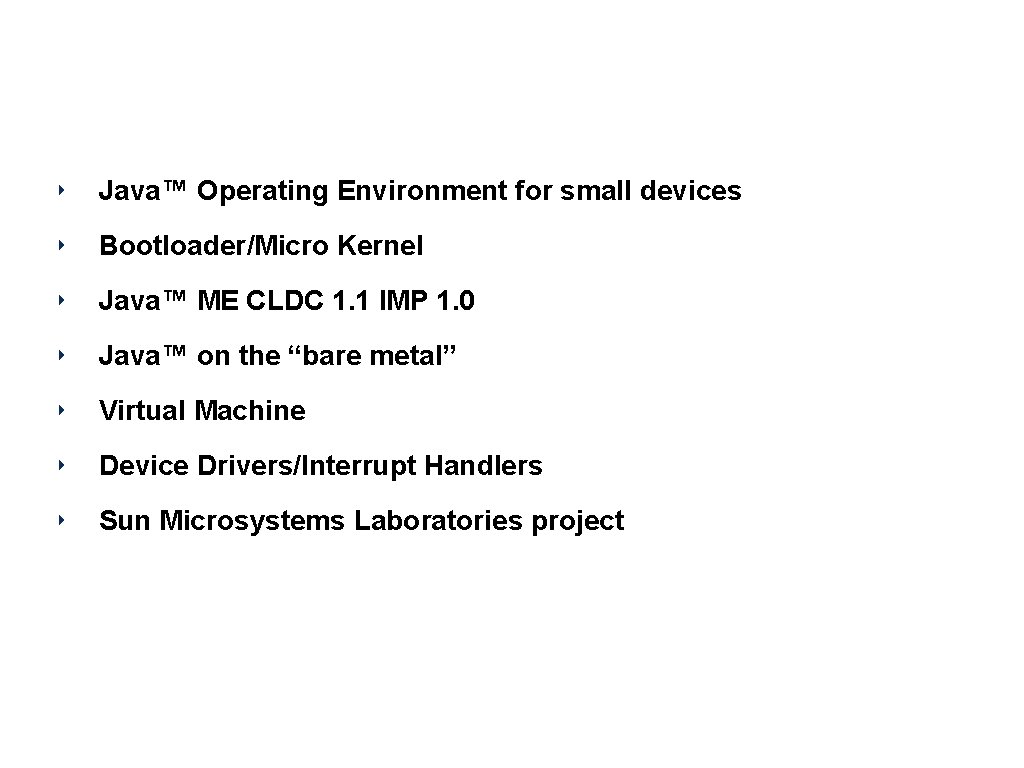

Squawk ‣ Java™ Operating Environment for small devices ‣ Bootloader/Micro Kernel ‣ Java™ ME CLDC 1. 1 IMP 1. 0 ‣ Java™ on the “bare metal” ‣ Virtual Machine ‣ Device Drivers/Interrupt Handlers ‣ Sun Microsystems Laboratories project

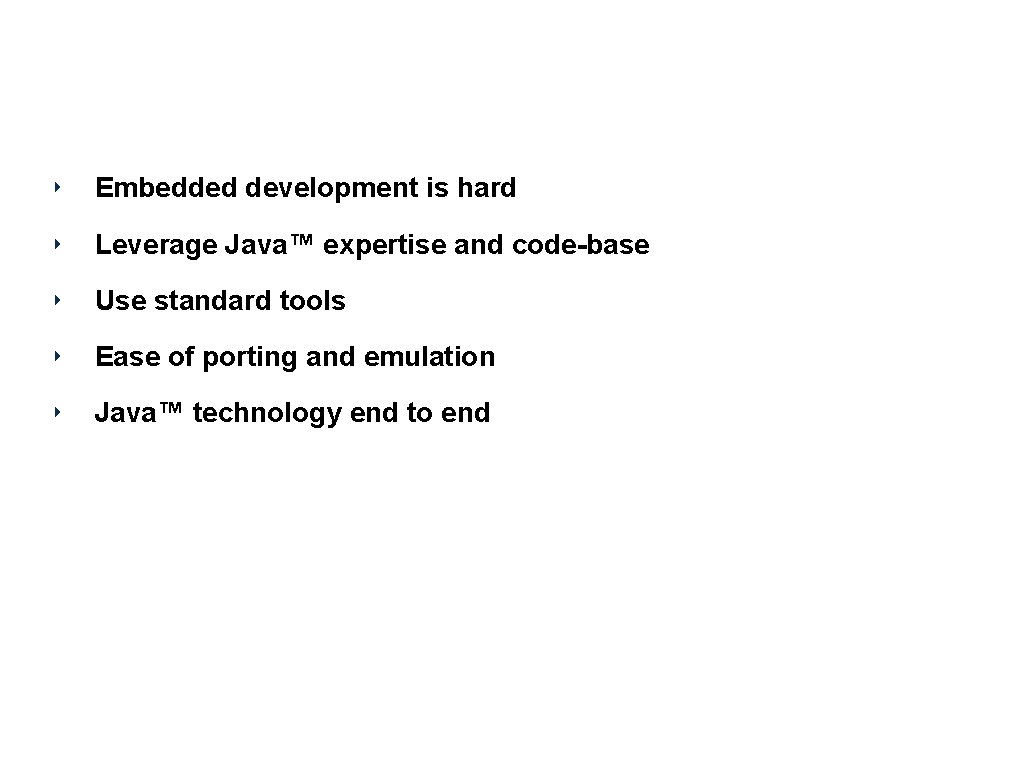

Squawk – Why Java? ‣ Embedded development is hard ‣ Leverage Java™ expertise and code-base ‣ Use standard tools ‣ Ease of porting and emulation ‣ Java™ technology end to end

Squawk – Design Goals ‣ Optimize for small devices ‣ Java™ technology enabler ‣ Java™ in Java™ ‣ Java™ on Java™ ‣ Research and production

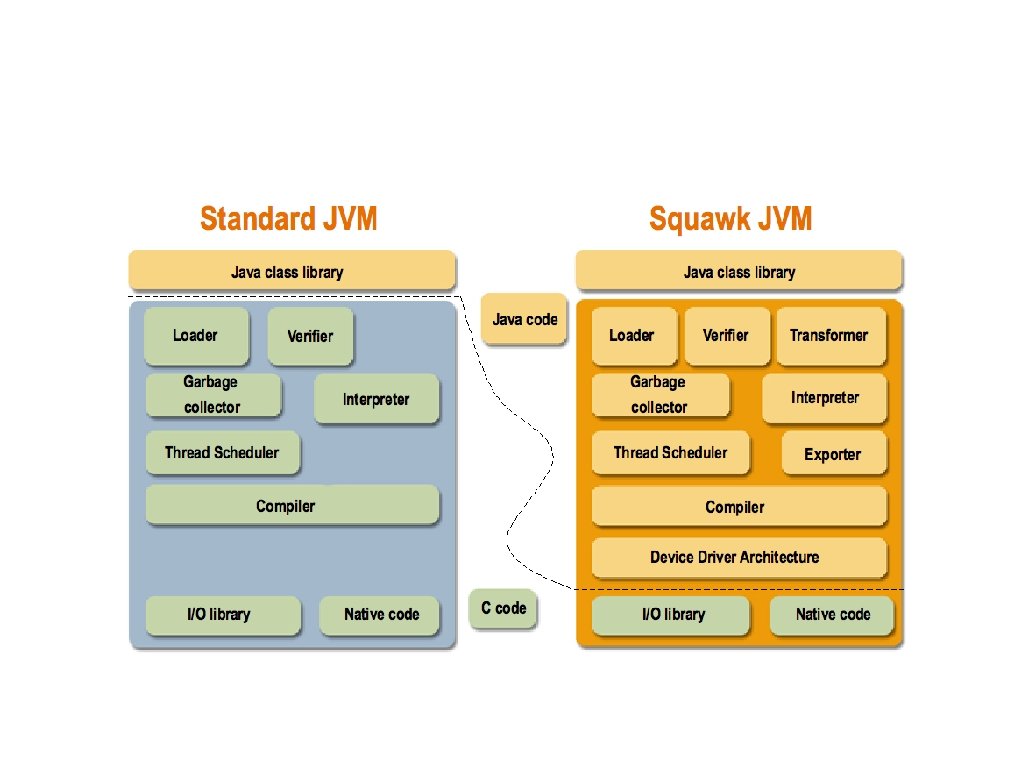

Squawk - Architecture

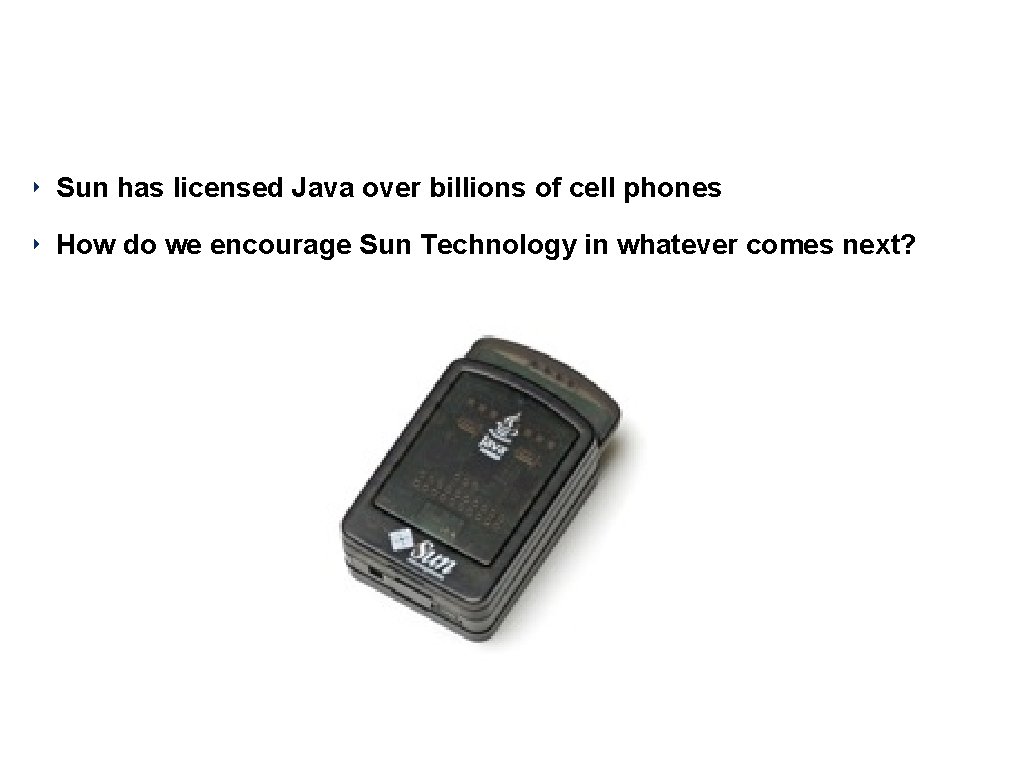

Sun Spot ‣ Sun has licensed Java over billions of cell phones ‣ How do we encourage Sun Technology in whatever comes next?

Built to Inspire ‣ Designed for flexibility • Make hardware projects into software projects • Not designed for cost effective deployment ‣ We want to • Build a community of developers • Enable new Devices and services • Engage new customers

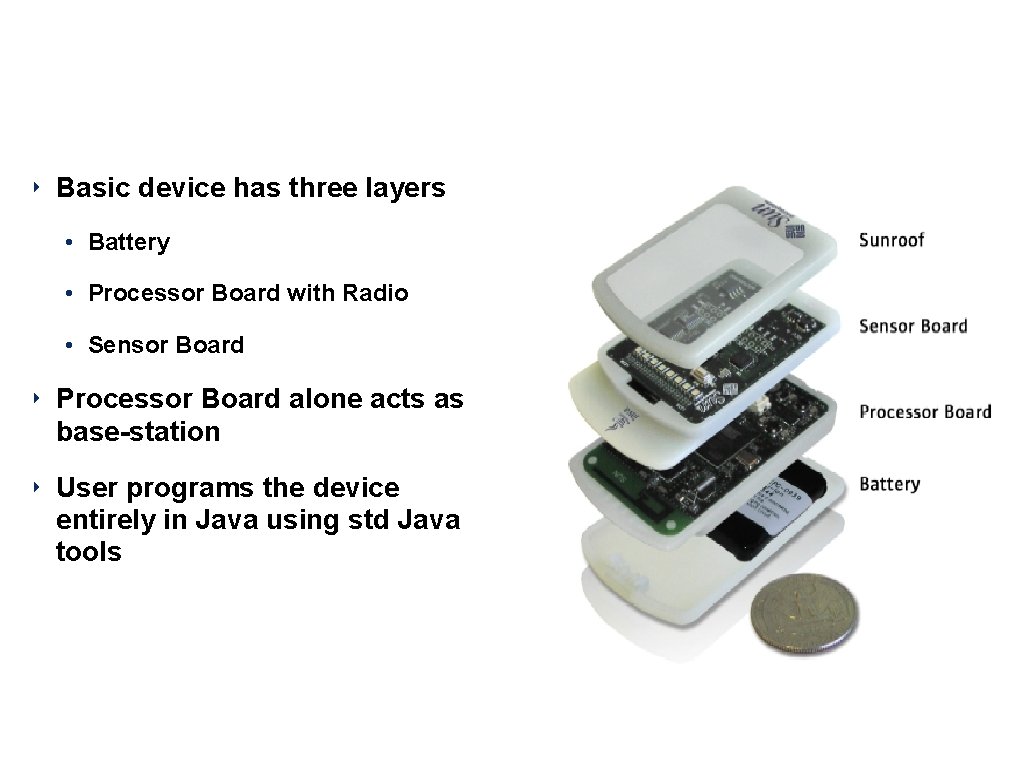

Sun Spot Device ‣ Basic device has three layers • Battery • Processor Board with Radio • Sensor Board ‣ Processor Board alone acts as base-station ‣ User programs the device entirely in Java using std Java tools

Sun SPOT Main board ‣ 180 Mhz 32 bit ARM 920 T core ‣ 512 K RAM/4 M Flash ‣ 802. 15. 4 radio ‣ USB interface – mini b ‣ 3. 6 V rechargeable lithium-ion battery ‣ 36 µA deep sleep mode ‣ Java. ME on the metal

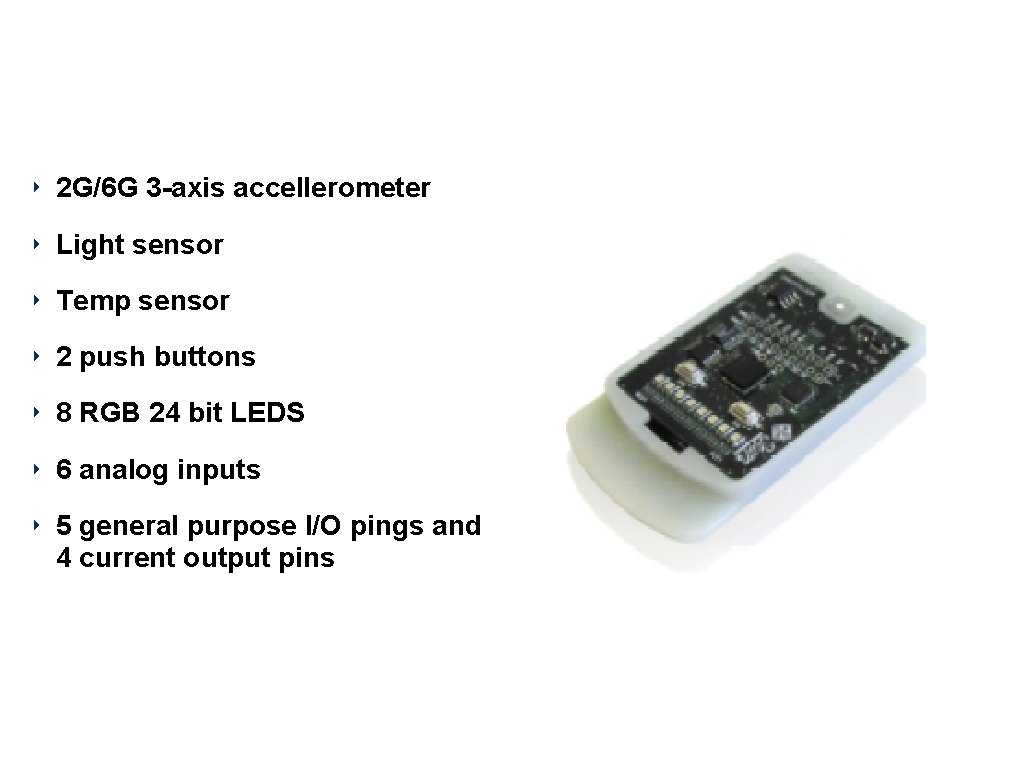

Sun SPOT e. Demoboard ‣ 2 G/6 G 3 -axis accellerometer ‣ Light sensor ‣ Temp sensor ‣ 2 push buttons ‣ 8 RGB 24 bit LEDS ‣ 6 analog inputs ‣ 5 general purpose I/O pings and 4 current output pins

Projects Covered ‣ squawk – Java Virtual Machine ‣ spots-libraries – libraries used by Sun. SPOTs ‣ spots-hardware - ‣ spots-applications – demos and apps ‣ spots-curriculum – instructional materials

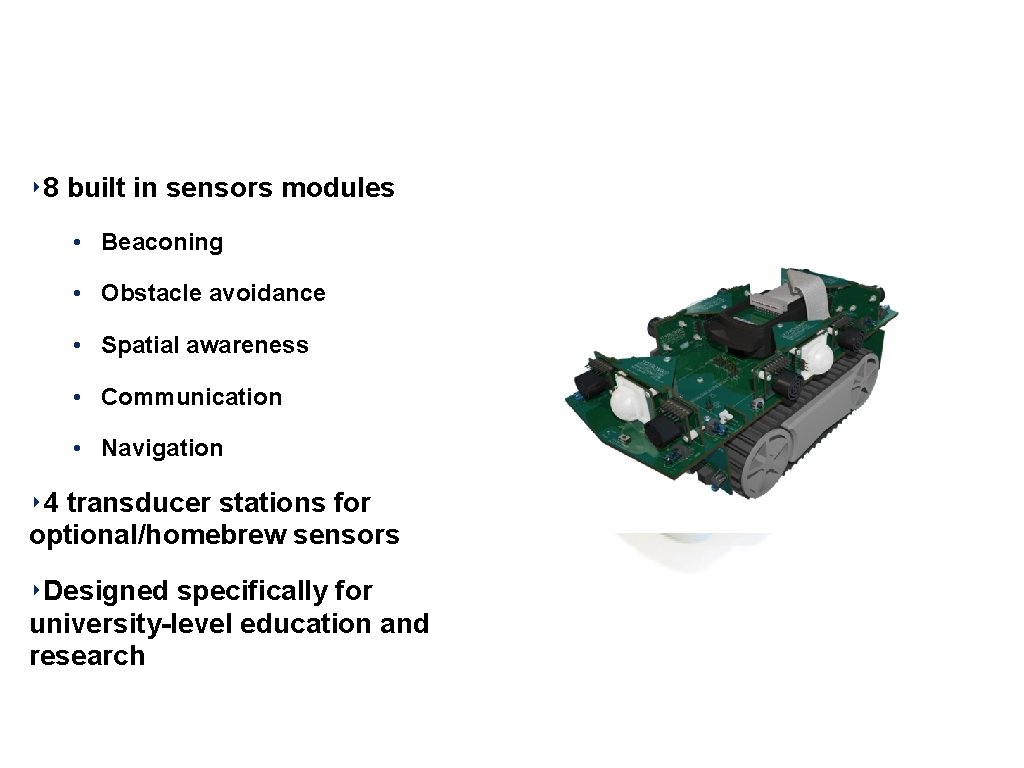

Trackbot ‣ 8 built in sensors modules • Beaconing • Obstacle avoidance • Spatial awareness • Communication • Navigation ‣ 4 transducer stations for optional/homebrew sensors ‣Designed specifically for university-level education and research

Demo DEMO!

Extending, Expanding, and Porting Mobile & Embedded Community Projects by Phil Bartholo www. bartholo. com/OSCON/
