Extending ER Diagrams (13) CPSC 356 Database Ellen Walker Hiram College (Includes figures from Database Systems: A Practical Approach to Design, Information and Management, by Connolly and Begg, © Addison Wesley 2010)

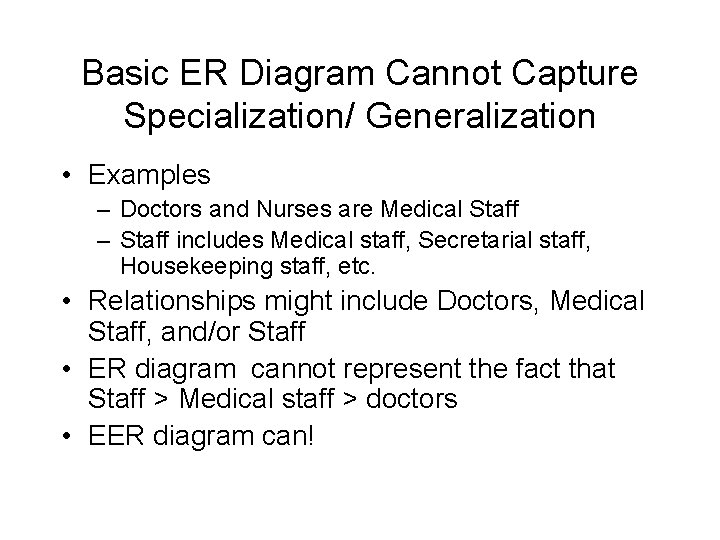

Basic ER Diagram Cannot Capture Specialization/ Generalization • Examples – Doctors and Nurses are Medical Staff – Staff includes Medical staff, Secretarial staff, Housekeeping staff, etc. • Relationships might include Doctors, Medical Staff, and/or Staff • ER diagram cannot represent the fact that Staff > Medical staff > doctors • EER diagram can!

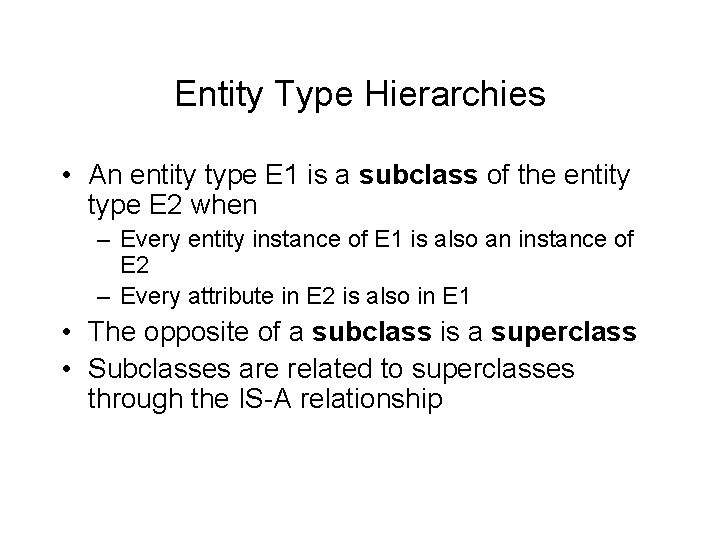

Entity Type Hierarchies • An entity type E 1 is a subclass of the entity type E 2 when – Every entity instance of E 1 is also an instance of E 2 – Every attribute in E 2 is also in E 1 • The opposite of a subclass is a superclass • Subclasses are related to superclasses through the IS-A relationship

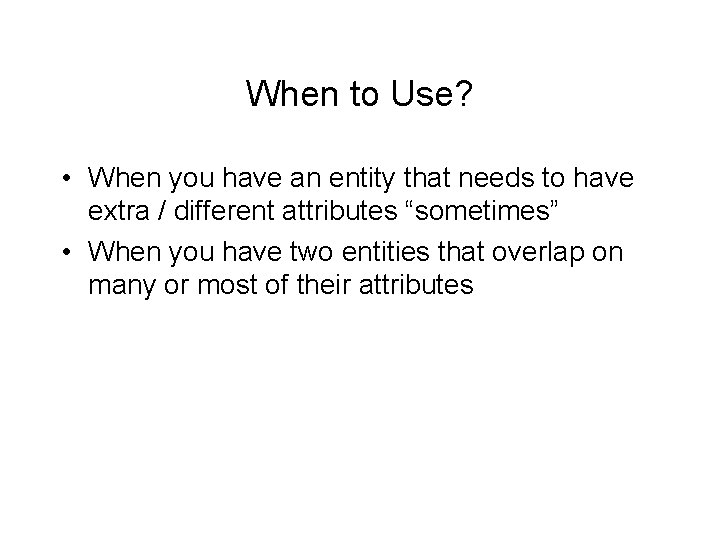

When to Use? • When you have an entity that needs to have extra / different attributes “sometimes” • When you have two entities that overlap on many or most of their attributes

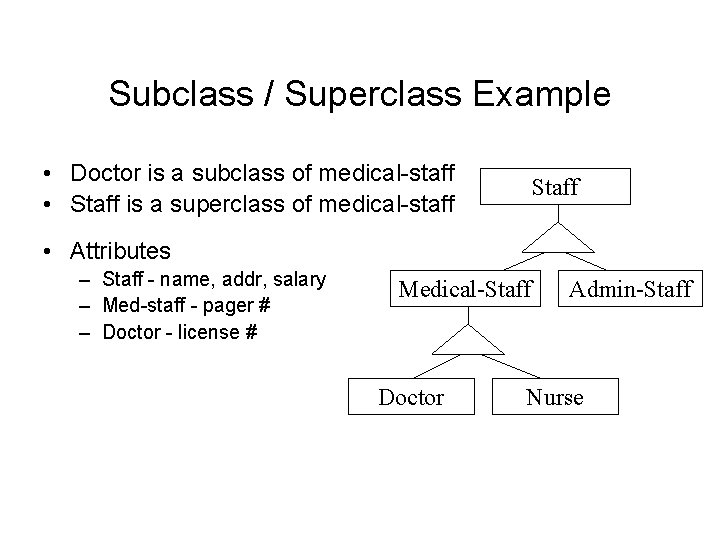

Subclass / Superclass Example • Doctor is a subclass of medical-staff • Staff is a superclass of medical-staff Staff • Attributes – Staff - name, addr, salary – Med-staff - pager # – Doctor - license # Medical-Staff Doctor Admin-Staff Nurse

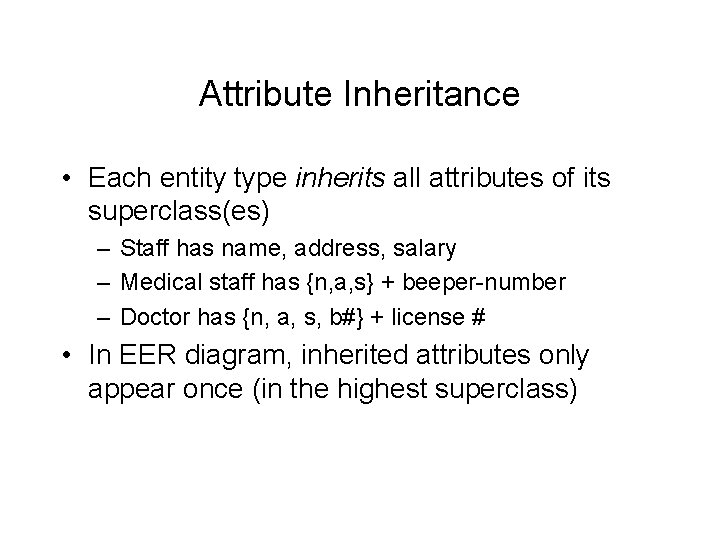

Attribute Inheritance • Each entity type inherits all attributes of its superclass(es) – Staff has name, address, salary – Medical staff has {n, a, s} + beeper-number – Doctor has {n, a, s, b#} + license # • In EER diagram, inherited attributes only appear once (in the highest superclass)

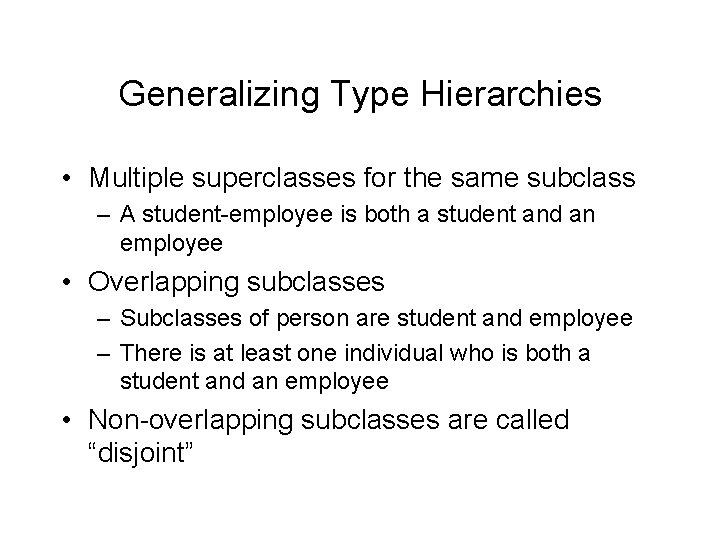

Generalizing Type Hierarchies • Multiple superclasses for the same subclass – A student-employee is both a student and an employee • Overlapping subclasses – Subclasses of person are student and employee – There is at least one individual who is both a student and an employee • Non-overlapping subclasses are called “disjoint”

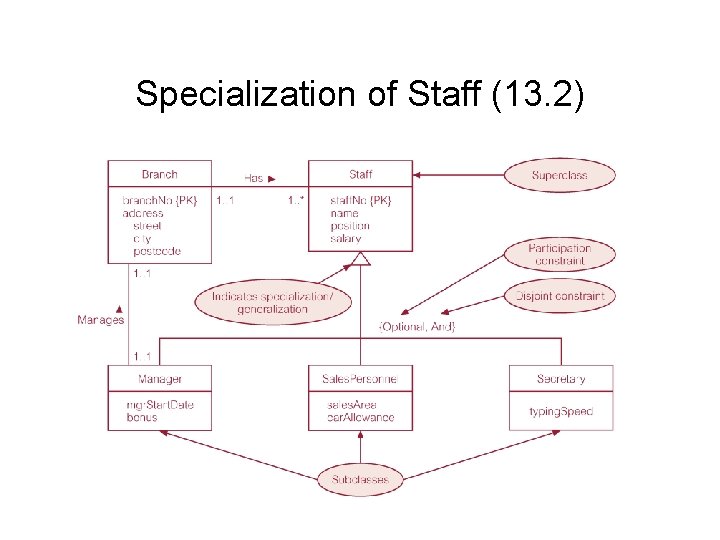

Specialization of Staff (13. 2)

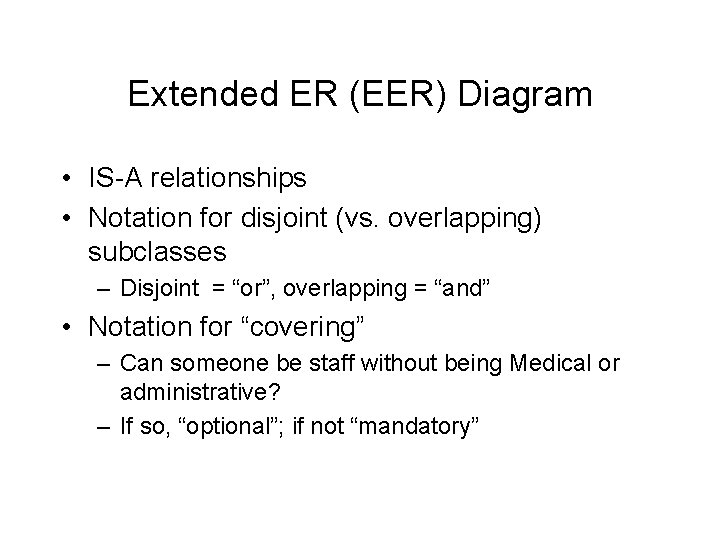

Extended ER (EER) Diagram • IS-A relationships • Notation for disjoint (vs. overlapping) subclasses – Disjoint = “or”, overlapping = “and” • Notation for “covering” – Can someone be staff without being Medical or administrative? – If so, “optional”; if not “mandatory”

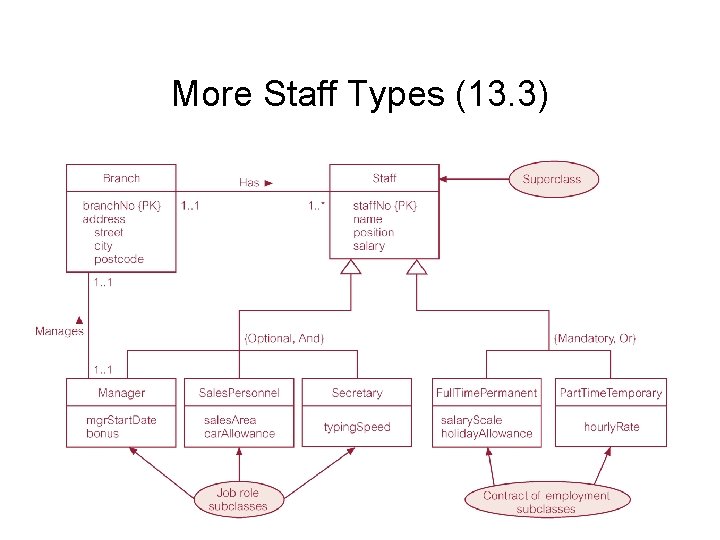

More Staff Types (13. 3)

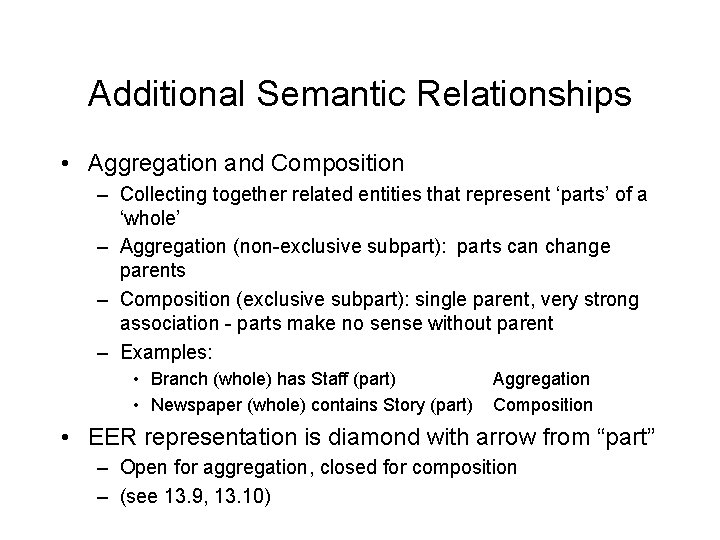

Additional Semantic Relationships • Aggregation and Composition – Collecting together related entities that represent ‘parts’ of a ‘whole’ – Aggregation (non-exclusive subpart): parts can change parents – Composition (exclusive subpart): single parent, very strong association - parts make no sense without parent – Examples: • Branch (whole) has Staff (part) • Newspaper (whole) contains Story (part) Aggregation Composition • EER representation is diamond with arrow from “part” – Open for aggregation, closed for composition – (see 13. 9, 13. 10)
