EXTENDED NEAREST NEIGHBOR CLASSIFICATION METHODS FOR PREDICTING SMALL MOLECULE ACTIVITY Farhad Hormozdiari Lab for Computational Biology, Simon Fraser University

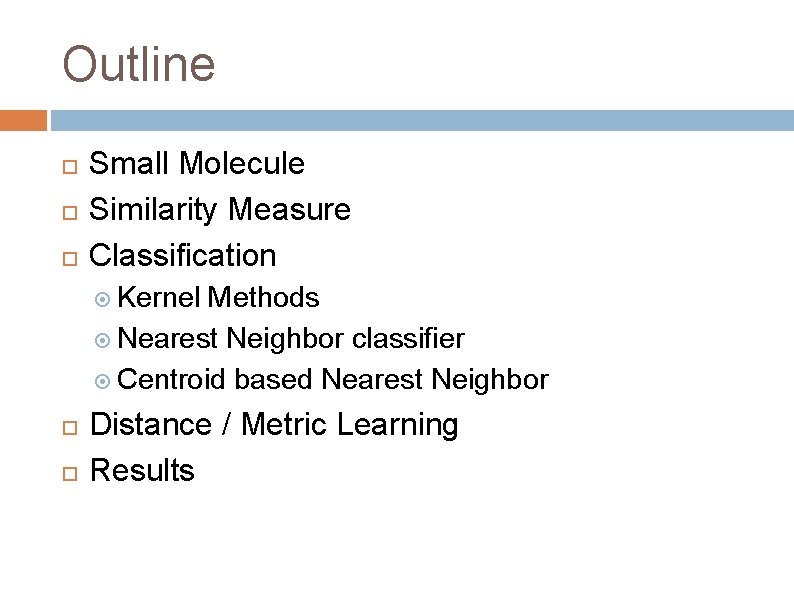

Outline Small Molecule Similarity Measure Classification Kernel Methods Nearest Neighbor classifier Centroid based Nearest Neighbor Distance / Metric Learning Results

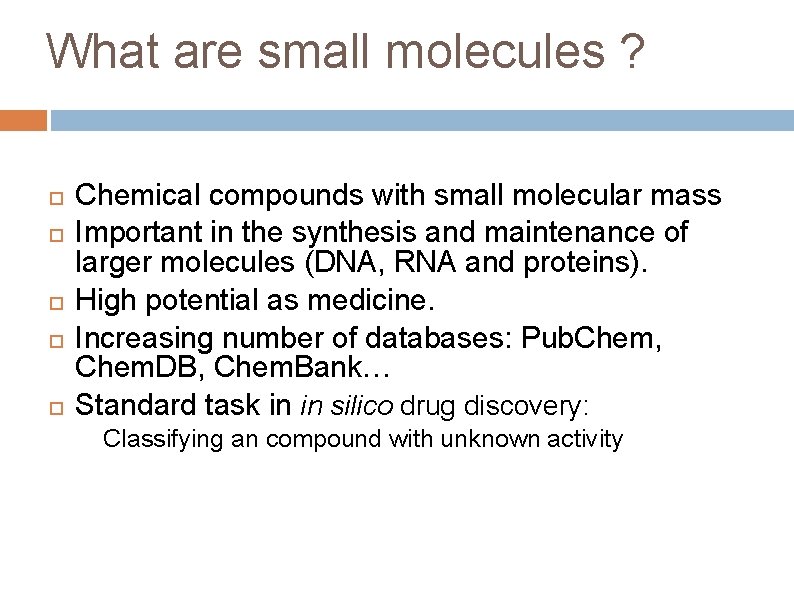

What are small molecules ? Chemical compounds with small molecular mass Important in the synthesis and maintenance of larger molecules (DNA, RNA and proteins). High potential as medicine. Increasing number of databases: Pub. Chem, Chem. DB, Chem. Bank… Standard task in in silico drug discovery: Classifying an compound with unknown activity

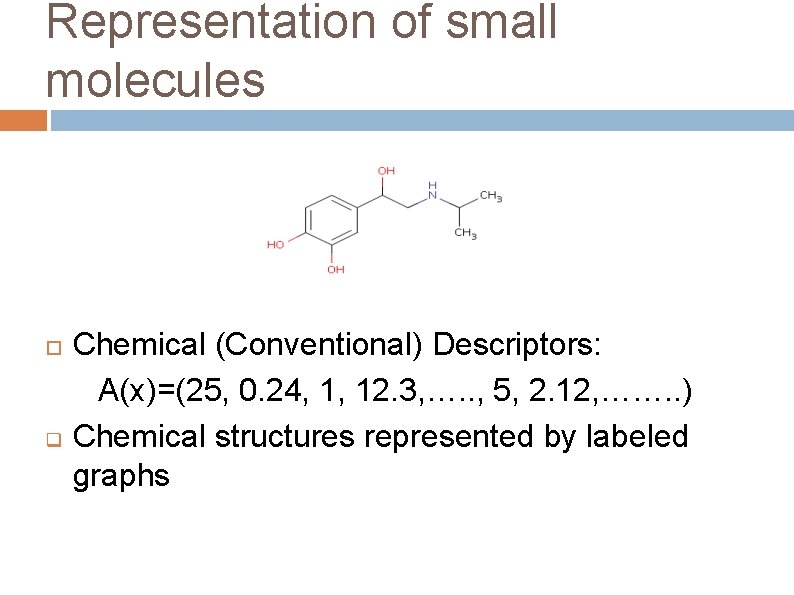

Representation of small molecules q Chemical (Conventional) Descriptors: A(x)=(25, 0. 24, 1, 12. 3, …. . , 5, 2. 12, ……. . ) Chemical structures represented by labeled graphs

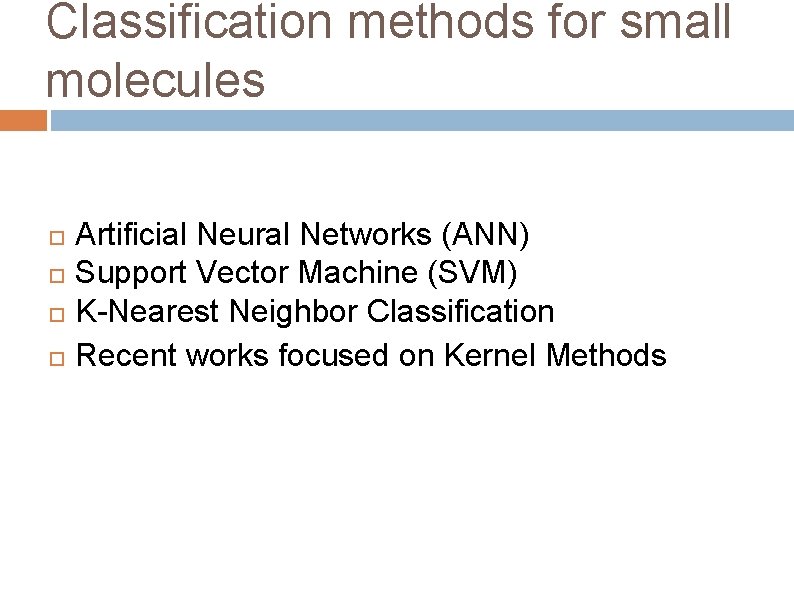

Classification methods for small molecules Artificial Neural Networks (ANN) Support Vector Machine (SVM) K-Nearest Neighbor Classification Recent works focused on Kernel Methods

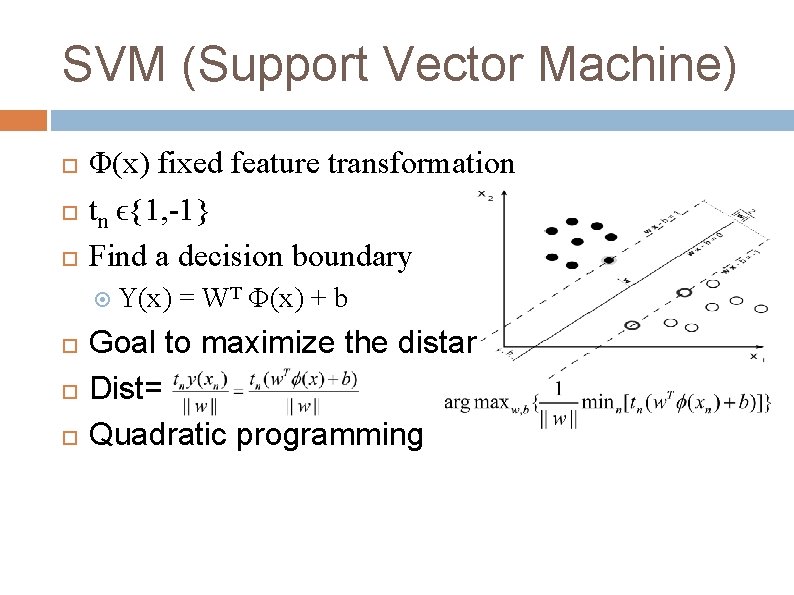

SVM (Support Vector Machine) Φ(x) fixed feature transformation tn ϵ{1, -1} Find a decision boundary Y(x) = WT Φ(x) + b Goal to maximize the distance Dist= Quadratic programming

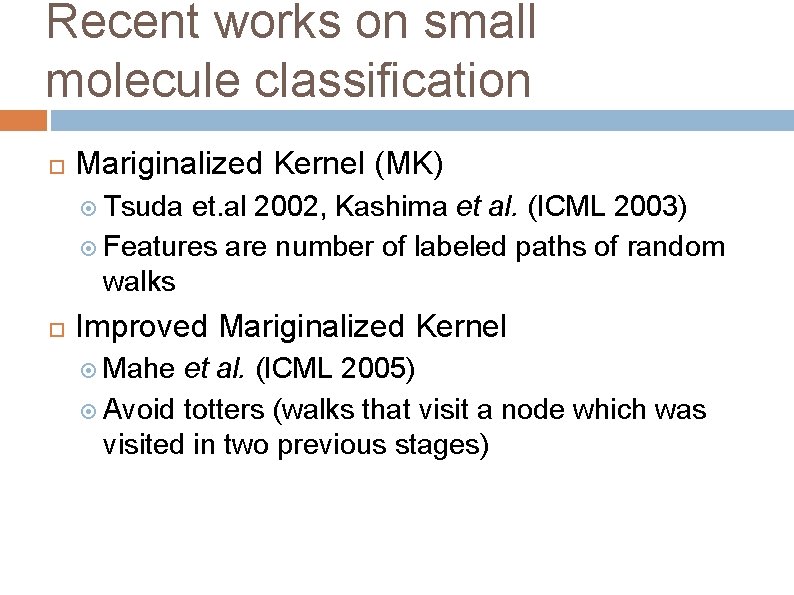

Recent works on small molecule classification Mariginalized Kernel (MK) Tsuda et. al 2002, Kashima et al. (ICML 2003) Features are number of labeled paths of random walks Improved Mariginalized Kernel Mahe et al. (ICML 2005) Avoid totters (walks that visit a node which was visited in two previous stages)

Recent works on small molecule Classification Swamidass et al. (Bioinformatics 2003) Kernels based on 3 D Euclidean coordinates of atoms One histogram per pair of atom labels Similarity between histograms Cao et al. (ISMB 2008, Bioinformatics 2010) Use Maximum Common Substructure (MCS) as a measure of similarity Randomly pick ”basis” compounds Features of a molecule are MCS between that molecule and all basis compounds

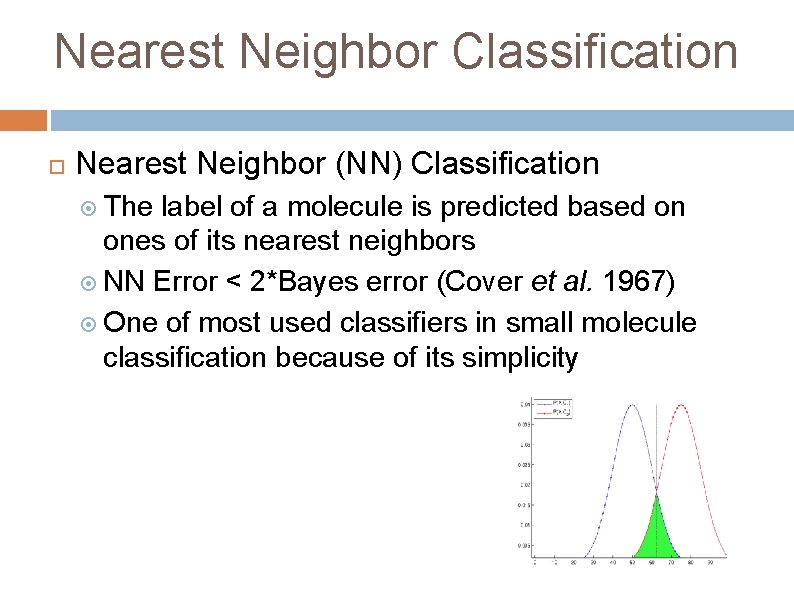

Nearest Neighbor Classification Nearest Neighbor (NN) Classification The label of a molecule is predicted based on ones of its nearest neighbors NN Error < 2*Bayes error (Cover et al. 1967) One of most used classifiers in small molecule classification because of its simplicity

Nearest Neighbor Classification Drawbacks Speed/Memory Distances to all traning set points should be computed All the traning set is stored in the memory Overfitting

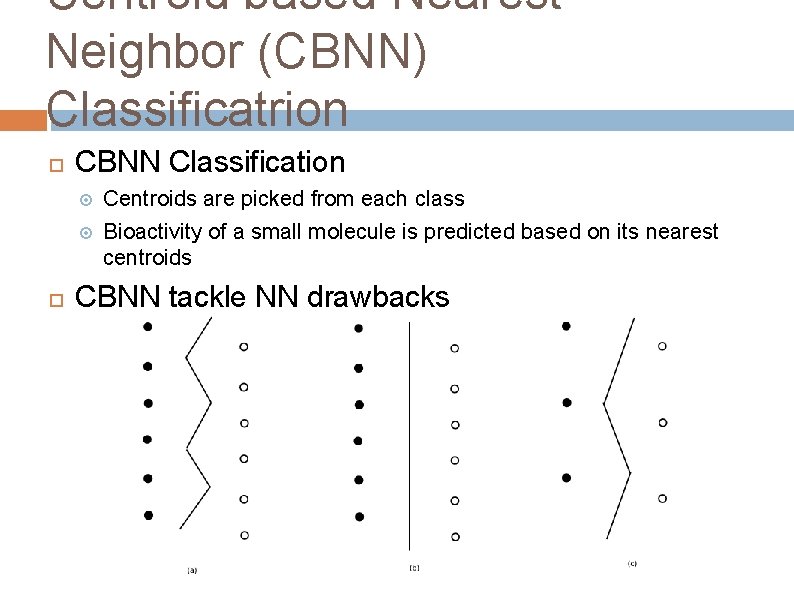

Centroid based Nearest Neighbor (CBNN) Classificatrion CBNN Classification Centroids are picked from each class Bioactivity of a small molecule is predicted based on its nearest centroids CBNN tackle NN drawbacks

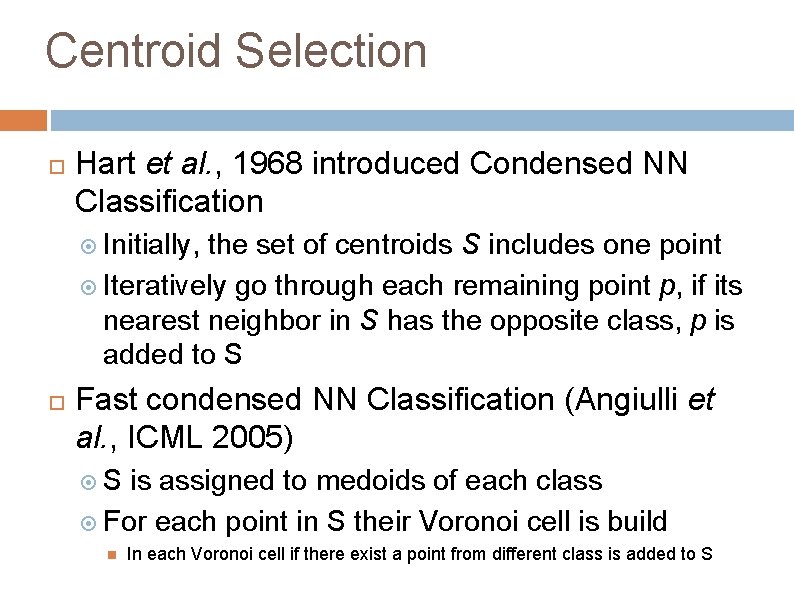

Centroid Selection Hart et al. , 1968 introduced Condensed NN Classification Initially, the set of centroids S includes one point Iteratively go through each remaining point p, if its nearest neighbor in S has the opposite class, p is added to S Fast condensed NN Classification (Angiulli et al. , ICML 2005) S is assigned to medoids of each class For each point in S their Voronoi cell is build In each Voronoi cell if there exist a point from different class is added to S

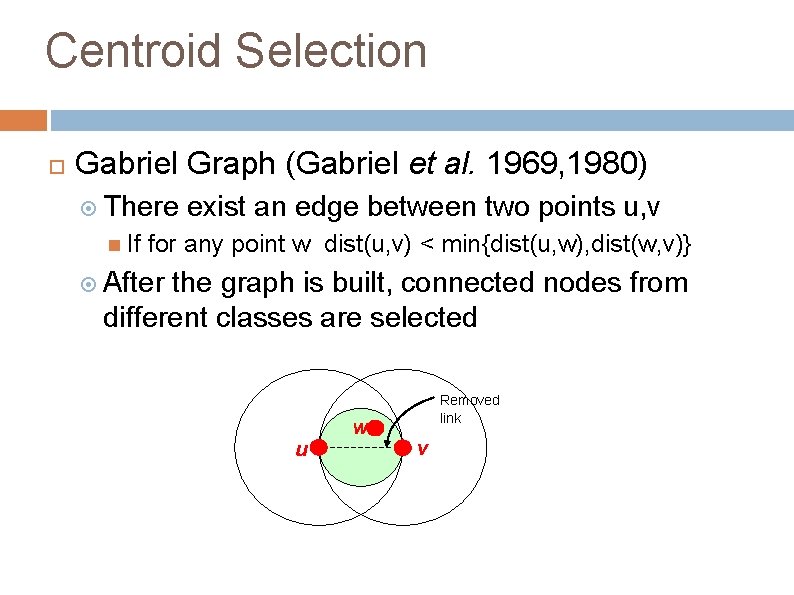

Centroid Selection Gabriel Graph (Gabriel et al. 1969, 1980) There If exist an edge between two points u, v for any point w dist(u, v) < min{dist(u, w), dist(w, v)} After the graph is built, connected nodes from different classes are selected u w Removed link v

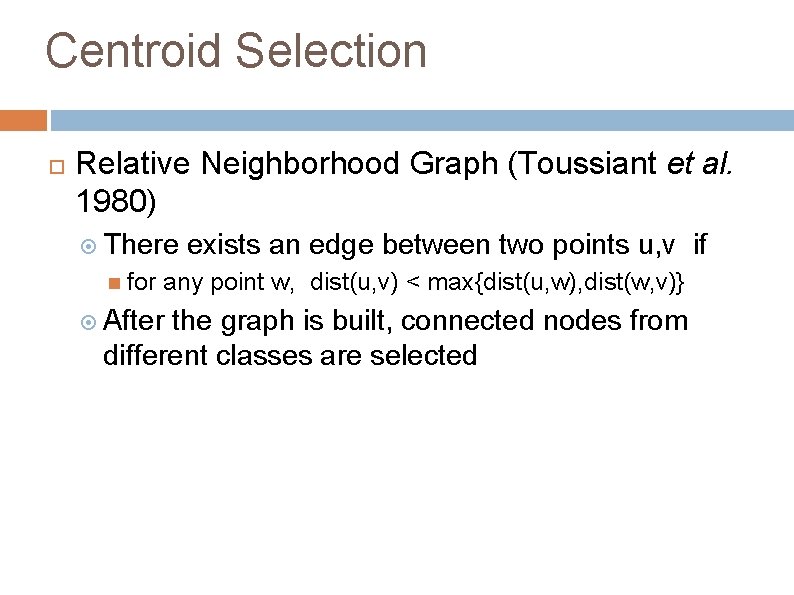

Centroid Selection Relative Neighborhood Graph (Toussiant et al. 1980) There for exists an edge between two points u, v if any point w, dist(u, v) < max{dist(u, w), dist(w, v)} After the graph is built, connected nodes from different classes are selected

Combinatorial Centroid Selection Combinatorial Centroid Selection(CCS) Given a training set of points (compounds) where distances satisfy triangle inequalities Asked to find the minimum number of centroids (selected compounds) such that for each point, its nearest centroid is from same class For simplicity, we only deal with binary classification i. e. C 1 first class and C 2 second class.

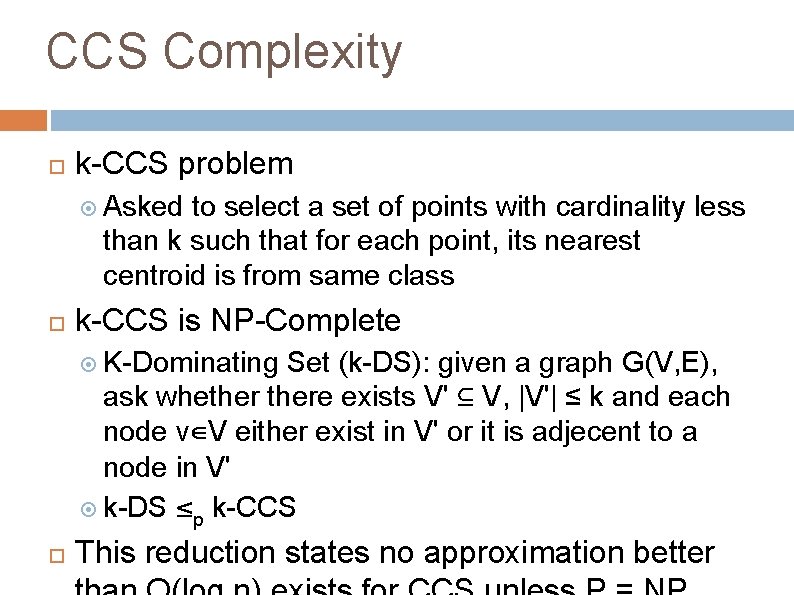

CCS Complexity k-CCS problem Asked to select a set of points with cardinality less than k such that for each point, its nearest centroid is from same class k-CCS is NP-Complete K-Dominating Set (k-DS): given a graph G(V, E), ask whethere exists V' ⊆ V, |V'| ≤ k and each node v∊V either exist in V' or it is adjecent to a node in V' k-DS ≤p k-CCS This reduction states no approximation better

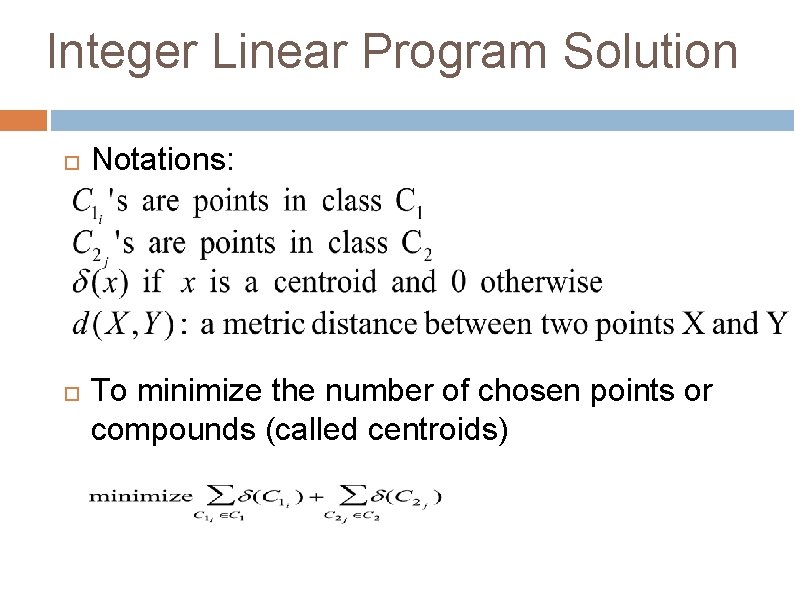

Integer Linear Program Solution Notations: To minimize the number of chosen points or compounds (called centroids)

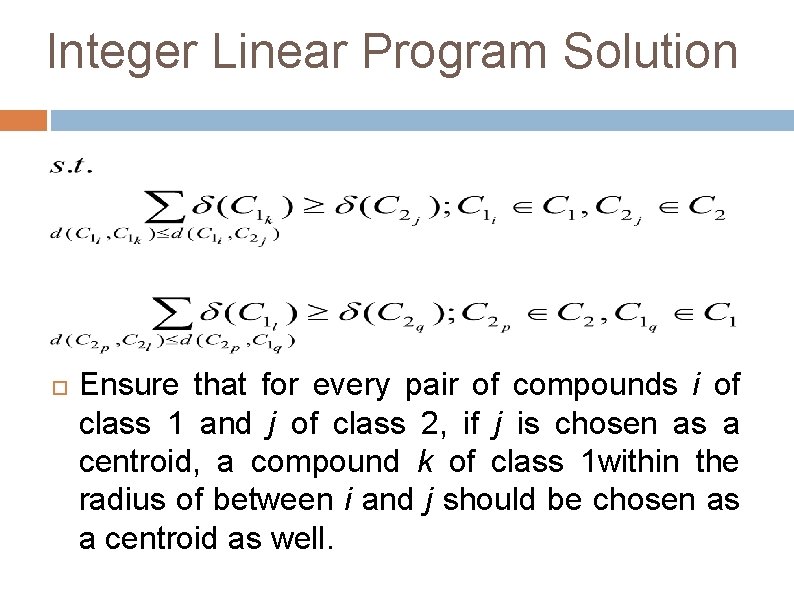

Integer Linear Program Solution Ensure that for every pair of compounds i of class 1 and j of class 2, if j is chosen as a centroid, a compound k of class 1 within the radius of between i and j should be chosen as a centroid as well.

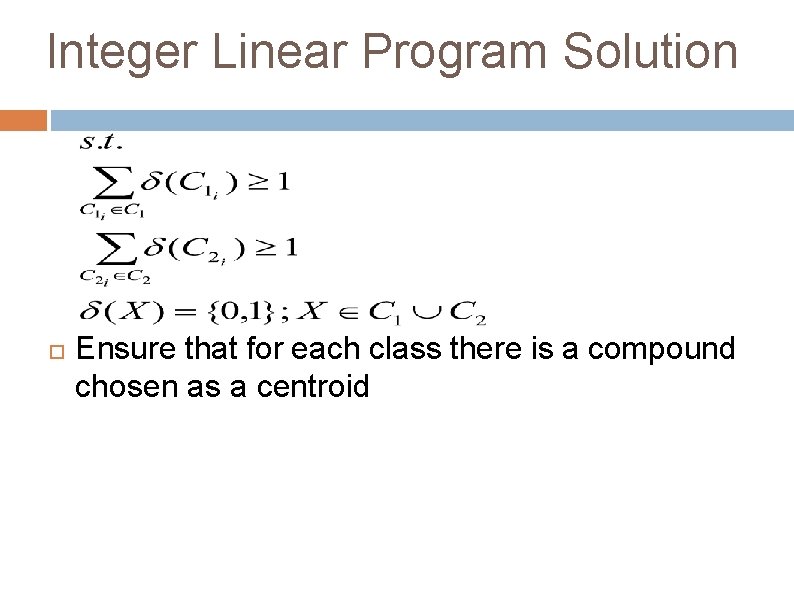

Integer Linear Program Solution Ensure that for each class there is a compound chosen as a centroid

Fixed Size Neighborhood Solution ILP solution suffers from Huge due size to pairwise constraints among points Potential trivial solution Propose a relaxed version of ILP Reduce the number of constraints for each point p within the radius equal to the distance from p to its k-th nearest neighbor of the different class there must be one centroid of same class of p We will call this method CCNN 1

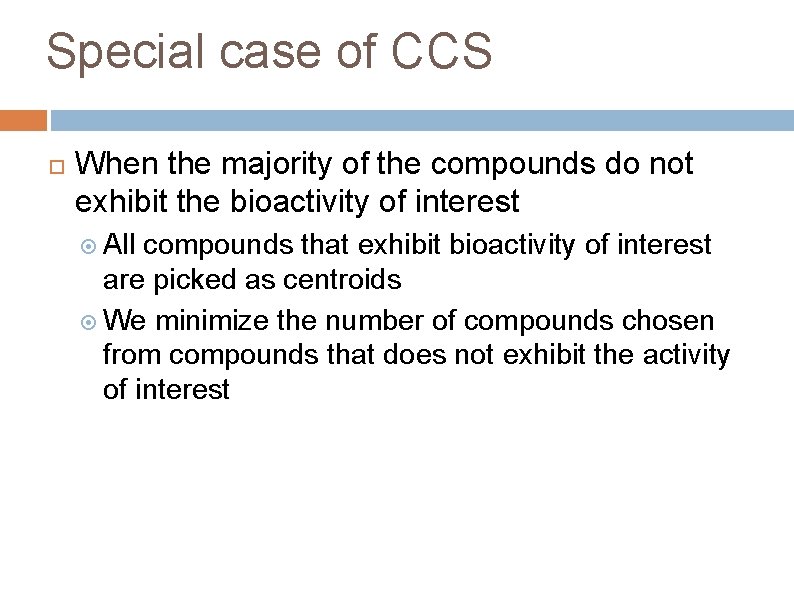

Special case of CCS When the majority of the compounds do not exhibit the bioactivity of interest All compounds that exhibit bioactivity of interest are picked as centroids We minimize the number of compounds chosen from compounds that does not exhibit the activity of interest

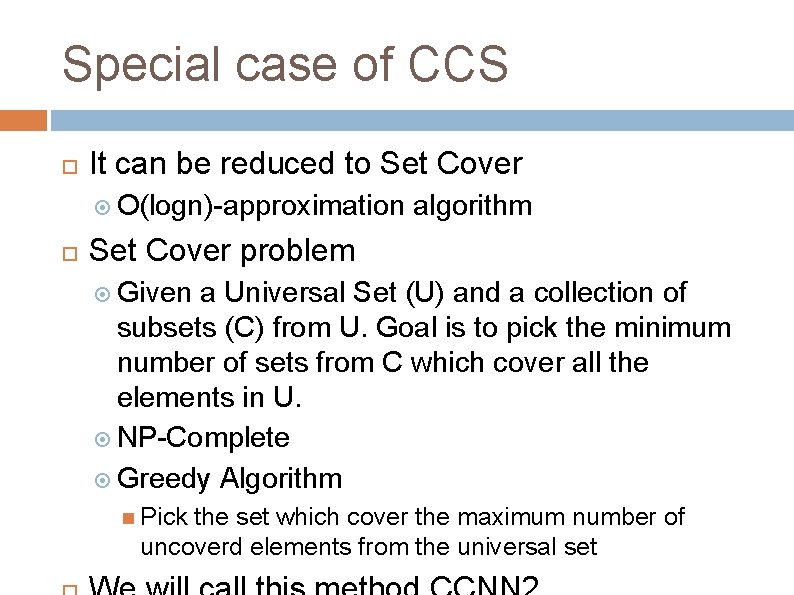

Special case of CCS It can be reduced to Set Cover O(logn)-approximation algorithm Set Cover problem Given a Universal Set (U) and a collection of subsets (C) from U. Goal is to pick the minimum number of sets from C which cover all the elements in U. NP-Complete Greedy Algorithm Pick the set which cover the maximum number of uncoverd elements from the universal set

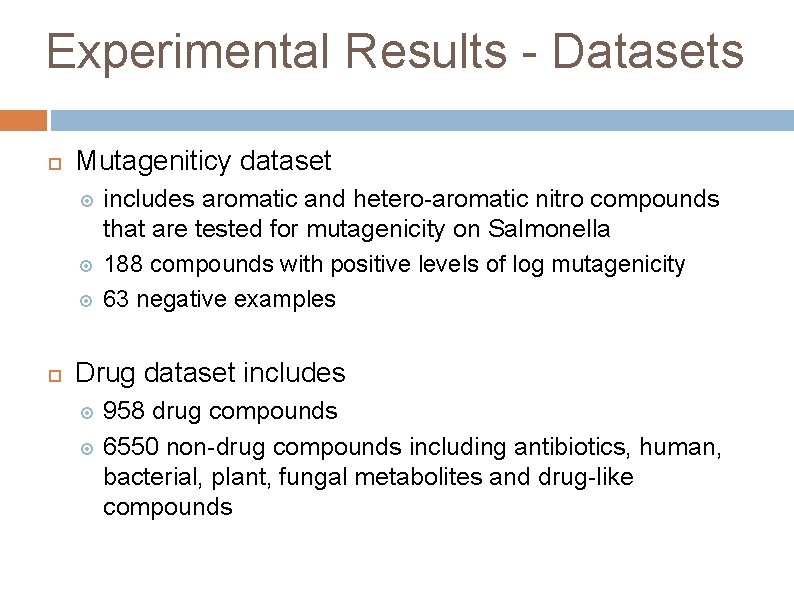

Experimental Results - Datasets Mutageniticy dataset includes aromatic and hetero-aromatic nitro compounds that are tested for mutagenicity on Salmonella 188 compounds with positive levels of log mutagenicity 63 negative examples Drug dataset includes 958 drug compounds 6550 non-drug compounds including antibiotics, human, bacterial, plant, fungal metabolites and drug-like compounds

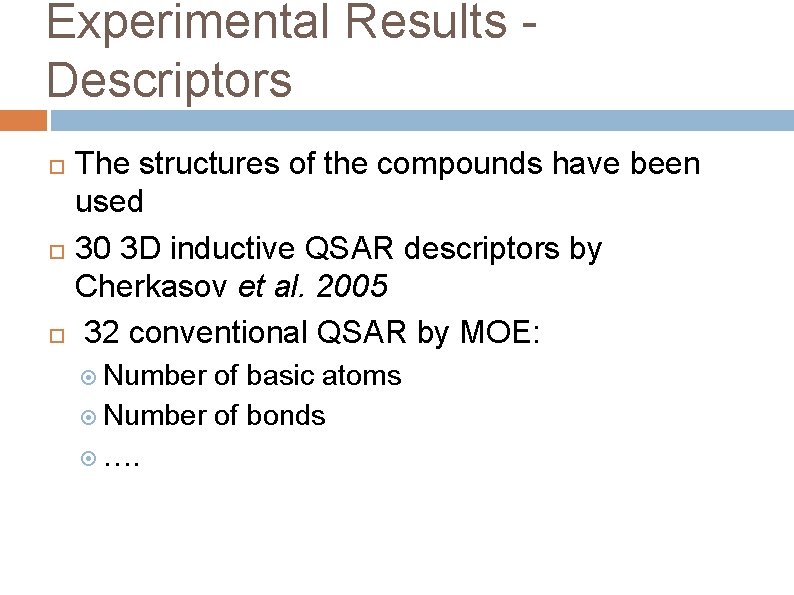

Experimental Results Descriptors The structures of the compounds have been used 30 3 D inductive QSAR descriptors by Cherkasov et al. 2005 32 conventional QSAR by MOE: Number of basic atoms Number of bonds ….

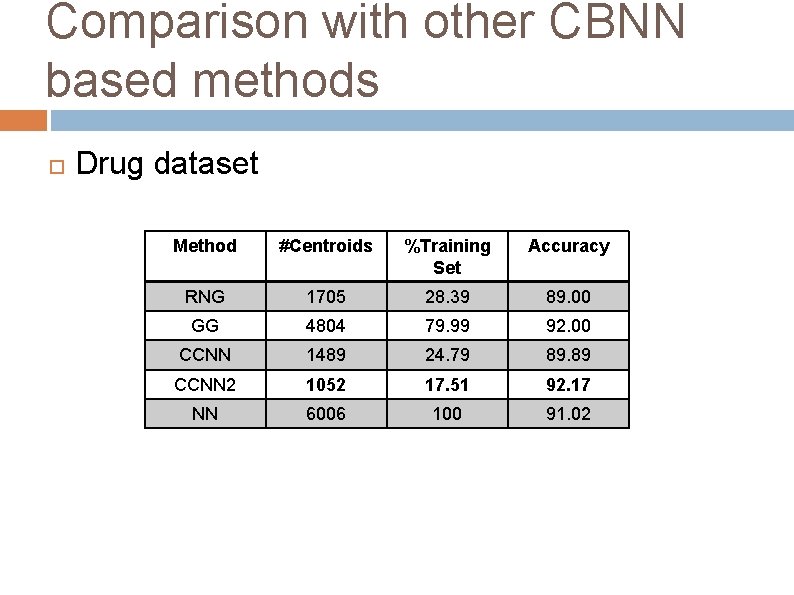

Comparison with other CBNN based methods Drug dataset Method #Centroids %Training Set Accuracy RNG 1705 28. 39 89. 00 GG 4804 79. 99 92. 00 CCNN 1489 24. 79 89. 89 CCNN 2 1052 17. 51 92. 17 NN 6006 100 91. 02

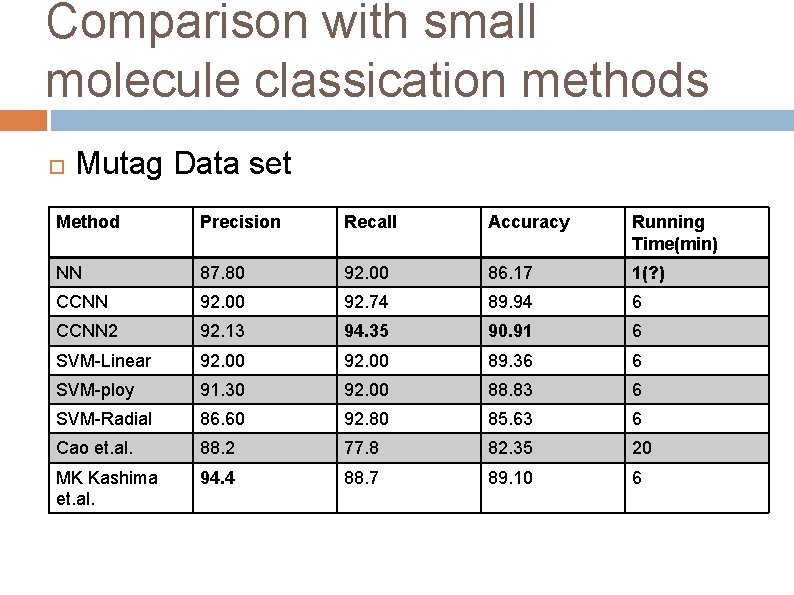

Comparison with small molecule classication methods Mutag Data set Method Precision Recall Accuracy Running Time(min) NN 87. 80 92. 00 86. 17 1(? ) CCNN 92. 00 92. 74 89. 94 6 CCNN 2 92. 13 94. 35 90. 91 6 SVM-Linear 92. 00 89. 36 6 SVM-ploy 91. 30 92. 00 88. 83 6 SVM-Radial 86. 60 92. 80 85. 63 6 Cao et. al. 88. 2 77. 8 82. 35 20 MK Kashima et. al. 94. 4 88. 7 89. 10 6

Comparison with small molecule classication methods Drug Method Precision Recall Accuracy Running Time(min) NN 64. 70 65. 30 91. 02 45(? ) CCNN 56. 36 61. 18 89. 89 181 CCNN 2 69. 12 69. 70 92. 17 150 SVM-Linear 76. 10 8. 70 87. 89 121 SVM-Poly 77. 10 38. 30 90. 17 180 SVM-Radial 80. 10 35. 00 90. 60 121 Cao et. al. 81. 20 56. 20 92. 00 ~5 days MK Kashima et. al. 53. 70 57. 00 89. 10 ~1 days

Learning the Metric Space Emre Karakoc, Artem Cherkasov, S. Cenk Sahinalp (ISMB 2006)

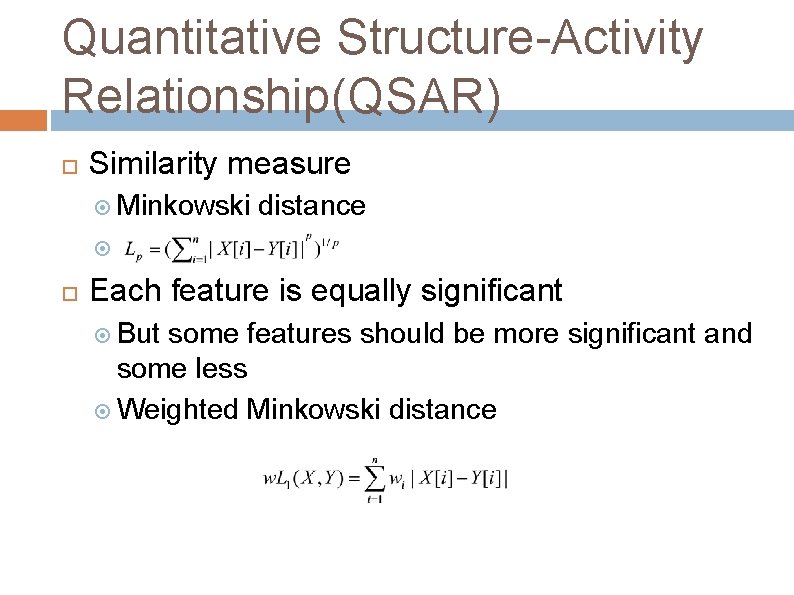

Quantitative Structure-Activity Relationship(QSAR) Similarity measure Minkowski distance Each feature is equally significant But some features should be more significant and some less Weighted Minkowski distance

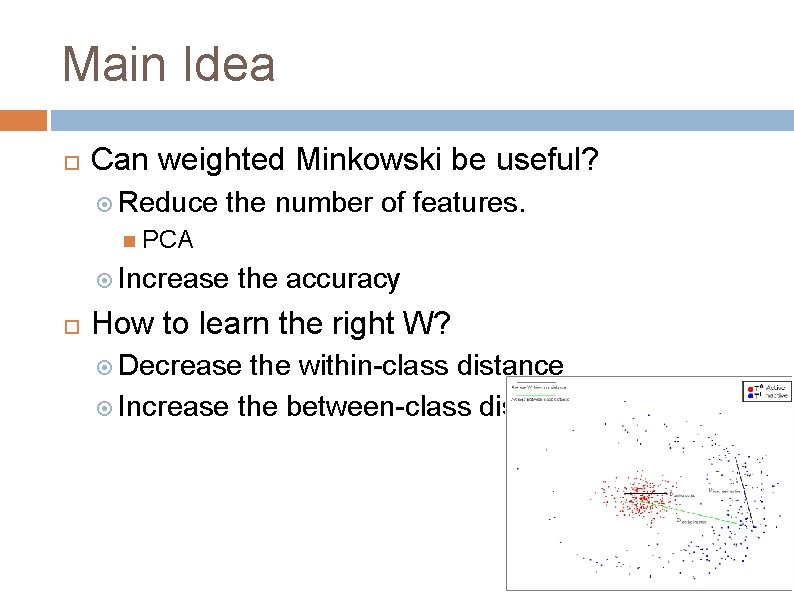

Main Idea Can weighted Minkowski be useful? Reduce the number of features. PCA Increase the accuracy How to learn the right W? Decrease the within-class distance Increase the between-class dist.

Learn the optimal W Given the training set T let Active set Inactive set Min f(T) =

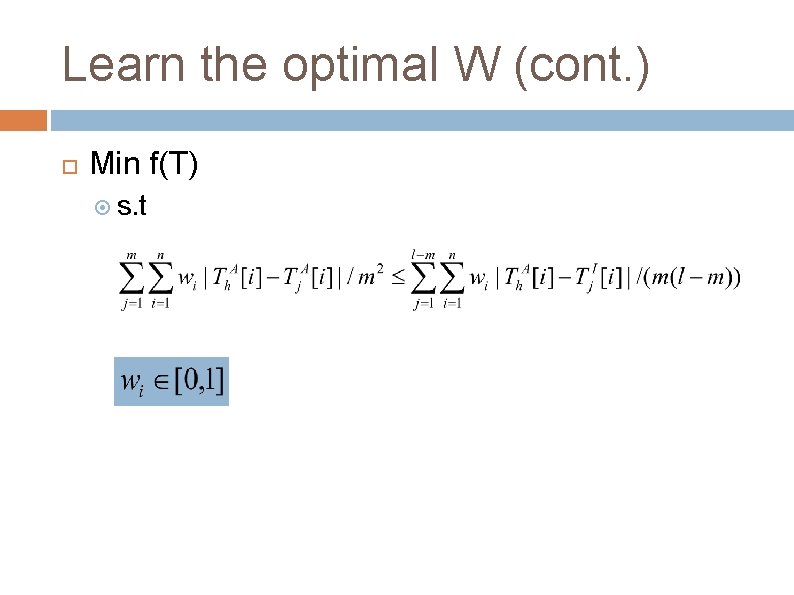

Learn the optimal W (cont. ) Min f(T) s. t

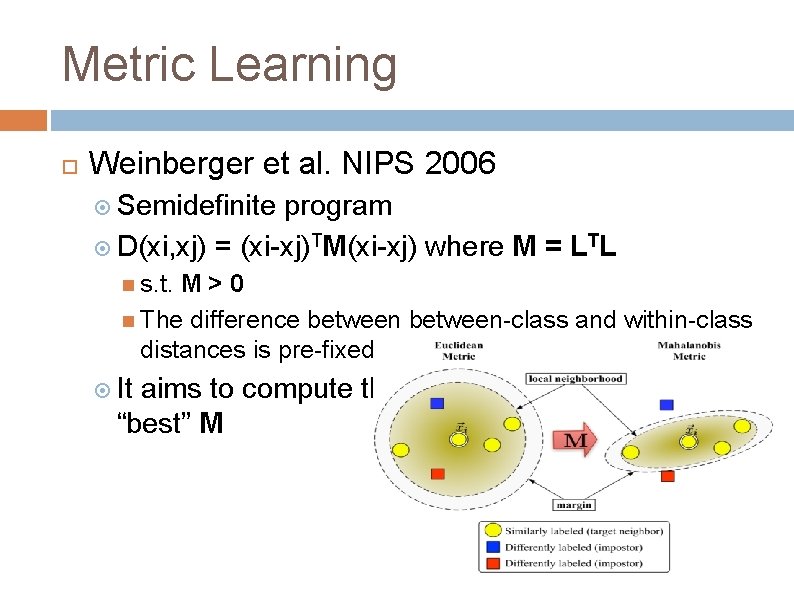

Metric Learning Weinberger et al. NIPS 2006 Semidefinite program D(xi, xj) = (xi-xj)TM(xi-xj) where M = LTL s. t. M>0 The difference between-class and within-class distances is pre-fixed It aims to compute the “best” M

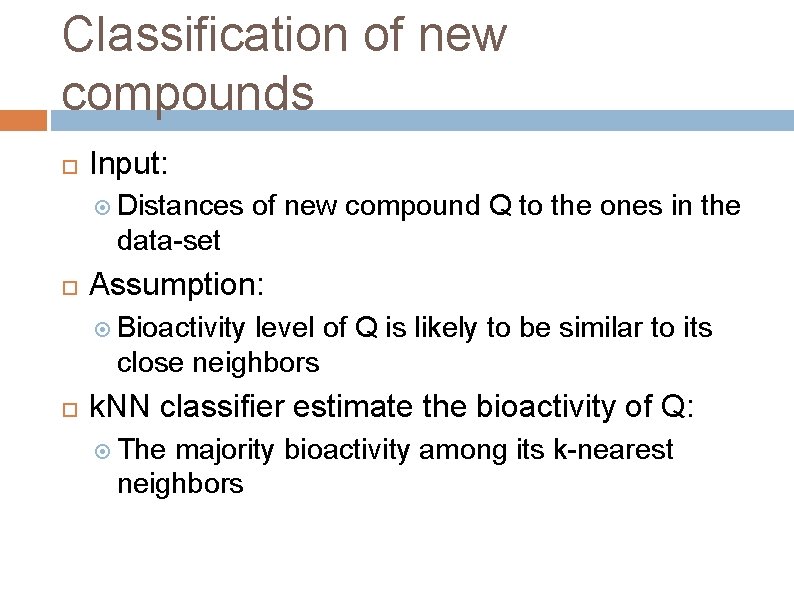

Classification of new compounds Input: Distances of new compound Q to the ones in the data-set Assumption: Bioactivity level of Q is likely to be similar to its close neighbors k. NN classifier estimate the bioactivity of Q: The majority bioactivity among its k-nearest neighbors

Querying a compound Naïve Method O(S) which S is the number element in database. Binary search tree Vantage Point (VP) tree (Uhlmann 1991) Binary tree that recursively partition data space using distances of data points to randomly picked vantage point.

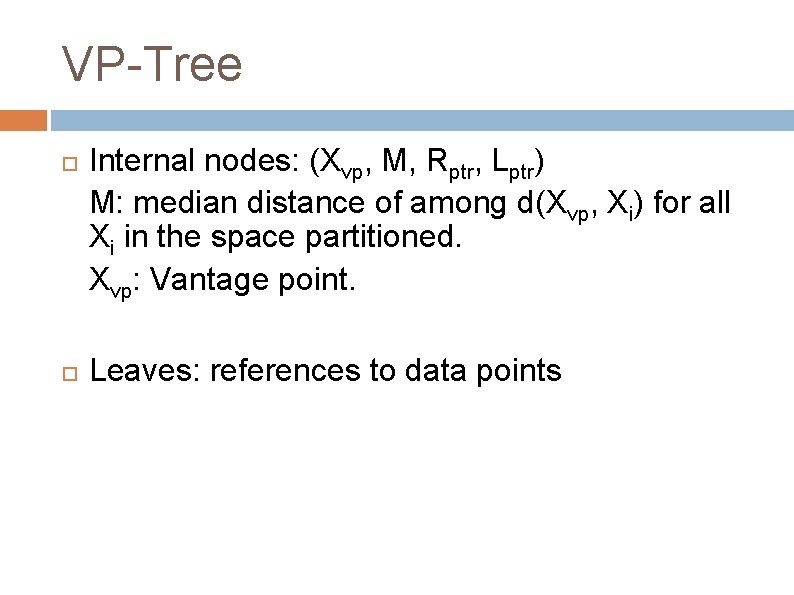

VP-Tree Internal nodes: (Xvp, M, Rptr, Lptr) M: median distance of among d(Xvp, Xi) for all Xi in the space partitioned. Xvp: Vantage point. Leaves: references to data points

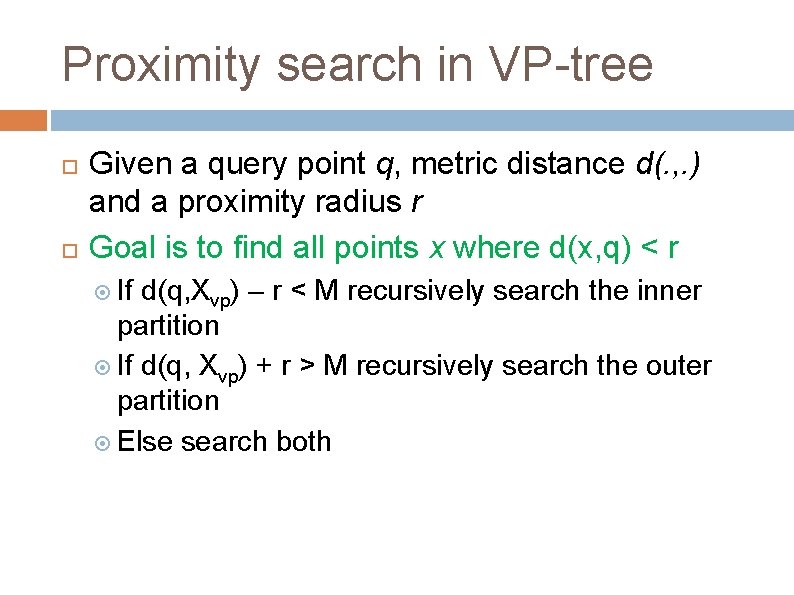

Proximity search in VP-tree Given a query point q, metric distance d(. , . ) and a proximity radius r Goal is to find all points x where d(x, q) < r If d(q, Xvp) – r < M recursively search the inner partition If d(q, Xvp) + r > M recursively search the outer partition Else search both

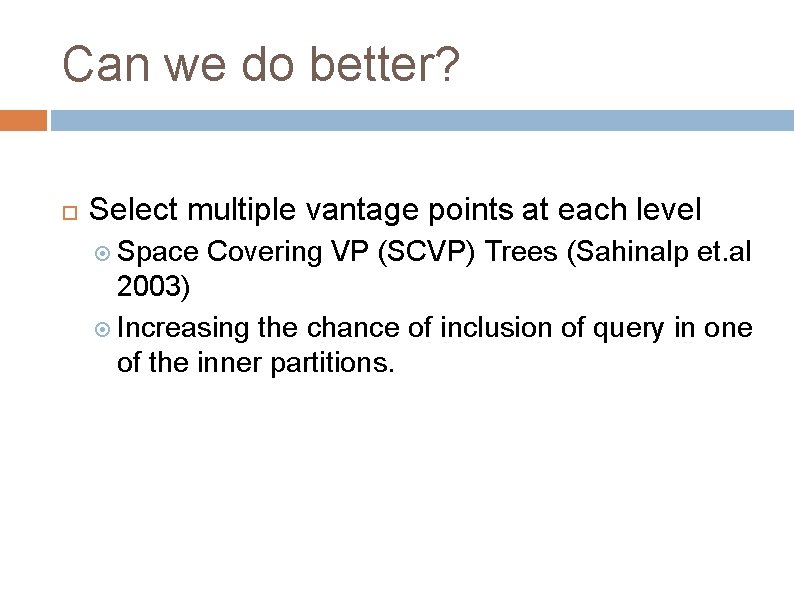

Can we do better? Select multiple vantage points at each level Space Covering VP (SCVP) Trees (Sahinalp et. al 2003) Increasing the chance of inclusion of query in one of the inner partitions.

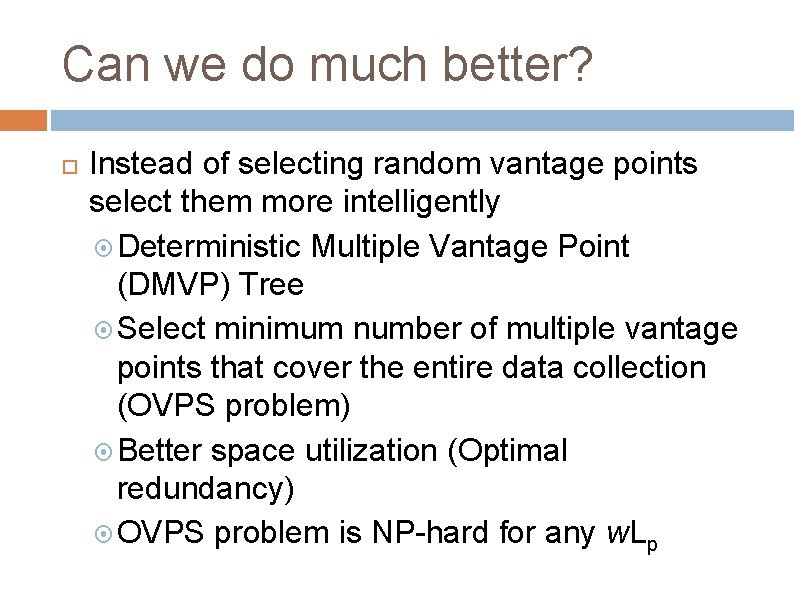

Can we do much better? Instead of selecting random vantage points select them more intelligently Deterministic Multiple Vantage Point (DMVP) Tree Select minimum number of multiple vantage points that cover the entire data collection (OVPS problem) Better space utilization (Optimal redundancy) OVPS problem is NP-hard for any w. Lp

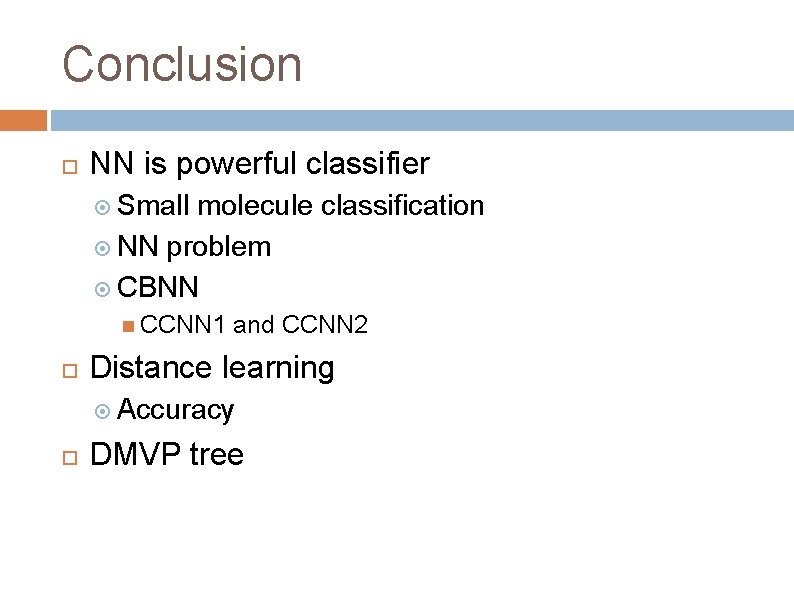

Conclusion NN is powerful classifier Small molecule classification NN problem CBNN CCNN 1 and CCNN 2 Distance learning Accuracy DMVP tree

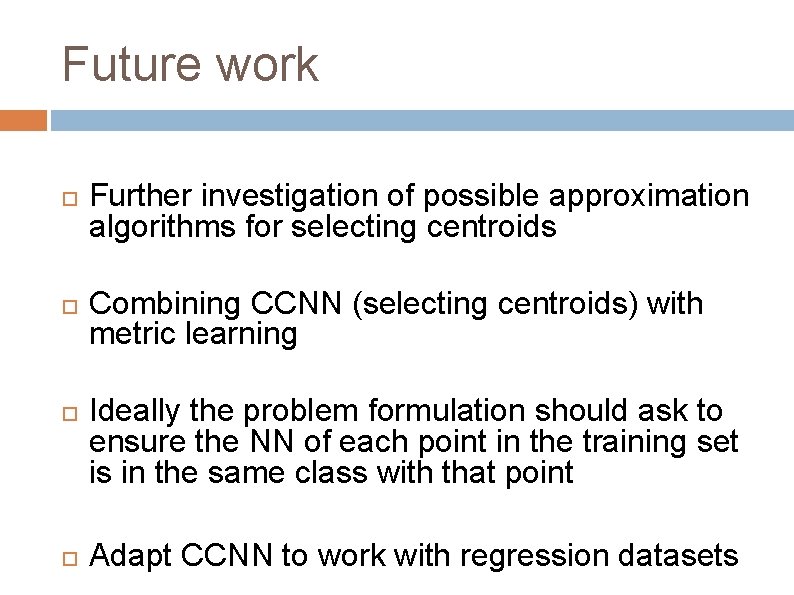

Future work Further investigation of possible approximation algorithms for selecting centroids Combining CCNN (selecting centroids) with metric learning Ideally the problem formulation should ask to ensure the NN of each point in the training set is in the same class with that point Adapt CCNN to work with regression datasets

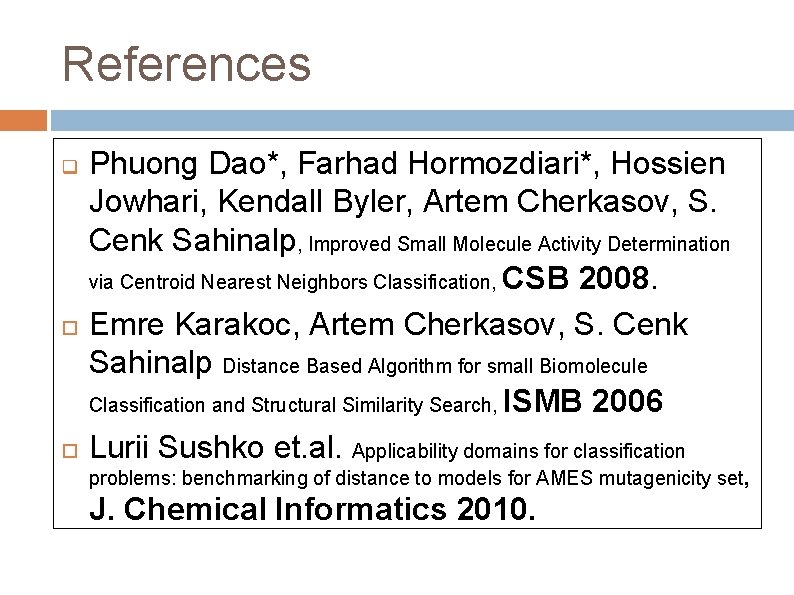

References q Phuong Dao*, Farhad Hormozdiari*, Hossien Jowhari, Kendall Byler, Artem Cherkasov, S. Cenk Sahinalp, Improved Small Molecule Activity Determination via Centroid Nearest Neighbors Classification, CSB 2008. Emre Karakoc, Artem Cherkasov, S. Cenk Sahinalp Distance Based Algorithm for small Biomolecule Classification and Structural Similarity Search, ISMB 2006 Lurii Sushko et. al. Applicability domains for classification problems: benchmarking of distance to models for AMES mutagenicity set, J. Chemical Informatics 2010.

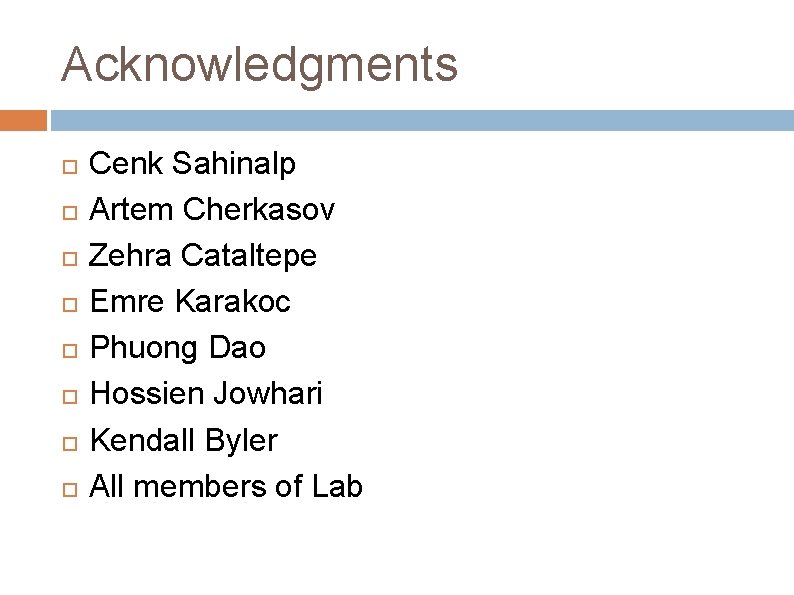

Acknowledgments Cenk Sahinalp Artem Cherkasov Zehra Cataltepe Emre Karakoc Phuong Dao Hossien Jowhari Kendall Byler All members of Lab
