Extended Mission Year 6 MMS Extended Mission Science
- Slides: 20

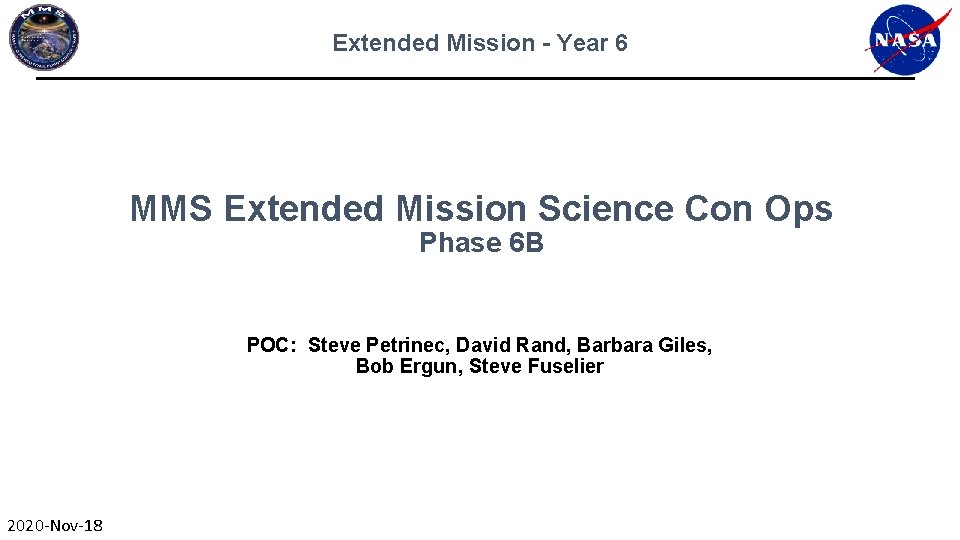

Extended Mission - Year 6 MMS Extended Mission Science Con Ops Phase 6 B POC: Steve Petrinec, David Rand, Barbara Giles, Bob Ergun, Steve Fuselier 2020 -Nov-18

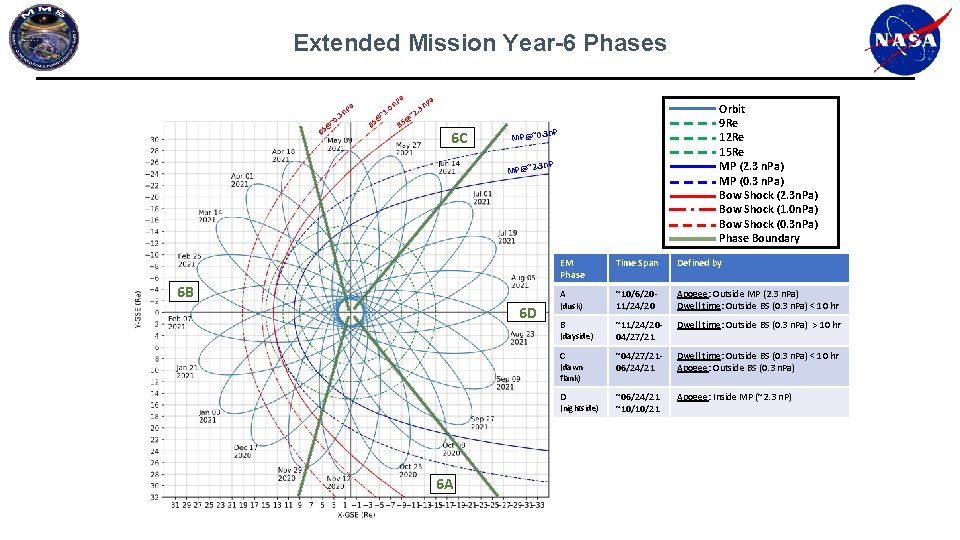

Extended Mission Year-6 Phases Pa 0 n a . P 3 n ~0 S@ B @ BS . ~1 @ BS . 3 ~2 a n. P 6 C Orbit 9 Re 12 Re 15 Re MP (2. 3 n. Pa) MP (0. 3 n. Pa) Bow Shock (2. 3 n. Pa) Bow Shock (1. 0 n. Pa) Bow Shock (0. 3 n. Pa) Phase Boundary P . 3 n MP@~0. 3 n. P MP@~2 6 B 6 D EM Phase Time Span Defined by A ~10/6/2011/24/20 Apogee: Outside MP (2. 3 n. Pa) Dwell time: Outside BS (0. 3 n. Pa) < 10 hr B ~11/24/2004/27/21 Dwell time: Outside BS (0. 3 n. Pa) > 10 hr C ~04/27/2106/24/21 Dwell time: Outside BS (0. 3 n. Pa) < 10 hr Apogee: Outside BS (0. 3 n. Pa) D ~06/24/21 ~10/10/21 Apogee: Inside MP (~2. 3 n. P) (dusk) (dayside) (dawn flank) (nightside) 6 A

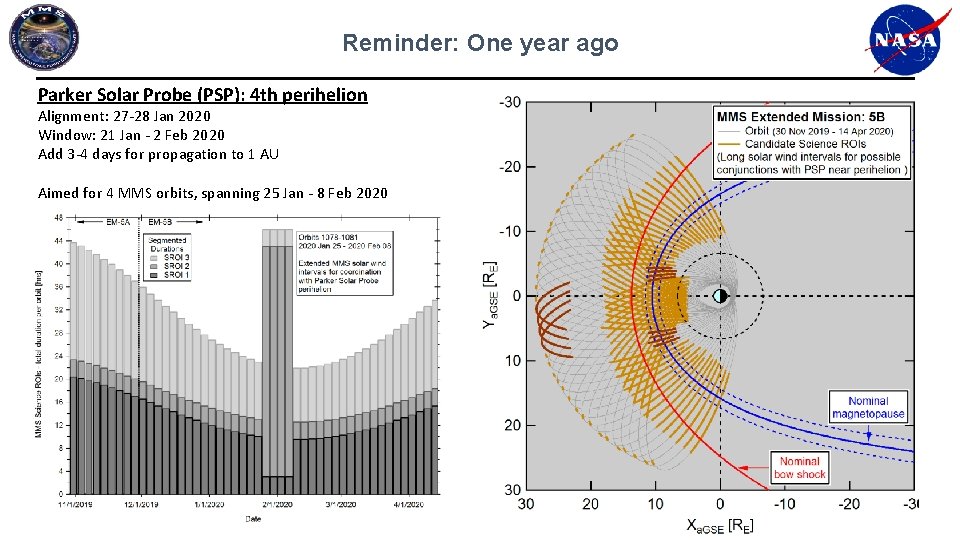

Reminder: One year ago Parker Solar Probe (PSP): 4 th perihelion Alignment: 27 -28 Jan 2020 Window: 21 Jan - 2 Feb 2020 Add 3 -4 days for propagation to 1 AU Aimed for 4 MMS orbits, spanning 25 Jan - 8 Feb 2020

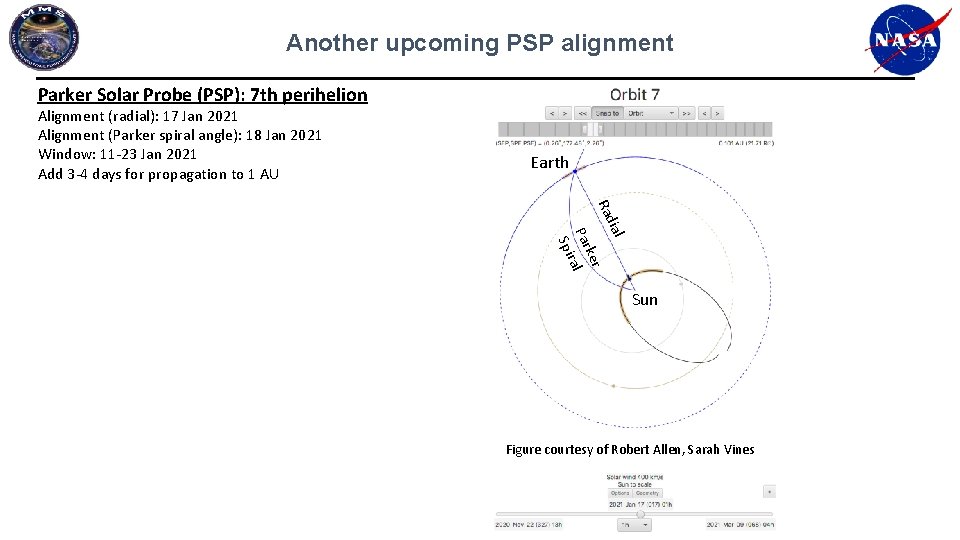

Another upcoming PSP alignment Parker Solar Probe (PSP): 7 th perihelion Alignment (radial): 17 Jan 2021 Alignment (Parker spiral angle): 18 Jan 2021 Window: 11 -23 Jan 2021 Add 3 -4 days for propagation to 1 AU Earth ial Rad ker Par al r Spi Sun Figure courtesy of Robert Allen, Sarah Vines

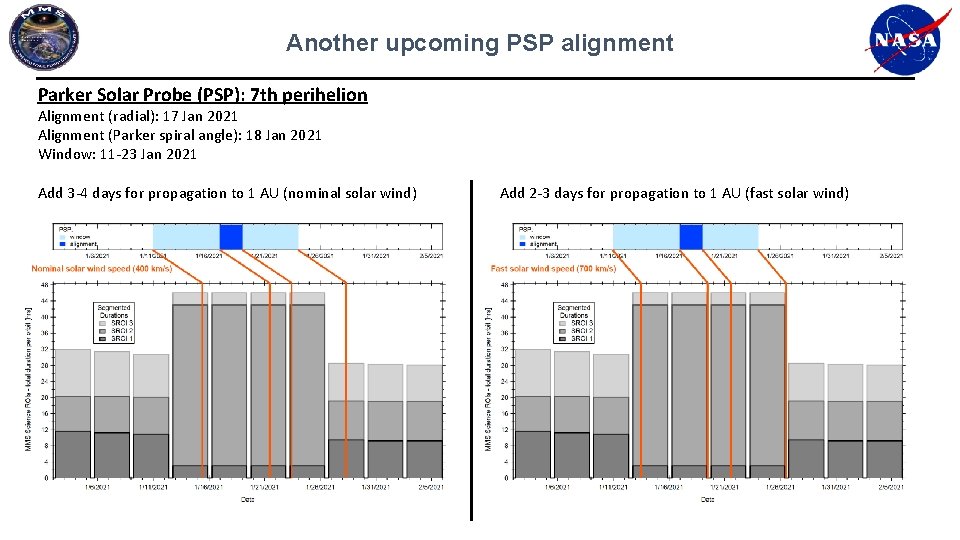

Another upcoming PSP alignment Parker Solar Probe (PSP): 7 th perihelion Alignment (radial): 17 Jan 2021 Alignment (Parker spiral angle): 18 Jan 2021 Window: 11 -23 Jan 2021 Add 3 -4 days for propagation to 1 AU (nominal solar wind) Add 2 -3 days for propagation to 1 AU (fast solar wind)

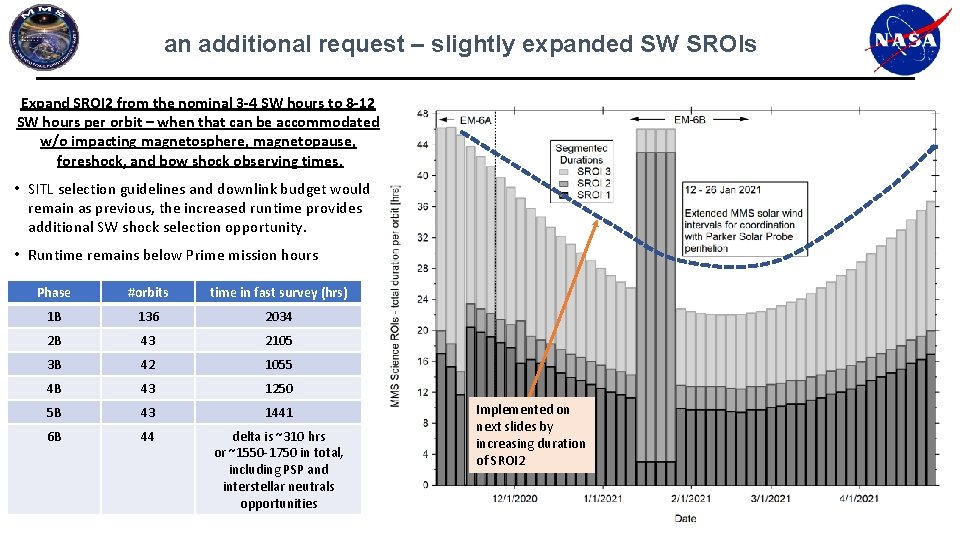

an additional request – slightly expanded SW SROIs Expand SROI 2 from the nominal 3 -4 SW hours to 8 -12 SW hours per orbit – when that can be accommodated w/o impacting magnetosphere, magnetopause, foreshock, and bow shock observing times. • SITL selection guidelines and downlink budget would remain as previous, the increased runtime provides additional SW shock selection opportunity. • Runtime remains below Prime mission hours Phase #orbits time in fast survey (hrs) 1 B 136 2034 2 B 43 2105 3 B 42 1055 4 B 43 1250 5 B 43 1441 6 B 44 delta is ~310 hrs or ~1550 -1750 in total, including PSP and interstellar neutrals opportunities Implemented on next slides by increasing duration of SROI 2

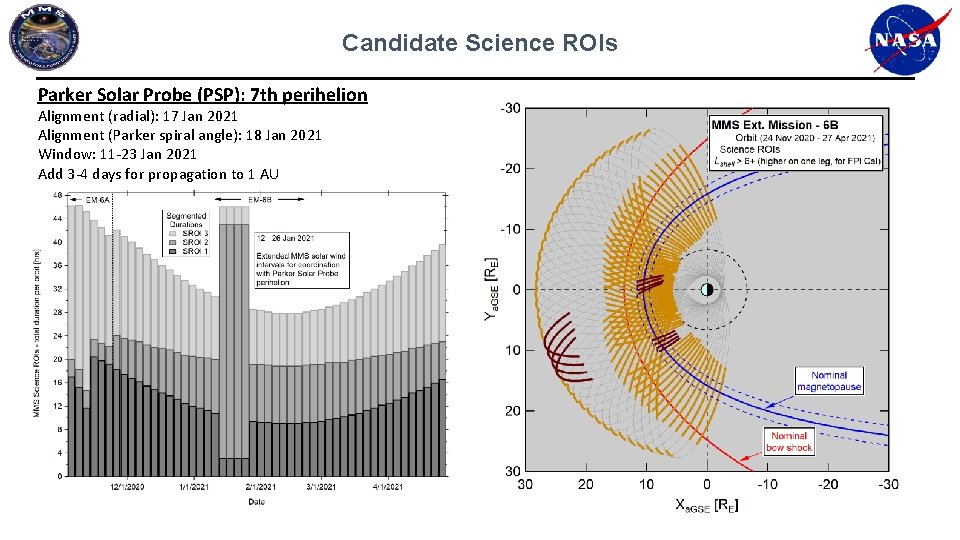

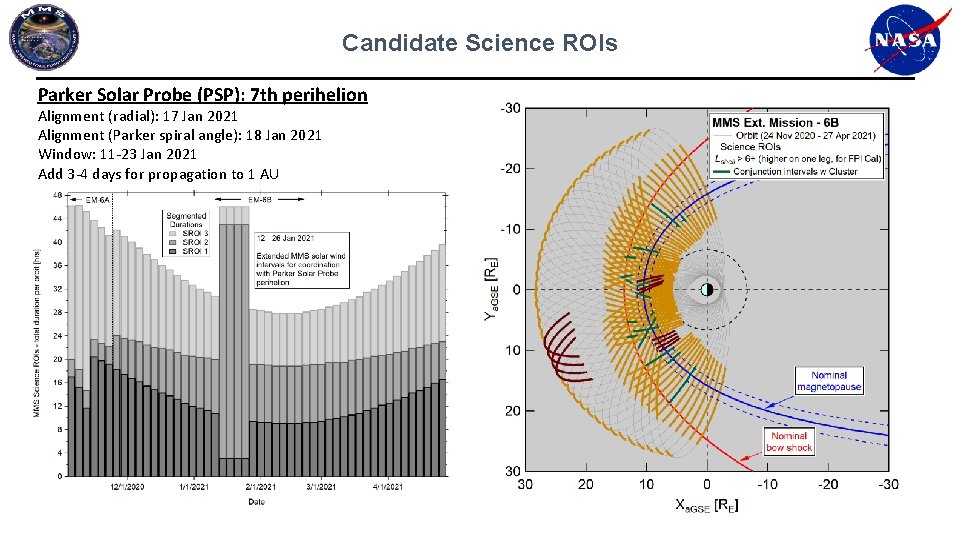

Candidate Science ROIs Parker Solar Probe (PSP): 7 th perihelion Alignment (radial): 17 Jan 2021 Alignment (Parker spiral angle): 18 Jan 2021 Window: 11 -23 Jan 2021 Add 3 -4 days for propagation to 1 AU
Candidate Science ROIs Parker Solar Probe (PSP): 7 th perihelion Alignment (radial): 17 Jan 2021 Alignment (Parker spiral angle): 18 Jan 2021 Window: 11 -23 Jan 2021 Add 3 -4 days for propagation to 1 AU

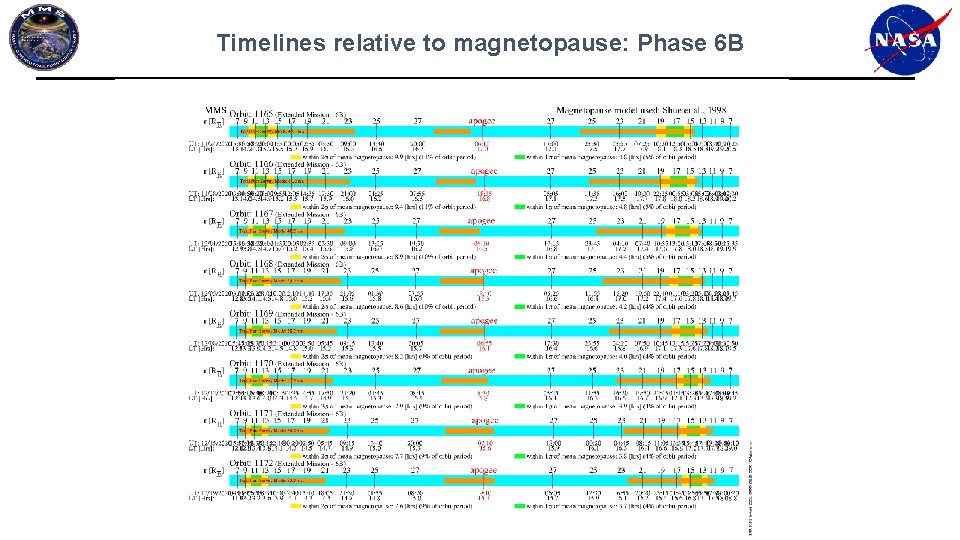

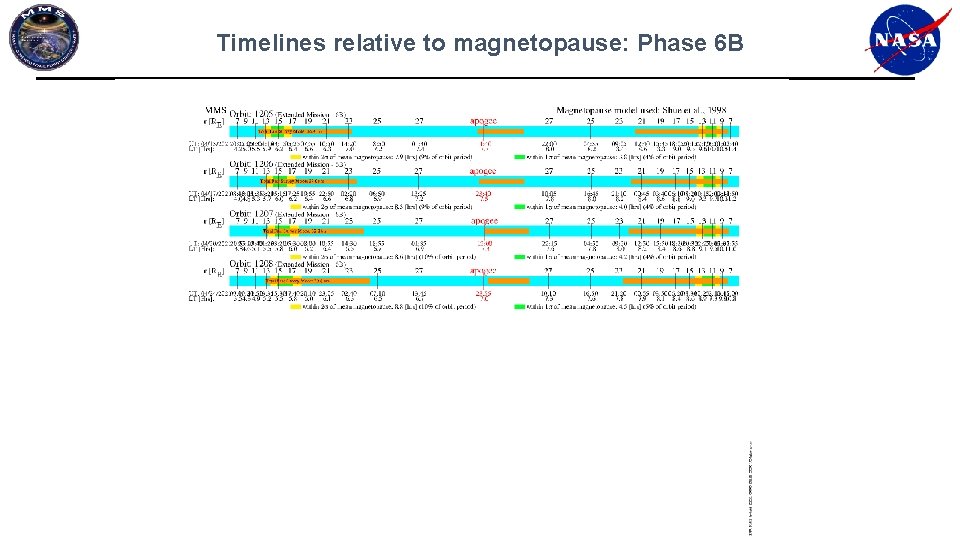

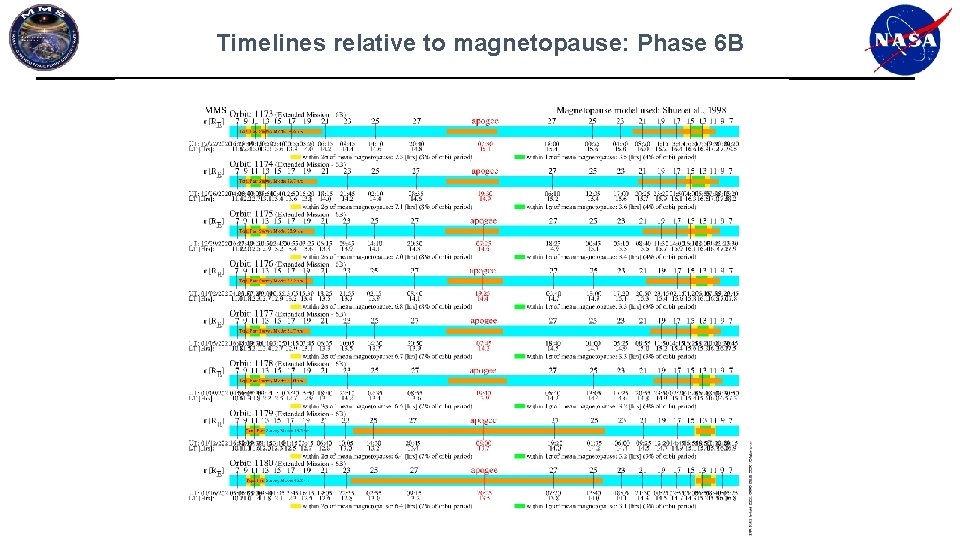

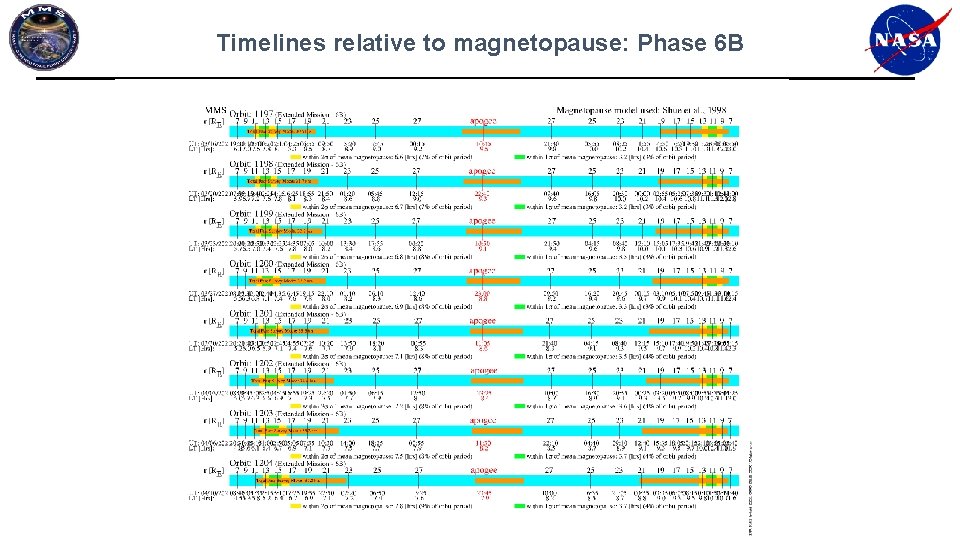

Timelines relative to magnetopause: Phase 6 B
Timelines relative to magnetopause: Phase 6 B
Timelines relative to magnetopause: Phase 6 B
Timelines relative to magnetopause: Phase 6 B
Timelines relative to magnetopause: Phase 6 B
Timelines relative to magnetopause: Phase 6 B

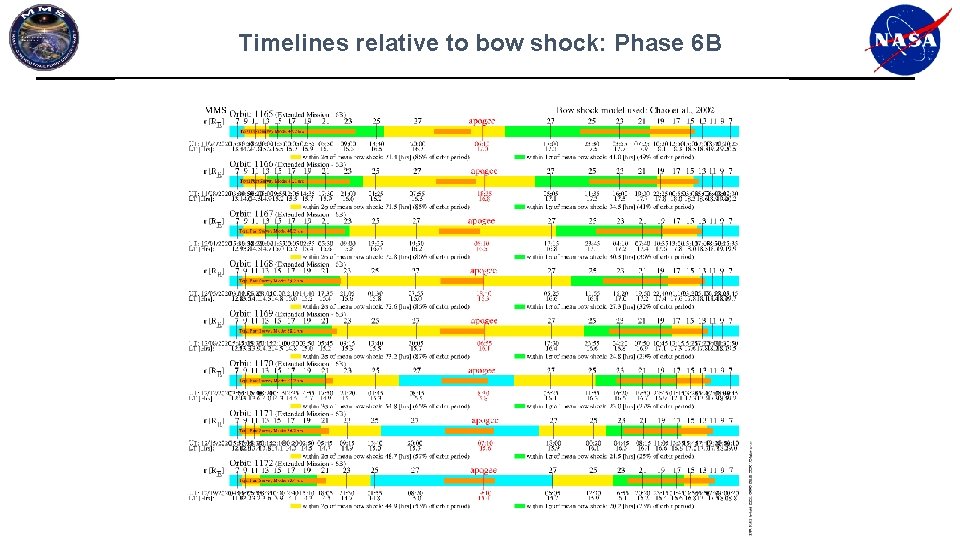

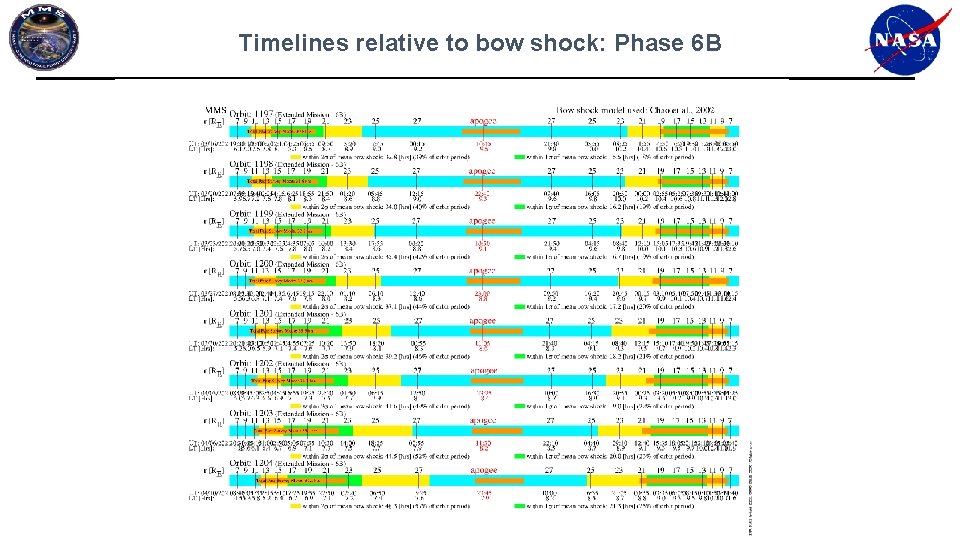

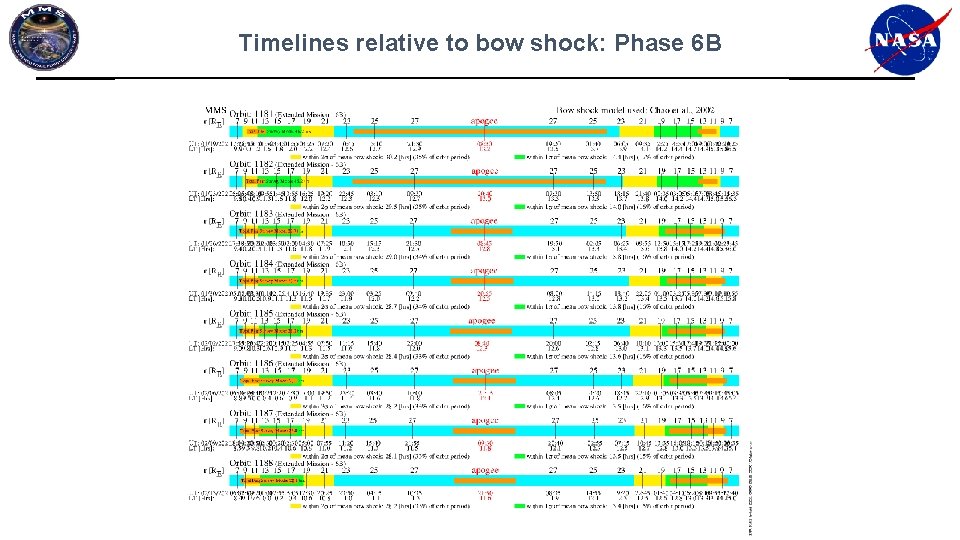

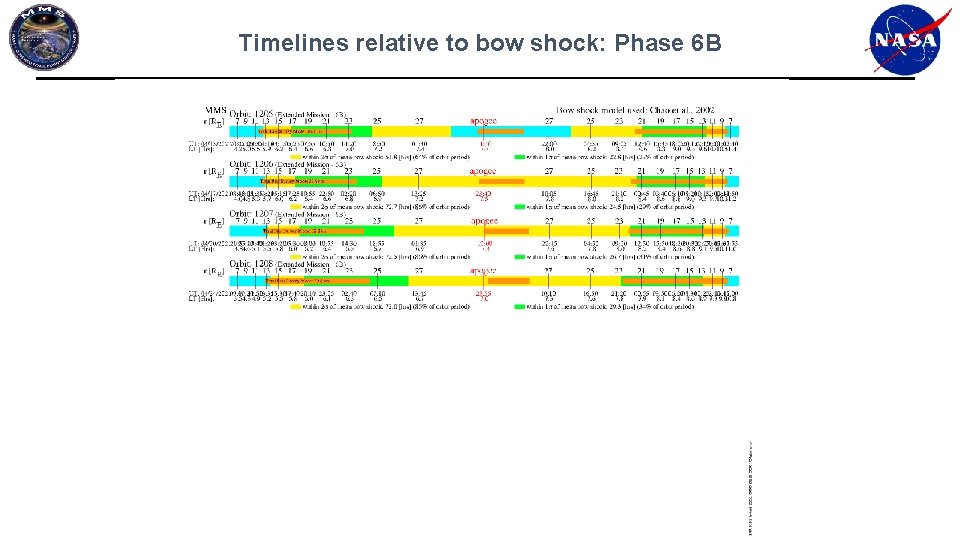

Timelines relative to bow shock: Phase 6 B
Timelines relative to bow shock: Phase 6 B
Timelines relative to bow shock: Phase 6 B
Timelines relative to bow shock: Phase 6 B
Timelines relative to bow shock: Phase 6 B
Timelines relative to bow shock: Phase 6 B
