Exponential Graphs Section 3. 1

Objective Draw Exponential Graphs Draw Logarithmic Graphs Find Compound Interest Find Continuous Interest

Relevance Exponential functions are useful in modeling data that represent quantities that increase or decrease quickly. For example, an exponential function can be used to model the depreciation of a new vehicle.

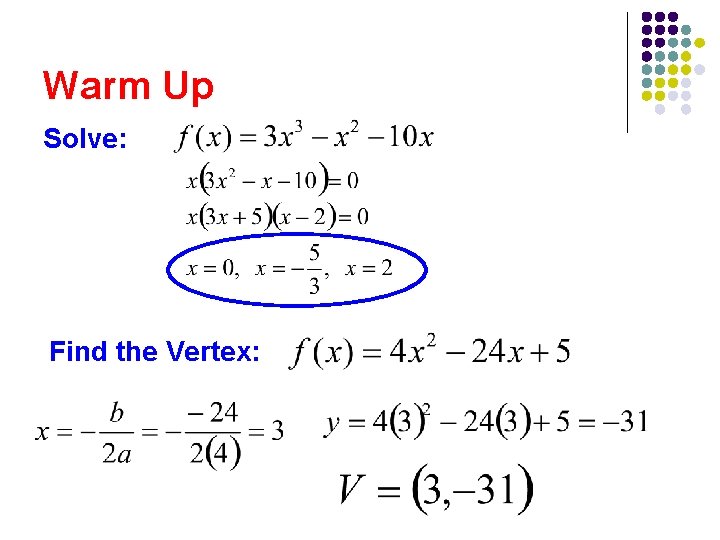

Warm Up Solve: Find the Vertex:

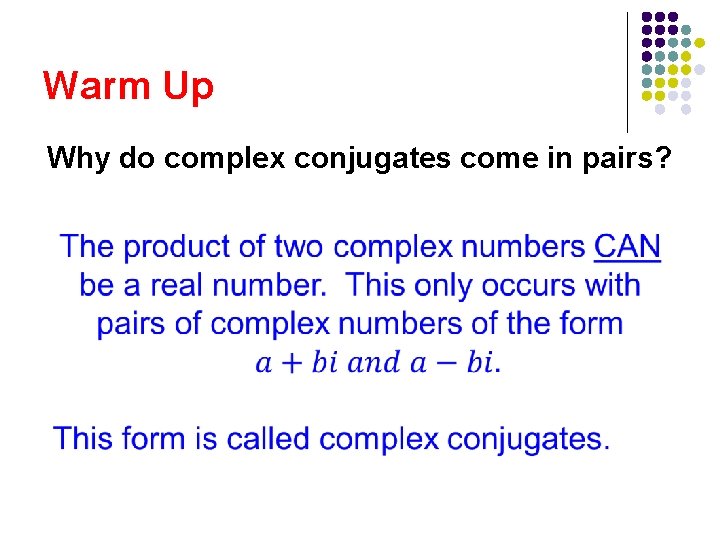

Warm Up Why do complex conjugates come in pairs?

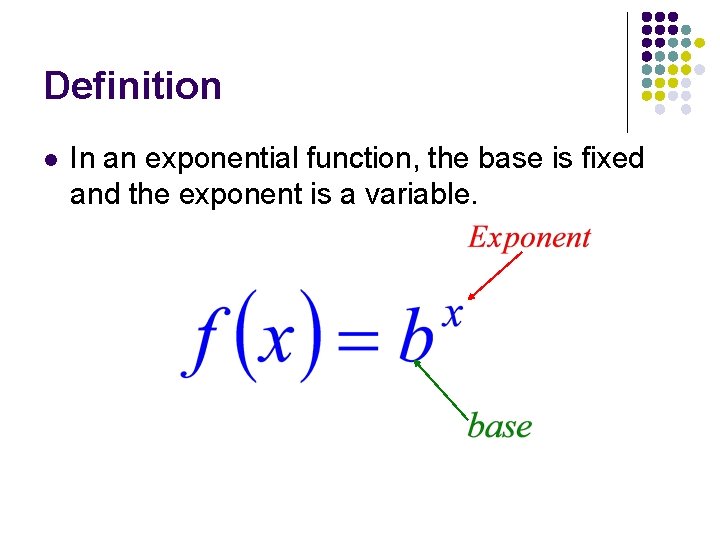

Definition l In an exponential function, the base is fixed and the exponent is a variable.

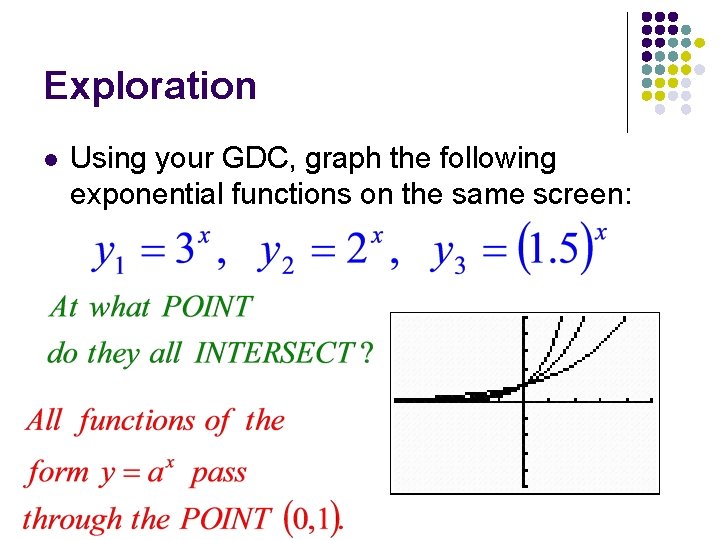

Exploration l Using your GDC, graph the following exponential functions on the same screen:

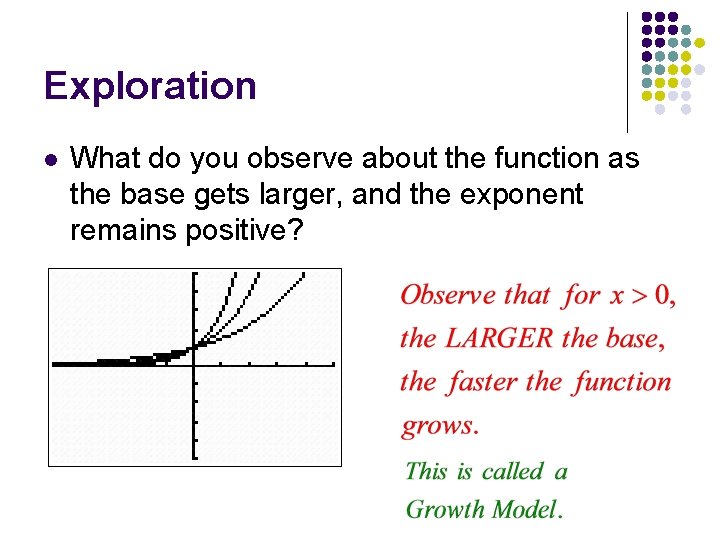

Exploration l What do you observe about the function as the base gets larger, and the exponent remains positive?

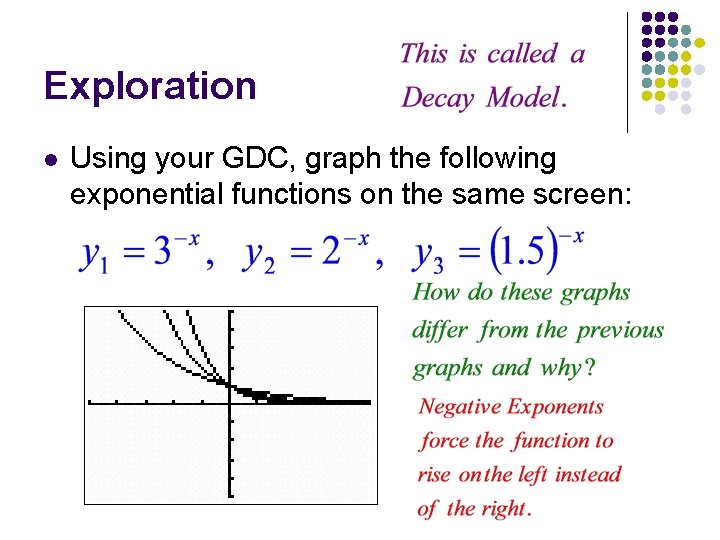

Exploration l Using your GDC, graph the following exponential functions on the same screen:

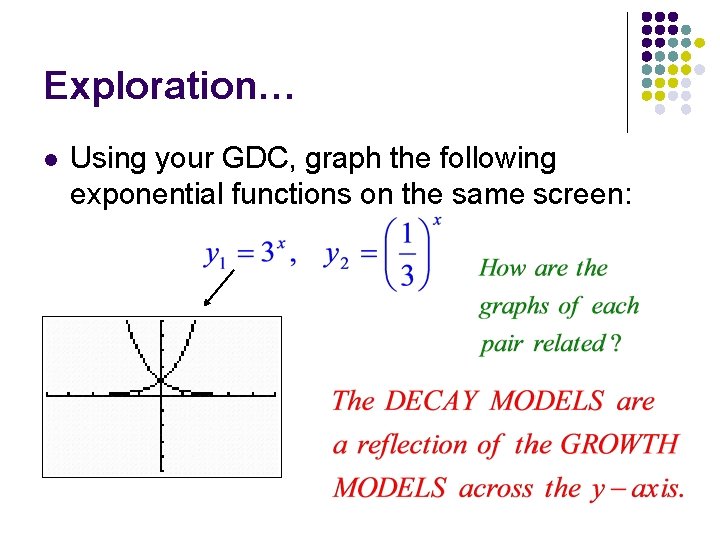

Exploration… l Using your GDC, graph the following exponential functions on the same screen:

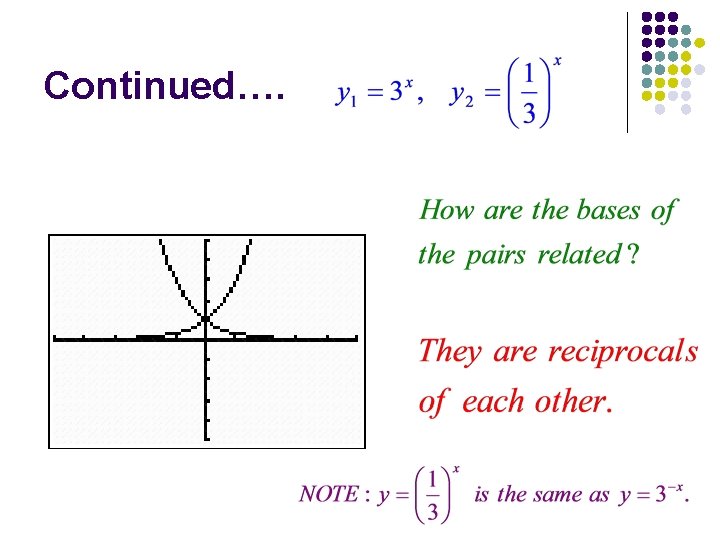

Continued….

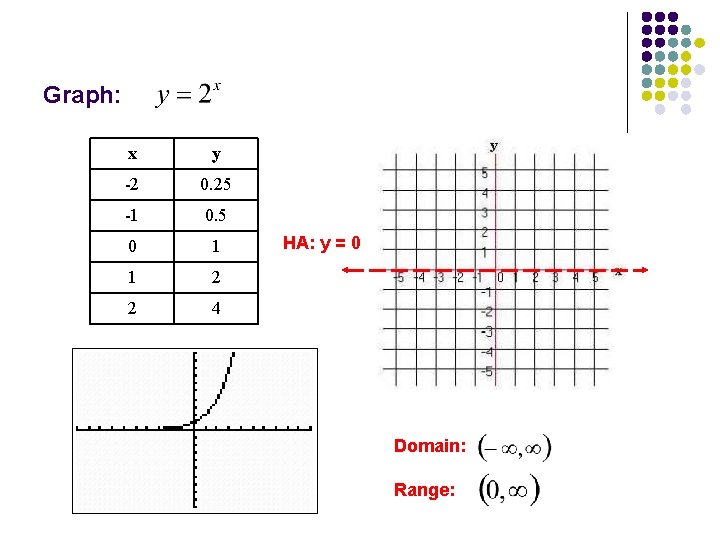

Graph: x y -2 0. 25 -1 0. 5 0 1 1 2 2 4 HA: y = 0 Domain: Range:

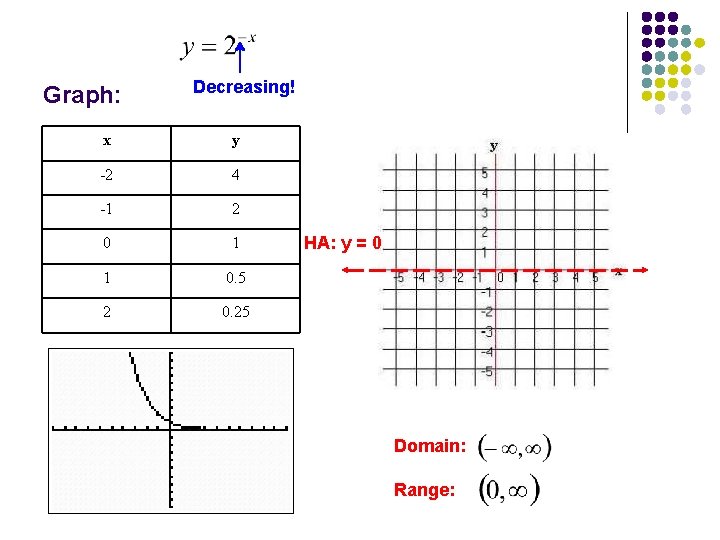

Graph: Decreasing! x y -2 4 -1 2 0 1 1 0. 5 2 0. 25 HA: y = 0 Domain: Range:

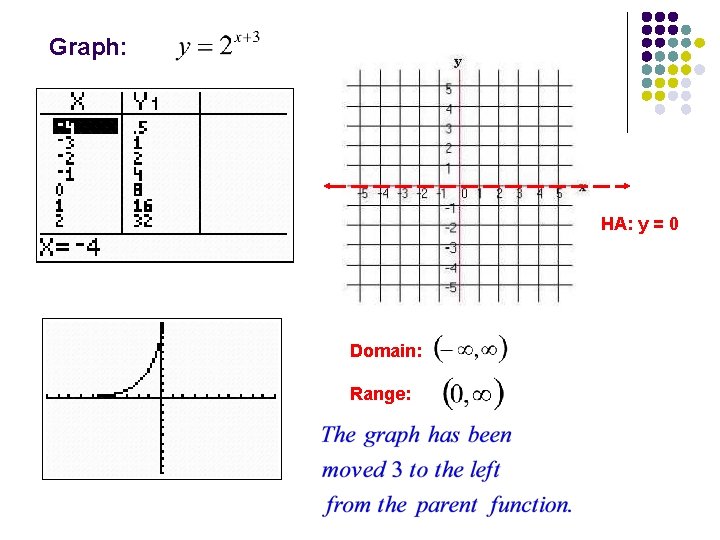

Graph: HA: y = 0 Domain: Range:

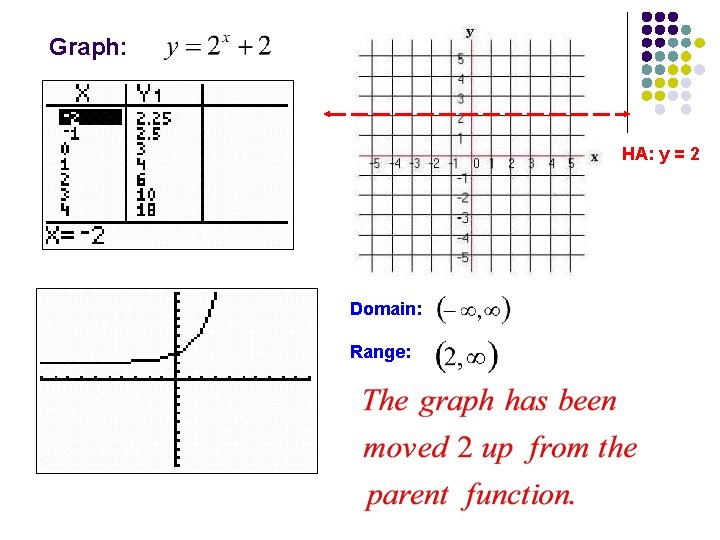

Graph: HA: y = 2 Domain: Range:

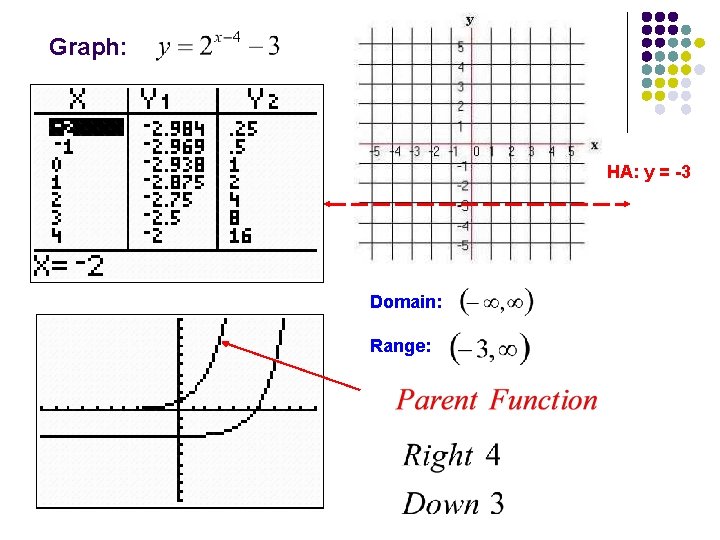

Graph: HA: y = -3 Domain: Range:

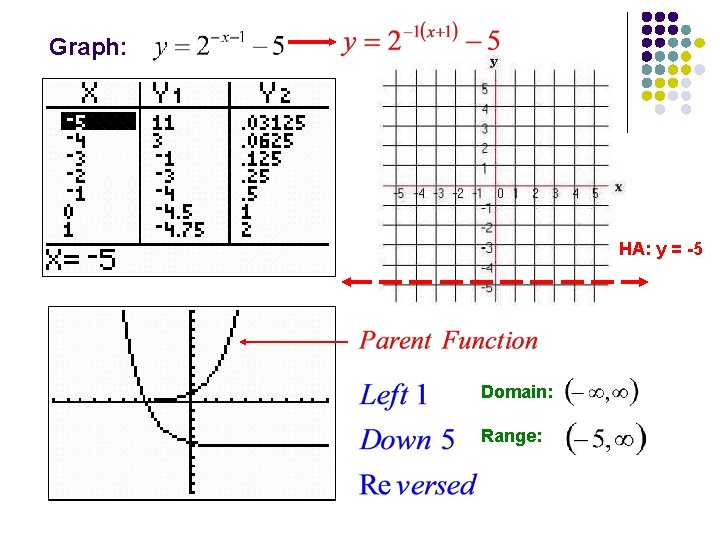

Graph: HA: y = -5 Domain: Range:

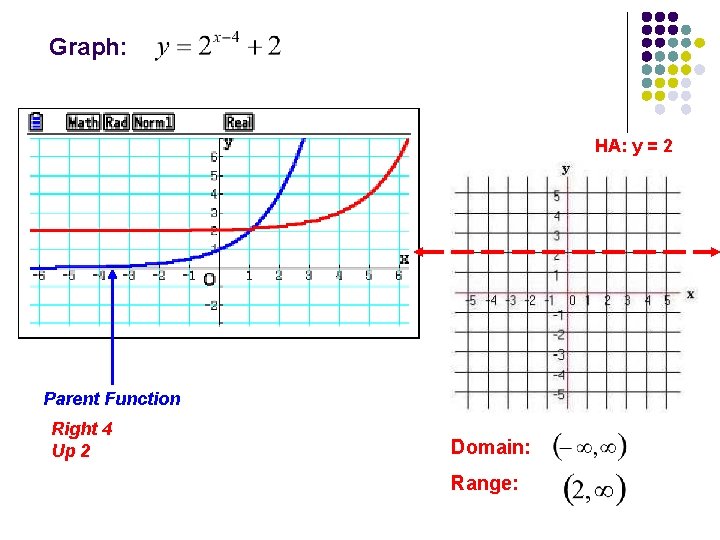

Graph: HA: y = 2 Parent Function Right 4 Up 2 Domain: Range:

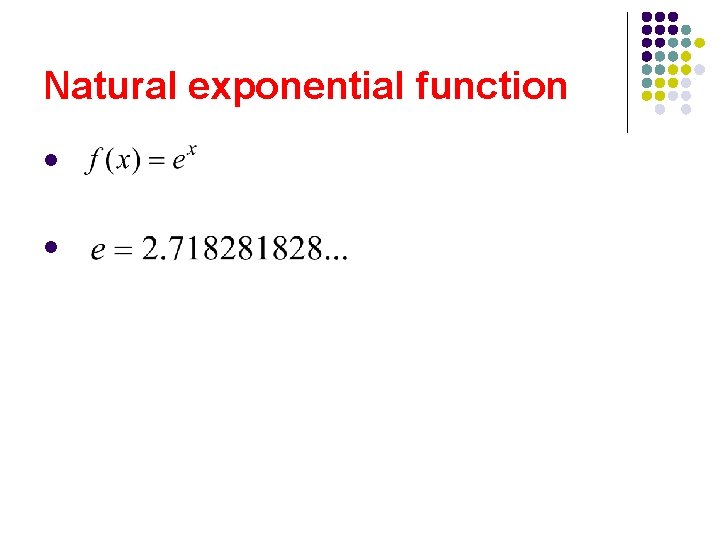

Natural exponential function l l

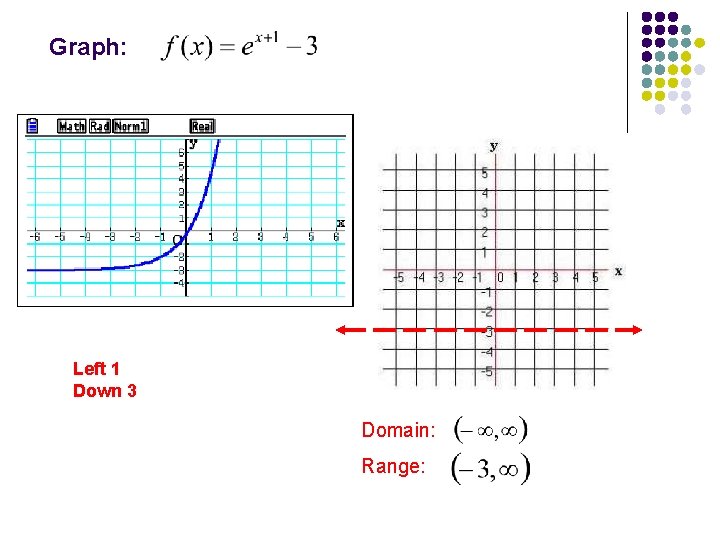

Graph: Left 1 Down 3 Domain: Range:

Compound Interest

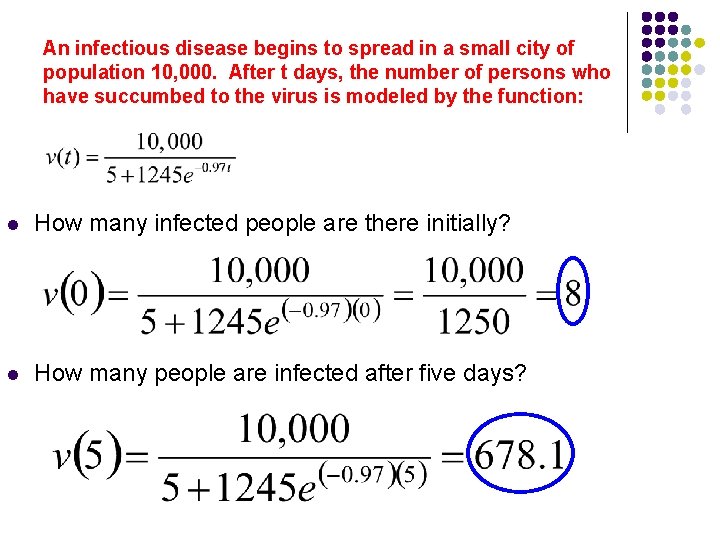

An infectious disease begins to spread in a small city of population 10, 000. After t days, the number of persons who have succumbed to the virus is modeled by the function: l How many infected people are there initially? l How many people are infected after five days?

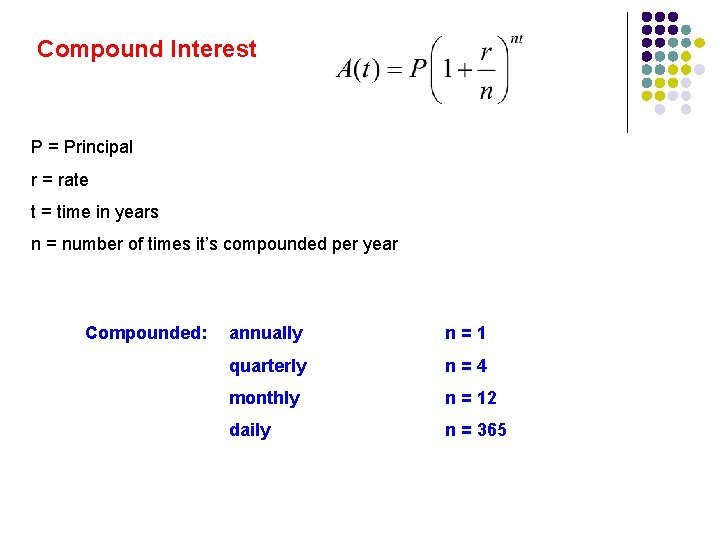

Compound Interest P = Principal r = rate t = time in years n = number of times it’s compounded per year Compounded: annually n=1 quarterly n=4 monthly n = 12 daily n = 365

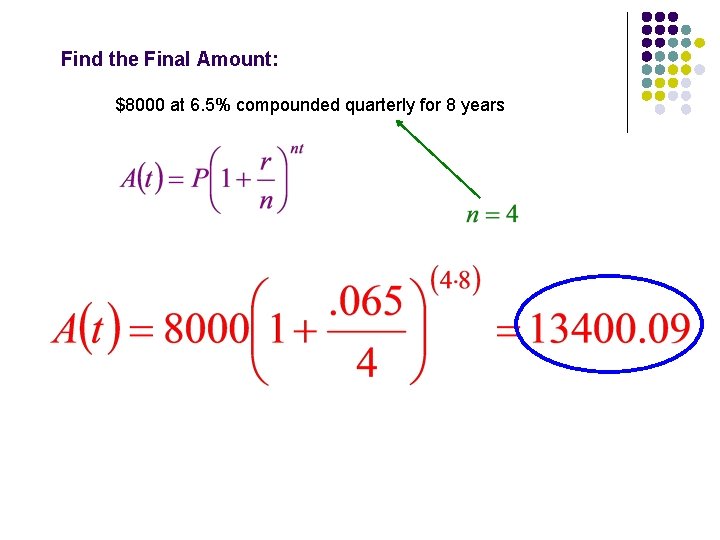

Find the Final Amount: $8000 at 6. 5% compounded quarterly for 8 years

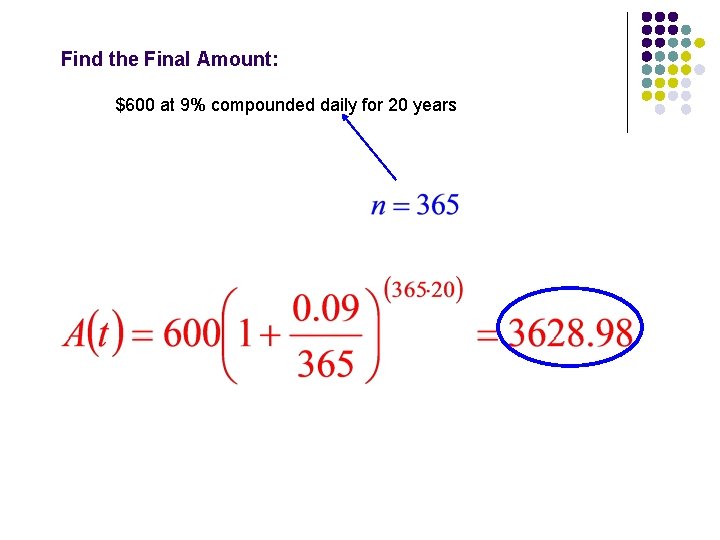

Find the Final Amount: $600 at 9% compounded daily for 20 years

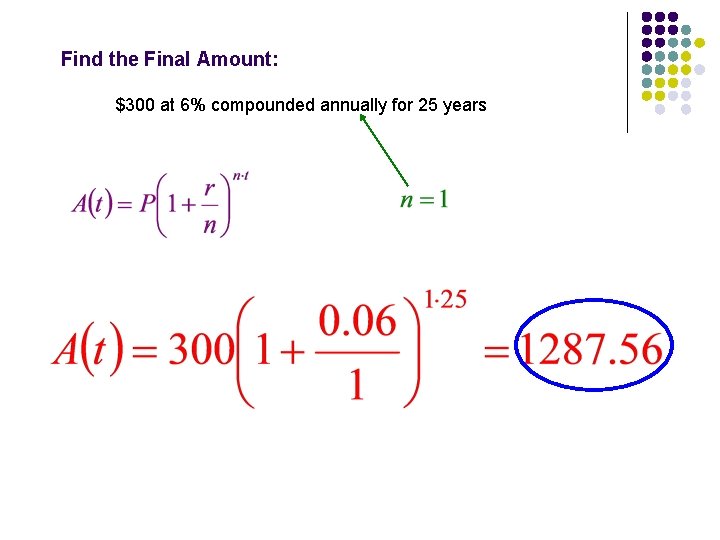

Find the Final Amount: $300 at 6% compounded annually for 25 years

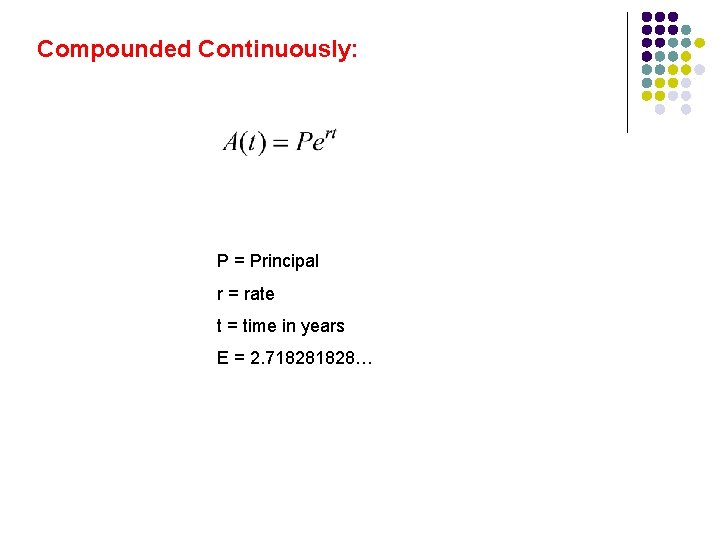

Compounded Continuously: P = Principal r = rate t = time in years E = 2. 71828…

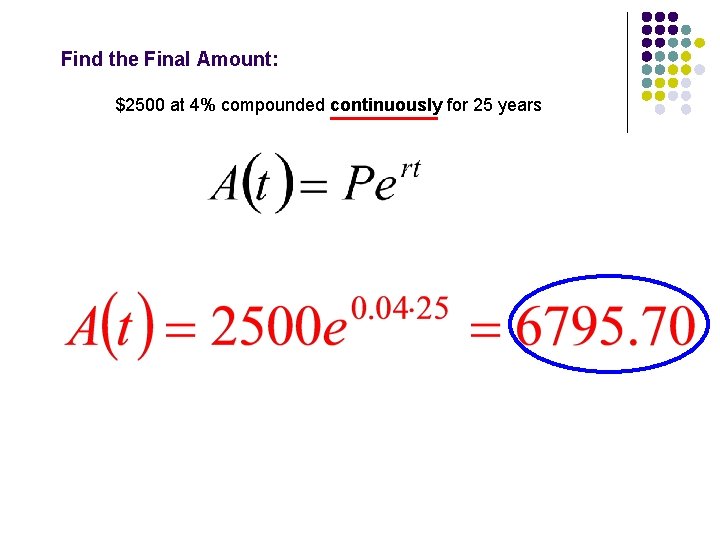

Find the Final Amount: $2500 at 4% compounded continuously for 25 years

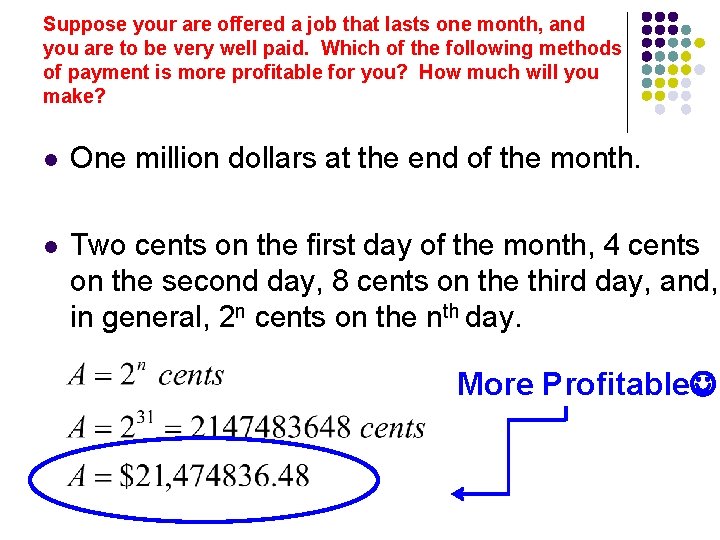

Suppose your are offered a job that lasts one month, and you are to be very well paid. Which of the following methods of payment is more profitable for you? How much will you make? l One million dollars at the end of the month. l Two cents on the first day of the month, 4 cents on the second day, 8 cents on the third day, and, in general, 2 n cents on the nth day. More Profitable
