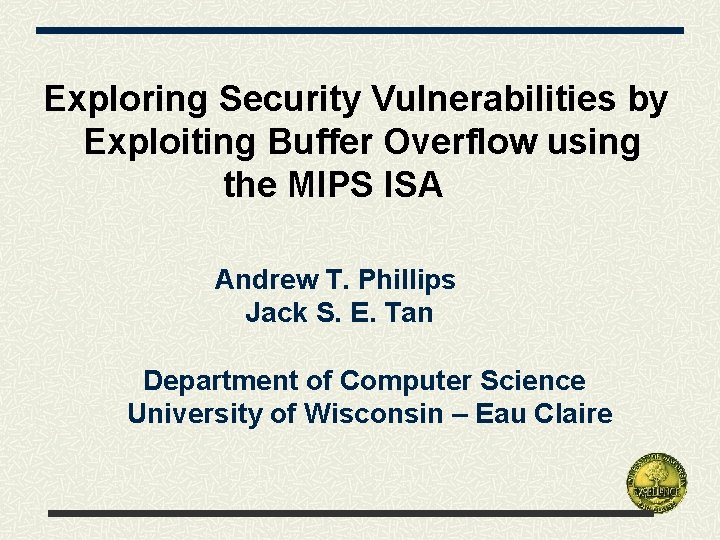

Exploring Security Vulnerabilities by Exploiting Buffer Overflow using the MIPS ISA Andrew T. Phillips Jack S. E. Tan Department of Computer Science University of Wisconsin – Eau Claire

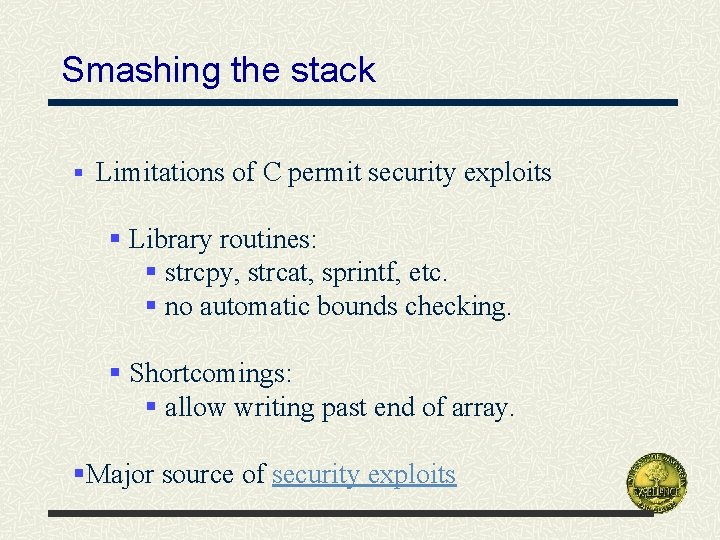

Smashing the stack § Limitations of C permit security exploits § Library routines: § strcpy, strcat, sprintf, etc. § no automatic bounds checking. § Shortcomings: § allow writing past end of array. §Major source of security exploits

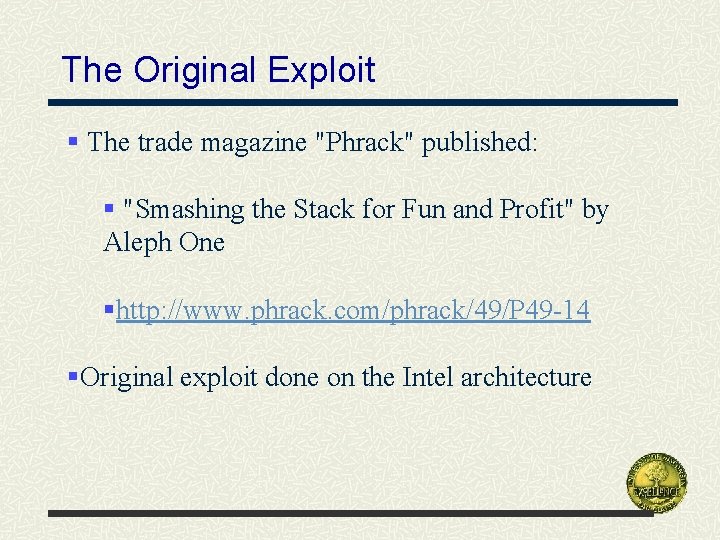

The Original Exploit § The trade magazine "Phrack" published: § "Smashing the Stack for Fun and Profit" by Aleph One §http: //www. phrack. com/phrack/49/P 49 -14 §Original exploit done on the Intel architecture

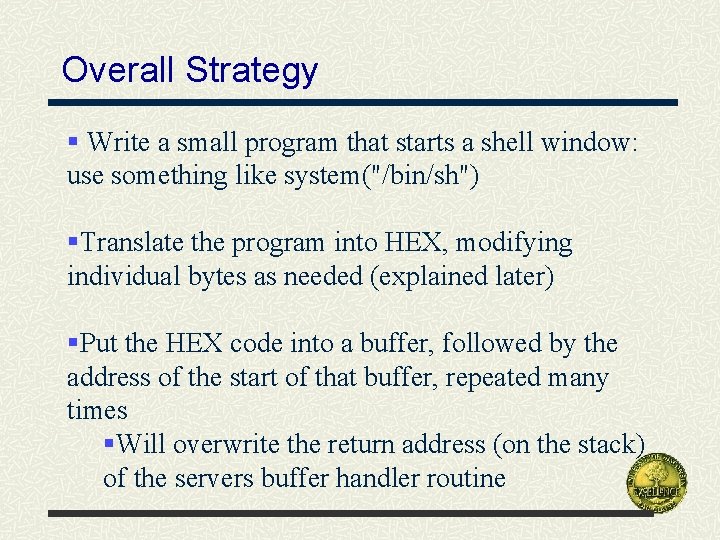

Overall Strategy § Write a small program that starts a shell window: use something like system("/bin/sh") §Translate the program into HEX, modifying individual bytes as needed (explained later) §Put the HEX code into a buffer, followed by the address of the start of that buffer, repeated many times §Will overwrite the return address (on the stack) of the servers buffer handler routine

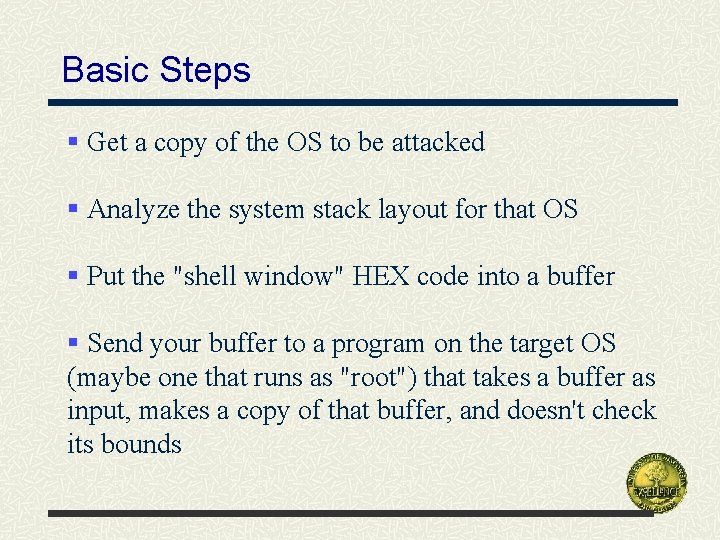

Basic Steps § Get a copy of the OS to be attacked § Analyze the system stack layout for that OS § Put the "shell window" HEX code into a buffer § Send your buffer to a program on the target OS (maybe one that runs as "root") that takes a buffer as input, makes a copy of that buffer, and doesn't check its bounds

Typical MIPS Memory Layout

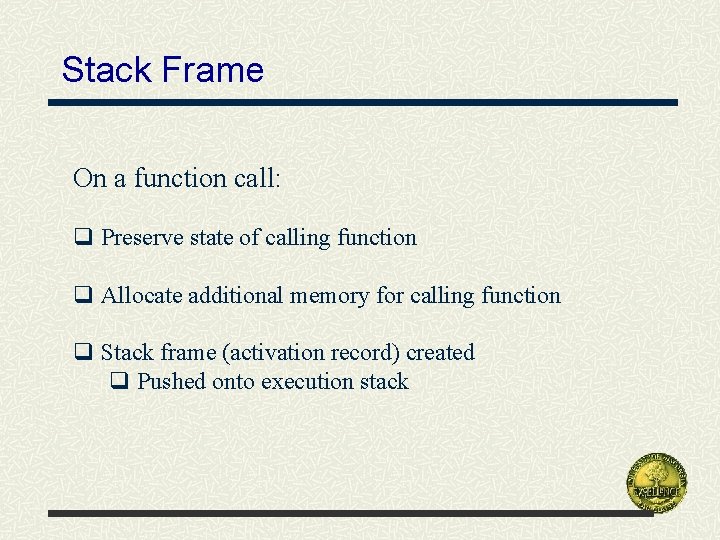

Stack Frame On a function call: q Preserve state of calling function q Allocate additional memory for calling function q Stack frame (activation record) created q Pushed onto execution stack

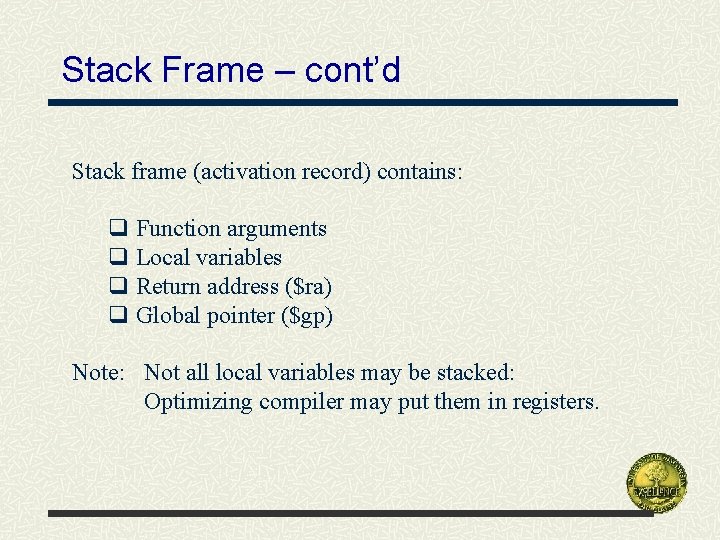

Stack Frame – cont’d Stack frame (activation record) contains: q Function arguments q Local variables q Return address ($ra) q Global pointer ($gp) Note: Not all local variables may be stacked: Optimizing compiler may put them in registers.

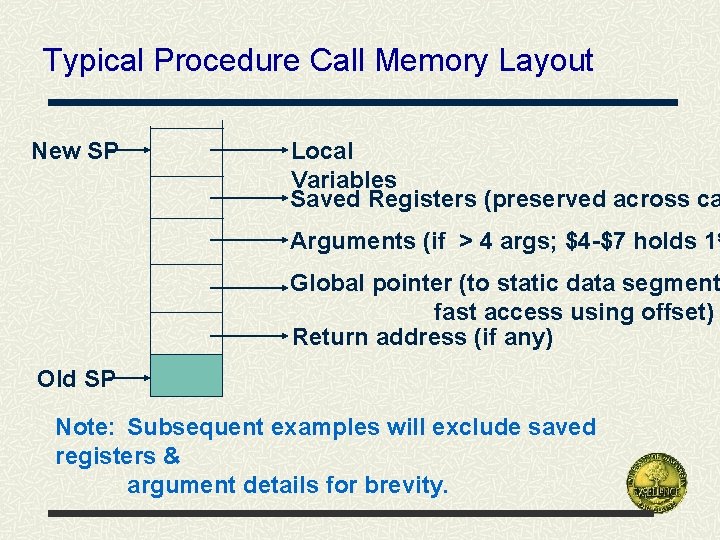

Typical Procedure Call Memory Layout New SP Local Variables Saved Registers (preserved across ca Arguments (if > 4 args; $4 -$7 holds 1 s Global pointer (to static data segment fast access using offset) Return address (if any) Old SP Note: Subsequent examples will exclude saved registers & argument details for brevity.

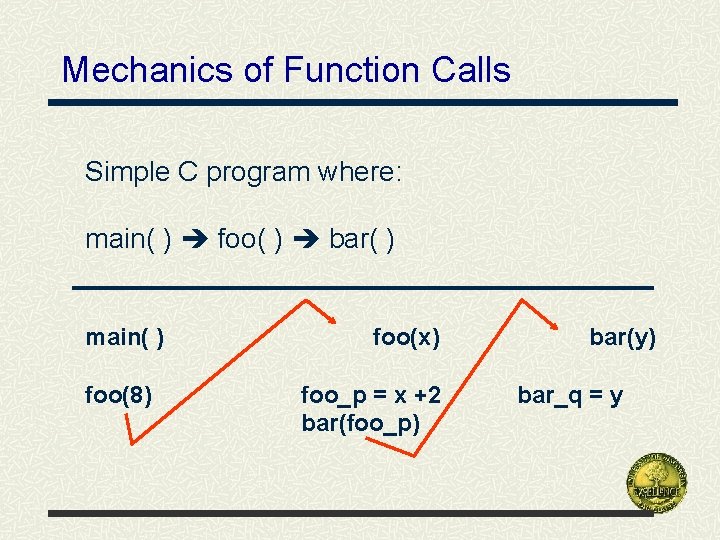

Mechanics of Function Calls Simple C program where: main( ) foo( ) bar( ) main( ) foo(8) foo(x) foo_p = x +2 bar(foo_p) bar(y) bar_q = y

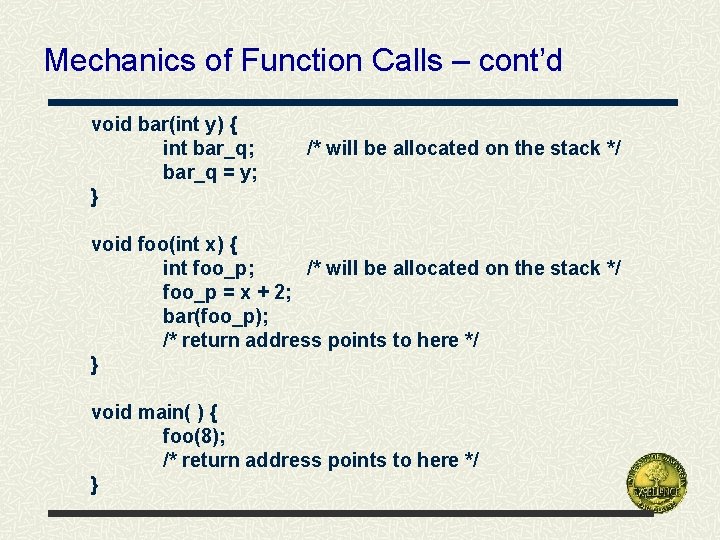

Mechanics of Function Calls – cont’d void bar(int y) { int bar_q; bar_q = y; } /* will be allocated on the stack */ void foo(int x) { int foo_p; /* will be allocated on the stack */ foo_p = x + 2; bar(foo_p); /* return address points to here */ } void main( ) { foo(8); /* return address points to here */ }

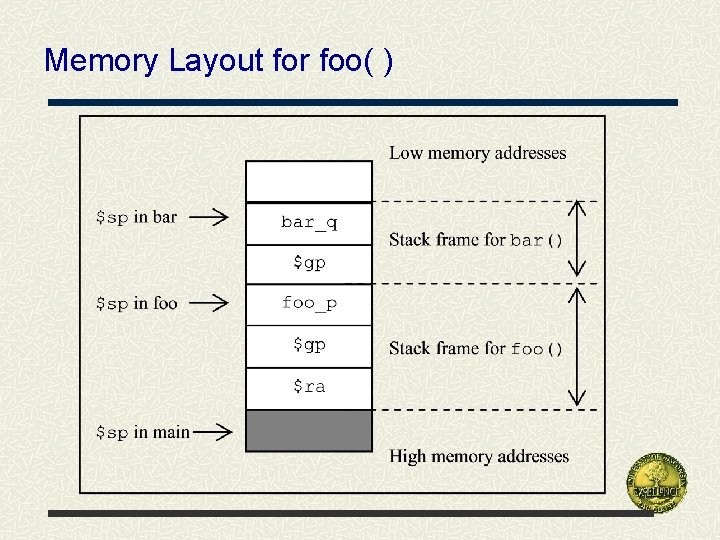

Memory Layout for foo( )

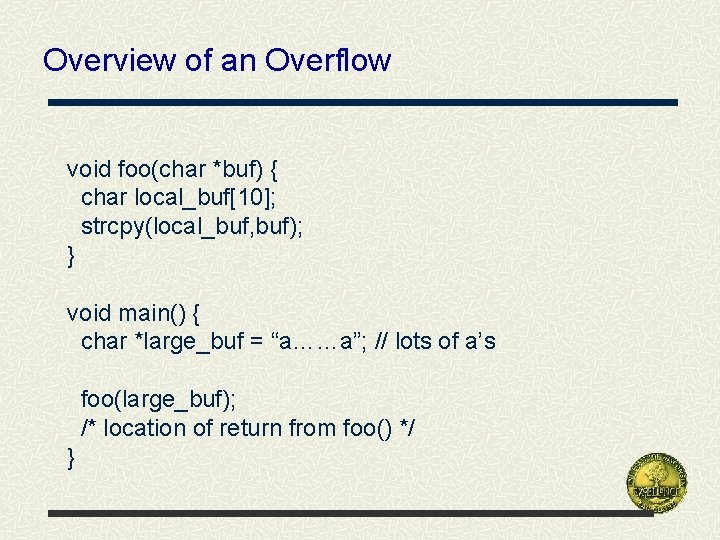

Overview of an Overflow void foo(char *buf) { char local_buf[10]; strcpy(local_buf, buf); } void main() { char *large_buf = “a……a”; // lots of a’s foo(large_buf); /* location of return from foo() */ }

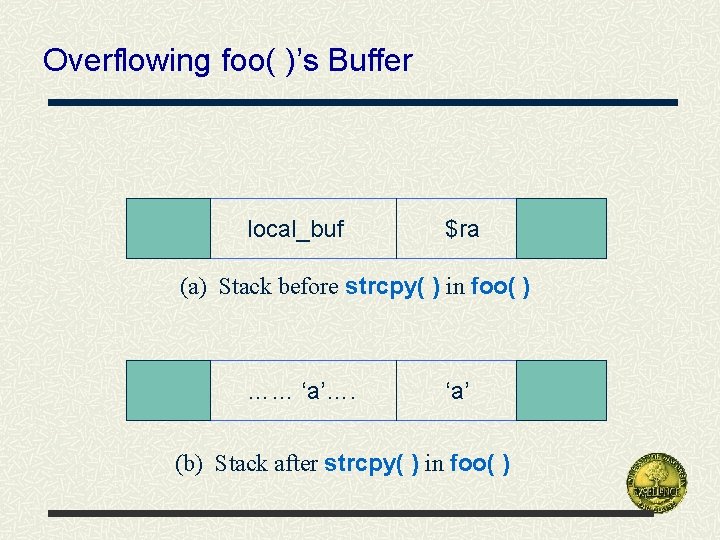

Overflowing foo( )’s Buffer local_buf $ra (a) Stack before strcpy( ) in foo( ) …… ‘a’…. ‘a’ (b) Stack after strcpy( ) in foo( )

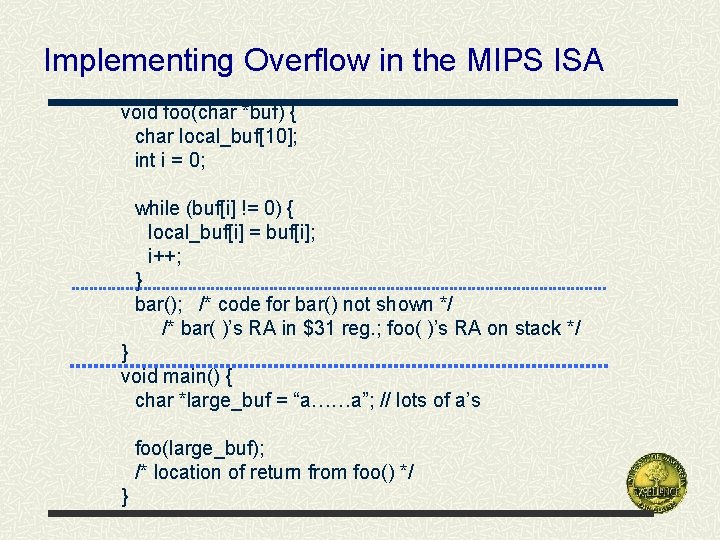

Implementing Overflow in the MIPS ISA void foo(char *buf) { char local_buf[10]; int i = 0; while (buf[i] != 0) { local_buf[i] = buf[i]; i++; } bar(); /* code for bar() not shown */ /* bar( )’s RA in $31 reg. ; foo( )’s RA on stack */ } void main() { char *large_buf = “a……a”; // lots of a’s foo(large_buf); /* location of return from foo() */ }

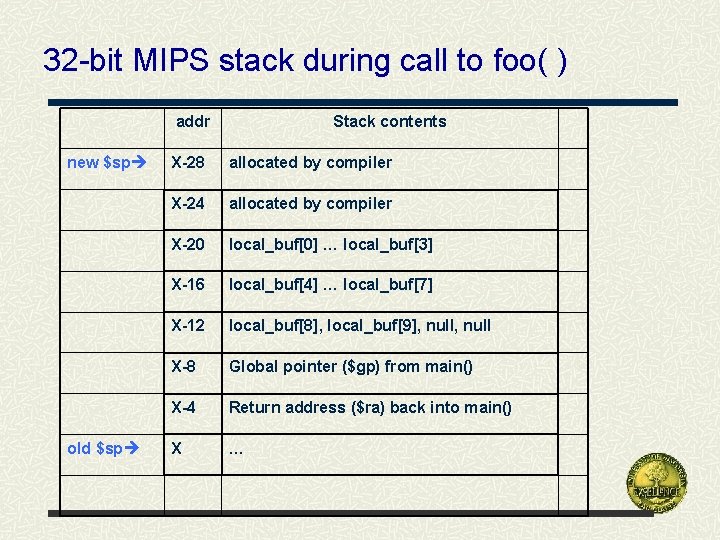

32 -bit MIPS stack during call to foo( ) addr new $sp old $sp Stack contents X-28 allocated by compiler X-24 allocated by compiler X-20 local_buf[0] … local_buf[3] X-16 local_buf[4] … local_buf[7] X-12 local_buf[8], local_buf[9], null X-8 Global pointer ($gp) from main() X-4 Return address ($ra) back into main() X …

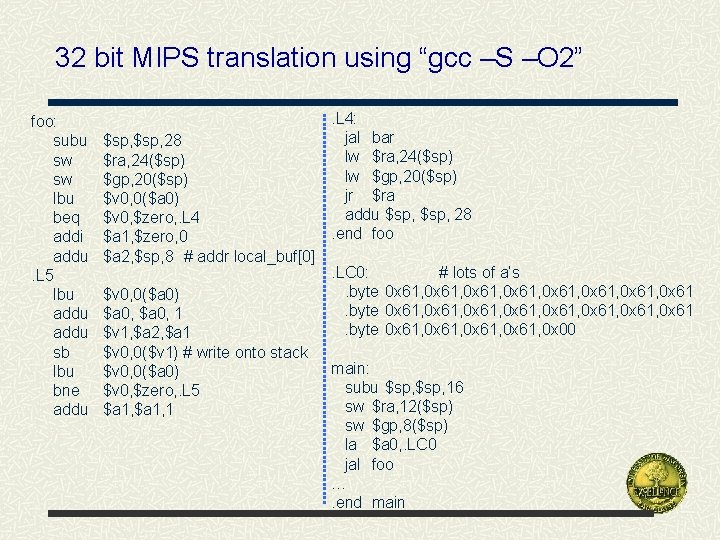

32 bit MIPS translation using “gcc –S –O 2” foo: subu sw sw lbu beq addi addu. L 5 lbu addu sb lbu bne addu $sp, 28 $ra, 24($sp) $gp, 20($sp) $v 0, 0($a 0) $v 0, $zero, . L 4 $a 1, $zero, 0 $a 2, $sp, 8 # addr local_buf[0] $v 0, 0($a 0) $a 0, 1 $v 1, $a 2, $a 1 $v 0, 0($v 1) # write onto stack $v 0, 0($a 0) $v 0, $zero, . L 5 $a 1, 1 . L 4: jal bar lw $ra, 24($sp) lw $gp, 20($sp) jr $ra addu $sp, 28. end foo. LC 0: # lots of a’s. byte 0 x 61, 0 x 61, 0 x 61, 0 x 61, 0 x 61. byte 0 x 61, 0 x 00 main: subu $sp, 16 sw $ra, 12($sp) sw $gp, 8($sp) la $a 0, . LC 0 jal foo …. end main

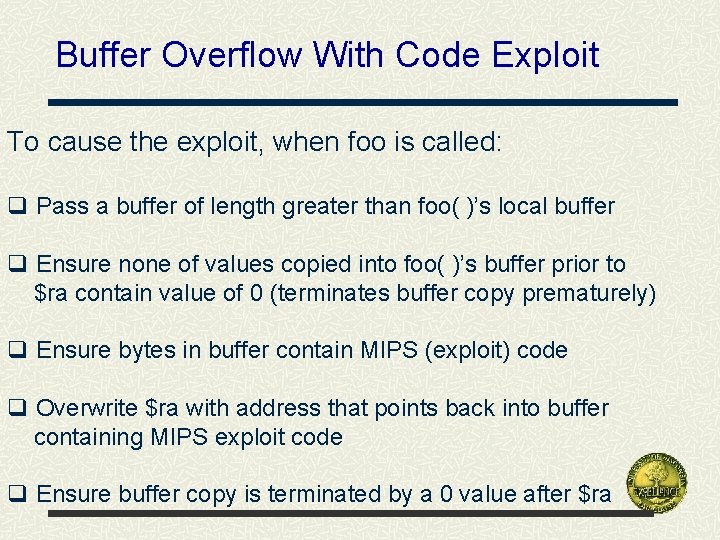

Buffer Overflow With Code Exploit To cause the exploit, when foo is called: q Pass a buffer of length greater than foo( )’s local buffer q Ensure none of values copied into foo( )’s buffer prior to $ra contain value of 0 (terminates buffer copy prematurely) q Ensure bytes in buffer contain MIPS (exploit) code q Overwrite $ra with address that points back into buffer containing MIPS exploit code q Ensure buffer copy is terminated by a 0 value after $ra

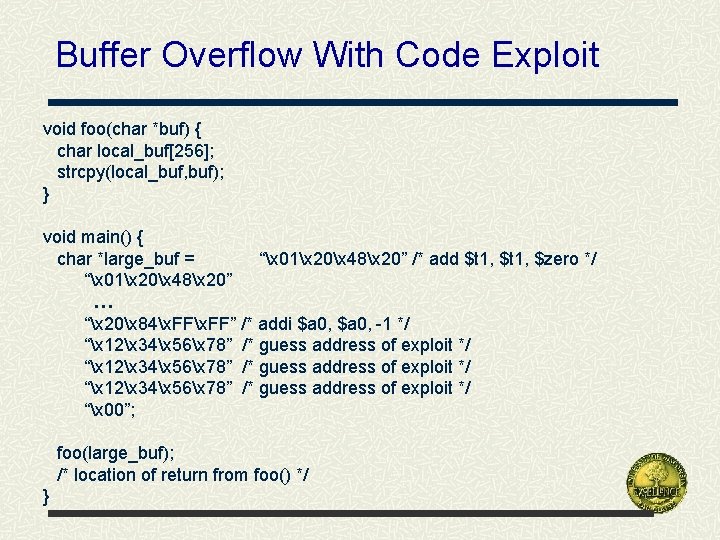

Buffer Overflow With Code Exploit void foo(char *buf) { char local_buf[256]; strcpy(local_buf, buf); } void main() { char *large_buf = “x 01x 20x 48x 20” /* add $t 1, $zero */ “x 01x 20x 48x 20” … “x 20x 84x. FF” /* addi $a 0, -1 */ “x 12x 34x 56x 78” /* guess address of exploit */ “x 00”; foo(large_buf); /* location of return from foo() */ }

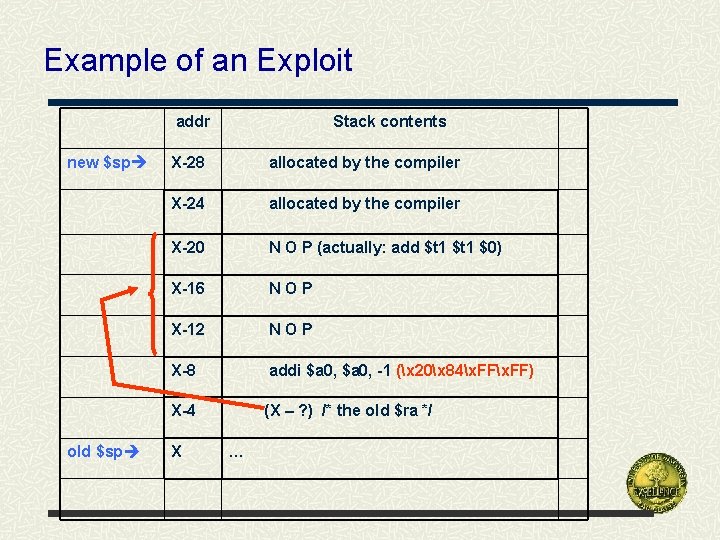

Example of an Exploit addr new $sp old $sp Stack contents X-28 allocated by the compiler X-24 allocated by the compiler X-20 N O P (actually: add $t 1 $0) X-16 NOP X-12 NOP X-8 addi $a 0, -1 (x 20x 84x. FF) X-4 (X – ? ) /* the old $ra */ X …

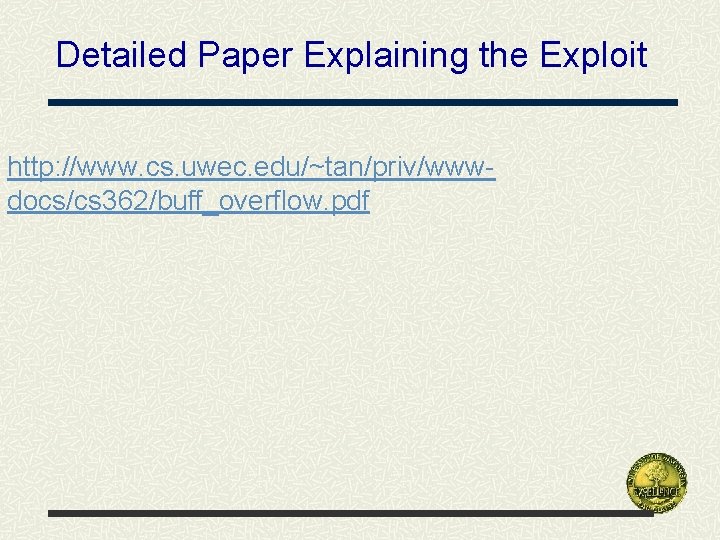

Detailed Paper Explaining the Exploit http: //www. cs. uwec. edu/~tan/priv/wwwdocs/cs 362/buff_overflow. pdf
