Exploring Microsoft Excel 2016 Series Editor Mary Anne

Exploring Microsoft® Excel® 2016 Series Editor Mary Anne Poatsy Mulbery|Davidson Series Created by Dr. Robert T. Grauer

Chapter 8 Statistical Functions Analyzing Statistics Copyright © 2017 Pearson Education, Inc.

Objectives • Use Conditional Math and Statistical Functions • Calculate Relative Standing with Statistical Functions • Measure Central Tendency • Load the Analysis Tool. Pak • Perform Analysis Using the Analysis Toolpak • Create a Forecast Sheet Copyright © 2017 Pearson Education, Inc.

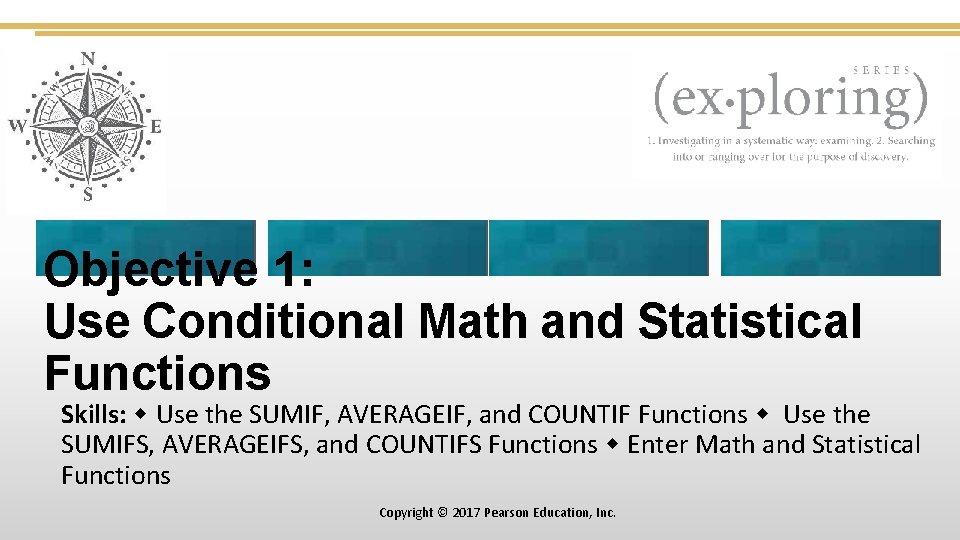

Objective 1: Use Conditional Math and Statistical Functions Skills: Use the SUMIF, AVERAGEIF, and COUNTIF Functions Use the SUMIFS, AVERAGEIFS, and COUNTIFS Functions Enter Math and Statistical Functions Copyright © 2017 Pearson Education, Inc.

Use Conditional Math and Statistical Functions • Excel Math and Statistical functions: §SUMIF—calculates the total of a range of values when a specified condition is met =SUMIFS(sum_range, criteria_range 1, criteria_range 2, criteria 2…) §AVERAGEIF—calculates the average of a range when a specified condition is met =AVERAGEIFS(average_range, criteria_range 1, criteria_range 2, criteria 2… ) §COUNTIF—counts the number of cells in a range when a specified condition is met =COUNTIFS(criteria_range 1, criteria_range 2, criteria 2…) Copyright © 2017 Pearson Education, Inc.

Use Conditional Math and Statistical Functions • Excel Math and Statistical functions: §SUMIFS—calculates the total value of cells in a range that meet multiple criteria =SUMIFS(sum_range, criteria_range 1, criteria_range 2, criteria 2…) §AVERAGEIFS—calculates the average value of a range that meet multiple criteria =AVERAGEIFS(average_range, criteria_range 1, criteria_range 2, criteria 2…) §COUNTIFS—counts the number in a range that meet multiple criteria =COUNTIFS(criteria_range 1, criteria_range 2, criteria 2…) Copyright © 2017 Pearson Education, Inc.

Use Conditional Math and Statistical Functions Copyright © 2017 Pearson Education, Inc.

Objective 2: Calculate Relative Standing with Statistical Functions Skills: Use the RANK and PERCENTRANK Functions Use the QUARTILE and PERCENTILE Functions Copyright © 2017 Pearson Education, Inc.

Calculate Relative Standing with Statistical Functions • Excel ranking functions: §RANK. EQ—identifies a value’s rank omitting the next rank when tie values exist =RANK. EQ(number, ref, [order]) §RANK. AVG—identifies the rank of a value but assigns an average rank when identical values exist =RANK. AVG(number, ref, [order]) Copyright © 2017 Pearson Education, Inc.

Calculate Relative Standing with Statistical Functions Same Salary RANK. AVG RANK. EQ Copyright © 2017 Pearson Education, Inc.

Calculate Relative Standing with Statistical Functions • Excel ranking functions: §PERCENTRANK. INC—displays a value’s rank as a percentile of the range, where values range from 0 to 1 inclusive =PERCENTRANK. INC(array, x, [significance]) §PERCENTRANK. EXC—displays a value’s rank as a percentile of the range, where values range from 0 to 1 exclusive =PERCENTRANK. EXC(array, x, [significance]) Copyright © 2017 Pearson Education, Inc.

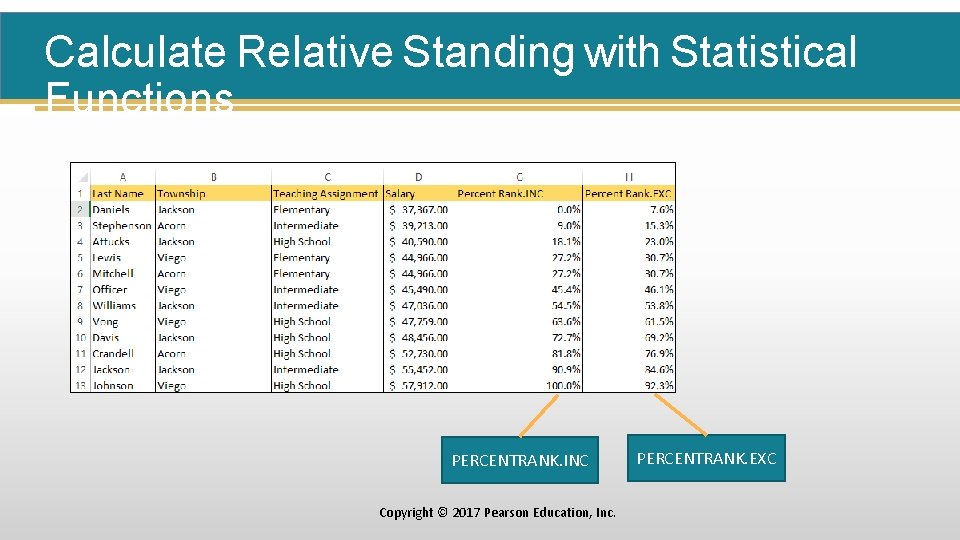

Calculate Relative Standing with Statistical Functions PERCENTRANK. INC Copyright © 2017 Pearson Education, Inc. PERCENTRANK. EXC

Calculate Relative Standing with Statistical Functions • Excel ranking functions: §QUARTILE. INC—identifies the value at a specific quartile including 0 and 4 =QUARTILE. INC(array, quart) §QUARTILE. EXC—identifies the value at a specific quartile excluding 0 and 4 =QUARTILE. EXC(array, quart) Copyright © 2017 Pearson Education, Inc.

Calculate Relative Standing with Statistical Functions QUARTILE. EXC QUARTILE. INC Copyright © 2017 Pearson Education, Inc.

Calculate Relative Standing with Statistical Functions • Excel ranking functions: §PERCENTILE. INC—identifies the value at a specific percentile including 0 and 1 =PERCENTILE. INC(array, k) §PERCENTILE. EXC—identifies the value at a specific percentile excluding 0 and 1 =PERCENTILE. EXC(array, k) Copyright © 2017 Pearson Education, Inc.

Calculate Relative Standing with Statistical Functions PERCENTILE. EXC PERCENTILE. INC Copyright © 2017 Pearson Education, Inc.

Objective 3: Measure Central Tendency Skills: Use the Standard Deviation Function Use the Variance Function Use the CORREL Function Use the FREQUENCY Function Copyright © 2017 Pearson Education, Inc.

Measure Central Tendency • Statistical groups: • Population—dataset that contains all the data • Sample—smaller portion of the population §Central tendency functions: • Variance—measures a dataset’s dispersion • Standard deviation—measures of how far the data sample is spread around the mean Copyright © 2017 Pearson Education, Inc.

Measure Central Tendency • Standard deviations functions: §STDEV. P—calculates the standard deviation based on the population =STDEV. P(number 1, number 2) §STDEV. S—calculates the standard deviation based on a sample =STDEV. S(number 1, number 2) Copyright © 2017 Pearson Education, Inc.

Measure Central Tendency • Variance functions: §VAR. P—calculates the variance based on the population =STDEV. P(number 1, number 2) §VAR. S—calculates the variance based on a sample =STDEV. S(number 1, number 2) Copyright © 2017 Pearson Education, Inc.

Measure Central Tendency STDEV. S VAR. S Copyright © 2017 Pearson Education, Inc.

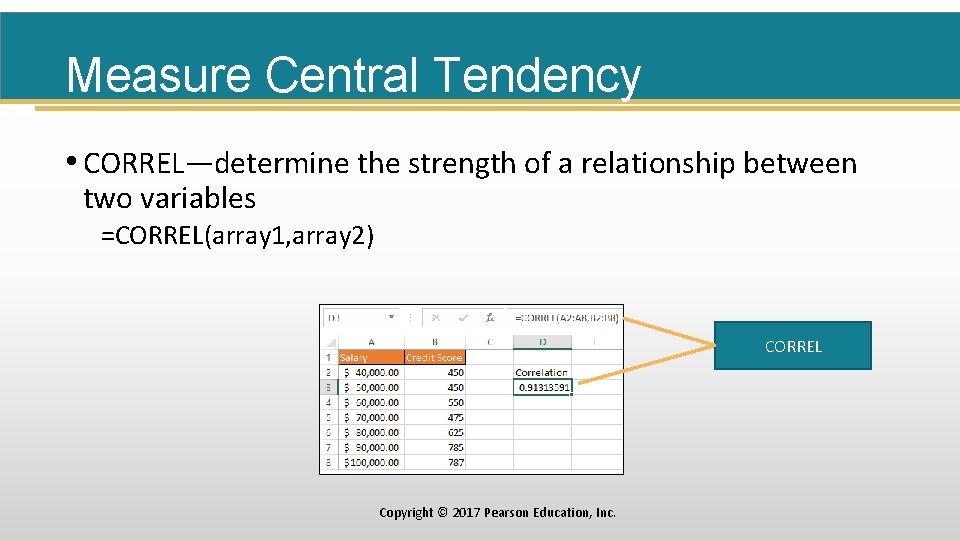

Measure Central Tendency • CORREL—determine the strength of a relationship between two variables =CORREL(array 1, array 2) CORREL Copyright © 2017 Pearson Education, Inc.

Measure Central Tendency • FREQUENCY—determine the frequency distribution of a dataset =FREQUENCY(data_array, bins_array) FREQUENCY Copyright © 2017 Pearson Education, Inc.

Objective 4: Load the Analysis Tool. Pak Skills: Load the Analysis Tool. Pak Copyright © 2017 Pearson Education, Inc.

Load the Analysis Tool. Pak Data Analysis Add -in added to Ribbon Select Analysis Tookpak Add-in Copyright © 2017 Pearson Education, Inc.

Objective 5: Perform Analysis Using the Analysis Tool. Pak Skills: Perform Analysis of Variance (ANOVA) Calculate COVARIANCE Create a Histogram Copyright © 2017 Pearson Education, Inc.

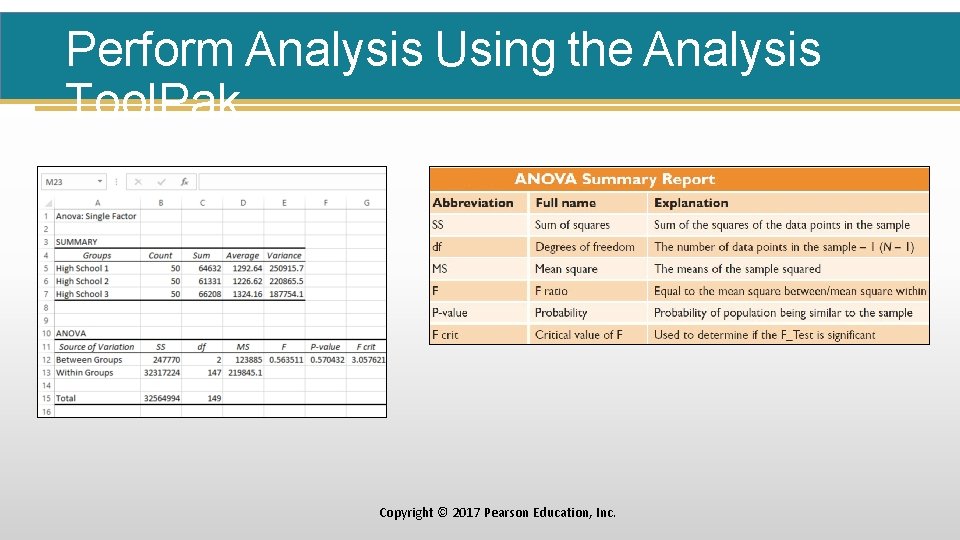

Perform Analysis Using the Analysis Tool. Pak Copyright © 2017 Pearson Education, Inc.

Perform Analysis Using the Analysis Tool. Pak -1484. 57 Copyright © 2017 Pearson Education, Inc.

Perform Analysis Using the Analysis Tool. Pak Copyright © 2017 Pearson Education, Inc.

Objective 6: Create a Forecast Sheet Skills: Create a Forecast Sheet Copyright © 2017 Pearson Education, Inc.

Create a Forecast Sheet Forecast sheet Copyright © 2017 Pearson Education, Inc.

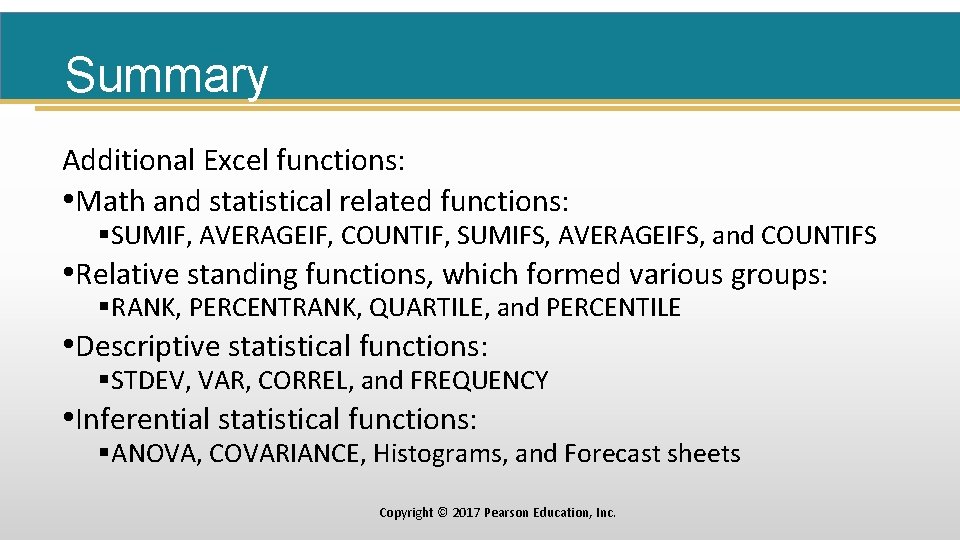

Summary Additional Excel functions: • Math and statistical related functions: §SUMIF, AVERAGEIF, COUNTIF, SUMIFS, AVERAGEIFS, and COUNTIFS • Relative standing functions, which formed various groups: §RANK, PERCENTRANK, QUARTILE, and PERCENTILE • Descriptive statistical functions: §STDEV, VAR, CORREL, and FREQUENCY • Inferential statistical functions: §ANOVA, COVARIANCE, Histograms, and Forecast sheets Copyright © 2017 Pearson Education, Inc.

Questions ? Copyright © 2017 Pearson Education, Inc.
