Exploring Microsoft Access 2016 Series Editor Mary Anne

Exploring Microsoft® Access® 2016 Series Editor Mary Anne Poatsy Cameron |Williams Series Created by Dr. Robert T. Grauer

Chapter 5 Data Validation and Data Analysis Reducing Errors and Extracting Better Information Copyright © 2017 Pearson Education, Inc.

Objectives • Establish Data Validation • Control the Format of Data Entry • Control Input with a Lookup Field • Customize Output Based on User Input • Use Advanced Functions Copyright © 2017 Pearson Education, Inc.

Objective 1: Establish Data Validation Skills: Require a Field Add a Default Field Value Add a Validation Rule with Validation Text Copyright © 2017 Pearson Education, Inc.

Establish Data Validation Selected field Select Yes Required field Copyright © 2017 Pearson Education, Inc.

Establish Data Validation Resulting error message No name entered Copyright © 2017 Pearson Education, Inc.

Establish Data Validation Selected field Default Copyright © 2017 Pearson Education, Inc.

Establish Data Validation Cat Copyright © 2017 Pearson Education, Inc.

Establish Data Validation • Validation rule—limits data values entered into a field • Validation text—custom error message • Comparison operators: §Equal to: = §Greater than: > §Less than: < §Between §In §Like §Not equal to: <> §Greater than or equal to: >= §Less than or equal to: <= Copyright © 2017 Pearson Education, Inc.

Establish Data Validation Selected field Validation Rule Validation Text Copyright © 2017 Pearson Education, Inc.

Establish Data Validation Erroneous data entry Validation Text Copyright © 2017 Pearson Education, Inc.

Objective 2: Control the Format of Data Entry Skills: Create an Input Mask Copyright © 2017 Pearson Education, Inc.

Control the Format of Data Entry Phone number input mask Copyright © 2017 Pearson Education, Inc.

Control the Format of Data Entry Selected field Click Input Mask Click ellipses Copyright © 2017 Pearson Education, Inc.

Control the Format of Data Entry Select mask Change or leave placeholder Copyright © 2017 Pearson Education, Inc.

Control the Format of Data Entry Input mask Copyright © 2017 Pearson Education, Inc.

Objective 3: Control Input with a Lookup Field Skills: Create a Lookup Field Modify a Lookup Field Copyright © 2017 Pearson Education, Inc.

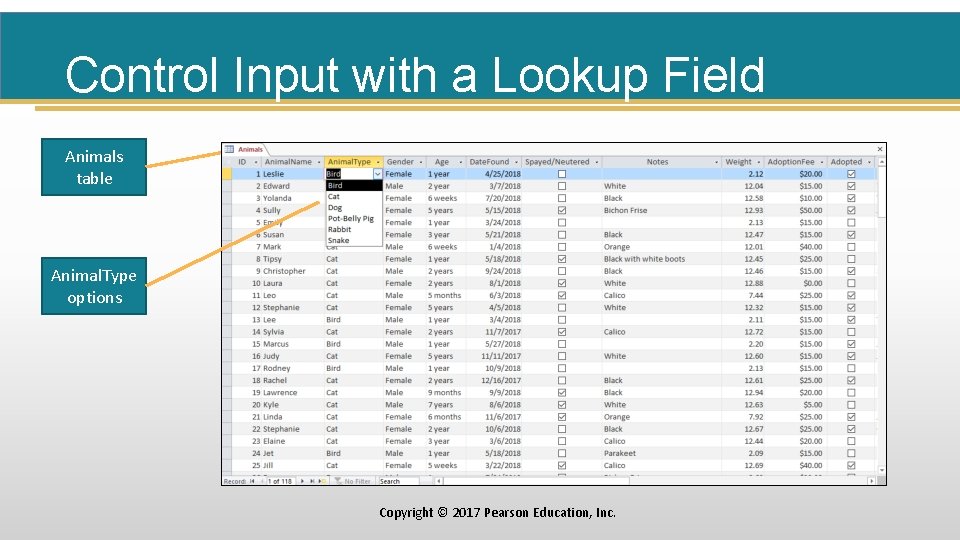

Control Input with a Lookup Field Animals table Animal. Type options Copyright © 2017 Pearson Education, Inc.

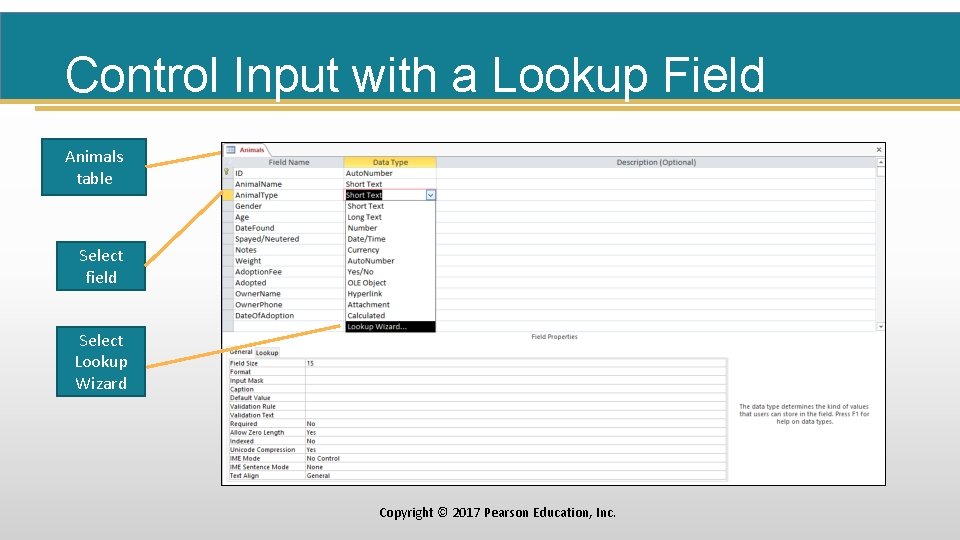

Control Input with a Lookup Field Animals table Select field Select Lookup Wizard Copyright © 2017 Pearson Education, Inc.

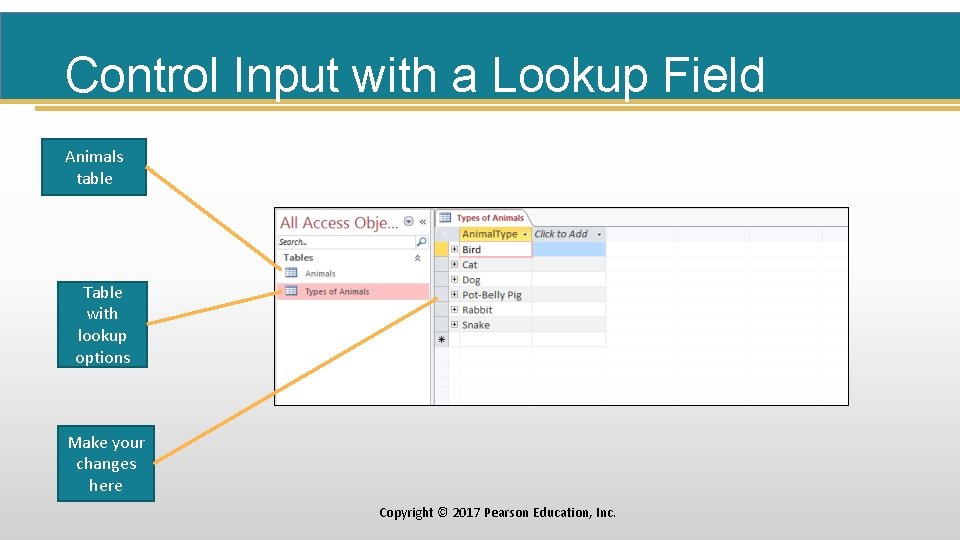

Control Input with a Lookup Field Animals table Table with lookup options Make your changes here Copyright © 2017 Pearson Education, Inc.

Objective 4: Customize Output Based on User Input Skills: Create a Parameter Query Create a Parameter Report Copyright © 2017 Pearson Education, Inc.

Customize Output Based on User Input User prompt for search criterion Copyright © 2017 Pearson Education, Inc.

Customize Output Based on User Input User prompt for search criterion Copyright © 2017 Pearson Education, Inc.

Objective 5: Use Advanced Functions Skills: Use the Date Function Use the Round Function Use the IIf Function Use the Is. Null Function Use the Date. Part Function Copyright © 2017 Pearson Education, Inc.

Use Advanced Functions No parameters Double-click Functions Click Built-In Functions Click Expression Category Double-click Date Copyright © 2017 Pearson Education, Inc.

Use Advanced Functions Two parameters Double-click Functions Click Built-In Functions Click Expression Category Double-click Round Copyright © 2017 Pearson Education, Inc.

Use Advanced Functions One decimal place Copyright © 2017 Pearson Education, Inc.

Use Advanced Functions Three parameters Double-click IIf Click Program Flow Copyright © 2017 Pearson Education, Inc.

Use Advanced Functions Within the last 30 days More than 30 days ago Copyright © 2017 Pearson Education, Inc.

Use Advanced Functions One parameter Double-click Is. Null Click Inspection Copyright © 2017 Pearson Education, Inc.

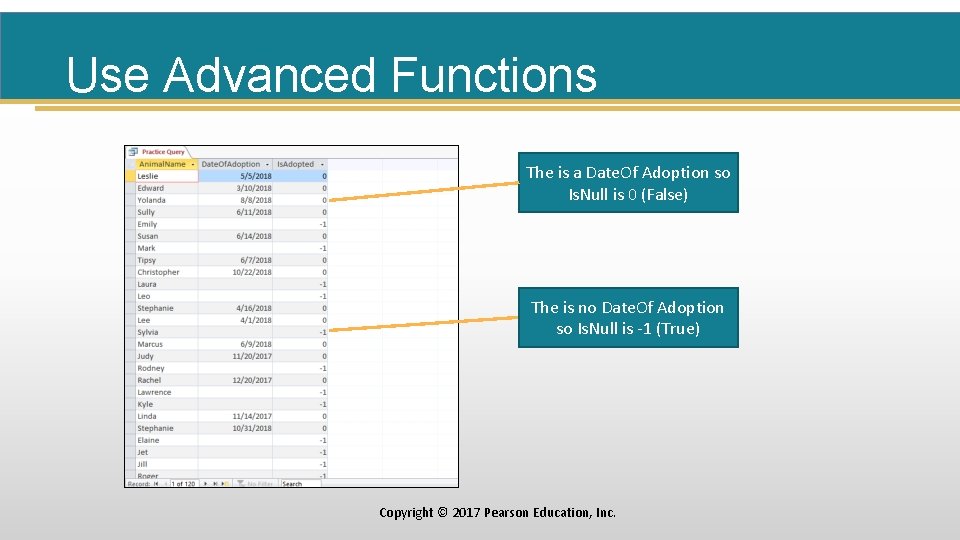

Use Advanced Functions The is a Date. Of Adoption so Is. Null is 0 (False) The is no Date. Of Adoption so Is. Null is -1 (True) Copyright © 2017 Pearson Education, Inc.

Use Advanced Functions Four parameters Double-click Date. Part Click Date/Time Copyright © 2017 Pearson Education, Inc.

Use Advanced Functions Month numbers are displayed Copyright © 2017 Pearson Education, Inc.

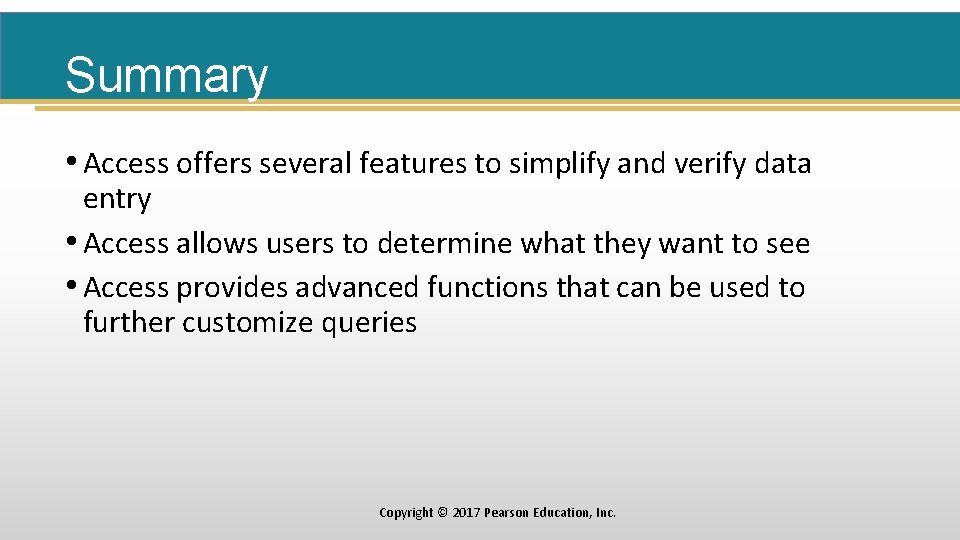

Summary • Access offers several features to simplify and verify data entry • Access allows users to determine what they want to see • Access provides advanced functions that can be used to further customize queries Copyright © 2017 Pearson Education, Inc.

Questions ? Copyright © 2017 Pearson Education, Inc.
