Explicit Connectors in Component Based Software Engineering for Distributed Embedded Systems Dietmar Schreiner, Karl M. Göschka Vienna University of Technology Institute of Information Systems Distributed Systems Group 2007

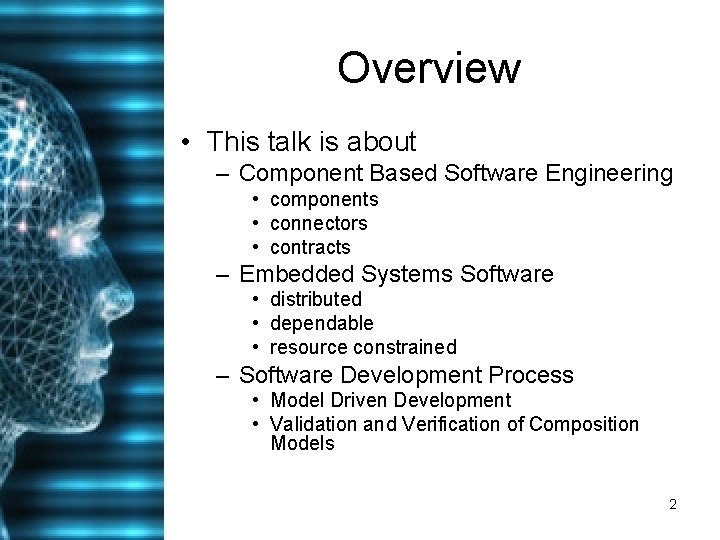

Overview • This talk is about – Component Based Software Engineering • components • connectors • contracts – Embedded Systems Software • distributed • dependable • resource constrained – Software Development Process • Model Driven Development • Validation and Verification of Composition Models 2

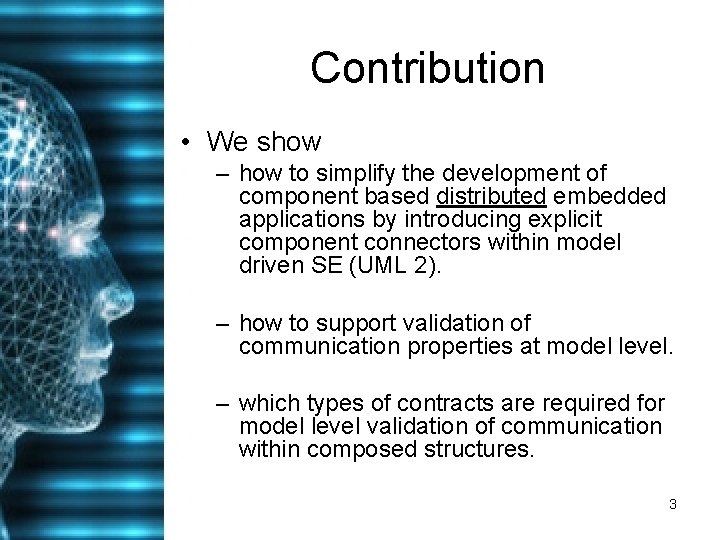

Contribution • We show – how to simplify the development of component based distributed embedded applications by introducing explicit component connectors within model driven SE (UML 2). – how to support validation of communication properties at model level. – which types of contracts are required for model level validation of communication within composed structures. 3

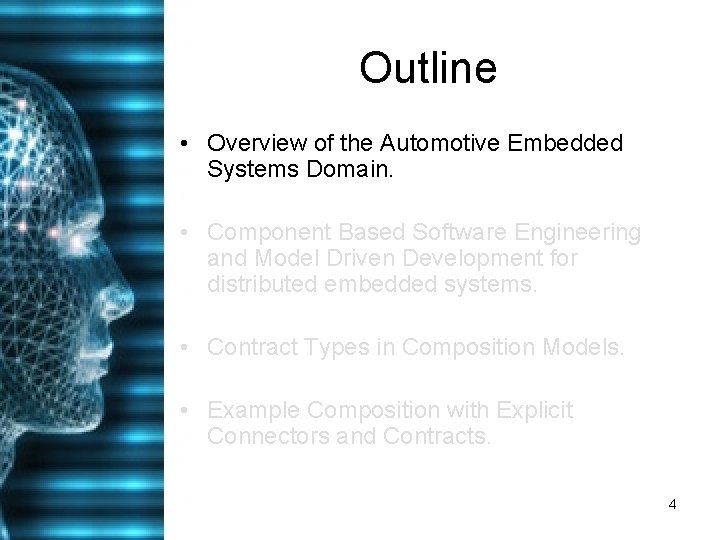

Outline • Overview of the Automotive Embedded Systems Domain. • Component Based Software Engineering and Model Driven Development for distributed embedded systems. • Contract Types in Composition Models. • Example Composition with Explicit Connectors and Contracts. 4

Automotive Embedded Systems Overview • Today's vehicle networks are truly distributed electronic systems (70+ nodes (=ECUs) [1]). • Cars contain numerous (10+) heterogeneous time or event driven bus systems – CAN, LIN, Flex. Ray, MOST • • x-by-wire steering aids, ABS, ESP(DSC) remote window and lock control engine control airbag control navigation systems entertainment systems [1] P. Hansen. New s-class mercedes: Pioneering electronics. The Hansen Report on Automotive Electronics, 18(8): 1– 2, October 2005. ‘ 5

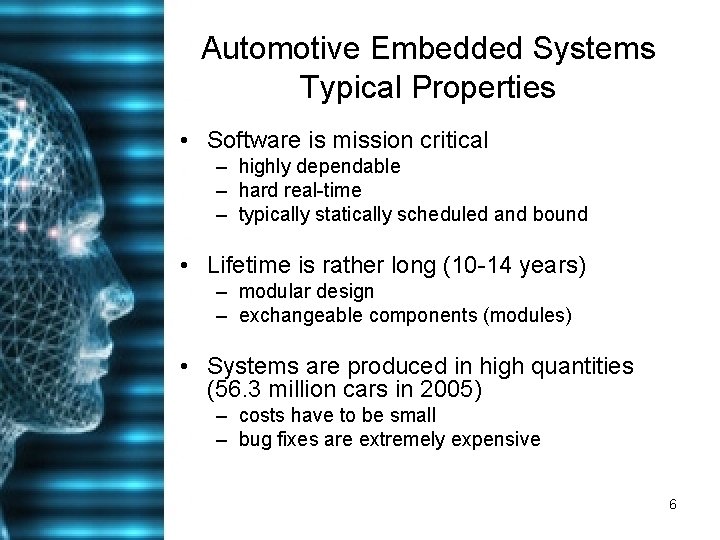

Automotive Embedded Systems Typical Properties • Software is mission critical – highly dependable – hard real-time – typically statically scheduled and bound • Lifetime is rather long (10 -14 years) – modular design – exchangeable components (modules) • Systems are produced in high quantities (56. 3 million cars in 2005) – costs have to be small – bug fixes are extremely expensive 6

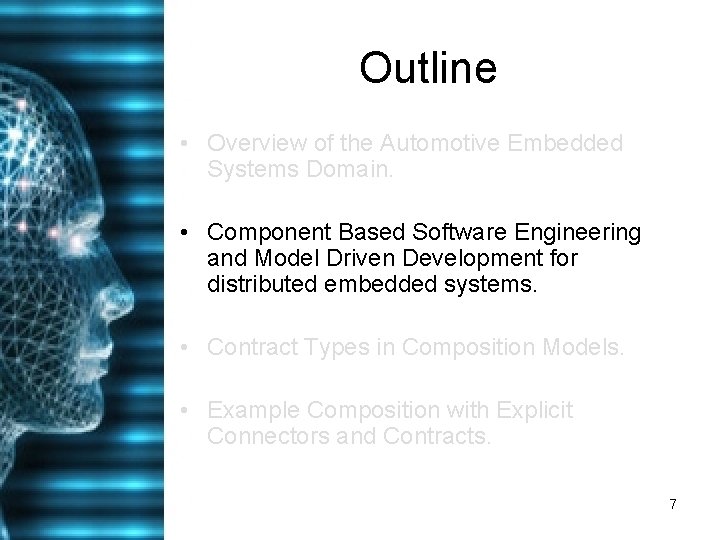

Outline • Overview of the Automotive Embedded Systems Domain. • Component Based Software Engineering and Model Driven Development for distributed embedded systems. • Contract Types in Composition Models. • Example Composition with Explicit Connectors and Contracts. 7

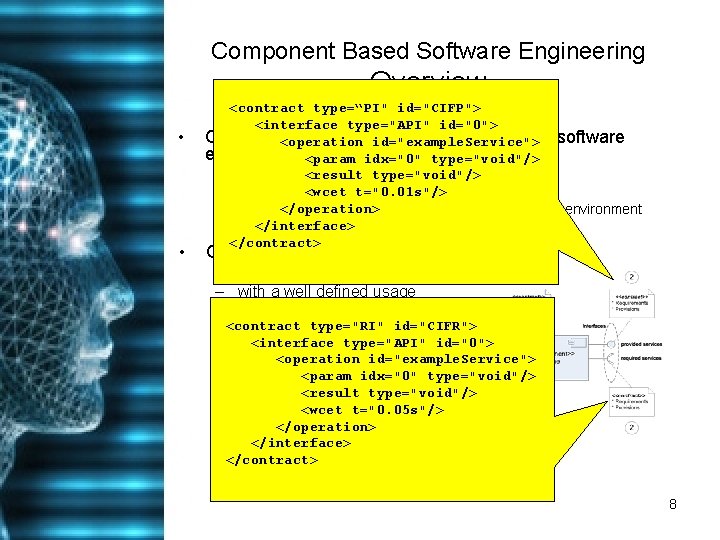

Component Based Software Engineering Overview • • <contract type=“PI" id="CIFP"> <interface type="API" id="0"> CBSE is a<operation well knownid="example. Service"> paradigm in classical software engineering. <param idx="0" type="void"/> <result type="void"/> – Applications are built by <wcetcomponents t="0. 01 s"/> • assembling </operation> • deploying composed structures within a system environment </interface> </contract> Components are considered to be – trusted element of execution – with a well defined usage description • contracts <contract type="RI" id="CIFR"> – component contracts <interface type="API" id="0"> – interface contracts <operation id="example. Service"> – conforming to a component model <param idx="0" type="void"/> • interaction standard <result type="void"/> • composition standard <wcet t="0. 05 s"/> • deployment standard </operation> </interface> </contract> 8

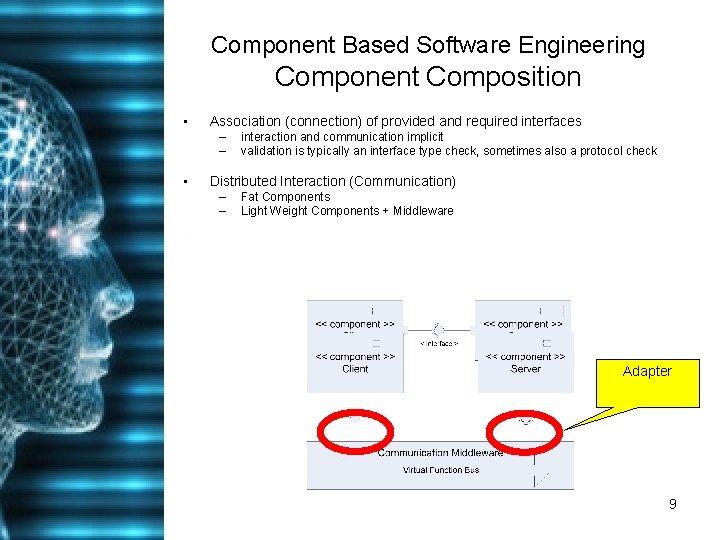

Component Based Software Engineering Component Composition • Association (connection) of provided and required interfaces – – • interaction and communication implicit validation is typically an interface type check, sometimes also a protocol check Distributed Interaction (Communication) – – Fat Components Light Weight Components + Middleware Adapter 9

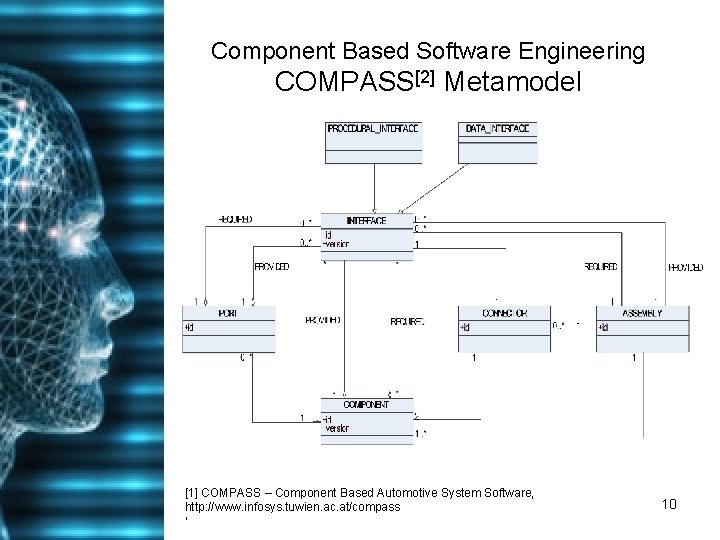

Component Based Software Engineering COMPASS[2] Metamodel [1] COMPASS – Component Based Automotive System Software, http: //www. infosys. tuwien. ac. at/compass ‘ 10

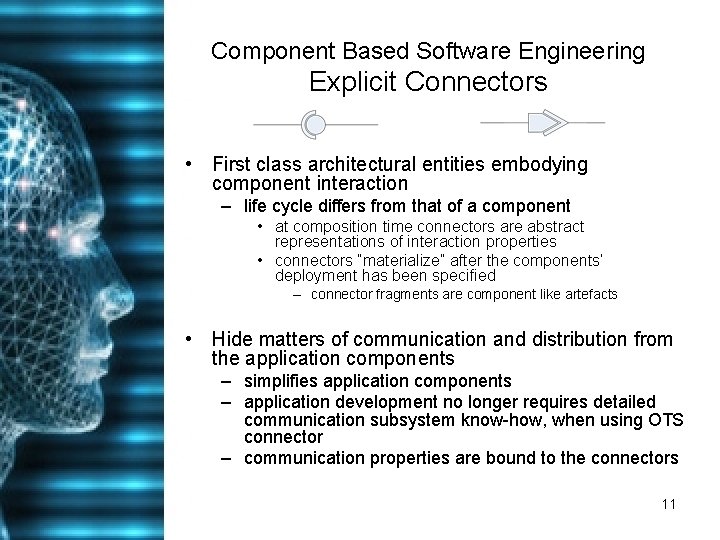

Component Based Software Engineering Explicit Connectors • First class architectural entities embodying component interaction – life cycle differs from that of a component • at composition time connectors are abstract representations of interaction properties • connectors “materialize” after the components’ deployment has been specified – connector fragments are component like artefacts • Hide matters of communication and distribution from the application components – simplifies application components – application development no longer requires detailed communication subsystem know-how, when using OTS connector – communication properties are bound to the connectors 11

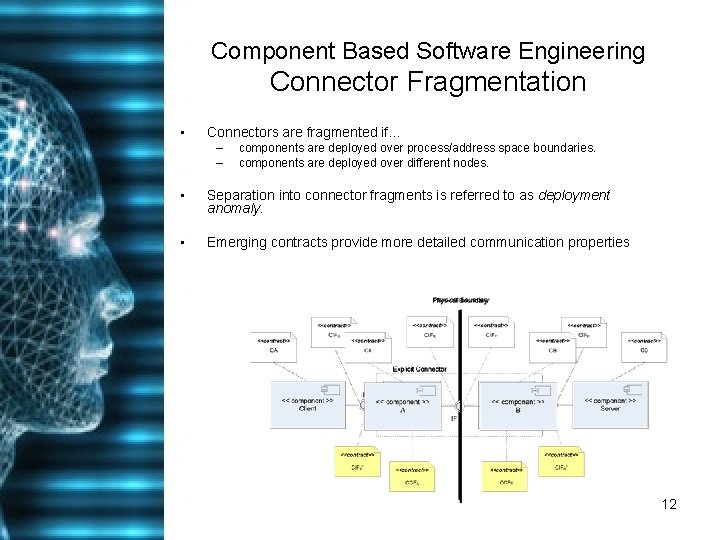

Component Based Software Engineering Connector Fragmentation • Connectors are fragmented if… – – components are deployed over process/address space boundaries. components are deployed over different nodes. • Separation into connector fragments is referred to as deployment anomaly. • Emerging contracts provide more detailed communication properties 12

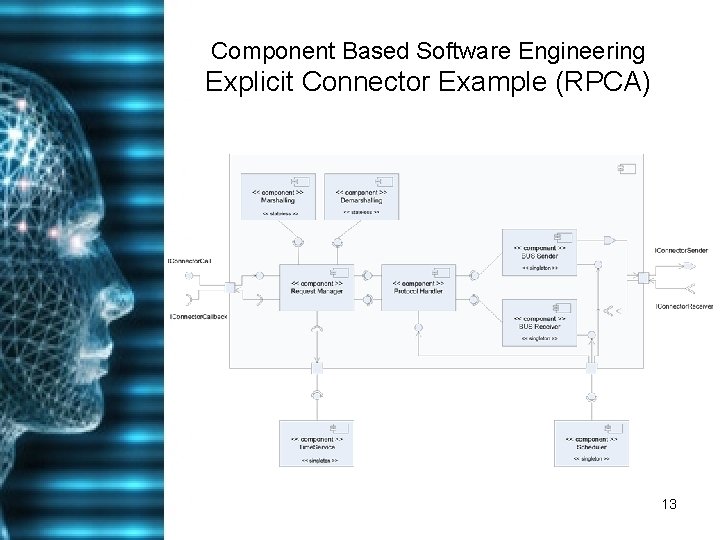

Component Based Software Engineering Explicit Connector Example (RPCA) 13

Outline • Overview of the Automotive Embedded Systems Domain. • Component Based Software Engineering and Model Driven Development for distributed embedded systems. • Contract Types in Composition Models. • Example Composition with Explicit Connectors and Contracts. 14

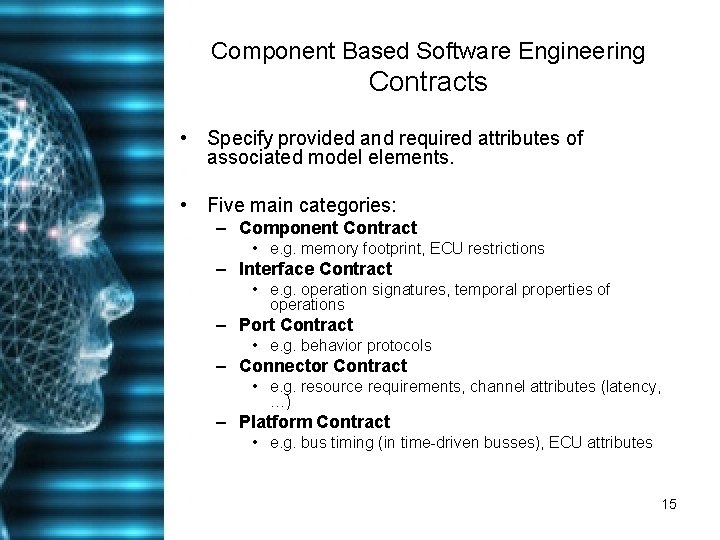

Component Based Software Engineering Contracts • Specify provided and required attributes of associated model elements. • Five main categories: – Component Contract • e. g. memory footprint, ECU restrictions – Interface Contract • e. g. operation signatures, temporal properties of operations – Port Contract • e. g. behavior protocols – Connector Contract • e. g. resource requirements, channel attributes (latency, …) – Platform Contract • e. g. bus timing (in time-driven busses), ECU attributes 15

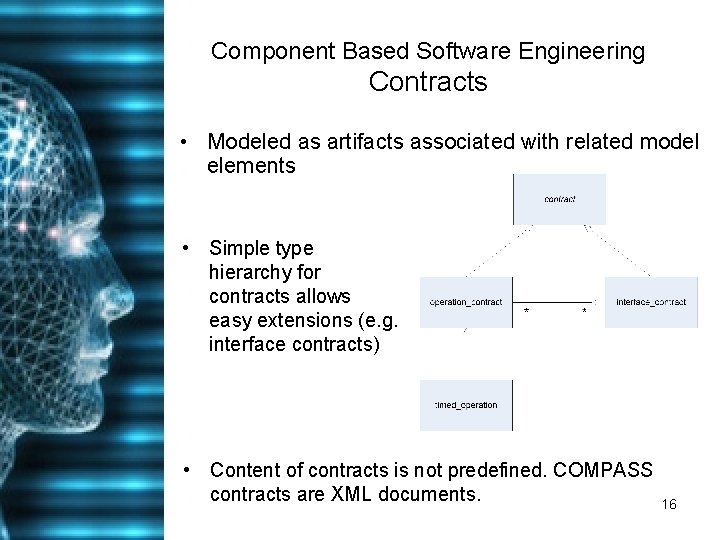

Component Based Software Engineering Contracts • Modeled as artifacts associated with related model elements • Simple type hierarchy for contracts allows easy extensions (e. g. interface contracts) • Content of contracts is not predefined. COMPASS contracts are XML documents. 16

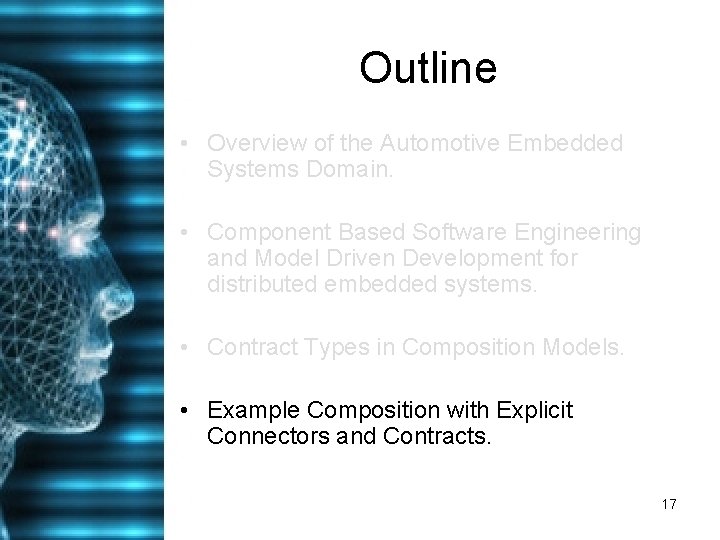

Outline • Overview of the Automotive Embedded Systems Domain. • Component Based Software Engineering and Model Driven Development for distributed embedded systems. • Contract Types in Composition Models. • Example Composition with Explicit Connectors and Contracts. 17

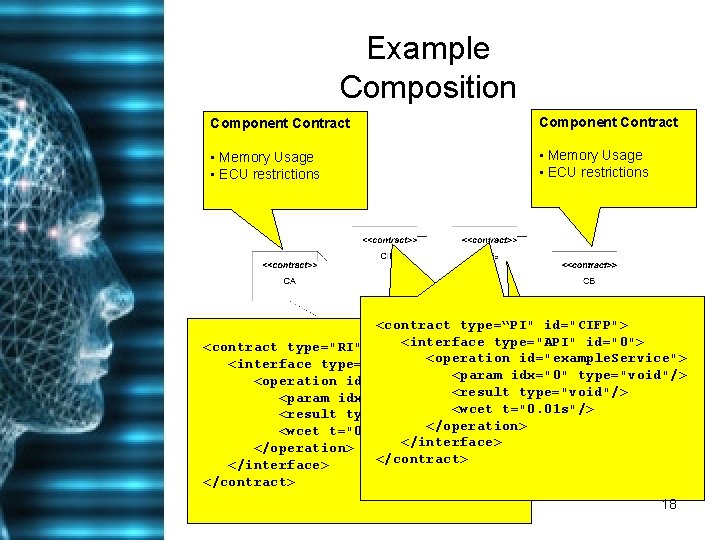

Example Composition Component Contract • Memory Usage • ECU restrictions <contract type=“PI" id="CIFP"> <interface type="API" id="0"> <contract type="RI" id="CIFR"> <operation id="example. Service"> <interface type="API" id="0"> <param idx="0" type="void"/> <operation id="example. Service"> <result type="void"/> <param idx="0" type="void"/> Interface Contract <result type="void"/><wcet t="0. 01 s"/> <wcet t="0. 05 s"/> </operation> • Interface Type </interface> </operation> • Operation Signatures </contract> </interface> • WCET </contract> 18

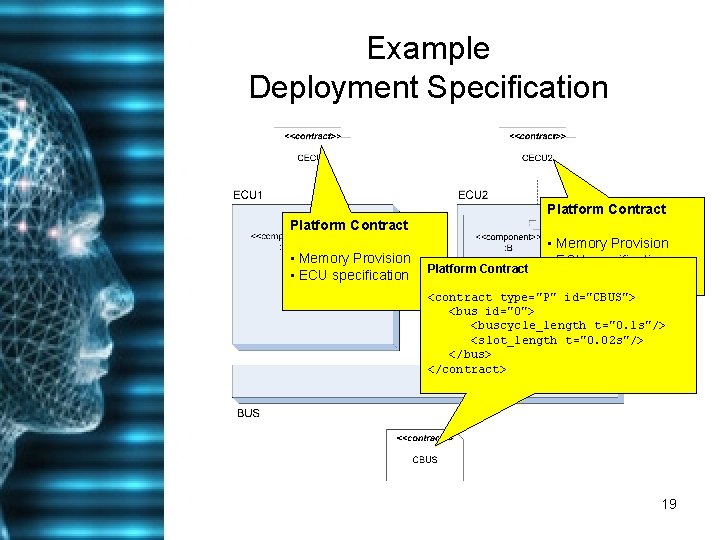

Example Deployment Specification Platform Contract • Memory Provision • ECU specification <contract type="P" id="CBUS"> <bus id="0"> <buscycle_length t="0. 1 s"/> <slot_length t="0. 02 s"/> </bus> </contract> 19

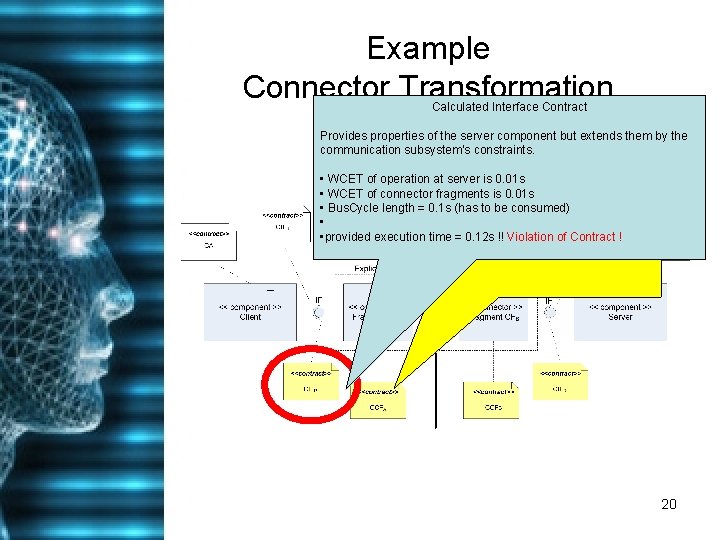

Example Connector Transformation Calculated Interface Contract Provides properties of the server component but extends them by the Connector Contract communication subsystem’s constraints. <contract type="C" • WCET of operation at server is 0. 01 s id="CCFA"> <connector • WCET of connector fragments type="RPC"> is 0. 01 s <response • Bus. Cycle length = 0. 1 s (has to betime="1. 0 consumed) cycle"/> <WCET t="0. 01 s"/> • </connector> • provided execution time = 0. 12 s !! Violation of Contract ! </contract> 20

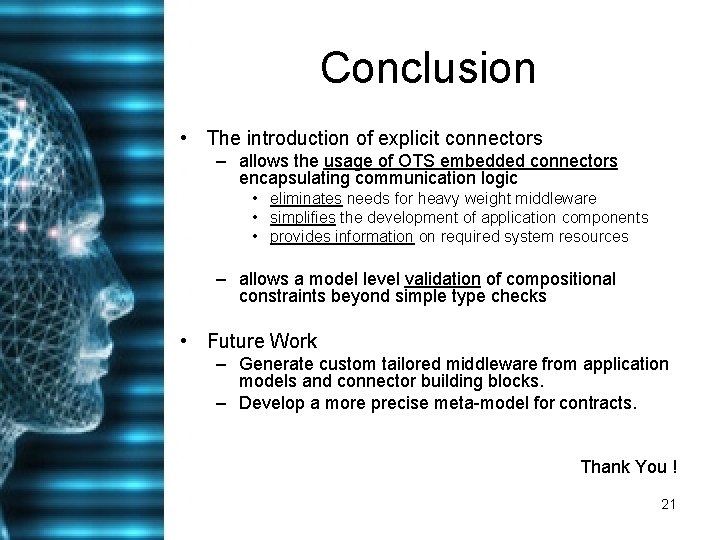

Conclusion • The introduction of explicit connectors – allows the usage of OTS embedded connectors encapsulating communication logic • eliminates needs for heavy weight middleware • simplifies the development of application components • provides information on required system resources – allows a model level validation of compositional constraints beyond simple type checks • Future Work – Generate custom tailored middleware from application models and connector building blocks. – Develop a more precise meta-model for contracts. Thank You ! 21
