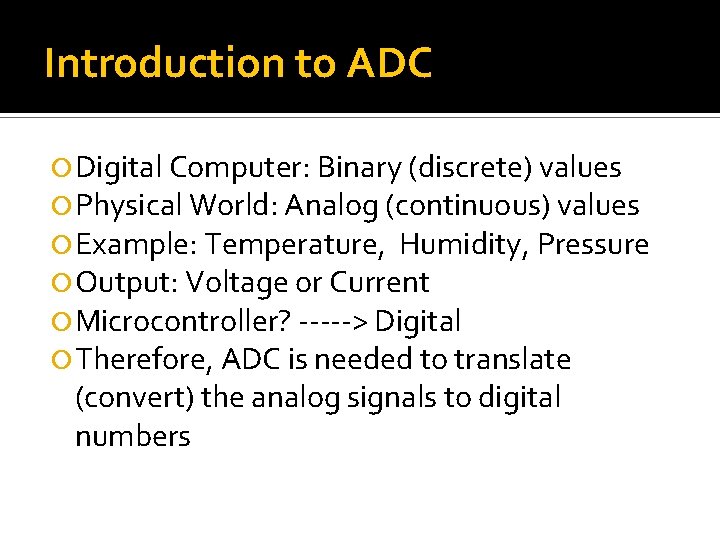

Introduction to ADC Digital Computer: Binary (discrete) values Physical World: Analog (continuous) values Example: Temperature, Humidity, Pressure Output: Voltage or Current Microcontroller? -----> Digital Therefore, ADC is needed to translate (convert) the analog signals to digital numbers

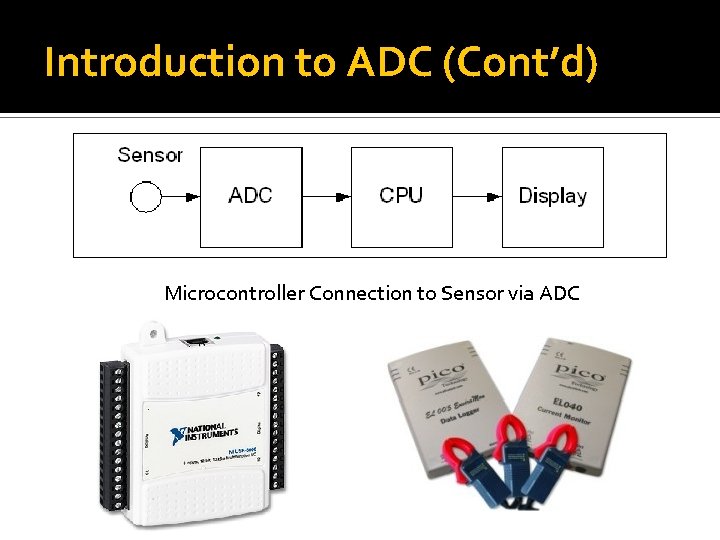

Introduction to ADC (Cont’d) Microcontroller Connection to Sensor via ADC

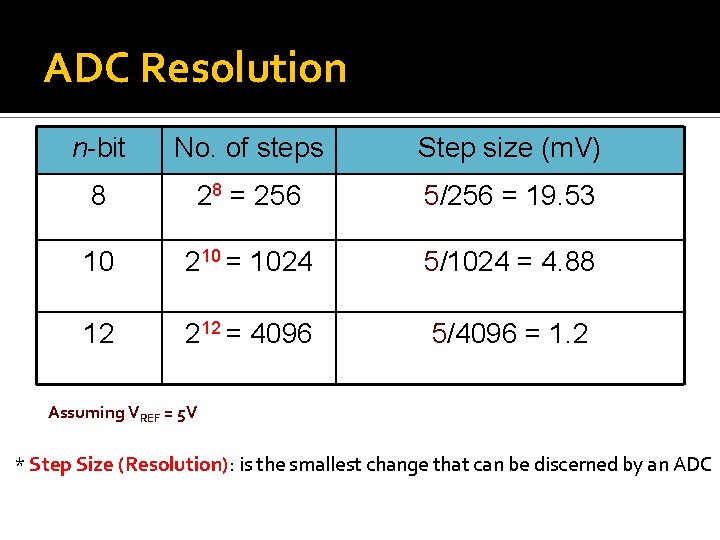

ADC Resolution n-bit No. of steps Step size (m. V) 8 28 = 256 5/256 = 19. 53 10 210 = 1024 5/1024 = 4. 88 12 212 = 4096 5/4096 = 1. 2 Assuming VREF = 5 V * Step Size (Resolution): is the smallest change that can be discerned by an ADC

ADC Reference Voltage (Vref) Vref: Input voltage used for the reference voltage The voltage connected to this pin , with the resolution of the ADC chip, dictate the step size Example: If we need the analog input to be 0 to 4 volts, Vref is connected to 4 volts Digital data output: 8 -bit (D 0 -D 7), 10 -bit (D 0 D 9)

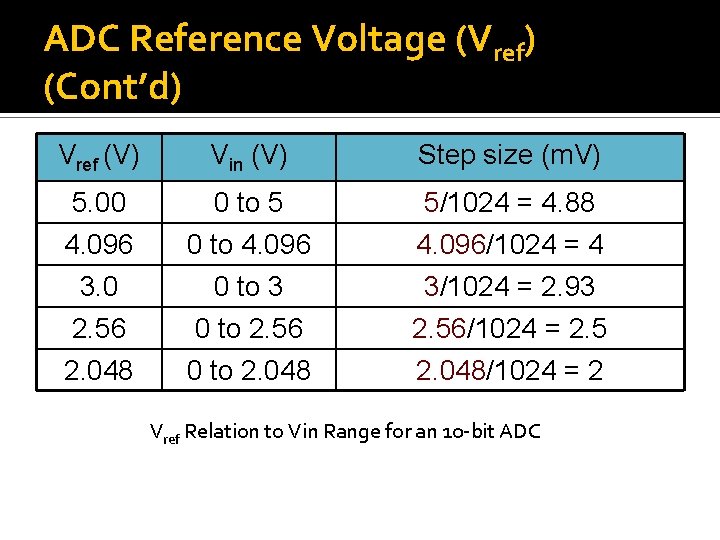

ADC Reference Voltage (Vref) (Cont’d) Vref (V) Vin (V) Step size (m. V) 5. 00 4. 096 0 to 5 0 to 4. 096 5/1024 = 4. 88 4. 096/1024 = 4 3. 0 2. 56 2. 048 0 to 3 0 to 2. 56 0 to 2. 048 3/1024 = 2. 93 2. 56/1024 = 2. 5 2. 048/1024 = 2 Vref Relation to Vin Range for an 10 -bit ADC

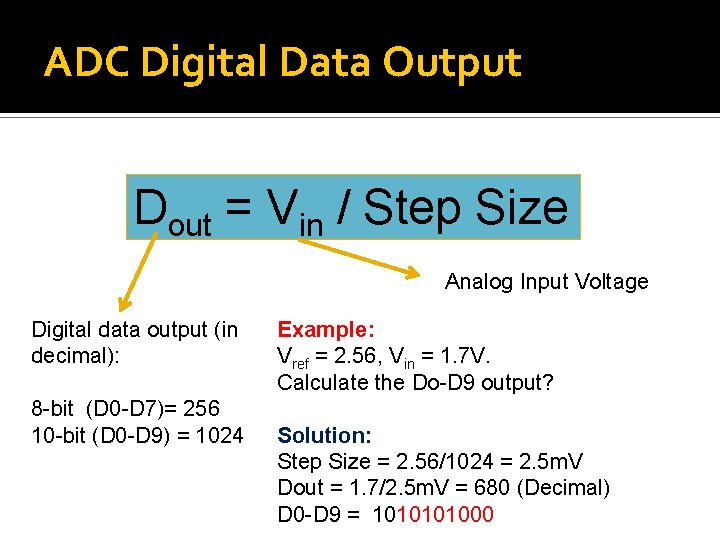

ADC Digital Data Output Dout = Vin / Step Size Analog Input Voltage Digital data output (in decimal): 8 -bit (D 0 -D 7)= 256 10 -bit (D 0 -D 9) = 1024 Example: Vref = 2. 56, Vin = 1. 7 V. Calculate the Do-D 9 output? Solution: Step Size = 2. 56/1024 = 2. 5 m. V Dout = 1. 7/2. 5 m. V = 680 (Decimal) D 0 -D 9 = 101000

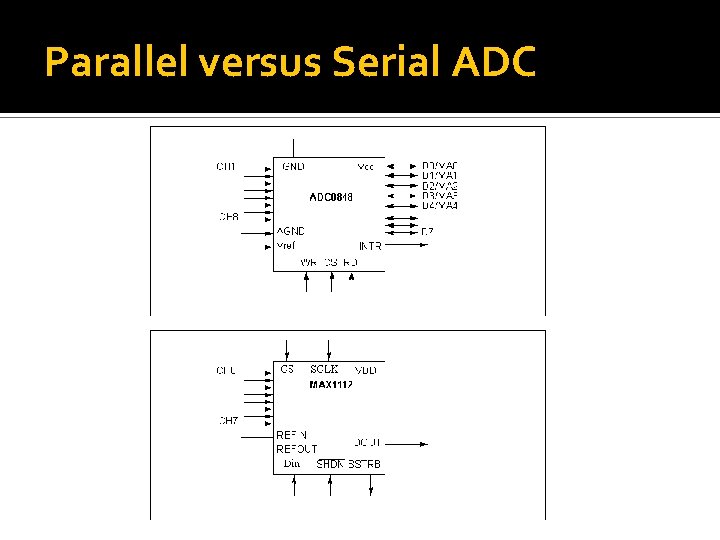

Parallel versus Serial ADC

PIC 18 F 4580 ADC Features

PIC 18 F 4580 ADC Features (cont’d) It has 11 analog input channels (AN 0 – AN 10) 10 -bit ADC Converted values are stored in ADRESH: ADRESL registers

ADC: Important Registers A/D Control Register 0 (ADCON 0) Controls the operation of the A/D module A/D Control Register 1 (ADCON 1) Configures the functions of the port pins A/D Control Register 2 (ADCON 2) Configures the A/D clock source, programmed acquisition time and justification

A/D Control Register 0 (ADCON 0) Example: Different from the Book! ADCON 0 = 00101001

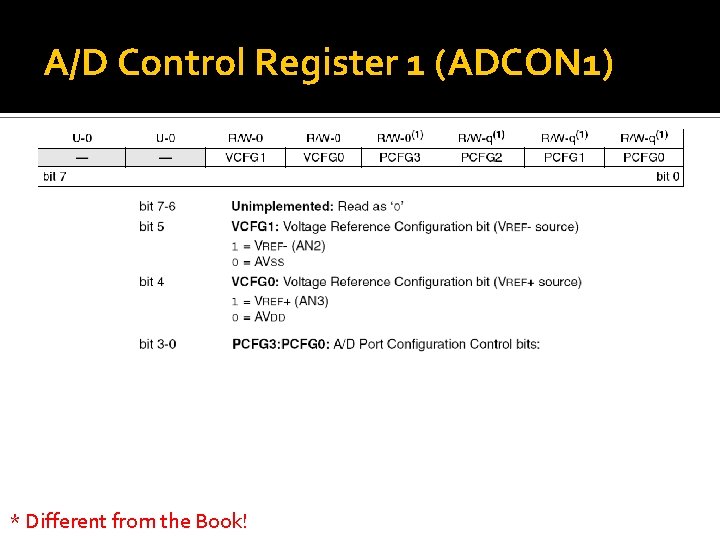

A/D Control Register 1 (ADCON 1) * Different from the Book!

ADC PCFGs Example: ADCON 1 = 00001110 * Different from the Book!

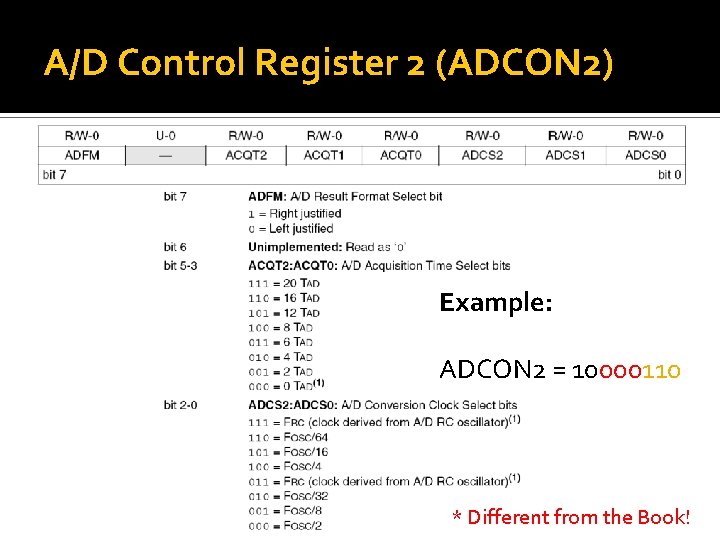

A/D Control Register 2 (ADCON 2) Example: ADCON 2 = 10000110 * Different from the Book!

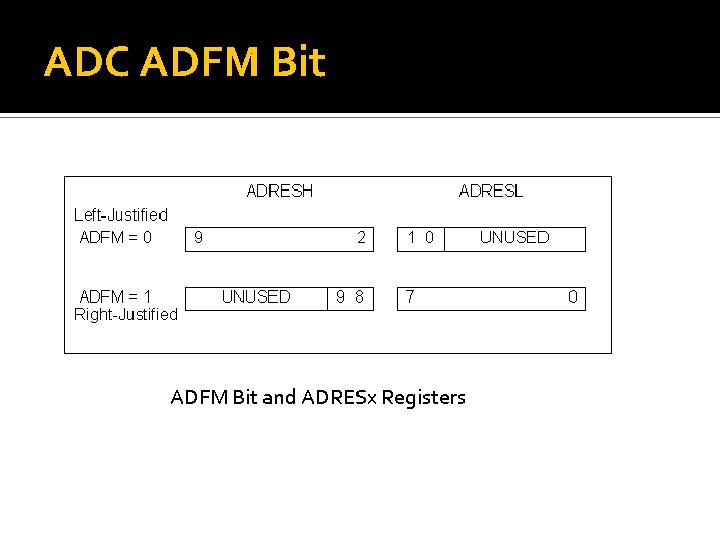

ADC ADFM Bit and ADRESx Registers

Example 1 For a PIC 18 -based system, we have Vref = Vdd = 5 V. Find a) The step size and b) The ADCON 1 value if we need 3 channels. a) The step size = 5/1024 = 4, 8 m. V b) ADCON 1 = 00001100

ADC Conversion Time Define in term of Tad (Conversion time per bit) To calculate: FOSC/2, FOSC/4, FOSC/8, FOSC/16, FOSC/32 or FOSC/64

Steps in Programming the ADC using Pooling TURN ON the ADC module (BSF ADCON 0, ADON) Make the ADC channel pin as input pin Select voltage reference and ADC channel Select the conversion speed Wait for the required acquisition time Activate the start conversion bit of GO/DONE Wait for the conversion to be completed by pooling the end-of-conversion GO/DONE bit After the GO/DONE bit has gone LOW, read the ADRESL and ADRESH register

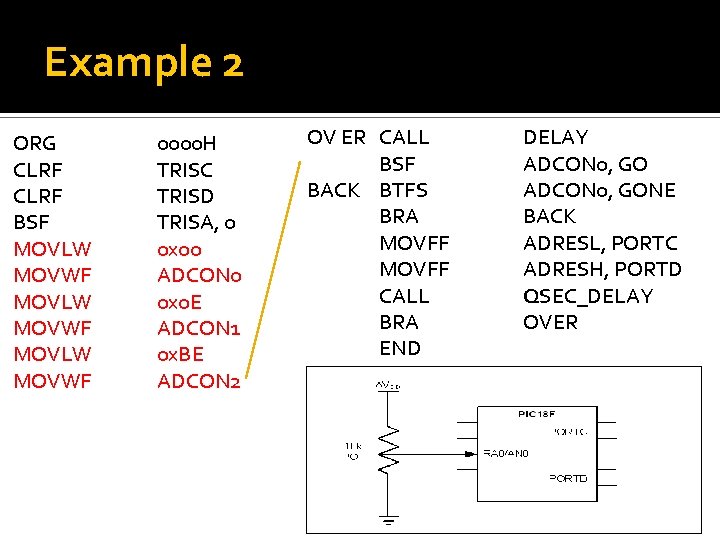

Example 2 ORG CLRF BSF MOVLW MOVWF 0000 H TRISC TRISD TRISA, 0 0 x 00 ADCON 0 0 x 0 E ADCON 1 0 x. BE ADCON 2 OV ER CALL BSF BACK BTFS BRA MOVFF CALL BRA END DELAY ADCON 0, GONE BACK ADRESL, PORTC ADRESH, PORTD QSEC_DELAY OVER

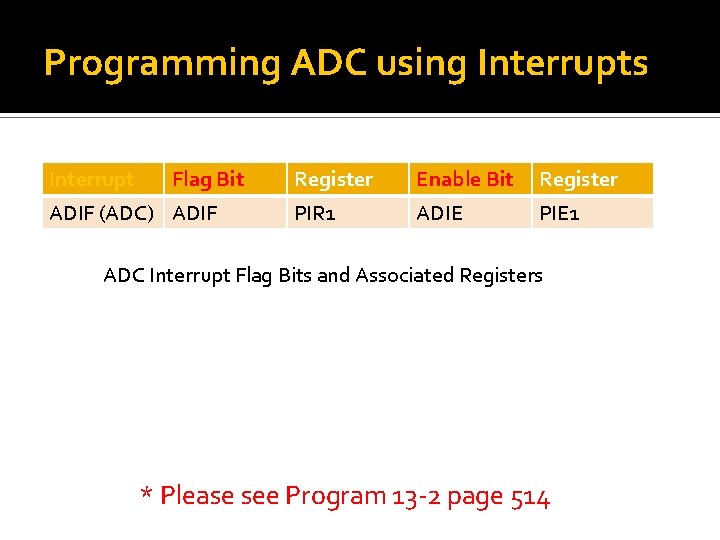

Programming ADC using Interrupts Interrupt Flag Bit ADIF (ADC) ADIF Register Enable Bit Register PIR 1 ADIE PIE 1 ADC Interrupt Flag Bits and Associated Registers * Please see Program 13 -2 page 514

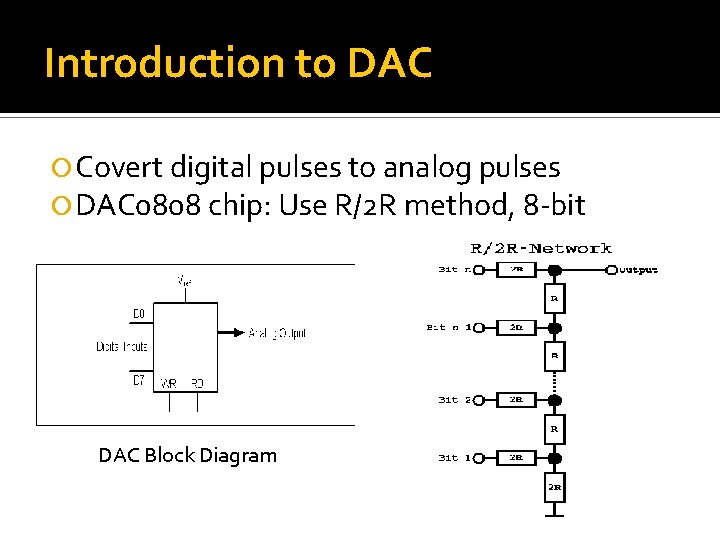

Introduction to DAC Covert digital pulses to analog pulses DAC 0808 chip: Use R/2 R method, 8 -bit DAC Block Diagram

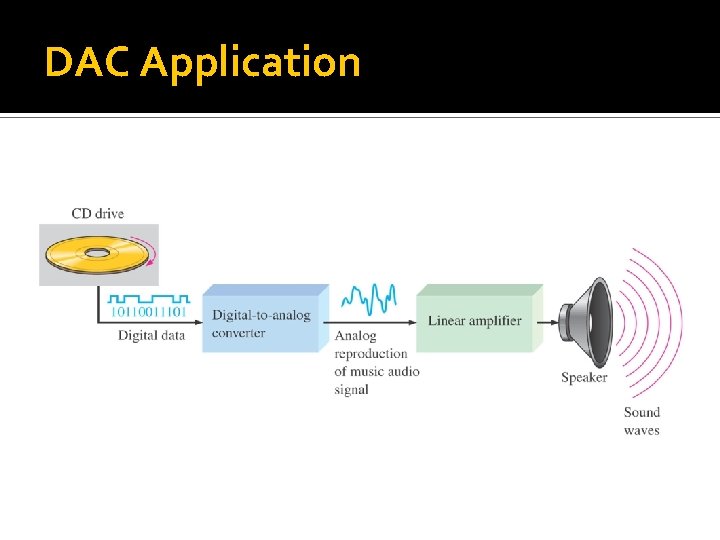

DAC Application

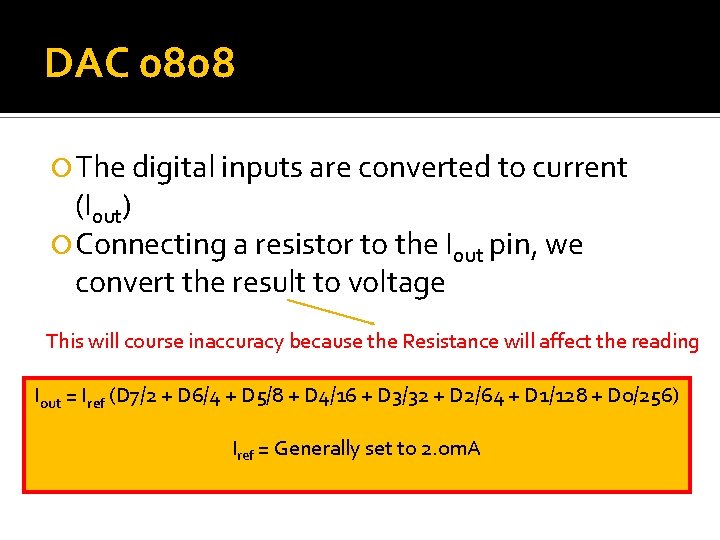

DAC 0808 The digital inputs are converted to current (Iout) Connecting a resistor to the Iout pin, we convert the result to voltage This will course inaccuracy because the Resistance will affect the reading Iout = Iref (D 7/2 + D 6/4 + D 5/8 + D 4/16 + D 3/32 + D 2/64 + D 1/128 + D 0/256) Iref = Generally set to 2. 0 m. A

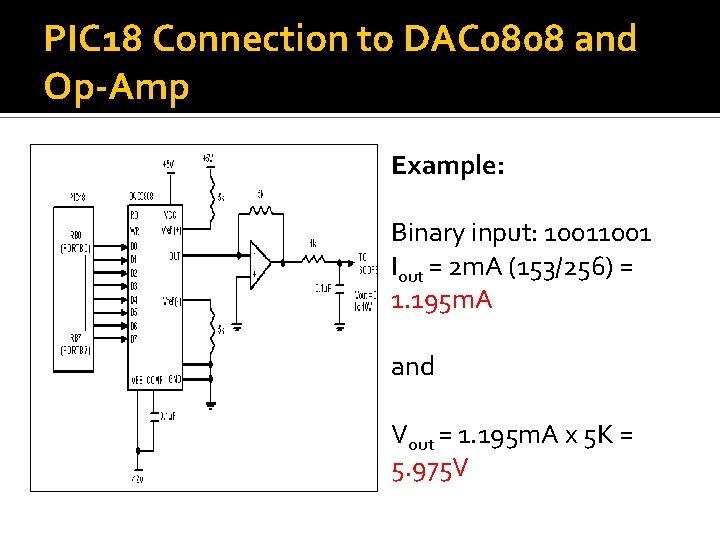

PIC 18 Connection to DAC 0808 and Op-Amp Example: Binary input: 1001 Iout = 2 m. A (153/256) = 1. 195 m. A and Vout = 1. 195 m. A x 5 K = 5. 975 V

ADC Sensor Interfacing Gas Sensor Temperature Sensor Sonar Sensor Humidity Sensor

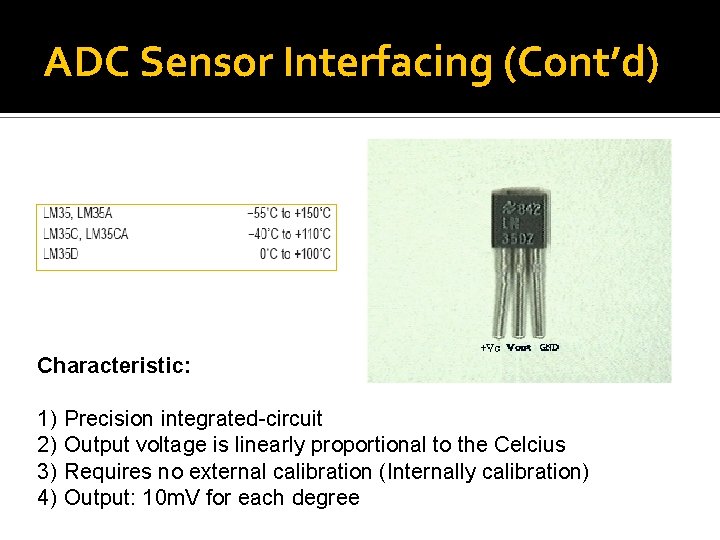

ADC Sensor Interfacing (Cont’d) Characteristic: 1) 2) 3) 4) Precision integrated-circuit Output voltage is linearly proportional to the Celcius Requires no external calibration (Internally calibration) Output: 10 m. V for each degree

ADC Sensor Interfacing (Cont’d) 10 m. V = 1 degree (Minimum) 20 m. V = 2 degree 30 m. V = 3 degree. . 1000 m. V = 100 degree (Maximum) How to set Vref? ? 5 V Step Size = 4. 8 m. V Vin (max) = 5 V 1. 024 Step Size = 1 m. V Vin (max) = 1. 024 V Vref = ? ? ? Which one suitable?

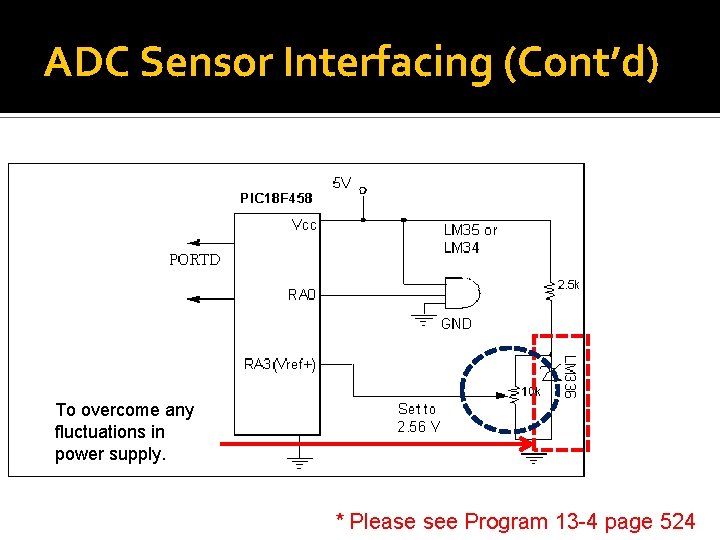

ADC Sensor Interfacing (Cont’d) To overcome any fluctuations in power supply. * Please see Program 13 -4 page 524
