EXpert IPTV Test Tools NPI October 2011 Hammadoun

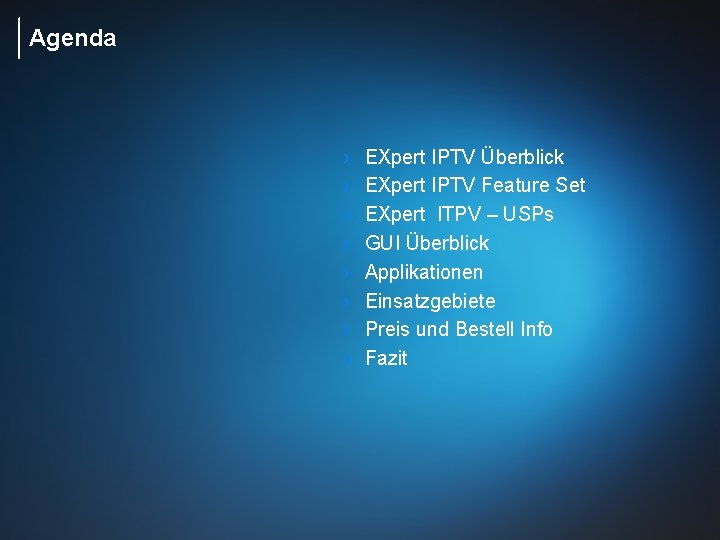

Agenda › › › › EXpert IPTV Überblick EXpert IPTV Feature Set EXpert ITPV

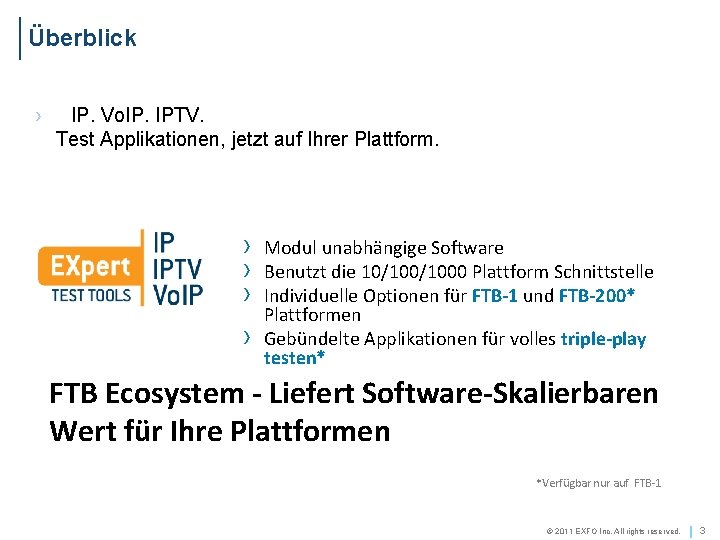

Überblick › IP. Vo. IPTV. Test Applikationen, jetzt auf Ihrer Plattform. › › Modul unabhängige Software Benutzt die 10/1000 Plattform Schnittstelle Individuelle Optionen für FTB-1 und FTB-200* Plattformen Gebündelte Applikationen für volles triple-play testen* FTB Ecosystem - Liefert Software-Skalierbaren Wert für Ihre Plattformen *Verfügbar nur auf FTB-1 © 2011 EXFO Inc. All rights reserved. 3

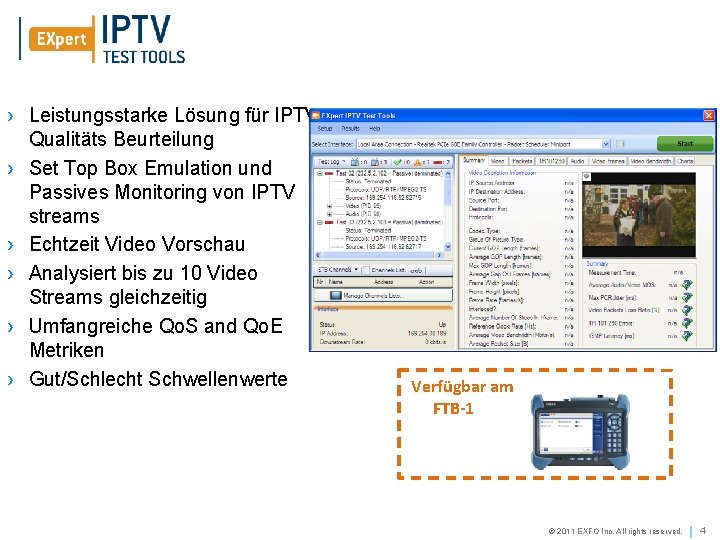

› Leistungsstarke Lösung für IPTV Qualitäts Beurteilung › Set Top Box Emulation und Passives Monitoring von IPTV streams › Echtzeit Video Vorschau › Analysiert bis zu 10 Video Streams gleichzeitig › Umfangreiche Qo. S and Qo. E Metriken › Gut/Schlecht Schwellenwerte Verfügbar am FTB-1 © 2011 EXFO Inc. All rights reserved. 4

Einzigartige Einsparungs-Möglichkeiten › Reduzieren Sie Ihren Betriebsaufwand (OPEX) › Einfache, intuitive und Kosten effektive Applikation › Erhöht die Effizienz der Benutzer › Reduzieren Sie Ihren Investitionsaufwand (CAPEX) › Ein Tester für die komplette Errichtung von FTTH Diensten © 2011 EXFO Inc. All rights reserved. 5

EXpert IPTV Test tools – Feature Set › Most common encoding › MPEG 2, MPEG 4 part 2&10 , VC 1 › Mediaroom/MS-IPTV › Protocols › IGMP versions 2 and 3 › Simultaneous stream analysis (up to 10) › Live video preview › Video On Demand › IGMP latency › Import and export list of channels › PID channel list › Channel name › Codec detection › Stream content (PID with bit stream) › Stream Bandwidth and Packet Size › Reference clock rate › Transport Packets Metrics › Packet count: received, loss, discarded, Out of Sequence, duplicated, corrected › Gap count › Gap Loss ratio › PCR Jitter metrics › Current PCR Jitter › Max PCR Jitter › RTP Packets Metrics › Packet count: received, loss, discarded, Out of Sequence, duplicated, corrected › Packets with time stamps error © 2011 EXFO Inc. All rights reserved. 6

EXpert IPTV Test tools – Feature Set (Next) › Perceptual Quality Metrics › Video MOS (Instantaneous, minimum, maximum absolute) › Audio MOS (Instantaneous, minimum, maximum absolute) › Transmission quality: EPSNR, EPSNR (ATI) › Degradation Factors › Available network bandwidth › Audio/video synchronization › MPEG 2 -TS TR 101290 › Priority 1: › › › › TS sync loss count Sync byte error count PAT 2 error count Continuity error count PMT 2 error count PID error count › MPEG 2 -TS TR 101290 › Priority 2: › › › › Transport error count CRC error count PCR repetition error count PCR discontinuity error count PCR accuracy error count PTS error count CAT error count › Audio Description Information › Transport protocol › Codec Type › Bandwidth › Video Jitter: › Arrival Jitter › Frame Arrival Delay › Graphical display of all metrics › Logger and report © 2011 EXFO Inc. All rights reserved. 7

GUI Überblick © 2011 EXFO Inc. All rights reserved. 8

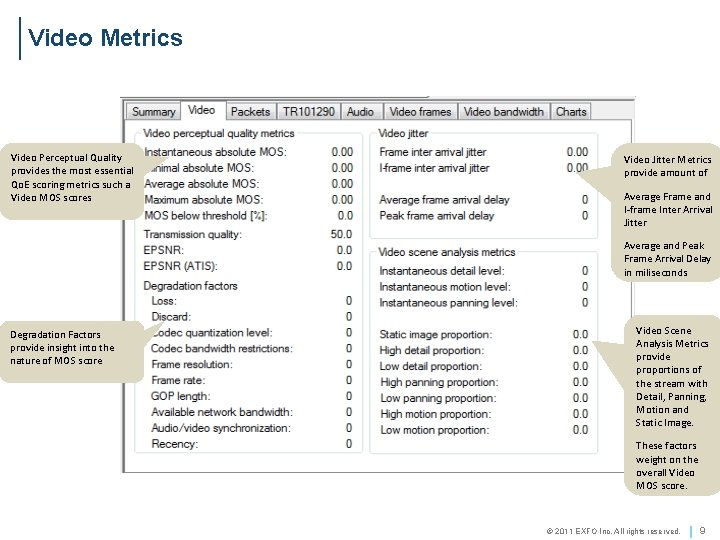

Video Metrics Video Perceptual Quality provides the most essential Qo. E scoring metrics such a Video MOS scores Video Jitter Metrics provide amount of Average Frame and I-frame Inter Arrival Jitter Average and Peak Frame Arrival Delay in miliseconds Degradation Factors provide insight into the nature of MOS score Video Scene Analysis Metrics provide proportions of the stream with Detail, Panning, Motion and Static Image. These factors weight on the overall Video MOS score. © 2011 EXFO Inc. All rights reserved. 9

Packets Metrics Transport Packets are MPEG-TS packets that carry Packet Elementary Streams (PES). Jitter Metrics focus on the PCR Jitter which is defined as Time. Stamp arrival time jitter. Statistics of these MPEGTS Packets such as lost, discarded, corrected, outof-sequence and duplicated packets allow detection of this major source of video picture degradation. PCR Jitter is a mjor contributor to loss of frames due to router or STB buffer overflow. RTP Packet Metrics ( if available) are statistics of RTP protocol encapsulation. RTP encapsulation is optional and is used to provide independent timestamping to video and audio. But it also adds overhead to the transmission. Tracking RTP statistics allows problem isolation to the RTP encapsulating device. © 2011 EXFO Inc. All rights reserved. 10

TR 101290 Metrics TR 101290 First Priority lists Loss and Error counters that are essential for video de-codability TR 101290 Second Priority list Error Counters recommended for continuous or periodic monitoring © 2011 EXFO Inc. All rights reserved. 11

Audio Metrics Audio Decription Information is similar to Video Decription Information providing essential reference information about the stream. Audio Perceptual Quality Metrics are MOS scores with subjective test content calculated with a specialized VQMON audio algorithm. Degradation Factors provide severity of degradation due to Packet Loss, Packet Discard, Codec, a Recency of burst packet loss Audio Bandwidth Metrics provides bandwidth average and peak rate with and without headers © 2011 EXFO Inc. All rights reserved. 12

Video Frames Metrics Video Frames (MPEG-TS) statistics provide the total number of Received and Impaired frames I, P , B and optional SI and SP. This breakdown allows better diagnostics of the distorted video. Packet statistics such as Packet Lost, Packets Discarded and Packets Impaired correspond to the MPEG-TS frame statistics and they allow more detail breakdown of the diagnostics. © 2011 EXFO Inc. All rights reserved. 13

Video Bandwidths Metrics Video Bandwidth of I, P, B, SI and SP frames provides a useful information for traffic engineering. Looking and MOS and other metrics one can determine how much less or more bandwidth to add or reduce to maintain the quality goal and bandwidth utilizations at the same time. © 2011 EXFO Inc. All rights reserved. 14

Graphs Any two metrics can be displayed as histograms allowing correlation of events for

Simultaneous Multi-channel Testing © 2011 EXFO Inc. All rights reserved. 16

Set Top Box Emulation › Join and leave one or multiple channels simultaneously ›

Set Top Box Emulation - Configuration › Channels List Manager › Allows user to add channels in a group › Groups can pre-configured and imported and exported › Multicast or Video On Demand › Join and leave channels – Multicast › Play and stop - Vo. D © 2011 EXFO Inc. All rights reserved. 18

Passive Mode › Seamless monitoring › Monitor bi-directionally IPTV streams © 2011 EXFO Inc.

Triple Play Testing with FTB-1 (DATA TESTING) Connectivity test Throughput measurement Response time, download and upload times x. PON VOICE Ethernet › › › (VOICE TESTING) › › Live calls Measure Vo. IP metrics: MOS, RTP, Latency DATA x. DSL Set Top Box (VIDEO TESTING) › › › VIDEO Emulate set top box View video streams Measure video and audio metrics © 2011 EXFO Inc. All rights reserved. 20

FTTx Deployments › Triple play testing in the home network for FTTC and FTTN deployments › Testing at the ONT for FTTB/FTTH deployments Testing inside the house Testing inside and/or outside the house © 2011 EXFO Inc. All rights reserved. 21

FTB-1 – EIN Tester für die komplette FTTH Bereitstellung › One tester for both FTTH and triple play testing › Construction phase: i. OLM, OTDR, Connector Max › Service activation: EXpert Triple Play › Troubleshooting © 2011 EXFO Inc. All rights reserved. 22

Wo werden Sie eingesetzt? Customer Prem/Residential FTTx/FTTH Core/Edge Networks © 2011 EXFO Inc. All

EXFO Triple Play Testers FTB-1 AXS-630 AXS-635 AXS-650 Max 630 FTTx + Optical FTTH + FTTN Live Call Monitoring Audio MOS IPTV Analysis IPTV Monitoring IPTV STB Emulation (join/leave) Stream Viewing Video MOS Applications FTTH © 2011 EXFO Inc. All rights reserved. 24

Preis und Bestell Information Product Description List Price EXpert IPTV test tool € 1690. 00 EXpert TPPBundle of Data, Voice and IPTV test tools on the FTB-1 € 2350. 00 *** Includes EXpert IP, EXpert Vo. IP, EXpert SIP and EXpert IPTV © 2011 EXFO Inc. All rights reserved. 25

Fazit › Mit den EXpert IPTV Test Tools, bietet der FTB-1 eine komplette IPTV und Triple-play Test Lösung › Es kombiniert alle erforderlichen Applikation für Errichtung, Aktivierung und Störungsbehebung von FTTx/FTTH Diensten © 2011 EXFO Inc. All rights reserved. 26
