Experimentele Modale Analyse LES 1 – THEORETISCHE INLEIDING Patrick Guillaume E-mail: patrick. guillaume@vub. ac. be Tel. : 02/6293566 Faculty of Engineering Department of Mechanical Engineering ACOUSTICS & VIBRATION RESEARCH GROUP Pleinlaan 2 • B-1050 Brussel • Belgium avrg@vub. ac. be • http: //avrg. vub. ac. be 1 12/19/2021 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005

Overzicht cursus – – – Theoretische basisbegrippen Meettechnieken Niet-parametrische schattingen Parametrische schattingen Toepassingen – – – Gevoeligheidsanalyse FE Model “updating” “Substructuring” “Operationele” modale analyse “Structural Health Monitoring” “Flight Flutter Testing” 2 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

3 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

4 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

5 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Frequency Response of MDOF System 6 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Basic Equations of Motion for SDOF System – Time domain f(t) – Frequency domain (Laplace) x(t) – Dynamic Stiffness Z(s) (static) stiffness k – Transfer function – Frequency response function (FRF) 7 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Poles of SDOF System l Poles : l l l Generalized eigenvalue problem 8 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

The SDOF Modal-Parameter Model Pole p – Re - Decay rate – Im - Modal frequency Residue R – Strength of the mode 9 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Poles and Residues Amplitude of mode is not given by the residue alone Hi-Fi turntable Car – Same pole – Different residues 10 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Basic Equations for a 2 -DOF System Forces acting on mass 1 f 2(t) – m 2 f 1(t) x 2(t) c 2 k 2 m 1 k 1 – – x 1(t) c 1 – – – Sum forces = 0 11 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Basic Equations for a 2 -DOF System Time domain Frequency domain (Laplace) Matrix notations Dynamic stiffness matrix Transfer function matrix 12 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

FRF of 2 -DOF System f 2(t) m 2 f 1(t) x 2(t) c 2 k 2 m 1 k 1 x 1(t) c 1 0° -180° -360° 13 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Multiple Degree of Freedom (MDOF) Dynamic stiffness matrix Transfer function matrix 14 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Poles of MDOF System Poles: FREQUENCY RESPONSE FUNCTION IMPULSE RESPONSE FUNCTION 15 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Eigenvalues and Eigenvectors No Damping 16 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Weighted Orthogonality of Modal Vectors – Pre-multiply with – Transpose the equation 17 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Weighted Orthogonality of Modal Vectors (eq. 1) – – Substracting – – From eq. 1: 18 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Modal Mass and Stiffness No Damping – Modal mass and stiffness are not unique ! 19 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Modal Coordinates 20 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Modal Model 21 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Modal Decomposition IRF FRF 22 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Scaling of the Mode Shapes 23 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Proportional Damping – Eigenvalues 24 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Proportional Damping – Complex system poles and normal modal vectors – Modal mass, stiffness and damping 25 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

General Viscous Damping 26 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

General Viscous Damping – Eigenvalues and vectors – Complex system poles and complex modal vectors – Orthogonality 27 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

General Viscous Damping Poles: FREQUENCY RESPONSE FUNCTION IMPULSE RESPONSE FUNCTION 28 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

General Viscous Damping 29 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Operational Deflection Shapes (ODS) Resonant frequencies (peaks) Mode shapes (ODS) 30 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Operational Deflection Shapes (ODS) Uncoupled modes (SDOF) 31 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Operational Deflection Shapes (ODS) Coupled modes + = 32 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Force Appropriation Method – Also called: – Normal Mode Testing – Phase Resonance Testing – Traditionally used for Ground Vibration Testing (GVT) of airplanes (large structures) – First method to use multiple inputs – Find (mono-phased) forced vector to obtain a (mono-phased) response vector with a 90 degree phase 33 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

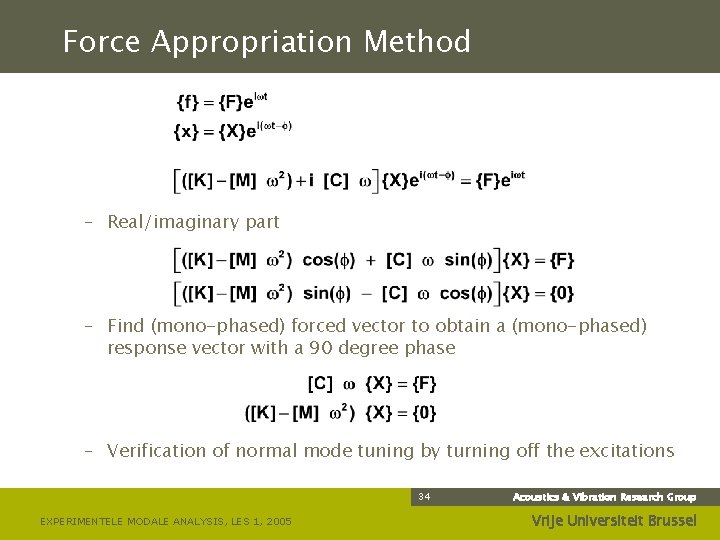

Force Appropriation Method – Real/imaginary part – Find (mono-phased) forced vector to obtain a (mono-phased) response vector with a 90 degree phase – Verification of normal mode tuning by turning off the excitations 34 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel

Mat. Lab Oefening modal_model. m – – SDOF MDOF Eigenwaarden en vectoren Schaling van de eigenvectoren 35 EXPERIMENTELE MODALE ANALYSIS, LES 1, 2005 Acoustics & Vibration Research Group Vrije Universiteit Brussel
