Experiment 2 Filariae Trichinella spiralis Objectives and Requirements

Experiment 2 Filariae Trichinella spiralis

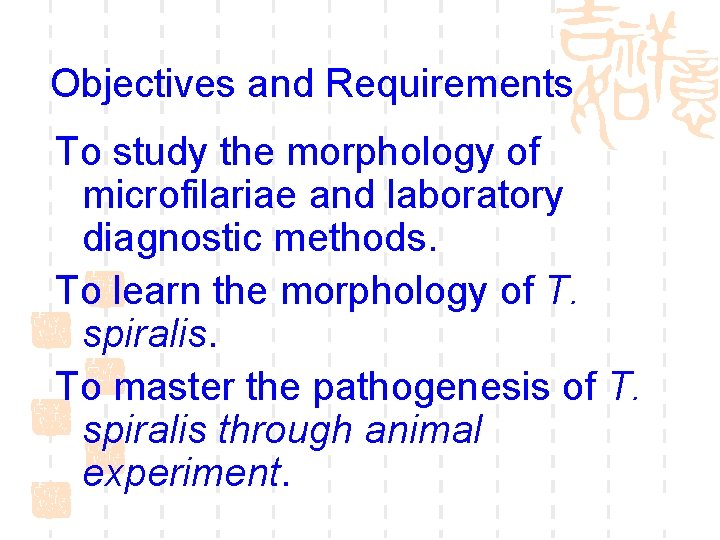

Objectives and Requirements To study the morphology of microfilariae and laboratory diagnostic methods. To learn the morphology of T. spiralis. To master the pathogenesis of T. spiralis through animal experiment.

Filariae 丝虫

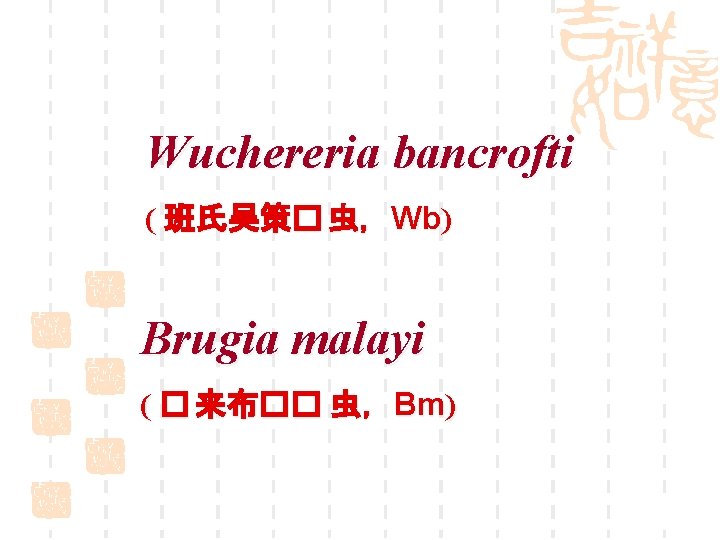

Wuchereria bancrofti ( 班氏吴策� 虫，Wb) Brugia malayi ( � 来布�� 虫，Bm)

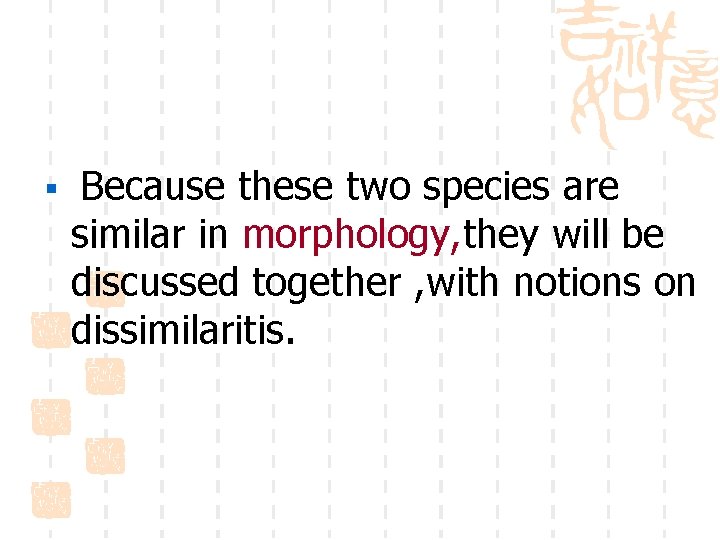

§ Because these two species are similar in morphology, they will be discussed together , with notions on dissimilaritis.

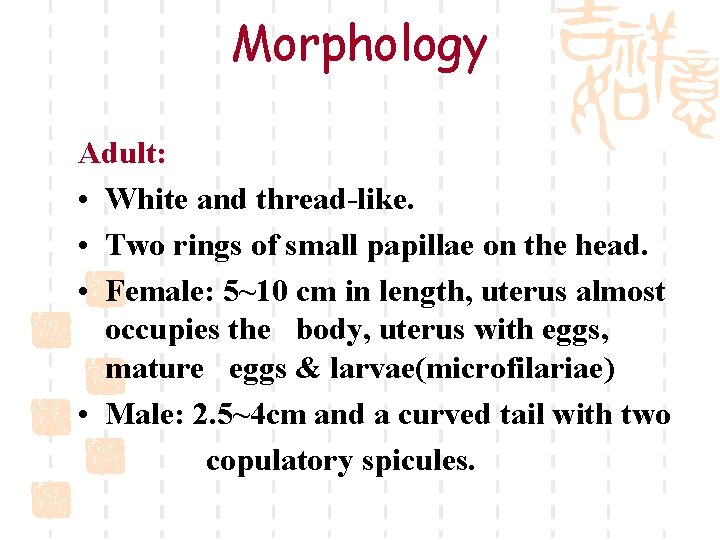

Morphology Adult: • White and thread-like. • Two rings of small papillae on the head. • Female: 5~10 cm in length, uterus almost occupies the body, uterus with eggs, mature eggs & larvae(microfilariae) • Male: 2. 5~4 cm and a curved tail with two copulatory spicules.

Adult

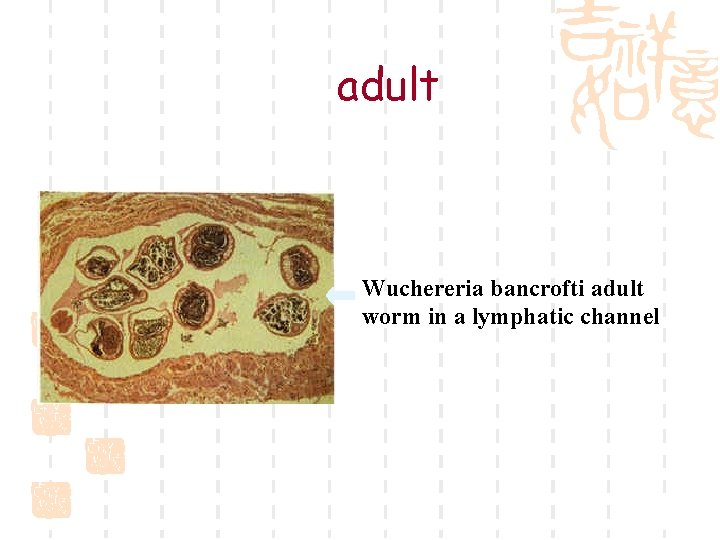

adult Wuchereria bancrofti adult worm in a lymphatic channel

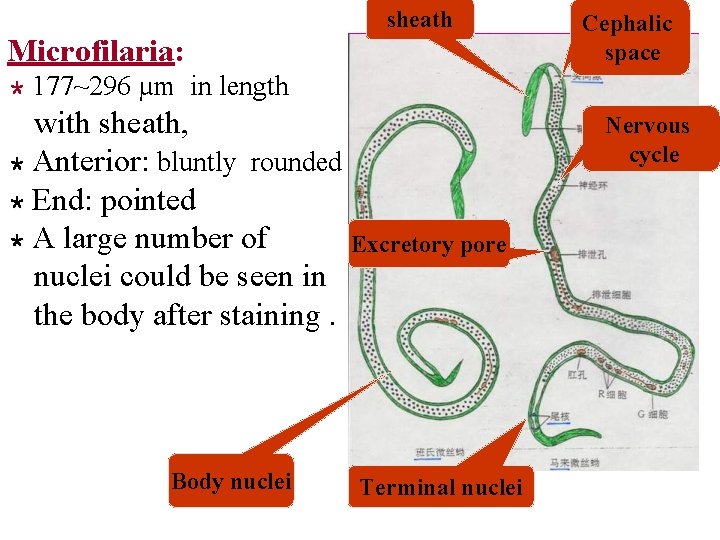

Microfilaria: ＊ 177~296 sheath Cephalic space µm in length with sheath, ＊ Anterior: bluntly rounded ＊ End: pointed ＊ A large number of Excretory pore nuclei could be seen in the body after staining. Body nuclei Terminal nuclei Nervous cycle

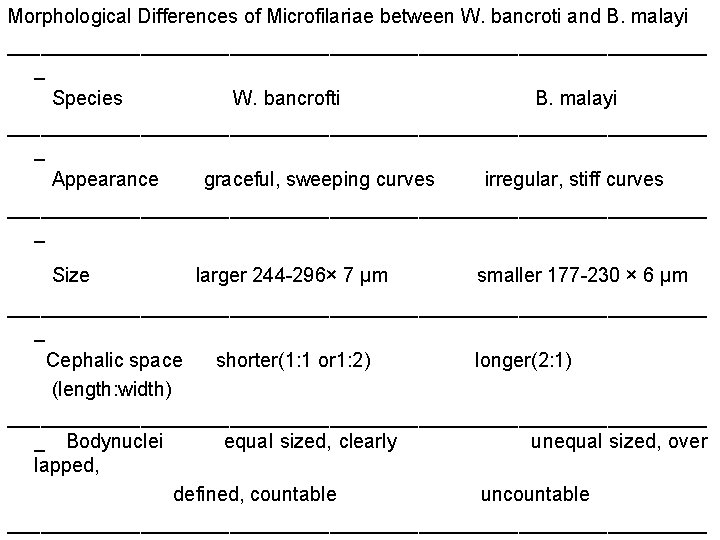

Morphological Differences of Microfilariae between W. bancroti and B. malayi ________________________________ _ Species W. bancrofti B. malayi ________________________________ _ Appearance graceful, sweeping curves irregular, stiff curves ________________________________ _ Size larger 244 -296× 7 µm smaller 177 -230 × 6 µm ________________________________ _ Cephalic space shorter(1: 1 or 1: 2) longer(2: 1) (length: width) ________________________________ _ Bodynuclei equal sized, clearly unequal sized, over lapped, defined, countable uncountable ________________________________

Wuchereria bancrofti Graceful curves of the microfilaria. The sheath is clearly visible, especially at the cephalic end (thick film stained by Carazzi’s method).

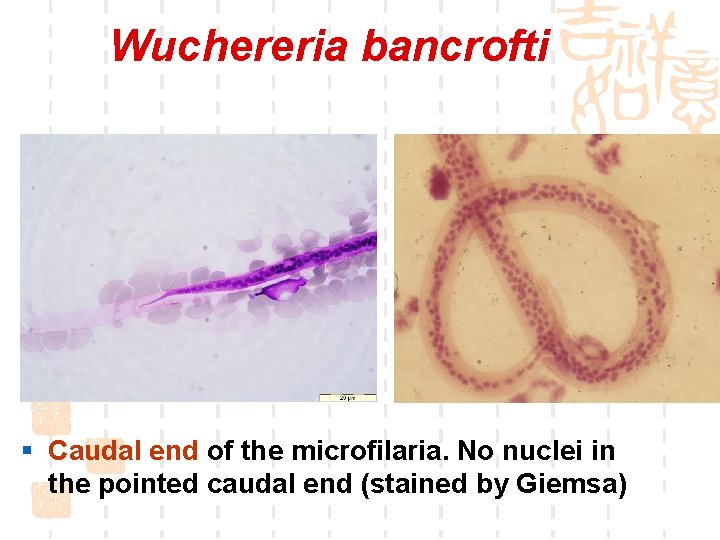

Wuchereria bancrofti § Caudal end of the microfilaria. No nuclei in the pointed caudal end (stained by Giemsa)

Brugia malayi Coiled microfilaria. The nuclei are more or less distinct. The last caudal nuclei are clearly separated from the others and extends into the tip of the tail. (Giemsa stain).

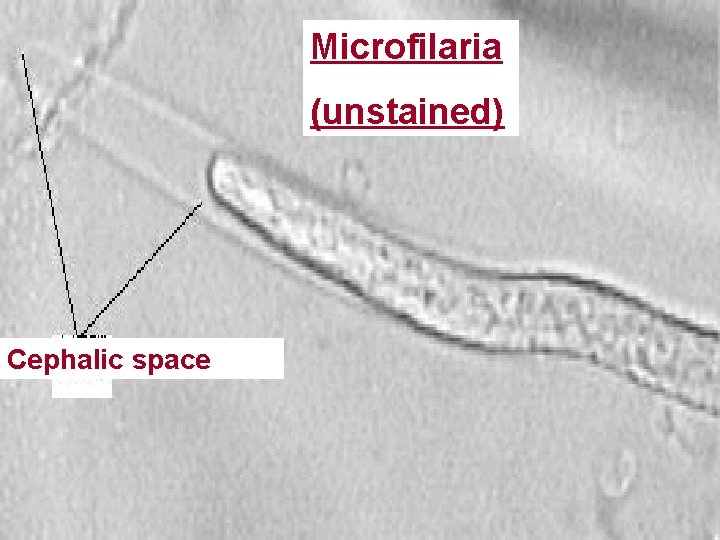

Microfilaria (unstained) Cephalic space

Infective stage larvae Mouthpart of mosquito

A large number of larvae of a filarias emerging from the proboscis of a mosquito.

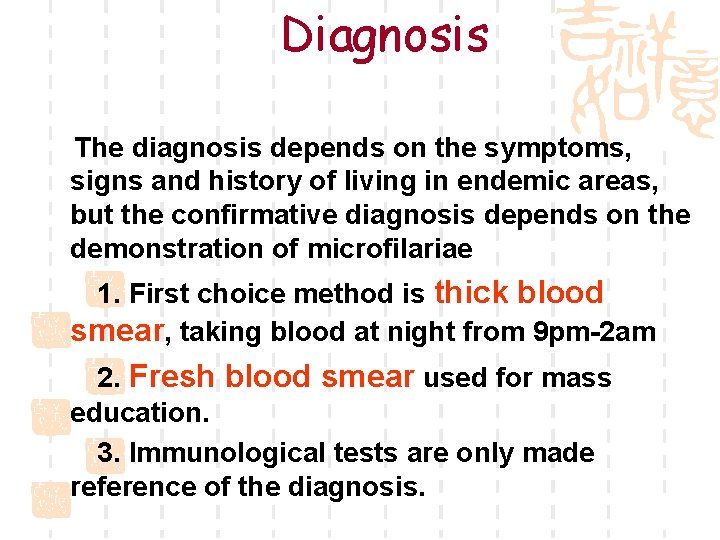

Diagnosis The diagnosis depends on the symptoms, signs and history of living in endemic areas, but the confirmative diagnosis depends on the demonstration of microfilariae 1. First choice method is thick blood smear, taking blood at night from 9 pm-2 am 2. Fresh blood smear used for mass education. 3. Immunological tests are only made reference of the diagnosis.

Thick blood smear

Trichinella spiralis 旋毛形线虫

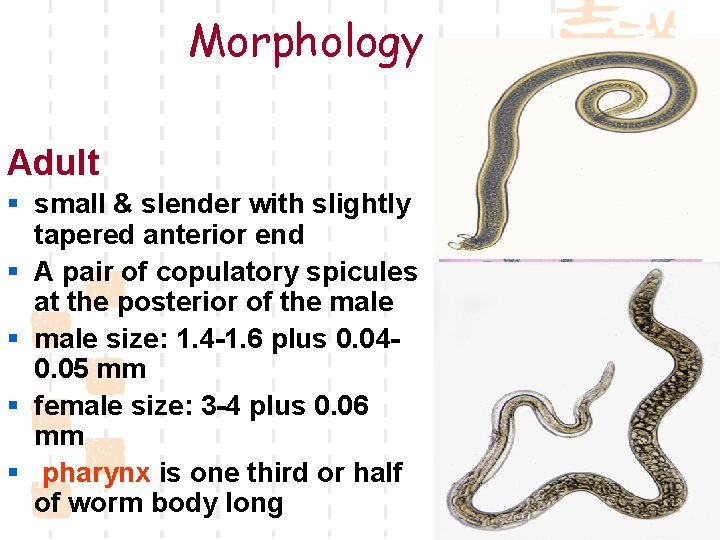

Morphology Adult § small & slender with slightly tapered anterior end § A pair of copulatory spicules at the posterior of the male § male size: 1. 4 -1. 6 plus 0. 040. 05 mm § female size: 3 -4 plus 0. 06 mm § pharynx is one third or half of worm body long

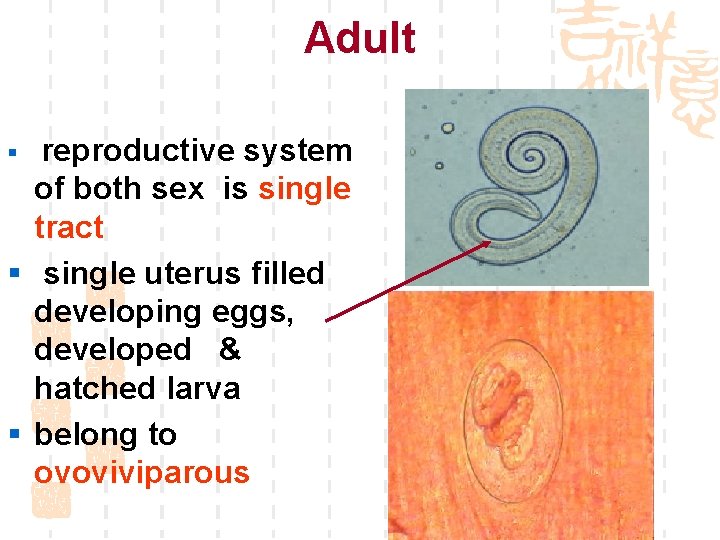

Adult reproductive system of both sex is single tract § single uterus filled developing eggs, developed & hatched larva § belong to ovoviviparous §

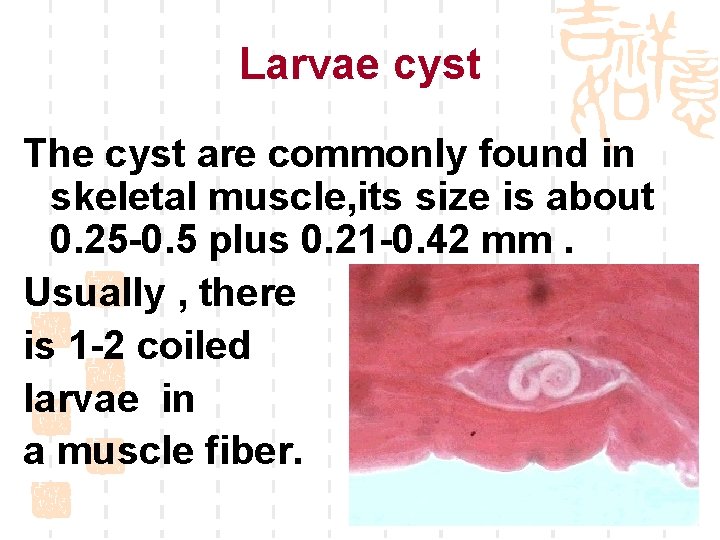

Larvae cyst The cyst are commonly found in skeletal muscle, its size is about 0. 25 -0. 5 plus 0. 21 -0. 42 mm. Usually , there is 1 -2 coiled larvae in a muscle fiber.

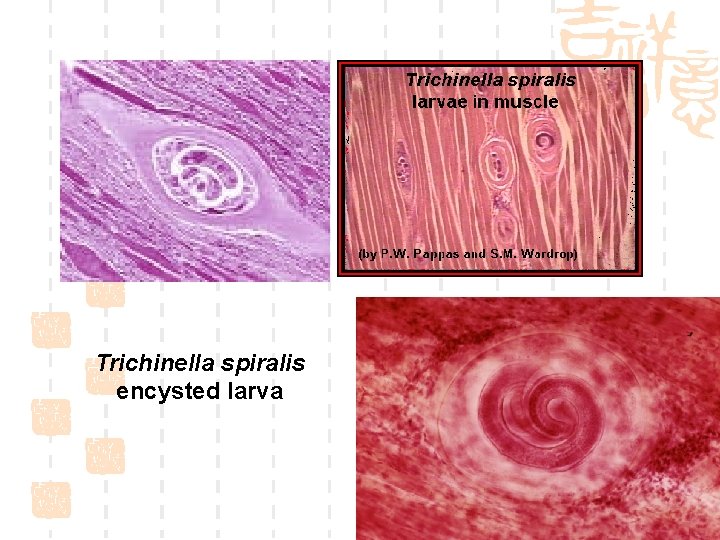

Trichinella spiralis encysted larva

Larvae of trichinella spiralis in muscle section

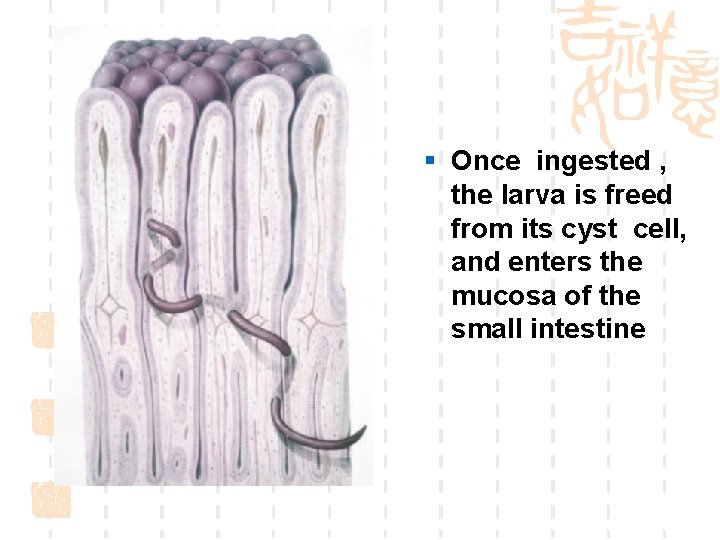

§ Once ingested , the larva is freed from its cyst cell, and enters the mucosa of the small intestine

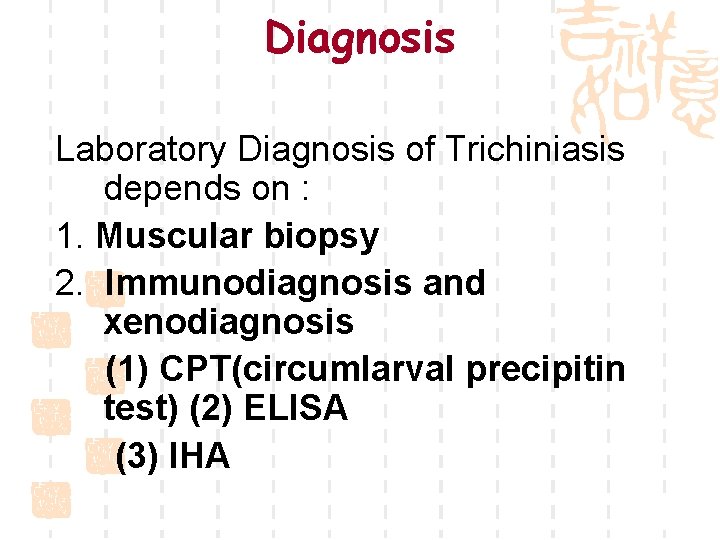

Diagnosis Laboratory Diagnosis of Trichiniasis depends on : 1. Muscular biopsy 2. Immunodiagnosis and xenodiagnosis (1) CPT(circumlarval precipitin test) (2) ELISA (3) IHA

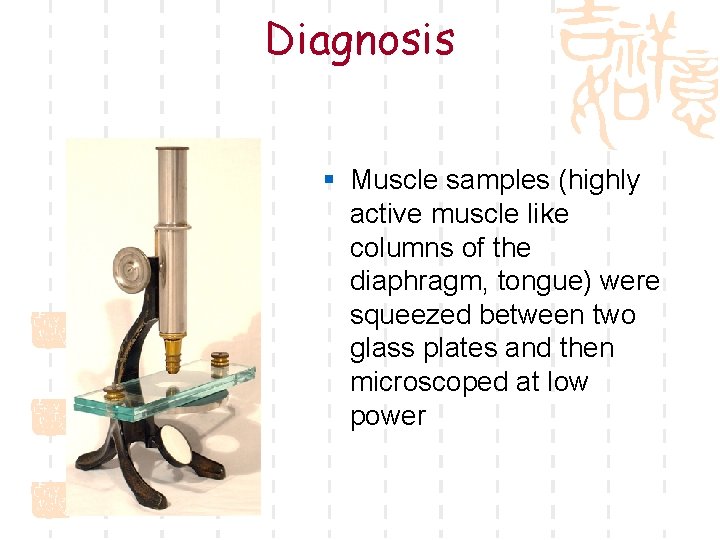

Diagnosis § Muscle samples (highly active muscle like columns of the diaphragm, tongue) were squeezed between two glass plates and then microscoped at low power

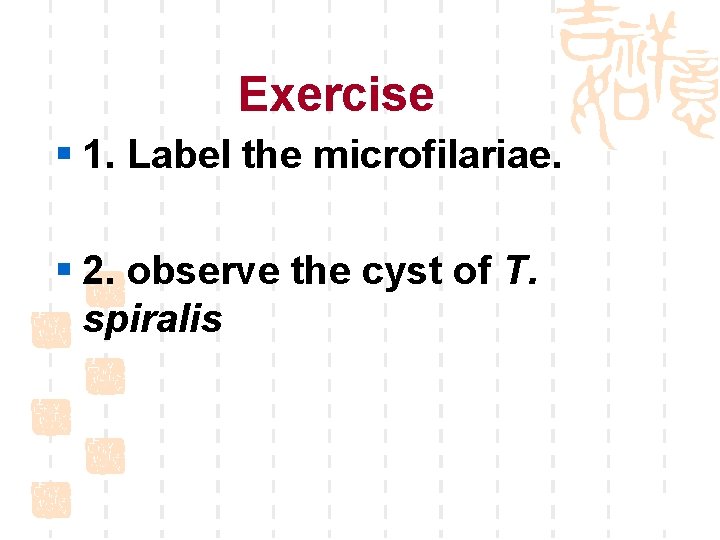

Exercise § 1. Label the microfilariae. § 2. observe the cyst of T. spiralis

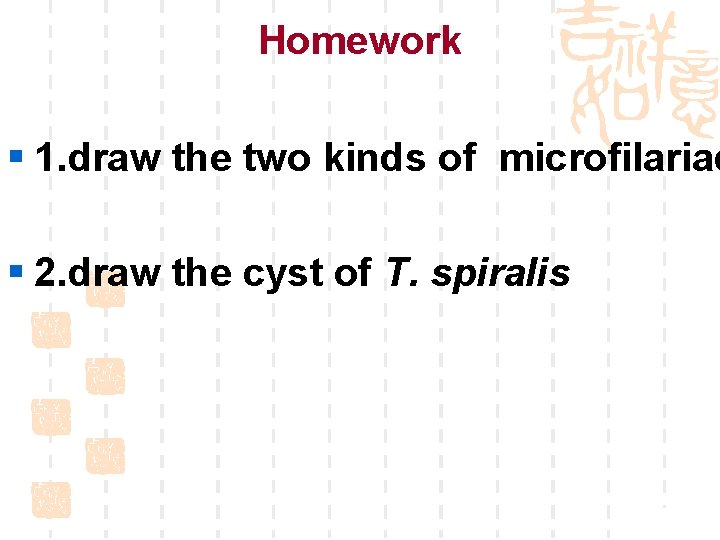

Homework § 1. draw the two kinds of microfilariae § 2. draw the cyst of T. spiralis
