Expanding your Data Redundancy Options u OPC Data

Expanding your Data Redundancy Options u OPC Data. Hub u u Redundancy Options Combining redundancy with other Data. Hub features Presenters: Renee Sikes, Product Support Engineer Win Worrall, Product Support Engineer and Developer

Today’s Presentation u u u Overview of OPC Data. Hub and Redundancy Overview of Tunneling Live Demo New Features in v 7. x Questions and Answers

OPC Data Hub Functionality Overview http: //www. softwaretoolbox. com/opcdatahub

Redundancy Overview u Where is it used? u u u Mission critical systems Single point of failure exists Why is it used? u u Increase system reliability and availability Limit interruptions in sending and receiving data

Levels of Redundancy u Device u u Server u u Redundant connections between server and multiple devices Redundant connections between client and multiple servers Client u Redundant client connections

Types of Redundancy u Cold u u Application will only connect to one server at a time If connection to primary server is lost, connection will be established with secondary

Types of Redundancy u Hot u u Application tries to maintain a connection to both primary and secondary servers at all times Callback is initialized for both servers

Redundancy and the OPC Data. Hub u Gamma u u Engine u u C-based scripting language Dynamic environment Event driven Object oriented Redundancy scripts u u Switchover. g Enable. OPCConnection. g

Expanding Redundancy with the Data. Hub u Combine all features of the Data. Hub to make most of your data u u u SMS/Email alerts when fail over occurs Bridge data between domains Log to a Database Data Tunneling Data Aggregation Easy set-up

What is Tunneling? OPC Tunneling u u Moving OPC Data via simple TCP/IP port connection Eliminating DCOM and Expanding Data Transport Choices Computer #1 Computer #2

3 Steps to Tunneling with OPC Data. Hub u u u Step 1: Connect Master to OPC Server Step 2: Connect Master to Slave Step 3: Connect OPC Client to Slave

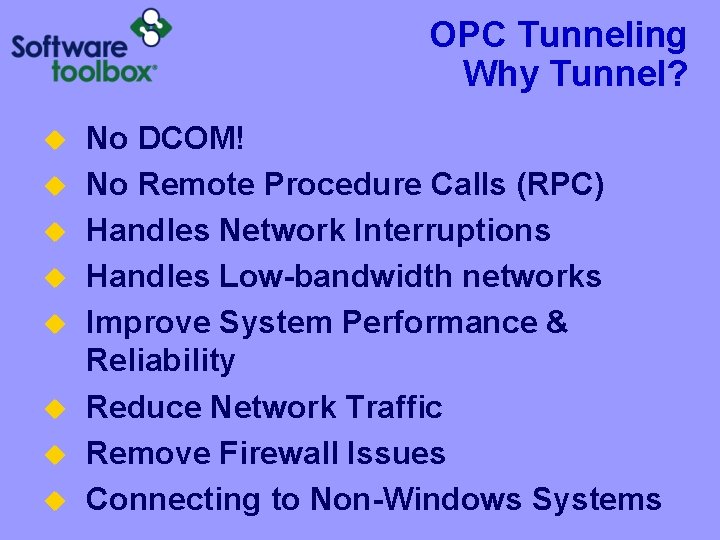

OPC Tunneling Why Tunnel? u u u u No DCOM! No Remote Procedure Calls (RPC) Handles Network Interruptions Handles Low-bandwidth networks Improve System Performance & Reliability Reduce Network Traffic Remove Firewall Issues Connecting to Non-Windows Systems

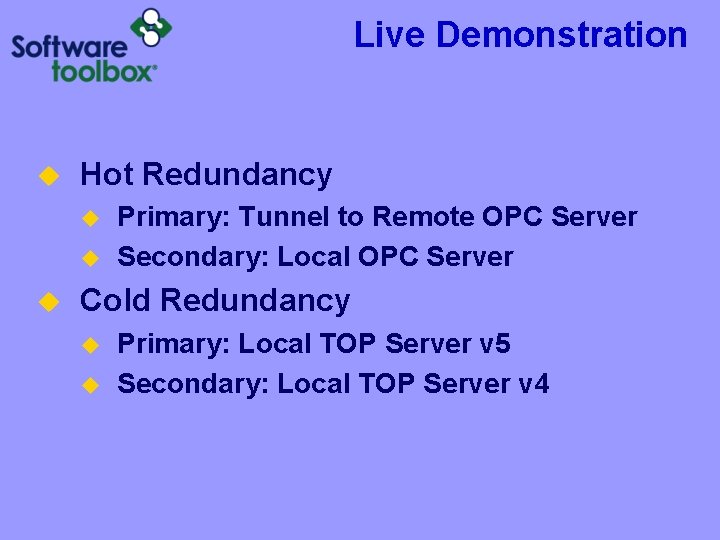

Live Demonstration u Hot Redundancy u u u Primary: Tunnel to Remote OPC Server Secondary: Local OPC Server Cold Redundancy u u Primary: Local TOP Server v 5 Secondary: Local TOP Server v 4

What Tools are Needed? u For all usage scenarios u u u No tag count limits No limits on # of clients, # of servers used with a single Data. Hub Single PC – 1 Data. Hub License - $995 Tunnelling Scenario – 2 Data. Hub licenses (one per PC) - $1990 Maintenance Agreements are $199 for the Node License. u Includes 1 Year of Free Upgrades and Support u http: //www. softwaretoolbox. com/opcdatahub/html/contract. html u Free Demo Available u http: //www. softwaretoolbox. com/opcdatahub/html/free_demo. shtml

New Features 7. x - 2010 u u Redundancy support and GUI interface. Includes domain to domain bridging. OPC A&E support and GUI interface. Multi-threaded ODBC with store and forward capabilities Other changes include: u u u Tweaks to properties window to allow it to be scaled wider and taller. New icons and splash screen. Updated documentation. OPC UA Cogent Lightning - Silverlight screen editor and web support.

Contact Information & Other Learning Opportunities u Questions later? u u Free Fully Functional Demo Available u u rsikes@softwaretoolbox. com wworrall@softwaretoolbox. com 888 -665 -3678 or 704 -849 -2773 www. softwaretoolbox. com/opcdatahub Other learning opportunities u u www. softwaretoolbox. com/opcdatahub and click on Videos/Training Visit www. softwaretoolbox. com/webinars
