Expandable Vertical Array Series Overview Expandable Vertical Array
Expandable Vertical Array Series Overview
Expandable Vertical Array Series EVA-2082 S Dual 8” woofer with quad HF driver on two dual Hydras plane wave generators, modular design for true vertical line array coverage and performance. Professional aesthetics for the most demanding venues. Best in class passive line array system.
Expandable Vertical Array Series EVA-2082 S § Two horizontal angles available (90° & 120°) § Two vertical angles available (6° & 20°) § Six finishes available (EVCoat. TM black & white, EVCoat. TM PIB & PIW, FB black & white) FGB &FGW)

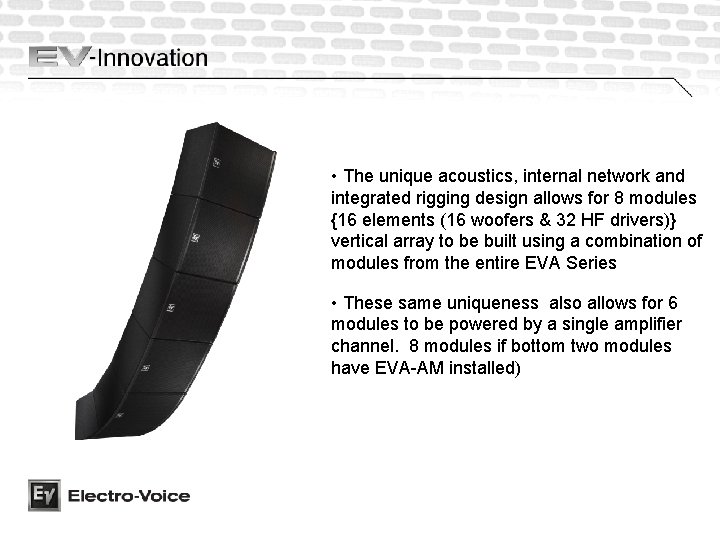

• The unique acoustics, internal network and integrated rigging design allows for 8 modules {16 elements (16 woofers & 32 HF drivers)} vertical array to be built using a combination of modules from the entire EVA Series • These same uniqueness also allows for 6 modules to be powered by a single amplifier channel. 8 modules if bottom two modules have EVA-AM installed)
Expandable Vertical Array Series • Each module consist of two elements • Each 2 -way elements containing an 8” woofer and two compression drivers mounted on a hydra/waveguide combination • Each 2 -way element’s HF Section can be attenuated 3 d. B by using the attenuation selection card on the input panel (Only one element per module) 1 2
Accessories • EVA-AM (Attenuation Module) for lowering the overall level of the entire module • EVA-AM Label included with module
Expandable Vertical Array Series EVA-1151 D Single DVX 3159 A 15” woofer frontloaded subwoofer system, design to array on top of full range EVA loudspeakers or behind by using the new EVA-CG Coupler grid. 500/2000 W (Cont/Peak) 131 d. B Max SPL
Expandable Vertical Array Series EVA-2151 D Dual DVX 3159 A 15” woofer frontloaded subwoofer system, design to array on top of full range EVA loudspeakers. 1000/4000 W (Cont/Peak) 136 d. B Max SPL
Expandable Vertical Array Series New EVA-SG 2 Standard grid for EVA full-Range systems and EVA-1151 D Allows for 0 and 5 degree splay between grid and subwoofer New EVA-EG 2 Extended grid for EVA full-Range systems, EVA-1151 D and EVA-2151 D Allows for 0 and 5 degree splay between grid and subwoofer Allows for extreme angles of speaker arrays New EVA-CG Coupler grid for EVA full-Range systems and EVA-1151 D Allows for EVA-1151 D to be flown behind full-range cabinets

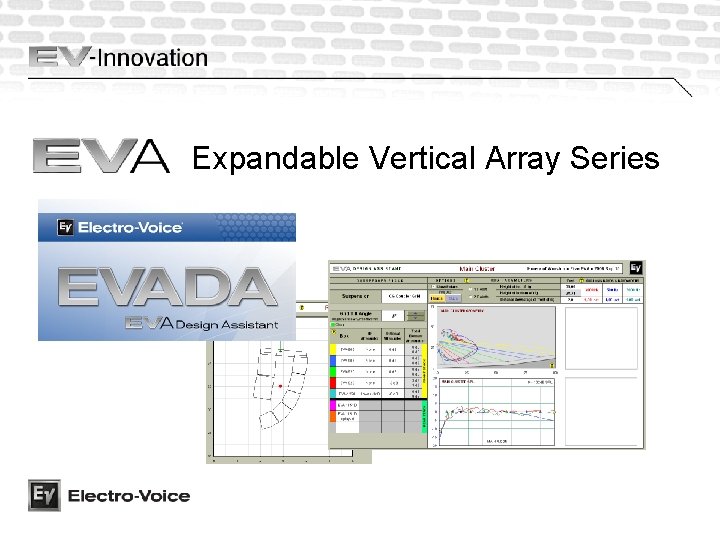

Expandable Vertical Array Series
