Exome Sequencing as Molecular Diagnostic Tool of Mendelian
- Slides: 38
Exome Sequencing as Molecular Diagnostic Tool of Mendelian Diseases BIOS 6660 Hung-Chun (James) Yu Shaikh Lab 04/28/2014
Human Genetic Diseases �Penetrance vs Frequency Kaiser J. Science (2012) 338: 1016 -1017.

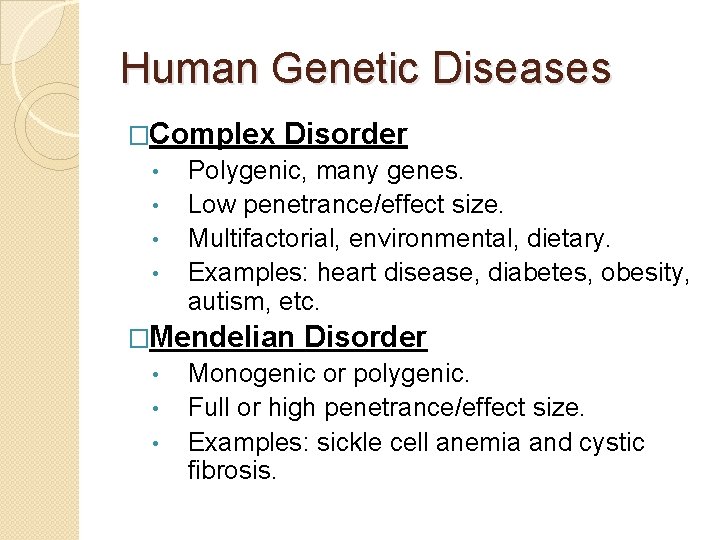

Human Genetic Diseases �Complex • • Disorder Polygenic, many genes. Low penetrance/effect size. Multifactorial, environmental, dietary. Examples: heart disease, diabetes, obesity, autism, etc. �Mendelian • • • Disorder Monogenic or polygenic. Full or high penetrance/effect size. Examples: sickle cell anemia and cystic fibrosis.
Complex Diseases �Multiple causes, and polygenic. �Multiple genetics factors with low penetrance individually. Coronary artery disease Coriell Institute for Medical Research. https: //cpmc 1. coriell. org/genetic-education/diagnosis-versus-increased-risk
Mendelian Diseases Veltman J. A. et al. Nat. Rev. Genet. (2012) 13: 565 -575.
Mendelian Diseases �Dominant Inheritance U. S. National Library of Medicine. http: //ghr. nlm. nih. gov/

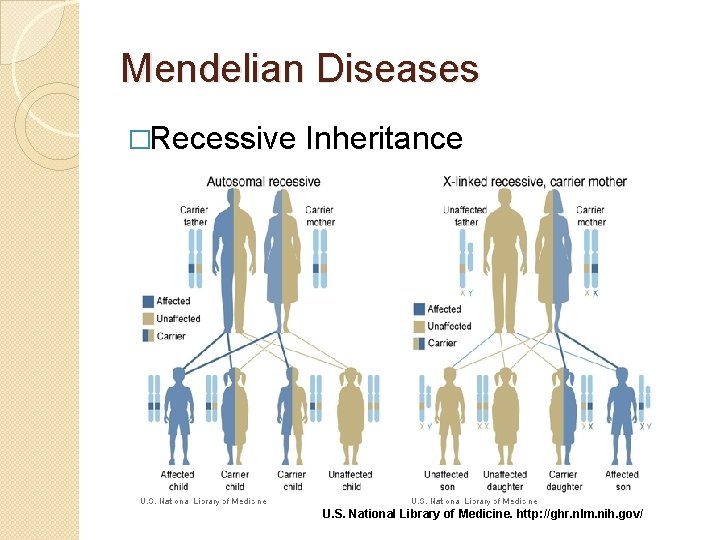

Mendelian Diseases �Recessive Inheritance U. S. National Library of Medicine. http: //ghr. nlm. nih. gov/
Exome Sequencing Bamshad, MJ. , et al. Nat. Rev. Genet. (2011) 12: 745 -755.
Exome Sequencing �~40 Mb UTRs) (coding) or 60 Mb (coding +
Mendelian Diseases Identified by Exome Sequencing �Timeline Gilissen C. et al. , Genome Biol. (2011) 12: 228.
Mendelian Diseases Identified by Exome Sequencing � By mid-2012, ~100 genes identified. � By mid-2013, >150 genes identified. Rabbani, B. , et al. (2012) J. Hum. Genet. 57: 621 -632.
Types of Variation �What kind of variation/mutation can be detected by Exome Sequencing? SNV (single nucleotide variation) • Small In. Del, (insertion/deletion of <25 bp) • Large In. Del, CNV (copy number variation) • ü • Aneuploidy ü • Same as CNV Translocation ü • Possible, but not reliable. Limited. Complex rearrangement ü Not likely.
Exome Variants �SNV (single nucleotide variation) Synonymous: (1) Silent. • Nonsynonymous: (1) Missense. (2) Nonsense. (3) Stop-loss. (4) Start-gain. (5) Start-loss. (6) Splice-site. • http: //upload. wikimedia. org/wikipedi a/commons/6/69/Point_mutationsen. png http: //www. webbooks. com/Mo. Bio/Free/Ch 5 A 4. htm

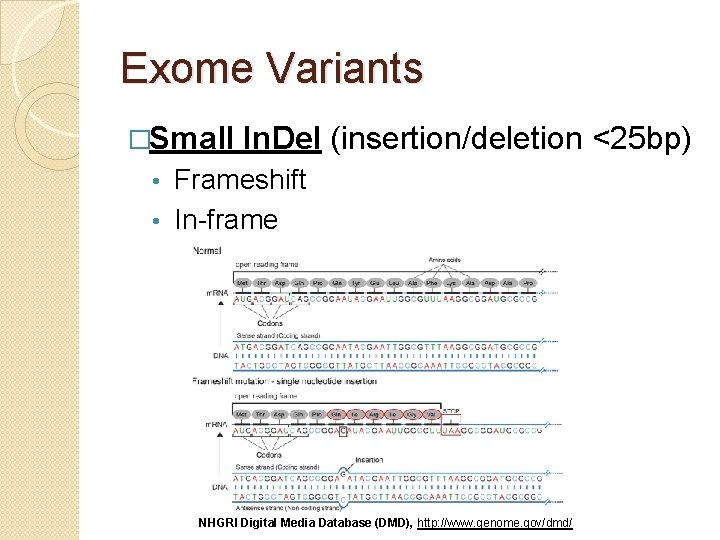

Exome Variants �Small In. Del (insertion/deletion <25 bp) Frameshift • In-frame • NHGRI Digital Media Database (DMD), http: //www. genome. gov/dmd/
Variant and Population Frequency �Novel/Private • Never been reported before. �Rare • variant Minor allele freq. (MAF) < 1%. �Polymorphic • variant MAF > 1% (0. 01) or 5% (0. 05). �Databases db. SNP (NCBI): http: //www. ncbi. nlm. nih. gov/SNP/ • 1000 Genomes: http: //www. 1000 genomes. org/ • ESP (NHLBI): http: //evs. gs. washington. edu/EVS/ •
Exome Variants �How to analyze enormous amount of variants in any given exome? Private/Novel Protein altering Coding + splice-site All Gilissen C. et al. Eur. J. Hum. Genet. (2012) 20: 490 -497. ~100 - 300 ~4, 000 - 15, 000 ~10, 000 - 30, 000 ~20, 000 - 200, 000
Exome Variants Bamshad, MJ. , et al. Nat. Rev. Genet. (2011) 12: 745 -755.
Exome Analysis Strategies Male Female Affected Heterozygous carrier Sex-linked heterozygous carrier Mating Consanguineous mating Gilissen C. et al. , Eur. J. Hum. Genet. (2012) 20: 490 -497.
Exome Analysis Strategies �Linkage Large family with multiple affected individuals • Pathogenic variant co-segregate with disorder. • �Homozygosity Affected patients from consanguine parents. • Homozygous mutation within a homozygous stretch in the genome. • Ideal for recessive disorders •
Exome Analysis Strategies �Candidate genes Biased approach • Require current biological knowledge • Good for screening or clinical diagnosis of known disorders. • �Overlap Require multiple unrelated individuals with identical disorders. • Monogenic disorders •
Exome Analysis Strategies �De novo Sporadic mutation • Germline mutation during meiosis • Dominant inheritance • *
Exome Analysis Strategies �Double-hit Unaffected parents are heterozygous carries • Parental sequence info is very helpful • Recessive inheritance. • Homozygous Compound Heterozygous * # *# * * **
Trio-based Exome sequencing �Family • trio Unaffected parents and an affected patient. � Why we use trio? What can be tested using trio? Advantages? • Economical, efficient, single case required.
Trio-based Exome sequencing � Autosomal ü � X-linked recessive � X-linked De novo � Autosomal Male dominant ü Compound heterozygous ü Homozygous dominant ü De novo recessive ü Hemizygous in male * Female Affected Heterozygous carrier Sex-linked heterozygous carrier XY * XY XX

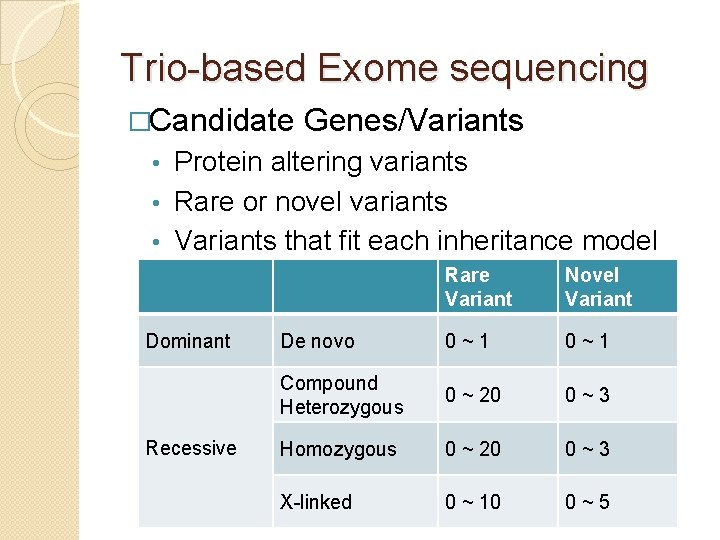

Trio-based Exome sequencing �Candidate Genes/Variants Protein altering variants • Rare or novel variants • Variants that fit each inheritance model • Dominant Recessive Rare Variant Novel Variant De novo 0~1 Compound Heterozygous 0 ~ 20 0~3 Homozygous 0 ~ 20 0~3 X-linked 0 ~ 10 0~5
Case 1 �Clinical information The patient was a 7 -month-old boy when first evaluated. He was diagnosed with BPES by a pediatric ophthalmologist. In addition to blepharophimosis, ptosis, and epicanthus inversus normally associated with BPES, he had cryptorchidism, right hydrocele, wide -spaced nipples, and slight 2– 3 syndactyly of toes. Clinical testing demonstrated a normal karyotype (46, XY), and normal FISH studies for 22 q 11. 2 deletion, Cri-du-Chat (5 p deletion) syndrome. Thyroid function was normal. Further, normal 7 -dehydrocholesterol level was used to rule out Smith–Lemli–Opitz syndrome. Sanger sequencing and highresolution CNV analysis with Affymetrix SNP 500 K arrays did not identify a FOXL 2 mutation.
Case 1 � A-D: 2 -month old. note blepharophimosis, ptosis, epicanthus inversus (A), posteriorly angulated ears with thickened superior helix and prominent antihelix (B), and slight 2– 3 syndactyly of toes in addition to overlapping toes (C, D) � E-F: 3. 5 -year old. Following oculoplastic surgery to correct ptosis; note right-sided preauricular ear pit (F, indicated by arrow). � G-I: 12 -year old. Note the recurrence of ptosis (L>R), arched eyebrows, abnormal ears, thin upper lip vermilion, small pointed chin, downsloping shoulders, and wide-spaced and low-set nipples.
Case 2 �Clinical information The proband is a nine year old girl who presented with microcephaly, unilateral retinal coloboma, bilateral optic nerve hypoplasia, nystagmus, seizures, gastroesophageal reflux, and developmental delay including not yet saying specific words (at 29 months old). On exam, she has microcephaly with a normal height, a down-turned upper lip, and fingertip pads. A karyotype and CGH analysis have been normal. Kabuki (KMT 2 D and KDM 6 A) and Angelman (UBE 3 A and MECP 2) syndromes were suspected in this patient.
Case 2
Case 3 �Clinical information Case 3 was the result of a non-consanguineous union and he presented to care at four months of age with a seizure disorder, hypotonia and developmental delay. The patient underwent a left parietal craniotomy and partial resection of the frontal cortex without complete resolution of the seizure disorder. Initial laboratory studies included an elevated homocysteine and methylmalonic acid and a normal vitamin B 12 level. Complementation analysis of the patient’s cell line placed the patient into the cbl. C class. Sequencing and deletion/duplication analysis (microarray) the MMACHC gene was negative in both skin fibroblasts and peripheral blood.
Case 3 �Feature Combined methylmalonic aciduria and homocystinuria. Severe developmental delay, infantile spasms, gyral cortical malformation, microcephaly, chorea, undescended testes, megacolon
Case 3 �Monster Max http: //www. maxwatson. org/ �Patient's older sister as a summer student in Shaikh Lab
Data for Case Study � 3 • • trios A total of 3 families/cases. Each family/case includes unaffected parents and an affected patient. �VCF • • files Familial variants calls in VCF format, mapped to human GRCh 37/hg 19. 2 x 90 bp paired-end reads, with ~50 X coverage �“Mini” • • Exome 100 genes with/without known disorder association. Validated causative genes, plus randomly selected genes.
Exome NGS Workflow FASTQ 2 x 90 bp BCF Filter based on Phred score, mapping quality, read depth, etc. SAM Filter unpaired, unmapped reads VCF BAM ? Filter PCR duplicates artifact BWA (Burrows-Wheeler Aligner) SAMtools

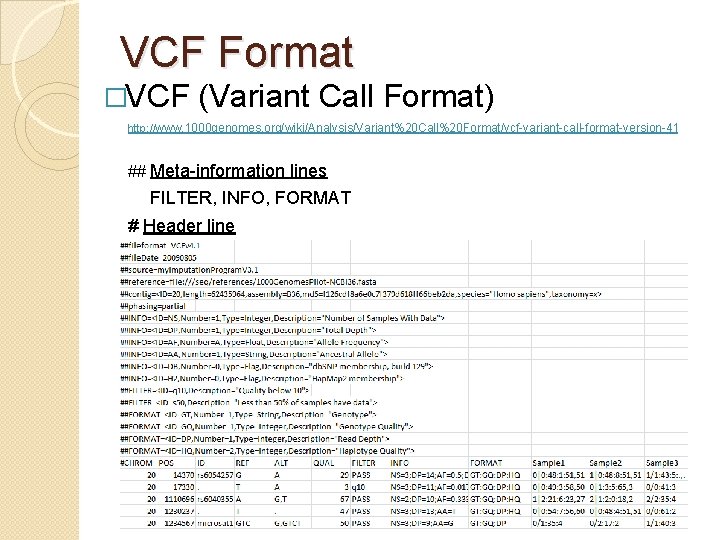

VCF Format �VCF (Variant Call Format) http: //www. 1000 genomes. org/wiki/Analysis/Variant%20 Call%20 Format/vcf-variant-call-format-version-41 ## Meta-information lines FILTER, INFO, FORMAT # Header line
VCF Format � INFO � AA : ancestral allele � AC : allele count in genotypes, for each ALT allele, in the same order as listed � AF : allele frequency for each ALT allele in the same order as listed: use this when estimated from primary data, not called genotypes � AN : total number of alleles in called genotypes � BQ : RMS base quality at this position � CIGAR : cigar string describing how to align an alternate allele to the reference allele � DB : db. SNP membership � DP : combined depth across samples, e. g. DP=154 � END : end position of the variant described in this record (for use with symbolic alleles) � H 2 : membership in hapmap 2 � H 3 : membership in hapmap 3 � MQ : RMS mapping quality, e. g. MQ=52 � MQ 0 : Number of MAPQ == 0 reads covering this record � NS : Number of samples with data � SB : strand bias at this position � SOMATIC : indicates that the record is a somatic mutation, for cancer genomics � VALIDATED : validated by follow-up experiment � 1000 G : membership in 1000 Genomes
VCF Format � FORMAT � GT: Genoetype. 0/0: Homozygous normal 0/1: Heterozygous variant 1/1: Homozygous variant � PL: the Phred-scaled genotype likelihoods (>0). 0/0 0/1 174 , 0 , 178 � GQ : Genotype quality (1 -99)
Question ?
