Exiway Power Control Addressable Central Battery System Exiway

Exiway Power Control Addressable Central Battery System

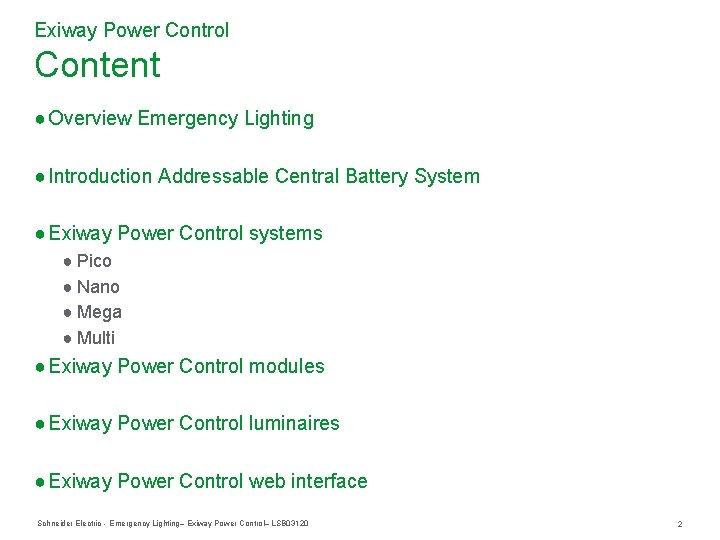

Exiway Power Control Content ● Overview Emergency Lighting ● Introduction Addressable Central Battery System ● Exiway Power Control systems ● Pico ● Nano ● Mega ● Multi ● Exiway Power Control modules ● Exiway Power Control luminaires ● Exiway Power Control web interface Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 2

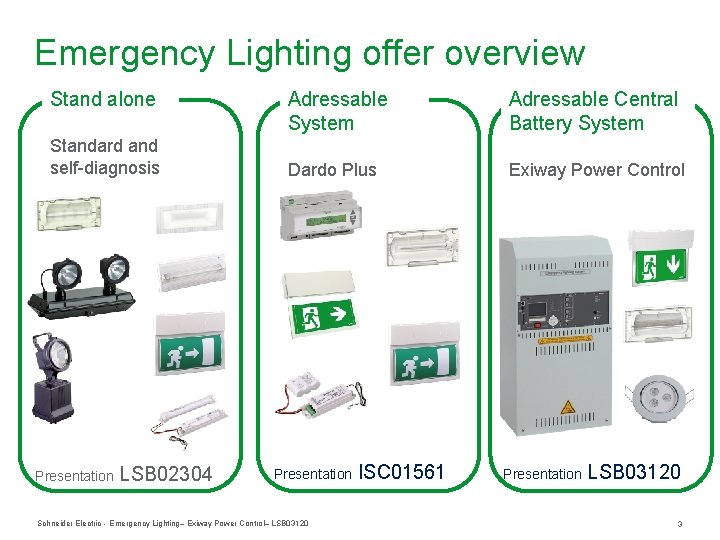

Emergency Lighting offer overview Stand alone Standard and self-diagnosis Presentation LSB 02304 Adressable System Adressable Central Battery System Dardo Plus Exiway Power Control Presentation Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 ISC 01561 Presentation LSB 03120 3

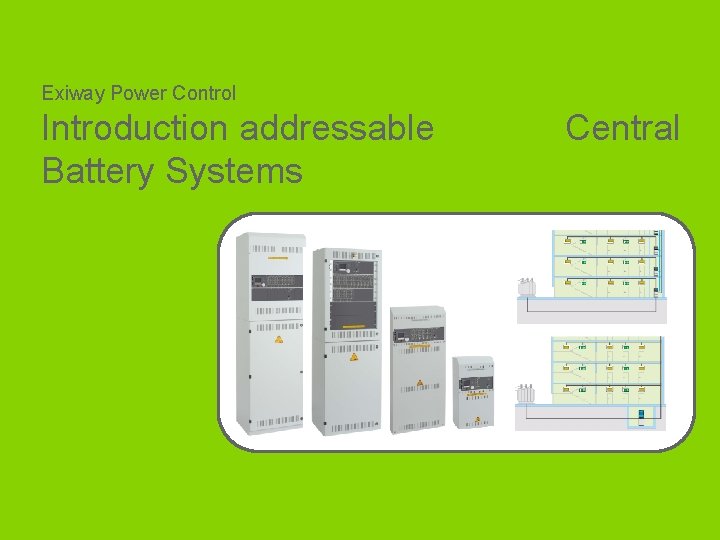

Exiway Power Control Introduction addressable Battery Systems Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 Central 4

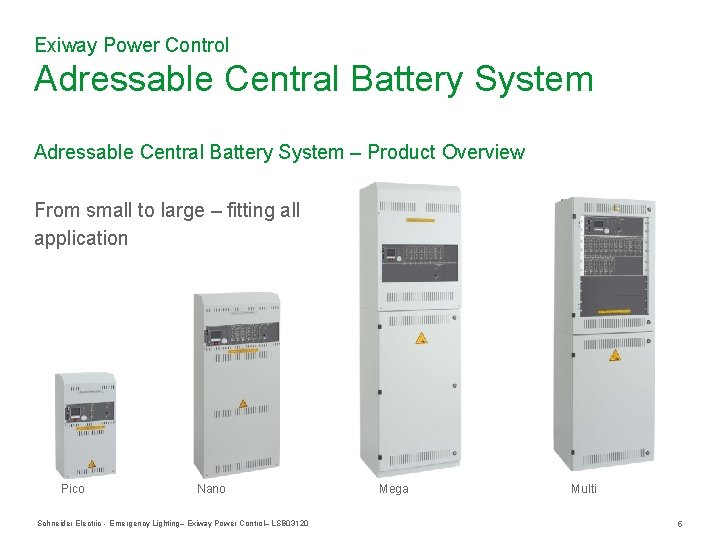

Exiway Power Control Adressable Central Battery System – Product Overview From small to large – fitting all application Pico Nano Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 Mega Multi 5

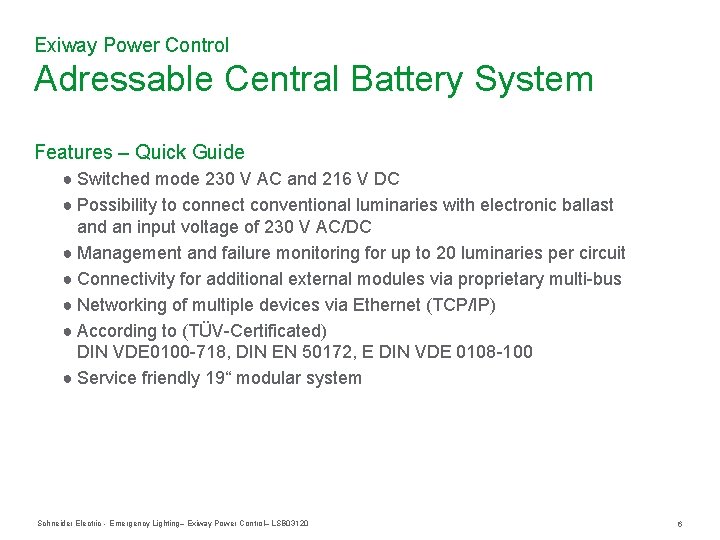

Exiway Power Control Adressable Central Battery System Features – Quick Guide ● Switched mode 230 V AC and 216 V DC ● Possibility to connect conventional luminaries with electronic ballast and an input voltage of 230 V AC/DC ● Management and failure monitoring for up to 20 luminaries per circuit ● Connectivity for additional external modules via proprietary multi-bus ● Networking of multiple devices via Ethernet (TCP/IP) ● According to (TÜV-Certificated) DIN VDE 0100 -718, DIN EN 50172, E DIN VDE 0108 -100 ● Service friendly 19“ modular system Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 6

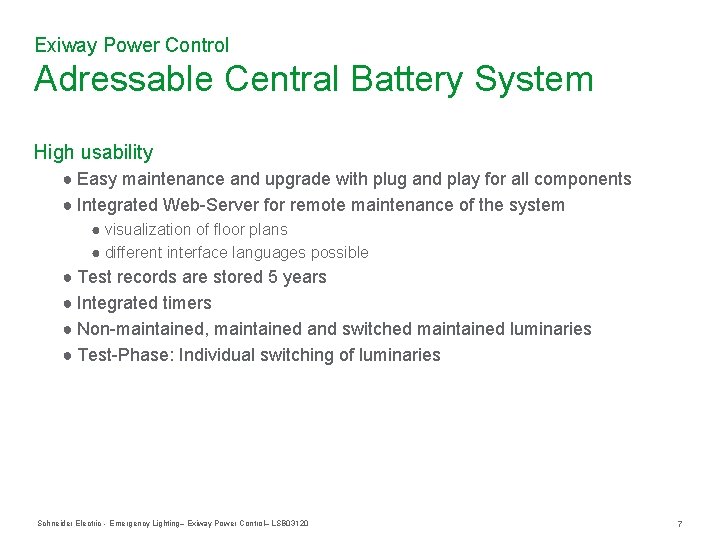

Exiway Power Control Adressable Central Battery System High usability ● Easy maintenance and upgrade with plug and play for all components ● Integrated Web-Server for remote maintenance of the system ● visualization of floor plans ● different interface languages possible ● Test records are stored 5 years ● Integrated timers ● Non-maintained, maintained and switched maintained luminaries ● Test-Phase: Individual switching of luminaries Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 7

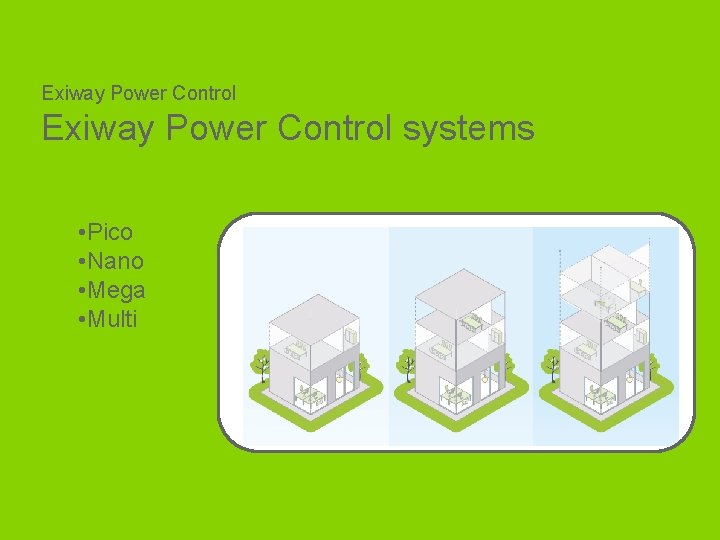

Exiway Power Control systems • Pico • Nano • Mega • Multi Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 8

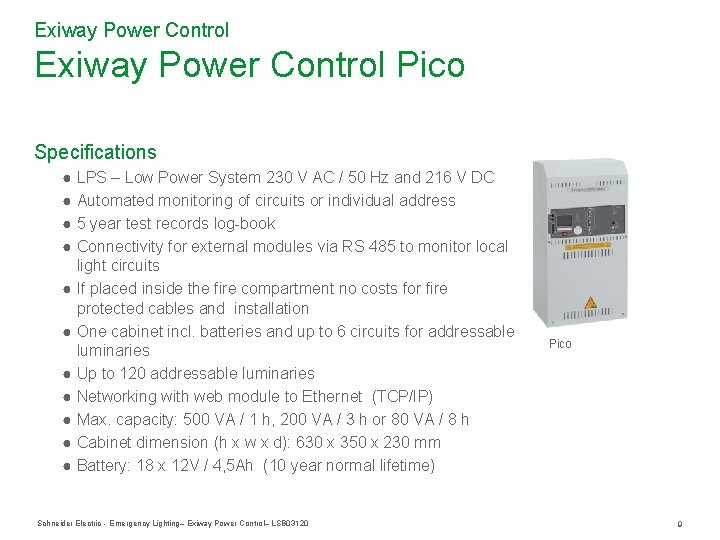

Exiway Power Control Pico Specifications ● LPS – Low Power System 230 V AC / 50 Hz and 216 V DC ● Automated monitoring of circuits or individual address ● 5 year test records log-book ● Connectivity for external modules via RS 485 to monitor local light circuits ● If placed inside the fire compartment no costs for fire protected cables and installation ● One cabinet incl. batteries and up to 6 circuits for addressable luminaries ● Up to 120 addressable luminaries ● Networking with web module to Ethernet (TCP/IP) ● Max. capacity: 500 VA / 1 h, 200 VA / 3 h or 80 VA / 8 h ● Cabinet dimension (h x w x d): 630 x 350 x 230 mm ● Battery: 18 x 12 V / 4, 5 Ah (10 year normal lifetime) Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 Pico 9

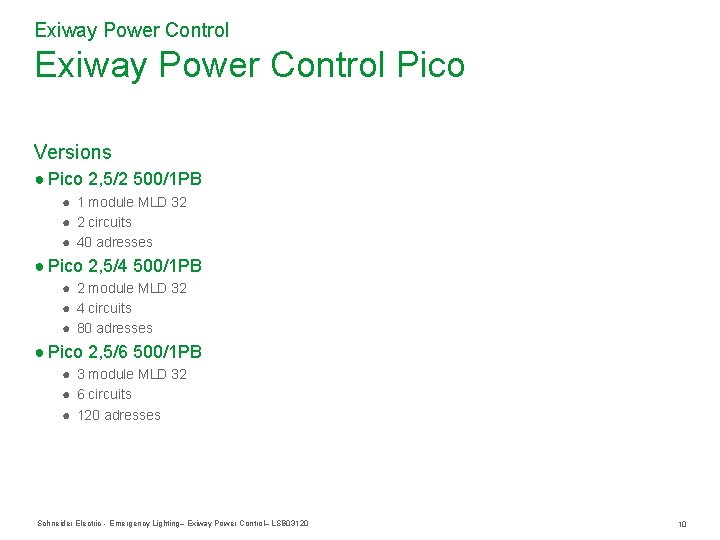

Exiway Power Control Pico Versions ● Pico 2, 5/2 500/1 PB ● 1 module MLD 32 ● 2 circuits ● 40 adresses ● Pico 2, 5/4 500/1 PB ● 2 module MLD 32 ● 4 circuits ● 80 adresses ● Pico 2, 5/6 500/1 PB ● 3 module MLD 32 ● 6 circuits ● 120 adresses Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 10

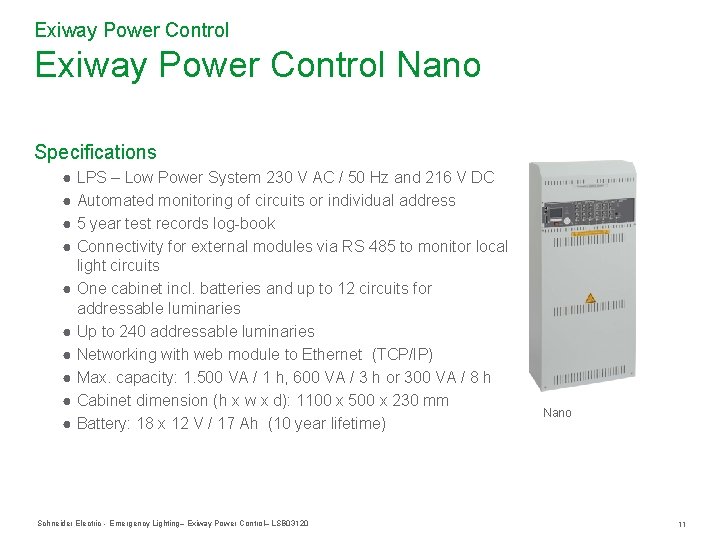

Exiway Power Control Nano Specifications ● LPS – Low Power System 230 V AC / 50 Hz and 216 V DC ● Automated monitoring of circuits or individual address ● 5 year test records log-book ● Connectivity for external modules via RS 485 to monitor local light circuits ● One cabinet incl. batteries and up to 12 circuits for addressable luminaries ● Up to 240 addressable luminaries ● Networking with web module to Ethernet (TCP/IP) ● Max. capacity: 1. 500 VA / 1 h, 600 VA / 3 h or 300 VA / 8 h ● Cabinet dimension (h x w x d): 1100 x 500 x 230 mm ● Battery: 18 x 12 V / 17 Ah (10 year lifetime) Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 Nano 11

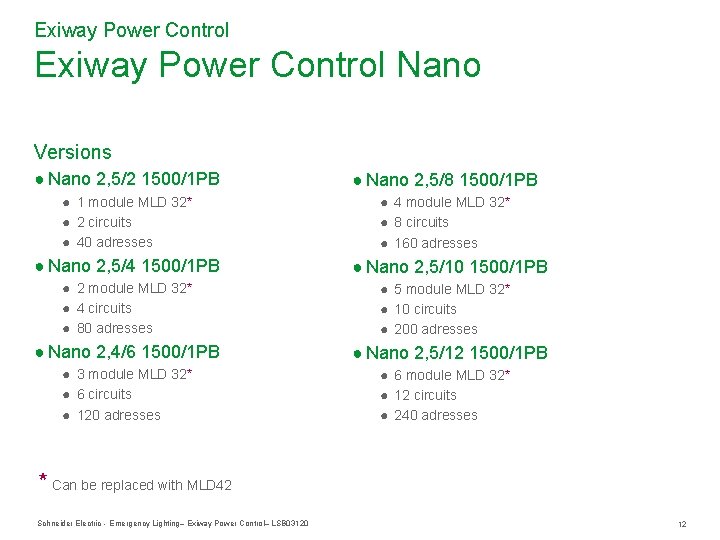

Exiway Power Control Nano Versions ● Nano 2, 5/2 1500/1 PB ● Nano 2, 5/8 1500/1 PB ● 1 module MLD 32* ● 2 circuits ● 40 adresses ● 4 module MLD 32* ● 8 circuits ● 160 adresses ● Nano 2, 5/4 1500/1 PB ● 2 module MLD 32* ● 4 circuits ● 80 adresses ● Nano 2, 4/6 1500/1 PB ● 3 module MLD 32* ● 6 circuits ● 120 adresses ● Nano 2, 5/10 1500/1 PB ● 5 module MLD 32* ● 10 circuits ● 200 adresses ● Nano 2, 5/12 1500/1 PB ● 6 module MLD 32* ● 12 circuits ● 240 adresses * Can be replaced with MLD 42 Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 12

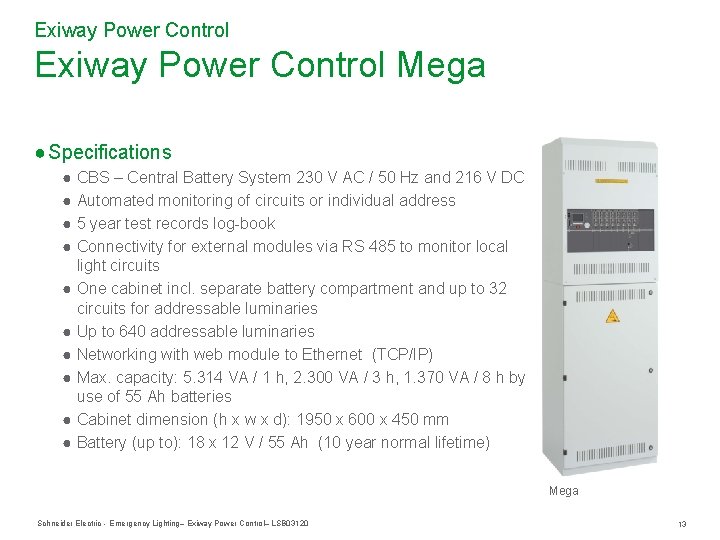

Exiway Power Control Mega ● Specifications ● CBS – Central Battery System 230 V AC / 50 Hz and 216 V DC ● Automated monitoring of circuits or individual address ● 5 year test records log-book ● Connectivity for external modules via RS 485 to monitor local light circuits ● One cabinet incl. separate battery compartment and up to 32 circuits for addressable luminaries ● Up to 640 addressable luminaries ● Networking with web module to Ethernet (TCP/IP) ● Max. capacity: 5. 314 VA / 1 h, 2. 300 VA / 3 h, 1. 370 VA / 8 h by use of 55 Ah batteries ● Cabinet dimension (h x w x d): 1950 x 600 x 450 mm ● Battery (up to): 18 x 12 V / 55 Ah (10 year normal lifetime) Mega Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 13

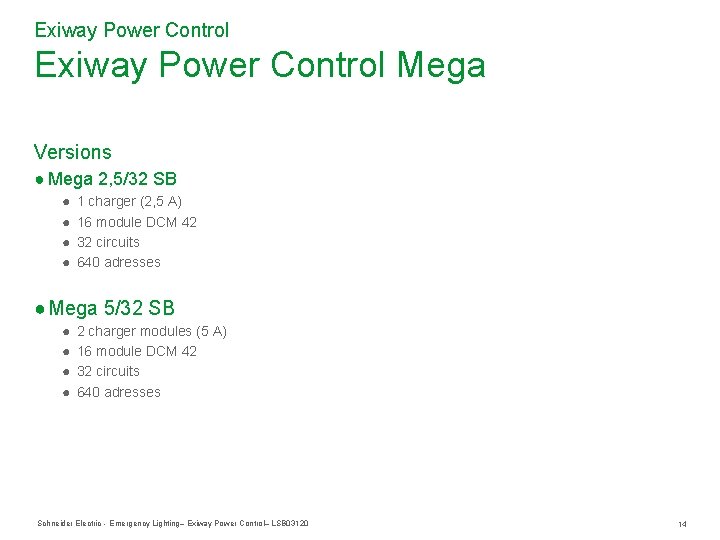

Exiway Power Control Mega Versions ● Mega 2, 5/32 SB ● ● 1 charger (2, 5 A) 16 module DCM 42 32 circuits 640 adresses ● Mega 5/32 SB ● ● 2 charger modules (5 A) 16 module DCM 42 32 circuits 640 adresses Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 14

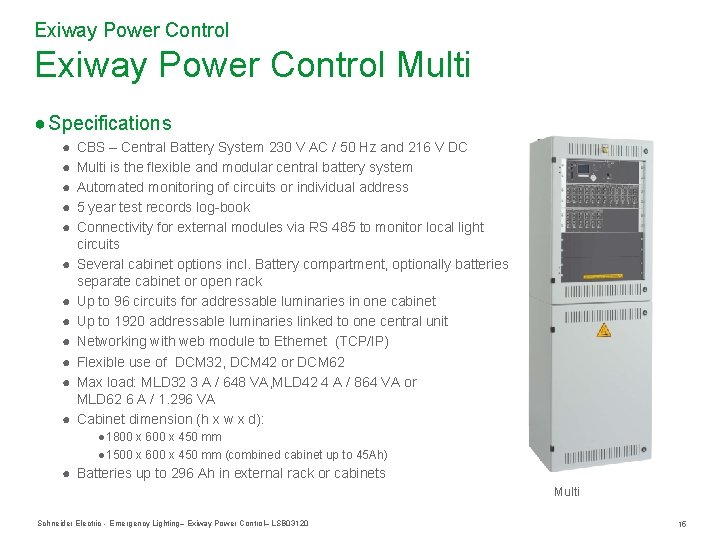

Exiway Power Control Multi ● Specifications ● ● ● CBS – Central Battery System 230 V AC / 50 Hz and 216 V DC Multi is the flexible and modular central battery system Automated monitoring of circuits or individual address 5 year test records log-book Connectivity for external modules via RS 485 to monitor local light circuits Several cabinet options incl. Battery compartment, optionally batteries in separate cabinet or open rack Up to 96 circuits for addressable luminaries in one cabinet Up to 1920 addressable luminaries linked to one central unit Networking with web module to Ethernet (TCP/IP) Flexible use of DCM 32, DCM 42 or DCM 62 Max load: MLD 32 3 A / 648 VA, MLD 42 4 A / 864 VA or MLD 62 6 A / 1. 296 VA Cabinet dimension (h x w x d): ● 1800 x 600 x 450 mm ● 1500 x 600 x 450 mm (combined cabinet up to 45 Ah) ● Batteries up to 296 Ah in external rack or cabinets Multi Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 15

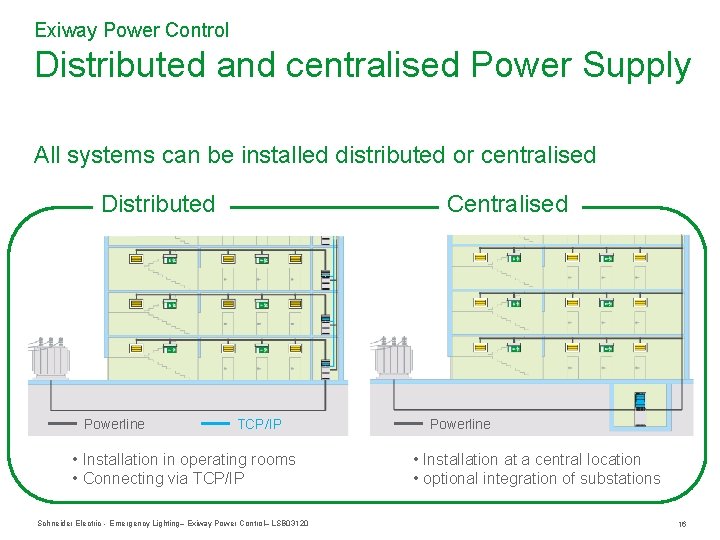

Exiway Power Control Distributed and centralised Power Supply All systems can be installed distributed or centralised Centralised Distributed Powerline TCP/IP • Installation in operating rooms • Connecting via TCP/IP Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 Powerline • Installation at a central location • optional integration of substations 16

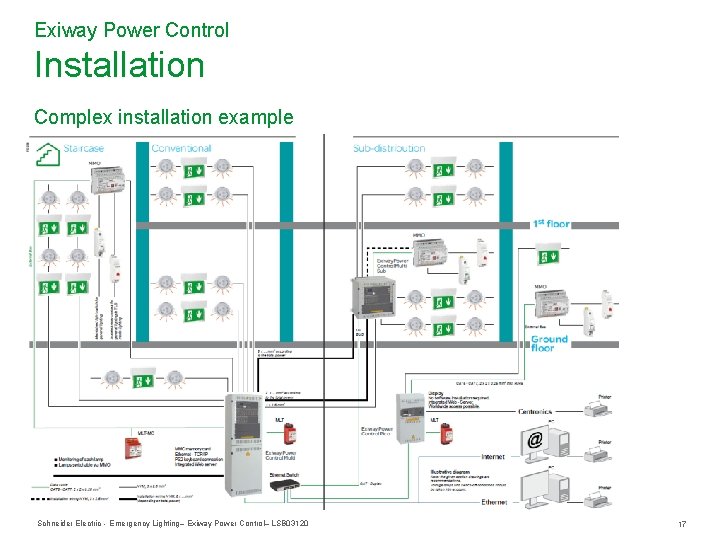

Exiway Power Control Installation Complex installation example Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 17

Exiway Power Control Modules for central units and monitoring Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 18

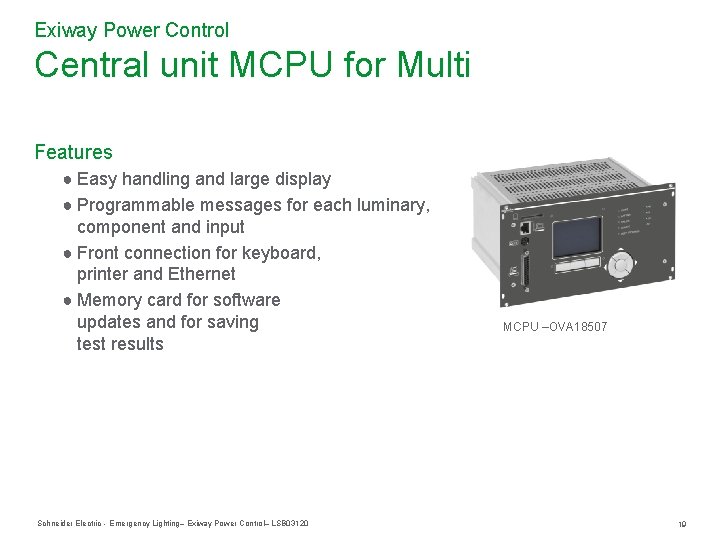

Exiway Power Control Central unit MCPU for Multi Features ● Easy handling and large display ● Programmable messages for each luminary, component and input ● Front connection for keyboard, printer and Ethernet ● Memory card for software updates and for saving test results Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 MCPU –OVA 18507 19

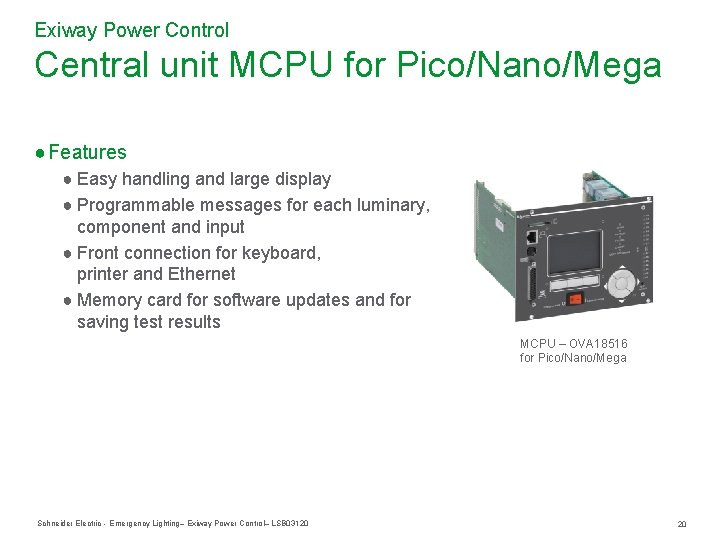

Exiway Power Control Central unit MCPU for Pico/Nano/Mega ● Features ● Easy handling and large display ● Programmable messages for each luminary, component and input ● Front connection for keyboard, printer and Ethernet ● Memory card for software updates and for saving test results MCPU – OVA 18516 for Pico/Nano/Mega Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 20

Exiway Power Control MLD mains circuit modules ● Features ● MLD 32, MLD 42, MLD 62 with two circuits each rated with 3 A, 4 A or 6 A max load ● Up to 20 addresses on each circuit, or optional circuit load monitoring ● Combined semi-conductor and relay circuit: ● highest reliability ● lowest losses ● Compact construction ● Status query via info button ● Central testing and programming ● Common mode signalling MLD 32 – OVA 18503 MLD 42 – OVA 18504 MLD 62 – OVA 18505 Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 21

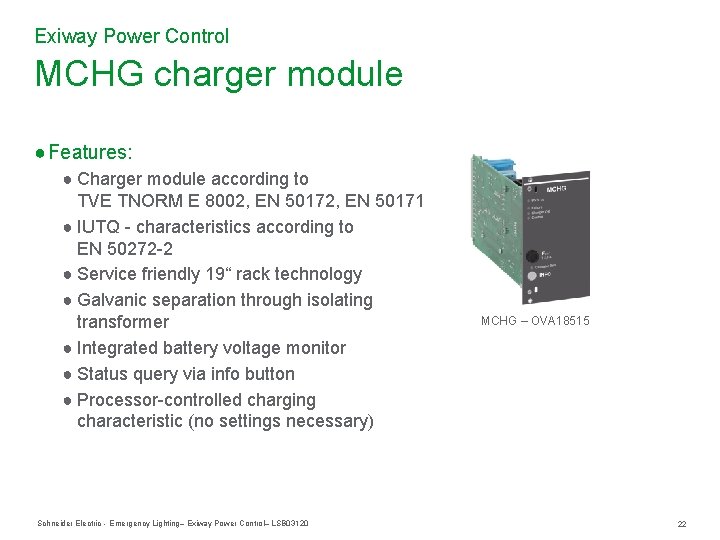

Exiway Power Control MCHG charger module ● Features: ● Charger module according to TVE TNORM E 8002, EN 50171 ● IUTQ - characteristics according to EN 50272 -2 ● Service friendly 19“ rack technology ● Galvanic separation through isolating transformer ● Integrated battery voltage monitor ● Status query via info button ● Processor-controlled charging characteristic (no settings necessary) Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 MCHG – OVA 18515 22

Exiway Power Control MSWC input and output module ● Features: ● 7 relay outputs, 230 V / 6 A, isolated change -over contacts ● IO-module No. 1 pre-configured for standard conform status-messages ● 4 galvanically isolated inputs 24 V DC – 230 V AC, selectable polarity, user defined message text and function ● Up to 5 modules (multi-bus) Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 MSWC – OVA 18512 23

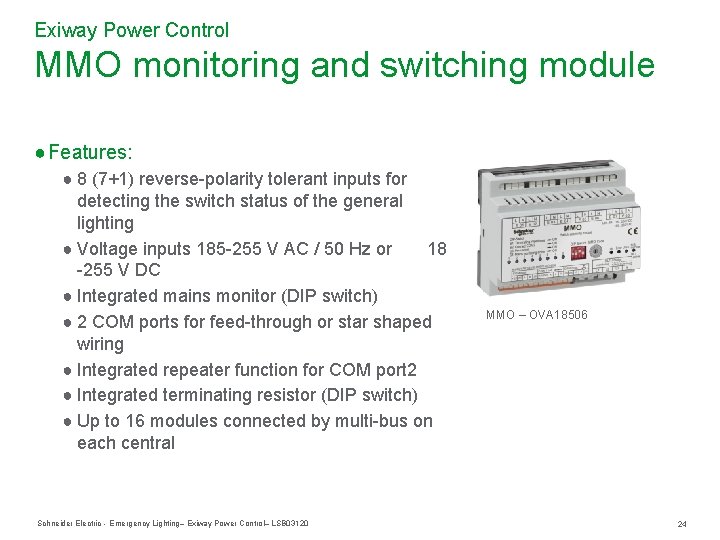

Exiway Power Control MMO monitoring and switching module ● Features: ● 8 (7+1) reverse-polarity tolerant inputs for detecting the switch status of the general lighting ● Voltage inputs 185 -255 V AC / 50 Hz or 18 -255 V DC ● Integrated mains monitor (DIP switch) ● 2 COM ports for feed-through or star shaped wiring ● Integrated repeater function for COM port 2 ● Integrated terminating resistor (DIP switch) ● Up to 16 modules connected by multi-bus on each central Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 MMO – OVA 18506 24

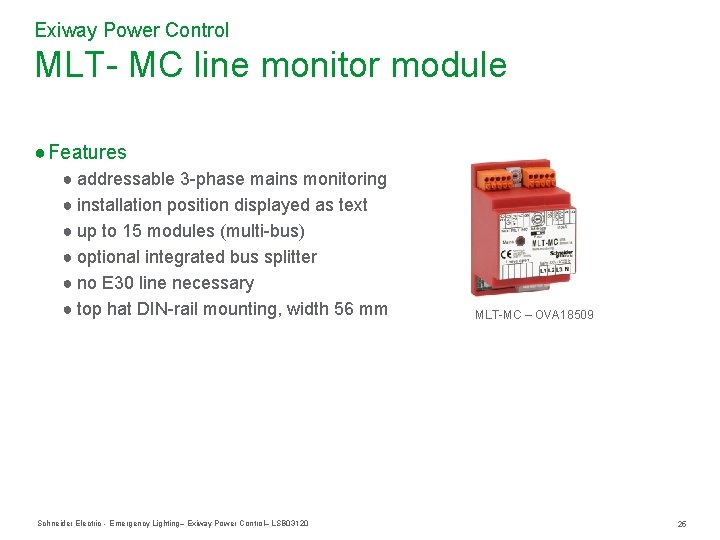

Exiway Power Control MLT- MC line monitor module ● Features ● addressable 3 -phase mains monitoring ● installation position displayed as text ● up to 15 modules (multi-bus) ● optional integrated bus splitter ● no E 30 line necessary ● top hat DIN-rail mounting, width 56 mm Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 MLT-MC – OVA 18509 25

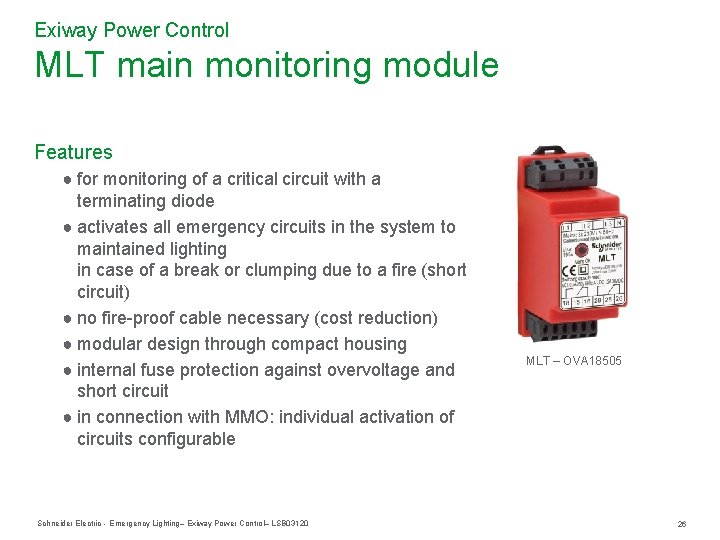

Exiway Power Control MLT main monitoring module Features ● for monitoring of a critical circuit with a terminating diode ● activates all emergency circuits in the system to maintained lighting in case of a break or clumping due to a fire (short circuit) ● no fire-proof cable necessary (cost reduction) ● modular design through compact housing ● internal fuse protection against overvoltage and short circuit ● in connection with MMO: individual activation of circuits configurable Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 MLT – OVA 18505 26

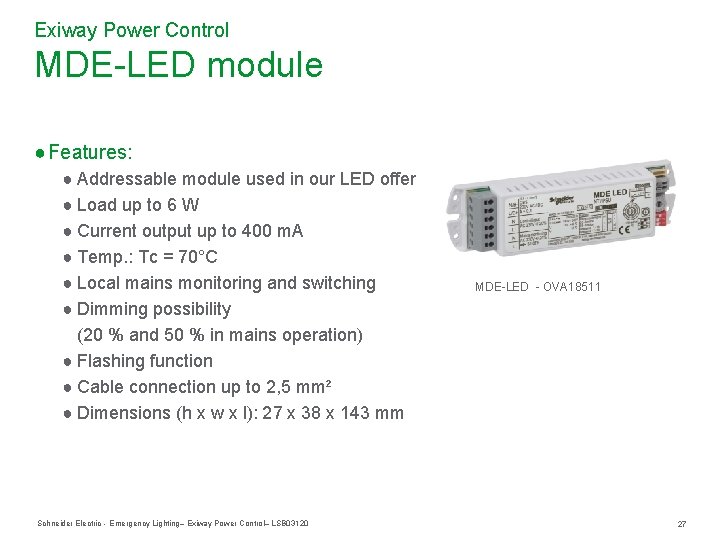

Exiway Power Control MDE-LED module ● Features: ● Addressable module used in our LED offer ● Load up to 6 W ● Current output up to 400 m. A ● Temp. : Tc = 70°C ● Local mains monitoring and switching ● Dimming possibility (20 % and 50 % in mains operation) ● Flashing function ● Cable connection up to 2, 5 mm² ● Dimensions (h x w x l): 27 x 38 x 143 mm Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 MDE-LED - OVA 18511 27

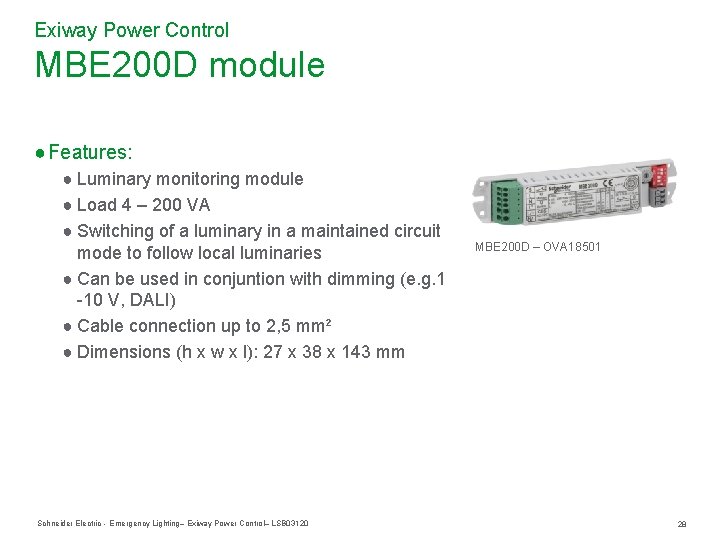

Exiway Power Control MBE 200 D module ● Features: ● Luminary monitoring module ● Load 4 – 200 VA ● Switching of a luminary in a maintained circuit mode to follow local luminaries ● Can be used in conjuntion with dimming (e. g. 1 -10 V, DALI) ● Cable connection up to 2, 5 mm² ● Dimensions (h x w x l): 27 x 38 x 143 mm Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 MBE 200 D – OVA 18501 28

Exiway Power Control Luminaires Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 29

Exiway Power Control Luminaires Overview Escape route and exit sign luminaires in different designs, technologies and installation types guarantee a broad selection: ● Exiway One LED, Exiway One 24 W ● Quick Signal LED ● Lys LED ● Spot LED ● Faro flood light Exiway One Quick Signal Spot LED Lys Faro Installation types Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 30

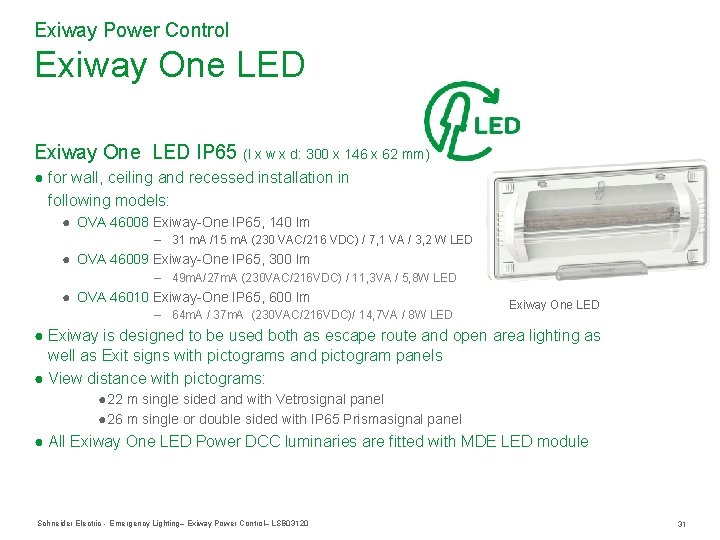

Exiway Power Control Exiway One LED IP 65 (l x w x d: 300 x 146 x 62 mm) ● for wall, ceiling and recessed installation in following models: ● OVA 46008 Exiway-One IP 65, 140 lm – 31 m. A /15 m. A (230 VAC/216 VDC) / 7, 1 VA / 3, 2 W LED ● OVA 46009 Exiway-One IP 65, 300 lm – 49 m. A/27 m. A (230 VAC/216 VDC) / 11, 3 VA / 5, 8 W LED ● OVA 46010 Exiway-One IP 65, 600 lm – 64 m. A / 37 m. A (230 VAC/216 VDC)/ 14, 7 VA / 8 W LED Exiway One LED ● Exiway is designed to be used both as escape route and open area lighting as well as Exit signs with pictograms and pictogram panels ● View distance with pictograms: ● 22 m single sided and with Vetrosignal panel ● 26 m single or double sided with IP 65 Prismasignal panel ● All Exiway One LED Power DCC luminaries are fitted with MDE LED module Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 31

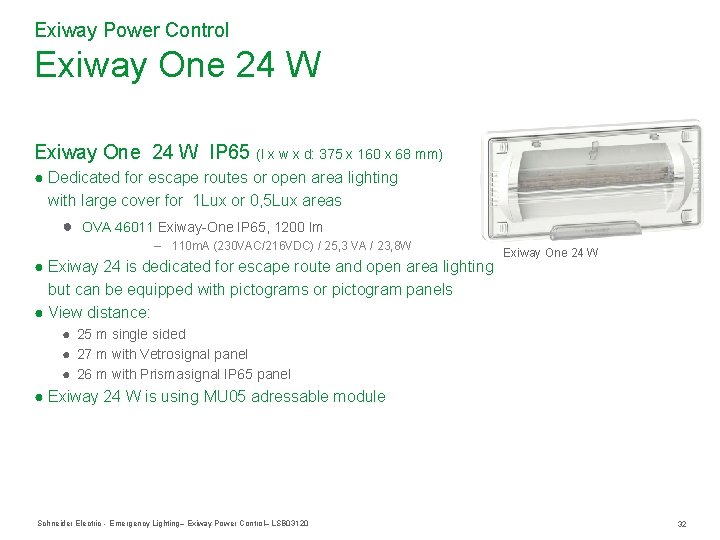

Exiway Power Control Exiway One 24 W IP 65 (l x w x d: 375 x 160 x 68 mm) ● Dedicated for escape routes or open area lighting with large cover for 1 Lux or 0, 5 Lux areas ● OVA 46011 Exiway-One IP 65, 1200 lm – 110 m. A (230 VAC/216 VDC) / 25, 3 VA / 23, 8 W ● Exiway 24 is dedicated for escape route and open area lighting but can be equipped with pictograms or pictogram panels ● View distance: Exiway One 24 W ● 25 m single sided ● 27 m with Vetrosignal panel ● 26 m with Prismasignal IP 65 panel ● Exiway 24 W is using MU 05 adressable module Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 32

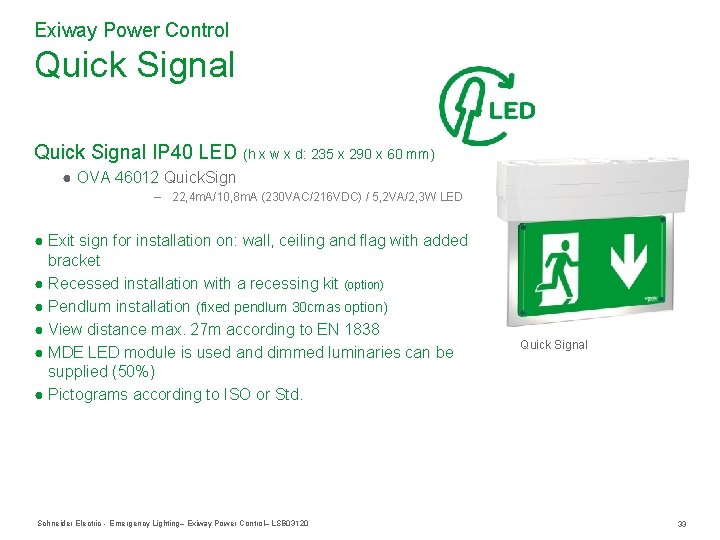

Exiway Power Control Quick Signal IP 40 LED (h x w x d: 235 x 290 x 60 mm) ● OVA 46012 Quick. Sign – 22, 4 m. A/10, 8 m. A (230 VAC/216 VDC) / 5, 2 VA/2, 3 W LED ● Exit sign for installation on: wall, ceiling and flag with added bracket ● Recessed installation with a recessing kit (option) ● Pendlum installation (fixed pendlum 30 cmas option) ● View distance max. 27 m according to EN 1838 ● MDE LED module is used and dimmed luminaries can be supplied (50%) ● Pictograms according to ISO or Std. Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 Quick Signal 33

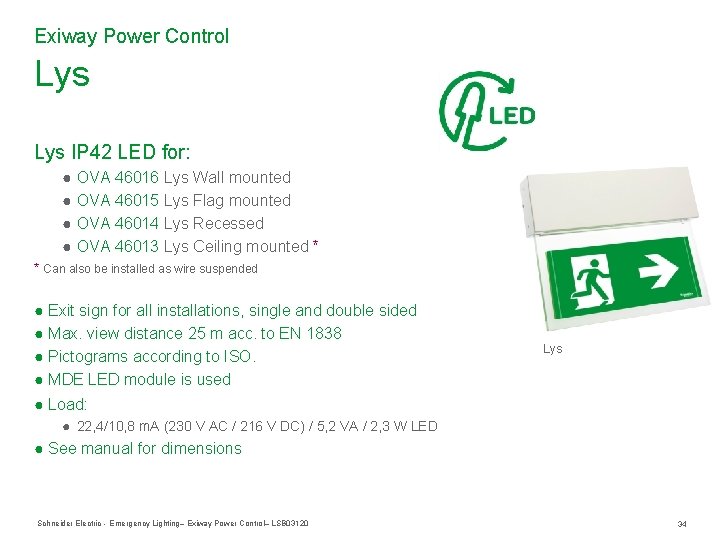

Exiway Power Control Lys IP 42 LED for: ● OVA 46016 Lys Wall mounted ● OVA 46015 Lys Flag mounted ● OVA 46014 Lys Recessed ● OVA 46013 Lys Ceiling mounted * * Can also be installed as wire suspended ● Exit sign for all installations, single and double sided ● Max. view distance 25 m acc. to EN 1838 ● Pictograms according to ISO. ● MDE LED module is used Lys ● Load: ● 22, 4/10, 8 m. A (230 V AC / 216 V DC) / 5, 2 VA / 2, 3 W LED ● See manual for dimensions Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 34

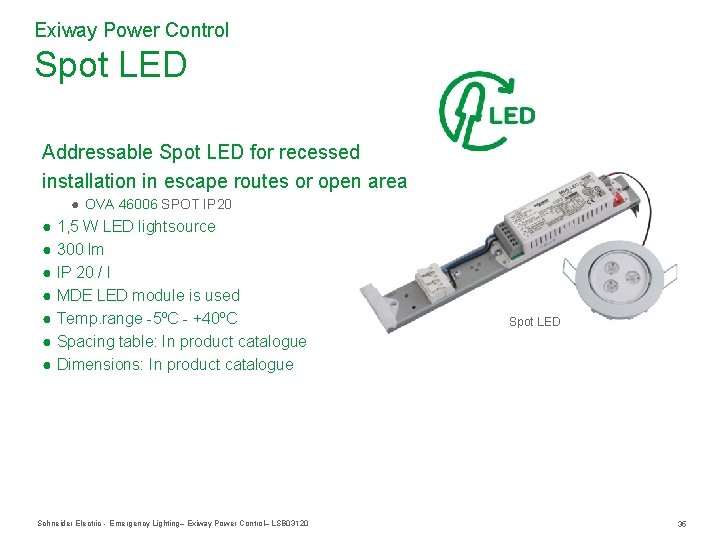

Exiway Power Control Spot LED Addressable Spot LED for recessed installation in escape routes or open area ● OVA 46006 SPOT IP 20 ● 1, 5 W LED lightsource ● 300 lm ● IP 20 / I ● MDE LED module is used ● Temp. range -5ºC - +40ºC ● Spacing table: In product catalogue ● Dimensions: In product catalogue Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 Spot LED 35

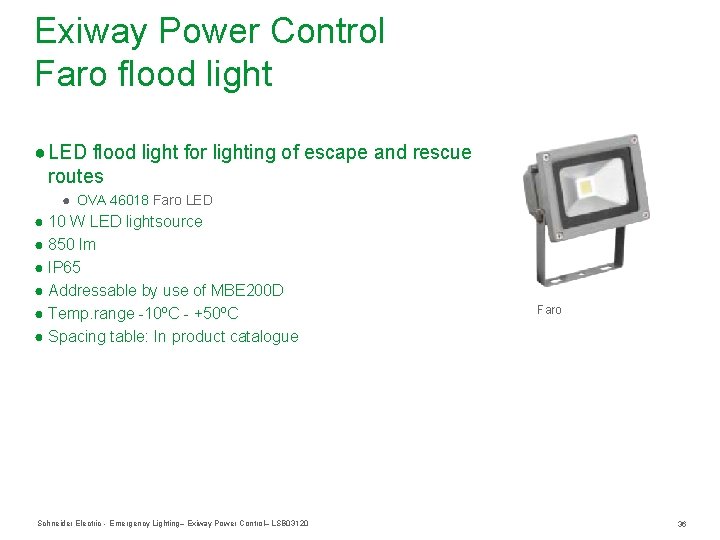

Exiway Power Control Faro flood light ● LED flood light for lighting of escape and rescue routes ● OVA 46018 Faro LED ● 10 W LED lightsource ● 850 lm ● IP 65 ● Addressable by use of MBE 200 D ● Temp. range -10ºC - +50ºC ● Spacing table: In product catalogue Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 Faro 36

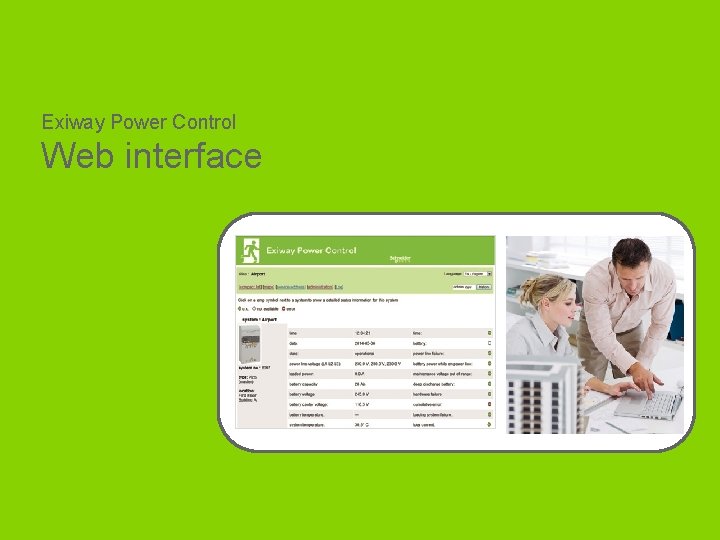

Exiway Power Control Web interface Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 37

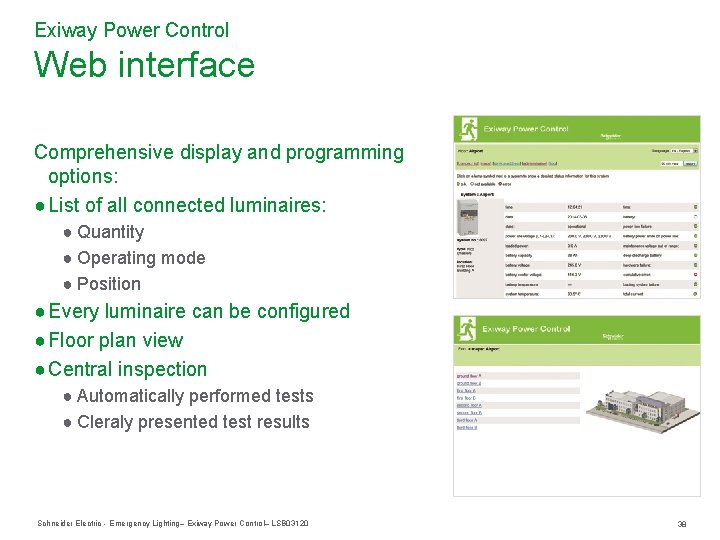

Exiway Power Control Web interface Comprehensive display and programming options: ● List of all connected luminaires: ● Quantity ● Operating mode ● Position ● Every luminaire can be configured ● Floor plan view ● Central inspection ● Automatically performed tests ● Cleraly presented test results Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 38

Thank you for your attention! Schneider Electric - Emergency Lighting– Exiway Power Control– LSB 03120 39
