exhausting fan not reversible ladder in intake vent

exhausting fan (not reversible) ladder in intake vent shaft extends from surface all the way to the lower level Airflow is down the intake vent shaft to the upper level, then continuing down to the lower level. An airdoor on the upper level prevents air from the intake vent shaft from actually traveling out onto the upper level. Once on the lower level, air is coursed through the workings, and then directed up to the upper level via the ramp. Once on the upper level air is coursed through the workings, and then directed up the upcast shaft. The main fan is located at the bottom of the upcast shaft. Auxiliary and booster fans are used wherever necessary, and are moved frequently. airlocks at portals VENTILATION

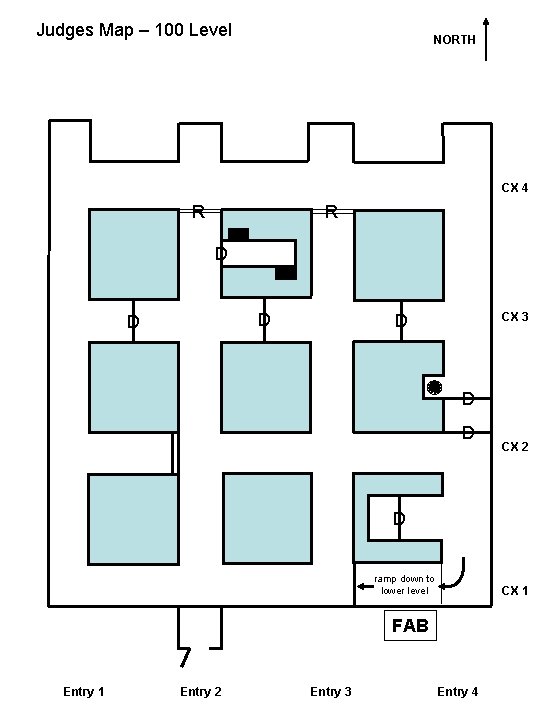

Judges Map – 100 Level NORTH CX 4 R R D D CX 3 D D CX 2 D ramp down to lower level CX 1 FAB Entry 1 Entry 2 Entry 3 Entry 4

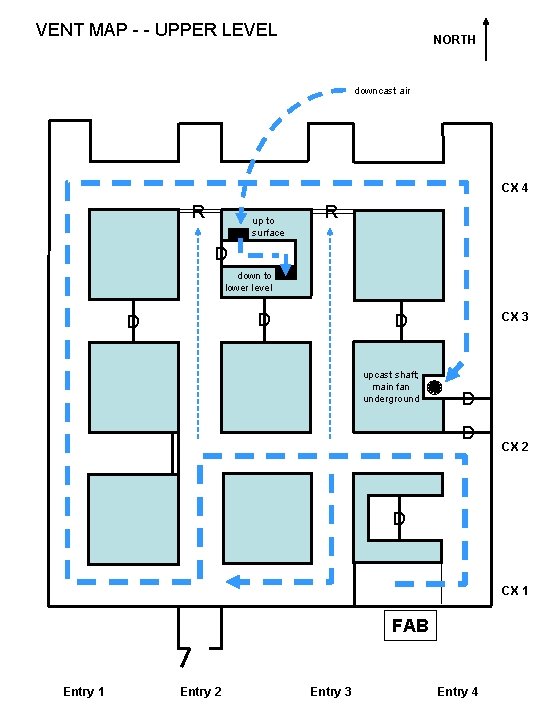

VENT MAP - - UPPER LEVEL NORTH downcast air CX 4 R up to surface R D down to lower level D D D upcast shaft; main fan underground CX 3 D D CX 2 D CX 1 FAB Entry 1 Entry 2 Entry 3 Entry 4

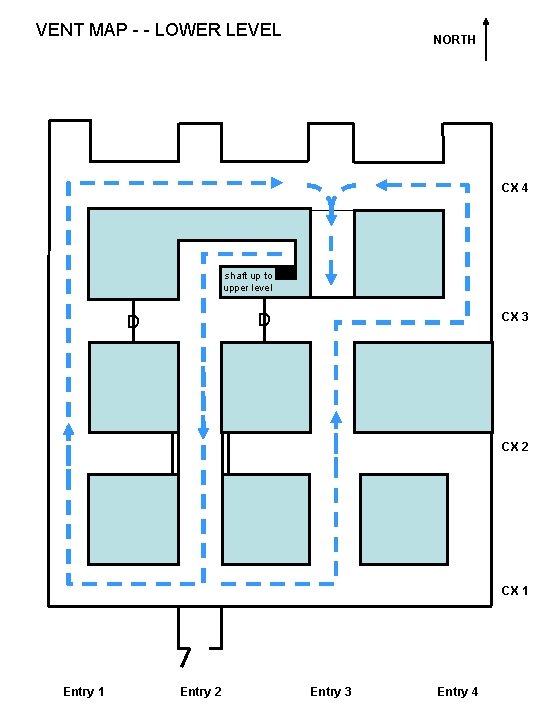

VENT MAP - - LOWER LEVEL NORTH CX 4 shaft up to upper level D D CX 3 CX 2 CX 1 Entry 2 Entry 3 Entry 4

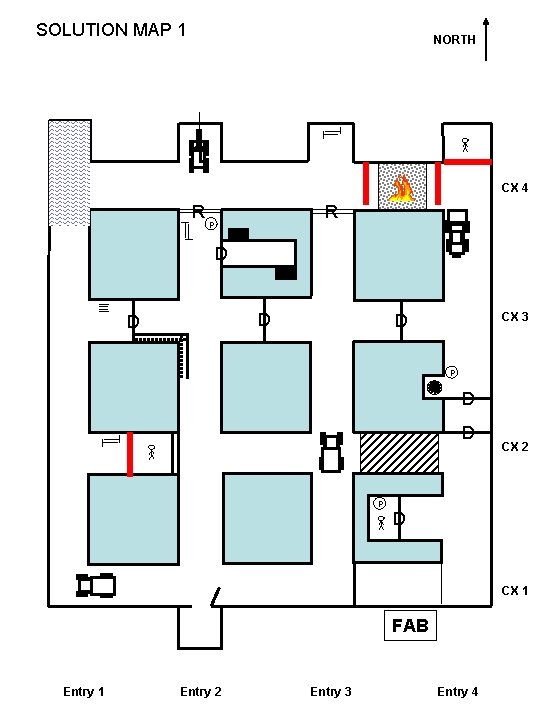

SOLUTION MAP 1 NORTH CX 4 R R P D D CX 3 P D D CX 2 P D CX 1 FAB Entry 1 Entry 2 Entry 3 Entry 4

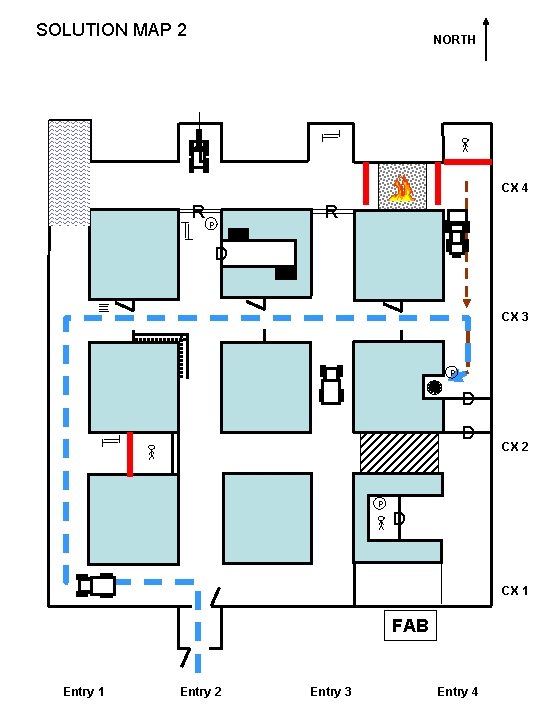

SOLUTION MAP 2 NORTH CX 4 R R P D CX 3 P D D CX 2 P D CX 1 FAB Entry 1 Entry 2 Entry 3 Entry 4

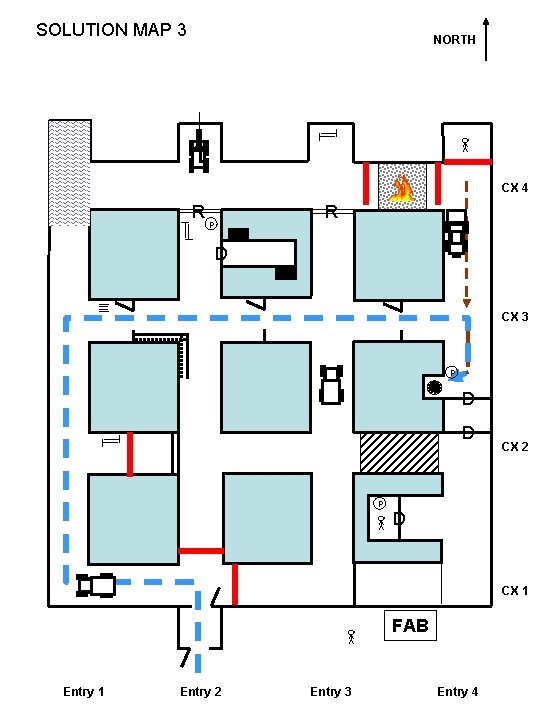

SOLUTION MAP 3 NORTH CX 4 R R P D CX 3 P D D CX 2 P D CX 1 FAB Entry 1 Entry 2 Entry 3 Entry 4

SOLUTION MAP 4 NORTH CX 4 R R P D D D CX 3 P CX 2 P D CX 1 FAB Entry 1 Entry 2 Entry 3 Entry 4

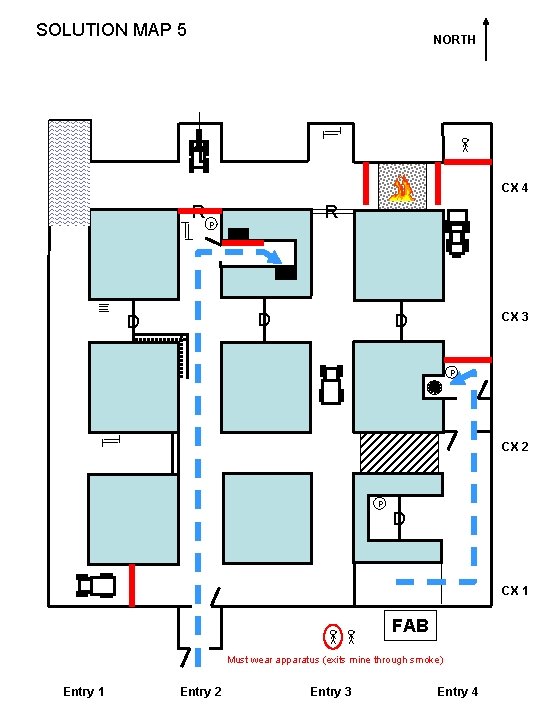

SOLUTION MAP 5 NORTH CX 4 R R P D D D CX 3 P CX 2 P D CX 1 FAB Must wear apparatus (exits mine through smoke) Entry 1 Entry 2 Entry 3 Entry 4

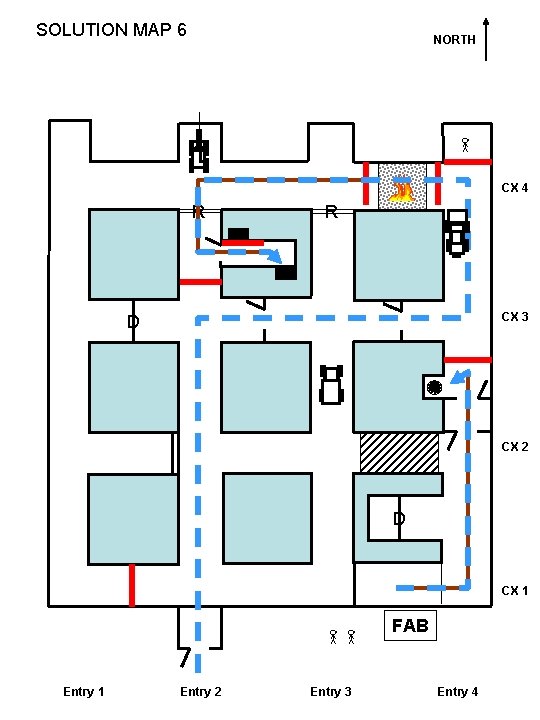

SOLUTION MAP 6 NORTH CX 4 R R CX 3 D CX 2 D CX 1 FAB Entry 1 Entry 2 Entry 3 Entry 4

COMPLETED PROBLEM NORTH CX 4 R P R CX 3 D P CX 2 P D CX 1 FAB Entry 1 Entry 2 Entry 3 Entry 4

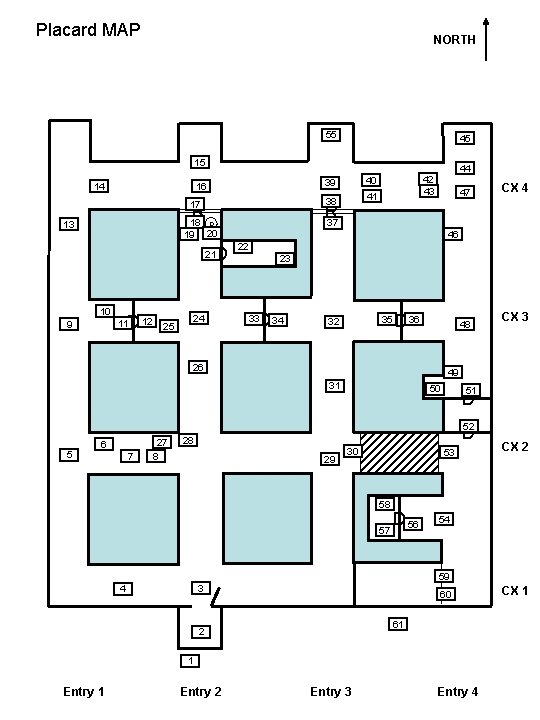

Placard MAP NORTH 55 45 15 14 16 17 R 18 13 P D 21 10 D 12 11 9 24 25 38 41 R 37 20 19 39 40 44 42 43 47 46 22 23 D 34 33 35 32 D 36 48 26 6 7 27 8 CX 3 49 31 5 CX 4 50 51 D 52 D 28 29 30 53 58 57 D 56 CX 2 54 59 3 4 60 61 2 1 Entry 2 Entry 3 Entry 4 CX 1

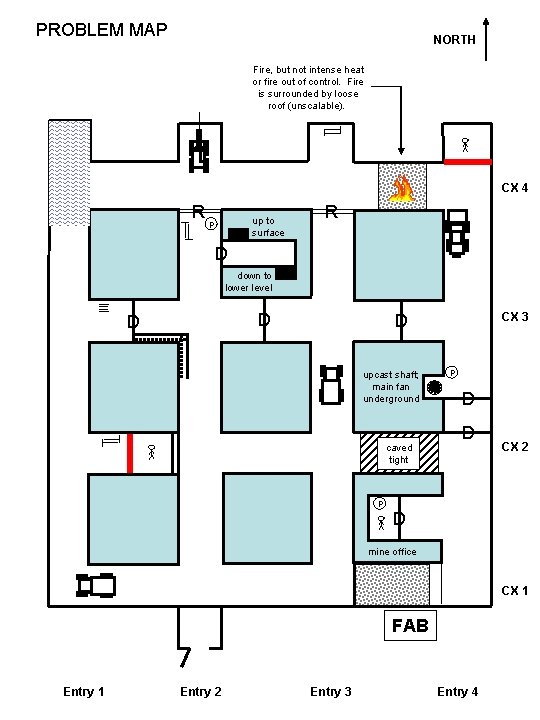

PROBLEM MAP NORTH Fire, but not intense heat or fire out of control. Fire is surrounded by loose roof (unscalable). CX 4 R up to surface P R D down to lower level D D D upcast shaft; main fan underground caved tight CX 3 P D D CX 2 P D mine office CX 1 FAB Entry 1 Entry 2 Entry 3 Entry 4
