Exercise: Logical operators Boolean search statements and Venn diagrams Tefko Saracevic, Rutgers University 1

Directions • Slide 4 provides a Venn diagram with numbered sets and a number of search statements – for each statement shade the appropriate set or sets – e. g. for (A OR B) AND C the sets are 4, 5, 6 • Slide 5 is for practice • Slide 6 has the answers – BUT NOTE: one of the answers is WRONG! Which one? Tefko Saracevic, Rutgers University 2

Order of operations • Rules for the order in which operations are done effect the answer - so follow them • Dialog order of operation is: 1. First are done all operations that are in parentheses, then: 2. (W), (N), (S), (L), or (F) 3. NOT 4. AND 5. OR • e. g. for A OR B AND C, first is done B AND C, and then A OR the results of B AND C, thus this is the same as A OR (B AND C) Tefko Saracevic, Rutgers University 3

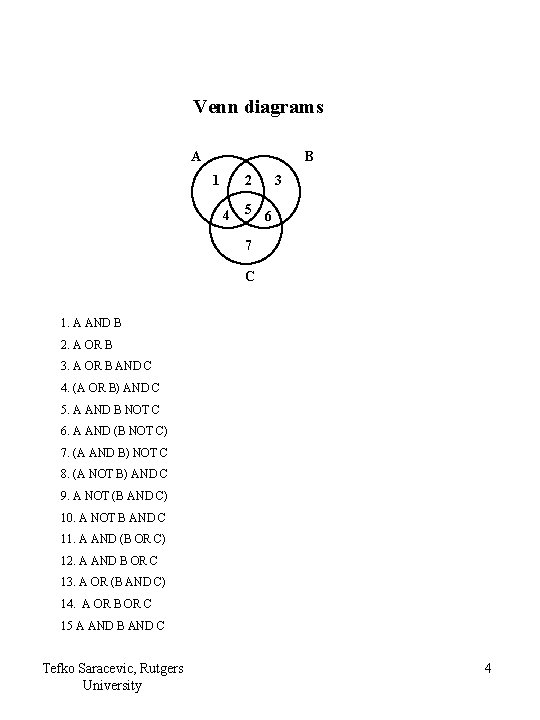

Venn diagrams A B 1 2 4 5 3 6 7 C 1. A AND B 2. A OR B 3. A OR B AND C 4. (A OR B) AND C 5. A AND B NOT C 6. A AND (B NOT C) 7. (A AND B) NOT C 8. (A NOT B) AND C 9. A NOT (B AND C) 10. A NOT B AND C 11. A AND (B OR C) 12. A AND B OR C 13. A OR (B AND C) 14. A OR B OR C 15 A AND B AND C Tefko Saracevic, Rutgers University 4

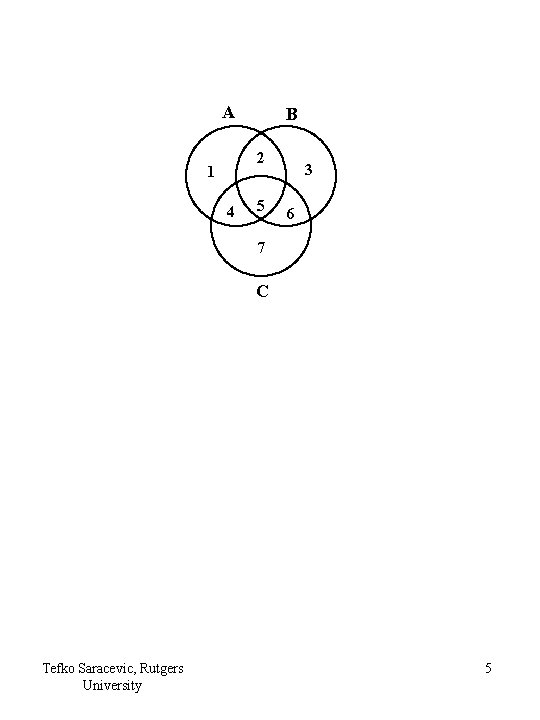

A B 2 1 4 5 3 6 7 C Tefko Saracevic, Rutgers University 5

Venn diagrams: solutions p. s. one of them is wrong! A B 1 2 4 5 3 6 7 C 1. A AND B 2, 5 2. A OR B 1, 2, 3, 4, 5, 6 3. A OR B AND C 1, 2, 4, 5, 6 4. (A OR B) AND C 4, 5, 6 5. A AND B NOT C 2 6. A AND (B NOT C) 2 7. (A AND B) NOT C 2 8. (A NOT B) AND C 4 9. A NOT (B AND C) 6 10. A NOT B AND C 4 11. A AND (B OR C) 2, 4, 5 12. A AND B OR C 2, 4, 5, 6, 7 13. A OR (B AND C) 1, 2, 4, 5, 6 14. A OR B OR C 1, 2, 3, 4, 5, 6, 7 15 A AND B AND C 5 Tefko Saracevic, Rutgers University 6
