Excitable Tissues- Synapse Prof. K. Sivapalan

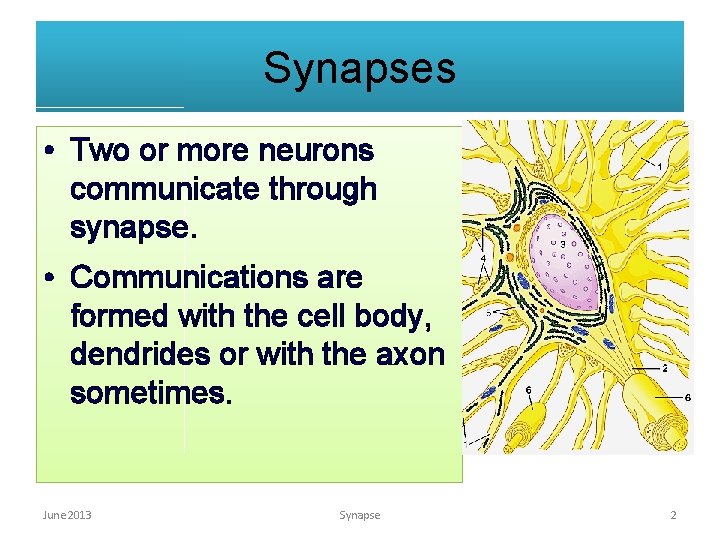

Synapses • Two or more neurons communicate through synapse. • Communications are formed with the cell body, dendrides or with the axon sometimes. June 2013 Synapse 2

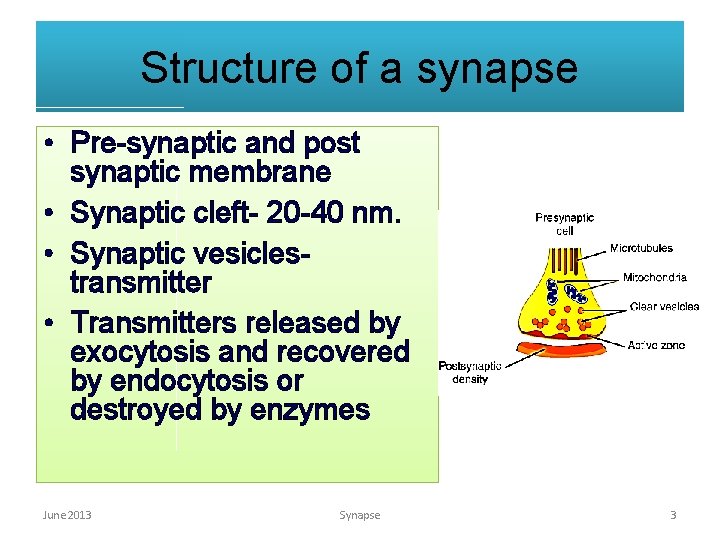

Structure of a synapse • Pre-synaptic and post synaptic membrane • Synaptic cleft- 20 -40 nm. • Synaptic vesiclestransmitter • Transmitters released by exocytosis and recovered by endocytosis or destroyed by enzymes June 2013 Synapse 3

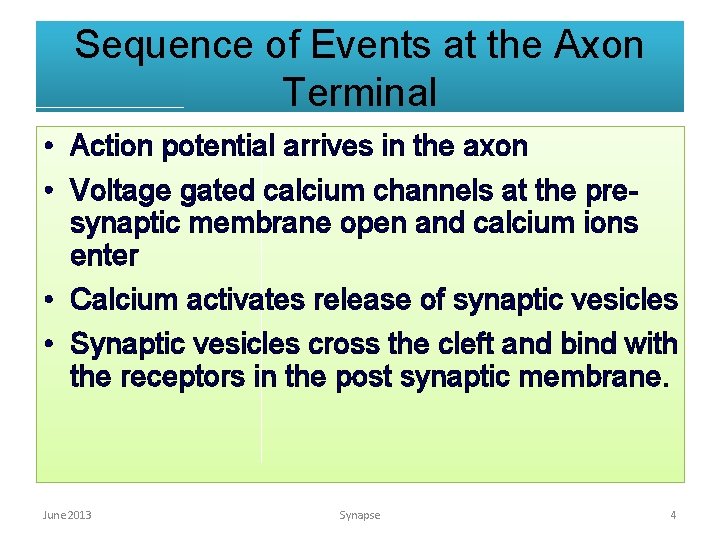

Sequence of Events at the Axon Terminal • Action potential arrives in the axon • Voltage gated calcium channels at the presynaptic membrane open and calcium ions enter • Calcium activates release of synaptic vesicles • Synaptic vesicles cross the cleft and bind with the receptors in the post synaptic membrane. June 2013 Synapse 4

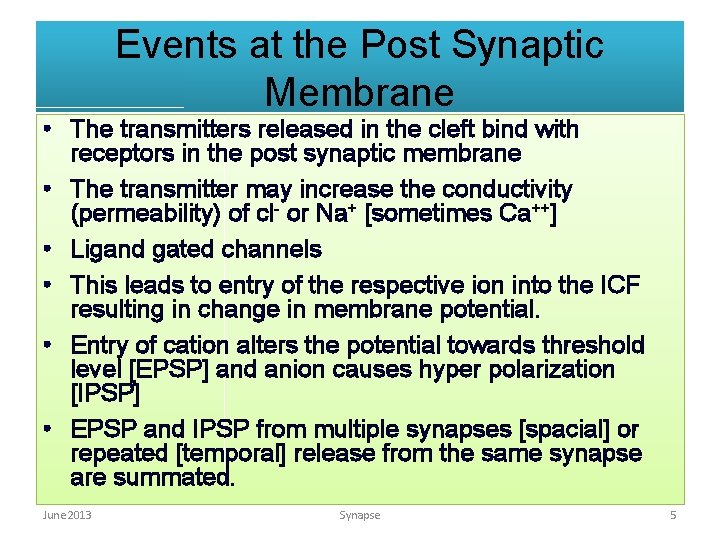

Events at the Post Synaptic Membrane • The transmitters released in the cleft bind with receptors in the post synaptic membrane • The transmitter may increase the conductivity (permeability) of cl- or Na+ [sometimes Ca++] • Ligand gated channels • This leads to entry of the respective ion into the ICF resulting in change in membrane potential. • Entry of cation alters the potential towards threshold level [EPSP] and anion causes hyper polarization [IPSP] • EPSP and IPSP from multiple synapses [spacial] or repeated [temporal] release from the same synapse are summated. June 2013 Synapse 5

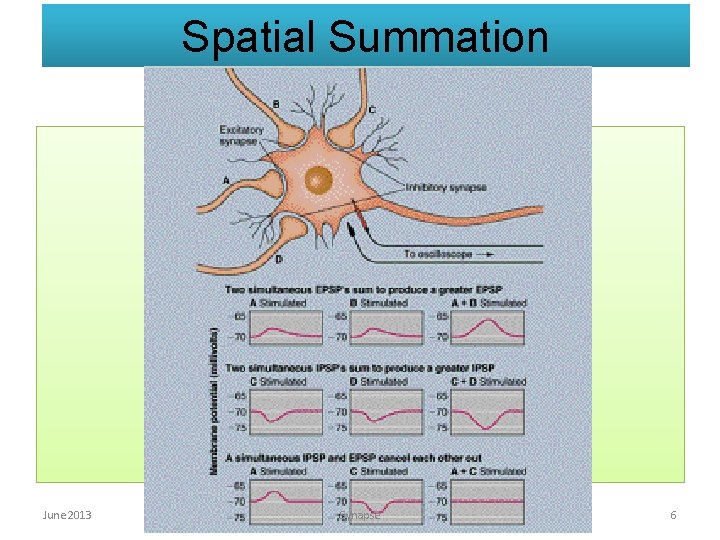

Spatial Summation June 2013 Synapse 6

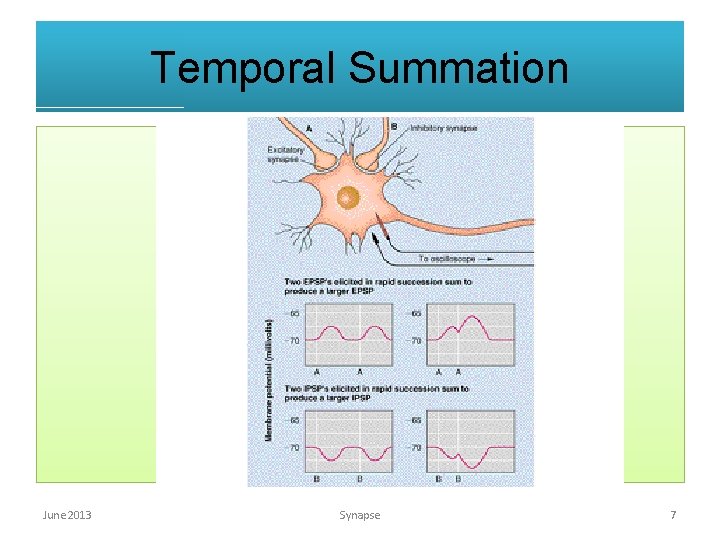

Temporal Summation June 2013 Synapse 7

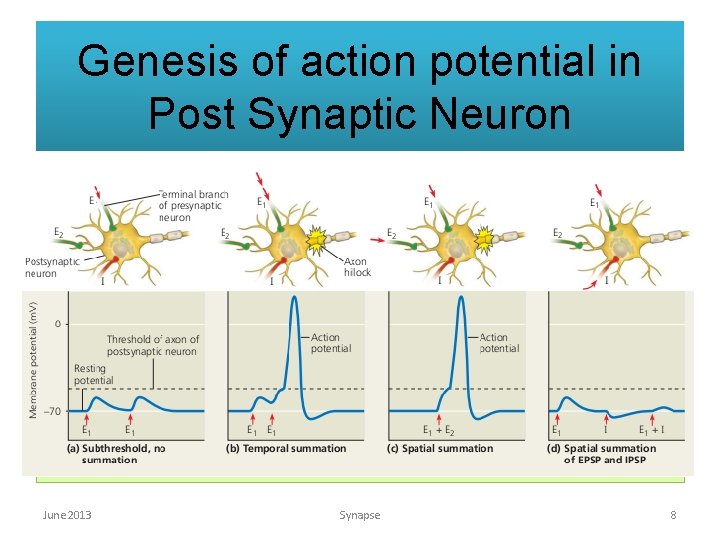

Genesis of action potential in Post Synaptic Neuron June 2013 Synapse 8

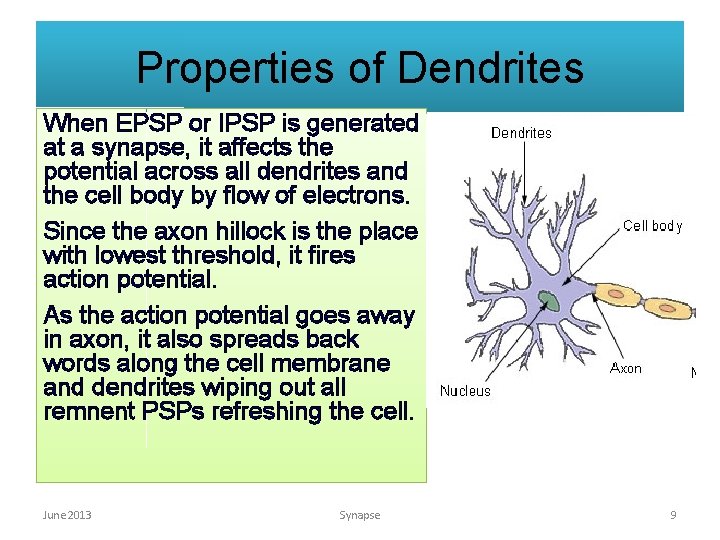

Properties of Dendrites When EPSP or IPSP is generated at a synapse, it affects the potential across all dendrites and the cell body by flow of electrons. Since the axon hillock is the place with lowest threshold, it fires action potential. As the action potential goes away in axon, it also spreads back words along the cell membrane and dendrites wiping out all remnent PSPs refreshing the cell. June 2013 Synapse 9

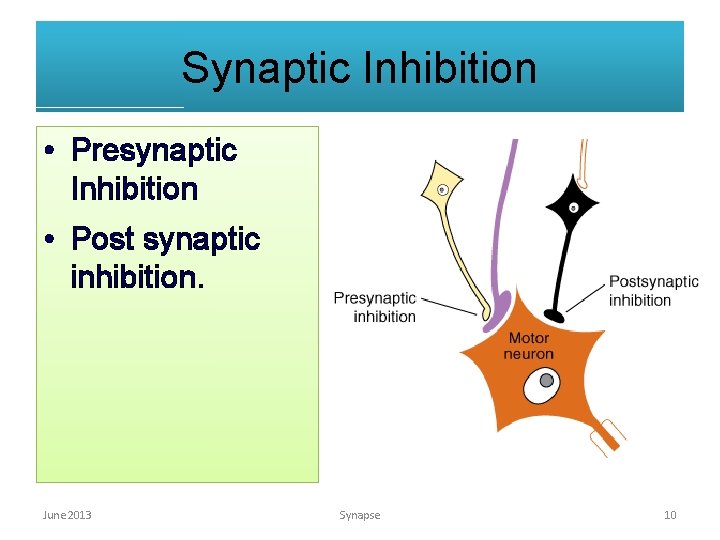

Synaptic Inhibition • Presynaptic Inhibition • Post synaptic inhibition. June 2013 Synapse 10

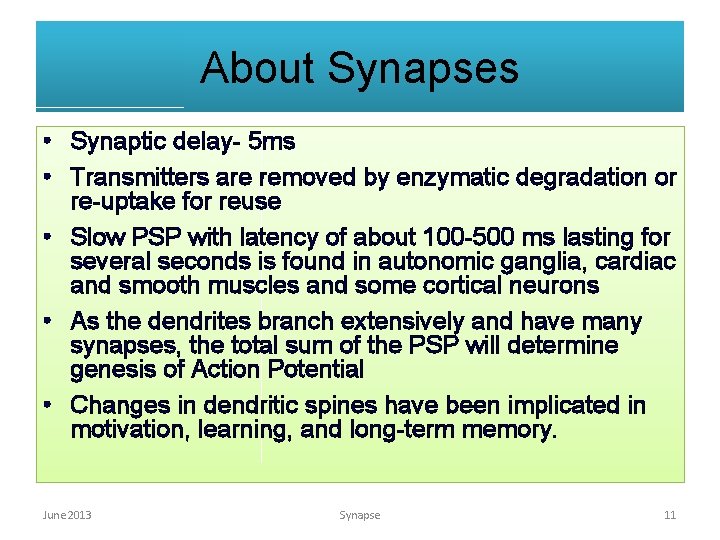

About Synapses • Synaptic delay- 5 ms • Transmitters are removed by enzymatic degradation or re-uptake for reuse • Slow PSP with latency of about 100 -500 ms lasting for several seconds is found in autonomic ganglia, cardiac and smooth muscles and some cortical neurons • As the dendrites branch extensively and have many synapses, the total sum of the PSP will determine genesis of Action Potential • Changes in dendritic spines have been implicated in motivation, learning, and long-term memory. June 2013 Synapse 11
