Exchange Server 2007 Autodiscover Autodiscover Internet Exchange Server
- Slides: 15

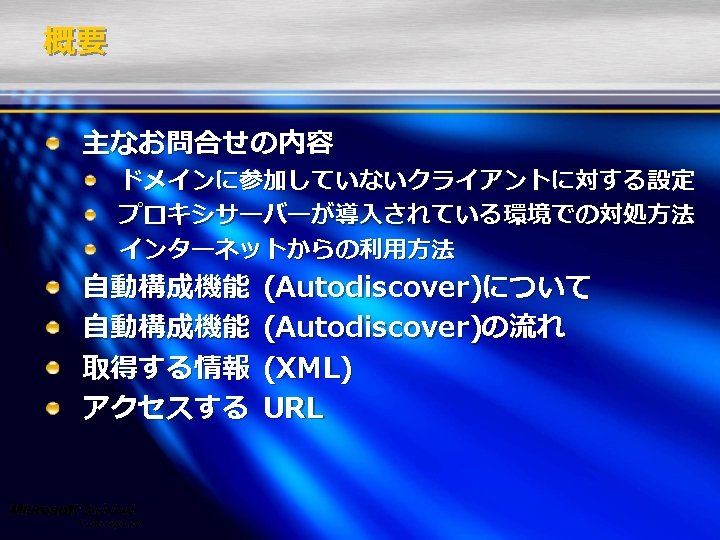

Exchange Server 2007の Autodiscoverで自動構成できない !! を回避するために

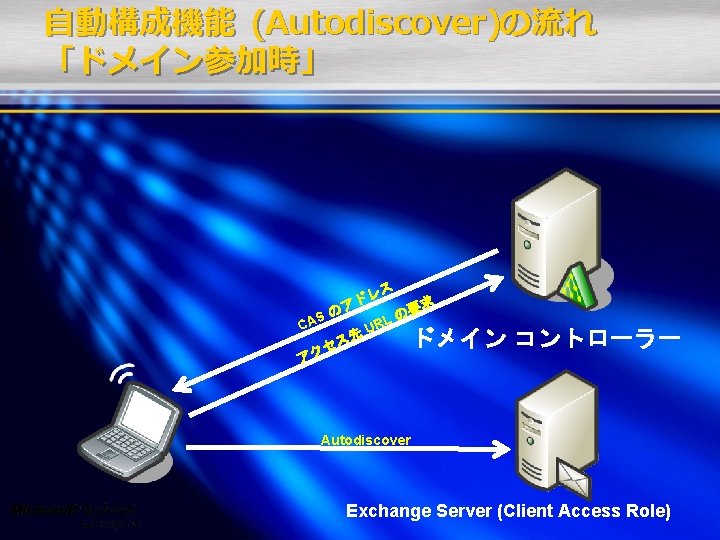

自動構成機能 (Autodiscover)の流れ 「インターネット経由」 Internet ドメイン コントローラー Exchange Server (Client Access Role)
自動構成機能 (Autodiscover)の URL ktakeda@contoso. com
自動構成機能 (Autodiscover)の URL Name does not exist IPDNS アドレス クエリ ktakeda@contoso. com Client Access Role Internet https: //contoso. com/autodiscover. xml
自動構成機能 (Autodiscover)の URL Name does not exist IPDNS アドレス クエリ autodiscover. contoso. com Client Access Role Internet https: //autodiscover. contoso. com/autodiscover. xml

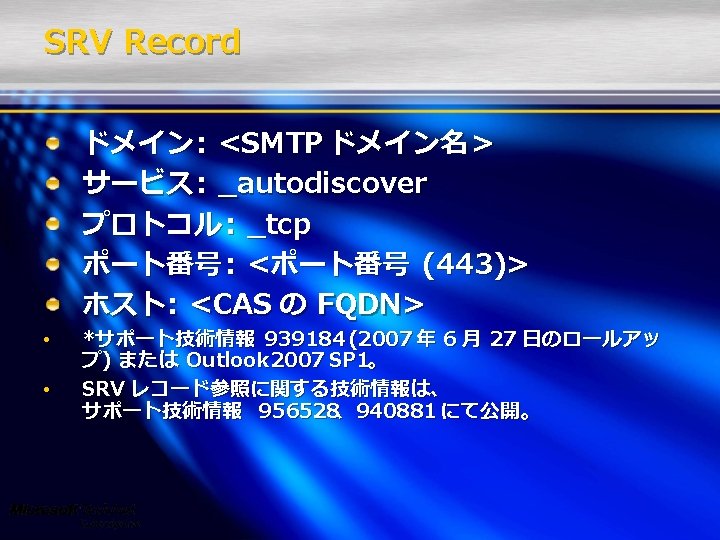

自動構成機能 (Autodiscover)の URL IPDNS アドレス クエリ _autodiscover. _tcp. contoso. com Client Access Role Internet https: //mail. contoso. com/autodiscover. xml
名前解決、アクセスの制御 • • • Exclude. Scp. Lookup Exclude. Https. Root. Domain Exclude. Https. Auto. Discover. Domain Exclude. Http. Redirect Exclude. Srv. Record * サポート技術情報 948981
自動構成機能 (Autodiscover)の流れ 「Local Autodiscover 」 Local XML HKEY_CURRENT_USERSoftware MicrosoftOffice12. 0 OutlookAuto. Discover 値の名前 : Prefer. Local. XML 値の種類 : REG_DWORD 値: 1 値の名前 : <SMTP Domain Name> 値の種類 : 文字列 値: <XML のパス >
取得する情報 (XML) <? xml version="1. 0" encoding="utf-8"? > <Autodiscover xmlns="http: //schemas. microsoft. com/exchange/autodiscover/responsesche ma/2006"> <Response xmlns="http: //schemas. microsoft. com/exchange/autodiscover/outlook/respo nseschema/2006 a"> <Account. Type>email</Account. Type> <Action>settings</Action> <Protocol> <Type>EXCH</Type> <Server>server</Server> <ASUrl>server/ews/exchange. asmx</ASUrl> <OOFUrl>server/ews/exchange. asmx</OOFUrl> <OABUrl>server/5 ee 6 abf 1 -57 d 3 -42 ed-b 008 -cb 3 b 2 f 2 d 8 c 03 ab</OABUrl> </Protocol> </Account> </Response></Autodiscover>
アクセスする URL https: //<CAS FQDN>/Autodiscover. xml (*1) https: //<smtp-address-domain>/ autodiscover/autodiscover. xml http(s): //autodiscover. <smtp-address-domain>/ autodiscover/autodiscover. xml https: //<DNS SRVレコードで解決した FQDN>/ autodiscover/autodiscover. xml (*2) 例: ktakeda@contoso. com https: //contoso. com/autodiscover. xml https: //autodiscover. contoso. com/ autodiscover/autodiscover. xml *1: ドメイン参加時 *2: KB 939184 (2007 年 6 月 27 日のロールアップ ) または Outlook 2007 SP 1
