PRINCIPLES OF FIREARMS IDENTIFICATION CALIBER DESIGNATIONS Caliber relates to the nominal inside dimensions of the barrel

PRINCIPLES OF FIREARMS IDENTIFICATION FOUR COMMON RIFLING ARRANGEMENTS 4 Rt 5 Rt 6 Rt Direction of Rotation 6 Lt

PRINCIPLES OF FIREARMS IDENTIFICATION: Class Characteristics Imparted to Fired Bullets RIGHT TWIST LEFT TWIST

Examples of Fired Bullets Right Twist Left Twist

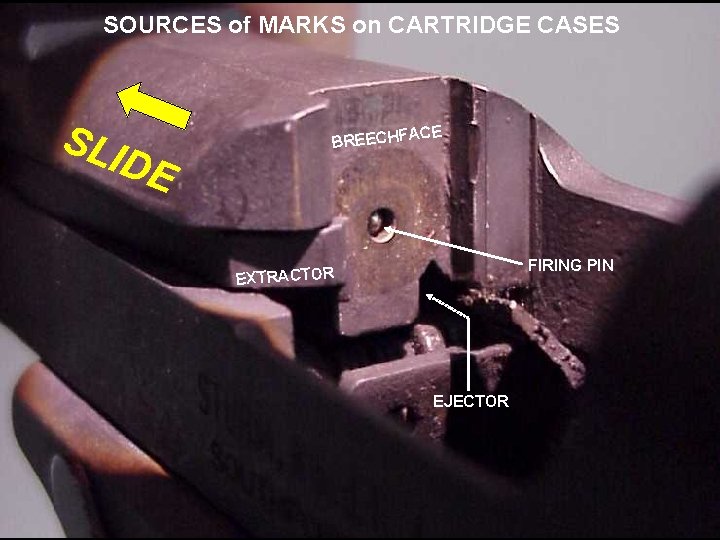

SOURCES of MARKS on CARTRIDGE CASES SLI DE CE BREECHFA FIRING PIN EXTRACTOR EJECTOR

breechface Support Area for the Cartridge extractor SLIDE removed from a Semi-Automatic Pistol

Live Cartridge loaded from the Magazine Sli de re tra cte d extractor ejector

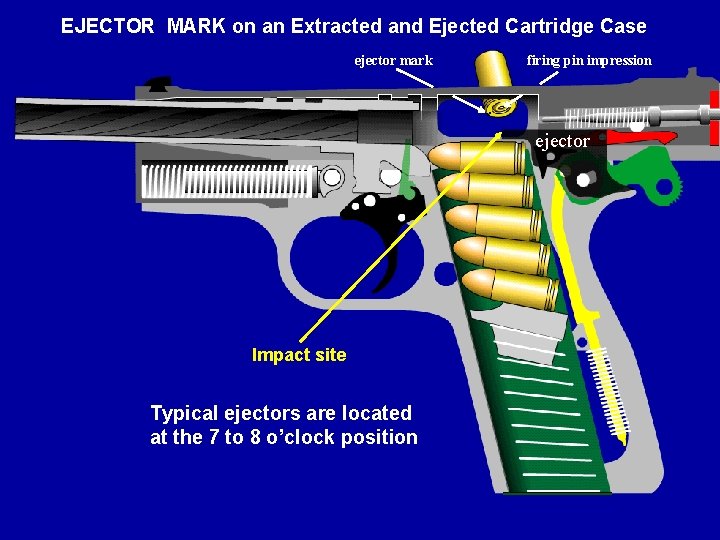

EJECTOR MARK on an Extracted and Ejected Cartridge Case ejector mark firing pin impression ejector Impact site Typical ejectors are located at the 7 to 8 o’clock position

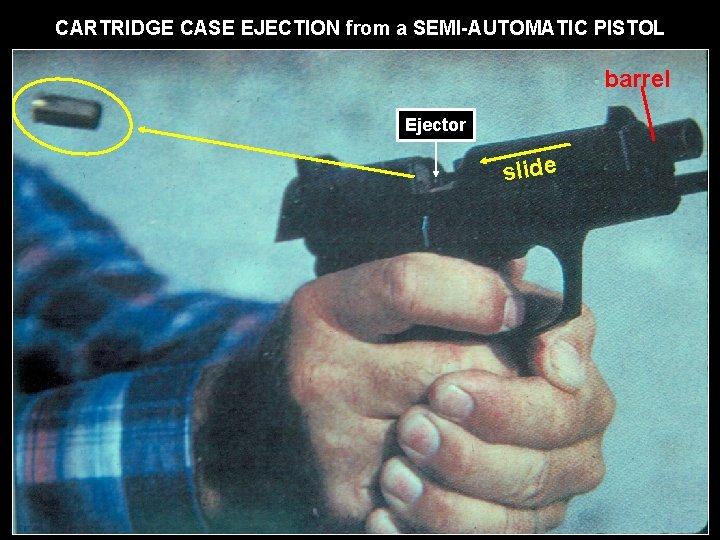

CARTRIDGE CASE EJECTION from a SEMI-AUTOMATIC PISTOL barrel Ejector slide

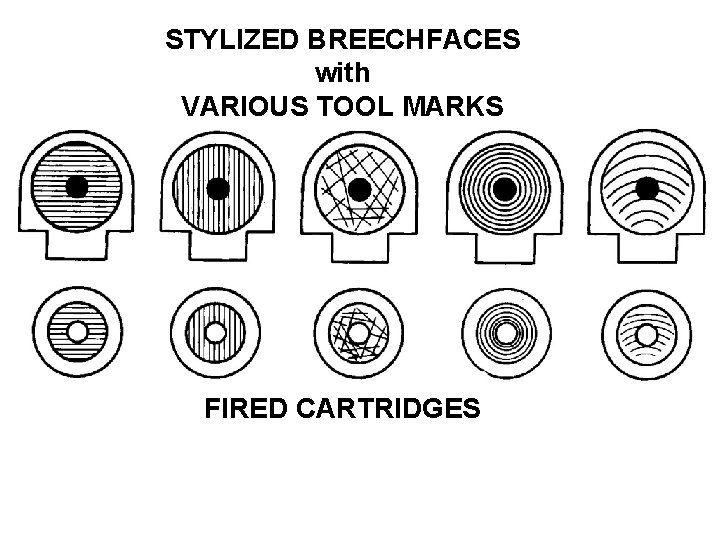

STYLIZED BREECHFACES with VARIOUS TOOL MARKS FIRED CARTRIDGES

STYLIZED BREECHFACES and VARIOUS EJECTOR SHAPES FIRED CARTRIDGES with EJECTOR MARKS

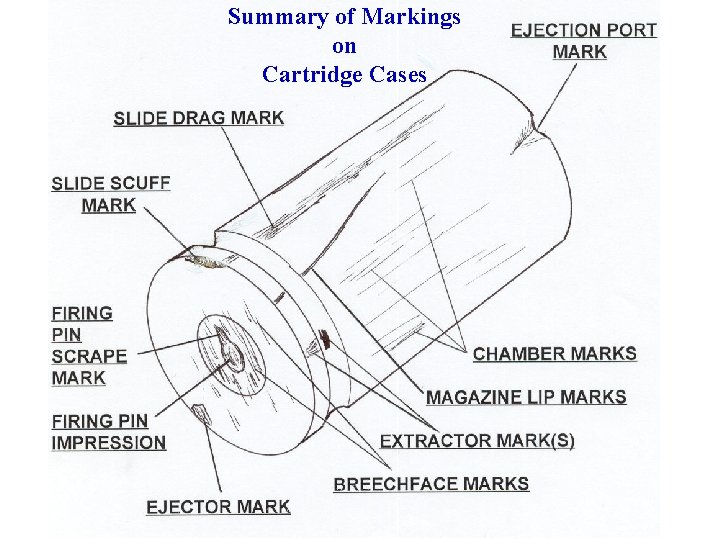

Summary of Markings on Cartridge Cases

BASIC FIREARM and TOOLMARK IDENTIFICATION -end. Lucien C. Haag Criminalist Forensic Science Services, Inc. P. O. Box 5347 Carefree, AZ 85377 haagfssi@aol. com
