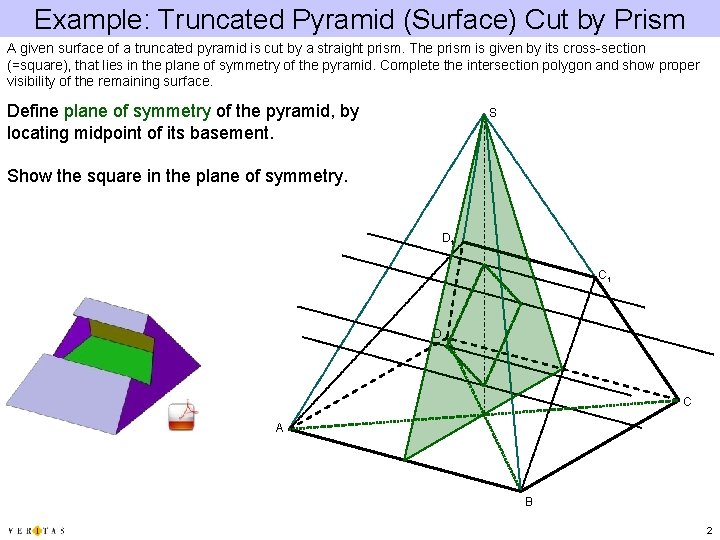

Example: Truncated Pyramid (Surface) Cut by Prism A given surface of a truncated pyramid is cut by a straight prism. The prism is given by its cross-section (=square), that lies in the plane of symmetry of the pyramid. Complete the intersection polygon and show proper visibility of the remaining surface. Define plane of symmetry of the pyramid, by locating midpoint of its basement. S Show the square in the plane of symmetry. D 1 C 1 D C A B 2

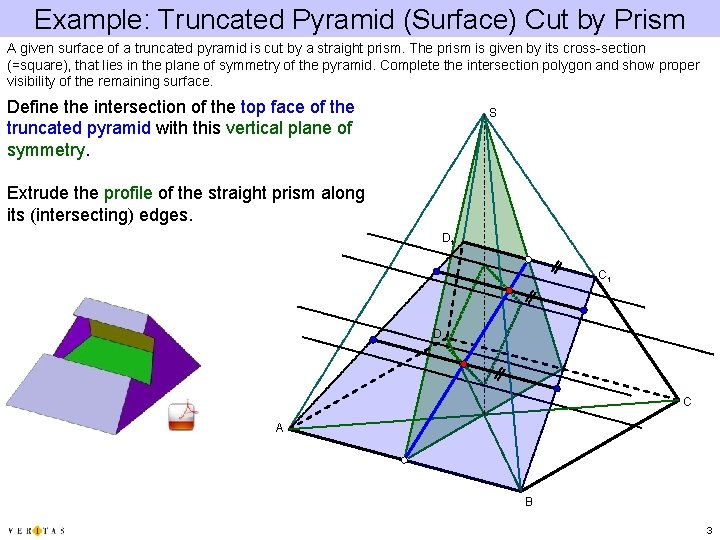

Example: Truncated Pyramid (Surface) Cut by Prism A given surface of a truncated pyramid is cut by a straight prism. The prism is given by its cross-section (=square), that lies in the plane of symmetry of the pyramid. Complete the intersection polygon and show proper visibility of the remaining surface. Define the intersection of the top face of the truncated pyramid with this vertical plane of symmetry. S Extrude the profile of the straight prism along its (intersecting) edges. D 1 C 1 D C A B 3

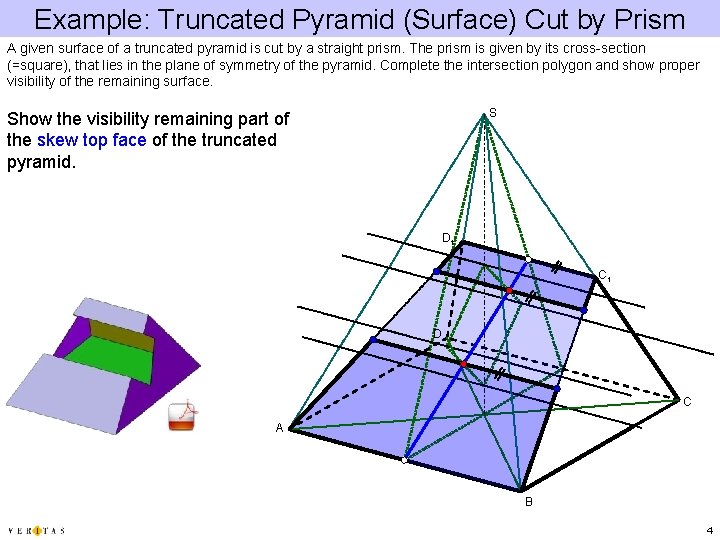

Example: Truncated Pyramid (Surface) Cut by Prism A given surface of a truncated pyramid is cut by a straight prism. The prism is given by its cross-section (=square), that lies in the plane of symmetry of the pyramid. Complete the intersection polygon and show proper visibility of the remaining surface. S Show the visibility remaining part of the skew top face of the truncated pyramid. D 1 C 1 D C A B 4

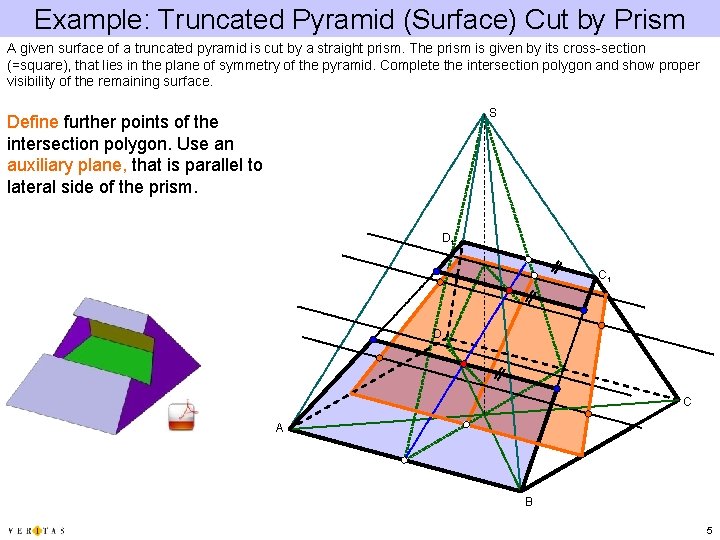

Example: Truncated Pyramid (Surface) Cut by Prism A given surface of a truncated pyramid is cut by a straight prism. The prism is given by its cross-section (=square), that lies in the plane of symmetry of the pyramid. Complete the intersection polygon and show proper visibility of the remaining surface. S Define further points of the intersection polygon. Use an auxiliary plane, that is parallel to lateral side of the prism. D 1 C 1 D C A B 5

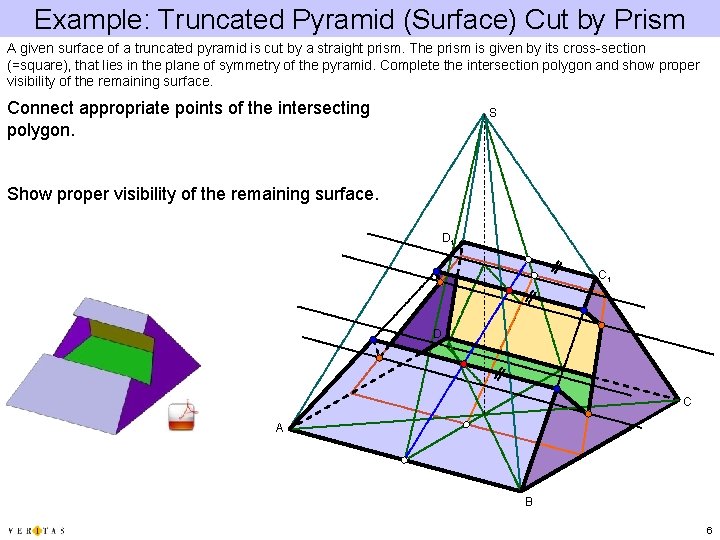

Example: Truncated Pyramid (Surface) Cut by Prism A given surface of a truncated pyramid is cut by a straight prism. The prism is given by its cross-section (=square), that lies in the plane of symmetry of the pyramid. Complete the intersection polygon and show proper visibility of the remaining surface. Connect appropriate points of the intersecting polygon. S Show proper visibility of the remaining surface. D 1 C 1 D C A B 6
