Example: Intersection of Cylinder with Plane- Development A truncated cylinder is given by its plan and front view. Complete the profile view of the truncated cylinder. Determine the true size and shape of the top face (= intersection curve) and define the development of the truncated cylinder. ellipse e The intersection curve is …………. The midpoint M 2 of the ellipse lies on the rotational axis of the cylinder. A‘‘‘ D‘‘‘ M 2‘‘‘ e‘‘ C‘‘‘ M 2‘‘= C‘‘= D‘‘ Locate M 2 in the profile view. A and B are the major vertices of the ellipse. B‘‘‘ M 1‘‘ C‘ Define minor vertices C and D. Construct the intersection curve (= ellipse) in the profile view. Define the outline generatrices in the profile view. A‘ M 1‘ = M 2‘ p 1‘‘ = p 2‘ B‘ e‘ D‘ 2

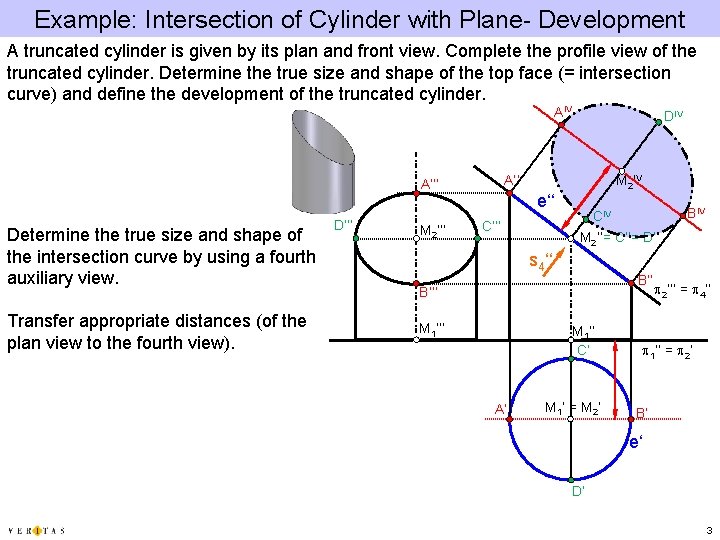

Example: Intersection of Cylinder with Plane- Development A truncated cylinder is given by its plan and front view. Complete the profile view of the truncated cylinder. Determine the true size and shape of the top face (= intersection curve) and define the development of the truncated cylinder. AIV A‘‘‘ Determine the true size and shape of the intersection curve by using a fourth auxiliary view. Transfer appropriate distances (of the plan view to the fourth view). D‘‘‘ M 2‘‘‘ DIV M 2 IV e‘‘ C‘‘‘ M 2‘‘= C‘‘= D‘‘ s 4‘‘ B‘‘‘ M 1‘‘ C‘ A‘ BIV CIV M 1‘ = M 2‘ p 2‘‘‘ = p 4‘‘ p 1‘‘ = p 2‘ B‘ e‘ D‘ 3

Example: Intersection of Cylinder with Plane- Development A truncated cylinder is given by its plan and front view. Complete the profile view of the truncated cylinder. Determine the true size and shape of the top face (= intersection curve) and define the development of the truncated cylinder. AIV A‘‘‘ D‘‘‘ M 2‘‘‘ DIV M 2 IV e‘‘ C‘‘‘ M 2‘‘= C‘‘= D‘‘ B‘‘‘ M 1‘‘ C‘ A‘ 3, 5 BIV CIV M 1‘ = M 2‘ p 2‘‘‘ = p 4‘‘ p 1‘‘ = p 2‘ B‘ e‘ 2 2 r 1 D‘ p 2 p 6, 28 11 U= 2 rp 4

Example: Intersection of Cylinder with Plane- Development A truncated cylinder is given by its plan and front view. Complete the profile view of the truncated cylinder. Determine the true size and shape of the top face (= intersection curve) and define the development of the truncated cylinder. AIV Divide the circumference into eight equal parts. A‘‘‘ D‘‘‘ M 2‘‘‘ DIV M 2 IV e‘‘ C‘‘‘ M 2‘‘= C‘‘= D‘‘ B‘‘‘ M 1‘‘ C‘ A‘ 2 r BIV CIV M 1‘ = M 2‘ p 2‘‘‘ = p 4‘‘ p 1‘‘ = p 2‘ B‘ e‘ 2 D‘ 2 p 6, 28 2 rp 5

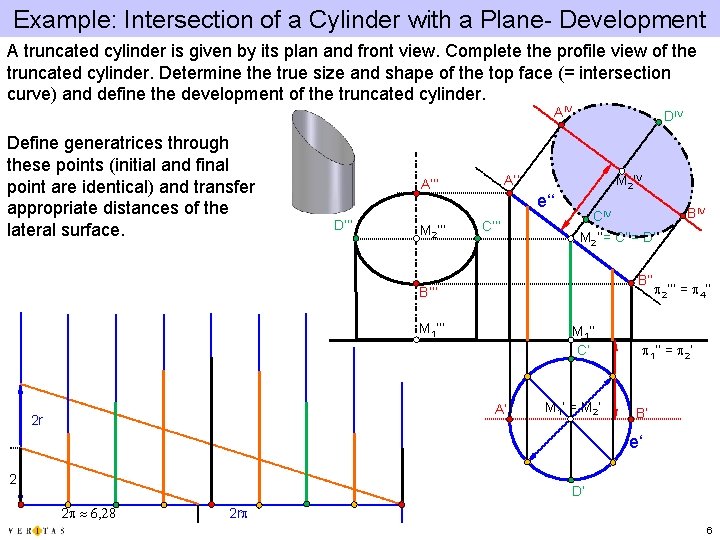

Example: Intersection of a Cylinder with a Plane- Development A truncated cylinder is given by its plan and front view. Complete the profile view of the truncated cylinder. Determine the true size and shape of the top face (= intersection curve) and define the development of the truncated cylinder. AIV Define generatrices through these points (initial and final point are identical) and transfer appropriate distances of the lateral surface. A‘‘‘ D‘‘‘ M 2‘‘‘ DIV M 2 IV e‘‘ C‘‘‘ M 2‘‘= C‘‘= D‘‘ B‘‘‘ M 1‘‘ C‘ A‘ 2 r BIV CIV M 1‘ = M 2‘ p 2‘‘‘ = p 4‘‘ p 1‘‘ = p 2‘ B‘ e‘ 2 D‘ 2 p 6, 28 2 rp 6

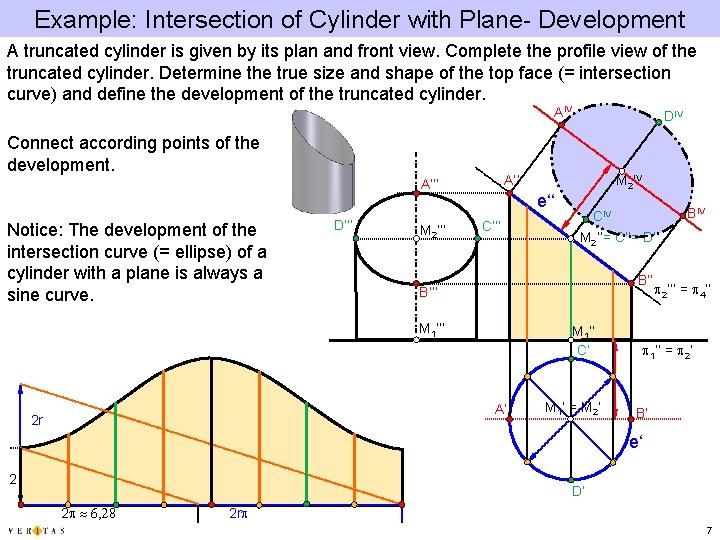

Example: Intersection of Cylinder with Plane- Development A truncated cylinder is given by its plan and front view. Complete the profile view of the truncated cylinder. Determine the true size and shape of the top face (= intersection curve) and define the development of the truncated cylinder. AIV Connect according points of the development. A‘‘‘ Notice: The development of the intersection curve (= ellipse) of a cylinder with a plane is always a sine curve. D‘‘‘ M 2 IV e‘‘ C‘‘‘ BIV CIV M 2‘‘= C‘‘= D‘‘ B‘‘‘ M 1‘‘ C‘ A‘ 2 r DIV M 1‘ = M 2‘ p 2‘‘‘ = p 4‘‘ p 1‘‘ = p 2‘ B‘ e‘ 2 D‘ 2 p 6, 28 2 rp 7
