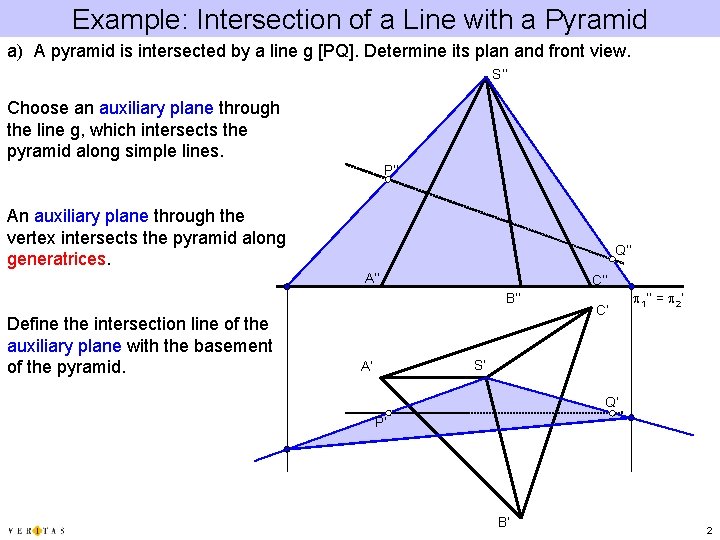

Example: Intersection of a Line with a Pyramid a) A pyramid is intersected by a line g [PQ]. Determine its plan and front view. S‘‘ Choose an auxiliary plane through the line g, which intersects the pyramid along simple lines. P‘‘ An auxiliary plane through the vertex intersects the pyramid along generatrices. Q‘‘ A‘‘ C‘‘ B‘‘ Define the intersection line of the auxiliary plane with the basement of the pyramid. C‘ p 1’’ = p 2’ S‘ A‘ Q‘ P‘ B‘ 2

Example: Intersection of a Line with a Pyramid a) A pyramid is intersected by a line g [PQ]. Determine its plan and front view. S‘‘ Define the intercepts of the intersection line with the basement of the pyramid. P‘‘ Define the according generatrices of the pyramid through these intercepts. Construct the intercepts of these generatrices with line g. Q‘‘ A‘‘ C‘‘ B‘‘ C‘ p 1’’ = p 2’ S‘ A‘ Q‘ P‘ B‘ 3

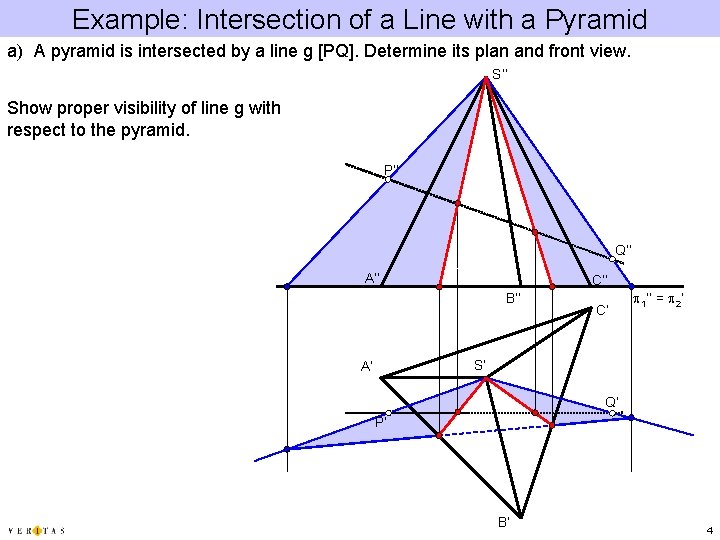

Example: Intersection of a Line with a Pyramid a) A pyramid is intersected by a line g [PQ]. Determine its plan and front view. S‘‘ Show proper visibility of line g with respect to the pyramid. P‘‘ Q‘‘ A‘‘ C‘‘ B‘‘ C‘ p 1’’ = p 2’ S‘ A‘ Q‘ P‘ B‘ 4

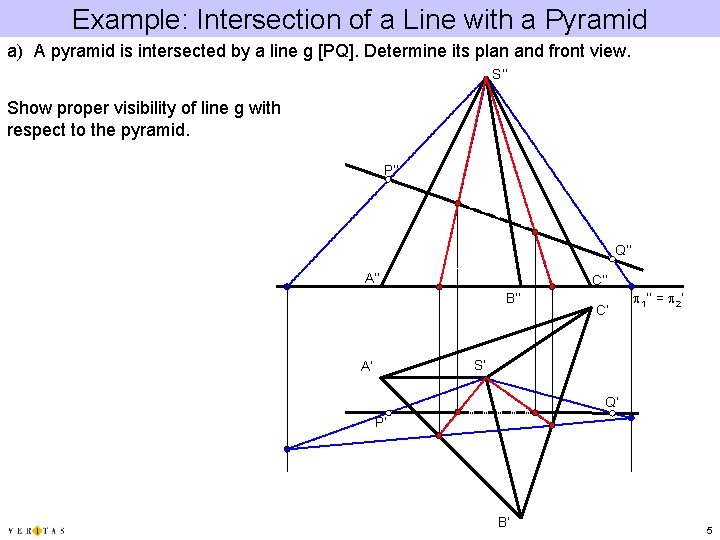

Example: Intersection of a Line with a Pyramid a) A pyramid is intersected by a line g [PQ]. Determine its plan and front view. S‘‘ Show proper visibility of line g with respect to the pyramid. P‘‘ Q‘‘ A‘‘ C‘‘ B‘‘ C‘ p 1’’ = p 2’ S‘ A‘ Q‘ P‘ B‘ 5

Example: Intersection of a Line with a Pyramid b) A pyramid is intersected by a line g [PQ]. Determine its plan and front view. Choose an auxiliary plane through the line g, which intersects the pyramid along simple lines. An auxiliary plane through the vertex intersects the pyramid along generatrices. Define the intersection line of the auxiliary plane with the basement of the pyramid. S‘‘ P‘‘ Define the intercepts of the intersection line with the basement of the pyramid. Define the according generatrices of the pyramid through these intercepts. Q‘‘ p 1’’ = p 2’ Construct the intercepts of these generatrices with line g. P‘ S‘ Q‘ 6

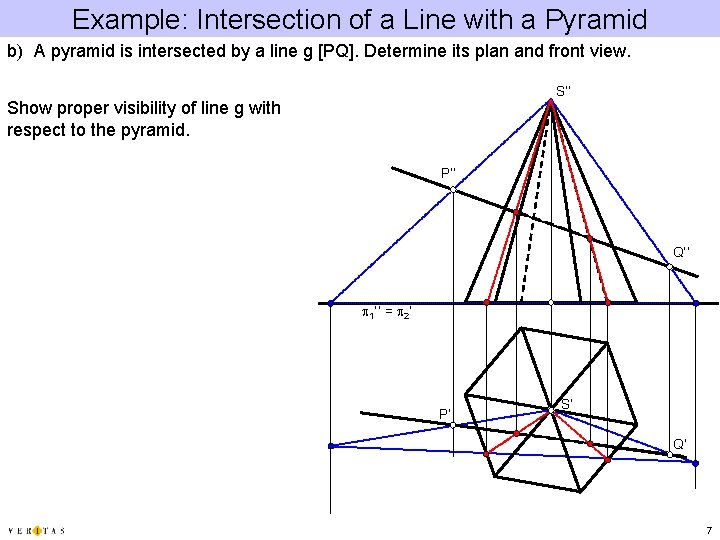

Example: Intersection of a Line with a Pyramid b) A pyramid is intersected by a line g [PQ]. Determine its plan and front view. S‘‘ Show proper visibility of line g with respect to the pyramid. P‘‘ Q‘‘ p 1’’ = p 2’ P‘ S‘ Q‘ 7
