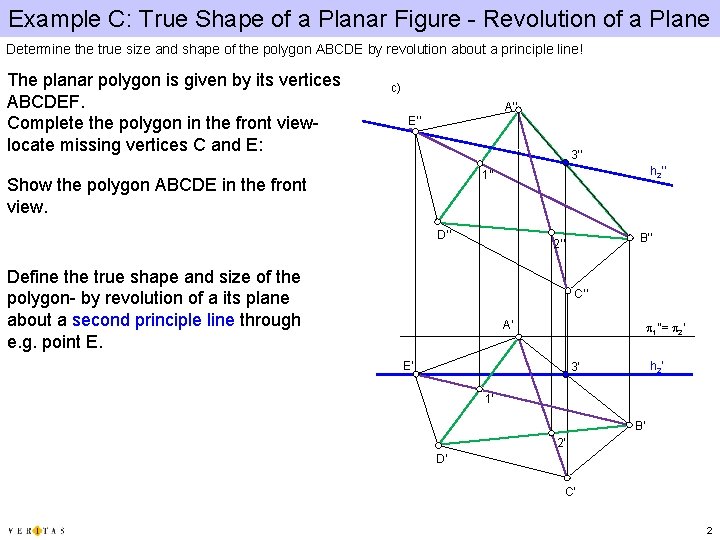

Example C: True Shape of a Planar Figure - Revolution of a Plane Determine the true size and shape of the polygon ABCDE by revolution about a principle line! The planar polygon is given by its vertices ABCDEF. Complete the polygon in the front viewlocate missing vertices C and E: c) Α‘‘ E’’ 3’’ h 2‘‘ 1’’ Show the polygon ABCDE in the front view. D‘‘ B‘‘ 2’’ Define the true shape and size of the polygon- by revolution of a its plane about a second principle line through e. g. point E. C’’ Α‘ p 1’’= p 2’ E‘ h 2‘ 3‘ 1‘ B‘ 2‘ D‘ C‘ 2

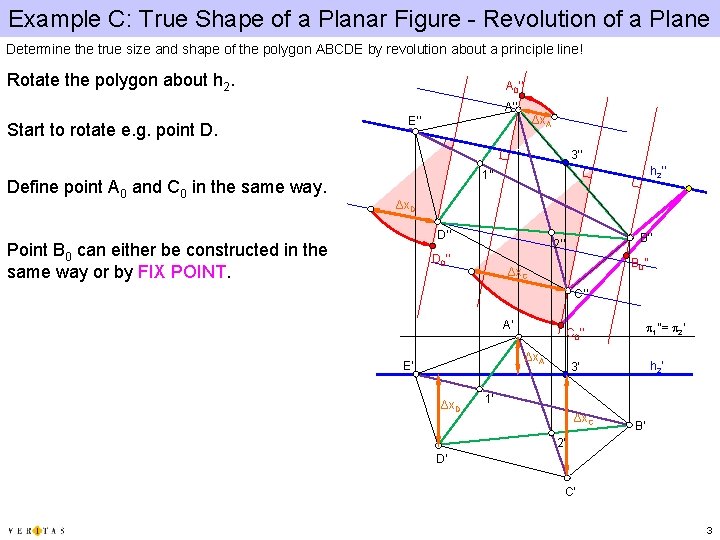

Example C: True Shape of a Planar Figure - Revolution of a Plane Determine the true size and shape of the polygon ABCDE by revolution about a principle line! Rotate the polygon about h 2. A 0’’ Α‘‘ Start to rotate e. g. point D. Δx. A E’’ 3’’ Define point A 0 and C 0 in the same way. h 2‘‘ 1’’ Δx. D D‘‘ Point B 0 can either be constructed in the same way or by FIX POINT. B‘‘ 2’’ D 0’’ B 0’’ Δx. C C’’ Α‘ C 0’’ Δx. A E‘ Δx. D p 1’’= p 2’ h 2‘ 3‘ 1‘ Δx. C B‘ 2‘ D‘ C‘ 3

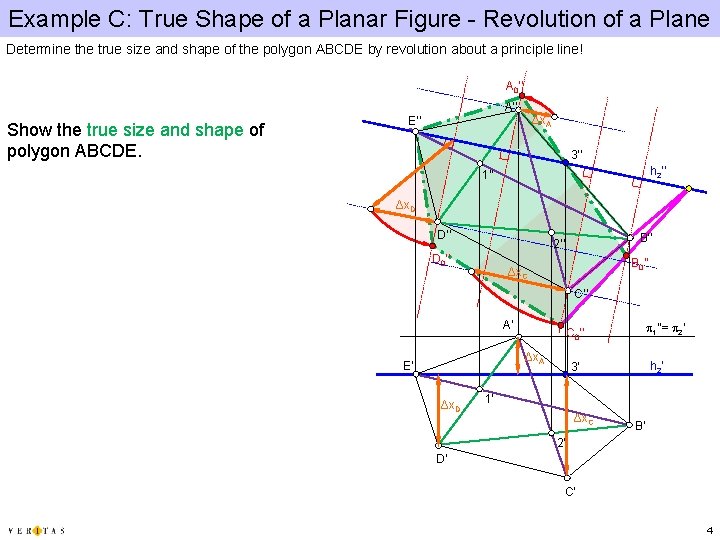

Example C: True Shape of a Planar Figure - Revolution of a Plane Determine the true size and shape of the polygon ABCDE by revolution about a principle line! A 0’’ Α‘‘ Show the true size and shape of polygon ABCDE. Δx. A E’’ 3’’ h 2‘‘ 1’’ Δx. D D‘‘ B‘‘ 2’’ D 0’’ B 0’’ Δx. C C’’ Α‘ C 0’’ Δx. A E‘ Δx. D p 1’’= p 2’ h 2‘ 3‘ 1‘ Δx. C B‘ 2‘ D‘ C‘ 4

Example D: True Shape of a Planar Figure - Revolution of a Plane Determine the true size and shape of the polygon ABCDE by revolution about a principle line! The planar polygon is given by its vertices ABCDE. Complete the polygon in the plan and front view- locate missing vertices C and E of plane ABD. C’’ B‘‘ D‘‘ 2’’ Locate point E in the plan view. 1‘‘ h 1’’ A‘‘ E’’ Locate point C in the front view. For accuracy use parallel lines. p 1’’= p 2’ Complete the polygon in the plan and front view. Define the true shape and size of the polygon- by revolution of a its plane about a first principle line e. g. line AE. C‘ D‘ 2‘ E‘ B‘ 1‘ A‘ h 1’ 5

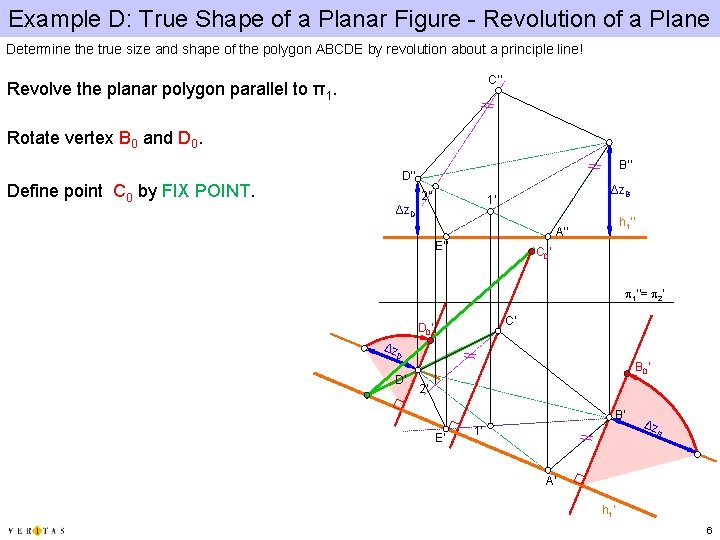

Example D: True Shape of a Planar Figure - Revolution of a Plane Determine the true size and shape of the polygon ABCDE by revolution about a principle line! C’’ Revolve the planar polygon parallel to π1. Rotate vertex B 0 and D 0. Define point C 0 by FIX POINT. B‘‘ D‘‘ 2’’ Δz. B 1‘‘ Δz. D h 1’’ A‘‘ E’’ C 0‘ p 1’’= p 2’ C‘ D 0‘ Δz D D‘ B 0‘ 2‘ B‘ E‘ 1‘ Δz B A‘ h 1’ 6

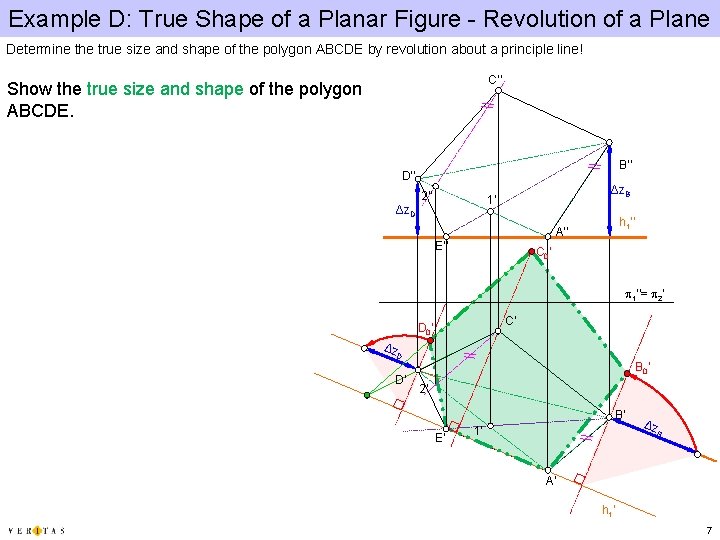

Example D: True Shape of a Planar Figure - Revolution of a Plane Determine the true size and shape of the polygon ABCDE by revolution about a principle line! C’’ Show the true size and shape of the polygon ABCDE. B‘‘ D‘‘ 2’’ Δz. B 1‘‘ Δz. D h 1’’ A‘‘ E’’ C 0‘ p 1’’= p 2’ C‘ D 0‘ Δz D D‘ B 0‘ 2‘ B‘ E‘ 1‘ Δz B A‘ h 1’ 7
