Example A: True Shape of a Planar Figure – Auxiliary View and Rotation Parallel projection pictures a PLANAR figure undistorted, if the planar figure lies parallel to an image plane. a) Triangle ABC lies in a plane, which shows second edge view. Rotate plane ABC about an axis, which is parallel to p 1 and is imaged as a point in the front view. e. g: axis through point B. Thus the rotated triangle shows true shape and size in the plan view. A‘‘ or e. g. rotational axis through C A 0‘‘ C 0‘ C‘ A‘ B 0‘‘ C‘‘ =C 0‘‘ e‘‘ A 0‘ A‘‘ e‘‘ B‘‘ =B 0‘‘ B‘‘ p 2‘ = p 1‘‘ e‘ C‘ =C 0‘ A 0‘ B‘ =B 0‘ A‘ p 2‘ = p 1‘‘ e‘ B‘ B 0‘ 2

Example B: True Shape of a Planar Figure – Auxiliary View and Rotation Use an auxiliary view to image the plane ABC as an edge. For more details see file: „Project a Plane as an Edge“ C’’ 1’’ A’’ h 1’’ B’’ p 1’’=p 2’ C’ 1’ p 1 ’’’= A’ p 3 ’ h 1’ C’’’ e’’’ A’’’=1’’’=h 1’’’ B’ B’’’ 3

Example B: True Shape of a Planar Figure – Auxiliary View and Rotation Rotate the plane e = (ABC) parallel to p 1. The figure shows true size and shape in the plan view. C’’ h 1’’ A’’ B’’ p 1’’=p 2’ C’ C 0’’’ A’ 1’ p 1 ’’’= p 3 ’ h 1’ C’’’ s 1‘‘‘ A’’’=1’’’=h 1’’’ B’ B’’’ B 0’’’ 4

Example B: True Shape of a Planar Figure – Auxiliary View and Rotation Rotate the plane e = (ABC) parallel to p 1. The figure shows true size and shape in the plan view. Draw respective folding lines. The circles of rotation C → C 0 and B → B 0 lie parallel to p 3 and thus the circles are imaged as circles in the auxiliary view. In the plan view these circles are imaged as edges. Check your accuracy: The triangle ABC must intersect the rotated C 0’’’ triangle A 0 B 0 C 0 in point 1 (which lies on the principle line h 1), because the principle line h 1 is the C’’’ axis of rotation. C’’ h 1’’ A’’ B’’ p 1’’=p 2’ C 0’ C’ A’ 1’ p 1 ’’’= p 3 ’ h 1’ e’’’ A’’’=1’’’=h 1’’’ B’ B 0’ s 1‘‘‘ B’’’ B 0’’’ 5

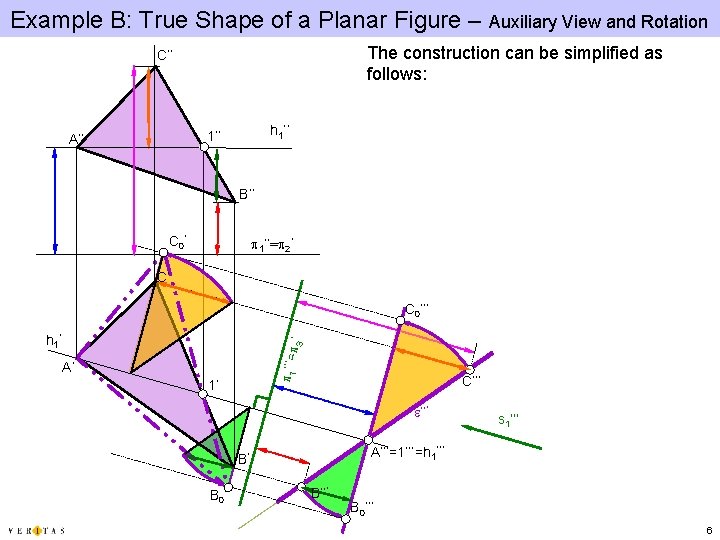

Example B: True Shape of a Planar Figure – Auxiliary View and Rotation The construction can be simplified as follows: C’’ h 1’’ A’’ B’’ C 0’ p 1’’=p 2’ C’ C 0’’’ p 1 ’’’= p 3 ’ h 1’ A’ 1’ C’’’ e’’’ A’’’=1’’’=h 1’’’ B’ B 0’ s 1‘‘‘ B’’’ B 0’’’ 6

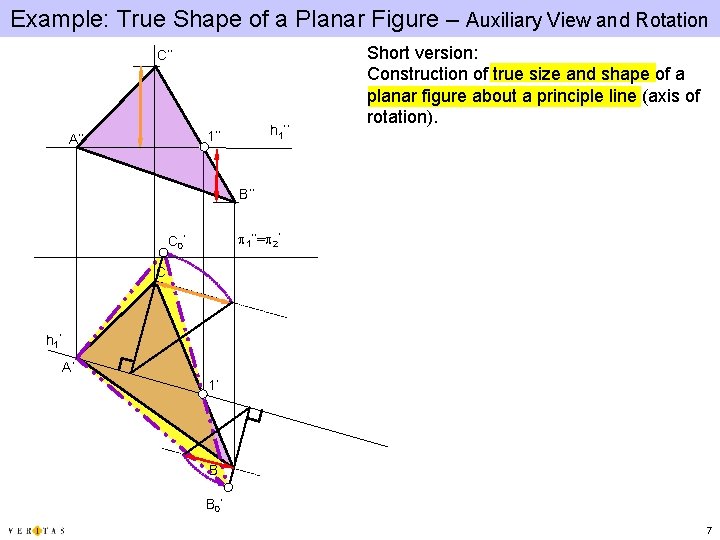

Example: True Shape of a Planar Figure – Auxiliary View and Rotation C’’ h 1’’ A’’ Short version: Construction of true size and shape of a planar figure about a principle line (axis of rotation). B’’ p 1’’=p 2’ C 0’ C’ h 1’ A’ 1’ B’ B 0’ 7
