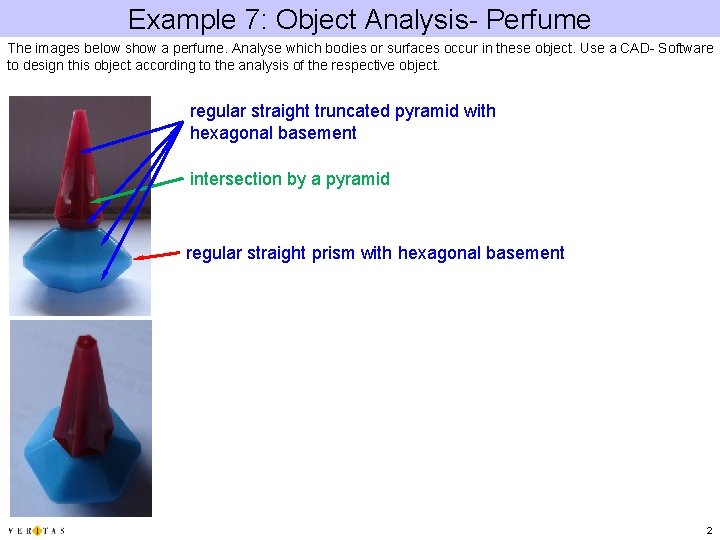

Example 7: Object Analysis- Perfume The images below show a perfume. Analyse which bodies or surfaces occur in these object. Use a CAD- Software to design this object according to the analysis of the respective object. regular straight truncated pyramid with hexagonal basement intersection by a pyramid regular straight prism with hexagonal basement 2

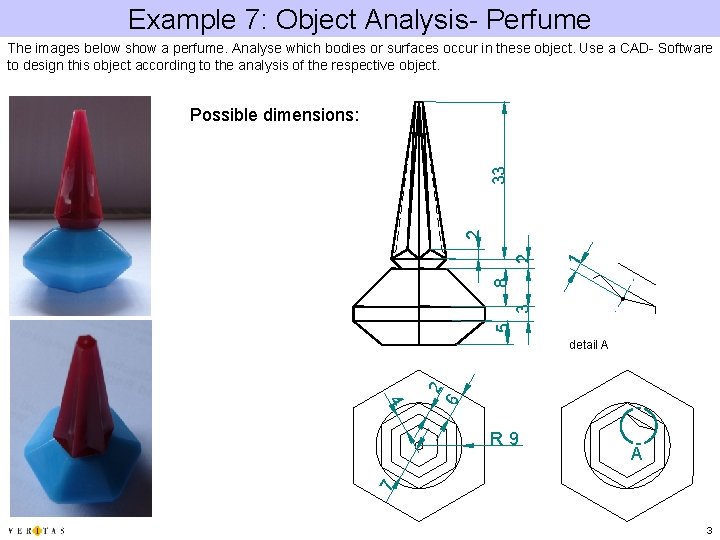

Example 7: Object Analysis- Perfume The images below show a perfume. Analyse which bodies or surfaces occur in these object. Use a CAD- Software to design this object according to the analysis of the respective object. 1 5 3 8 2 2 33 Possible dimensions: A 4 6 2 detail A Einzelheit A 7 R 9 3

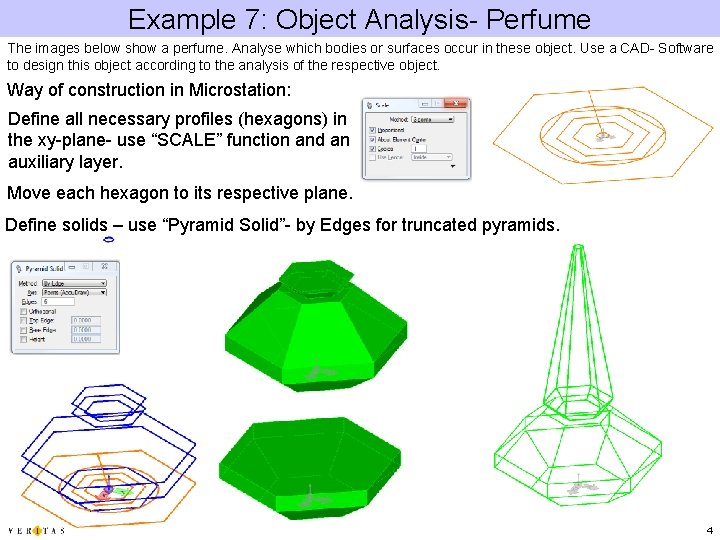

Example 7: Object Analysis- Perfume The images below show a perfume. Analyse which bodies or surfaces occur in these object. Use a CAD- Software to design this object according to the analysis of the respective object. Way of construction in Microstation: Define all necessary profiles (hexagons) in the xy-plane- use “SCALE” function and an auxiliary layer. Move each hexagon to its respective plane. Define solids – use “Pyramid Solid”- by Edges for truncated pyramids. 4
Example 7: Object Analysis- Perfume The images below show a perfume. Analyse which bodies or surfaces occur in these object. Use a CAD- Software to design this object according to the analysis of the respective object. Way of construction in Microstation: Define lateral faces of the upper pyramid - each are cut by a skew pyramid. Use an auxiliary construction to be able to locate the apex of the skew pyramid. Construct the basement of the skew solid as smartlineuse snaps for accuracy. Determine skew pyramid: Apply “SOLIDS by Extrusion (x- and y-scale=0)”. Change (new) layer for the skew pyramid. 5

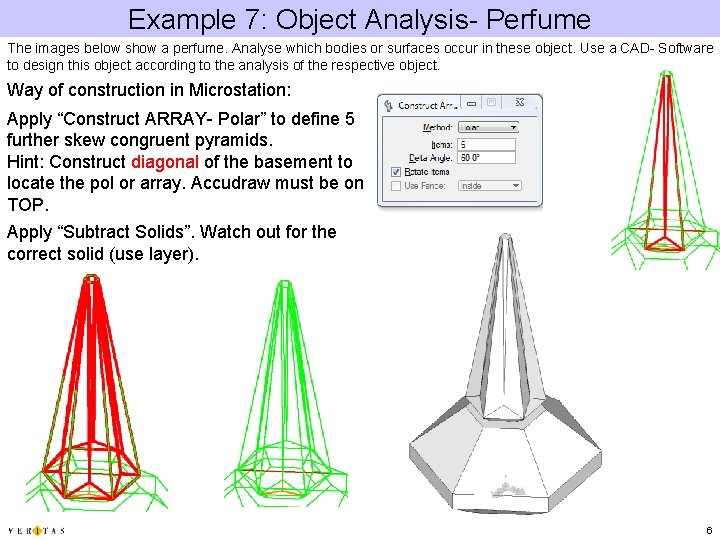

Example 7: Object Analysis- Perfume The images below show a perfume. Analyse which bodies or surfaces occur in these object. Use a CAD- Software to design this object according to the analysis of the respective object. Way of construction in Microstation: Apply “Construct ARRAY- Polar” to define 5 further skew congruent pyramids. Hint: Construct diagonal of the basement to locate the pol or array. Accudraw must be on TOP. Apply “Subtract Solids”. Watch out for the correct solid (use layer). 6
Example 7: Object Analysis- Perfume The images below show a perfume. Analyse which bodies or surfaces occur in these object. Use a CAD- Software to design this object according to the analysis of the respective object. Way of construction in Microstation: Use similar colours for the result. 7
